Product Description

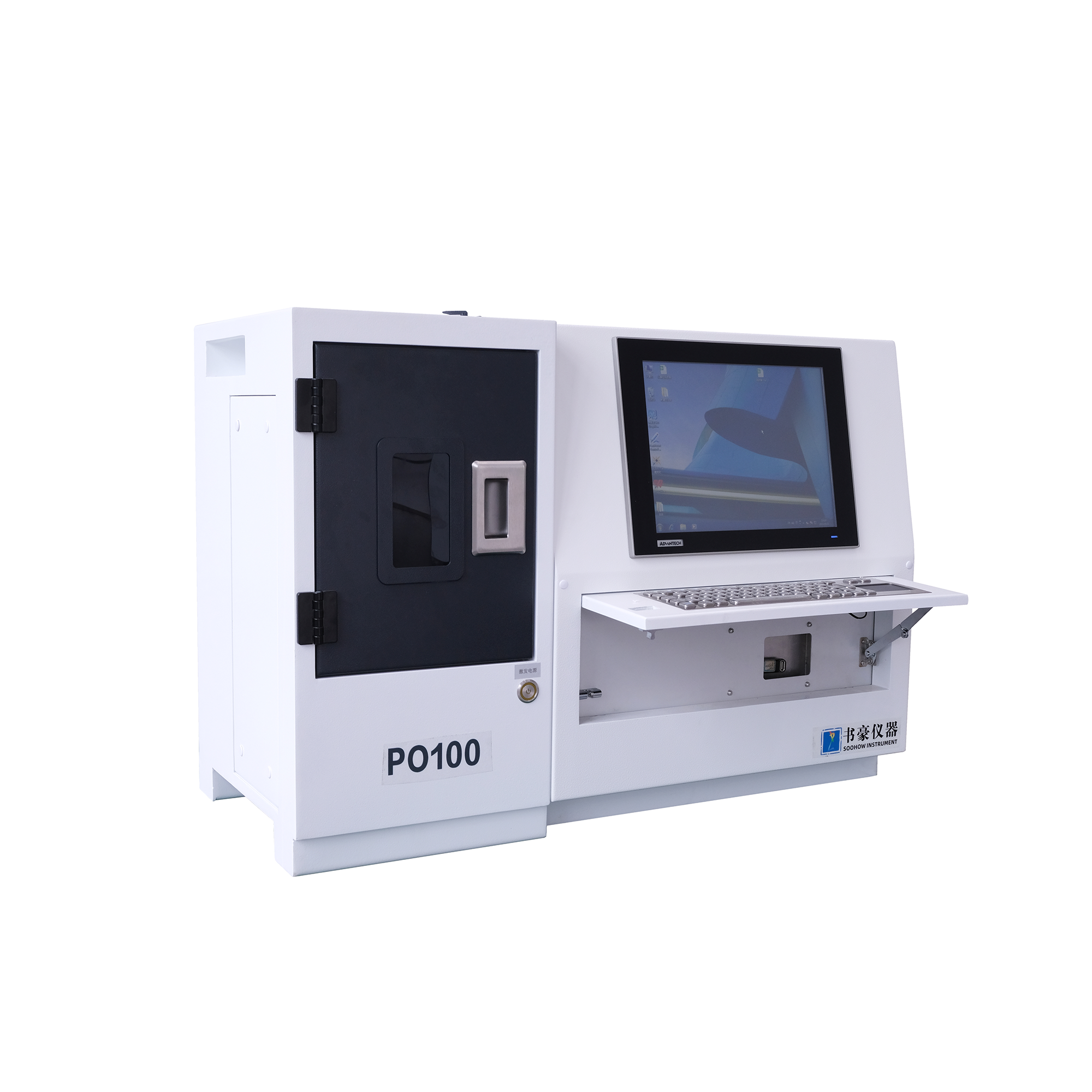

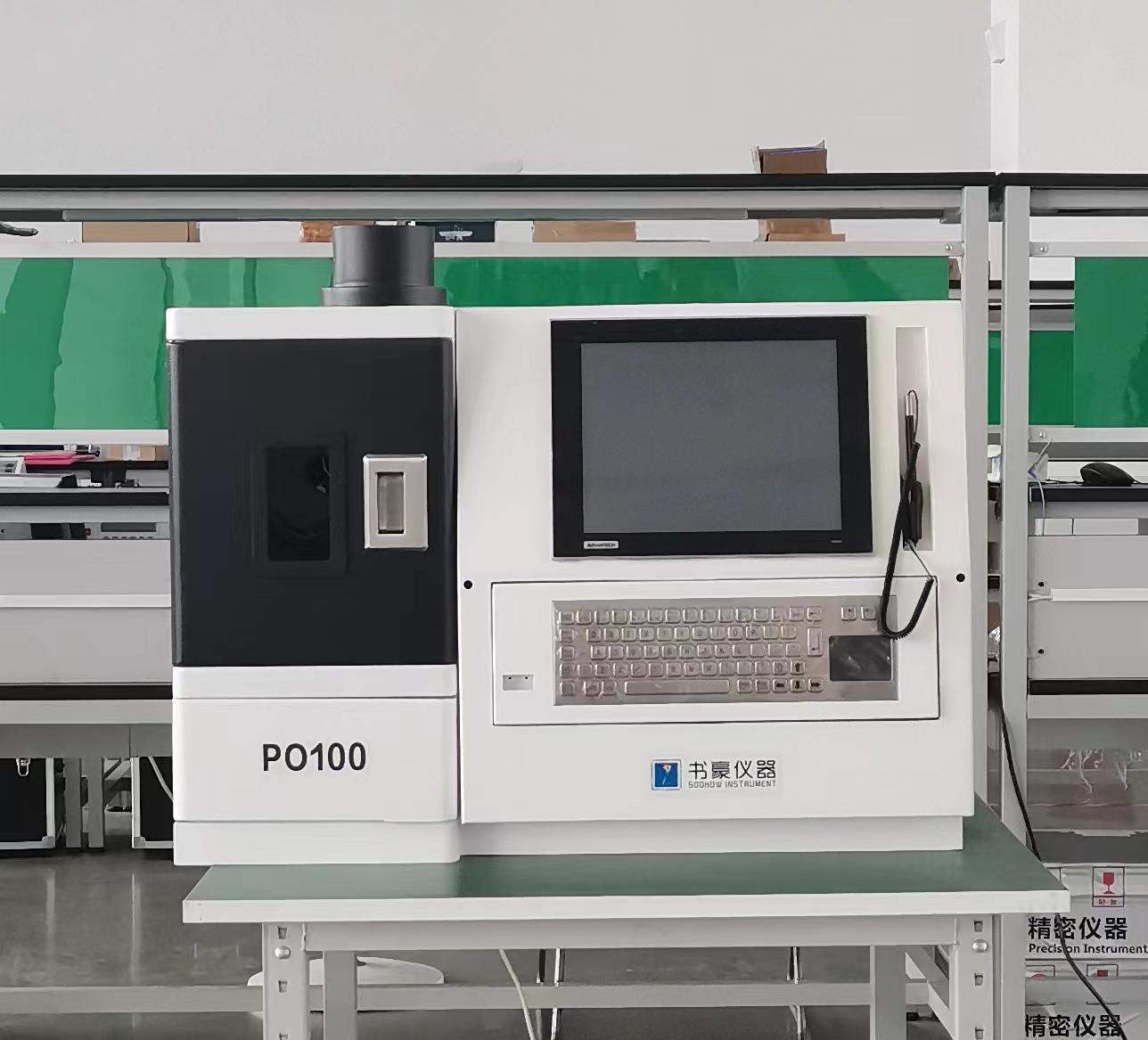

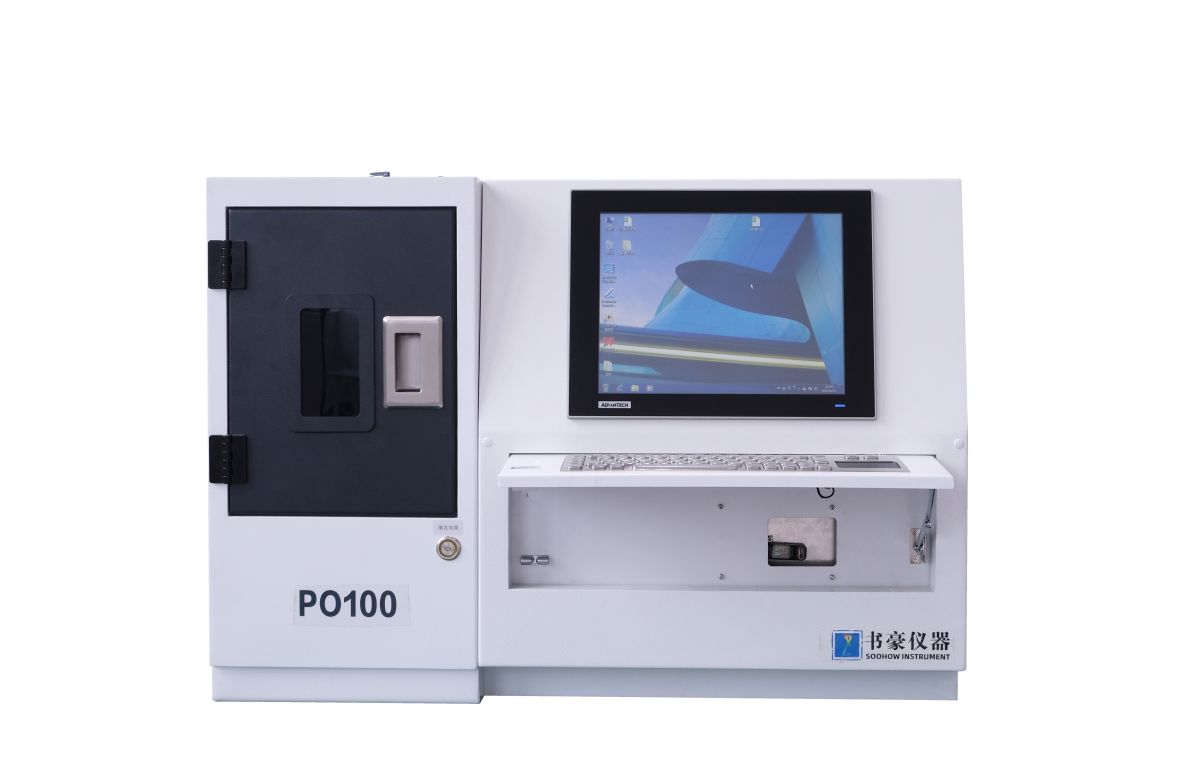

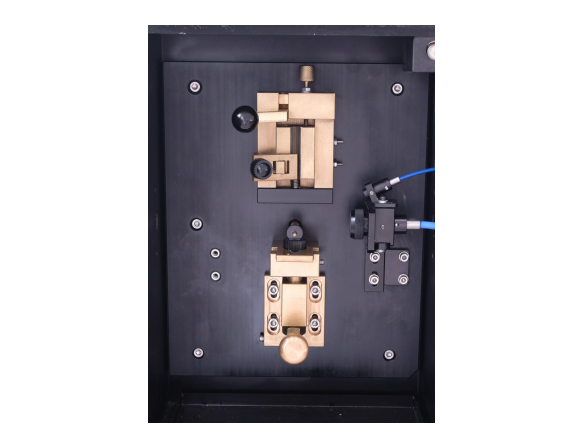

The PO100 is an oil spectral instrument which uses rotating disc electrode atomic emission spectroscopy technology and a new digital light source control system, making it smaller and more lightweight. Professional testing of metal abrasives and pollutants in lubricating oil or hydraulic oil in use, consistent with the requirements of ASTM D6595 standard. Simultaneously comply with ASTM D6728 standard (detection standard for alkaline pollutants in fuel). Oil element spectral analyzer, without the need for dilution of oil, without the need for auxiliary solvents or gases. Analyze multiple abrasive elements simultaneously within 30 seconds, allowing users to quickly detect the oil status of the equipment. The independently developed Oil Spectrometer Analysis Software [WinOil] V1.0 is intuitive and easy to operate, and can analyze multiple elements simultaneously.

Application areas: Military, aviation, railway, ocean fleet, mines, refineries, power plants, oil plants, oil recovery, manufacturing plants, commercial laboratories, racing teams, and any other industry that uses lubricants.

Specification

Product Features

• Patent digital arc light source, solid-state source excitation, ensuring constant current source frequency output, without the need for periodic cleaning or cleaning of excitation source errors.
• Adopting a high-resolution solid-state CCD sensor optical system, with a single pixel of 3648 bits and a pixel size of 8 * 200um, higher pixels can detect more effective spectral intensity.
• Spectral analysis application software based on Windows system, capable of running on Windows 7, Windows 10 and other systems, integrating instrument control, data management, qualitative and quantitative analysis functions.
• Single desktop instrument, computer system and motor grinder are built-in to the instrument, and the overall volume of the instrument is small, making it easy to transport.
• Short heating time, high reliability, suitable for naval environments.
• Without the use of argon, oxygen, and other chemical solvents, the oil sample does not require pre-treatment and can be directly placed in a sample cup for testing.
• Built-in barcode scanner, Bluetooth communication module, and 485 communication interface, no additional configuration required.
