Products Description

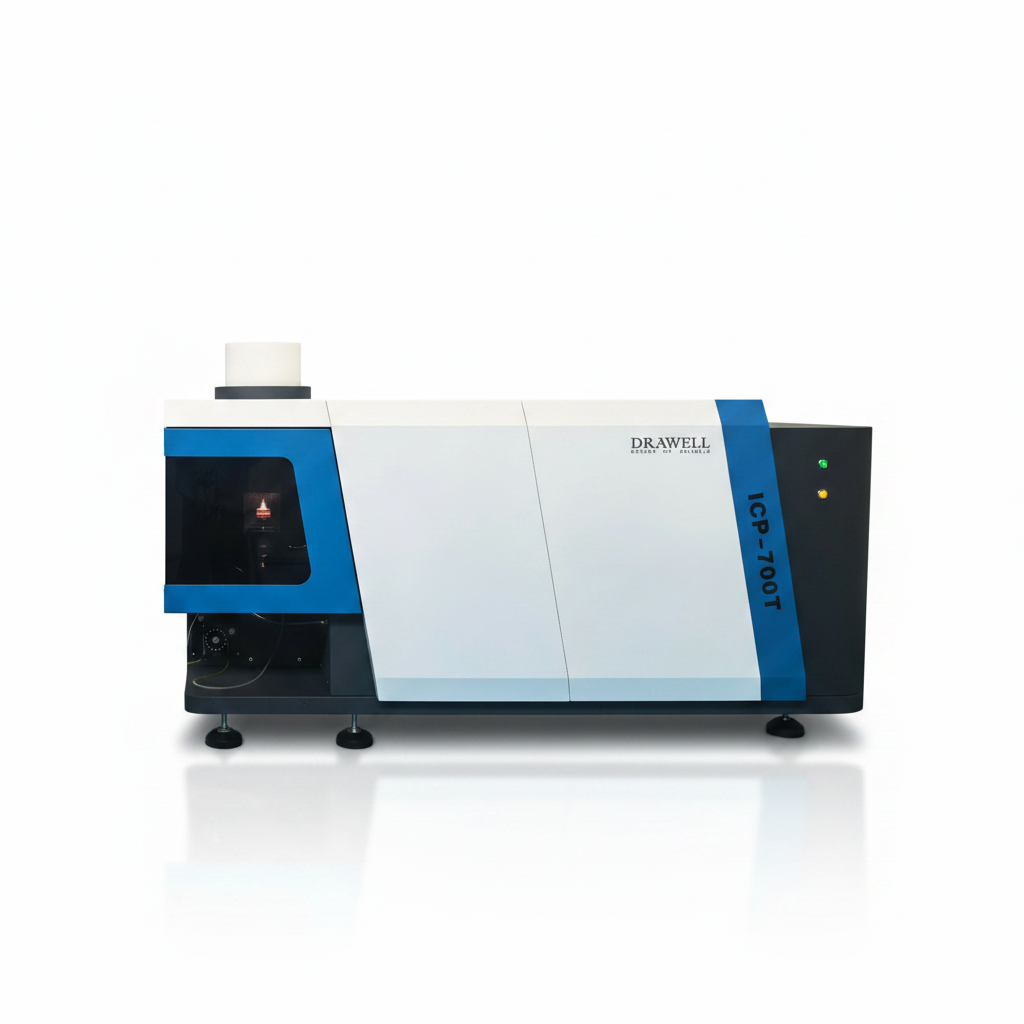

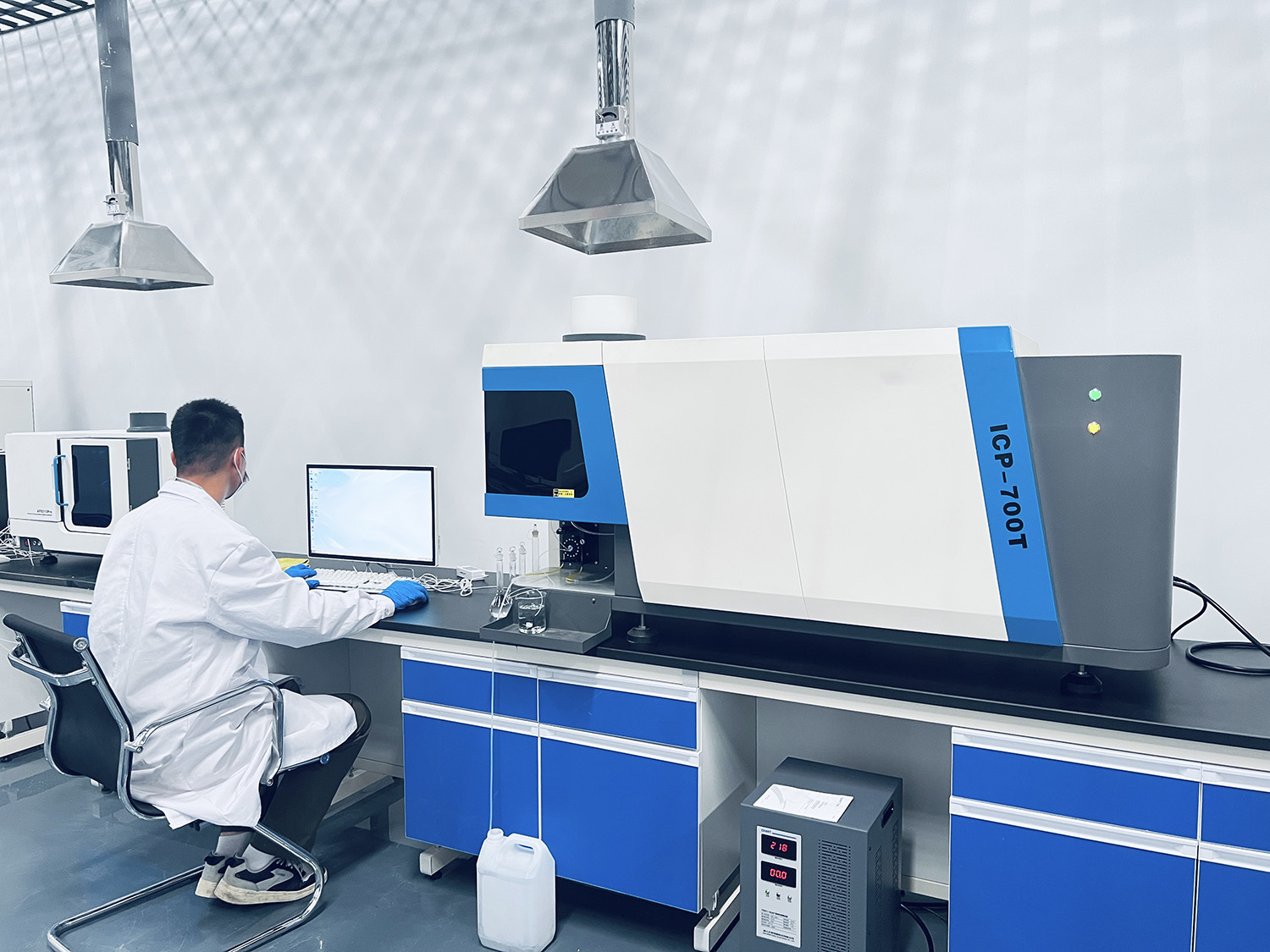

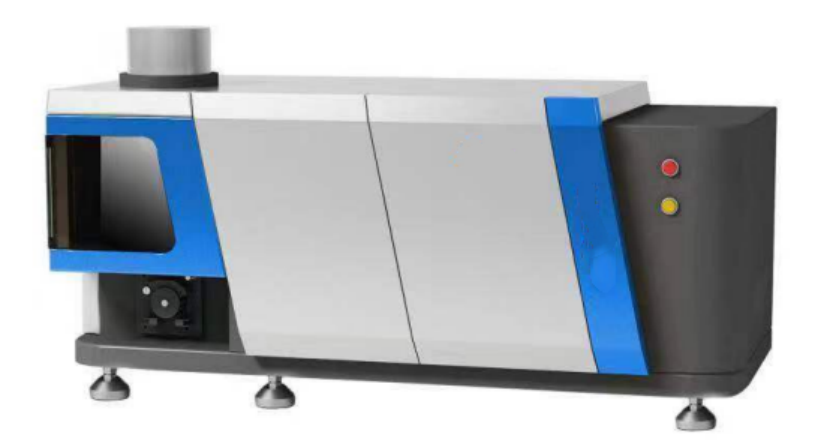

ICP700T Inductively Coupled Plasma Atomic Emission Spectrometer (ICP-AES)
ICP700T Metal Element Analysis ICP Spectrometer Laboratory ICP AES Atomic Emission Spectrometer
ICP700T Inductively Coupled Plasma Emission Spectrometer Introduction
Inductively coupled plasma emission spectrometer, as a professional laboratory analysis instrument, has many characteristics such as testing multiple elements, being able to detect up to 70 elements, fast testing speed, and low detection limit. Mainly used in rare earth industry, silicon industry, petrochemical industry, ore analysis, metal smelting, geological research, drug safety, experimental research, environmental testing and other fields.
Inductively Coupled Plasma Emission Spectrometer is a trace element composition analysis and testing instrument with high sensitivity photomultiplier tubes as detectors. It tests nearly 70 elements and has solid-state RF generator and automatic tuning matching technology; Equipped with a dedicated circulating cooling water system, argon gas conduit, cooling water pipe, and high sensitivity sampling system (high-efficiency atomizer with patented dual barrel atomization chamber).

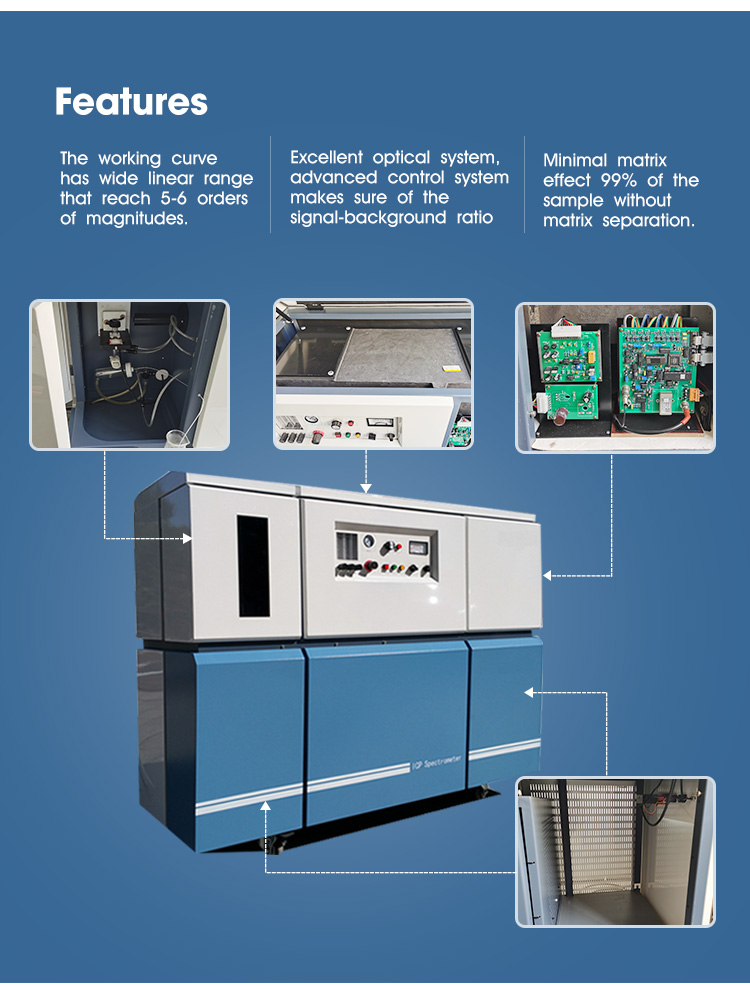

Features
Multiple testing elements
More than 70 elements can be measured, including all metallic elements and the vast majority of non-metallic elements.
Simultaneous testing of multiple elements
Test all elements at once and produce results at once.
Fast analysis speed
Approximately 5 elements per minute, expandable up to 10 elements per minute.
Low detection limit
The detection limit of most elements in solution samples can reach the ppb level.
Wide linear range
Up to 5-6 orders of magnitude, allowing for simultaneous testing of high and low content.
Less chemical interference
There is basically no chemical interference, realtime background deduction, and the test results are more accurate.
Specifications
| Main Technical Parameters |
| Observation system |
desktop, plasma vertical observation system |
| Precision |
2ppm mixed multi-element solution, RSD ≤ 1.5% |
| Stability |
2 hours RSD < 2.0% |
| The detection limit meets the A-level requirements of the national standard |
| Flame adjustment |
The plasma flame can be adjusted in three dimensions: front, back, up, down, left, and right (controlled by a computer) |
| Torch tube |
integrated quartz torch tube |
| Atomizer |
Efficient concentric nebulizer, injection speed 2ml/min |
| Atomization chamber |
Patented extended atomization chamber, optional with swirl atomization chamber and hydrofluoric acid resistant atomization chamber. |
| Split sampling system for real-time observation of sample injection status |
| The mass flow controller controls the argon flow rate, which is continuously adjustable and provides real-time numerical feedback |
| Peristaltic pump fully automatic five channel sixteen roller shaft, continuously adjustable speed |
| Frequency |
27.12MHz Frequency stability ≤ 0.01% |
| Type |
Solid state high-frequency RF generator, fast water cooling, automatic tuning |
| Power |
500W~1600W, continuously adjustable, with an adjustment accuracy of < 1 W, power stability: < 0.01% |
| Using 99.99% argon gas |
| Equipped with reverse power protection function for RF power supply |
| The ignition of plasma is fully automatic control |
| Optical stability |
designed on the same platform as the injection system |
| System type |
Cheney Turner type (C-T type), focal length 1000mm |
| Constant temperature |
Constant temperature of the optical system, temperature stability ±0.1°C |
| Minimum step distance |
Minimum step distance of scanning motor < 0.0004nm |
| Resolution ratio (Mn257.610nm) |
<0.005nm(4320line grating); <0.008nm(3600line grating); <0.015nm(2400line grating); |
| Wavelength range |
190-460nm(4320line grating); 190-500nm(3600line grating); 190-800nm(2400line grating); |
| The best testing conditions for different elements can be set |

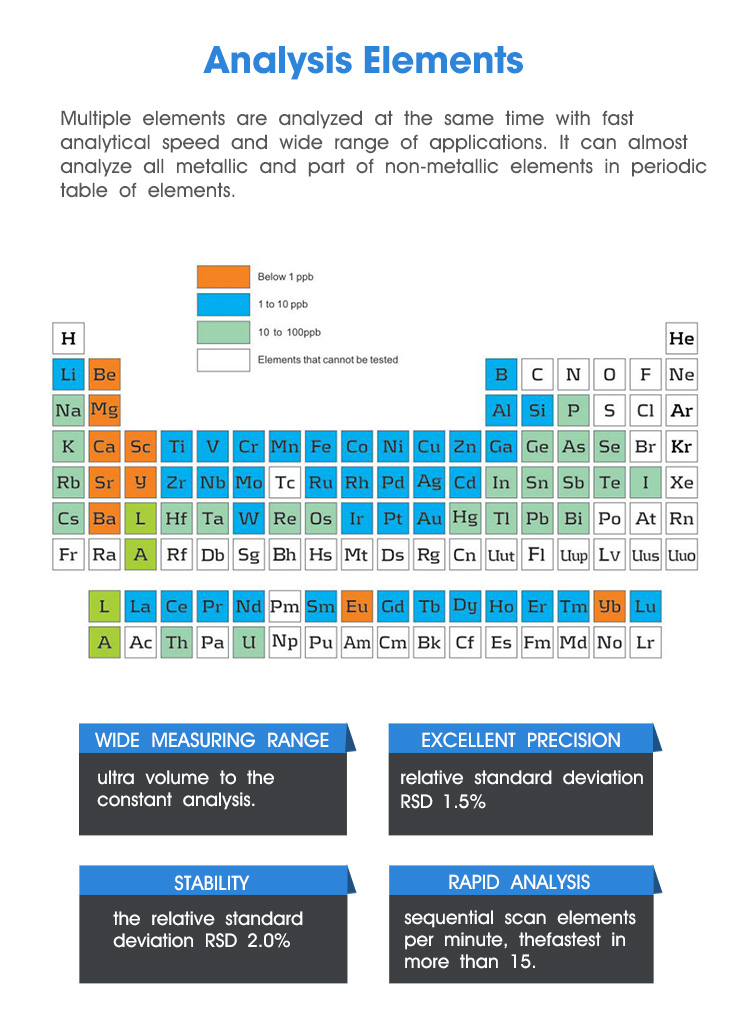

Element Limit of Detection (Unit: ppb & ug/L)
| Element |
Wavelength (nm) |
LOD (ppb) |
Element |
Wavelength (nm) |
LOD (ppb) |
| Ag | 328.068 | 0.3 |
Nd | 401.225 | 1.5 |
| Al | 396.152 | 2 |
Ni | 221.647 | 1 |
| As | 193.696 | 4 |
Na | 588.995 | 29 |
| Au | 242.795 | 1 |
P | 213.618 | 6 |
| B | 249.773 | 1 |
Pb | 220.353 | 5 |
| Ba | 445.403 | 0.1 |
Pd | 340.458 | 2 |
| Be | 313.042 | 0.2 |
Pr | 390.844 | 2 |
| Bi | 223.061 | 5 |
Re | 227.525 | 3 |
| Ca | 396.847 | 0.2 |
Rb | 780.023 | 150 |
| Cd | 214.438 | 0.3 |
Sb | 206.833 | 6 |
| Ce | 413.765 | 1.5 |
Sc | 361.384 | 0.5 |
| Co | 228.616 | 1 |
Se | 196.026 | 8 |
| Cr | 267.716 | 1 |
Si | 251.611 | 5 |
| Cu | 324.754 | 1 |
Sm | 359.260 | 1 |
| Dy | 353.170 | 0.3 |
Sn | 235.484 | 10 |
| Er | 337.271 | 0.3 |
Sr | 407.771 | 0.15 |
| Eu | 381.967 | 0.2 |
Ta | 226.230 | 6 |
| Fe | 238.204 | 1 |
Tb | 350.917 | 1 |
| Ga | 294.364 | 3 |
Ti | 334.941 | 0.2 |
| Gd | 342.247 | 0.5 |
Tl | 261.861 | 5 |
| Hf | 277.336 | 1 |
Tm | 313.126 | 0.3 |
| Ho | 345.600 | 0.5 |
V | 309.418 | 0.5 |
| La | 333.749 | 0.5 |
W | 207.911 | 4 |
| Lu | 261.542 | 0.2 |
Y | 371.030 | 0.2 |
| Mg | 279.553 | 0.2 |
Yb | 328.937 | 0.2 |
| Mn | 257.610 | 0.2 |
Zn | 213.856 | 0.5 |
| Mo | 202.030 | 1 |
Zr | 343.823 | 0.4 |
| Nb | 309.611 | 1 |
K | 766.490 | 60 |
| | |
Cs | 455.531 | 50000 |

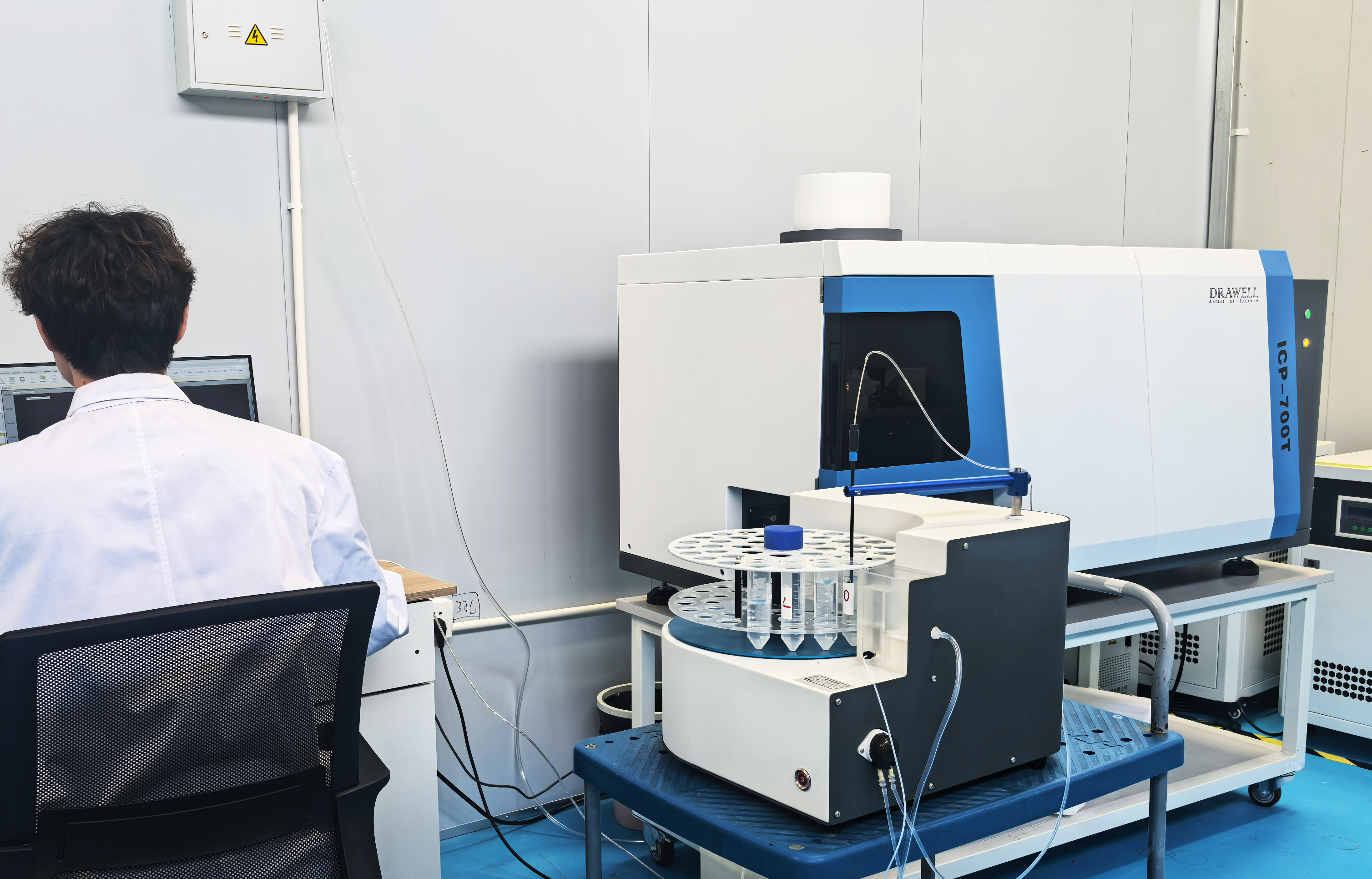

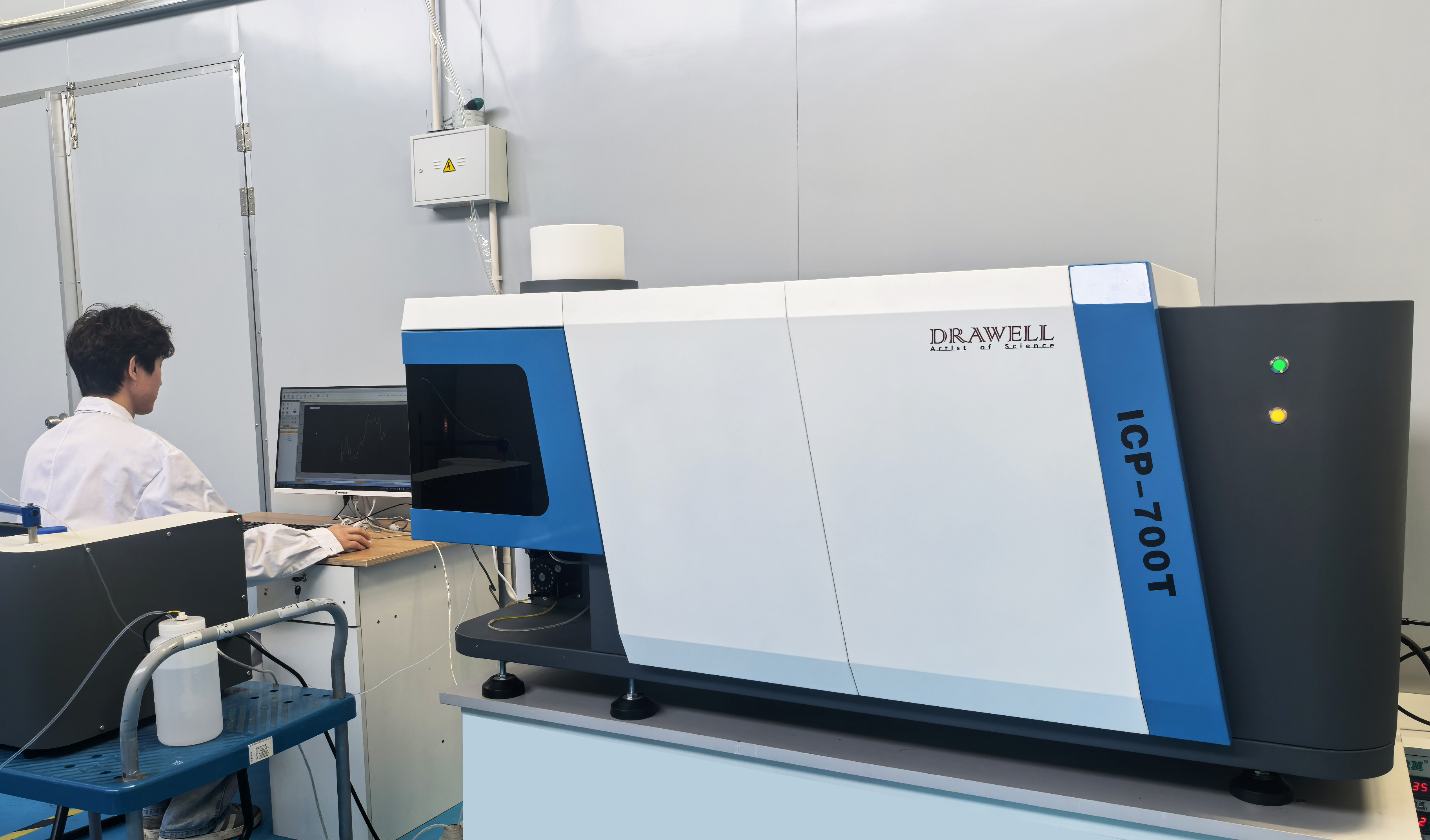

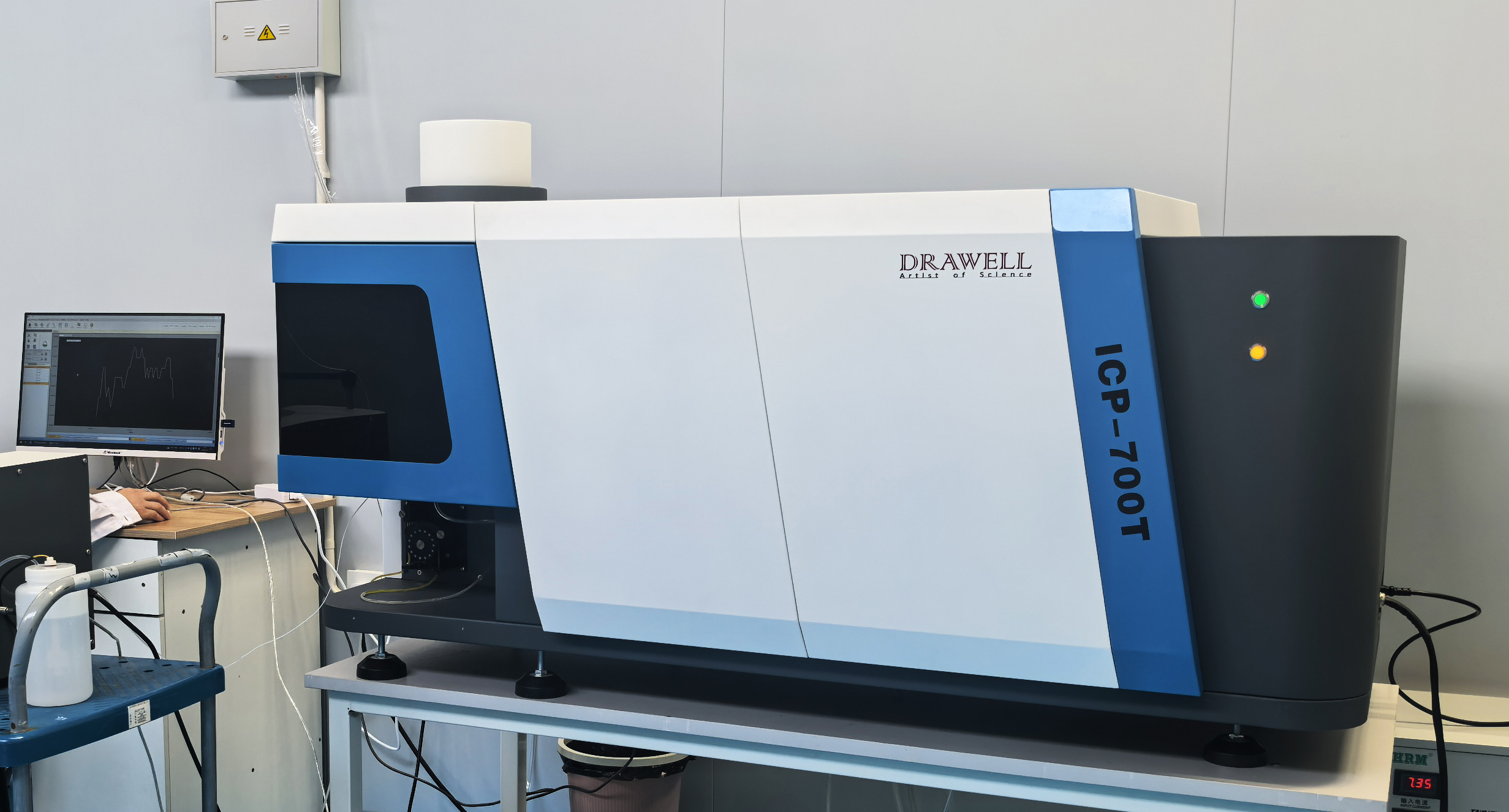

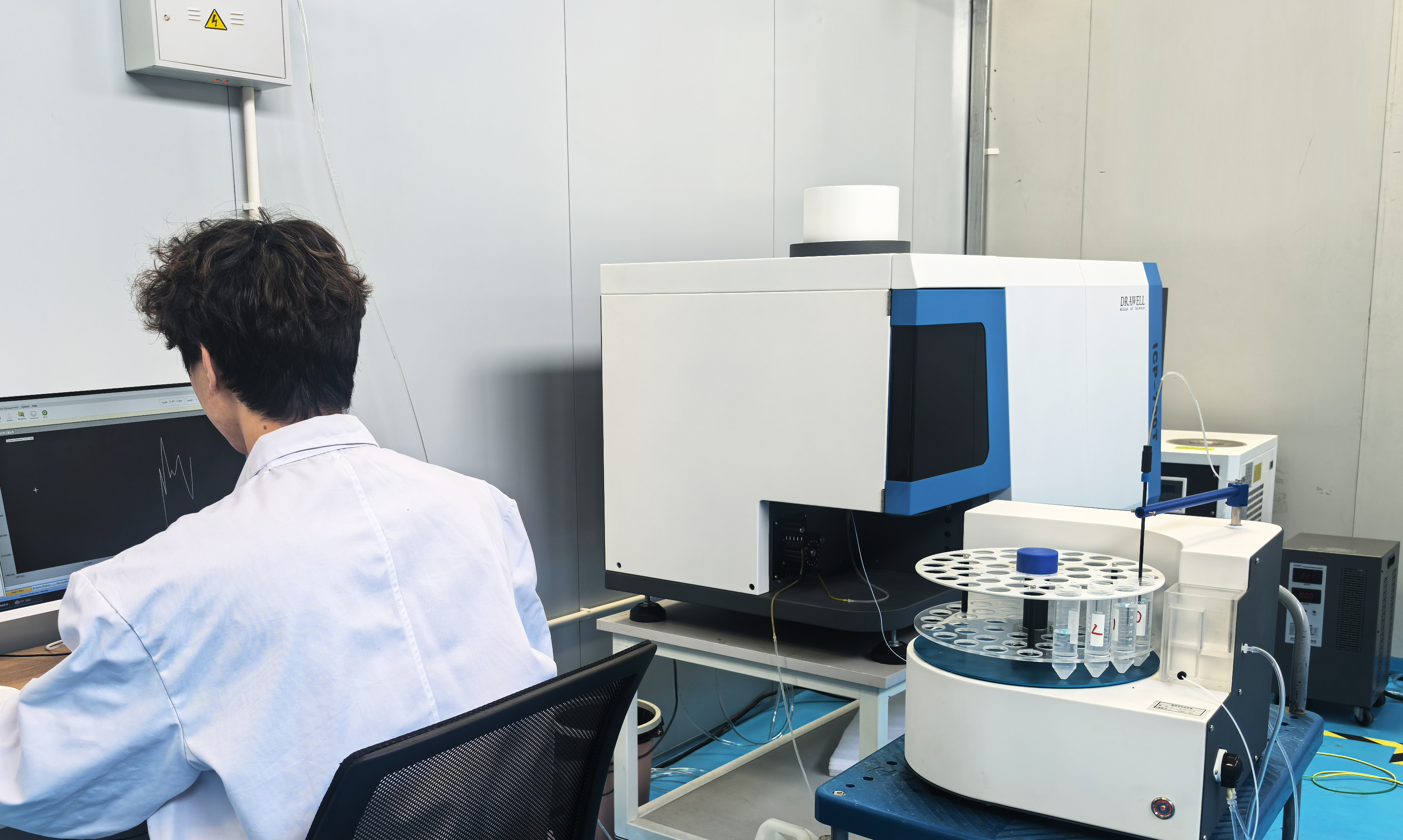

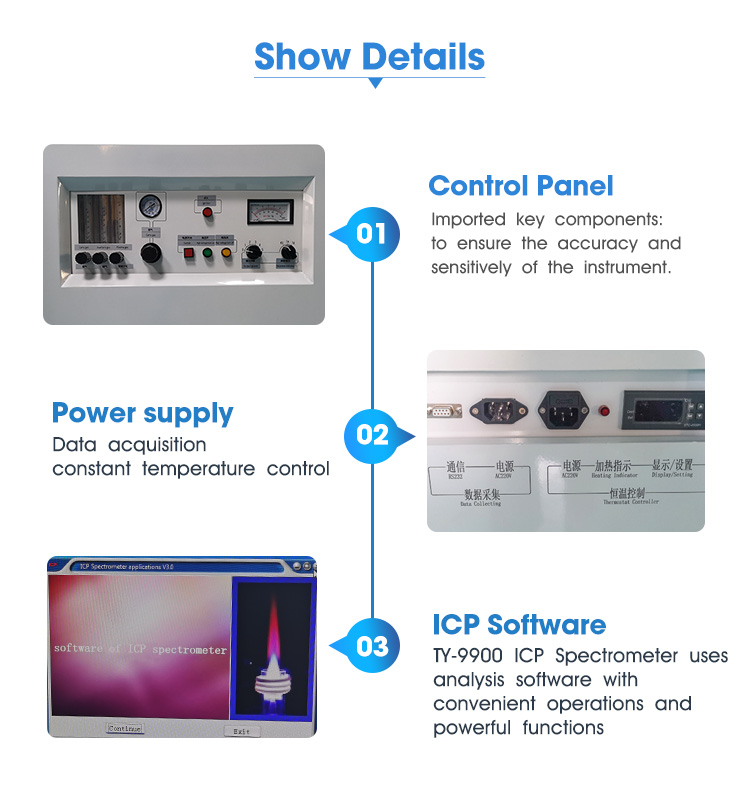

Details Images
Application Field
Certifications
Exhibition
Logistics & Payment
Frequently Asked Questions
Q1. What is the minimum order quantity (MOQ)?
Normally, the MOQ is 1 piece. The exact quantity depends on our clients' requirements. If there is no stock, the general MOQ differs significantly depending on the product, but quantities can still be negotiated.
Q2. Which payment methods are accepted?
We accept payment via T/T, PayPal, Western Union, L/C, etc.
Q3. How long is the delivery lead time?
If out of stock, it generally takes 7 to 15 working days to manufacture after receiving the advance payment. If in stock, 2-4 working days are possible. The exact timeline depends on the specific products and order quantity.
Q4. What certificates are provided with the products?
CE and ISO certifications are offered for most of our products. We consistently offer high-quality items and use protective packaging to prevent damage during transit.
Q5. What language options are available for the equipment?
We provide pure English for the operation panels, display screens, and manuals. Additionally, installation and operation videos can be provided as guidance if required.
Q6. What kind of after-sales service is available?
We provide online instructions with real-time support via video calls or voice chats. During the warranty period, spare parts can be sent free of charge if any quality issues occur. Technical support remains free and available long-term.
