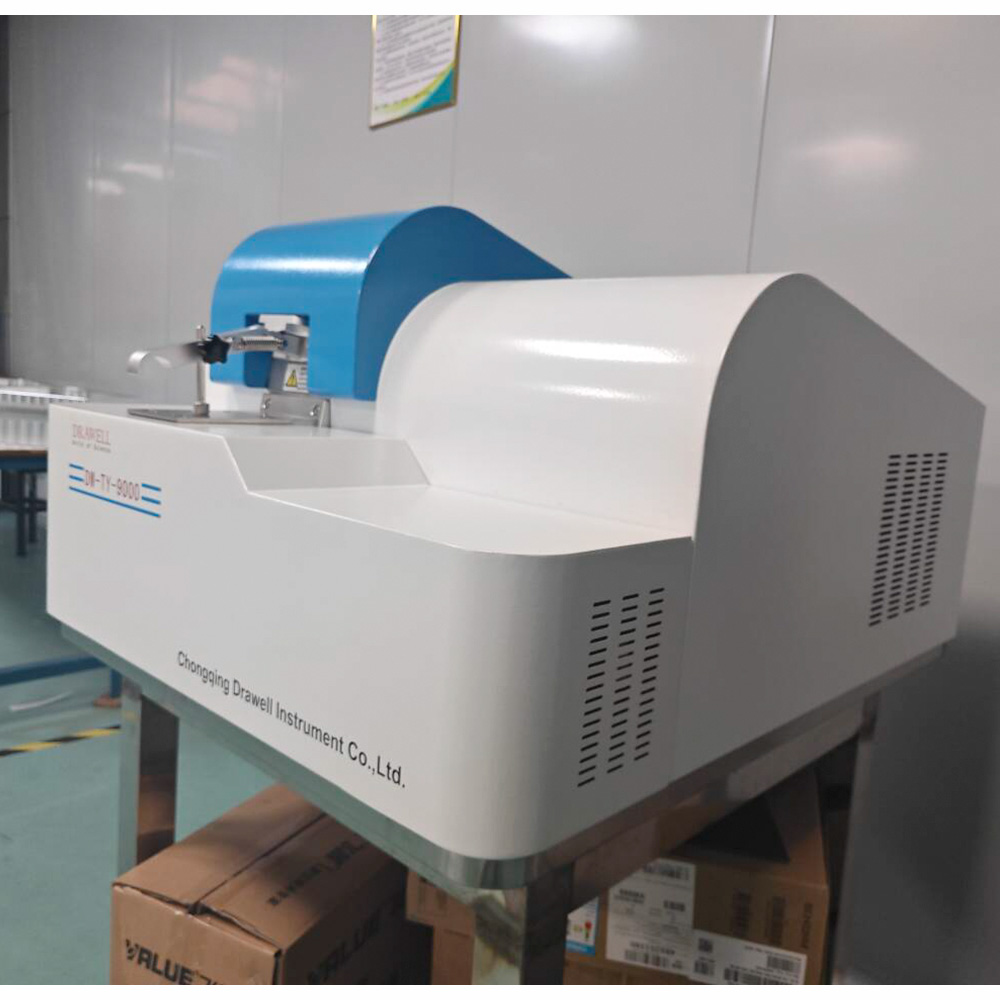

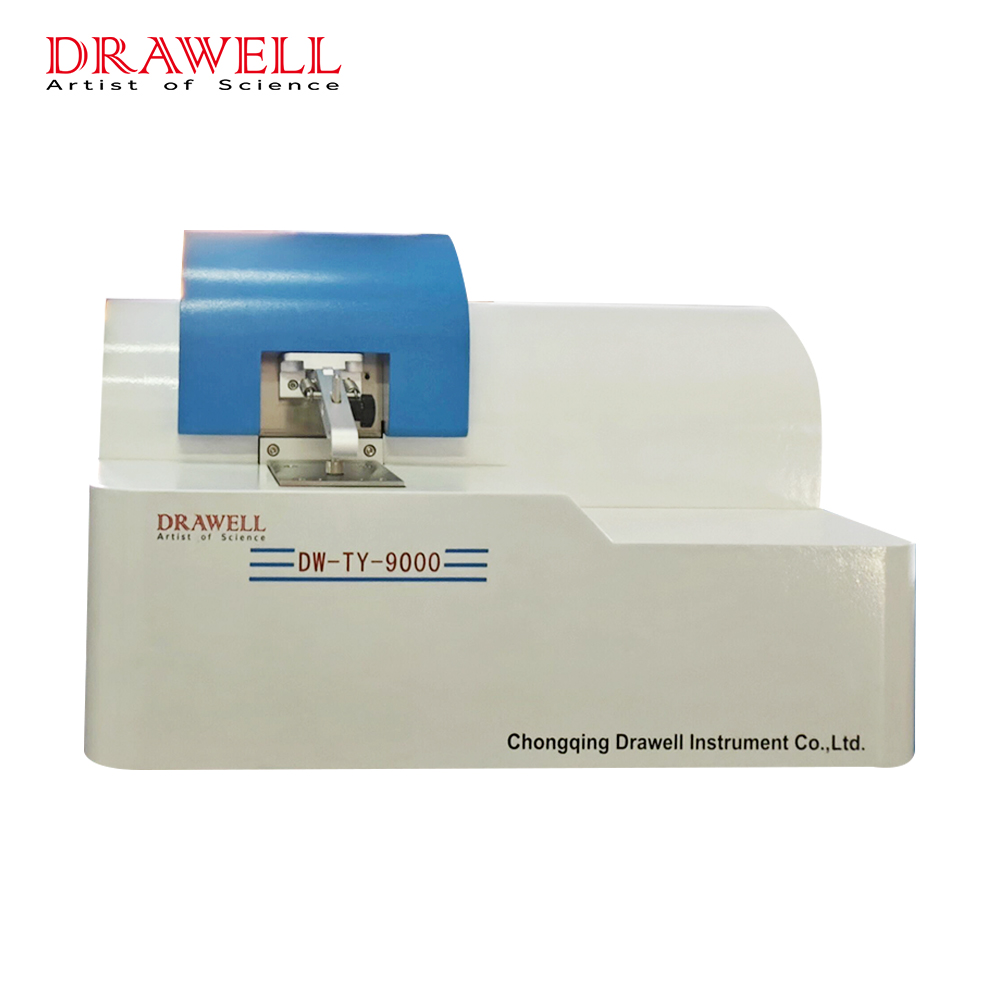

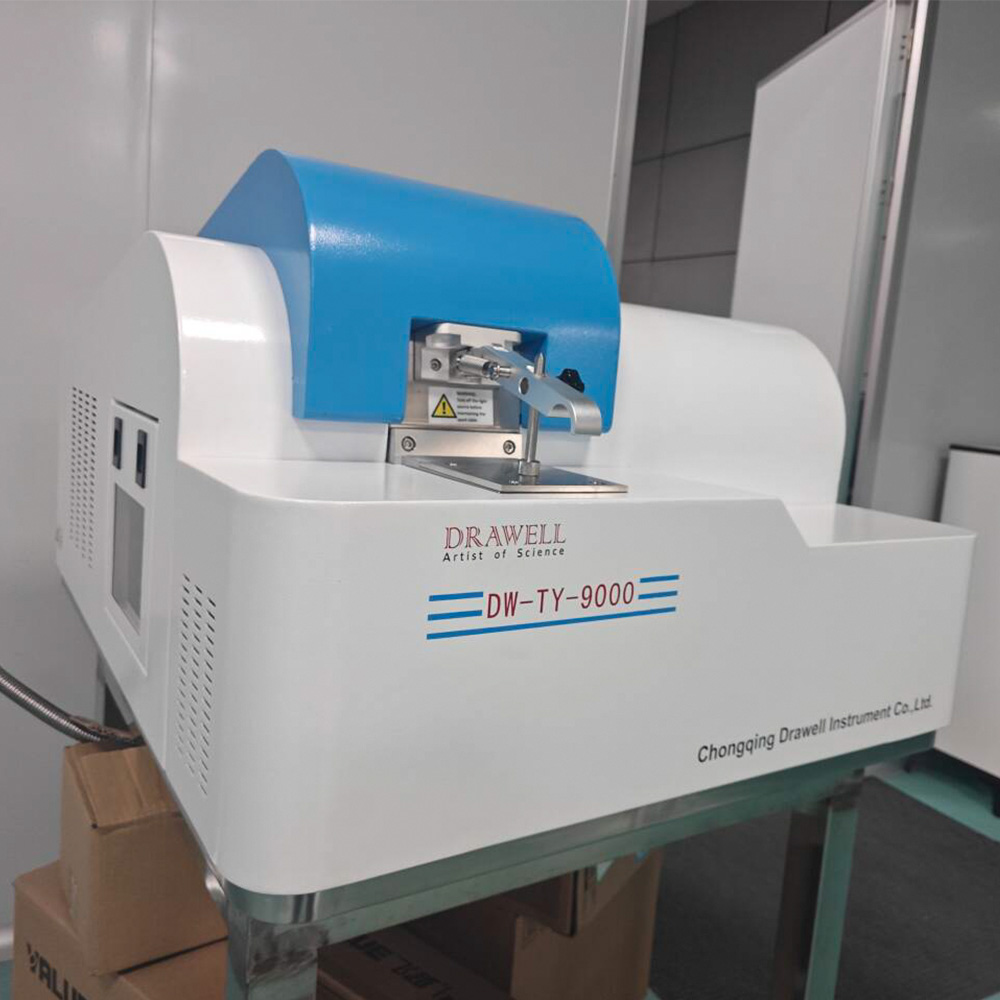

Full Spectrum Direct Reading Optical Spectrometer OES Spectrometer Direct Reading Optical Emission Spectrometer

Product Description

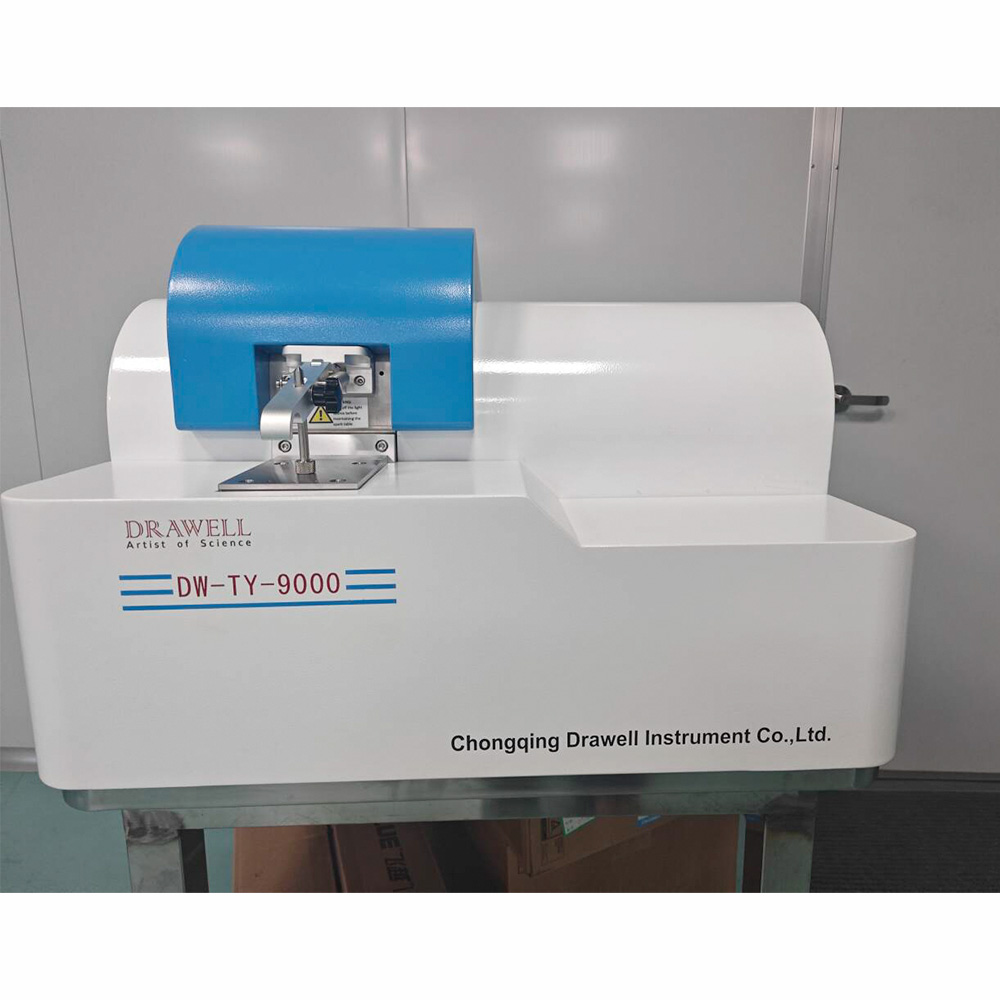

DW-TY9000 Metal Metallurgy Optical Emission Spectrometer
Full Spectrum Direct Reading Spectrometer
General Principles
Installation & Operation Conditions
The buyer is responsible for providing the conditions and requirements of the site, and meeting the requirements of the external installation and other cooperation conditions. The seller shall provide the equipment and technical services in accordance with the requirements of this agreement. The seller (to ensure full compliance) shall comply with the requirements of the technical specifications, and the analytical instrument shall meet the requirements of national or industry standards.
The DW-TY-9000 Full Spectrum Direct Reading Spectrometer adopts international design and manufacturing technology. It follows the steps of international spectrum technology and applies new all-digital technology instead of PMT simulation technology. In order to optimize capability, long-term stability, repeatability, and maintain low detection limits, it features a vacuum optics room, all-digital excitation light source technology, an advanced CCD detector, and a high-speed data reading system. This system is ideal for metal manufacturing and processing industries, and serves as an essential testing instrument in metal metallurgy for quality monitoring, material grade identification, and material research.
Technical Specifications
Item Index
Detection of substrate Fe, Al, Cu, Ni, Ti, Co, Zn, Sn, Mg, Pb etc.
Testing time According to the sample type, generally about 25s
Optical system The Paschen-Runge construction full vacuum type optics system
Wavelength coverage 130 ~ 800nm
Focal length 400mm
Detector High-performance CCD Array
Electrode Tungsten material injection electrode
Analytical gap Sample analysis clearance: 3.4mm
Operating temperature 10 ~ 35 ℃
Storage temperature 0 ~ 45 ℃
Operating humidity 20% ~ 80%
Argon purity requirements 99.999%
Argon gas inlet pressure 0.5MPa
Argon flow Spark flow around 3.5L/min; Maintain flow around 0.4L/min
Stimulate maximum power 400VA
Type of Lamp-house New digital adjustable light, High Energy Pre-spark Source technology (HEPS)
Discharge frequency 100 - 1000 Hz
Discharge current Maximum 400A
Excitation aperture 13mm
Vacuum system Automatic vacuum control and software monitoring
Working power supply 220V AC, 50/60Hz, single phase power supply with protective grounding
Instrument size 725 * 865 * 550 mm
Instrument weight 80kg
Elements and Scope of Instrumental Analysis
Element Fe-Low Alloy (%) Fe-Cr-Ni Steel (%)
Min Max Min Max
C 0.006 1.3 0.008 2.5
Si 0.01 3.9 0.09 4.0
Mn 0.03 2.1 0.12 16.0
P 0.002 0.12 0.003 0.3
S 0.002 0.16 0.001 0.4
Cr 0.01 4.5 7.4 32.0
Ni 0.004 4.4 0.8 48.0
Mo 0.004 1.3 0.08 4.2
Al 0.003 1.5 0.005 1.7
Cu 0.002 0.5 0.05 4.5
Co 0.001 0.5 0.008 17.0
Ti 0.002 1.2 0.005 1.1
Nb 0.002 0.3 0.02 2.0
V 0.003 0.9 0.02 9.5
W 0.03 2.1 0.002 4.1
Pb 0.003 0.03 0.001 0.02
Mg 0.001 0.14 0.001 0.14
B 0.006 0.02 0.007 0.02
Sn 0.001 0.09 0.003 0.05
Zn 0.002 0.04 0.006 0.08
Sb 0.002 0.02 0.0005 0.022
Fe (Remain) (Remain)
Details Images

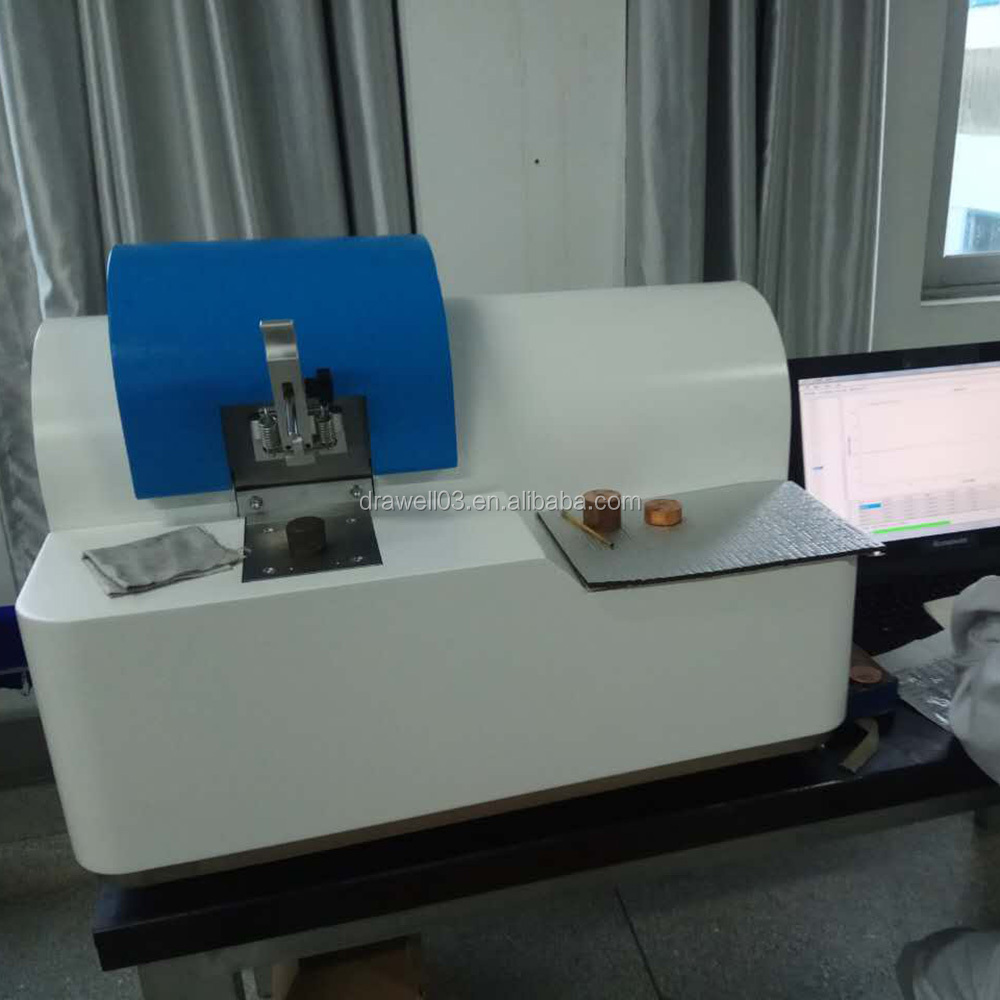

Spectrometer Detail 1

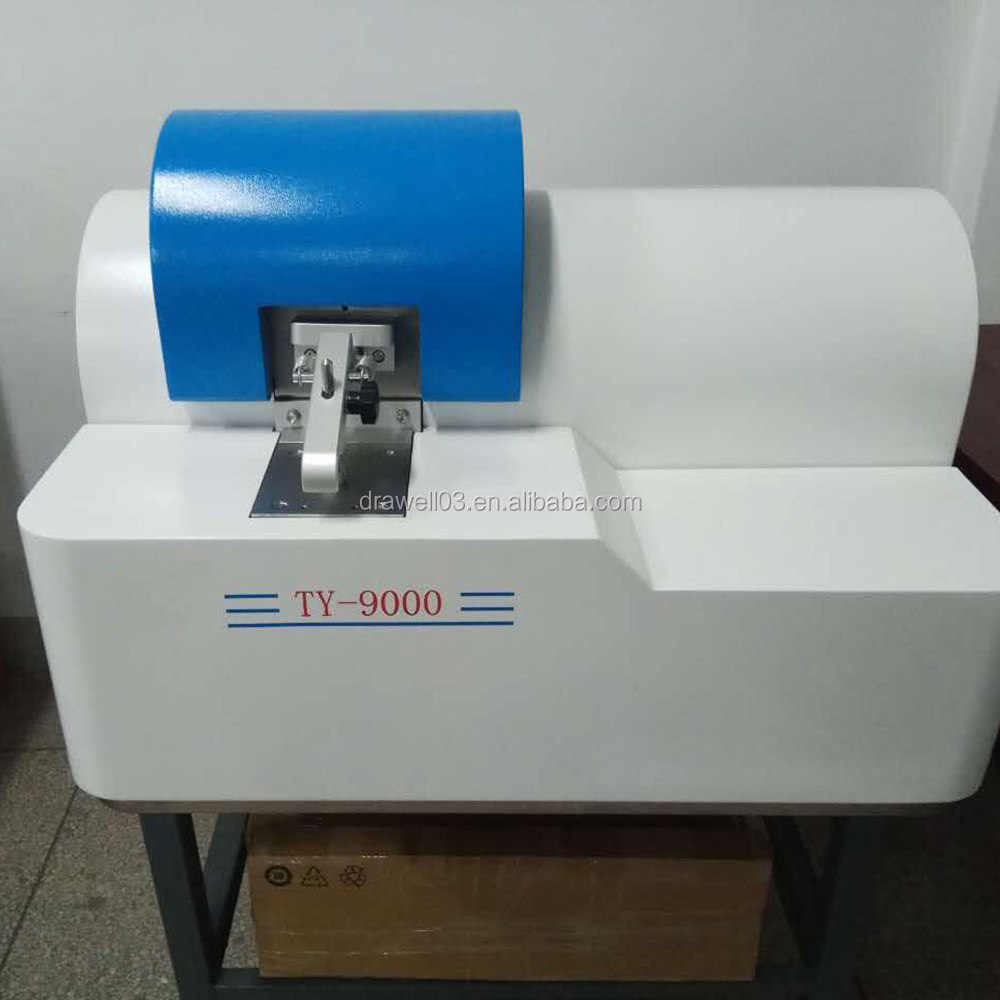

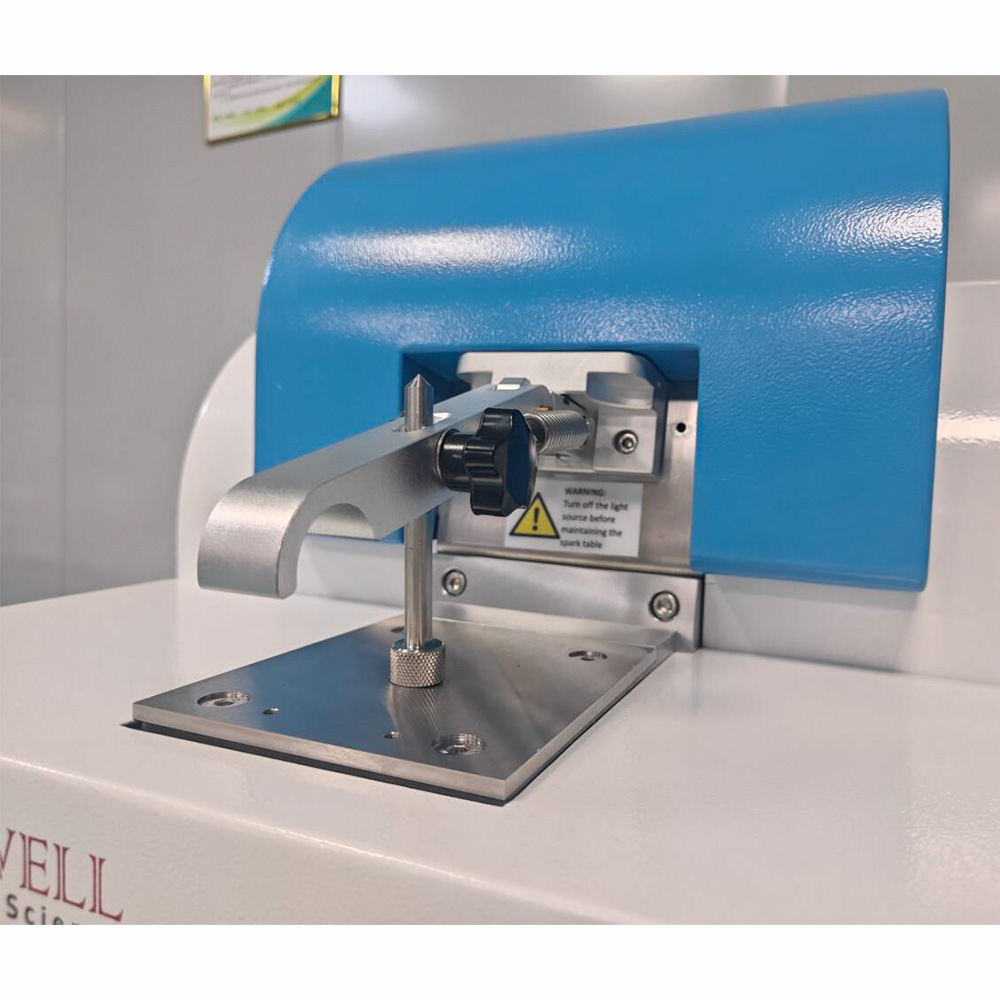

Spectrometer Detail 2

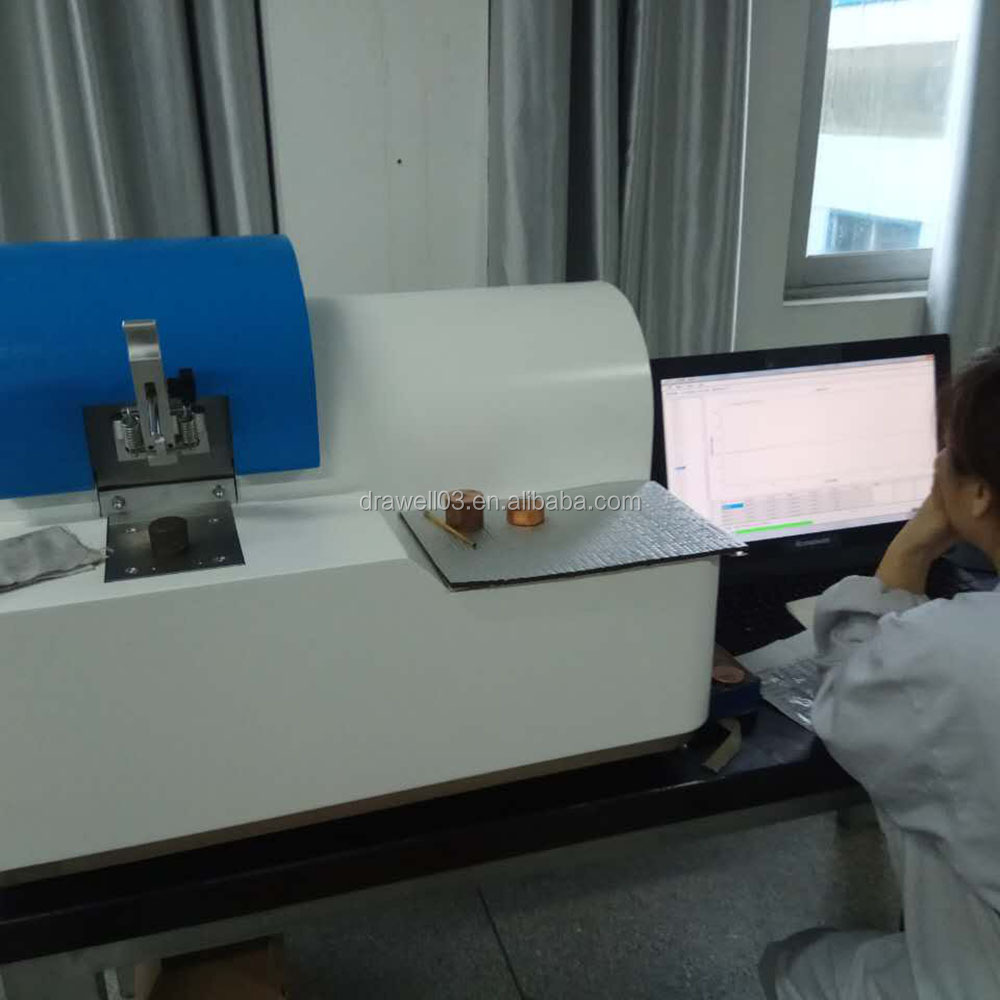

Spectrometer Detail 3
Application Field

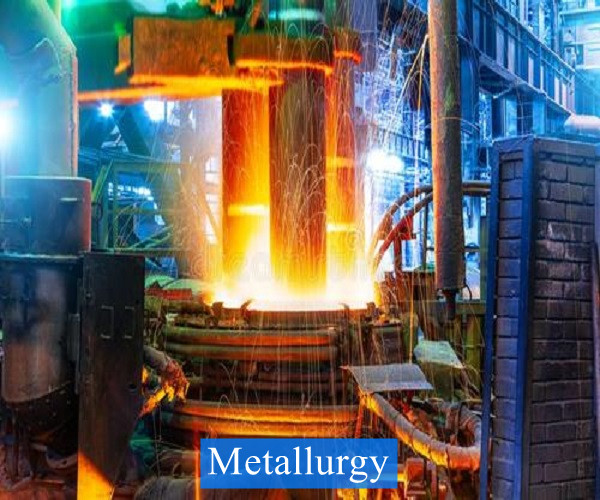

Application 1
Application 2
Application 3
Application 4
Company Profile
Facility Main
Facility 1
Facility 2
We are a leading company in manufacturing and exporting laboratory equipment and scientific instruments, founded in 1999 in China, and became a joint venture after US investment in 2014. We specialize in R&D laboratory instruments, including Spectrophotometers, Incubators, Drying Ovens, AAS, XRF, XRD, PCR, Refractometers, Polarimeters, Centrifuges, Chromatography, and Balances. Our products are widely used in food quality control, educational research, environmental science, chemical industry, and many other areas. We explore global markets by attending overseas exhibitions like Arablab, PITCON, Analytica Russia, Lab Africa, Analytica Munich, Analytica Latin America, and Thailand Lab. We have established business relationships with customers from over 50 countries, gaining an excellent reputation through reliable quality, competitive prices, and dedicated service.
Certificates
Certificates
Exhibitions
Exhibition Booth 1
Exhibition Booth 2
Exhibition Booth 3
Logistics & Payment
Logistics and payment details
Services Overview
Frequently Asked Questions
Q1. Are you a factory or a trading company?
We are a factory.
Q2. What is the MOQ?
Normally, the MOQ is 1 piece. The exact quantity depends on customers' needs. If there is no stock, the general MOQ differs significantly by product, but the quantity can still be negotiated.
Q3. Which payment methods are acceptable?
We accept payments via T/T, PayPal, Western Union, L/C, etc.
Q4. How about the lead time?
If items are not in stock, manufacturing takes 7 to 15 working days after receiving advanced payment. If in stock, delivery can be arranged in 2 to 4 working days, depending on the specific products and quantity ordered.
Q5. What certificates are provided?
CE and ISO certifications are offered for most of our products. We ensure high-quality standards to prevent defects, along with protective packaging to avoid damage during transit.
Q6. What service do you provide after sales?
We provide online support via video or voice calls in real time. During the warranty period, we supply spare parts free of charge for any quality-related failures. Lifetime technical guidance is always available and free of charge.
