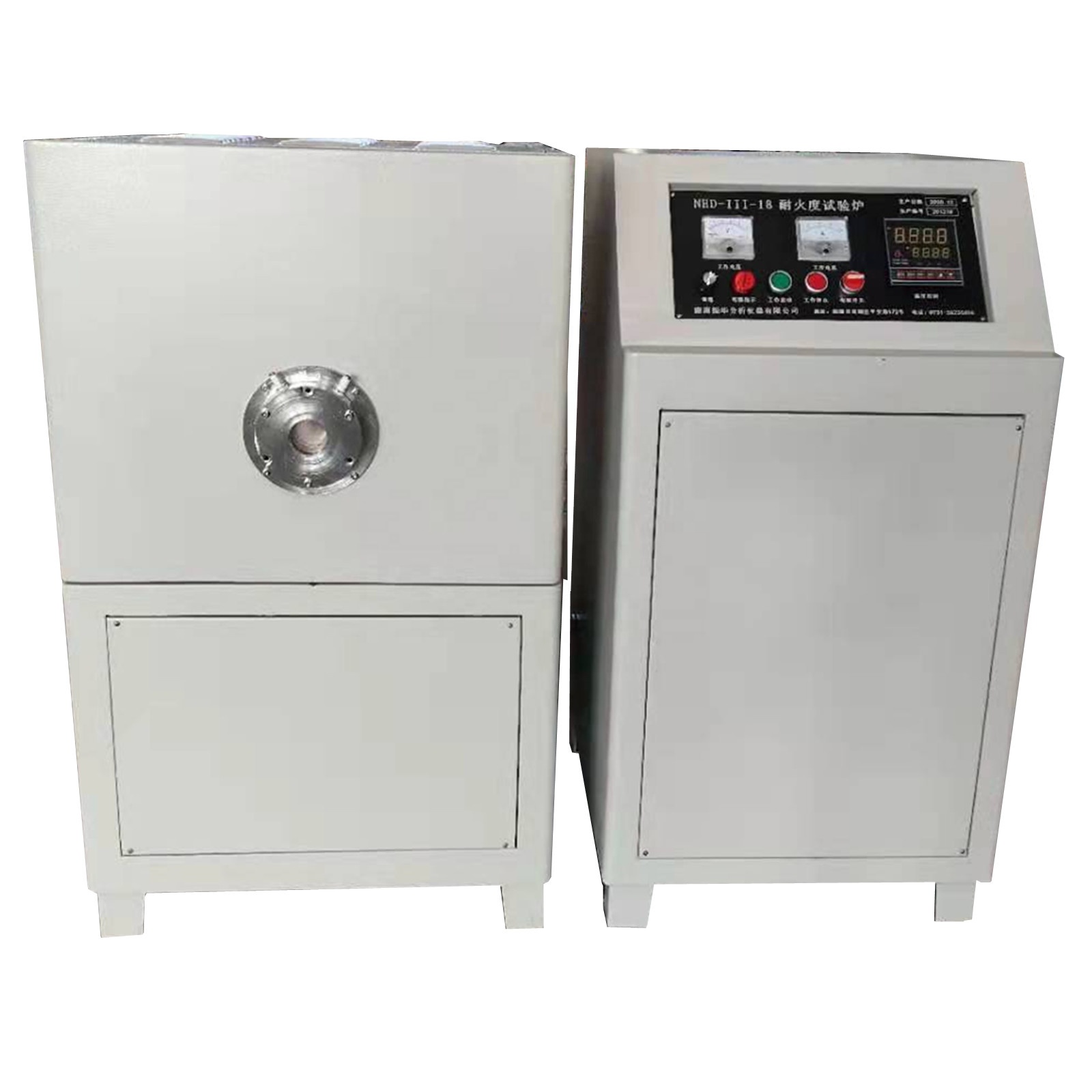

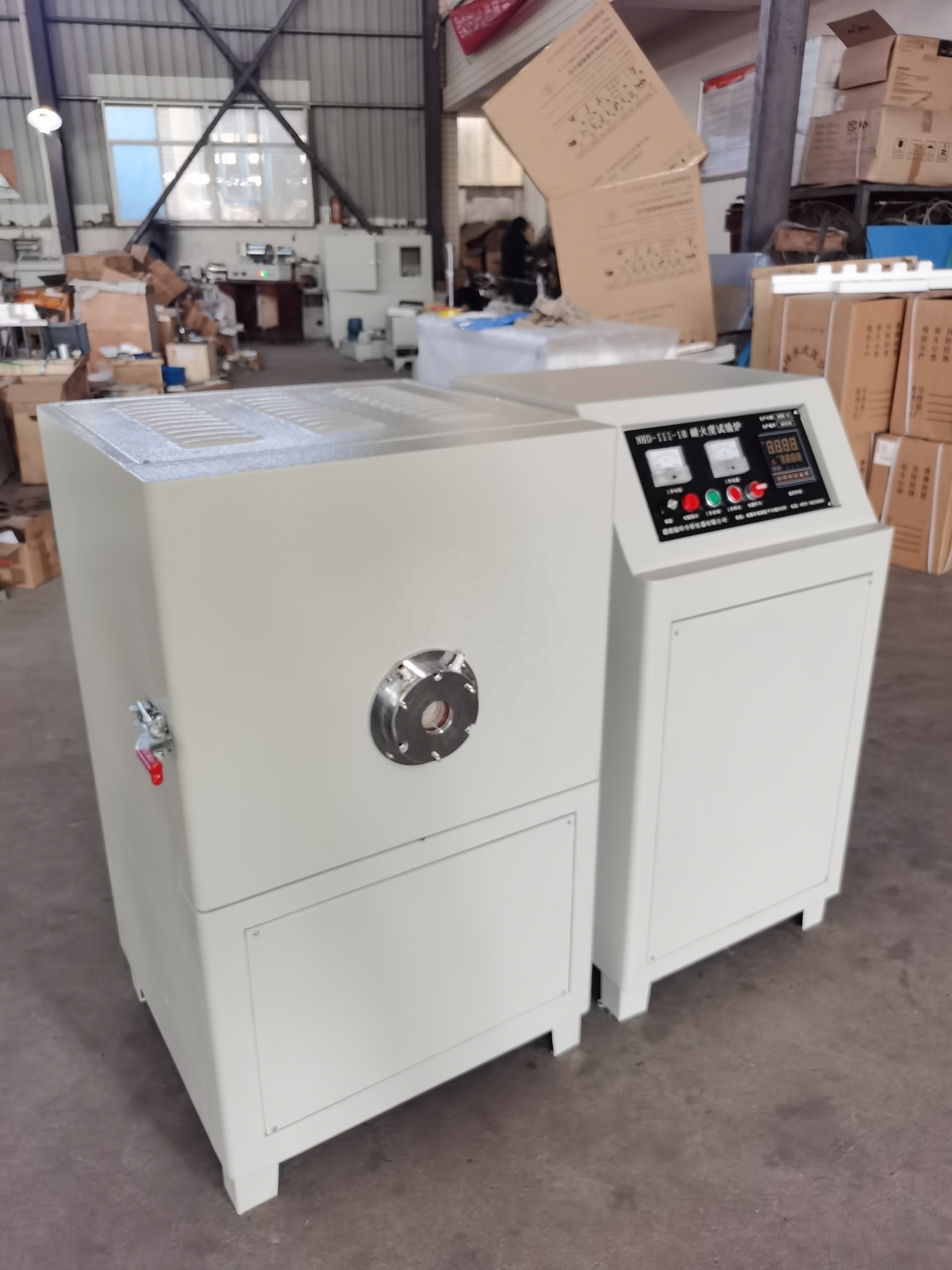

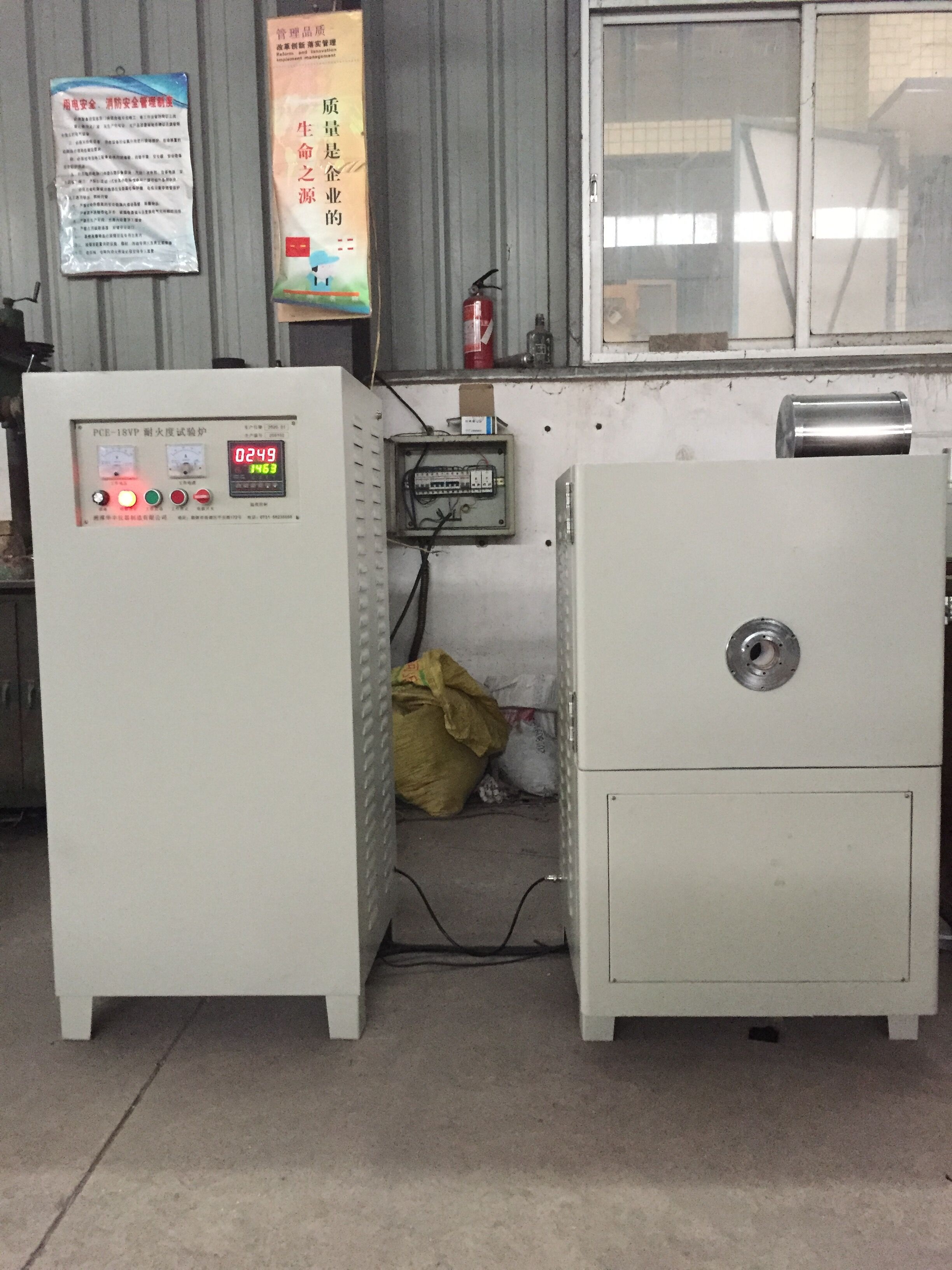

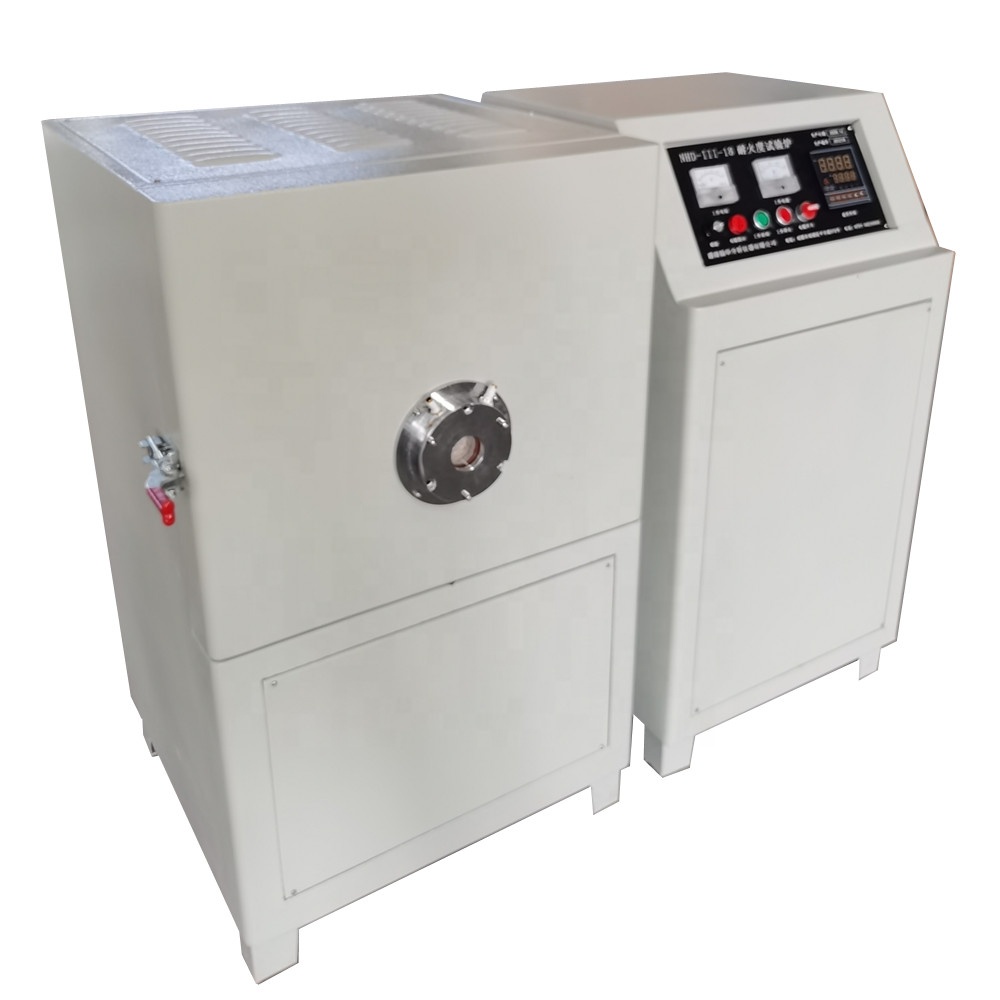

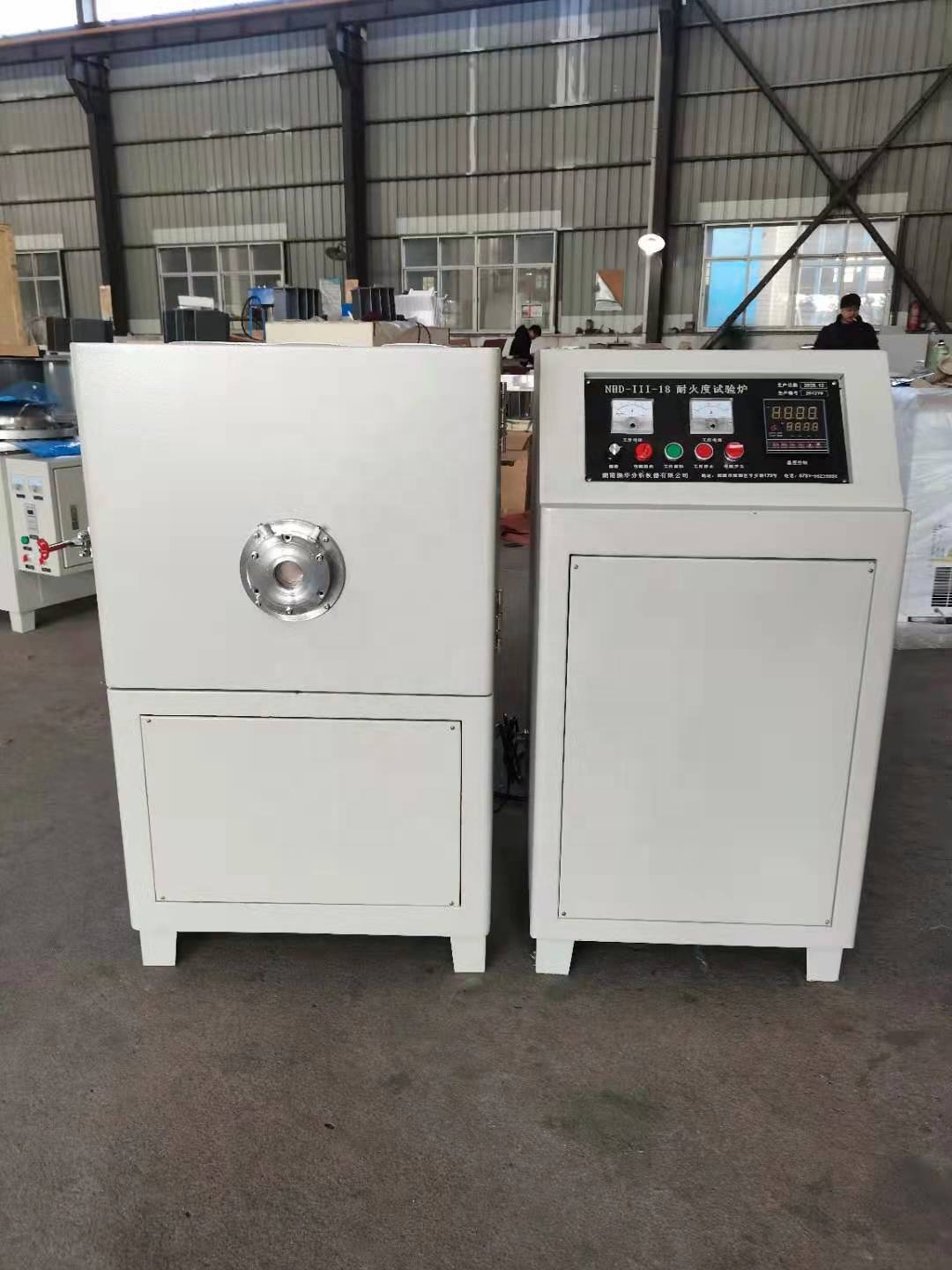

NHD-II-16 Pyrometric Cone Equivalent Refractoriness Test Furnace
The electric furnace is a discontinuous running box-type high temperature furnace with a molybdenum rod heating unit. It is used in refractory temperature detection for refractory laboratories, engineering mining enterprises, scientific research institutions, etc.
Furnace temperature can be measured, indicated and controlled. The equipment meets the requirements of GB/T 7322-2017 Refractory products-Determination of refractoriness and EN 993-12, ISO528-1983 Refractory products; Determination of pyrometric cone equivalent (refractoriness). This equipment is used in testing the degree of fire resistance of refractories. Its measuring range is 1580~1800℃.
Sample Stents
Corundum material
Sample Shape
Triangle cone, breadth 10—20mm
Cone Rotate Speed
3-5 r/min
Test Method Standard
EN 993-12 “Determination of pyrometric cone equivalent (refractoriness)"

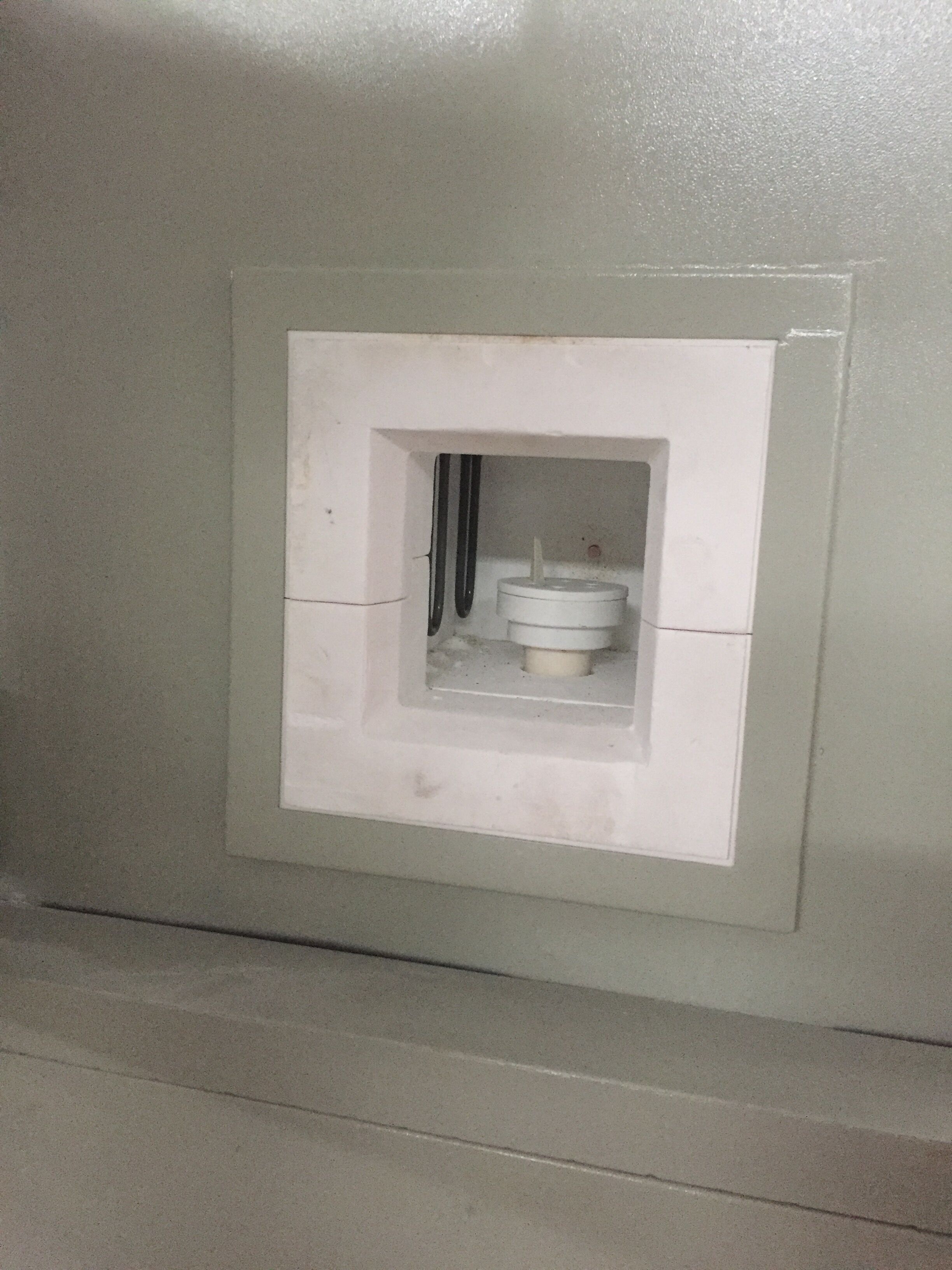

Observation & CCD Camera
Can with observation hole, install a CCD camera system on the observation hole position, to observe the shape of the sample at high temperature in real time, and processed into computer display. Minimum 1 ℃ of an image.
Power Specs
Rated voltage: 380V, 2 phases with zero line. Rated power: 6kw
Temperature Measuring
With the standard pyrometric cone
CCD Pixel
More than 10 million, color
Software
Automatic test and analysis software in English
Temperature Control
Intelligent PID temperature control program, can be set up 50 program temperature curve. Set the heating rate.
System Protection
Start current limiting protection, overload protection
Bending Observation State
Full horizontal color viewing Angle
Image Recording
Automatic image recording system: equipped with a special image acquisition card, the standard image format is automatically recorded to the hard disk.
| Items |
Name |
Model/Size |
Unit |
Qty |
Marks |
| Host machine |
Degree of Fire Resistance Test Furnace |
NHD-II-16 |
set |
1 |
|
| Random files |
User manual of the Furnace |
|
piece |
1 |
|
| Instruction manual of the intelligent digital instrument |
|
piece |
1 |
|
| Manufacturer certificate |
|
piece |
1 |
|
| Testing software |
|
piece |
1 |
|
| Accessories |
Die for tricone sample |
|
piece |
1 |
|
| Standard pyrometric cone |
|
box |
1 |
|
| CCD camera system (with infrared filter) |
|
set |
1 |
|
Contract execution
- Machine production will be arranged strictly according to the contract;
- Machine photos will be sent to you for inspection during production;
- Send customs clearance documents by DHL;
- Update latest news after delivery and prepare customs clearance;
After-sale service
- 12 months warranty except for wear parts;
- Broken spare parts (except for wear parts) will be sent for free due to quality problems;
- In time response to customers' technical problems;
- New products update for customers' reference;
Q: What is the maximum rated temperature of the NHD-II-16 furnace?
A: The rated temperature of the furnace is 1650℃, with a refractoriness measuring range from 1580℃ up to 1800℃.
Q: Which standards does this refractoriness test furnace meet?
A: The equipment fully meets the standards of GB/T 7322-2017, EN 993-12, and ISO528-1983 for determining the pyrometric cone equivalent of refractory products.
Q: How is the high-temperature bending of the sample monitored?
A: It features an observation hole equipped with a CCD camera system (with an infrared filter and over 10 million pixels, color) to capture and display the real-time shape of the sample on a computer screen.
Q: What are the sample size and operational specifications?
A: The test requires a triangle cone sample with a breadth of 10–20mm. During the test, the cone rotates at a speed of 3–5 r/min.
Q: Can the temperature curve be programmed?
A: Yes. The furnace features an intelligent PID temperature control program which allows setting up to 50 program temperature curves and customized heating rates.
Q: What safety protections are included with the system?
A: The system is equipped with start current limiting protection and overload protection to ensure safe operation.
