Manata Scanner
1 / 5

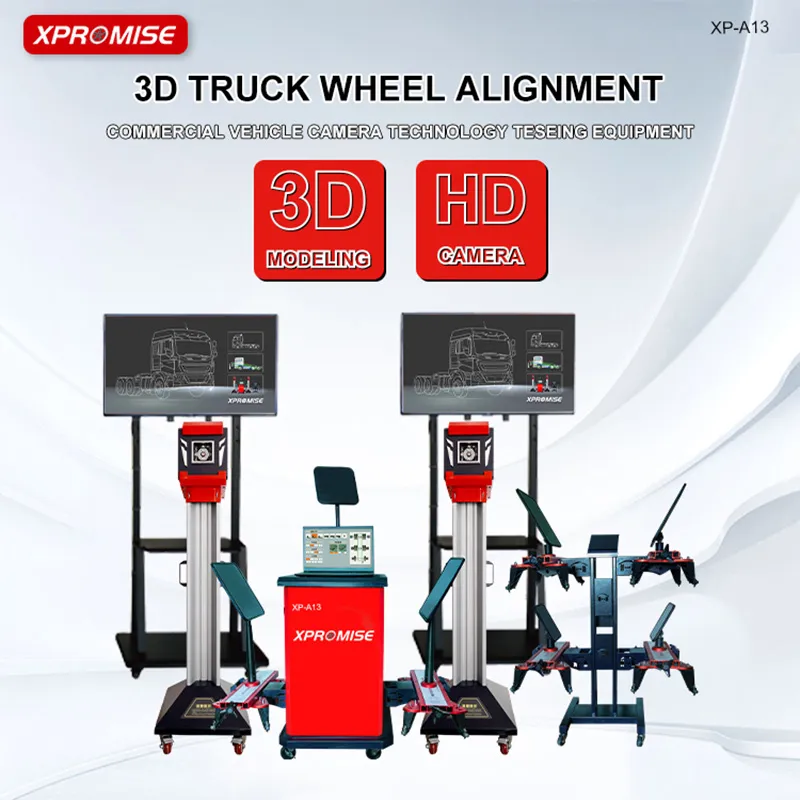

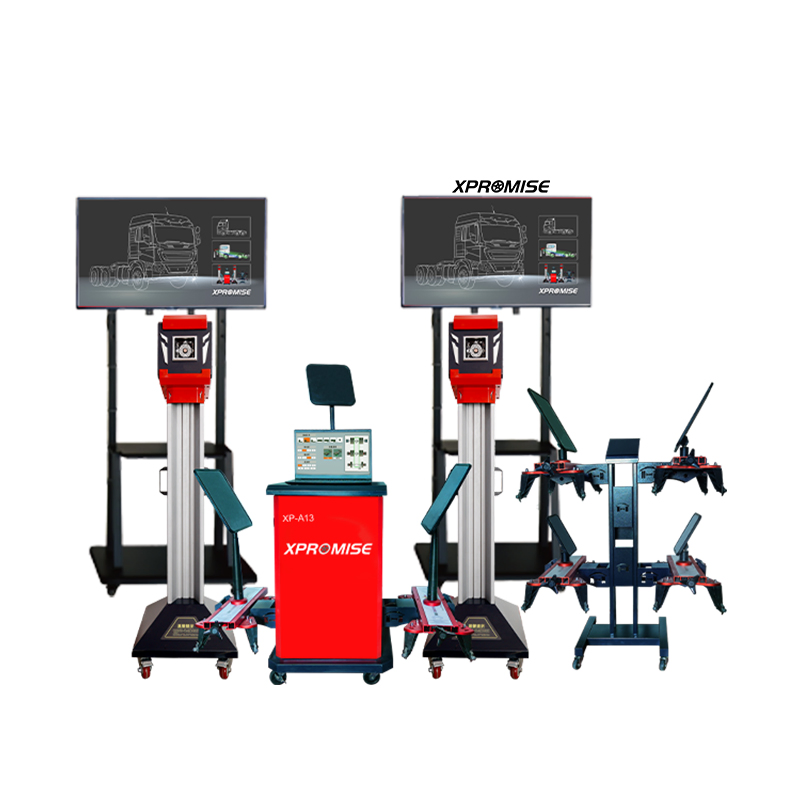

Model: XP-A13
A must-have product for all truck owners and enthusiasts. With our state-of-the-art technology and precision engineering, we guarantee the highest level of accuracy and performance for your truck's alignment needs.
Our 4 Wheel Alignment system is designed to provide accurate measurements and adjustments for all types of trucks, ensuring optimal handling, tire wear, and fuel efficiency. Whether you own a small pickup truck or a heavy-duty commercial vehicle, our alignment system is suitable for all truck models and sizes.

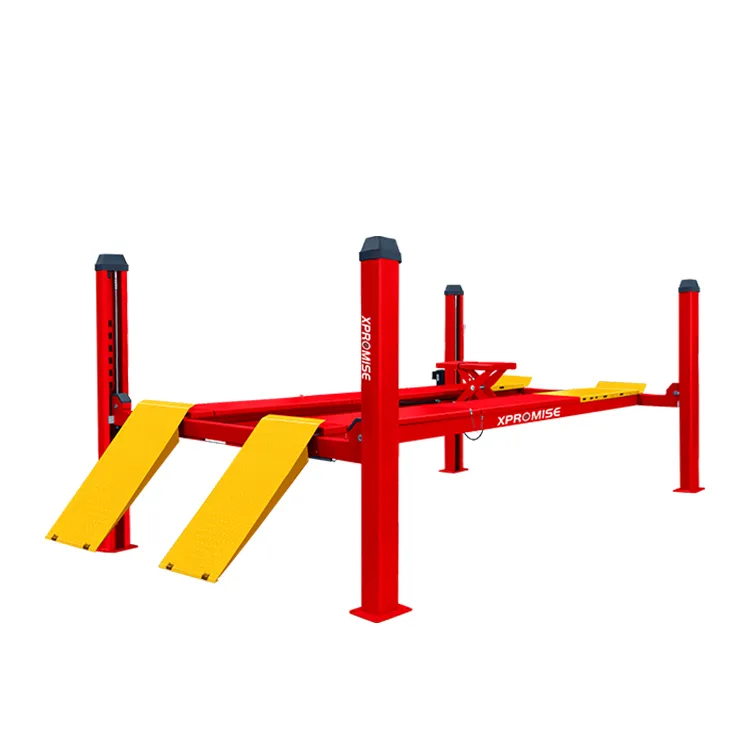

Equipped with the latest auto diagnostic tool and lifts, our 4 Wheel Alignment system offers a comprehensive solution for truck owners. The auto diagnostic tool allows for quick and accurate diagnosis of any alignment issues, while the lifts provide easy access to the undercarriage for precise adjustments.
A cutting-edge technology that enhances the accuracy and efficiency of the alignment process. This scanner provides real-time data and analysis, allowing our technicians to make precise adjustments and ensure the perfect alignment for your truck.
Not only do we offer top-quality performance, but we also prioritize affordability. Our low prices make our 4 Wheel Alignment system accessible to all truck owners, regardless of their budget. We believe that everyone deserves the best alignment for their truck, without breaking the bank.
Investing in our top-quality 4 Wheel Alignment for Trucks at low prices is a wise decision that will benefit both your truck's performance and your wallet. Don't compromise on the safety and efficiency of your truck's alignment - choose our reliable and affordable solution today.

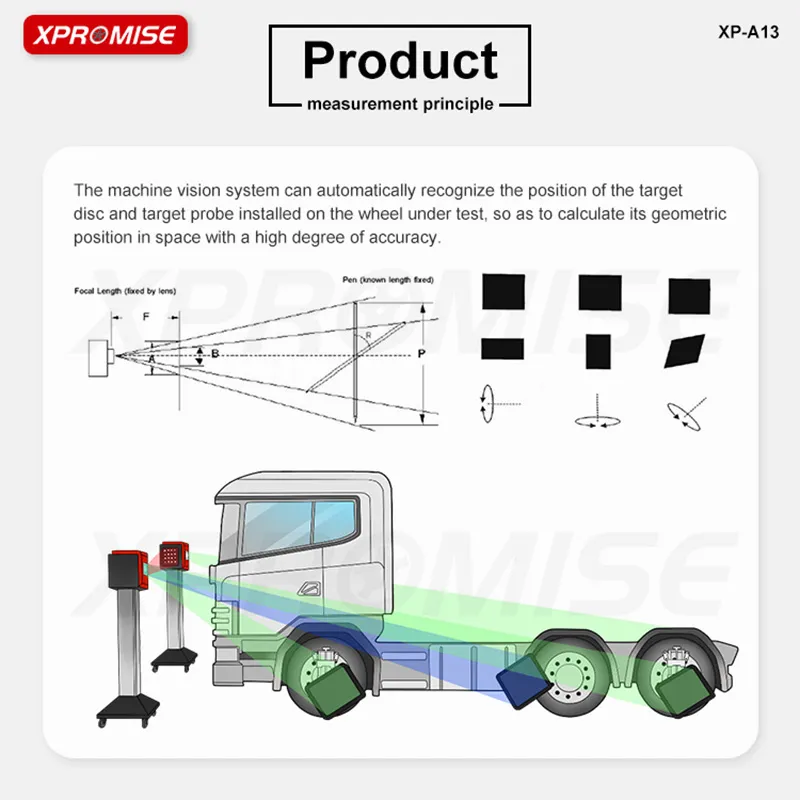

The machine vision system can automatically recognize the position of the target disc and target probe installed on the wheel under test, so as to calculate its geometric position in space with a high degree of accuracy.

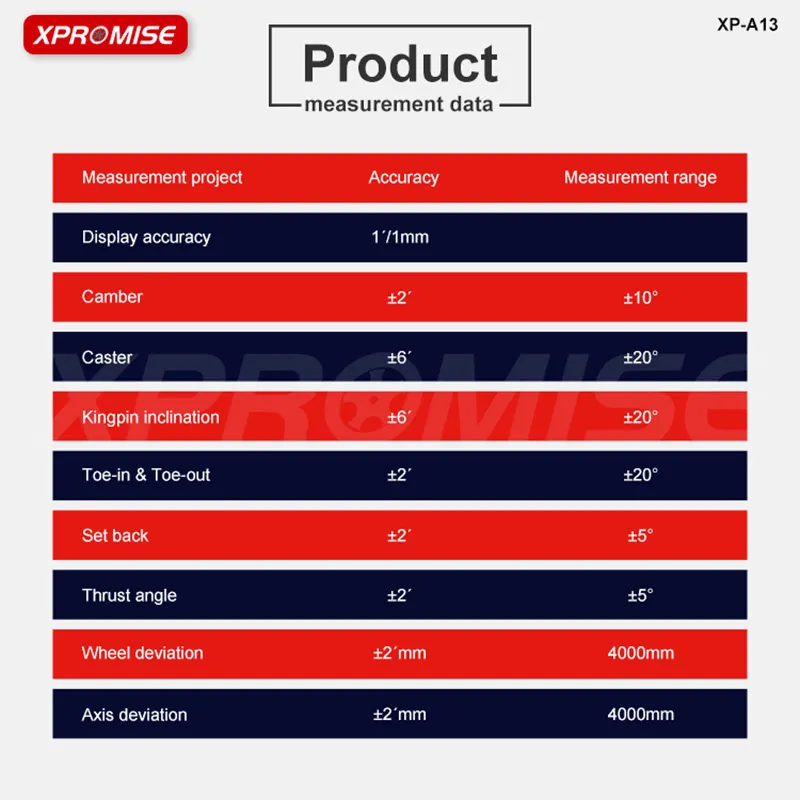

| Measurement project | Accuracy | Measurement range |
|---|---|---|
| Display accuracy | 1´/1mm | |
| Camber | ±2´ | ±10° |
| Caster | ±6´ | ±20° |
| Kingpin Inclination | ±6´ | ±20° |
| Toe-in & Toe-out | ±2´ | ±20° |
| Set back | ±2´ | ±5° |
| Thrust angle | ±2´ | ±5° |
| Wheel Deviation | ±2mm | 4000mm |
| Axis Deviation | ±2mm | 4000mm |

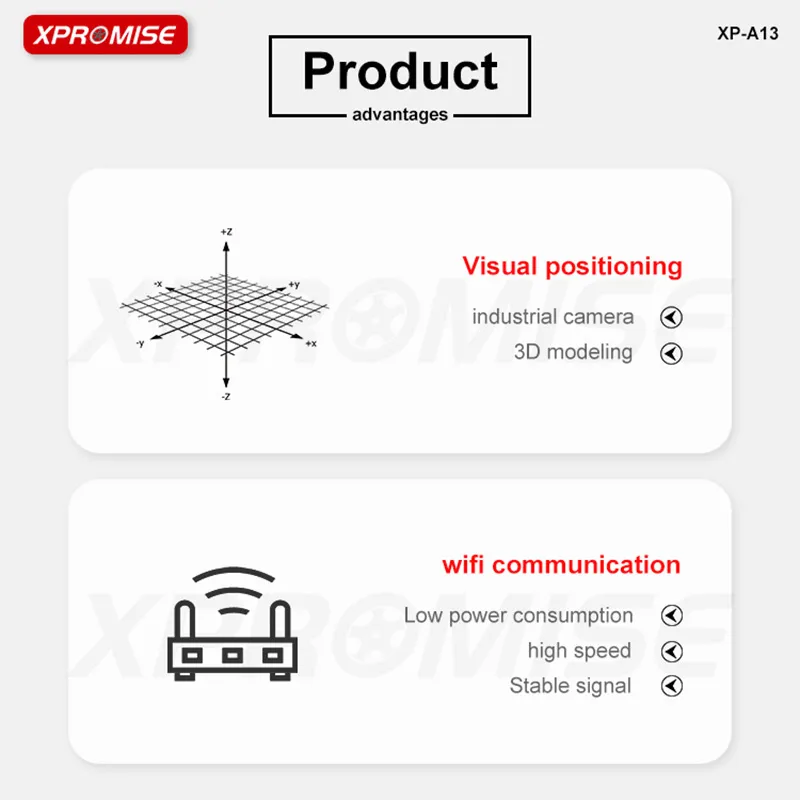

Industrial camera
3D modeling
Low power consumption
High speed
Stable signal

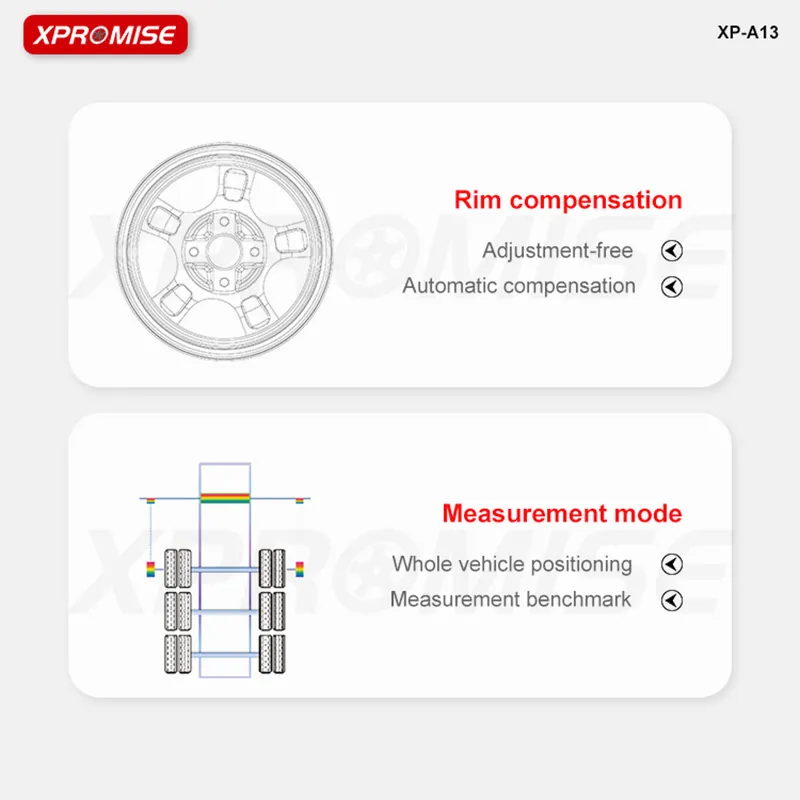

Adjustment-free
Automatic compensation
Whole vehicle positioning
Measurement benchmark

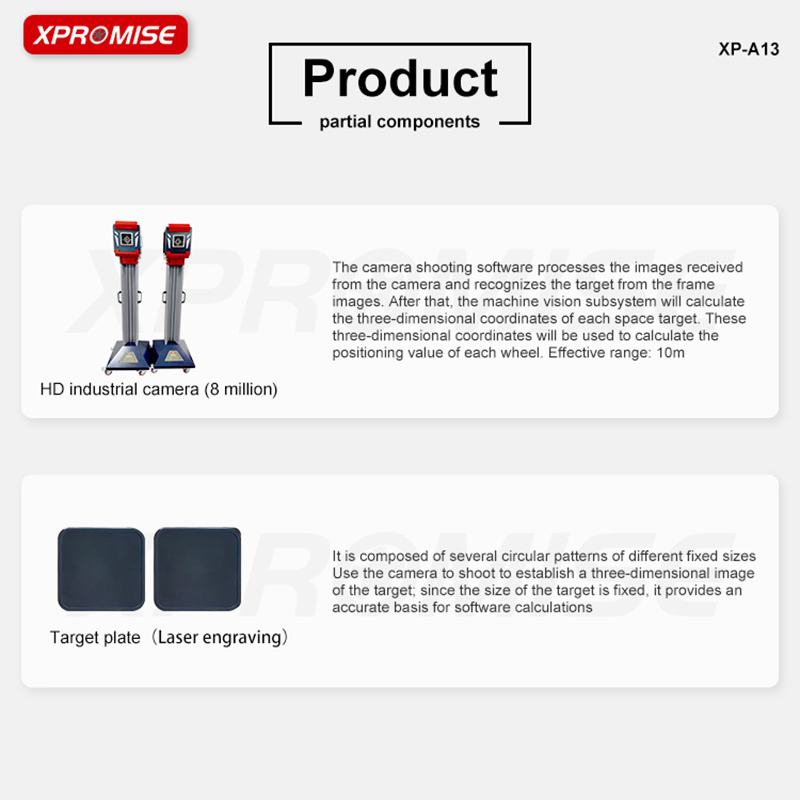

The camera shooting software processes the images received from the camera and recognizes the target from the frame images. After that, the machine vision subsystem will calculate the three-dimensional coordinates of each space target. These three-dimensional coordinates will be used to calculate the positioning value of each wheel. Effective range: 10m
It is composed of several circular patterns of different fixed sizes. Use the camera to shoot to establish a three-dimensional image of the target; since the size of the target is fixed, it provides an accurate basis for software calculations.

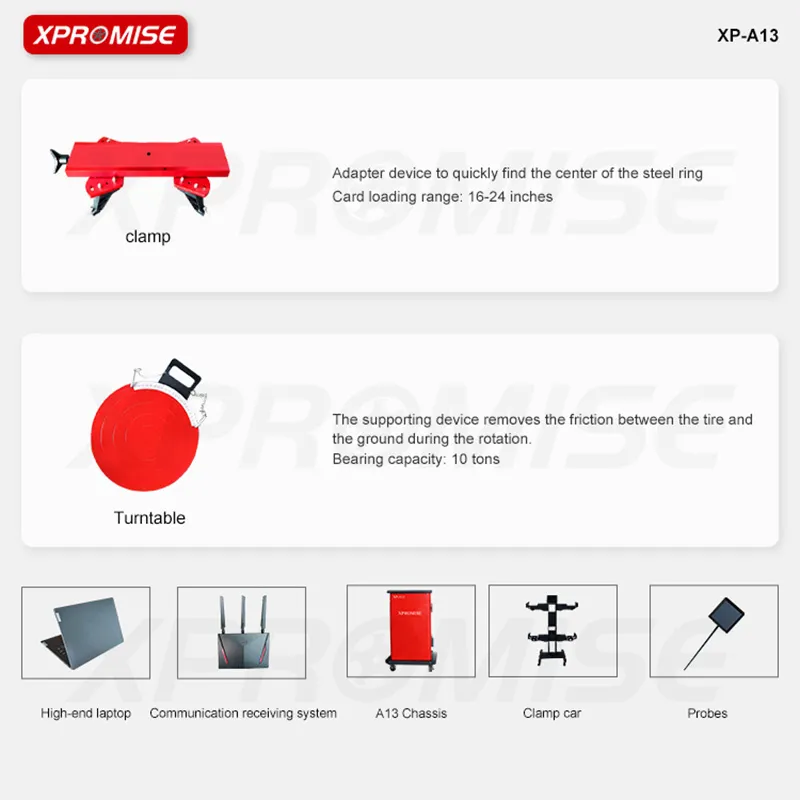

Adapter device to quickly find the center of the steel ring; Card loading range: 16-24 inches.
The supporting device removes the friction between the tire and the ground during the rotation. Bearing capacity: 10 tons.
| Trade Terms | FOB / CFR |
| MOQ | 3 UNITS (USD200.00 extra charged for LCL shipment to cover inland freight + custom declaration fee) |
| Port | QINGDAO |
| Shipment | BY SEA / AIR |
| Payment Terms | T/T |
| Payment Condition | 30% prepayment, balanced against BL copy & L/C at sight. |
| Supply Capability | 1000 units/month |
| Sample Availability | Yes, but all freight (inland + sea freight) covered by buyer. |
| Sample Time | 5-10 days (depends on stock) |
| Lead Time | 25-30 days (Rush season 5-10 days longer) |
| Packing | Metal frame & Carton |
| Delivery Time | 30-45 days shipping time (depends on destination port) |
| Service | 1% free parts; 1 year warranty after port of destination |
