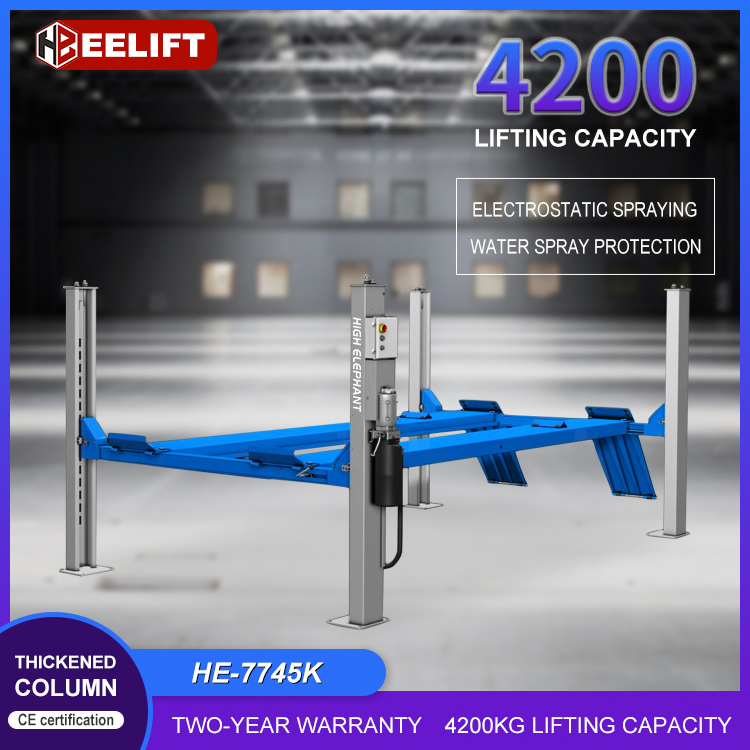

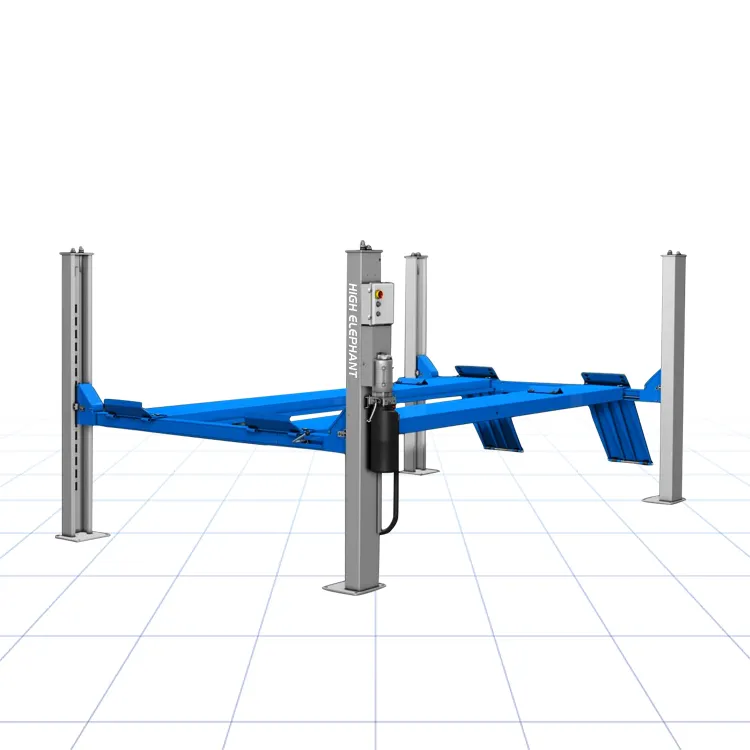

Vehicle Equipment Full Set 4 Post Car Lift Vehicle Repair Equipment
Model: HE-7745K

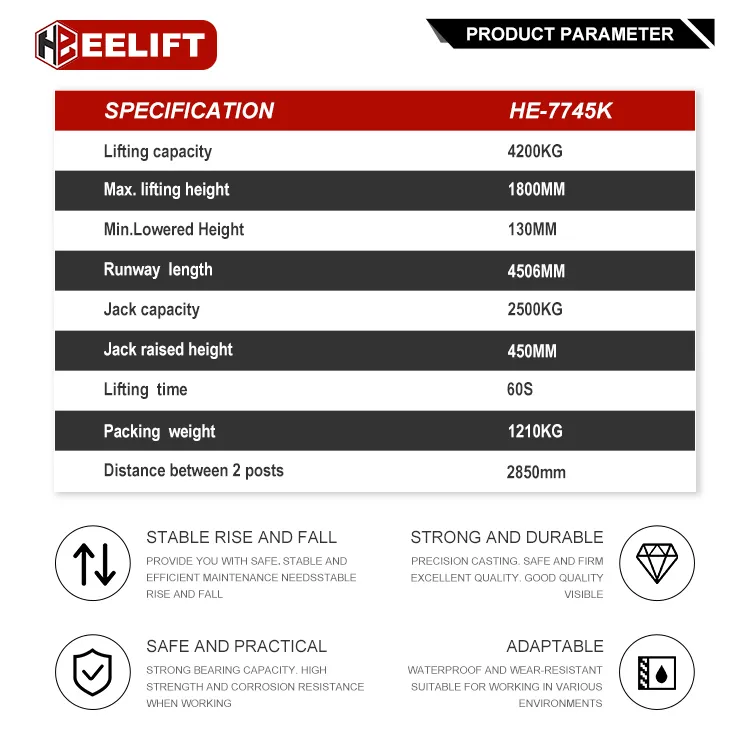

| SPECIFICATION |
HE-7745K |
| Lifting capacity |
4200kg |
| Jack capacity |
2500kg |
| Runway length |
4506mm |
| Max. lifting height |
1800mm |
| Min.Lowered Height |
130mm |
| Distance between 2 posts |
2850mm |
| Jack raised height |
450mm |
| Raised time |
60s |
| Packing Weight |
1210kg |
- Homologous and certified product according to European Directive EN1493:2010.
- Mechanical synchronization driven by steel cables.
- Mechanical lock with automatic engagement and manual release.
- Bolted-on alignment kit, jacking beam or turntables to be ordered for option.
- Possible to be driven off either from rear or front if drive-on ramps installed on front.
- Pressure overload valve equipped in power unit.
- 24V safety control.

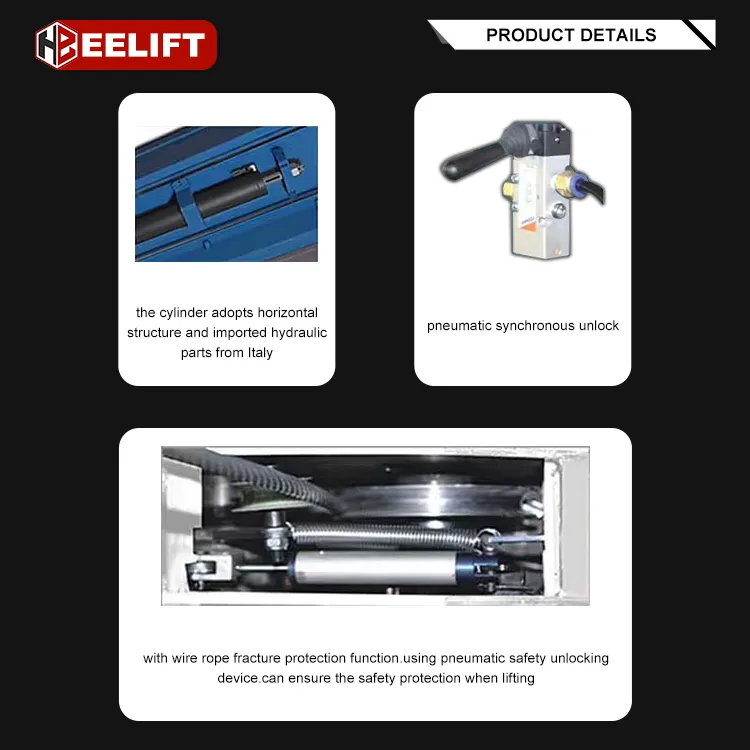

- The cylinder adopts horizontal structure and imported hydraulic parts from Italy.
- Pneumatic synchronous unlock.
- With wire rope fracture protection function, using pneumatic safety unlocking device, can ensure safety protection when lifting.

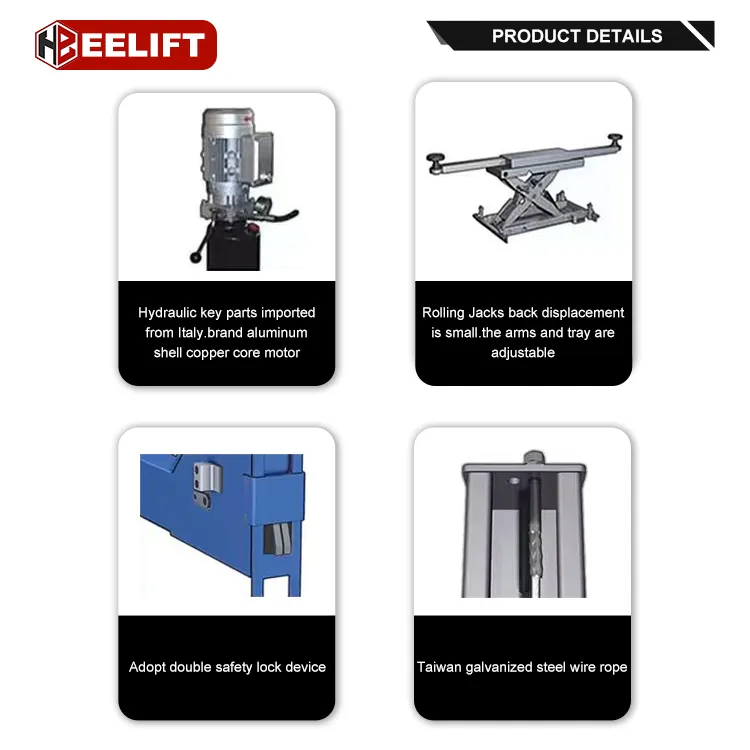

- Hydraulic key parts imported from Italy, brand aluminum shell copper core motor.
- Rolling Jacks back displacement is small, the arms and tray are adjustable.
- Adopt double safety lock device.
- Taiwan galvanized steel wire rope.
| Trade Terms |
FOB / CFR |
| MOQ |
3 UNITS (USD 200.00 extra charge for LCL shipment to cover inland freight + custom declaration fee) |
| Port |
QINGDAO |
| Shipment |
BY SEA / AIR |
| Payment Terms |
T/T |
| Payment condition |
30% prepayment, balanced before shipment. |
| Supply Capability |
1000 units/month |
| Sample Availability |
Yes, but all freight (Inland freight + sea freight) covered by buyer. |
| Sample Time |
5-10 days (depends on stock availability) |
| Lead Time |
25-30 days (Rush season 5-10 days longer) |
| Packing |
Metal frame & Carton |
| Delivery time |
30-45 days shipping time (depends on destination) |
| Service |
1% free parts; 1 year warranty after port of destination |
Frequently Asked Questions
1. Why should I choose this 4 post car lift?
Our car lifts are built with top-quality raw materials from the finest plants. We offer highly professional, cost-effective equipment with low pricing and high revenue-producing quality. Additionally, our equipment increases productivity for your customers, and we provide outstanding customer service with quick replies within 24 hours alongside a great warranty.
2. How safe are these car lifts?
Our car lifts have been comprehensively tested and are CE certified for safety. They also meet all relevant American and Australian standards.
3. Should I keep repair and replacement parts in stock?
Yes, we strongly recommend keeping most commonly required repair and replacement parts in stock at all times to minimize downtime.
4. Are these car lifts designed for commercial use?
Absolutely. All of our car lifts are fully engineered and built to be used in demanding commercial applications without any problems.
5. Do you offer custom designs?
Yes, we provide professional OEM/ODM services for our top-range partners. We can manufacture a superior product based customized entirely to your specific designs.
6. What is the lifting capacity and speed of the HE-7745K model?
The HE-7745K 4 post lift features a robust primary lifting capacity of 4200kg, a built-in jack capacity of 2500kg, and has an efficient lifting time of just 60 seconds to reach its maximum height.
