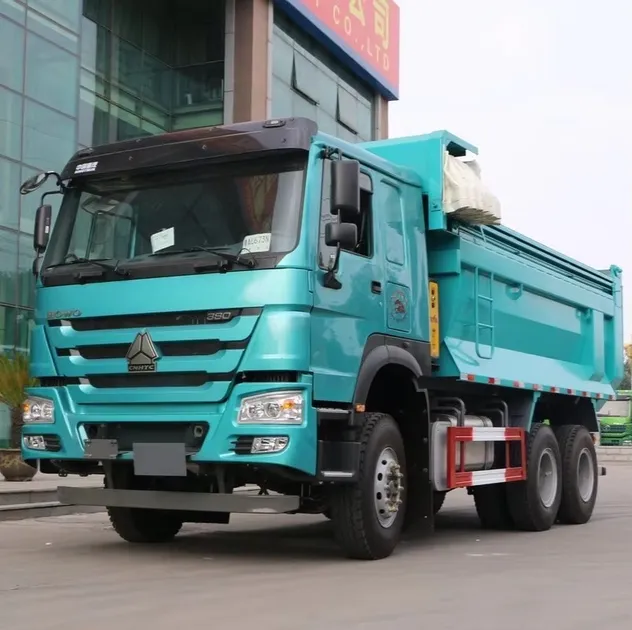

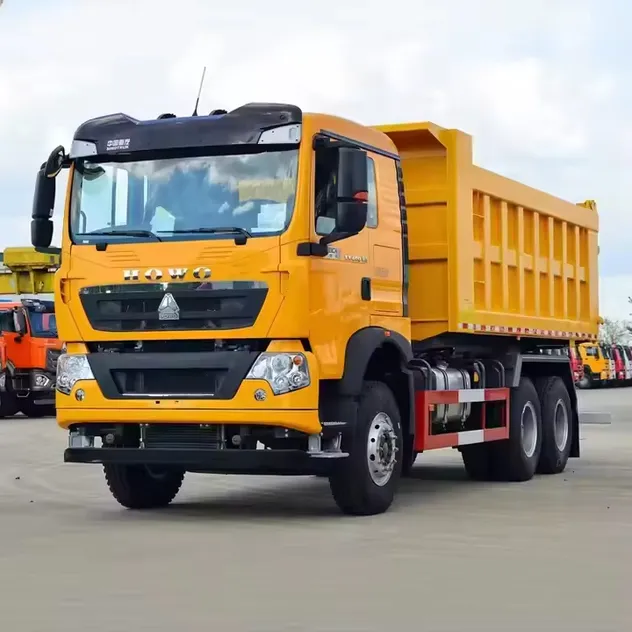

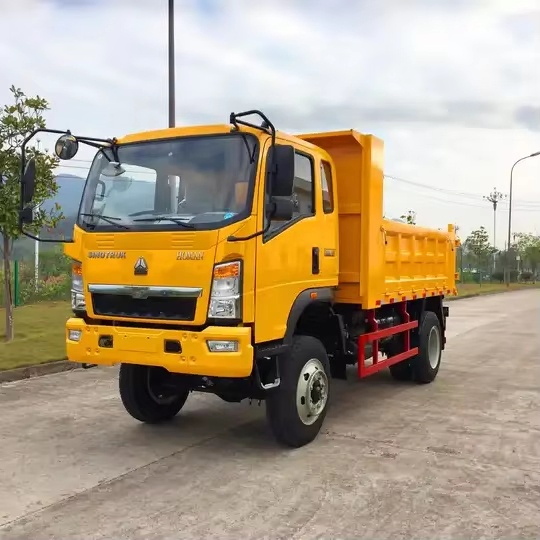

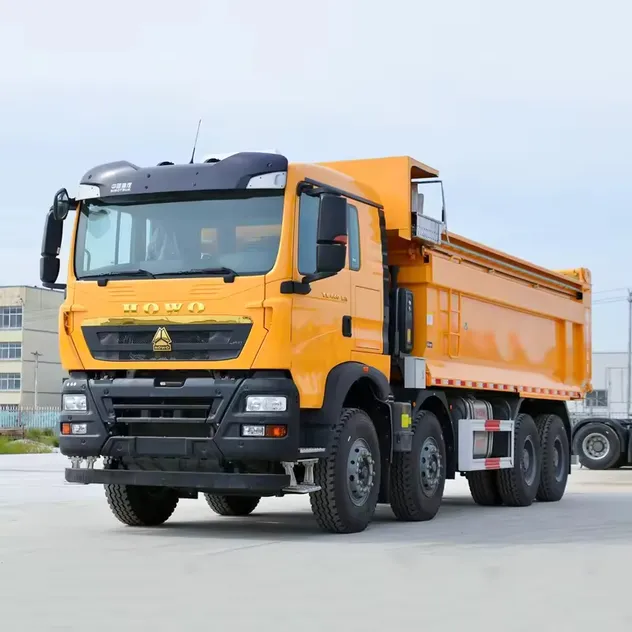

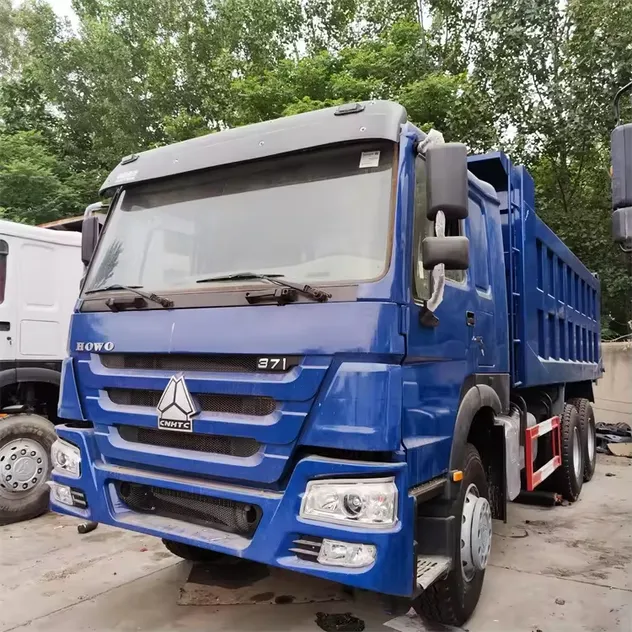

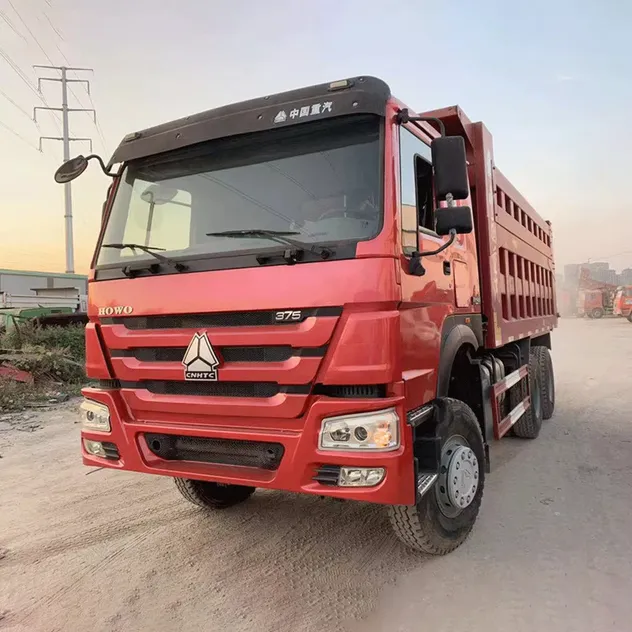

HOWO Tipper Truck Construction Equipment for Contractor Projects

Customization:	Available
After-sales Service:	Online Support Video Technical Support
Warranty:	1 Year/ Negotiable

Send Inquiry

Product Description

Overview

Specification

Basic Info.

Model NO.

Standard, Customized

Transmission Type

Manual

Power

Diesel

Load Capacity

20-50t

Emission Standard

Euro II / Euro III / Euro IV / Euro V

Drive Wheel

4×2/6×4/8×4

Engine Capacity

9L-12L

Seats

≤5

Horsepower

336HP/371HP/375HP/380HP/400HP/ 420HP/430HP

Tire Certification

ECE, GCC, ISO, DOT

Tire Design

Tubeless

Dumping Type

Front Lifting Style

Condition

Used/New

Gearbox Model

Fast 9-Speed / HOWO 9jsd / 12js

Fuel Type

Diesel

Fuel Consumption

35-60 L/100 Km

Axle Model & Ratio

Heavy-Duty Tandem Axle, Ratio 4.11 / 4.56 / 5.12

Suspension Type

Multi-Leaf Spring or Air Suspension

Brake System

Air Brake with ABS/Ebs Optional.

Steering System

Power Steering with Adjustable Column.

Curb Weight / Kerb Weight

10,000-25,000 Kg.

Gross Vehicle Weight Rating (Gvwr)

25 T / 35 T / 50 T / 80 T.

Gradeability / Climbing Ability

20%-40%.

Peak Torque

1500-2100 N·M.

Track Width & Wheelbase

Wheelbase 3300 / 3800 / 4200 / 4600 / 5000 mm.

Electronics & Instrumentation

Dashboard, Diagnostics, Rear Camera, Optional GPS

Safety Features

ABS, Ebs, TPMS, Rollover Protection, Reflectors

Certifications & Compliance

CCC, ECE/E-MARK, ISO9001, CE , EPA

Transport Package

Polished, Waxed and Rust-Proofed Before Shipment

Specification

Vehicle 8-12 m; carriage 4-6 m.

Trademark

Sinotruk/HOWO/CNHTC/Hohan/Shacman/FAW

Origin

China

HS Code

8716319000

Production Capacity

50 Sets Per Month

Packaging & Delivery

Package Size

854.50cm * 294.60cm * 338.60cm

Package Gross Weight

12290.000kg

Product Description

Specification

Category	Parameter	Specification (Typical / Range)	Recommendation / Notes
Core Performance & Powertrain	Engine Model / Type	Diesel, 4-stroke, direct injection, in-line 6-cylinder, water-cooled, turbocharged & inter-cooled	Recommended: WD615 series — stable performance and wide service network
	Horsepower (HP)	336 HP / 371 HP / 420 HP (optional 400 HP / 430 HP)	For mining or heavy load: ≥ 371 HP
	Torque / Max Torque	Approx. 1470 Nm (typical for WD615 engines)	High-torque models recommended for mountain roads or heavy-duty routes

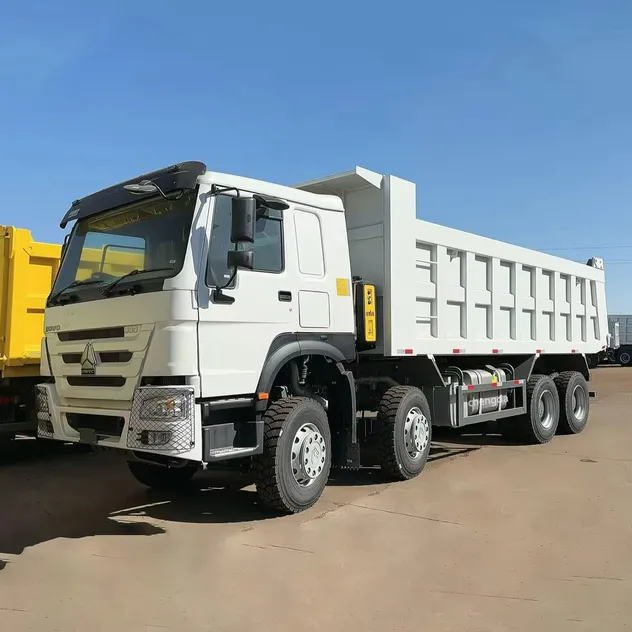

Drivetrain & Chassis	Drive Configuration	6×4 (3 axles) or 8×4 (4 axles)	8×4 recommended for heavy-load mining; 6×4 suitable for general transport
	Transmission	HW19710 gearbox, 10 forward + 2 reverse	PTO recommended if hydraulic system or special function is needed
	Front Axle Load	Approx. 9.0 tons (HF9 / VGD95)	Important for load distribution and road adaptability

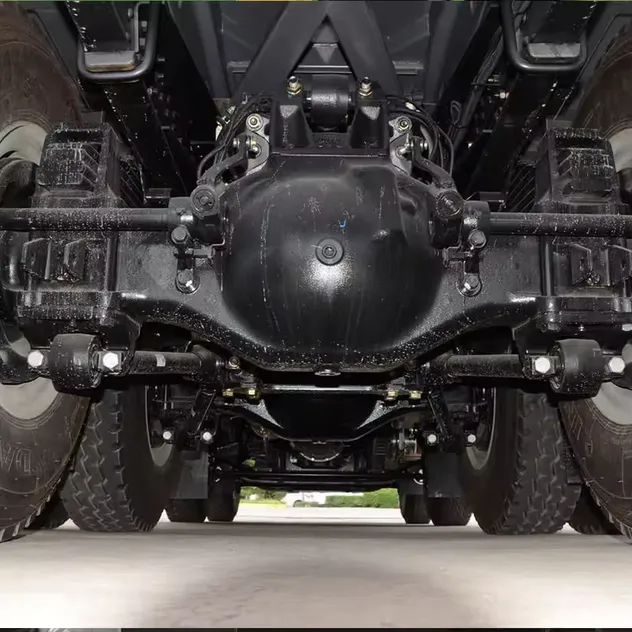

	Rear Axle Load / Drive Axle	HC16 or MCP16ZG tandem axle, 2×16 tons (approx. 32-ton rear axle capacity)	Recommended with hub reduction + differential lock for mining routes
Cargo Body & Loading	Cargo Body Capacity / Volume	15–32 m³; typical 25–28 m³ / body size approx. 7300×2300×1500 mm (8 mm floor, 6 mm side)	For ore/heavy material: choose reinforced thicker floor & side walls
	Payload Capacity	25–45 tons (depending on model)	Choose model based on route requirements & maximum load
	Dump System	Hydraulic tipping system (front-lift HYVA or local brand)	HYVA recommended for heavy mining conditions

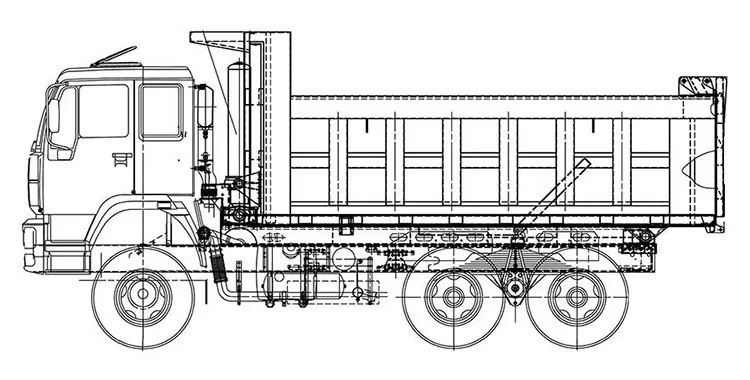

Dimensions & Structure	Overall Dimensions (L × W × H)	Approx. 8600–11800 × 2496–2550 × 3350–3500 mm	Select length depending on transport type (mining / construction / city)
	Wheelbase / Chassis Config	e.g. 3825+1350 mm (6×4) or 1800+3500+1350 mm (8×4)	Short/mid wheelbase recommended for off-road and mining

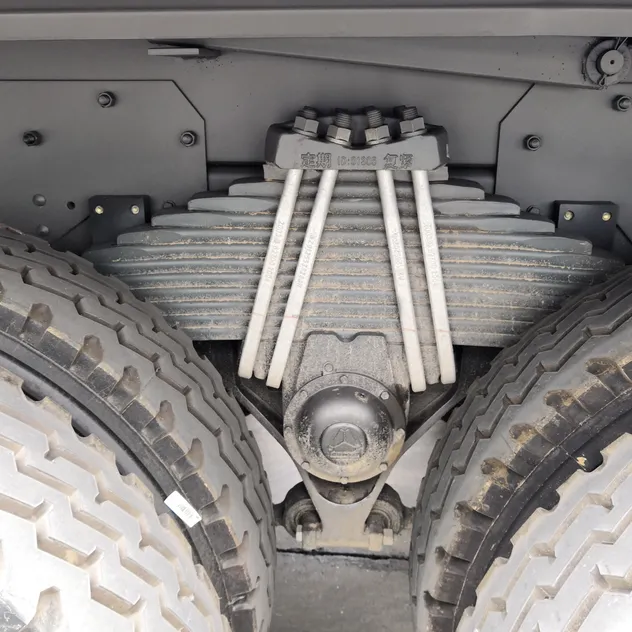

Suspension & Braking	Suspension Type	Front: leaf spring + hydraulic dampers; Rear: multi-leaf bogie + stabilizer	Reinforced suspension recommended for mining or overload conditions
	Brake System	Dual-circuit air brake; spring-energy parking brake; engine exhaust brake	For long downhill or mountain routes, choose ABS + exhaust brake
Fuel & Range	Fuel Tank Capacity	300 L typical (optional 400 L for some 8×4 models)	400 L recommended for long-distance or remote mining sites
Cabin & Comfort	Cabin Type	HW76 / TX-F cab; optional sleeper, A/C, adjustable seat, 4-point floating suspension	For long-distance: sleeper + A/C + suspension cab recommended
Tires & Wheel Assembly	Tire Type / Size	12.00R20 radial steel-wire tires (10 + 1 spare)	Steel-wire tires recommended for heavy load & mining roads

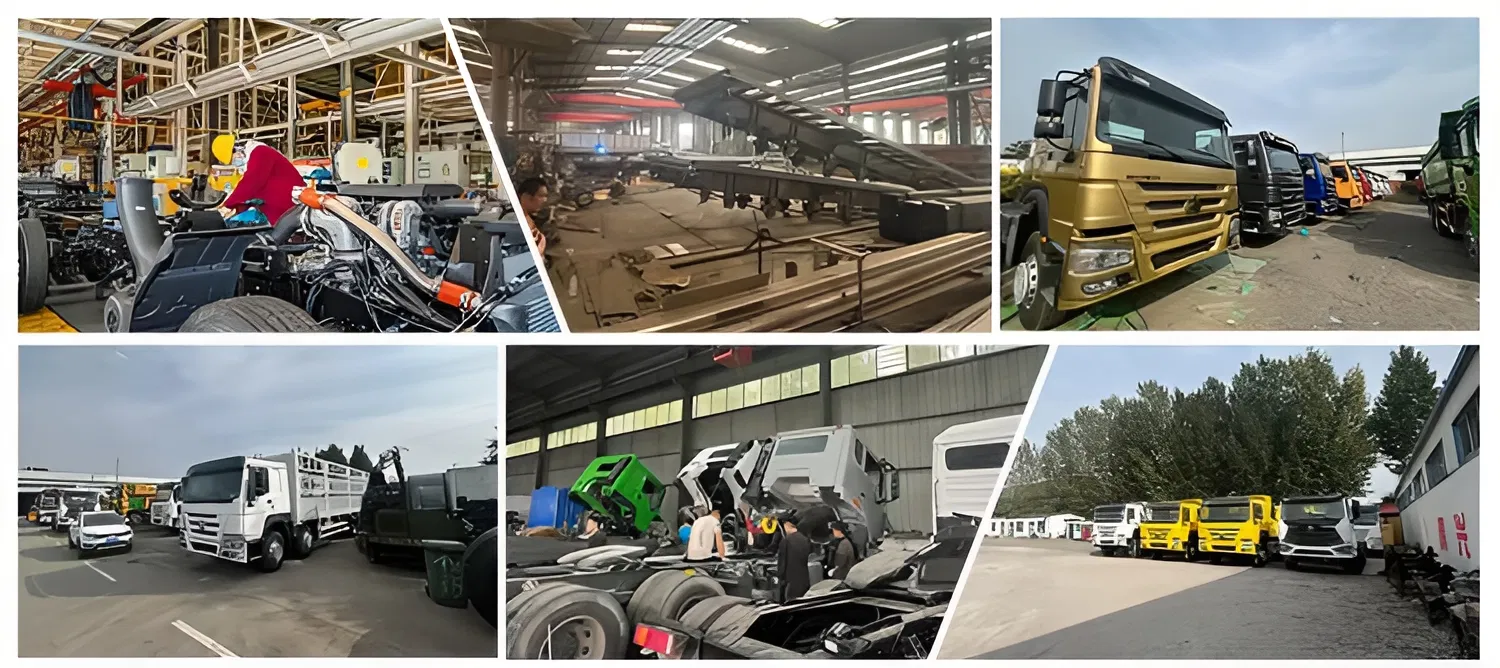

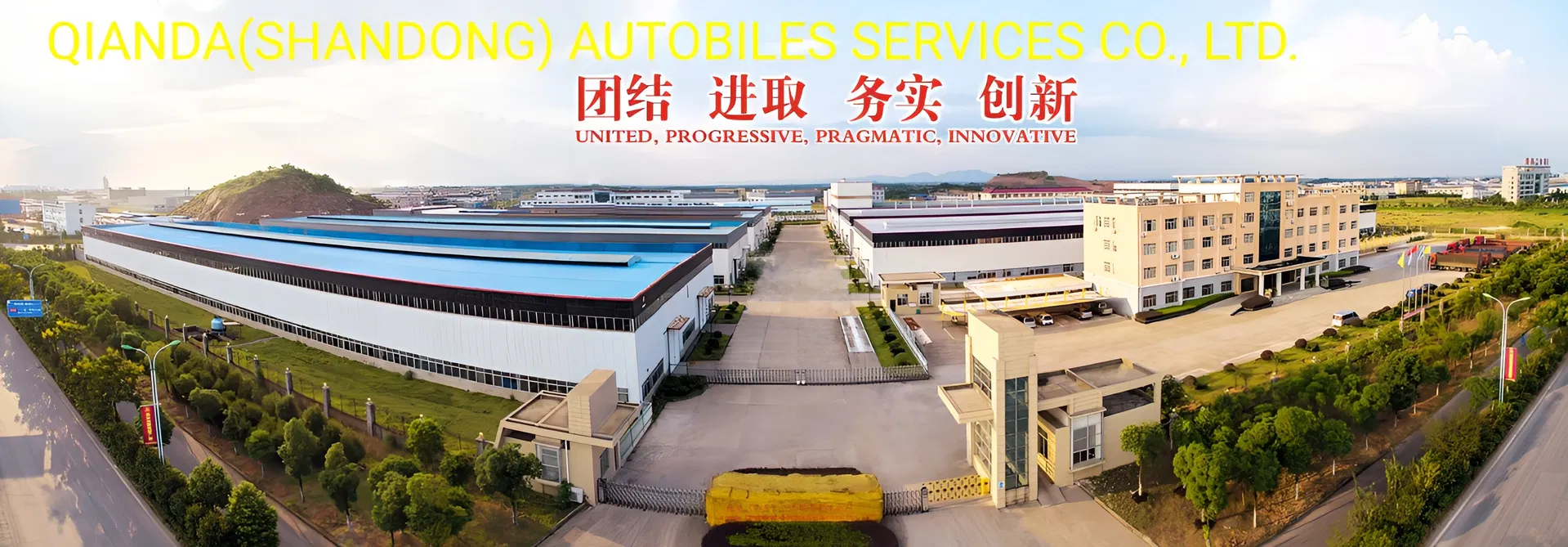

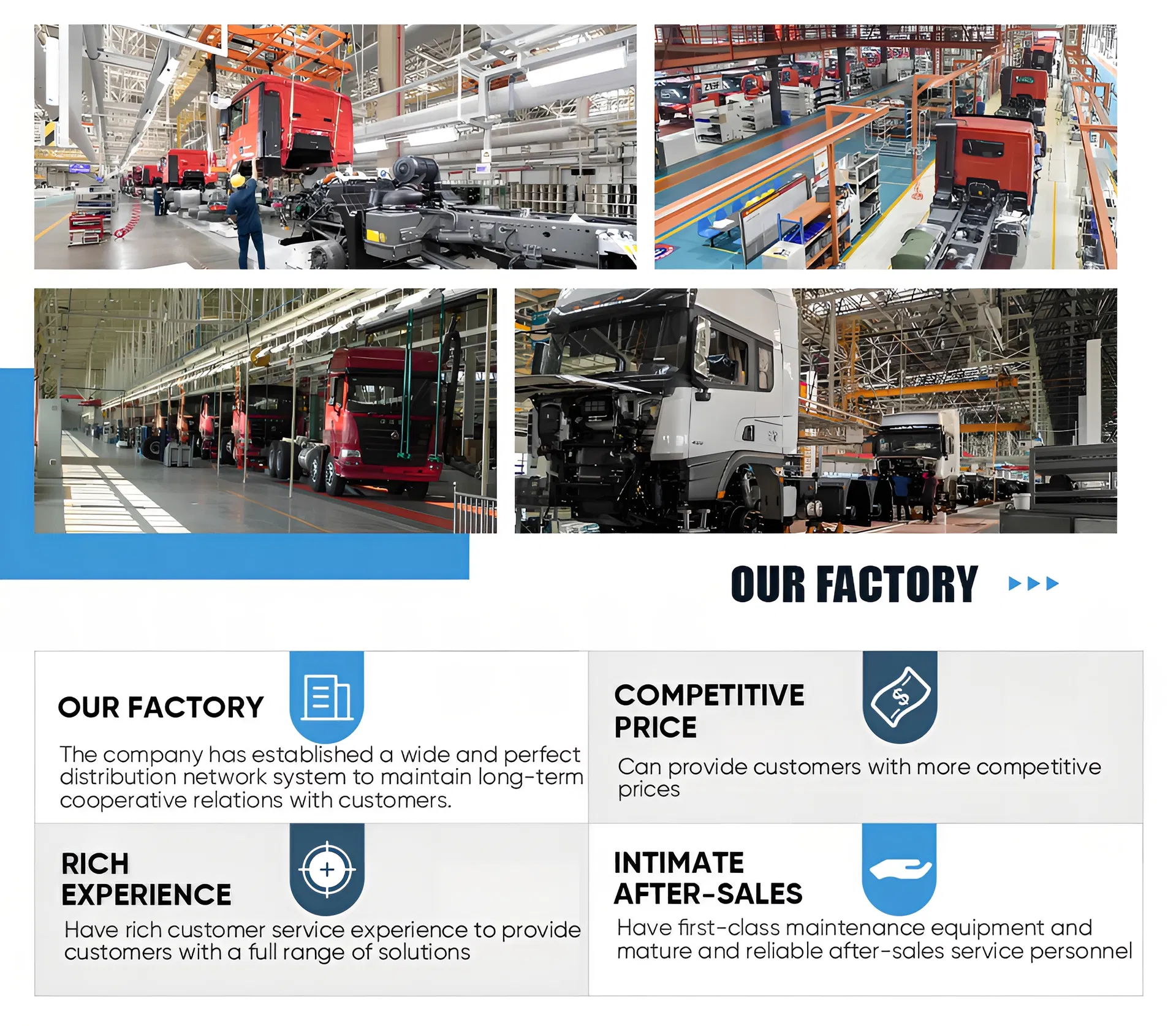

Company Profile — Automobile Service Specialist
We are a trusted supplier of new and used heavy-duty trucks and construction machinery, based in a leading commercial vehicle hub. We specialize in SINOTRUK HOWO, SHACMAN, FOTON, CAMC, SITRAK, and Dongfeng trucks, including dump trucks, tractor trucks, tankers, trailers, and used excavators. All vehicles undergo strict inspection to ensure reliable performance, competitive pricing, and fast delivery. With long-term clients across Africa, Southeast Asia, the Middle East, and South America, we are committed to providing dependable equipment and professional export solutions. Whether you're looking for new trucks or cost-effective used equipment, we strive to be your trustworthy partner.

Frequently Asked Questions

Are you a manufacturer or a trading company?

We are a direct manufacturer with over 10 years of experience in truck production and export. All trucks are assembled in our own factory and shipped to over 40 countries, including Saudi Arabia, UAE, Nigeria, and Indonesia. Factory visits are welcome at any time.

Can your trucks handle tough environments like desert or mining?

Yes. Our HOWO 6×4 dump trucks are designed for harsh terrain, including desert, mining, and off-road conditions. We offer reinforced axles, heavy-duty suspension, anti-puncture mining tires, and high-power engines (up to 440HP) to ensure reliable performance in demanding environments.

Can I customize the truck for my local regulations?

Absolutely. Trucks can be tailored to meet your country's road laws and fuel standards, including Euro 2 / Euro 5 emissions, diesel engine tuning based on local fuel quality, left-hand / right-hand drive configuration, axle setup, load capacity, body color, and more.

What is your delivery time and port of loading?

Delivery takes 7–15 working days after deposit confirmation. The main port of loading is Qingdao. Other ports (like Shanghai or Tianjin) can be arranged based on your specific requirements and location.

What documents will you provide for customs clearance?

We provide complete export documents, including a Commercial Invoice, Packing List, Bill of Lading, Certificate of Origin (Form A / E / CO), and SGS / BV / COC (if required for your specific market regulations).

Do you provide warranty and spare parts?

Yes. We offer a 6–12 months warranty (depending on parts). Genuine spare parts are available for long-term support and can be shipped by air or sea. We also provide remote technical support and video guidance.
