360 Degree Rotating Car Washing Equipment with Chassis Washing and Photoelectric Sensing

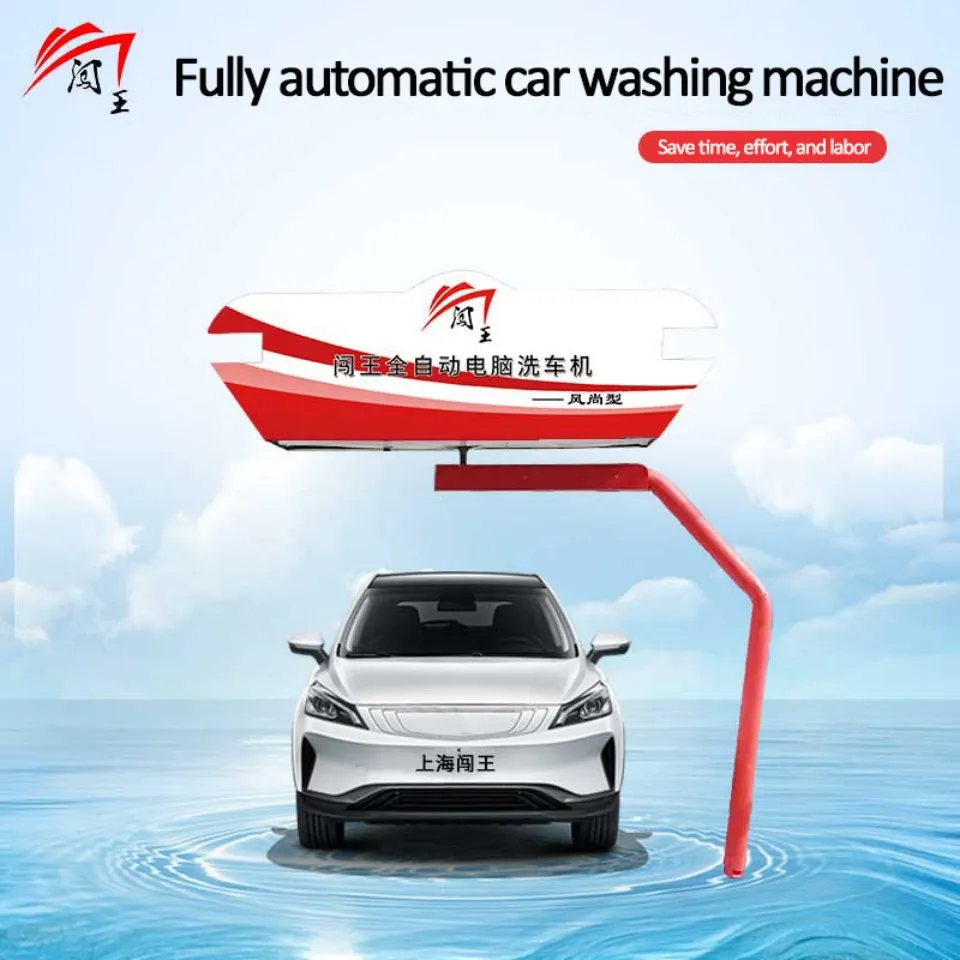

360 Contactless Fully Automatic Computer Car Washing Machine

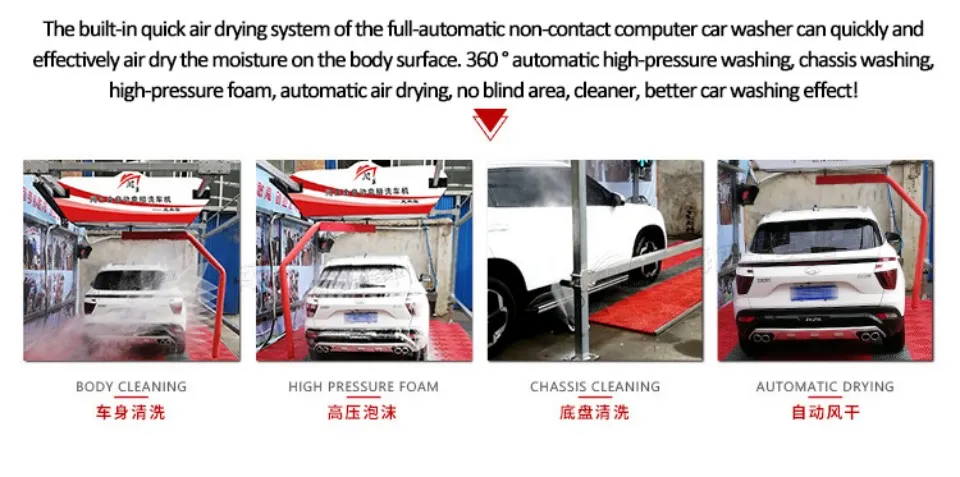

The Fashion style fully automatic contactless computer car washing machine is a best-selling model that integrates many functions, has complete functions and ultra-high cost-effectiveness to meet the ultimate experience of car owners, and is highly welcomed by the market. This model is equipped with an embedded fast air drying system, which can quickly and efficiently air dry the moisture on the body surface. 360° surround automatic high-pressure washing, chassis cleaning, high-pressure foam, automatic wax spraying, automatic air drying, no blind area, cleaner, better car washing effect. Compared with traditional car washing, this machine has fast washing speed, high efficiency, and saves time, effort, and labor! This product is suitable for cleaning various types of vehicles such as small cars, commercial vehicles, off-road vehicles, vans, etc.

Applications

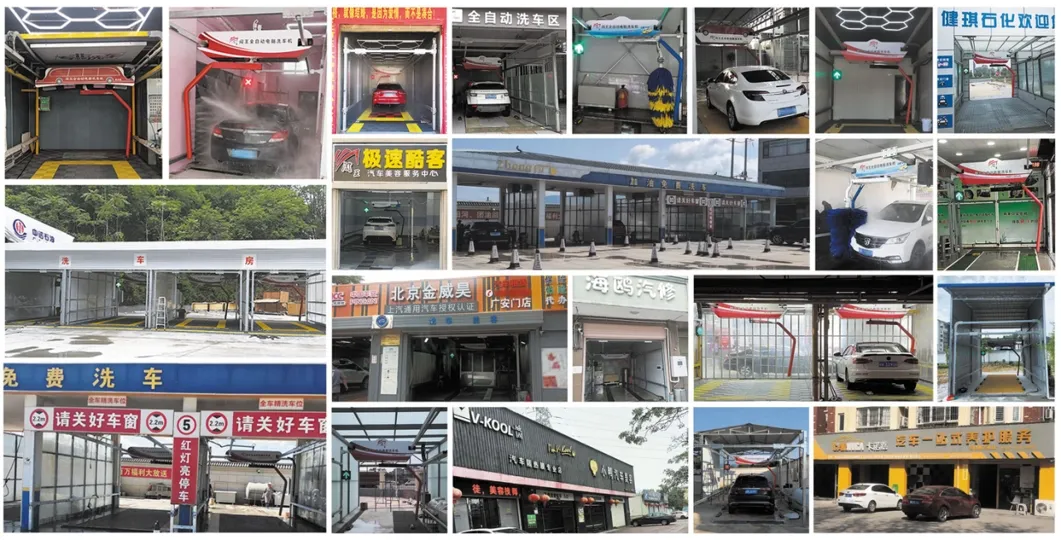

Commercial Car Washing: Suitable for car wash shops, gas stations, large parking lots, and auto repair shops.
Community Car Washing: Ideal for installation in community parking lots with moderate car washing demands.
24-Hour Self-Service Car Washing: Enables 24/7 unattended fee-based operation.

360 Degree Rotating Car Washing Equipment with Chassis Washing and Photoelectric Sensing

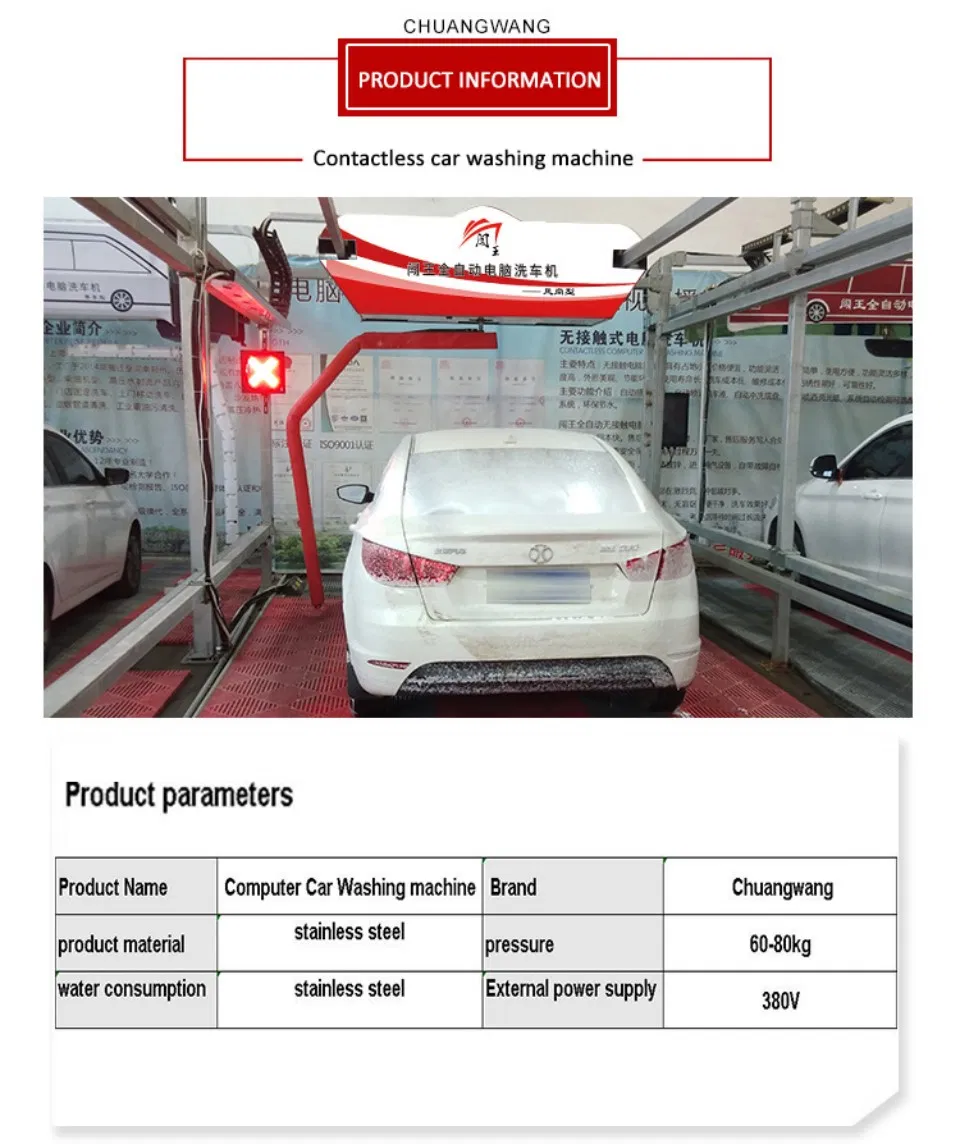

Specification

Model	CW-FS	Pressure	80~100Bar
Materials	Stainless Steel	Pump power	15kw
Water consumption	80~120L	Blower power	4kw x3
Electricity consumption	0.375kw/Vehicles	Voltage	3 phases 380V
Washing car space	5300x1900x2000mm	Main controller	Chint
Car body induction	Ultrasonic	Induction mode	Ultrasonic/photoelectric
Foam system	One	Foam power	370w
Operate method	Touch screen panel	Operation mode	Manual/Automatic
Washing method	Reciprocating cleaning	Washing process	Chassis+Foam+Washing+Built-in fan
Washing time	4-6 minutes	Protect system	Overpressure/Overcurrent
Breakdown self check	Automatic alarm	Water supply pipe	≥DN20
Water storage	≥1Ton (prepare in local)	Air pump	≥700w (prepare in local)
Device weight	About 1 Ton	Dimensions	700035003300mm

Product Features

1. Contactless Washing Technology

Utilizes high-pressure water jets to clean the vehicle without direct contact, preventing paint scratches.

2. Intelligent Sensing System

Equipped with an automatic sensing switch that initiates the washing program as soon as the vehicle enters the washing area.

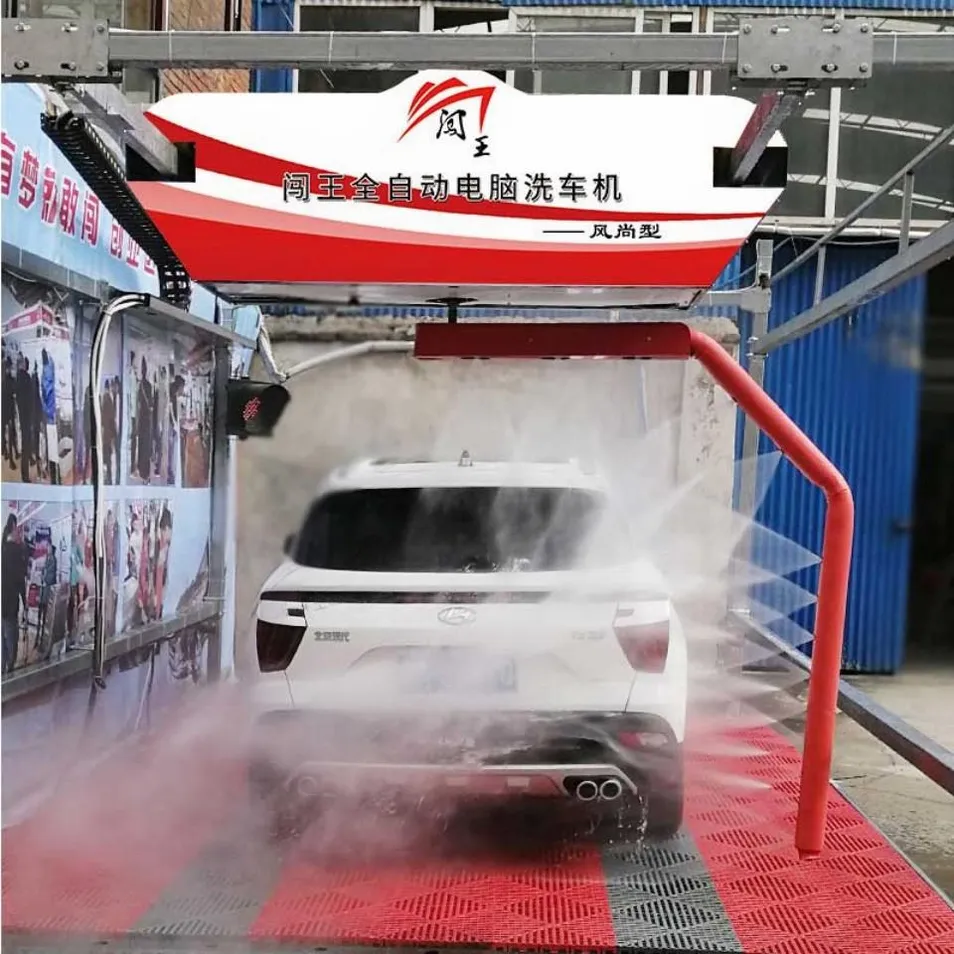

3. 360° Surround Washing

Features a 360° intelligent washing technology that ensures comprehensive cleaning of the vehicle's surface without blind spots.

4. Multi-Liquid Use and Automatic Proportioning

Automatically sprays multiple types of cleaning liquids, evenly covering the vehicle's surface to quickly remove dirt.

5. Active Cleaning Ions

Uses active cleaning ions to more effectively remove dirt and grease from the vehicle's surface, leaving the paint smoother and shinier.

6. Drying Function

An integrated drying system with adjustable drying speed settings to evenly dry water droplets and stains on the vehicle's surface.

7. Automatic Wax Spraying

After washing, the machine can optionally spray water-based wax to protect the vehicle's paint.

8. Payment Function

Can be equipped with card-swiping or QR code payment options to enable 24/7 unattended fee-based operation.

9. Automatic Door Function

The all-in-one wash and care model can be optionally equipped with an automatic door system that opens after payment and closes automatically after washing, enhancing the safety of the equipment.

Our Advantages

High Efficiency: Completes the entire process of washing, drying, and waxing in just 3-4 minutes.
Labor Savings: High degree of automation eliminates the need for manual operation.
Environmental Protection & Water Conservation: Equipped with a wastewater recycling system to reduce operating costs.
Easy Operation: Simple and intuitive interface with one-button start.
Safety and Reliability: Uses high-pressure contactless washing to avoid paint scratches caused by sand particles.
Enhanced Shop Image: The high-end equipment configuration and outstanding washing results can significantly upgrade the overall image of a car wash shop.

Functions

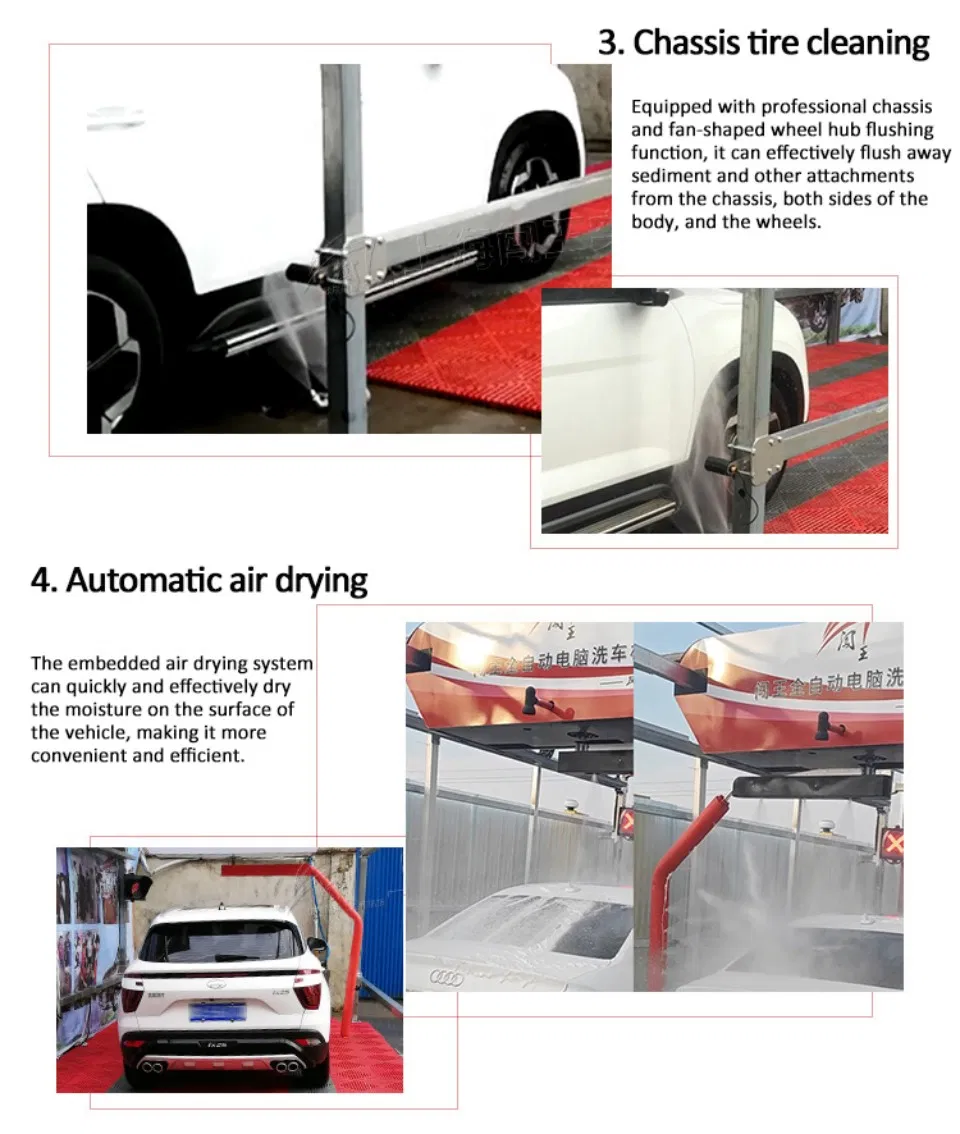

Chassis Washing: Automatically cleans the underside of the vehicle with no blind spots.
Wheel Hub Cleaning: Features a dedicated wheel hub cleaning function.
Body Washing: Comprehensive 360° intelligent washing with no blind spots.
Drying: The integrated drying system quickly dries the vehicle's surface.
Wax Spraying: Automatically sprays water-based wax after washing to protect the vehicle's paint.

Car Washing Steps:

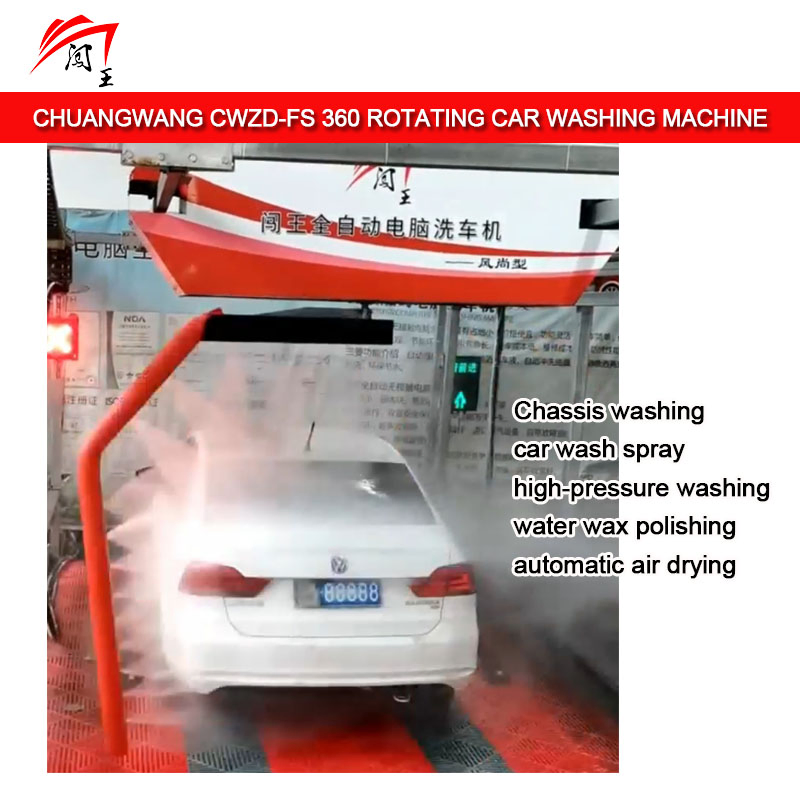

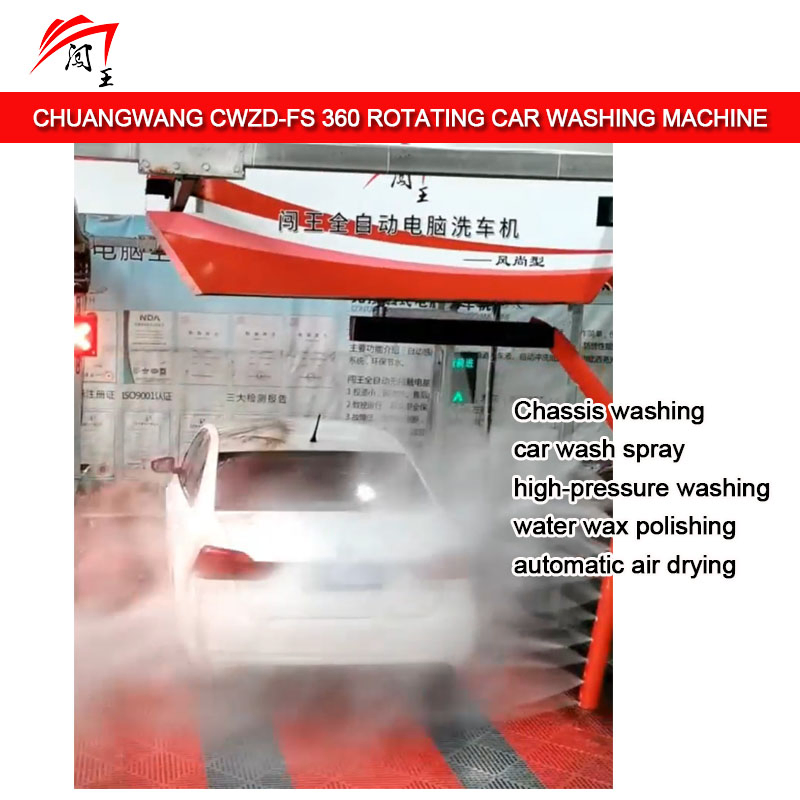

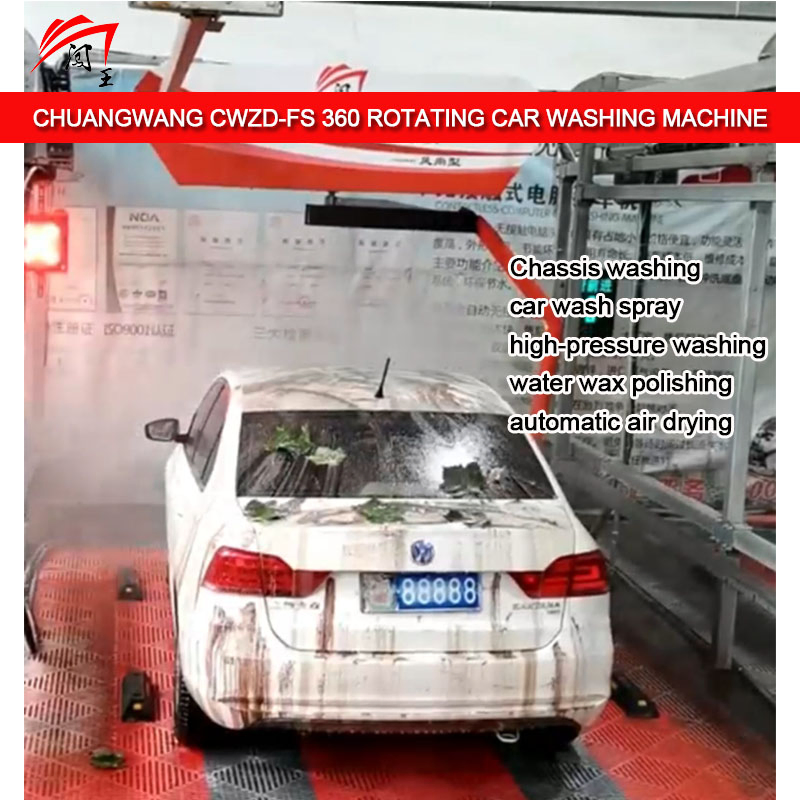

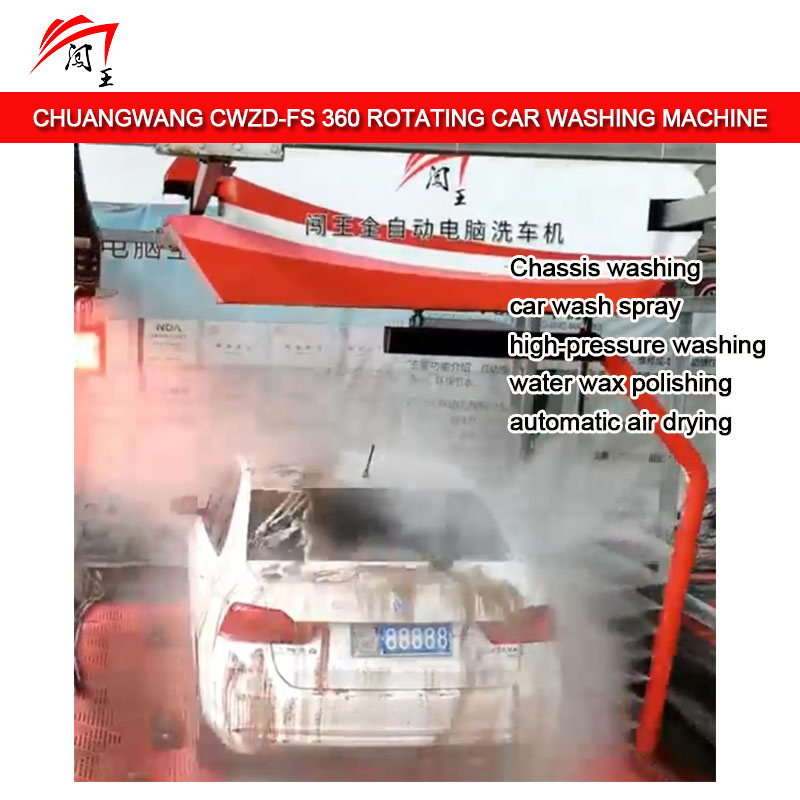

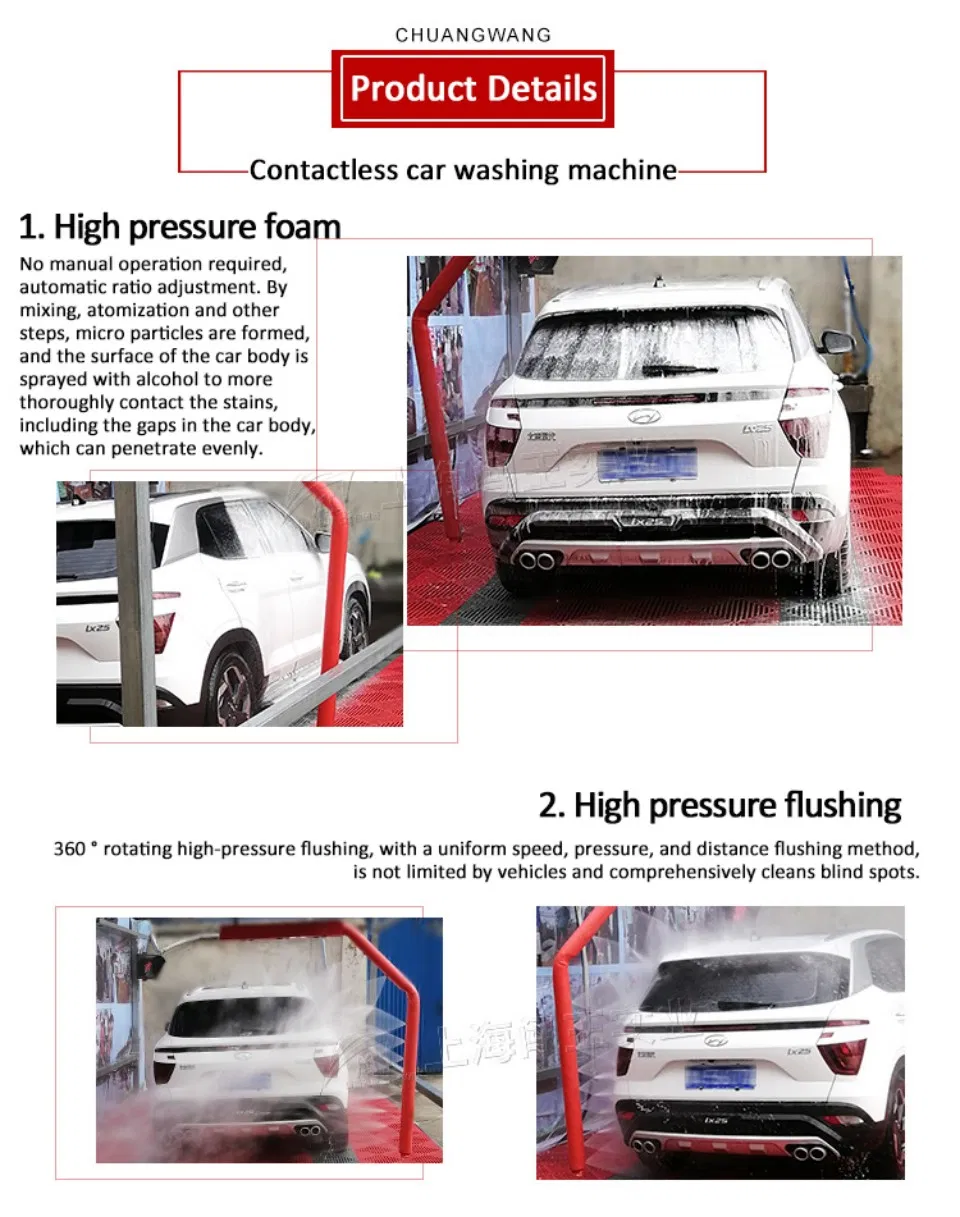

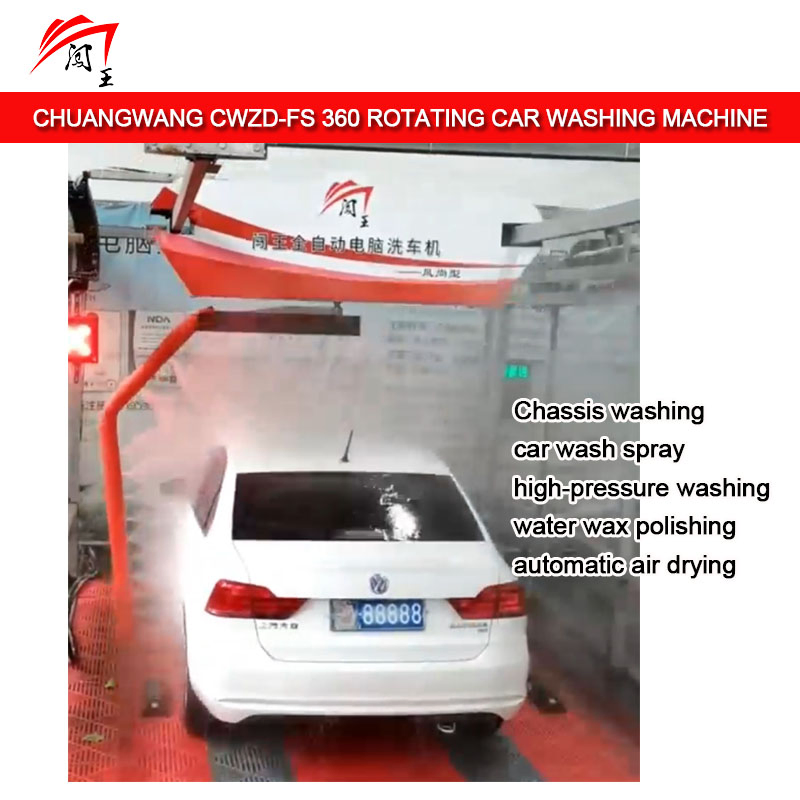

Chassis washing → Car wash fluid → High pressure washing → Water wax → Air drying → Car washing completed

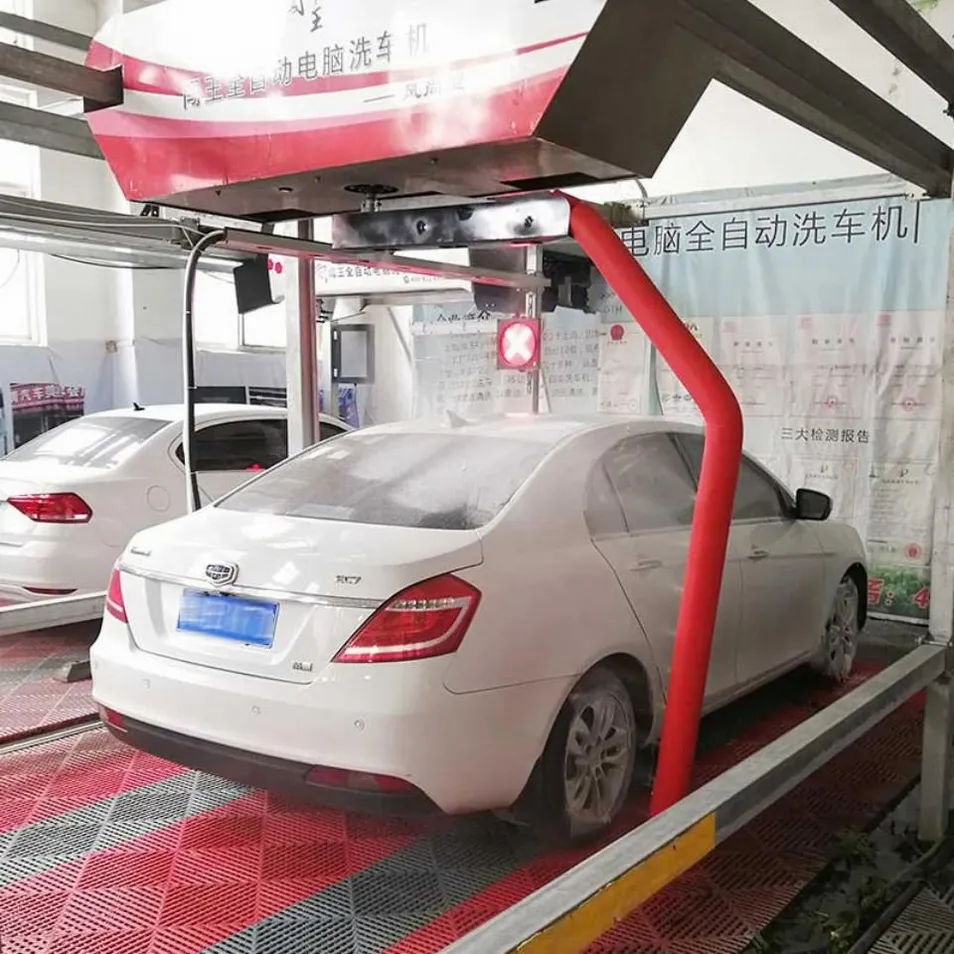

Product Display Gallery

Choosing a Good Device

The CW-FS Intelligent Computer Automatic Car Washing Machine is a great project for your entrepreneurship. It can be installed both indoors and outdoors, and is a must-have for gas stations, storefronts, large parking lots, car washes, and auto repair shops. This product does not come into contact with the paint surface during the car washing process and will not cause damage to the car paint. Professional car beauty shops usually choose to use this contactless car washing machine.

Equipment Operation Video

Packing & Delivery

Packing Details:

Main Equipment: Packed in export-grade fumigation-free plywood crates, wrapped with thickened moisture-proof film. Internally, critical components such as robotic arms and motors are secured with high-strength foam and cushioning pads to ensure shockproof, moisture-proof, and rust-proof protection during transportation.
Accessories: Fragile items such as control boxes and pipelines are packed separately in individual cases with corresponding labels.
Packing Dimensions: Approx. 300cm(L) × 100cm(W) × 116cm(H) (may vary slightly depending on specific model)
Gross Weight: Approx. 800 kg/unit

Delivery Time:

In-stock: Shipped within 7-15 working days after payment confirmation
Custom/OEM Orders: 20-30 working days (subject to negotiation based on customization requirements)

After Sales Service

For CW-FS Model:

Warranty Coverage: Main Machine: 12 months warranty against manufacturing defects. Core Components: 12 months for PLC control system, motors, and pumps.
Technical Support: 24/7 Online Support: Email, WhatsApp, and video call assistance. Comprehensive Guides: Free access to English installation videos, operation manual, and wiring diagram. Remote Diagnostics: Real-time troubleshooting via remote system access.
Spare Parts: Fast Dispatch: Replacement parts shipped within 48 hours from stock. Reasonable Pricing: Wear parts offered at preferential rates for long-term customers. Recommended Spare Kit: Suggest ordering a basic spare parts package with machine for quick maintenance.
Installation & Training: Free Online Training: Step-by-step video guidance for installation and operation. On-Site Service: Available upon request (charged separately, travel + labor costs apply) with 7-15 days advance notice. Operator Training: Standard 2-3 day training program for your technical team.
Response Time Commitment: Inquiry Response: Within 12 hours. Fault Resolution: Preliminary solution within 24 hours; complex issues within 48 hours.

Frequently Asked Questions (FAQ)

Q1: What cleaning technology is used in the CW-FS car washing machine?

A: The system utilizes a 360° high-pressure water jet with controlled rotation, pressure, and distance. The contactless design ensures efficient cleaning while preventing paint scratches.

Q2: How long does a complete wash cycle take?

A: The high-pressure wash phase takes approximately 90 seconds. A complete washing cycle (including foam, washing, and air drying) takes between 3 to 8 minutes depending on the selected mode.

Q3: What are the installation site and utility requirements?

A: It can be installed both indoors and outdoors. You will need a 20cm concrete foundation, a stable 380V power supply, standard water supply access, and proper drainage systems.

Q4: Is manual operation or dedicated staff required to run the machine?

A: No, the machine is fully automatic with optional manual override. It supports unmanned operation configuration integrated with RFID systems, mobile payment scans, or credit card readers.

Q5: What safety features are built into the equipment?

A: The machine is equipped with intelligent obstacle detection, easy-access emergency stop buttons, pressure sensors, CE-certified electronic components, and lockout/tagout capabilities for safe maintenance.

Q6: What types of vehicles can this machine clean?

A: The ultrasonic detection and PLC system automatically adapt to passenger vehicles, including sedans, SUVs, and MPVs, up to 5.5m in length, and 2.2m in width/height.
