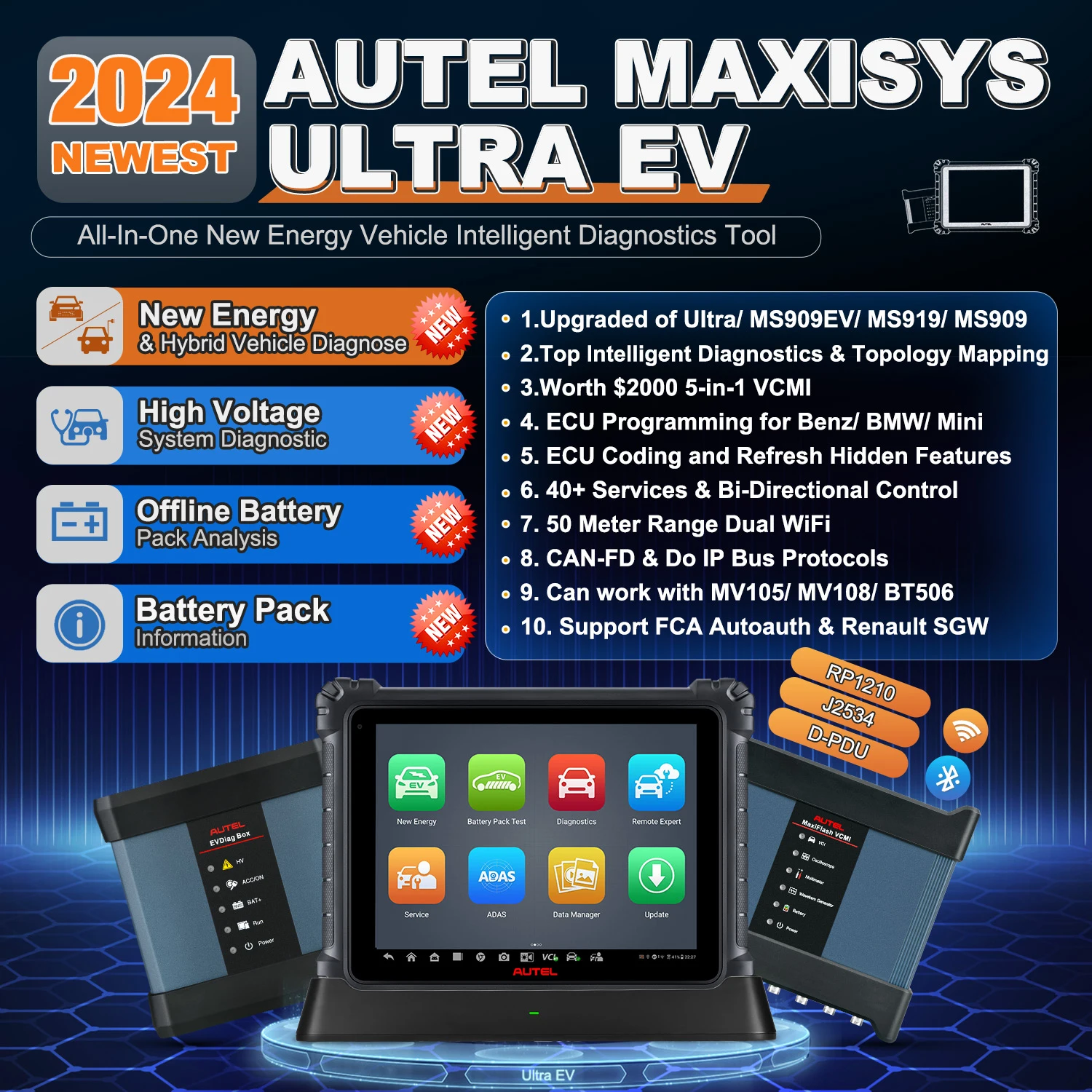

Autel MaxiSys Ultra EV - Intelligent EV Diagnostics with MaxiFlash VCMI
The MaxiSys Ultra EV is a new generation of intelligent diagnostics for electric, hybrid, gas, and diesel vehicles. The Ultra EV provides a comprehensive analysis of electric and hybrid vehicles with expanded topology mapping and battery pack analysis that can be performed via OBD or directly with included specialty cables and jumpers.

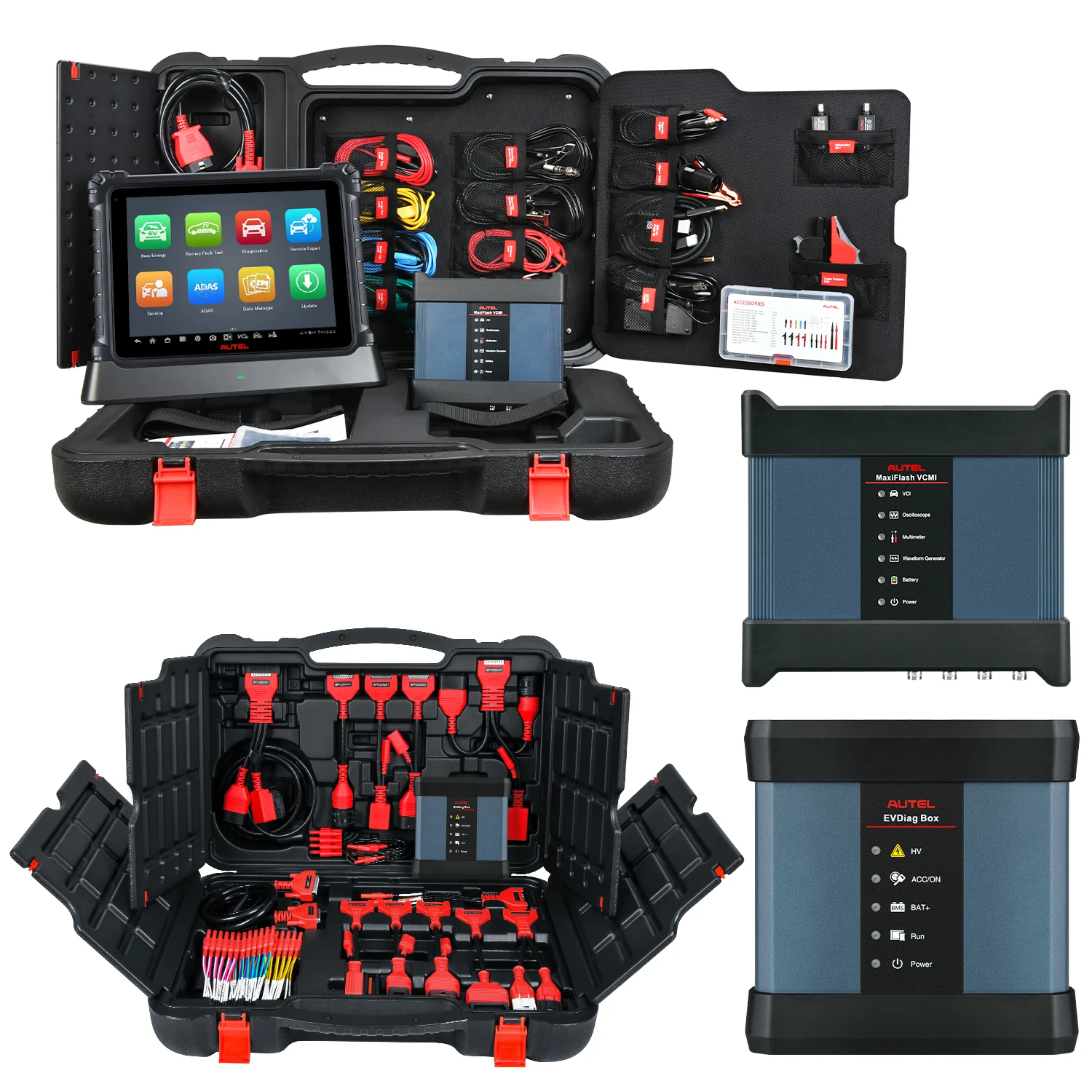

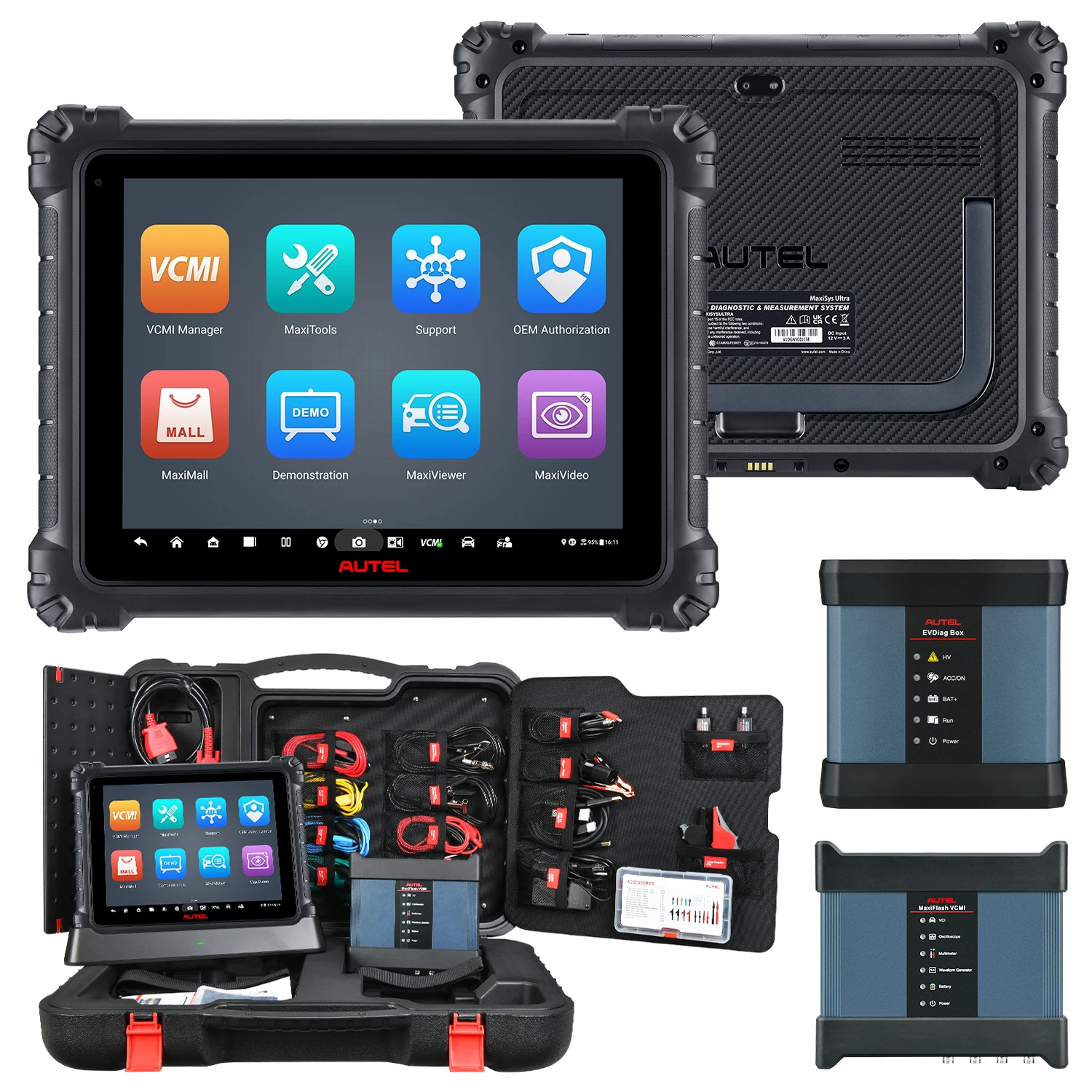

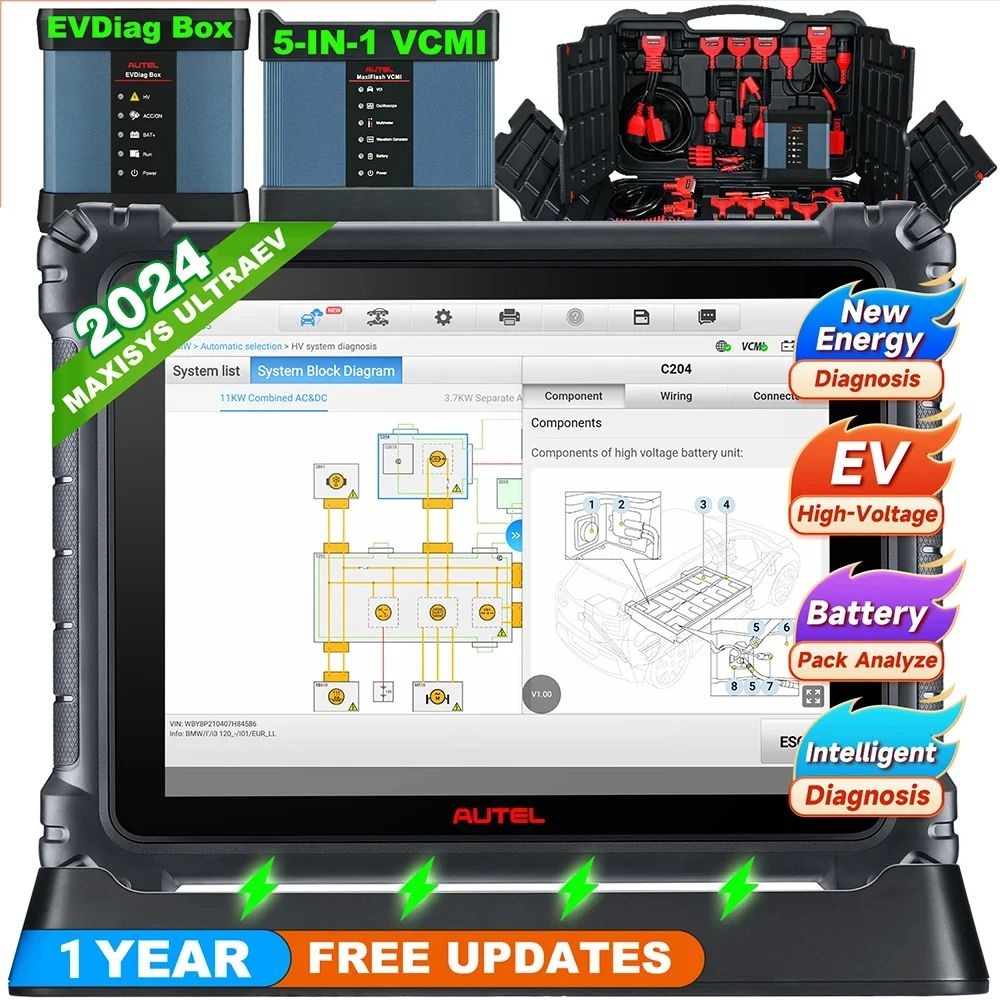

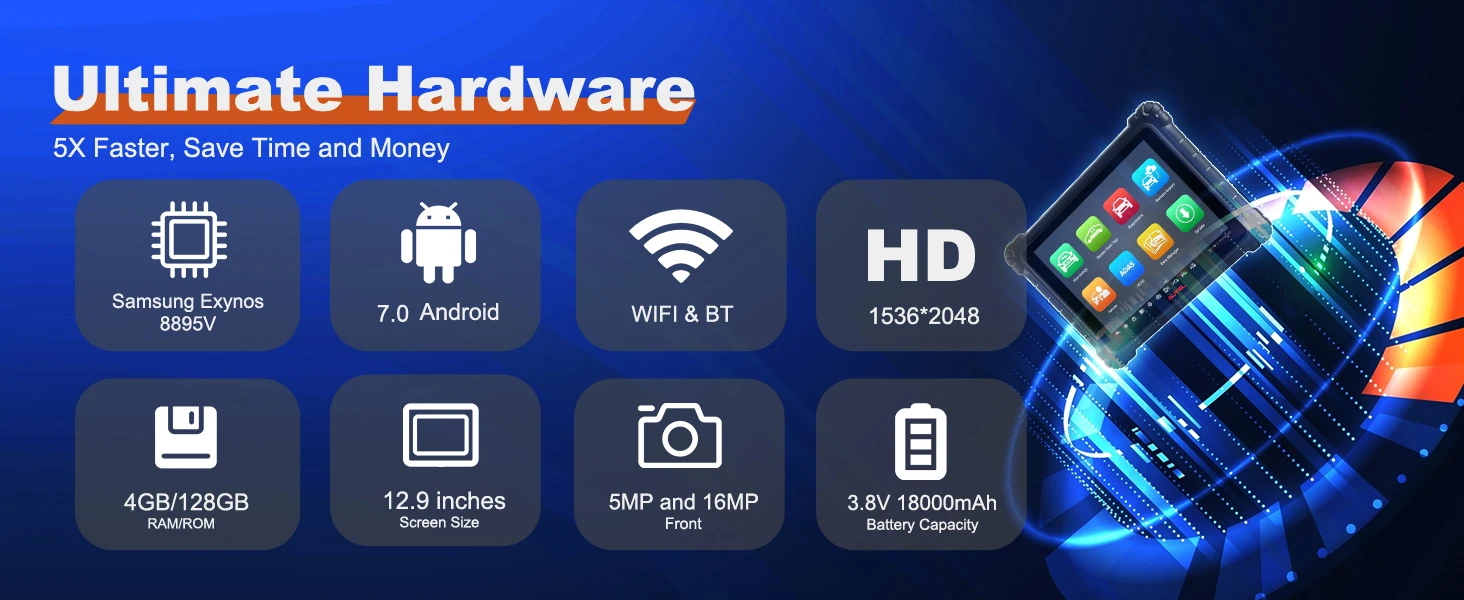

The Ultra EV screen displays detailed graphics and in-depth connection guidance to provide safe and secure testing. The 12.9-inch Ultra EV touchscreen tablet comes equipped with the MaxiFlash VCMI (5-in-1) measurement device, Bluetooth-enabled vehicle communication interface and J2534 pass-thru programming device, and a dedicated EVDiag box.
Rapid Analysis of EV High-Voltage Systems

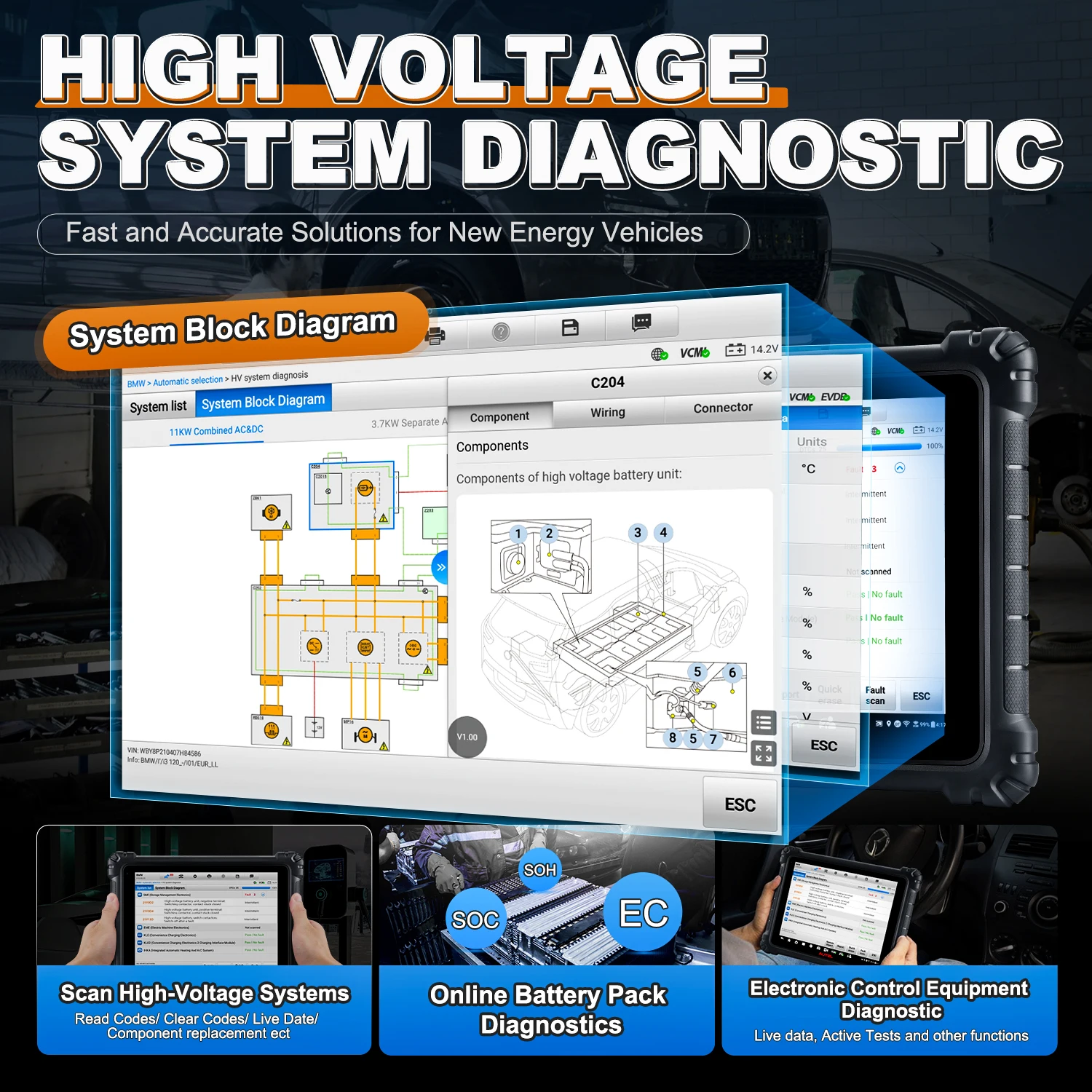

Ultra EV is able to perform diagnosis on high-voltage (HV) systems of new energy vehicles. Tap "New Energy" to enter the vehicle menu. The icon tagged on the vehicle indicates that the HV system can be diagnosed.

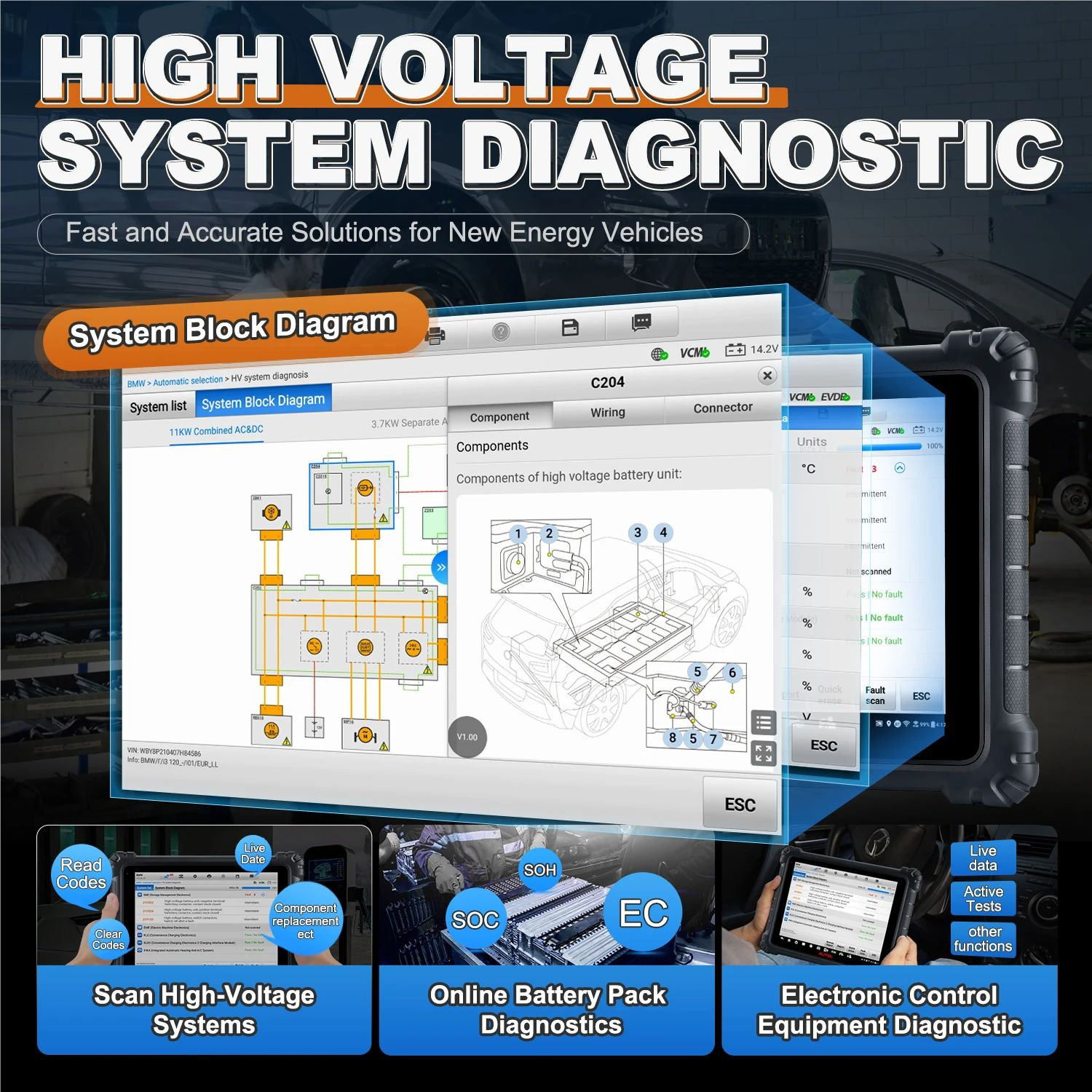

In most cases, the HV system list appears on the main screen of HV System Diagnostics. Additionally, a System Block Diagram will be displayed for some new energy vehicles, such as BMW, Tesla, BYD, GM, Audi, Toyota, etc. Tap "HV System Diagnosis" on the Navigation Bar of the New Energy Main Screen to enter the interface, which displays the System List and System Block Diagram.

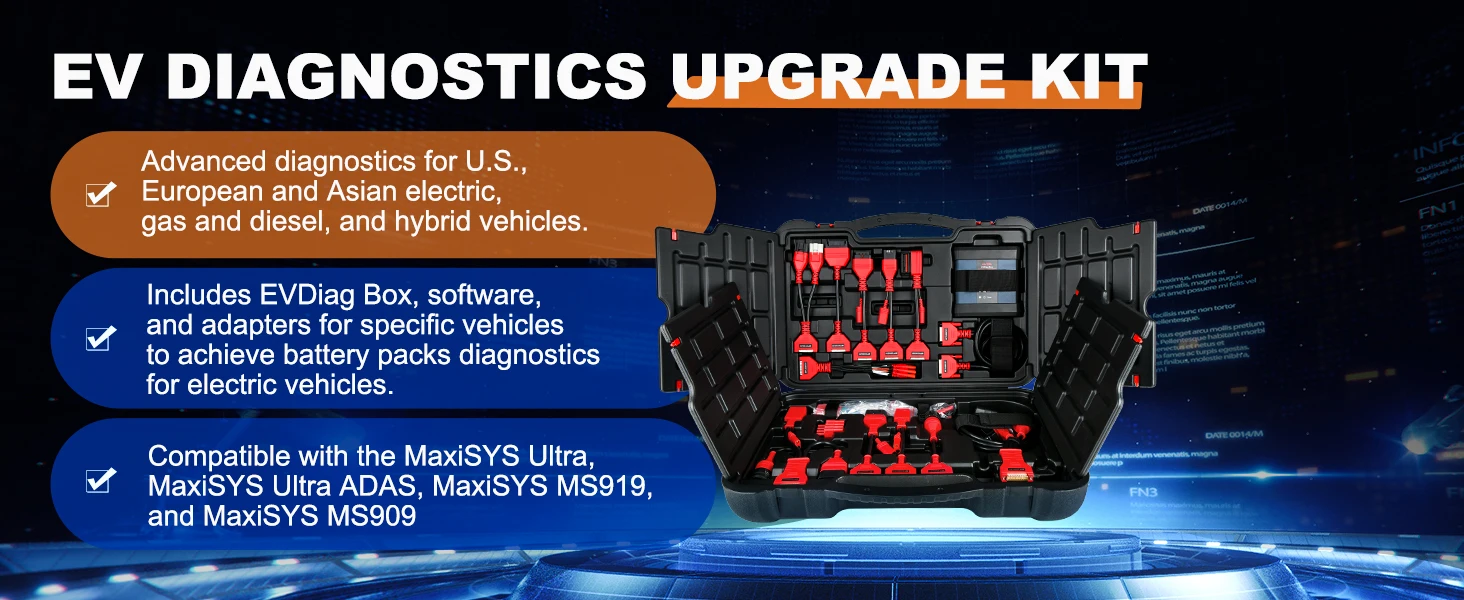

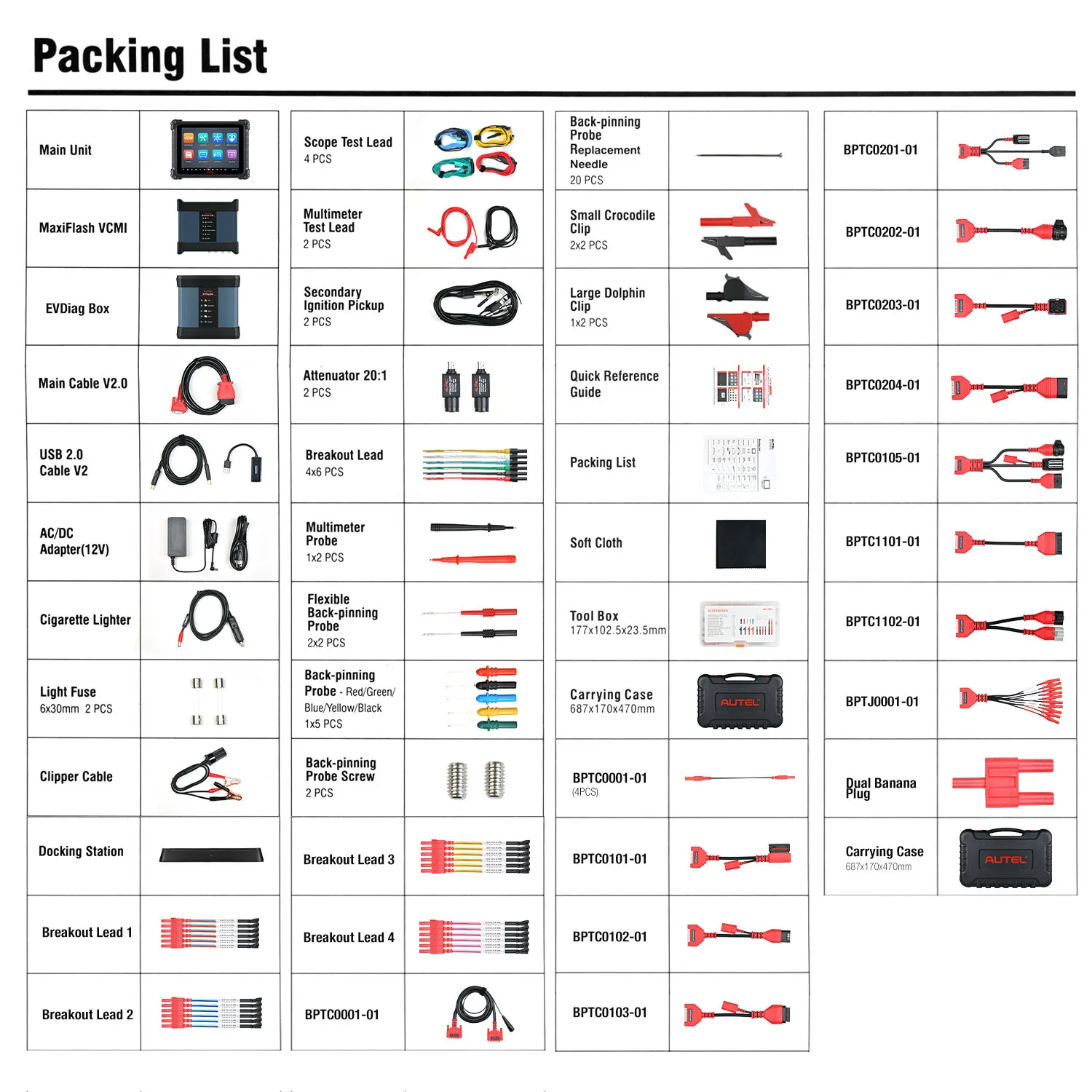

EVDiag Box & Adapters for Battery Pack Diagnostics

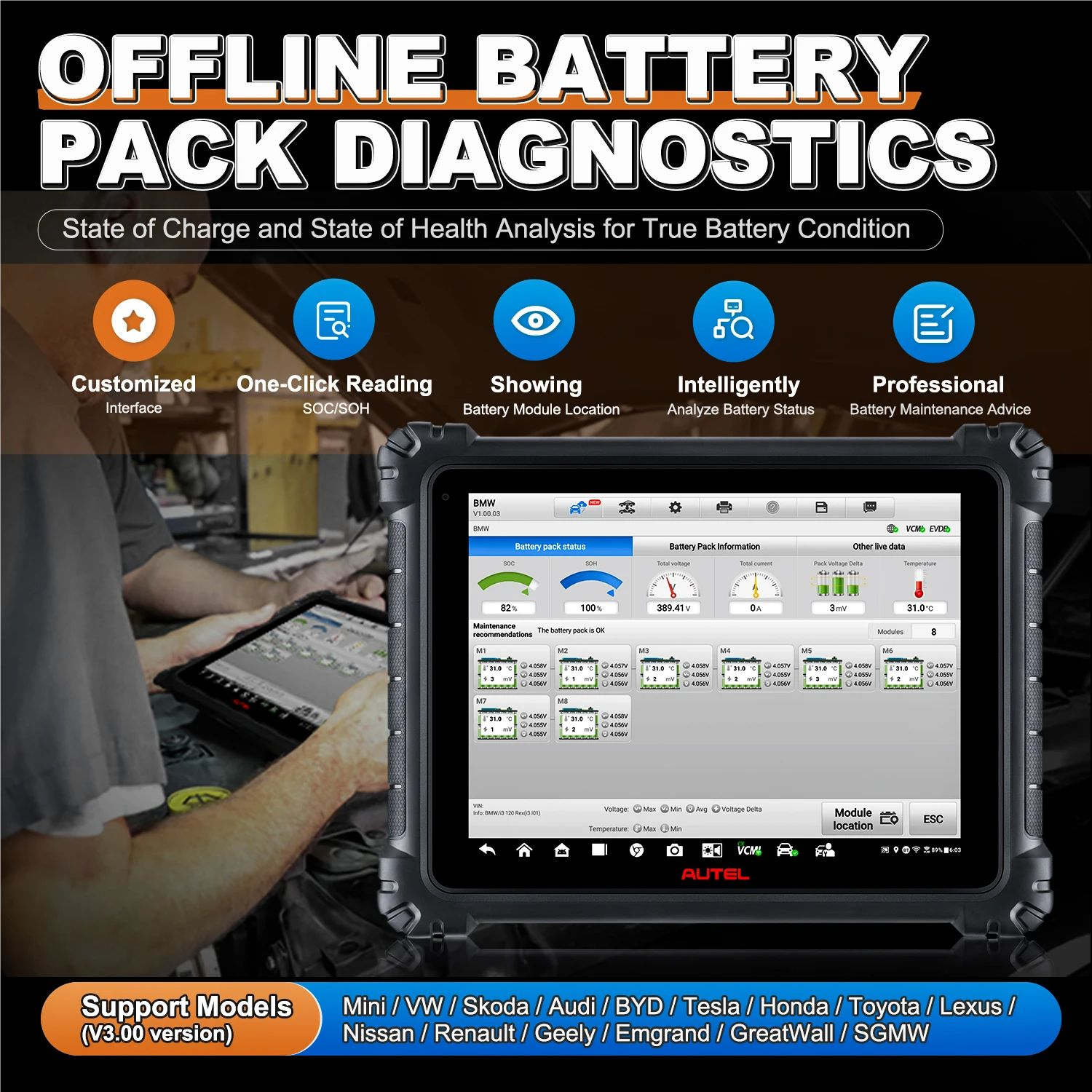

Using the Autel EVDiag Box, Ultra EV is able to establish communication with the vehicle batteries to perform the Battery Pack Test function.
The Battery Pack Test function has a vehicle mode, which enters the diagnostic interface by selecting vehicle information. The battery pack data, including SOC/SOH, total voltage, total current, pack voltage delta, and temperature, can be viewed in this mode.
Ultra EV supports the battery pack test of mainstream vehicles such as Tesla, BMW, GM, Audi, BYD, Honda, Toyota, Lexus, etc. The actual function menu may vary among different vehicles.

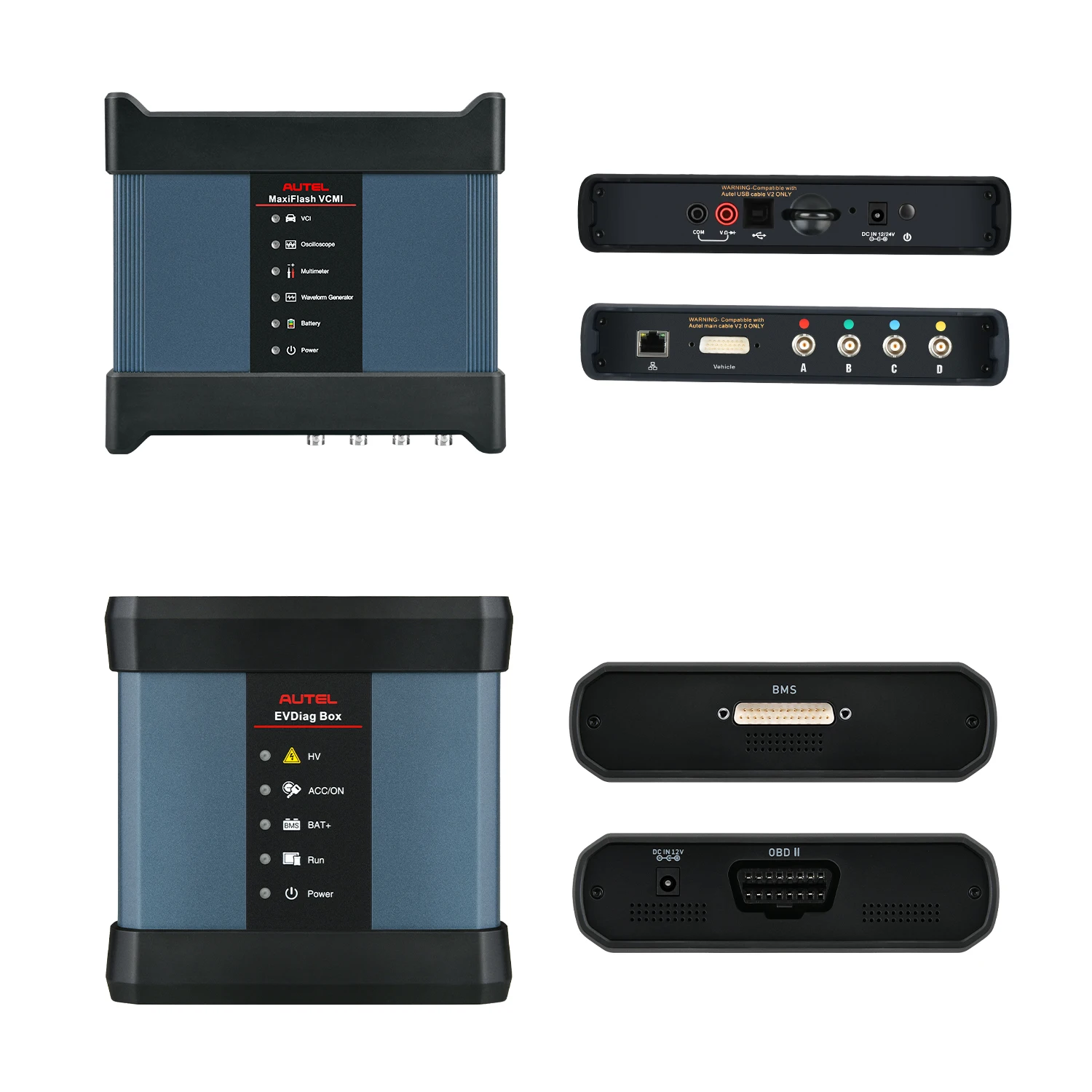

Advanced 5-in-1 VCMI

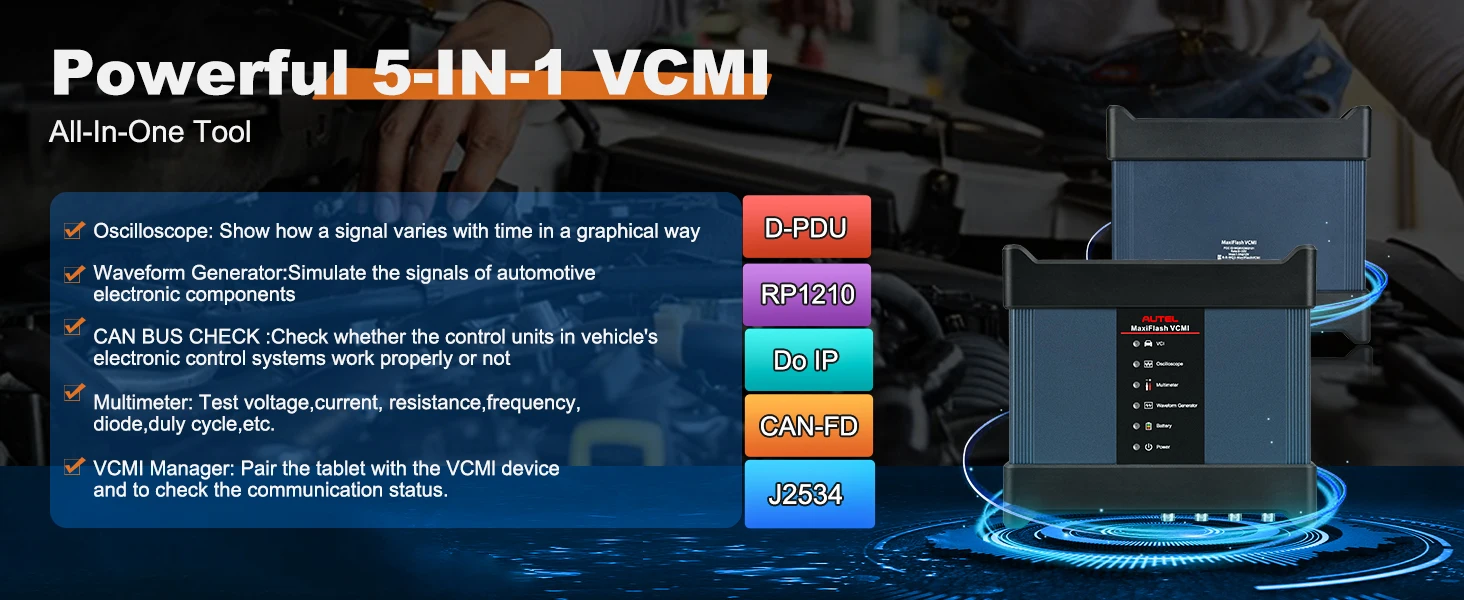

The VCMI of the advanced car scan tool Autel MaxiSys Ultra EV is integrated with VCI functions + Oscilloscope + Waveform Generator + Multimeter + CAN BUS CHECK, making this diagnostic tool incredibly powerful.
1. VCI Connection (Wi-Fi / BT / USB)
Supports Dual Wireless Mode; the new host and communication box are connected through Wi-Fi. Wi-Fi communication transmission speed is faster, more stable, and possesses strong anti-interference ability. The actual wireless test distance is more than 50m, and the diagnosis speed is more than 30% faster.
2. Waveform Generator
Supports multiple signal modes, including DC voltage, square wave, square wave (X+Y), triangle wave, actuator drive, and arbitrary waveform. Simulates the signals of various sensors and ECU modules, allowing you to intuitively judge whether it is a hardware problem without replacing parts.
3. Oscilloscope
The VCMI integrated oscilloscope features: Large Bandwidth, High Sampling Rate, Deep Storage, and Massive Preset Cases. It supports Zoom & Playback and Advanced Triggering to improve the efficiency of solving complex faults.
- Ultra-Precision: 20MHz bandwidth, up to 80MS/s sampling rate, accurate waveform acquisition, covering a wide range of vehicles.
- Complete Data: 32M memory, can capture complex signals, amplify, and playback waveforms; supports advanced edge and pulse triggers.
- Easy to Use: Built-in massive preset case and waveform library, supplemented by an instant help system. Click the "bulb" icon on the oscilloscope screen to locate the corresponding function in the manual.
4. CAN BUS CHECK
By detecting the signal of the OBD interface, you can quickly determine whether the communication status is normal. If the signal is normal, the indicator light will flash; if there is no signal, verify the pin configurations.
5. Multimeter
Mainly used to measure voltage, current, resistance, frequency, diode, duty cycle, pulse width, and connectivity.
Intelligent Diagnostics
With one-stop Intelligent Diagnostics, Autel Scanner MaxiSys Ultra EV provides technicians with step-by-step repair guidance. It offers multiple options: Technical Service Bulletin, DTC Analysis, Repair Assist, Repair Tips, Component Measurement, and Relevant Cases.
- Vehicle System and Detected DTC: Displays the name of the vehicle system(s) and the detected DTC(s).
- DTC Analysis: Provides repair assistance information related to the fault code.
- Repair Assist: Intelligently prioritizes DTCs and leads the user to the proper repair.
- Repair Tips: Step-by-step guidance to efficiently solve multiple faults.
- Component Measurement: Provides detailed information and instructional guides on using the oscilloscope to test components for faults.
Topology Module Mapping

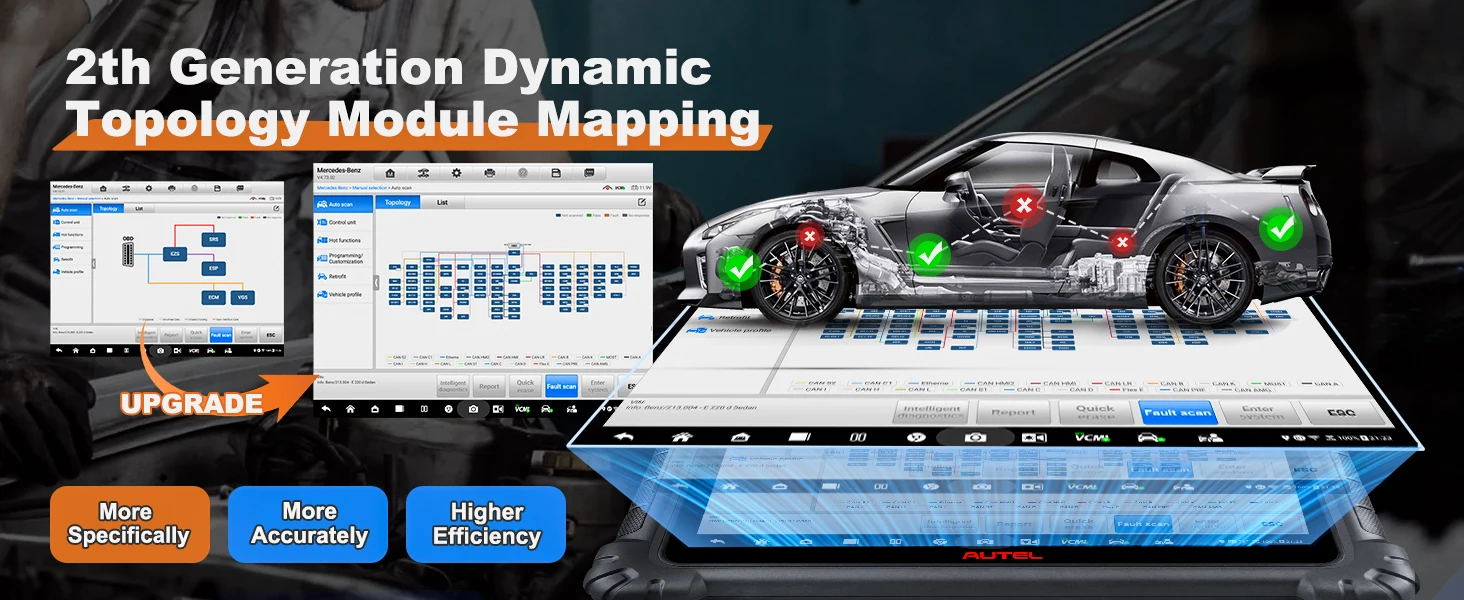

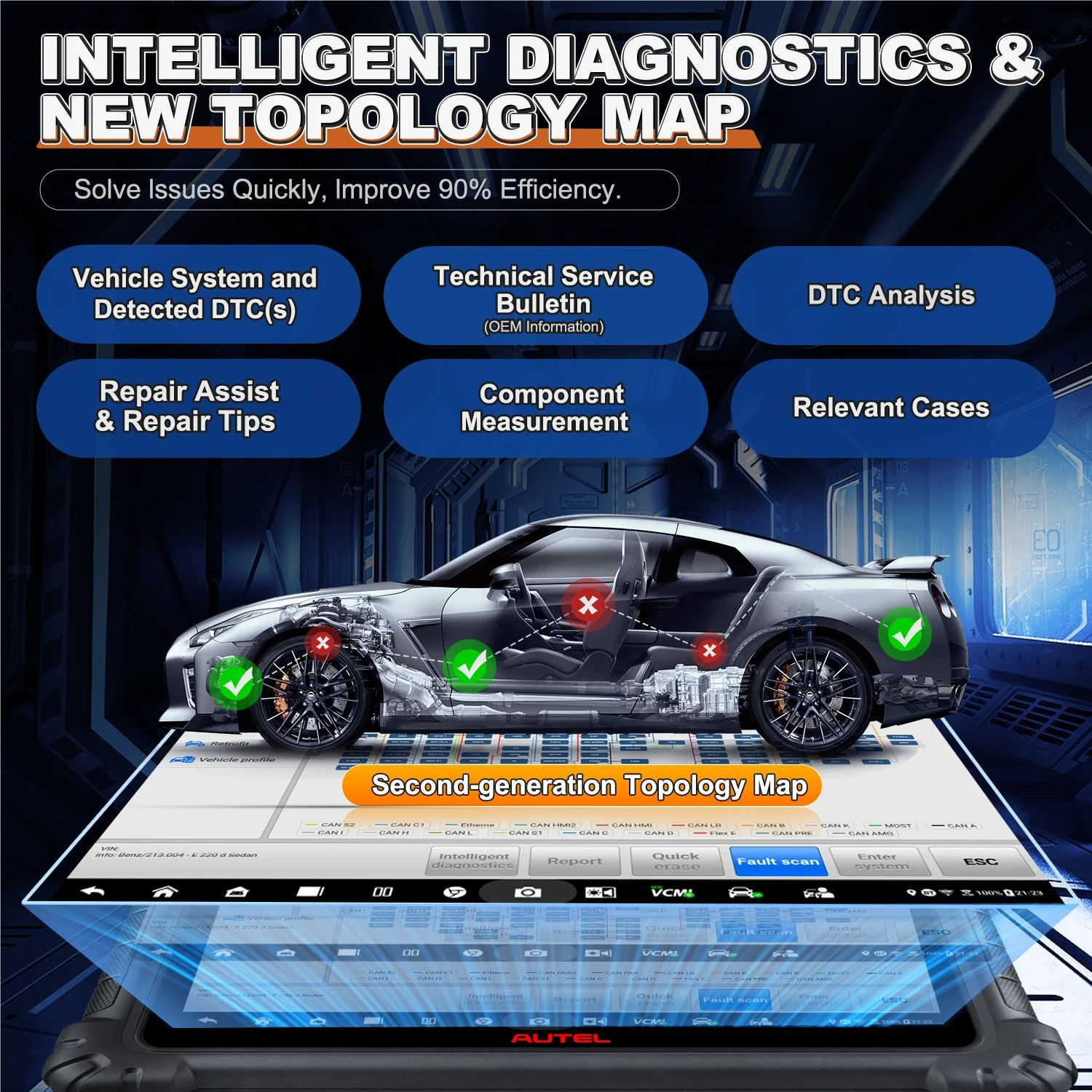

The Topology Module Listing CAN BUS Tree displays all available control units of the test vehicle in different colors, helping users understand the number of systems, scanned systems, and scan results at a glance.
- Intuitively display the current module status (includes whether there is a DTC in a specific module, and the number of DTCs).
- Directly display the fault code and enter the system function.
- Systematically show the communication structure between modules; supports 50+ brands including Mercedes-Benz, BMW, and more.
- Clearly view the color-coded module status tree by zooming in and out.
- Compatible with BMW, Ford, Audi, Chrysler, Nissan, Honda, Toyota, Lexus, Land Rover, Jaguar, Benz, VW, etc.
- Accurate and reliable OE-level topology configuration matching.
Advanced ECU Programming & Coding
Autel MaxiSys Ultra EV enhances the process of ECU programming, allowing you to program, rewrite, code, and match new ECUs after a module replacement. It supports advanced ECU Coding on 90% of cars to unfold hidden features and activate high-end functions.
ECU Programming
Enables enhanced ECU programming on specific BMW and Benz models to optimize performance and replace existing software/firmware in ECUs.
ECU Coding
Reprograms adaptive data for vehicle control modules after repairs or replacements. Compatible with VW, BMW, Seat, Porsche, Renault, etc.
40+ Services Functions
30+ Commonly Used Reset Functions: Oil Reset, EPB, BMS, ABS Bleed, TPMS, Seats Calibration, Language Change, Headlight Matching, Airbag Reset, IMMO Service, Injector Coding, SAS Calibration, Suspension Calibration, Throttle Adaptation, ABS/SRS, Gear Learning, Sunroof Initialization, A/F Setting, Cylinder, Turbocharging, WIN DR ROOF, CHG Tire Size, Limit, Trans Adaptation, and more.
10+ Advanced Functions for Different Vehicle Models: Clutch Pedal Position Learn, Neutral Gear Position Learning, Torque Sensor Adjustment, Cylinder Power Balance, Component Matching, Stop/Start Reset, Transport Mode, Signal Check, Yaw Rate Sensor (YRS) Learn, Auto-Door Lock, etc.
Additional High-End Functions
- WIFI Print: Print directly from the tablet to a network printer via PC Link or Wi-Fi.
- FCA AutoAuth: Access the AutoAuth gateway for 2018 and newer FCA vehicles (Chrysler/JEEP/Dodge/Fiat) in the US, Canada, and Mexico.
- Pre-Scan and Post-Scan Reports: Automatically scan and log all modules, generate customized reports, and prove all DTCs are fixed post-repair.
- Compatible with MV108/MV105 Inspection Camera: Inspect tight internal structures like engines and transmissions to avoid potential damage.
- Battery Test with MaxiBAS BT506: Perform professional cranking/charging system tests and in/out-of-vehicle battery tests with over 95% accuracy.
- Autel Remote Expert: Connect with pre-qualified remote experts for cloud-based module programming needs.
- Bi-Directional Control / Active Test: Test specific subsystems and components (e.g., windows, doors, headlamps, mirrors, wipers).
- Cloud Report Management: Upload and share diagnostic reports with customers via QR Code, email, or text message.
- Refresh Hidden Functions: Customize features such as auto-folding side mirrors or engine start-stop functions (compatible with BMW, VW, Audi, Skoda, etc.).
- VAG Guided Functions: Get step-by-step on-screen instructions for VAG group vehicles without security access codes.
10000+ Vehicle Coverage
The MaxiSys Ultra EV supports D-PDU, SAE J2534, RP1210, DoIP, and CAN FD protocols, delivering coverage for 99.99% of makes in the market. It is compatible with OE factory tools to perform advanced programming and services. Covers more than 80 US domestic, Asian, and European models, including supercars, light-duty, and medium-duty vehicles.
