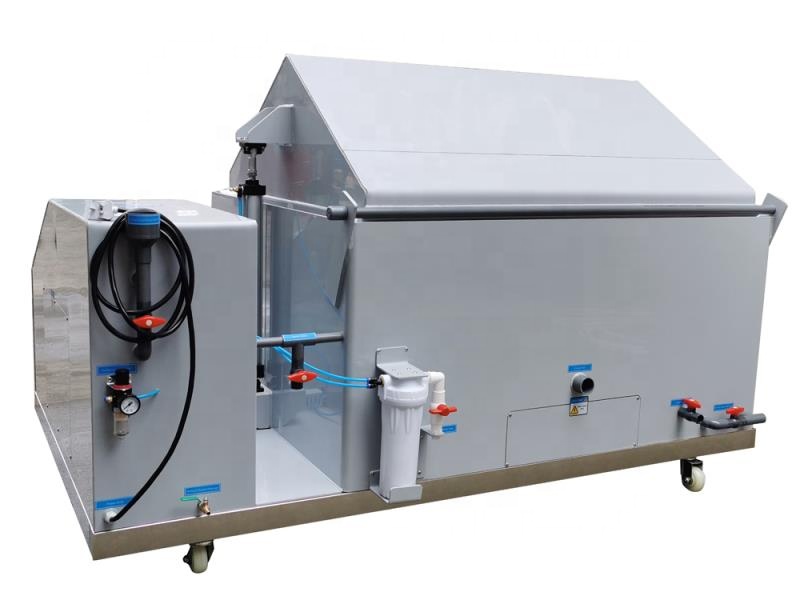

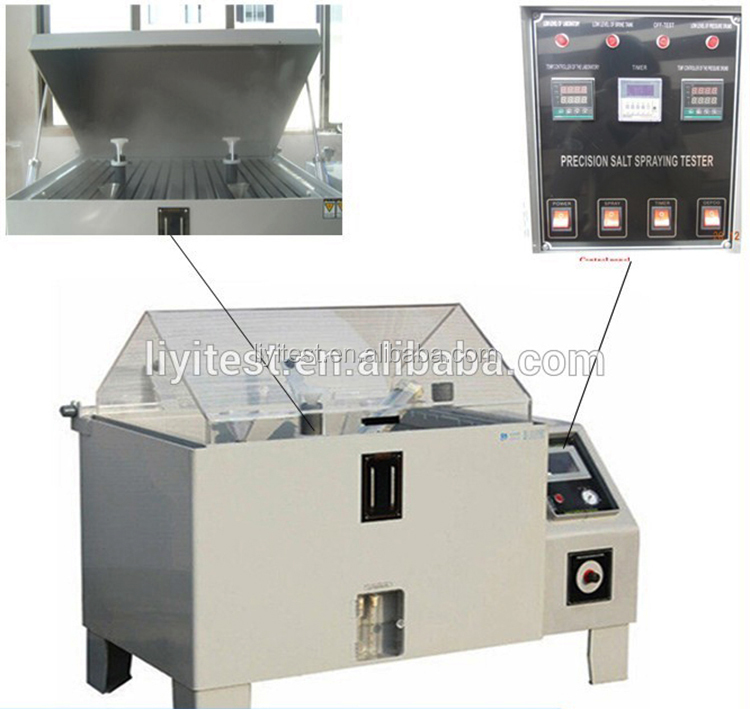

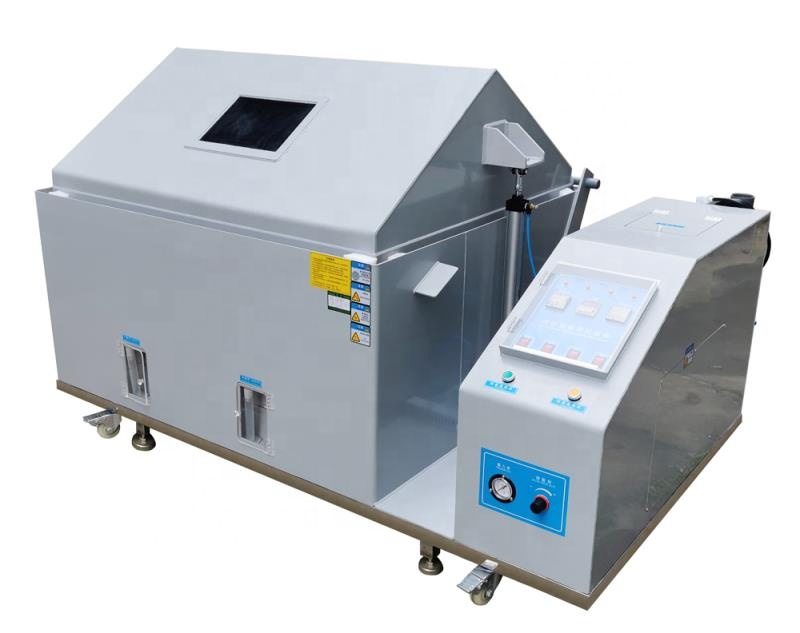

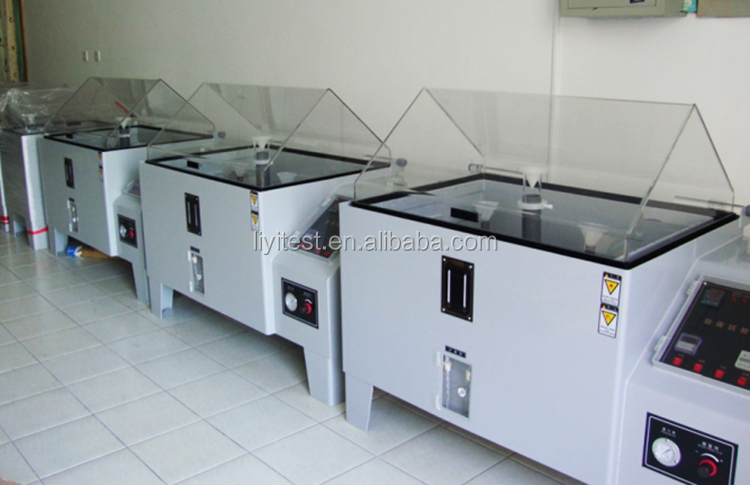

Salt Spray Testing Equipment with Water Leakage Sensors / Lab Salt Fog Chamber Machines For Composite Coatings can determine the corrosion resistance of iron metal or the iron metal inorganic film or organic film test, such as electroplating, anode processing, conversion coating, painting, etc.
| Model | LY-609-60 | LY-609-90 | LY-609-120 | LY-609-200 |
| Test chamber capacity (L) | 108L | 270L | 600L | 1440L |
| Temperature (Test Chamber) | NSS.ACSS 35°C±1°C / CASS 50°C±1°C | |||
| Temperature (Air cylinder) | NSS.ACSS 47°C±1°C / CASS 63°C±1°C | |||
| Test chamber size L*W*D(cm) | 60*45*40 | 90*60*50 | 120*100*50 | 200*120*60 |
| Max volume of test liquid (L) | 15 | 25 | 40 | 40 |
| Spray quantity | 1.0~2.0ml/80cm2/h | |||
| PH | 6.5~7.2 / 3.0~3.2 | |||
| Volume L*W*D(cm) | 107*60*118 | 141*88*128 | 190*130*140 | 270*150*150 |
| Power | AC220V,10A | AC220V,15A | AC220V,30A | AC220V,30A |
