The Launch X431 new energy battery Diagnostics Upgrade Kit includes an activation card and adapters for specific electric vehicles to perform comprehensive battery pack analysis.
The battery package is compatible with the X431 PAD V and PAD VII diagnostics scanners.
Use the Launch EV Diag Upgrade Kit (EV DIAGKIT) to diagnose battery pack State of Charge (SOC) and State of Health (SOH) on Tesla, BYD and many other electric vehicles.
Prerequisite: Ensure you have purchased the new energy battery pack diagnostic configuration for X-431 PAD V/X-431 PAD VII, and have received the Activation Card along with the diagnostic adaptor cables.

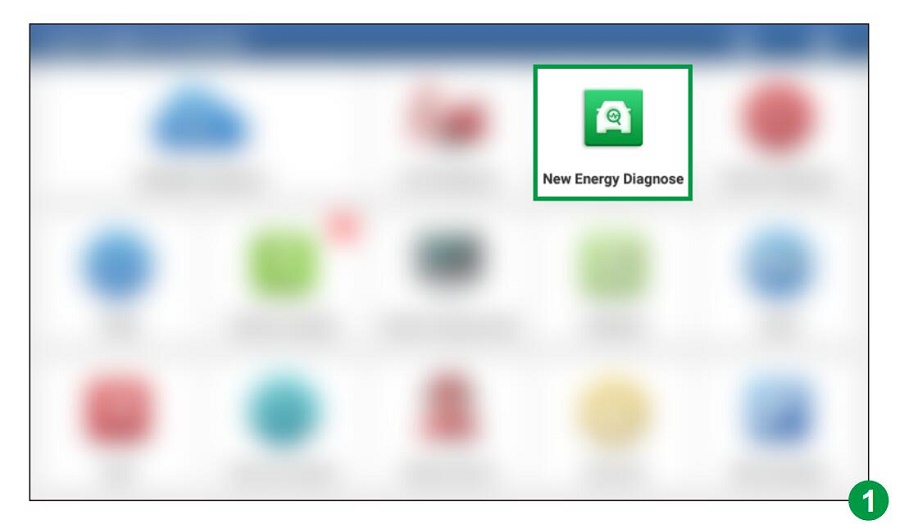

1). Update the main diagnostic app of the diagnostic scanner to V7.03.025 (X-431 PAD V) / V7.00.021 (X-431 PAD VII) or above. A new module "New Energy Diagnose" will appear on the Job menu. (Refer to figure 1)

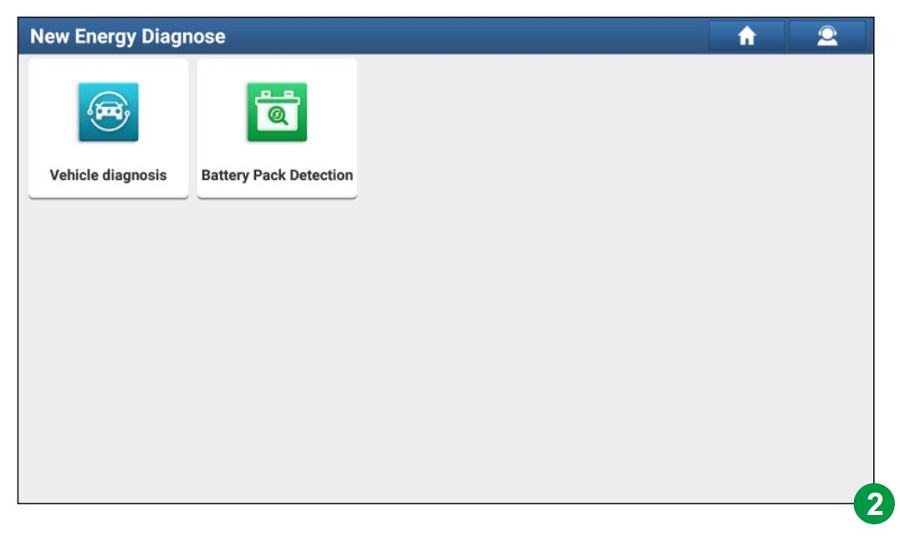

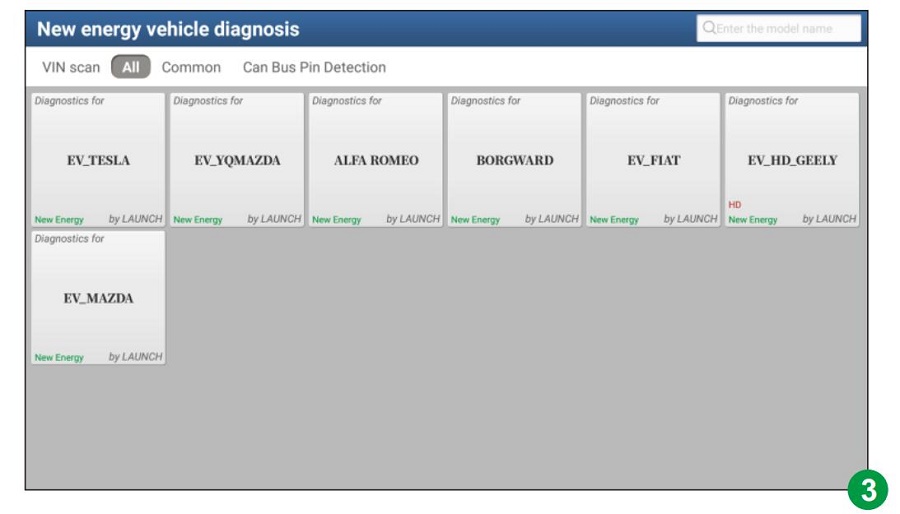

2). Tap New Energy Diagnose to enter the screen shown below. (Refer to figure 2 & 3)
*Note: Vehicle Diagnosis covers all new energy vehicle diagnostic software included in the original product configuration.
3). Tap Battery Pack Detection. The system will check if the user account has activated the battery pack diagnostic configuration:

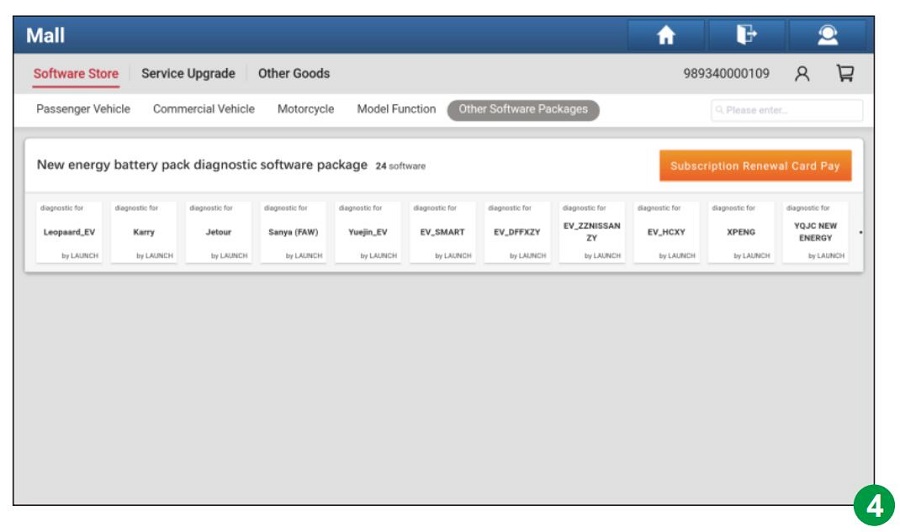

A. If not activated: You will be navigated to the Mall module. (See figure 4). Tap Subscription Renewal Card Pay and enter the 24-digit password to activate. After activation, go to Software Update to download the software.

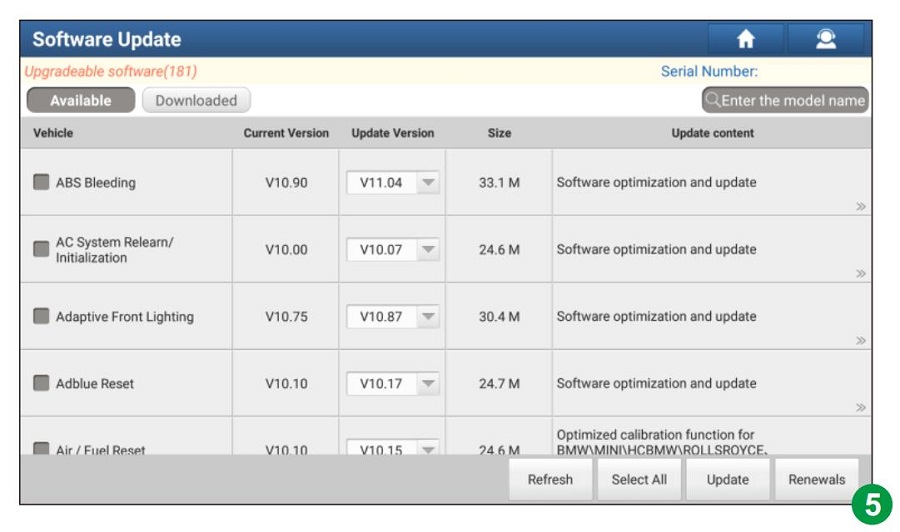

B. If activated but not downloaded: The system will go to Software Update. (See figure 5) to download the battery pack diagnostic software.

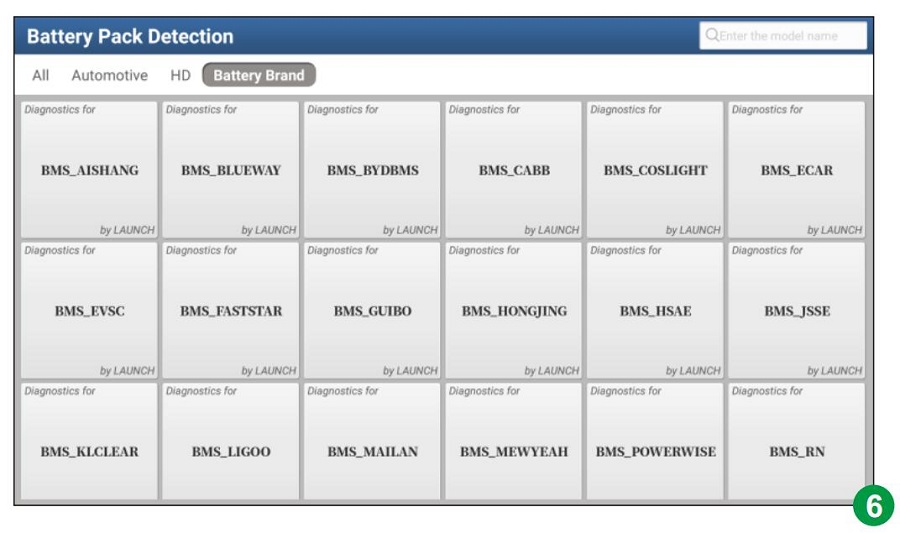

C. If activated and downloaded: The system will enter the battery pack brand selection screen. (See figure 6)
1). Update the main diagnostic app to V7.03.025 or above and tap Mall on the Job menu. (See figure 7)

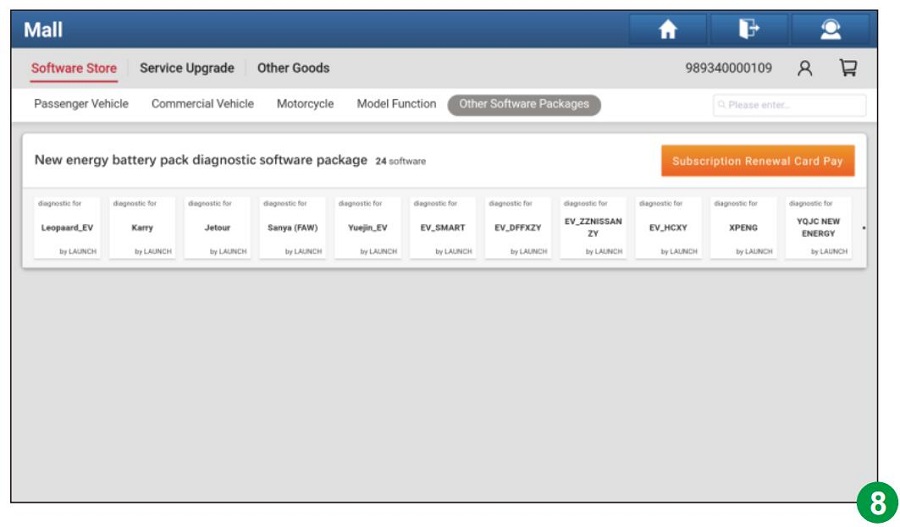

2). Tap Other Software Packages, and then tap New energy battery pack diagnostic software package. (See figure 8)

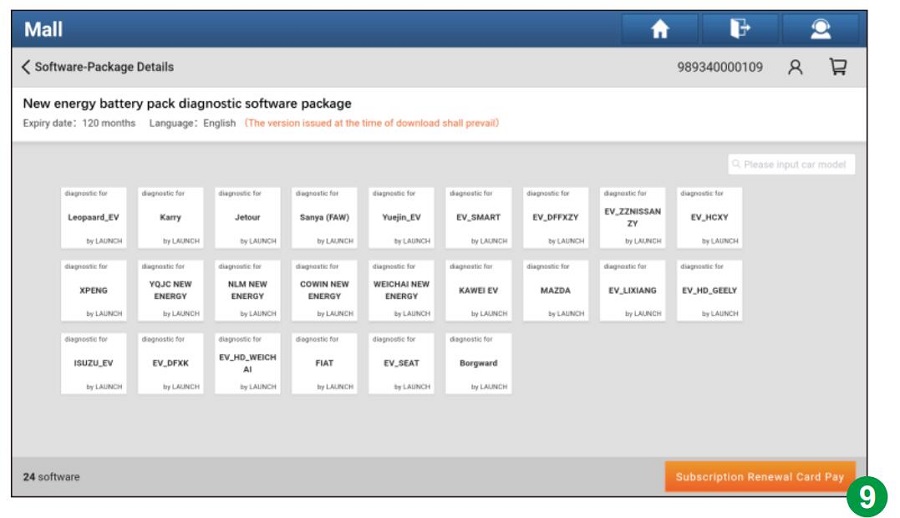

3). Tap Subscription Renewal Card Pay. (See figure 9)

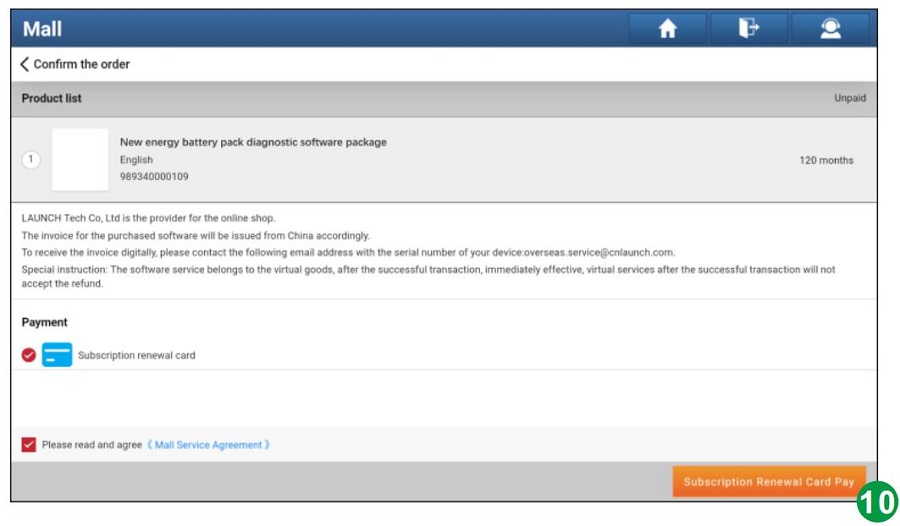

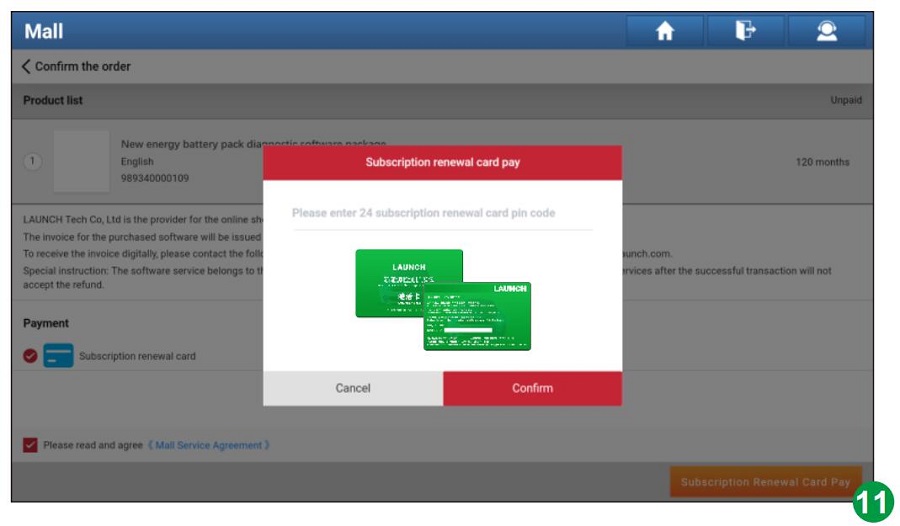

4). Enter the 24-digit password and tap Confirm to activate. (See figure 10 & 11)

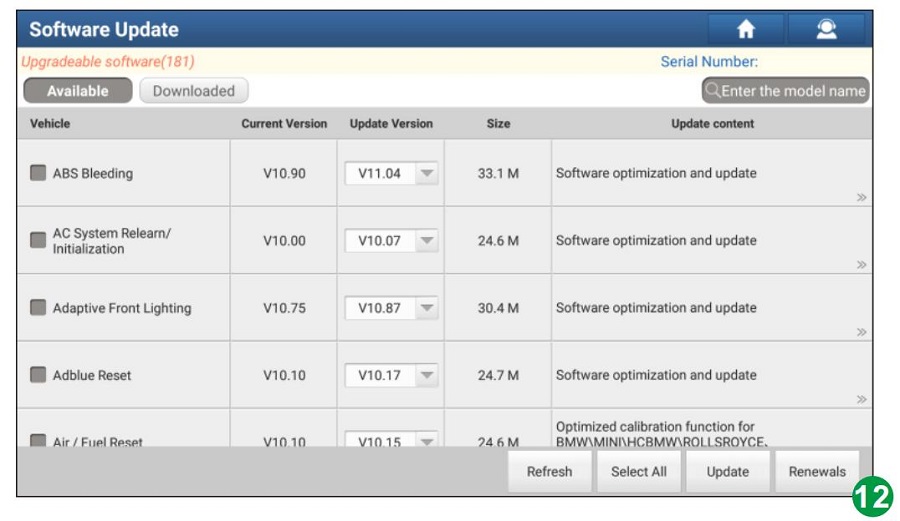

5). Once successfully activated, go to Software Update to download and install the diagnostic software. (See figure 12)
6). After downloading is complete, tap New Energy Diagnose and then tap Battery Pack Detection to access the brand selection screen. (Refer back to figure 6)
*Note: All illustrations and descriptions in this operation instruction are based on the latest information available at the time of publication. Due to continuing improvements, the actual product may differ slightly.

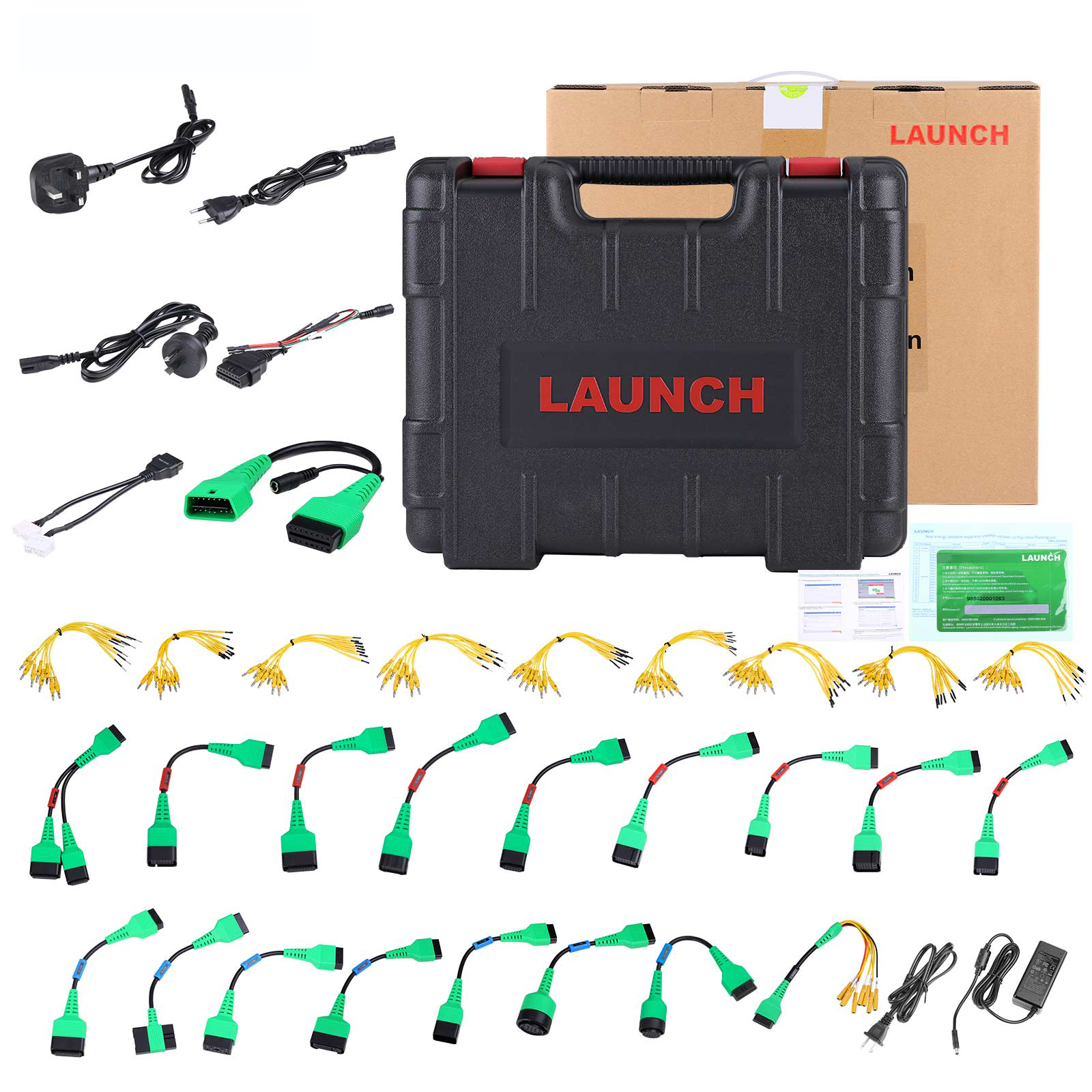

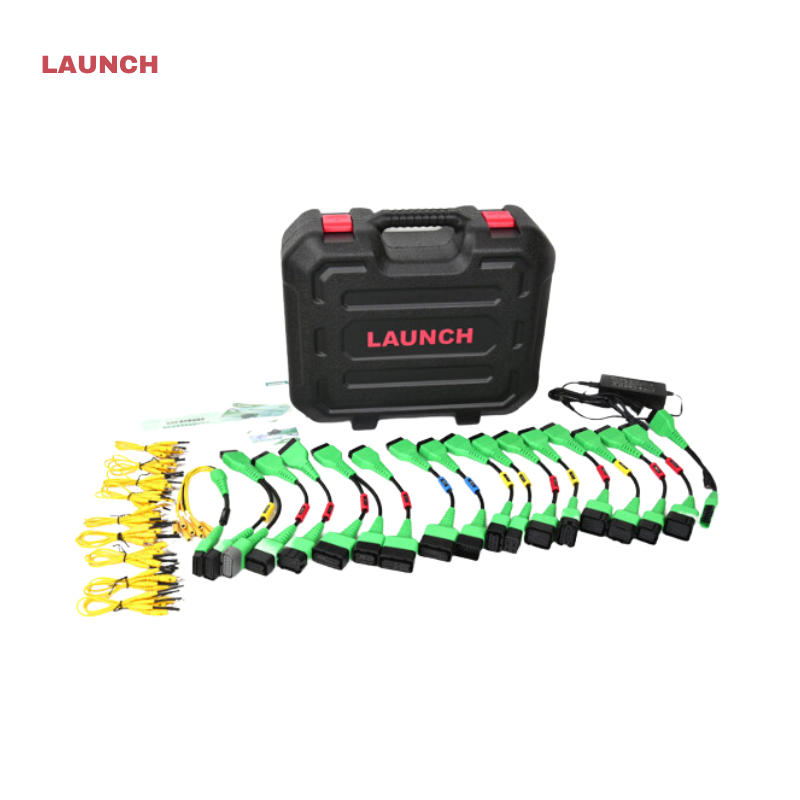

| Qty | Description |
|---|---|
| 1X | Tesla-12+20 connector, RoHS |
| 1X | Special connector for Tesla airbag repair, RoHS |
| 1X | (PAD VII) 220V/1.3A, 8-suffix British AC wire, 1M, Pengshengye, RoHS |
| 1X | OBD16 male to female new energy extension cable, with DC cable, RoHS |

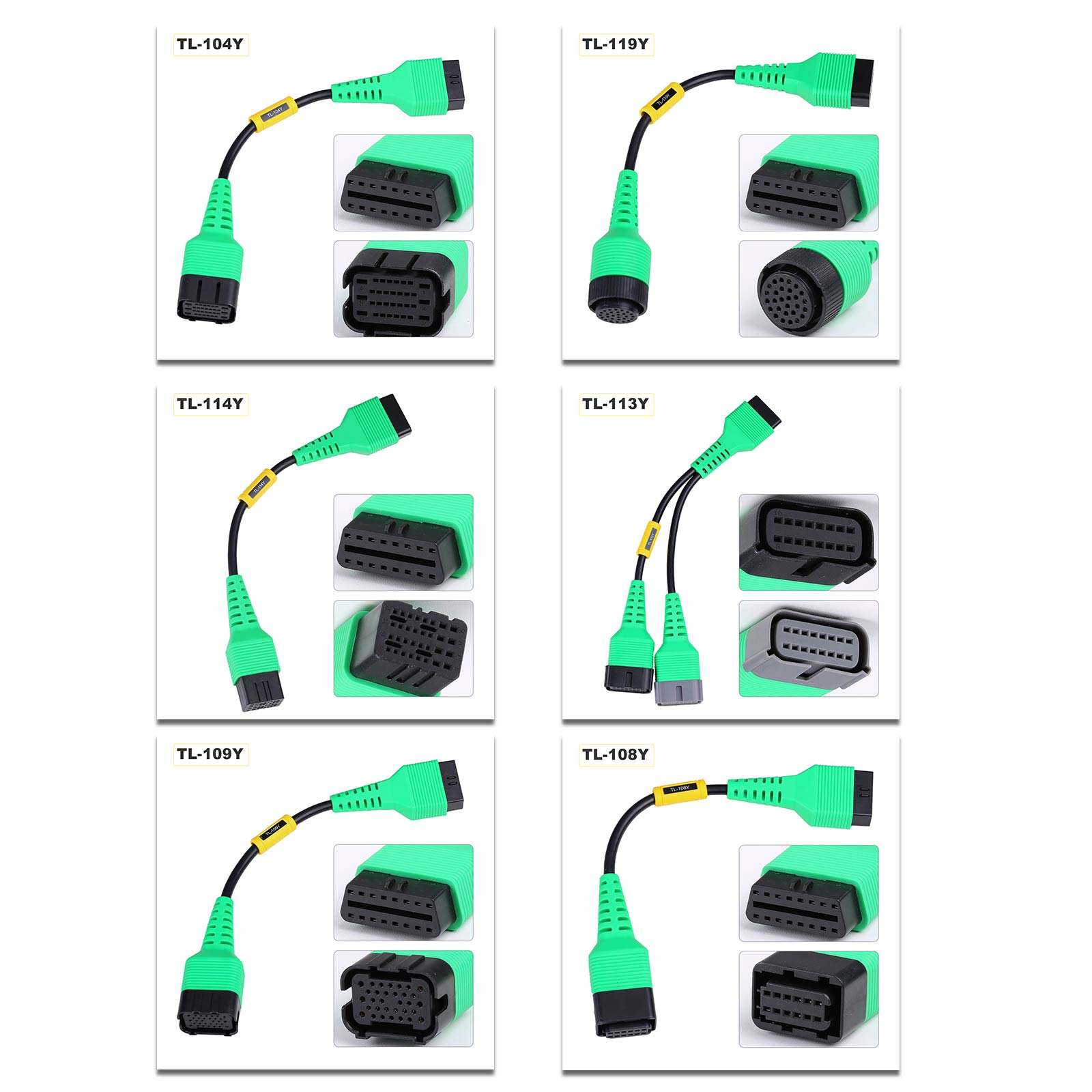

| 1X | X431 EV MAX battery pack detection 8PIN diagnostic connector, RoHS |

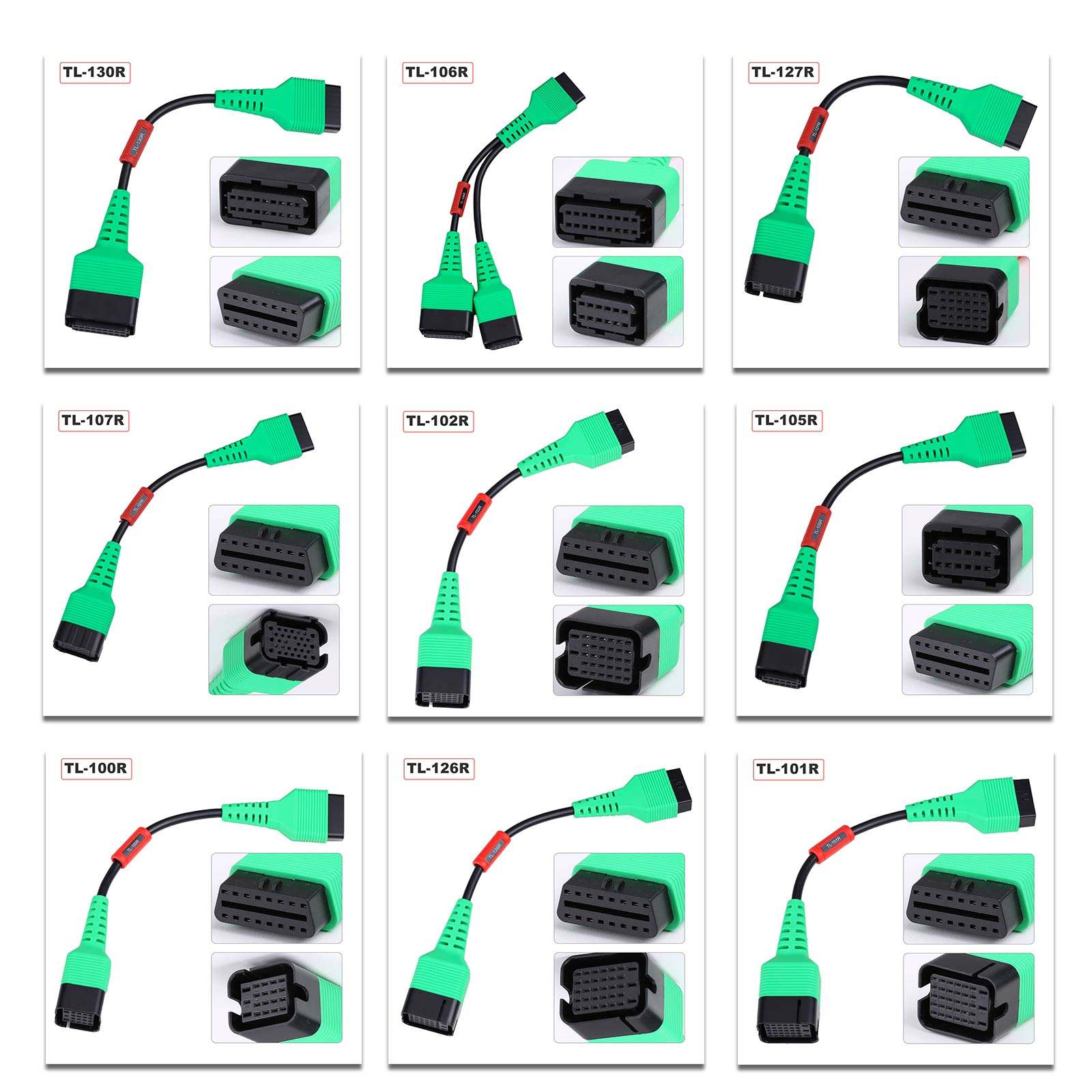

| 1X | X-431 PAD IV electric control adapter cable 1, RoHS |
| 1X | X-431 PAD IV electric control adapter cable 10, RoHS |
| 1X | X-431 PAD IV electric control adapter cable 11, RoHS |
| 1X | X-431 PAD IV electric control adapter cable 12, RoHS |
| 1X | X-431 PAD IV electric control adapter cable 2, RoHS |
| 1X | X-431 PAD IV electric control adapter cable 3, RoHS |
| 1X | X-431 PAD IV electric control adapter cable 6, RoHS |
| 1X | X-431 PAD IV electric control adapter cable 7, RoHS |
| 1X | X-431 PAD IV electric control adapter cable 8, RoHS |

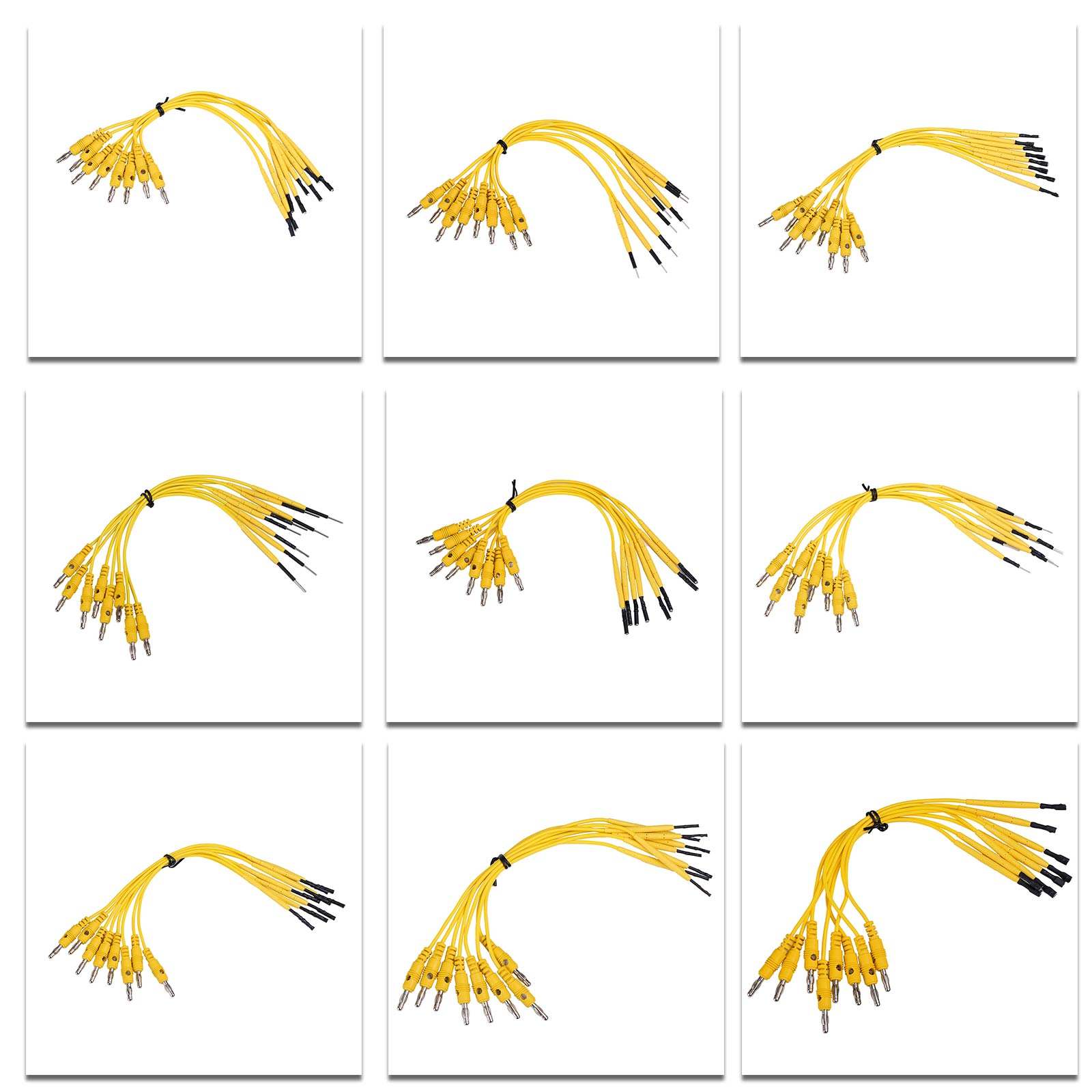

| 1X | Battery pack test line 100 models, RoHS |
| 1X | Battery pack test line 101, RoHS |
| 1X | Battery pack test line 102, RoHS |
| 1X | Battery pack test line 103, RoHS |
| 1X | Battery pack test line 104, RoHS |
| 1X | Battery pack test line 105, RoHS |
| 1X | Battery pack test line 106, RoHS |
| 1X | Battery pack test line 107, RoHS |
| 1X | Battery pack test line 108, RoHS |
| 1X | Battery pack test line 109, RoHS |
| 1X | Battery pack test line 110 models, RoHS |
| 1X | Battery pack test line 112 models, RoHS |
| 1X | Battery pack test line 113, RoHS |
| 1X | Battery pack test line 114, RoHS |
| 1X | Battery pack test line 115 models, RoHS |
| 1X | Battery pack test line 116, RoHS |
| 1X | Battery pack test line 119, RoHS |
| 1X | Battery pack test line 124 types, RoHS |
| 1X | Battery pack test line 126 models, RoHS |
| 1X | Battery pack test line 127 models, RoHS |
| 1X | Battery pack test line 130 models, RoHS |
| 1X | Battery pack test line 152 models, RoHS |
| 1X | (PAD VII), 8-suffix Australian standard AC wire, 1M, Pengshengye, RoHS |
| 1X | (PAD VII) 220V/1.3A, 8-suffix European standard AC wire, 1M, Pengshengye, RoHS |
| 1X | Power adapter, 12V4A, 48W desktop, 8-suffix DC connector 5.5, US standard AC cable, 2M, Pengshengye, RoHS |
| 1X | New Energy Detection Extension Pack Overseas Configuration Operation Guide, RoHS |
| 1X | Activation Card |
