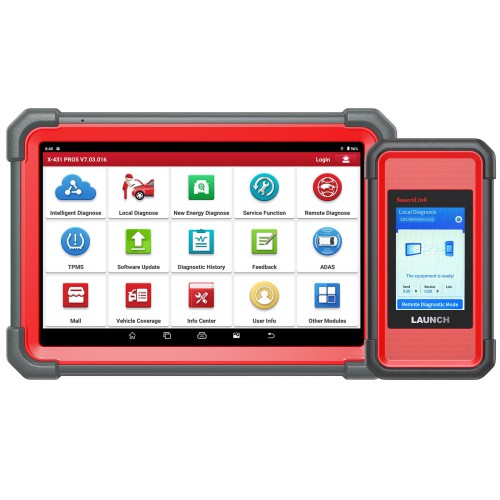

[Global/EU Version]LAUNCH X-431 PRO5 PRO 5 with Smartlink2.0 VCI J2534 ECU Programming Full System Auto OBD2 Scanner Upgrade

LAUNCH X-431 PRO5 Diagnostic Scanner Banner

Product Description

EU/UK Version, EU/UK Ship no tax, specially designed for customers in EU/UK region.
Newest Launch X431 PRO5 Smartlink, the innovative revolution of intelligent diagnosis. It opens the era of dual diagnostic modes (local diagnosis and SmartLink remote diagnosis).
X-431 PRO 5 not only inherits the powerful diagnostic strength of PRO series, greatly developed its advantages like J2534 Programming, BMW & Benz ECU online programming, Topology Mapping, 50+ Reset Functions, Bi-directional Control, Online Functions, ECU Coding, All System Full-Function Diagnostics, etc.
Supports SmartLink 2.0 remote diagnosis and specialized detection equipment.

[EU/UK Version] LAUNCH X431 PRO5 PRO 5 Smartlink Automotive New Diagnostic Tools, J2534 Reprogramming Tool, 2 Years Free Update, Cover 100000+ Car Models

Launch X-431 PRO5 Smartlink opens the area of innovative dual diagnostic modes (local diagnosis and SmartLink remote diagnosis). The hardware of X-431 PRO5 Smartlink is greatly improved. It adopts the Android 10.0 system, a 2.0GHz 4-core processor and a 1280*800 IPS HD display screen, providing 4GB RAM memory and 64GB ROM storage which ensures faster and more stable running. X431 PRO5 Smartlink also comes with a bracket, making it more convenient to use.

NOTE: The EU/UK version is specially designed for customers in EU/UK region, this version is only applicable to EU/UK, with IP restriction, it can't be used outside EU/UK region. Ship from EU/UK warehouse.

The global version has no IP restriction, please choose the global version for customers in the US or other countries, thank you for your understanding. Ship from US or China.

There is no difference in functionality between these two versions.

Note:

- The new version of PRO5 replaces the VCI from Smartbox 3.0 with Smartlink 2.0 (new vci same as PAD VII). Super-remote service support is available (requires additional purchase of remote service).

LAUNCH X431 PRO5 Smartlink Highlights

1. Global Version, No IP Limitation.

2. With 2 Years Free Update Online. Upgraded from LAUNCH X431 V+/PRO3/PROS V1.0/TURBO/Throttle.

3. ECU online programming: Supports Online Programming for BMW & Benz.

4. Bi-directional Controls: Send Commands to effectively test car components on demand.

5. Newly Adds VAG Guided Function: Skip the routine procedure of entering the security access code & channel number for VW, Audi, Skoda, Seat vehicles.

6. Topology Mapping: Provides a comprehensive view of a vehicle's data bus configurations, improving repair efficiency by up to 90%. View the system layout and clear trouble codes with one click. (Verify vehicle VIN before purchasing).

7. FCA AutoAuth Access: Bypass SGM in FCA vehicles seamlessly within seconds; works on 2017 and later Chrysler, Dodge, Jeep, Alfa Romeo, Fiat, etc. *Requires AutoAuth subscription.

8. Multi-Language Support: English, French, Spanish, Portuguese, Italian, Russian, German, Polish, Dutch, Danish, Greek, Persian, Finnish, Swedish, Chinese, Japanese, Korean.

9. LAUNCH Smartlink 2.0 J2534 VCI: Broad vehicle coverage meeting SAE standards for J2534-1 & -2, CANFD, DOIP, and supports DC9-36V for HD Vehicles.

10. Multiple Query Services: View reports, diagnostic records and check testable models.

11. Advanced Intelligent Diagnostics: AutoVIN & AutoScan accelerates system DTC scans, taking less than 3 minutes on average.

12. Excellent Hardware Combination: Android 10.0, 2.0GHz 4-core processor, 4GB RAM & 64GB ROM (non-expandable), 10.1'' HD IPS touchscreen, front 5MP and rear 8MP cameras, and 7000 mAh battery.

13. Super-remote service: Supports Smartlink 2.0 Super-remote service (requires additional purchase of remote service).

14. Upgraded Platform: Android 10.0 hardware base with 4GB RAM / 64GB ROM.

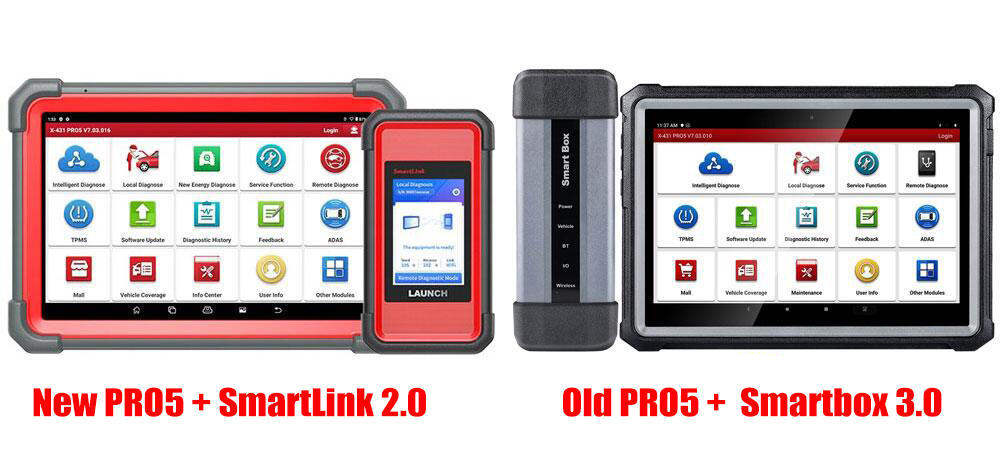

New Pro5 Smartlink vs Old Pro5:

• Old Version does not include the OBD1 Kit (Non-16pin adaptor cable kit).

• New Version features SmartLink 2.0 VCI, whereas the Old Version uses Smartbox 3.0.

• Smartlink C 2.0 pass-thru VCI supports dual diagnosis mode (local and super remote). Smartbox 3.0 only supports local diagnosis.

• New Pro5 tablet (red) features a Type-C to USB port directly without needing an OTG converter when connecting accessories like the key programmer or i-TPMS.

LAUNCH X431 PRO5 Extension Modules Overview

LAUNCH X431 PRO5 Smartlink Support Extension Modules: (Allows you to perform more comprehensive inspections; NEED TO PURCHASE EXTRA)

HD Protocol with Powerful Smartlink 2.0

Easy to Manage Wider Vehicles

LAUNCH X431 PRO 5 Smartlink 2.0 is compatible with J2534/DOIP/CANFD protocols and serves as a wireless VCI, allowing data transmission to the diagnostic tablet. It also supports DC 9-36V for commercial vehicle diagnostics.

Optimizing software communication with present and future vehicles, the Smartlink 2.0 VCI dramatically improves scanning, coding, and reprogramming performance:

✓ J2534-Compliant VCI: Supports J2534 protocol, compatible with Toyota, Honda, Volvo, VW, GM, Chrysler, Benz, Jaguar, Land Rover; providing access to OE programming and data downloads.

✓ Wireless Diagnostic VCI Box: Wirelessly transmits vehicle data to the diagnostic tablet.

✓ New Communication Protocols: Supports CANFD (compatible with select GM models), DOIP (compatible with BMW E/F/G Chassis, Jaguar, Land Rover), and DC9-36V for HD vehicles (requires HD software and non-16pin HD adaptors).

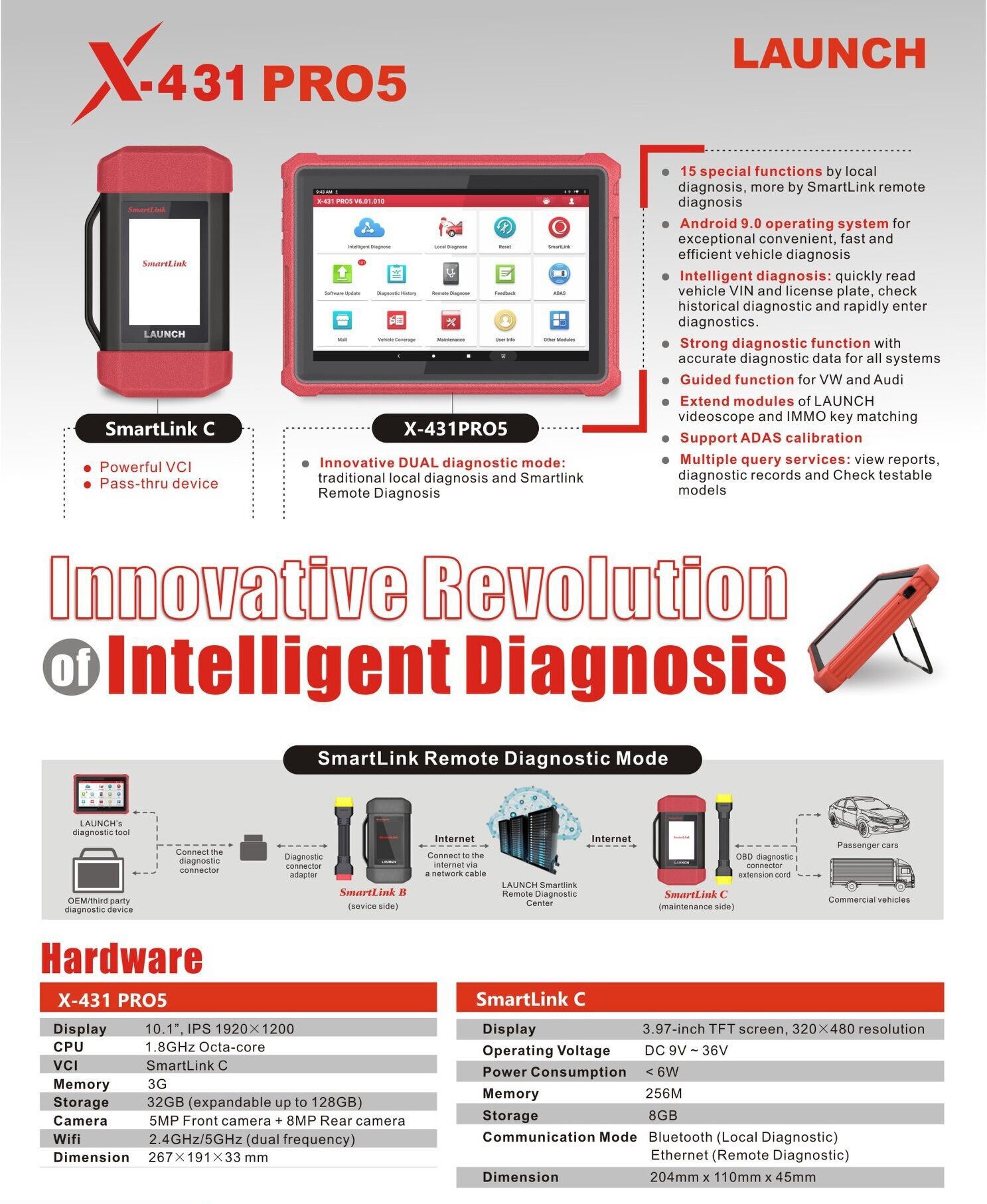

Smartlink 2.0 VCI Specifications and Compatibility Diagram

Advanced Functions

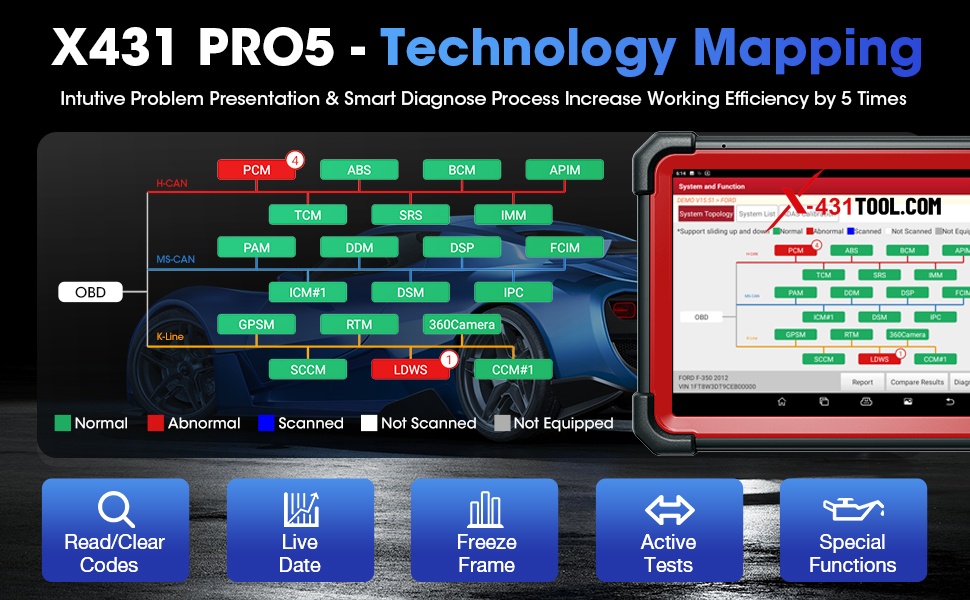

1. Newly added Topology Mapping (Update your X431 PRO 5 to V 7.03.014 to gain this feature):

Intutive Problem Presentation & Smart Diagnose Process increases your workshop efficiency by up to 5 times!

Product Specifications

Tablet Parameters (X-431 PRO5)		VCI Parameters (SmartLink C)
CPU	2.0GHz 4-core	Processor	Cortex-A7 + Cortex-M7
OS	Android 10.0	OS	Linux
RAM	4GB	RAM	256M
ROM	64GB	ROM	8GB
Display	10.1 inch	Display	3.5 inch touch screen
Resolution	1280*800	Wi-Fi	2.4GHz/5GHz dual-band
Camera	5MP Front, 8MP Rear	Diagnostic Comm.	WiFi, Bluetooth & USB
Wi-Fi	2.4GHz/5GHz (Dual frequency)	Test Voltage	DC 9~36V
Working Temp.	0~50℃	Working Temp.	0~50℃
Size	274 * 190.5 * 39.5 mm	Size	204 * 110 * 45 mm

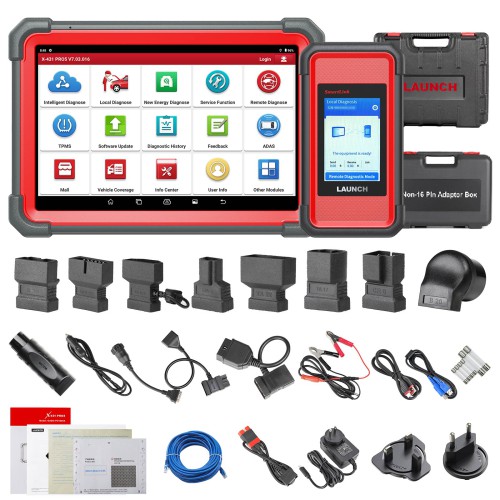

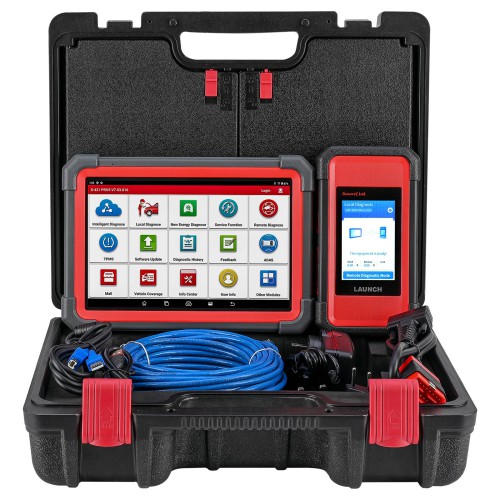

Package Includes

1pc x Main Unit

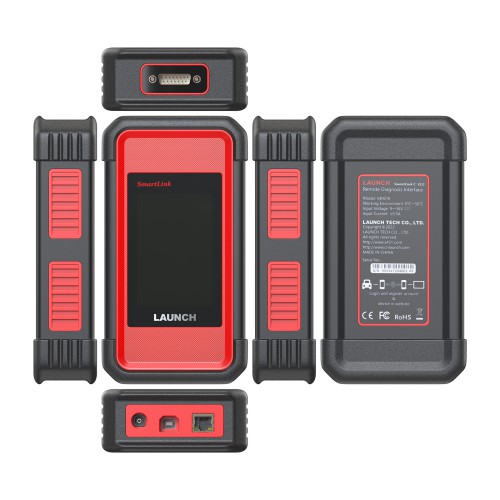

1pc x SmartLink C V2.0

1pc x US Plug

1pc x EU Plug

1pc x UK Plug

1pc x OBD Adapter

1pc x Type-C Cable

1pc x USB-B Cable

1pc x Ethernet Cable

1pc x for K-20 Adapter

1pc x for HA-3 Adapter

1pc x for G/V-12 Adapter

1pc x for FD-6+1 Adapter

1pc x for CR-6 Adapter

1pc x for TA-17 Adapter

1pc x for TA-22 Adapter

1pc x for NN-14+16 Adapter

1pc x for MH-12+16 Adapter

1pc x for B-20 Adapter

1pc x for BZ-38 Adapter

1pc x Cigarette Lighter Cable

1pc x for BZ-14 Adapter

1pc x Battery Clamps Cable

1pc x Box

6pcs x Fuses

1pc x Quick Start Guide

1pc x PIN Envelope

1pc x User Manual

Packaging & Shipping

Our Services

Service Overview

1. 72-Hour Express Delivery	Local stock in the US, UK, and Czech Republic for fast delivery across North America, Europe, and beyond.
2. Global Ready	Supports over 95% of vehicle models worldwide and offers 10+ languages (English, German, Spanish, etc.).
3. Universal Coverage	Works with 98% of global car brands including petrol, diesel, hybrid, and EV (BMW, Tesla, Toyota, Ford, etc.).
4. 48-Hour Dispatch	Orders ship within 48 hours. Delivery takes 5–10 days. Free shipping to your China agent.
5. 100% Quality Inspection	All products undergo full inspection before delivery to ensure quality and performance.
6. 24/7 Tech Support	Global technical team available 24/7. 48-hour response time for troubleshooting, firmware upgrades, and custom needs.
7. Universal Diagnostics	Compatible with all major auto brands and systems, including hybrid and electric vehicles.
8. One-Stop Solution	A single contact person will handle everything from quotation, shipping to after-sales service.

Frequently Asked Questions (FAQ)

What is the difference between the EU/UK version and the Global version?

The EU/UK version is specially designed for customers in the EU/UK region with IP restriction and cannot be used outside this area. The Global version has no IP restrictions and can be used in the US and other countries. Both versions have identical diagnostic functionality.

What hardware upgrades are featured in the new PRO5 Smartlink?

The new version is upgraded with the Smartlink 2.0 VCI (replacing the Smartbox 3.0), which supports both local and super-remote diagnostics. The tablet itself features a built-in Type-C to USB port, Android 10.0 OS, a 2.0GHz 4-core processor, 4GB RAM, and 64GB ROM.

Does the device support ECU programming?

Yes. The device supports BMW and Mercedes-Benz online programming. It operates as a J2534-compliant VCI pass-thru device that meets SAE standards for J2534-1 & -2, CANFD, and DOIP.

What is Topology Mapping and how does it benefit technicians?

Topology Mapping provides a complete, visual layout of the vehicle's diagnostic bus system. It allows technicians to quickly spot active fault codes across systems and clear them with a single click, boosting workflow efficiency by up to 90%.

Is diagnostic support available for heavy-duty (HD) vehicles?

Yes. The Smartlink 2.0 VCI supports DC 9-36V power input, making it compatible with heavy-duty vehicles. Note that diagnostic software for HD vehicles and non-16pin adapters must be purchased separately.
