Basic Info.
Model NO.
TIG-JV-9H
Power Supply
Hydraulic Pressure
Warranty
2 Years
Certification
CE
Transport Package
Composite Board Box
Specification
60*100*180cm
Origin
China
HS Code
8479819000
Production Capacity
500
Packaging & Delivery
Package Size
49.00cm * 70.00cm * 150.00cm
Package Gross Weight
370.000kg
Product Description
Advantages of Radial Riveting Machines
- High Riveting Precision: Delivers uniform pressure distribution, ensuring consistent rivet forming suitable for precision components.
- Low Noise & Vibration: Operates with less noise and mechanical vibration compared to impact riveting, improving workplace comfort.
- Versatility: Adapts to various rivet types (solid, semi-tubular, blind) and materials (metal, plastic), compatible with small to medium-sized workpieces.
- Gentle Processing: Minimizes damage to delicate parts (e.g., electronic components, thin-walled structures) due to gradual force application.
- High Efficiency: Enables fast cycle times, suitable for batch production in automated lines.
Uses of Radial Riveting Machines
- Automotive Industry: Assembling parts like brake components, door hinges, and instrument panel fasteners.

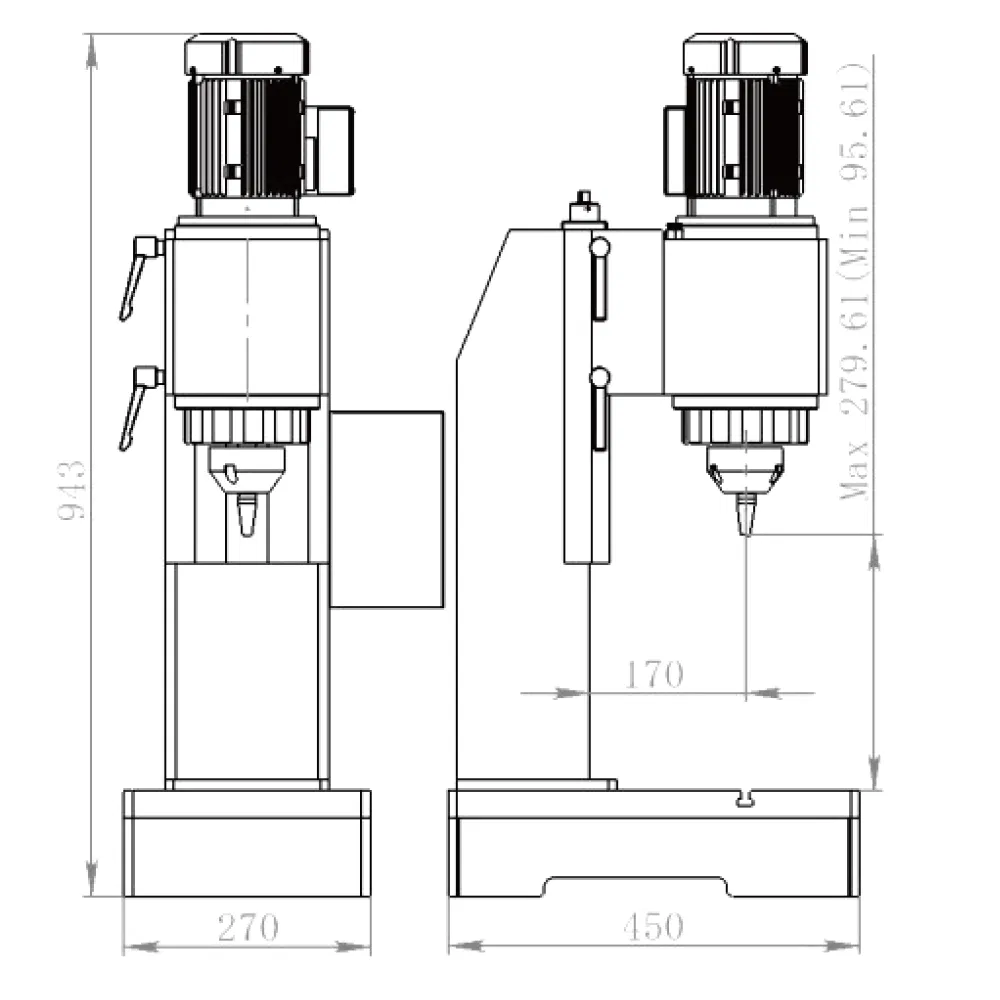

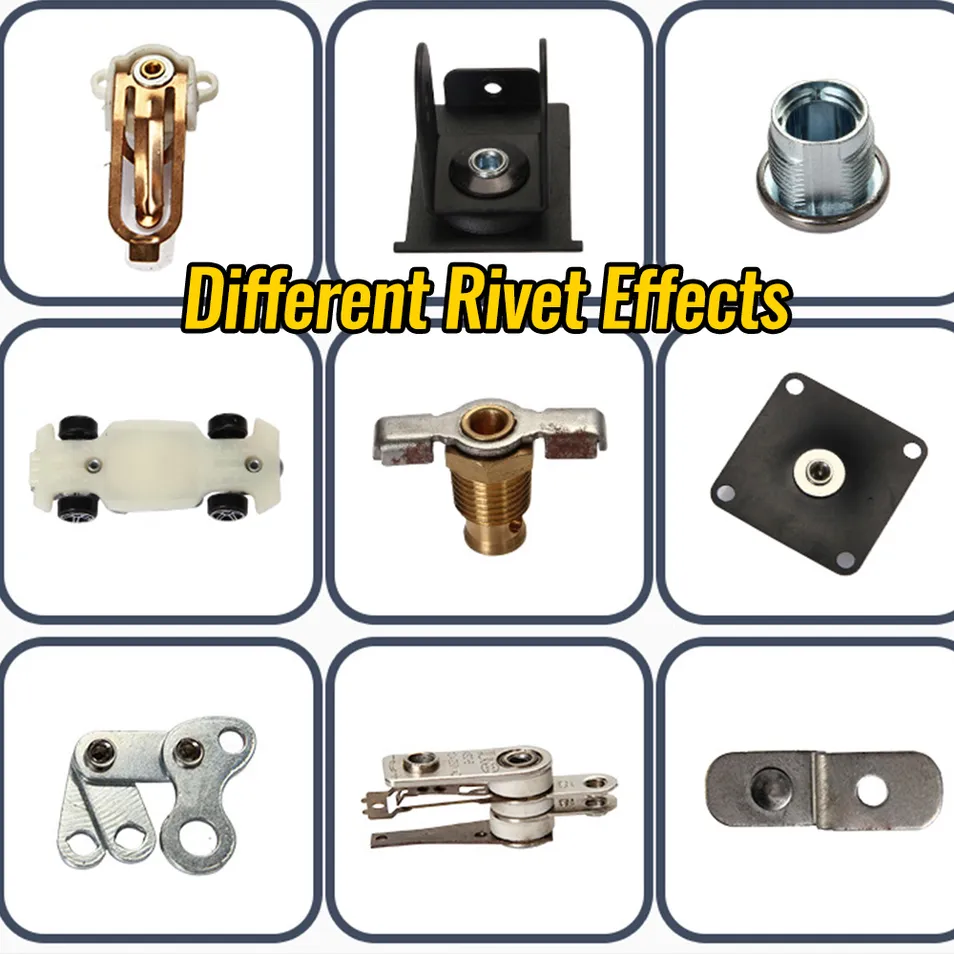

- Electronics & Appliances: Riveting connectors, terminal blocks, and small precision parts.
- Aerospace & Precision Machinery: Joining high-precision components.
- Hardware & Tools: Manufacturing hand tools, locks, and hardware accessories.
- Medical Equipment: Assembling medical devices requiring sterile, precise joints.

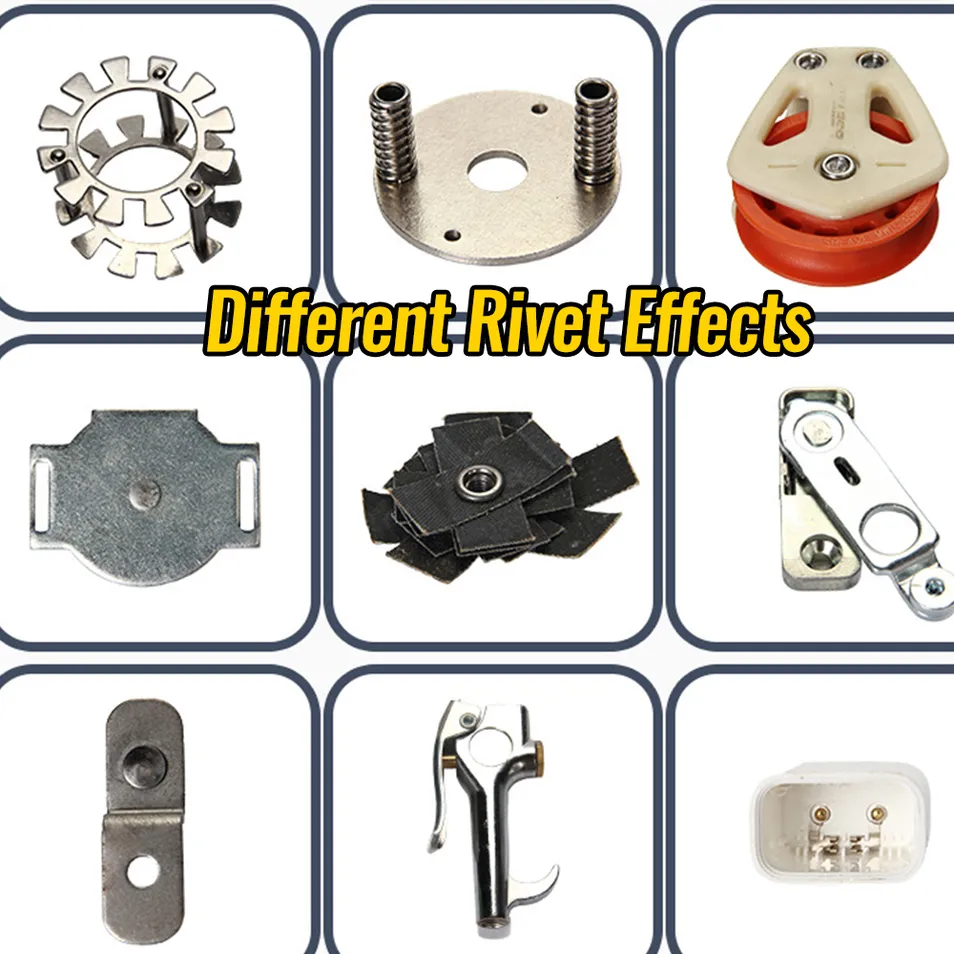

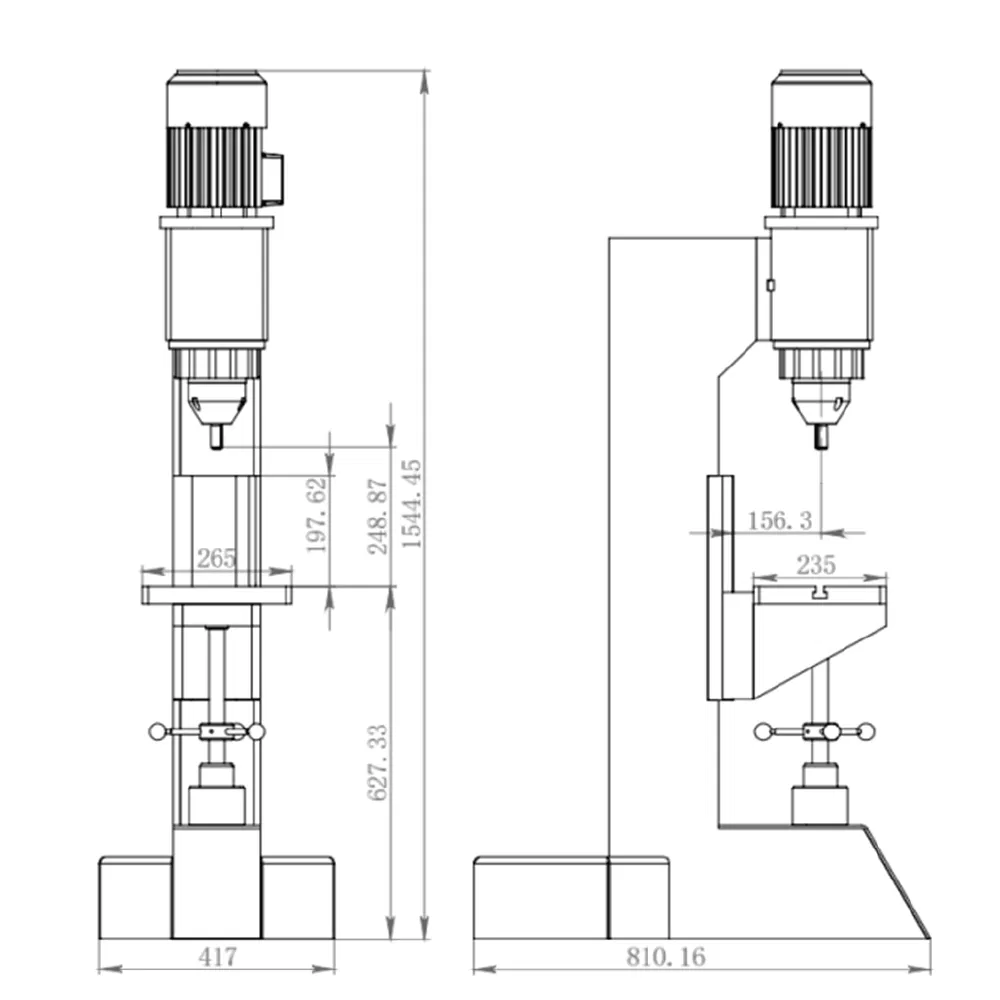

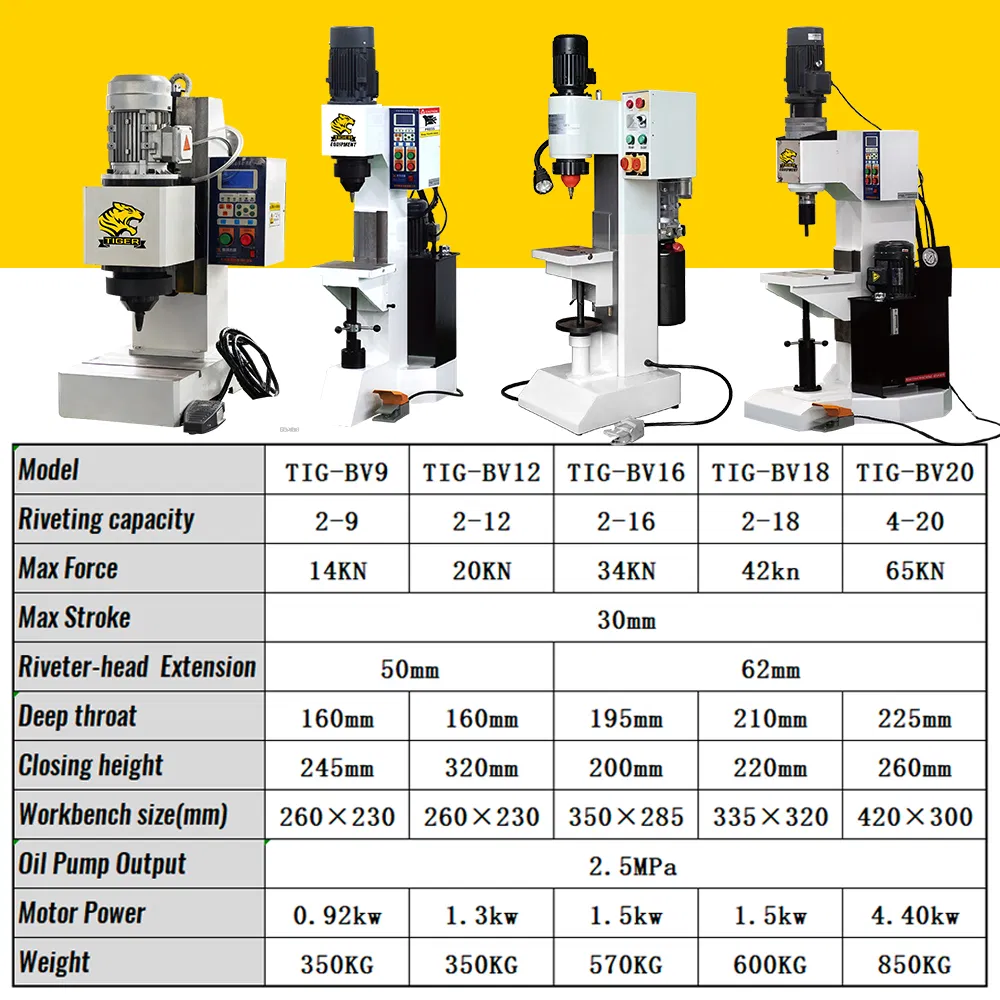

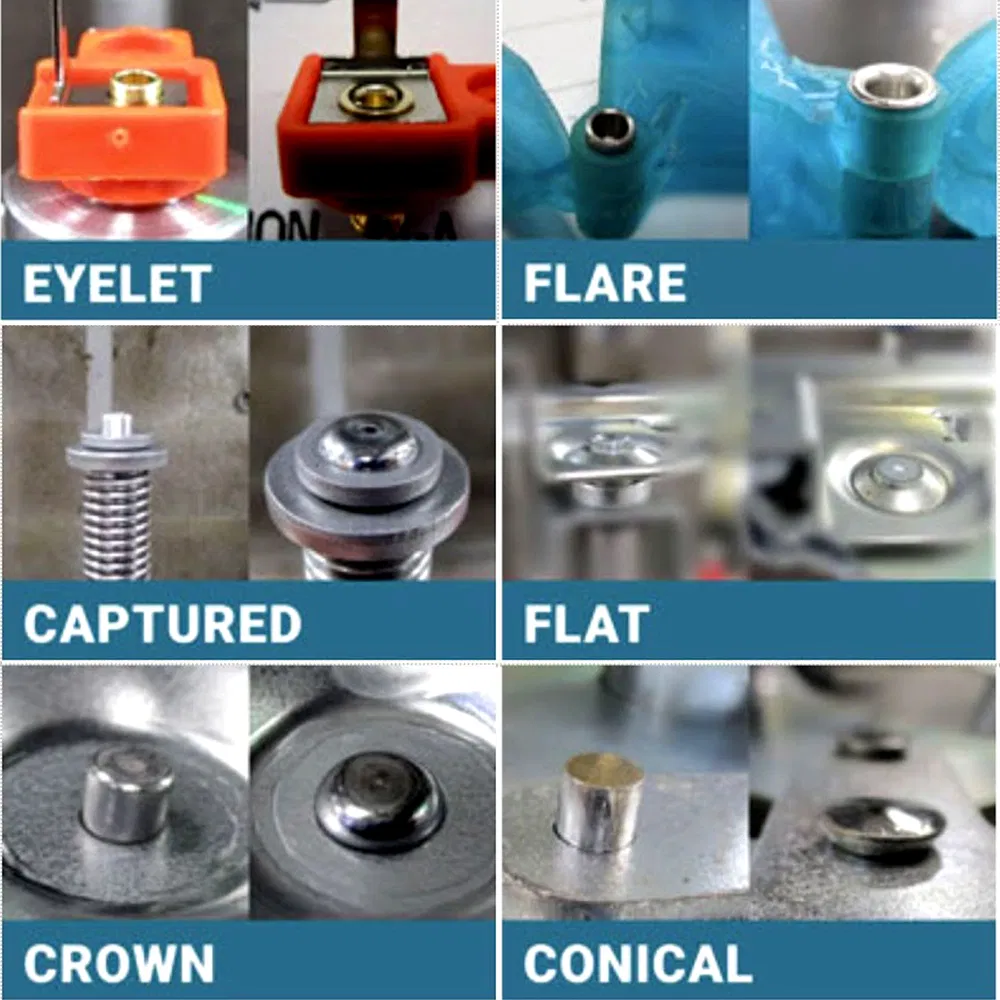

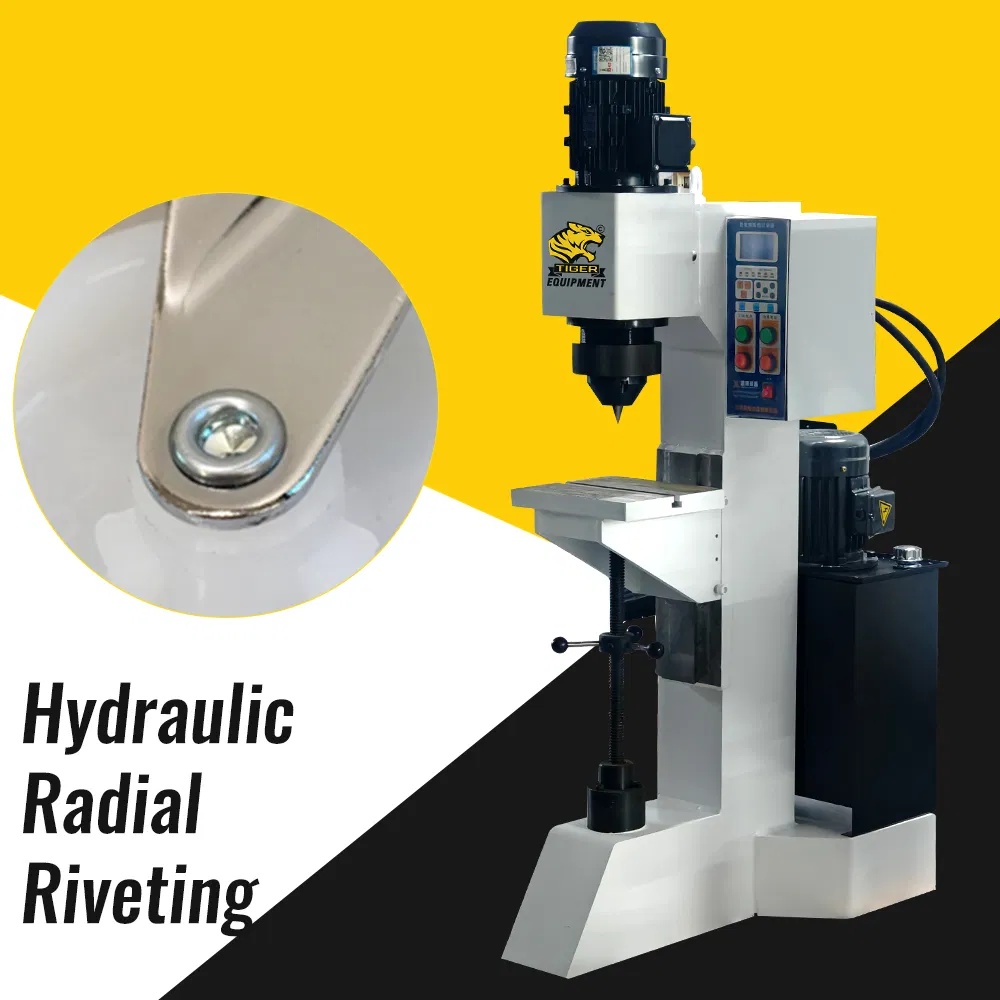

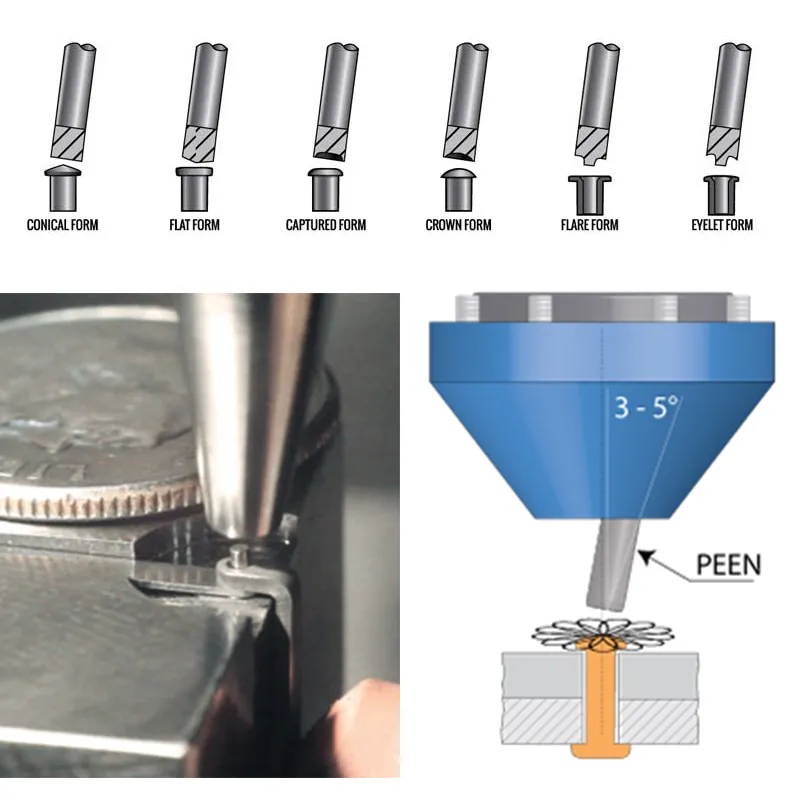

Different rivet shanks can be customized according to requirements.

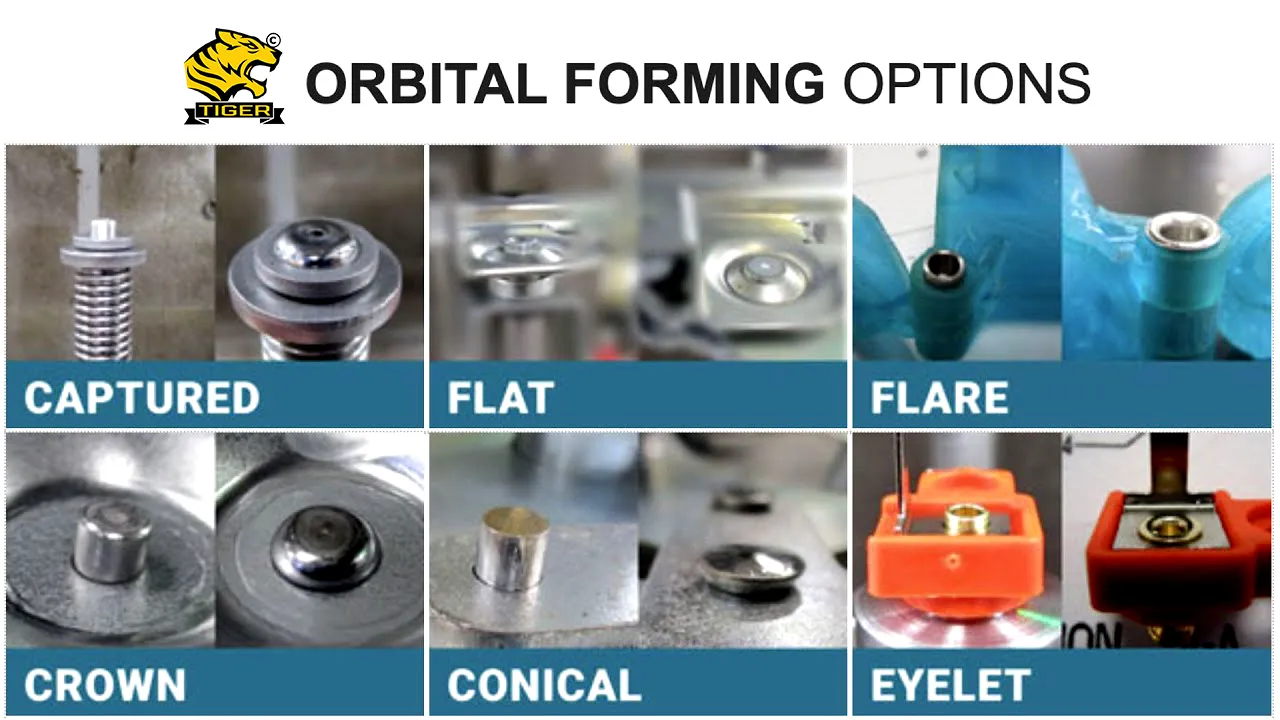

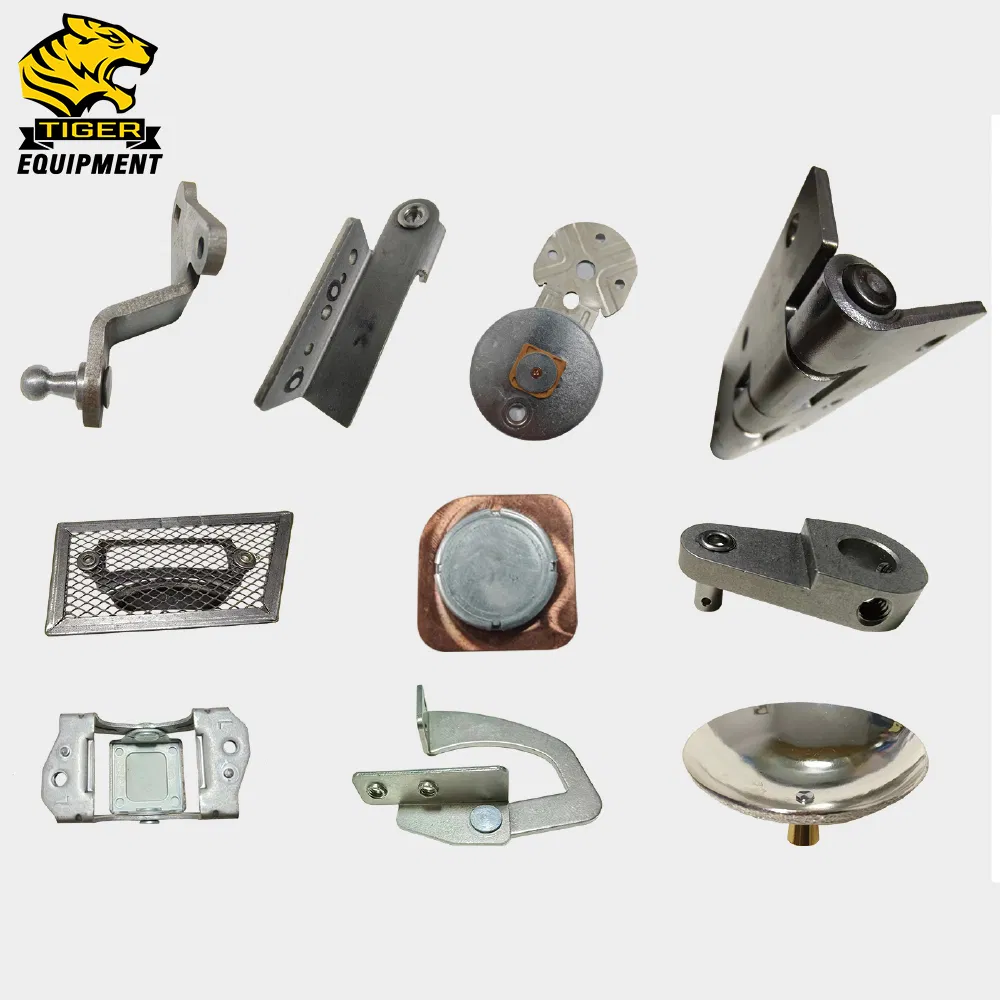

Orbital riveting case: Orbital riveting machines (also known as Rolling Riveting Machine) are used in a wide range of applications including brake linings for commercial vehicles, aircraft, and locomotives, textile and leather goods, metal brackets, window and door furniture, latches and even mobile phones.
Specifications
| Model |
TIG-JT-6P |
TIG-JT-9H |
TIG-JV-9H |
TIG-JV-12H |
TIG-JV-16H |
| Power |
pneumatic |
Hydraulic |
Hydraulic |
Hydraulic |
Hydraulic |
| Force Range |
9KN |
14KN |
14KN |
20KN |
34kn |
| Throat Depth |
170mm |
135mm |
144 |
160mm |
195mm |
| Max Riveting Capacity (Diameter) |
0.5-6mm |
2-9mm |
2-9mm |
2-12mm |
4-16mm |
| Workbench Size |
265×270mm |
360×500mm |
265×235mm |
260×230mm |
400×300mm |

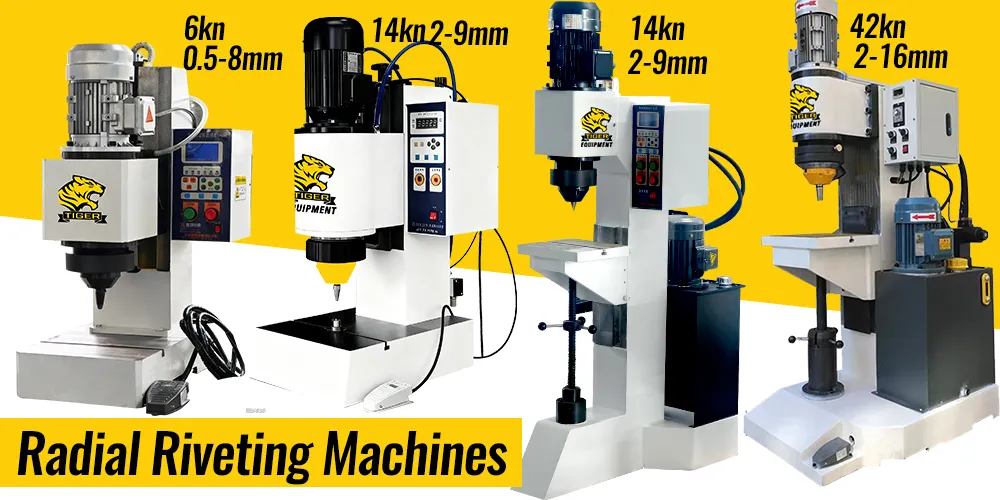

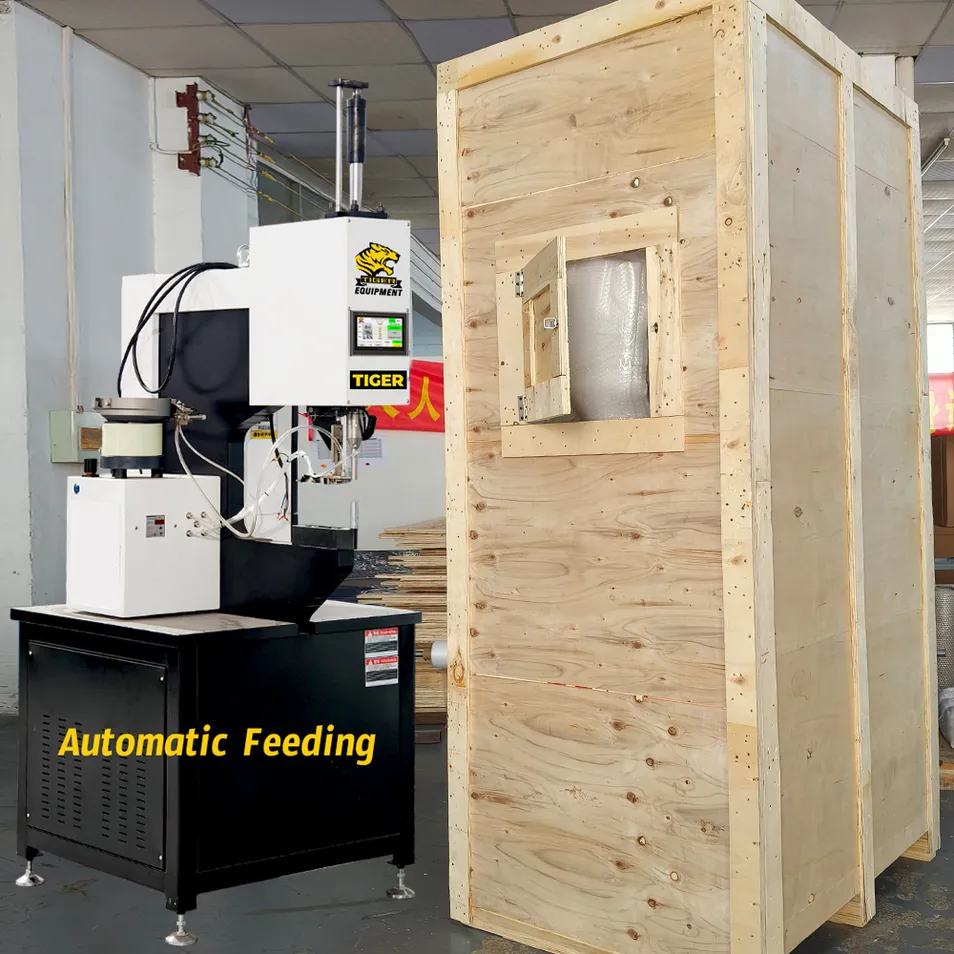

Packing & Delivery Gallery

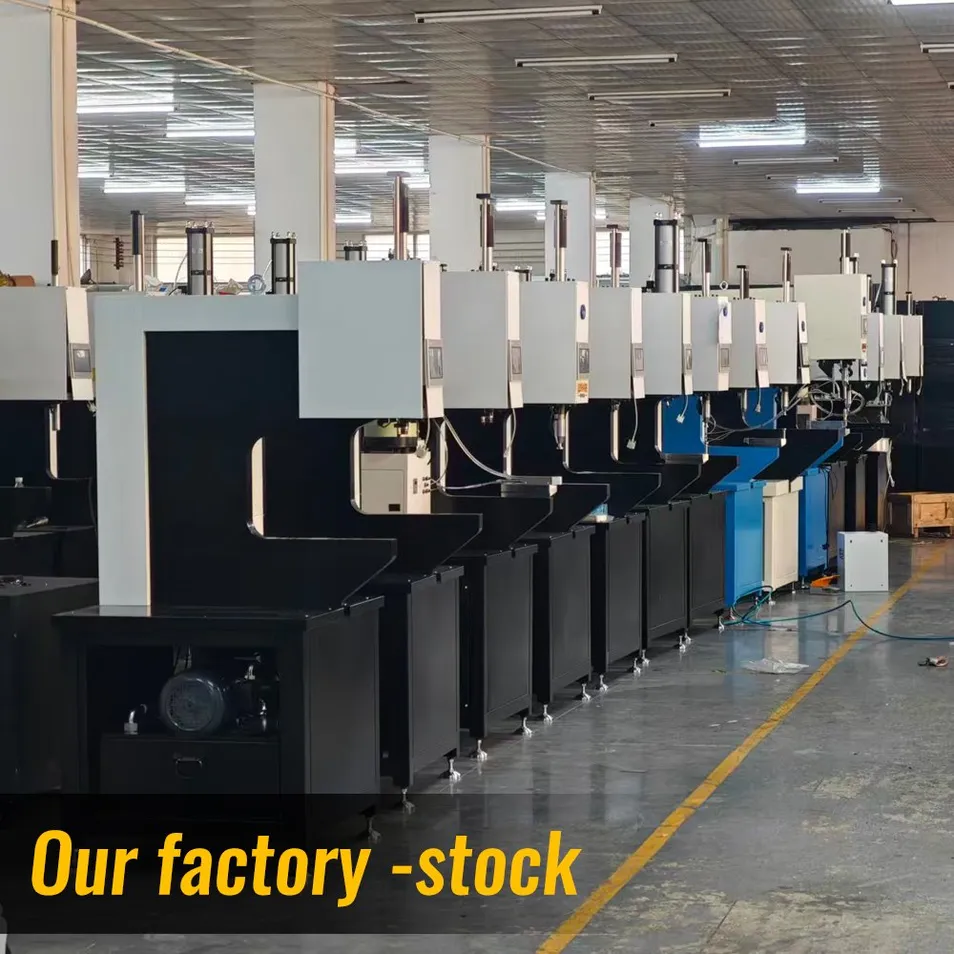

Transparency reduces inquiries. We specify secure packaging criteria, optimize shipping box selection, track timelines closely, and offer transit damage protection.
Frequently Asked Questions
What safety features are included?
The machine features a mandatory safety test system with alarms, protecting operators in conductive and non-conductive modes. It complies with international safety standards for industrial machinery.
What optional configurations are available?
Popular options include:
• Modular Autofeed System: Featuring a top-tier vibratory bowl and smart feeder controller.
• Manual Tooling Package: Offers 31/33/47 tools, J-frame, and a fixing base for versatile manual operations.
• Automatic Tooling Systems: Specialized tools for nuts (S-M3~M8), studs (FH-M3~M8), and standoffs (SO/BSO series).
How is the warranty service processed?
We offer a 2-year warranty and support lifetime maintenance. For any issue, please provide your order ID and description, and our engineering team will respond within 24 hours.
What is the maximum riveting diameter limit?
The capacity depends on the model. Our entry-level pneumatic machines handle diameters from 0.5mm to 6mm, while heavy-duty hydraulic models can handle solid steel rivets up to 16mm in diameter.
Can these riveting machines handle fragile materials?
Yes, the radial technology applies force gradually with minimum lateral deformation. This makes it perfect for processing electronic boards, thin-walled metals, plastics, and other delicate composite materials.
Can the tooling / rivet shanks be customized?
Absolutely. Different rivet shanks can be engineered and customized based on your specific joint profile and workpiece geometry requirements.
