| Model NO. | UL-288EL |
| Type | Frame-type |
| Max. Lifting Capacity | 3.5T |
| Certification | CE, RoHS, ISO |
| Standard | Standard |
| Condition | New |
| Bluetooth | Not Support Bluetooth |
| Platform Size | 5200*2140 mm |
| Frame Length | 5600mm |
| Frame Width | 2100mm |
| Frame Height | 520mm |
| Max Push Power | 95kN |
| Rated Voltage | 220/380V |
| Max Load Bearing | 3500kg |
| Origin | China |
| HS Code | 8479819000 |
| Production Capacity | 200set/Per Month |
| Package Size | 5600.00cm * 2100.00cm * 520.00cm |
| Package Gross Weight | 3000.000kg |
| Transport Package | Wooden Case |
| Specification | 3500kg |

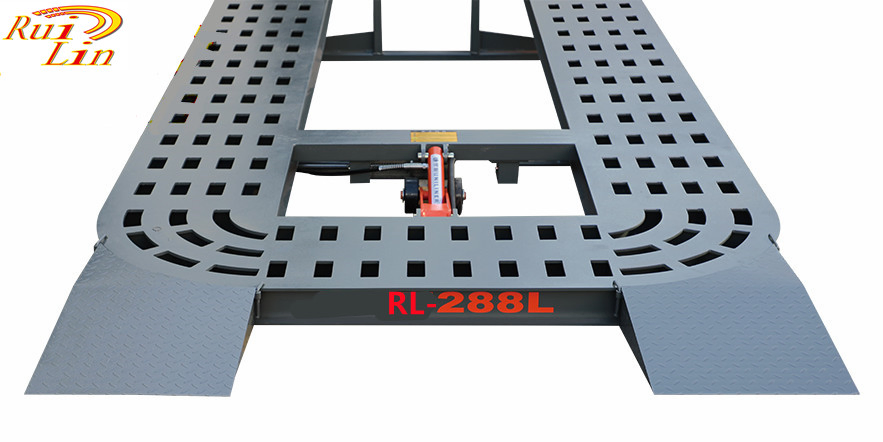

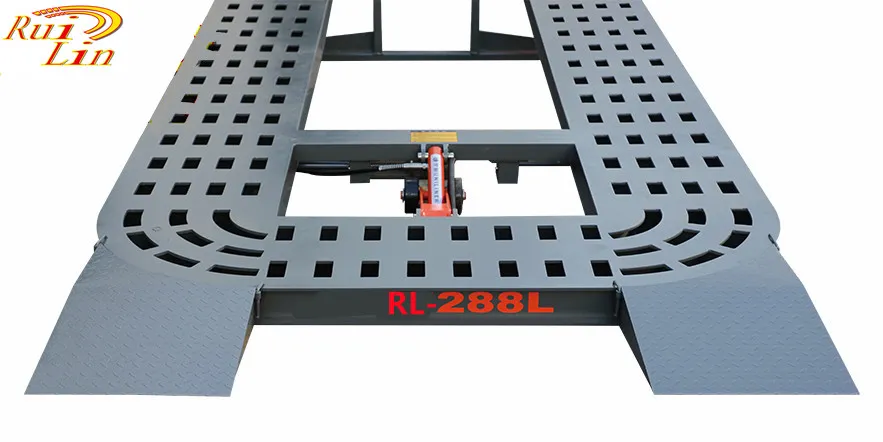

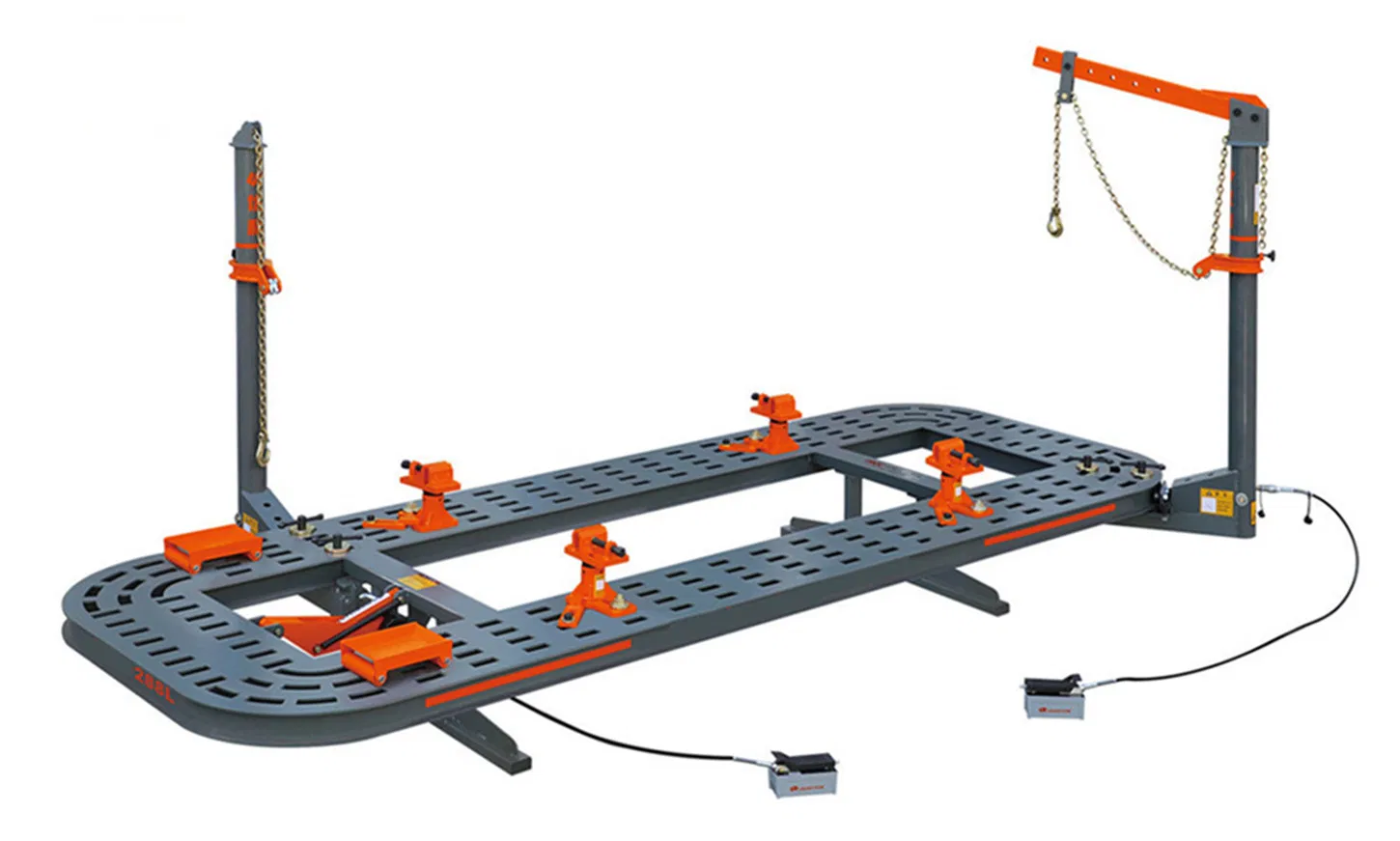

UL-288EL Auto collision repair frame bench details:
UL-U288EL, working platform made of fate plate and square holes steels is designed professionally for body collision repair by choosing better material, improving welding technique and enhancing stress intensity to make the repairing work more precise and faster. One of important features is no-blind working range, which is in accord with the technician's habit to make more convenient operation. It can be widely used for nearly all kinds of imported cars, commercial vehicles and SUVs collision repair.

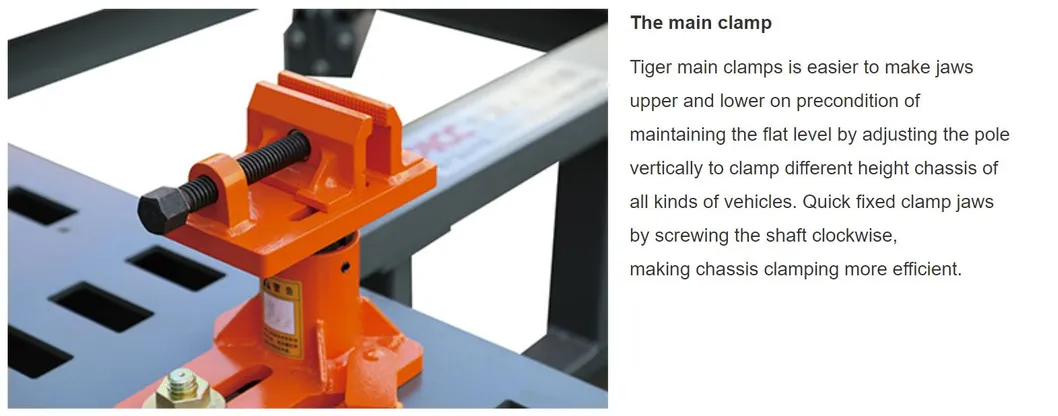

Unique design of spiral movements for main clamps is easier to make jaws upper and lower on precondition of maintaining the flat level by adjusting the pole vertically to clamp different height chassis of all kinds of vehicles. Quick fixed clamp jaws by screwing the shaft clockwise, making chassis clamping more efficient.

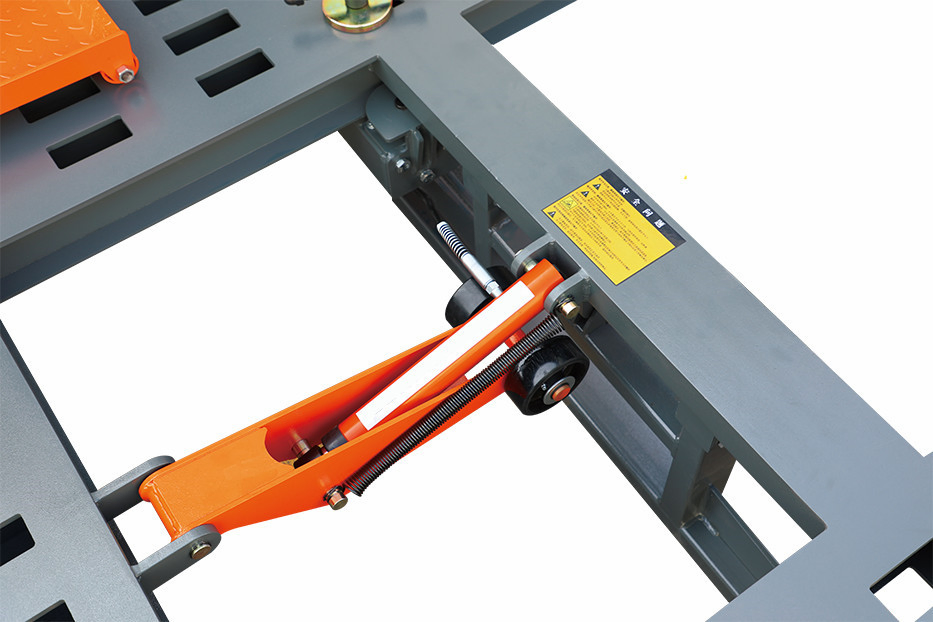

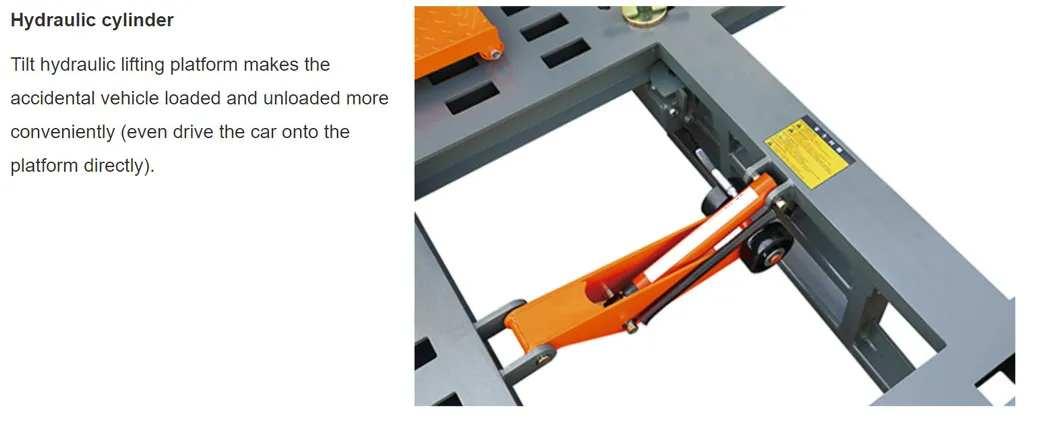

Tilt hydraulic lifting platform makes the accidental vehicle loaded and unloaded more convenient (even drive the car onto the platform directly).

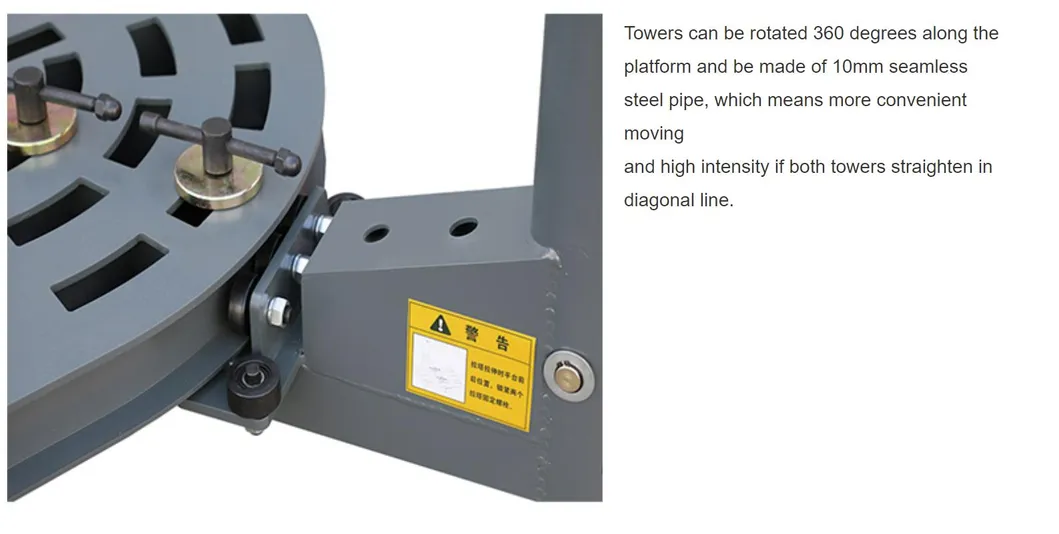

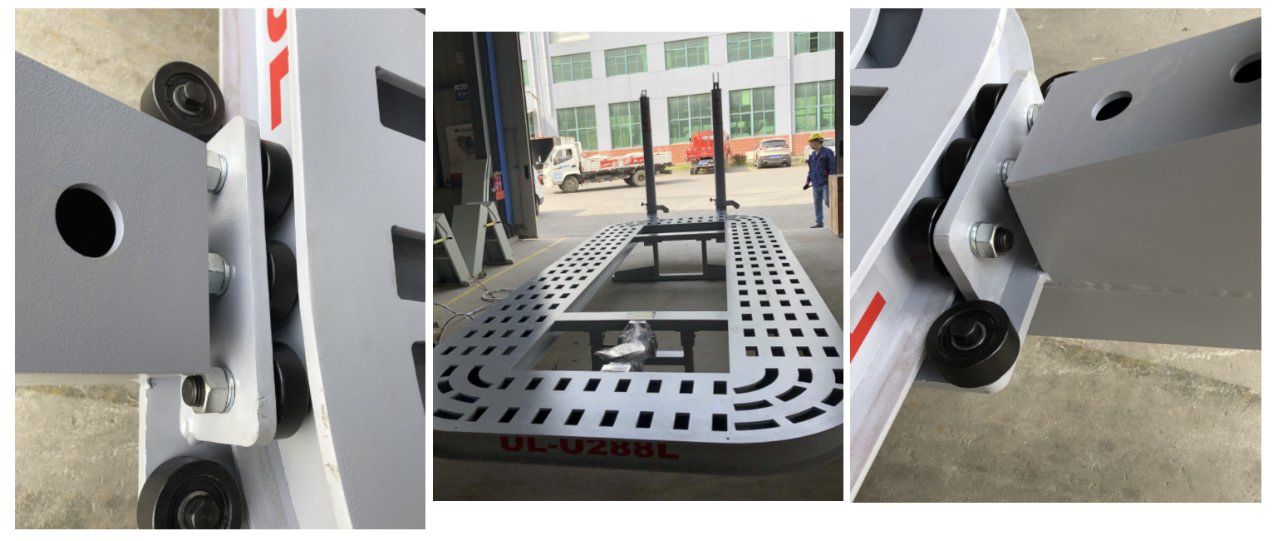

The pulling towers can work along the track for 360° rotation, operated more convenient. The pulling towers pull strong each other and highly active, and the material is made of the 10mm wall thickness seamless pipe.

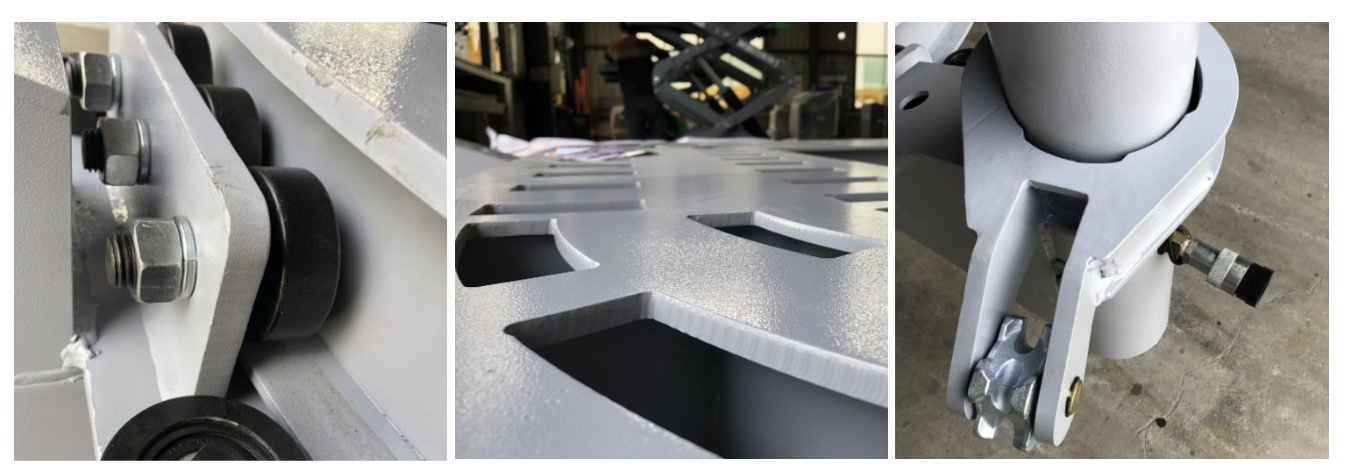

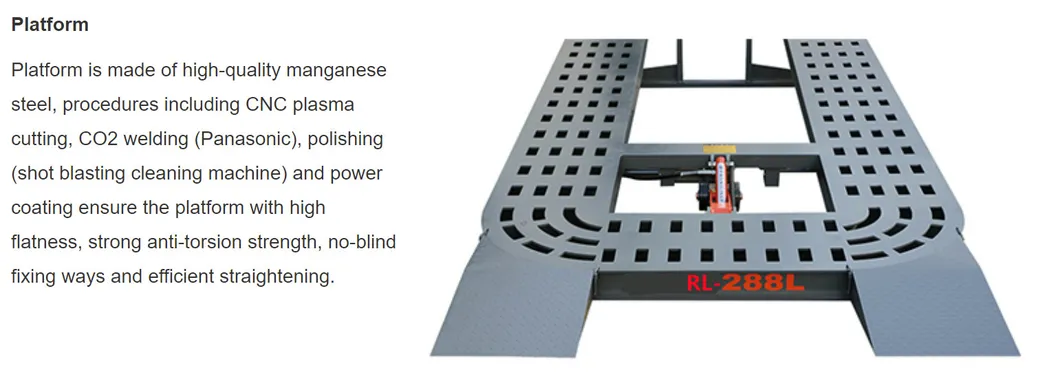

Platform is made of high-quality manganese steel, procedures including CNC plasma cutting, CO2 welding, polishing (shot blasting cleaning machine) and power coating ensure the platform with high flatness, strong anti-torsion strength, no-blind fixing ways and efficient straightening.
| Specification Parameter | Value |
|---|---|
| Length | 5600mm |
| Width | 2140mm |
| Frame Height | 520mm |
| Pulling capacity | 95KN |
| Rated voltage | 220V/380V |
| Radius of pulling | 360° |
| Max. load | 3500KG |

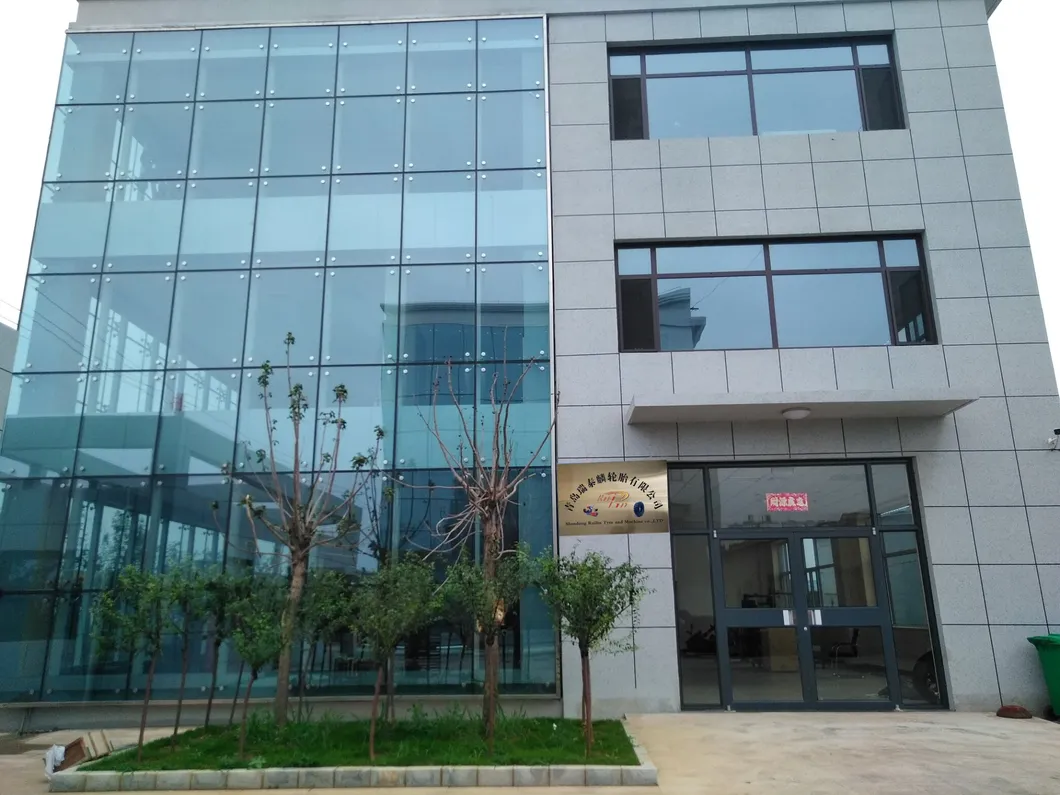

We are a high-tech enterprise which specializes in developing and producing automotive maintenance and diagnostic equipment, with a development history of more than 20 years.
We lay stress on market as our development orientation, new products development as our responsibility and try our best to offer high quality products for all of the world users. We always insist on quality for existence and service for development as our enterprise aim, ensuring our offerings are highly praised and approved by users globally.
To better serve our clients, we offer a comprehensive range of equipment including: car and truck tyre changers, industrial and OTR tyre changers, wheel balancers, car lifts, wheel alignments, truck jacks, tire test tanks, air compressors, mobile bead seaters, inflation cages, digital tire inflators, and forklift solid tyre press machines.
A: Yes, we can provide OEM and ODM services according to customer requirements. Please contact us and we will provide you with a quote based on your specific requirements.

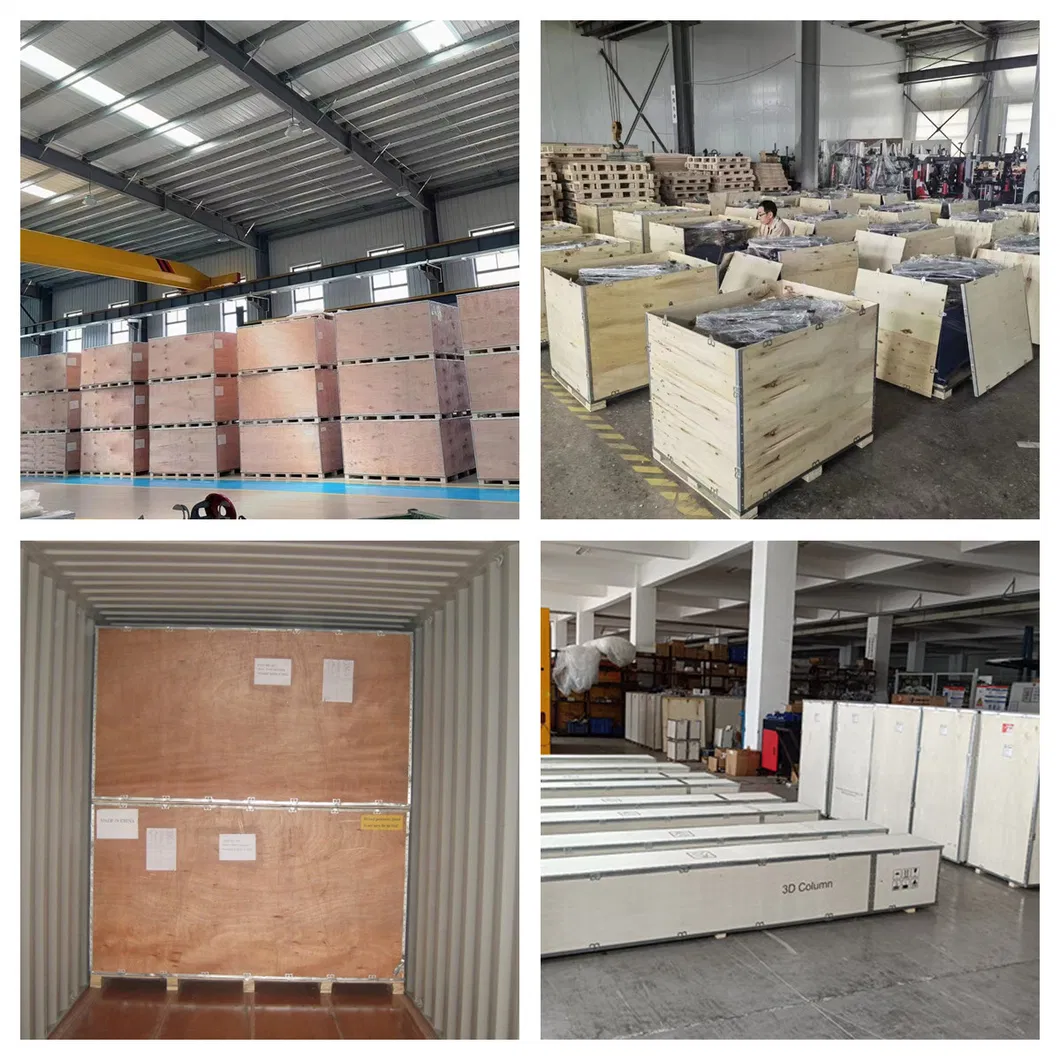

A: Generally, we pack our goods in wooden cases and cartons designed for safe international transport.
A: The delivery time of our products varies, depending on the product type and specifications, as well as the quantity of your order.
A: The specific warranty period and coverage depend on the product type and specifications. Please contact us to discuss the warranty policy in detail.
A: Yes, we will provide free technical support for our products. Please contact us for support; we are always here to help.
A: The platform is built using high-quality manganese steel, finished through precise CNC plasma cutting, automated CO2 welding, and shot blast cleaning to ensure ultimate strength and durability.
