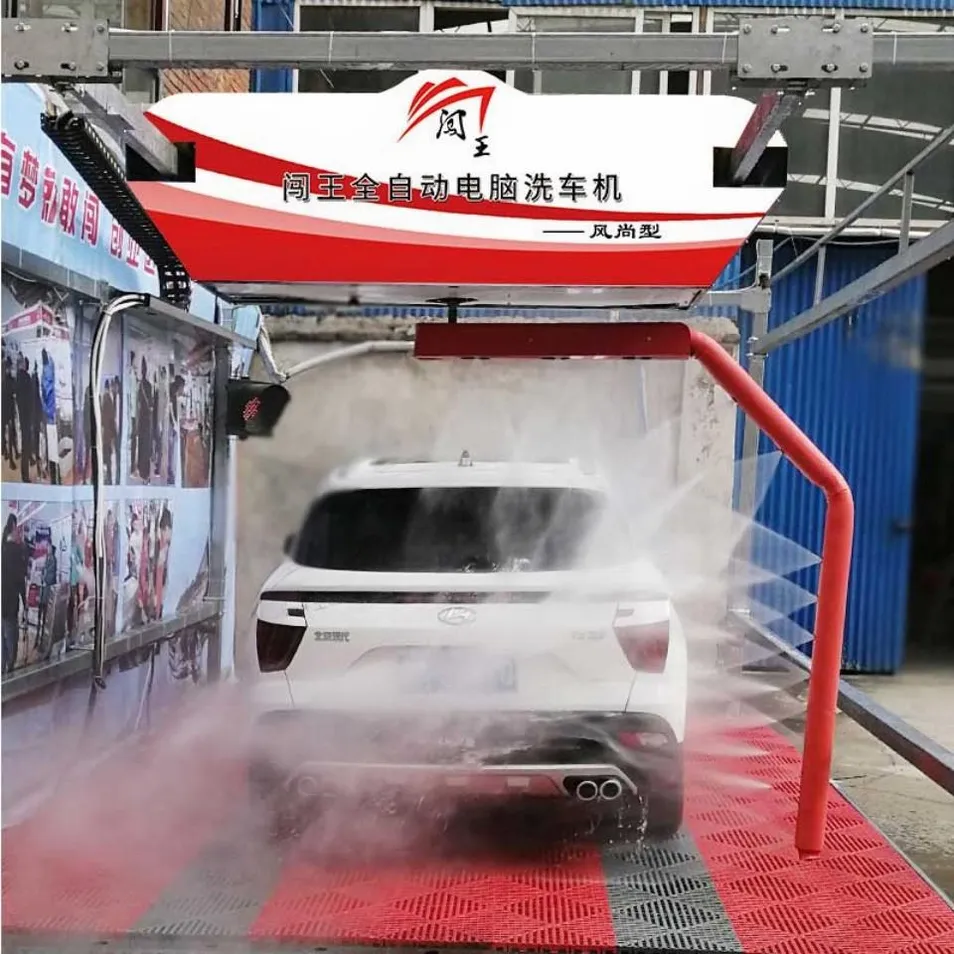

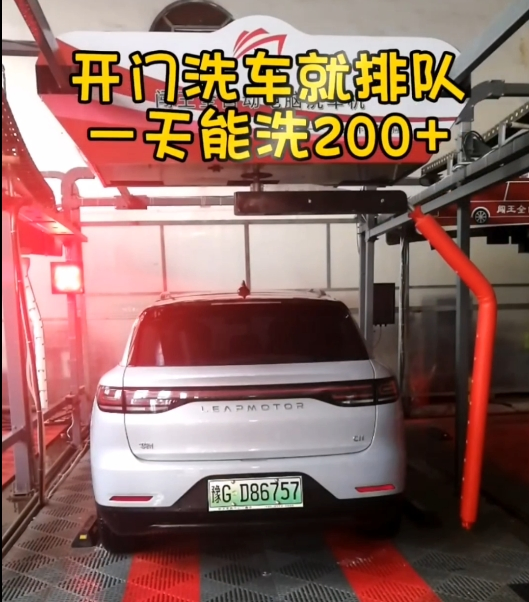

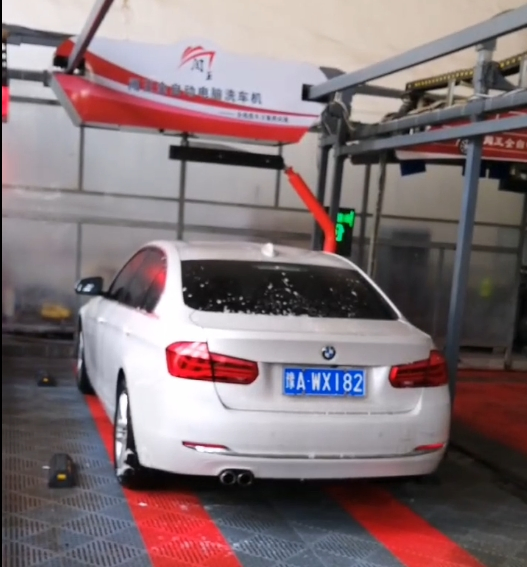

The Fashion style fully automatic contactless computer car washing machine is a best-selling model that integrates many functions, has complete functions and ultra-high cost-effectiveness to meet the ultimate experience of car owners, and is highly welcomed by the market. This model is equipped with an embedded fast air drying system, which can quickly and efficiently air dry the moisture on the body surface. 360° surround automatic high-pressure washing, chassis cleaning, high-pressure foam, automatic wax spraying, automatic air drying, no blind area, cleaner, better car washing effect. Compared with traditional car washing, this machine has fast washing speed, high efficiency, and saves time, effort, and labor! This product is suitable for cleaning various types of vehicles such as small cars, commercial vehicles, off-road vehicles, vans, etc.

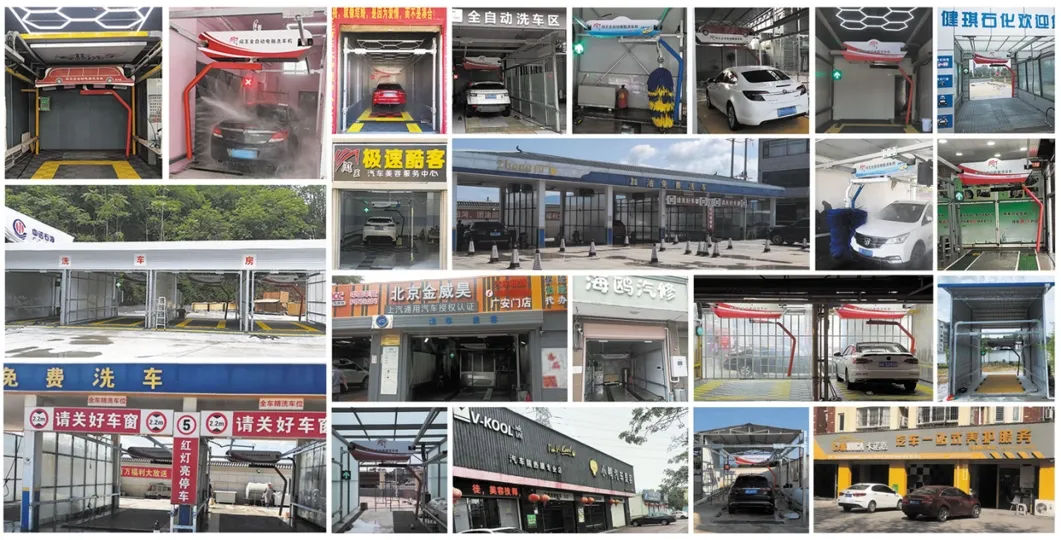

Commercial Car Washing: Suitable for car wash shops, gas stations, large parking lots, and auto repair shops.
Community Car Washing: Ideal for installation in community parking lots with moderate car washing demands.
24-Hour Self-Service Car Washing: Enables 24/7 unattended fee-based operation.

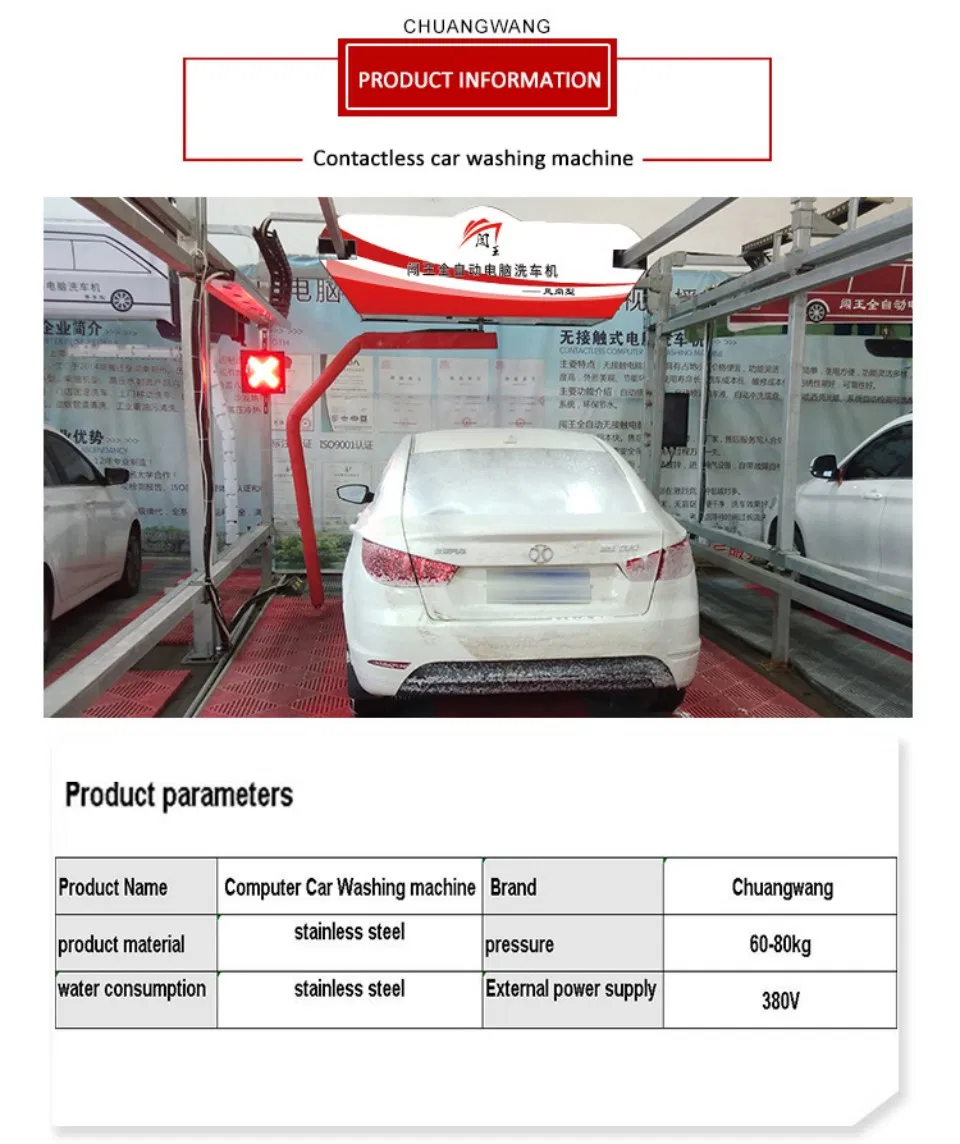

| Model | CW-FS | Pressure | 80~100Bar |
| Materials | Stainless Steel | Pump power | 15kw |
| Water consumption | 80~120L | Blower power | 4kw x3 |
| Electricity consumption | 0.375kw/Vehicles | Voltage | 3 phases 380V |
| Washing car space | 5300x1900x2000mm | Main controller | Chint |
| Car body induction | Ultrasonic | Induction mode | Ultrasonic/photoelectric |
| Foam system | One | Foam power | 370w |
| Operate method | Touch screen panel | Operation mode | Manual/Automatic |
| Washing method | Reciprocating cleaning | Washing process | Chassis+Foam+Washing+Built-in fan |
| Washing time | 4-6 minutes | Protect system | Overpressure/Overcurrent |
| Breakdown self check | Automatic alarm | Water supply pipe | ≥DN20 |
| Water storage | ≥1Ton (prepare in local) | Air pump | ≥700w (prepare in local) |
| Device weight | About 1 Ton | Dimensions | 7000*3500*3300mm |
Utilizes high-pressure water jets to clean the vehicle without direct contact, preventing paint scratches.
Equipped with an automatic sensing switch that initiates the washing program as soon as the vehicle enters the washing area.
Features a 360° intelligent washing technology that ensures comprehensive cleaning of the vehicle's surface without blind spots.

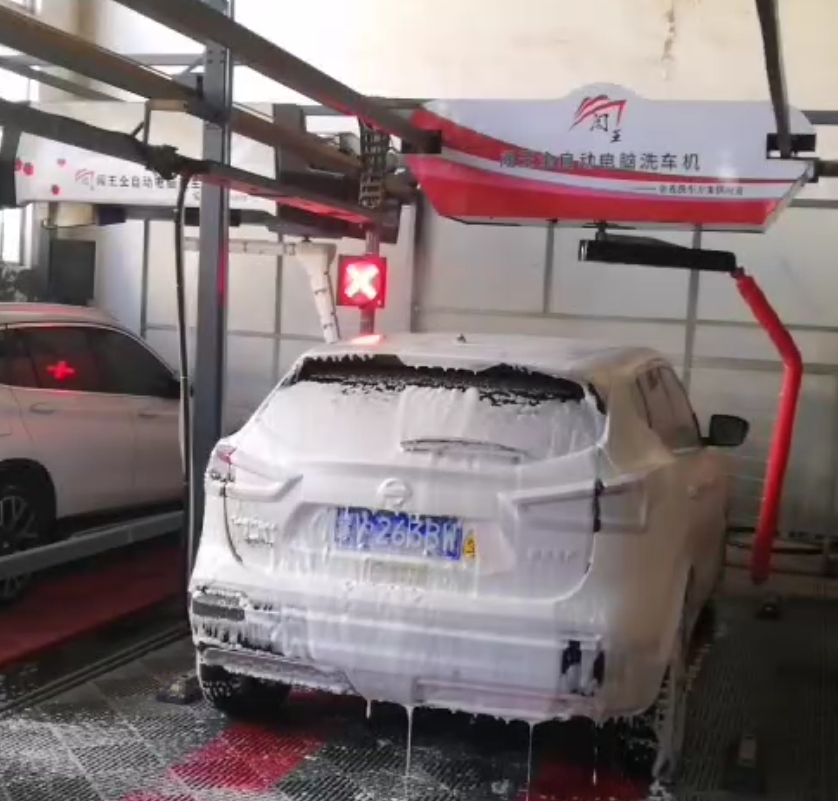

Automatically sprays multiple types of cleaning liquids, evenly covering the vehicle's surface to quickly remove dirt.
Uses active cleaning ions to more effectively remove dirt and grease from the vehicle's surface, leaving the paint smoother and shinier.
An integrated drying system with adjustable drying speed settings to evenly dry water droplets and stains on the vehicle's surface.
After washing, the machine can optionally spray water-based wax to protect the vehicle's paint.
Can be equipped with card-swiping or QR code payment options to enable 24/7 unattended fee-based operation.
The all-in-one wash and care model can be optionally equipped with an automatic door system that opens after payment and closes automatically after washing, enhancing the safety of the equipment.
Completes the entire process of washing, drying, and waxing in just 3-4 minutes.
High degree of automation eliminates the need for manual operation.
Equipped with a wastewater recycling system to reduce operating costs.
Simple and intuitive interface with one-button start.
Uses high-pressure contactless washing to avoid paint scratches caused by sand particles.
The high-end equipment configuration and outstanding washing results can significantly upgrade the overall image of a car wash shop.

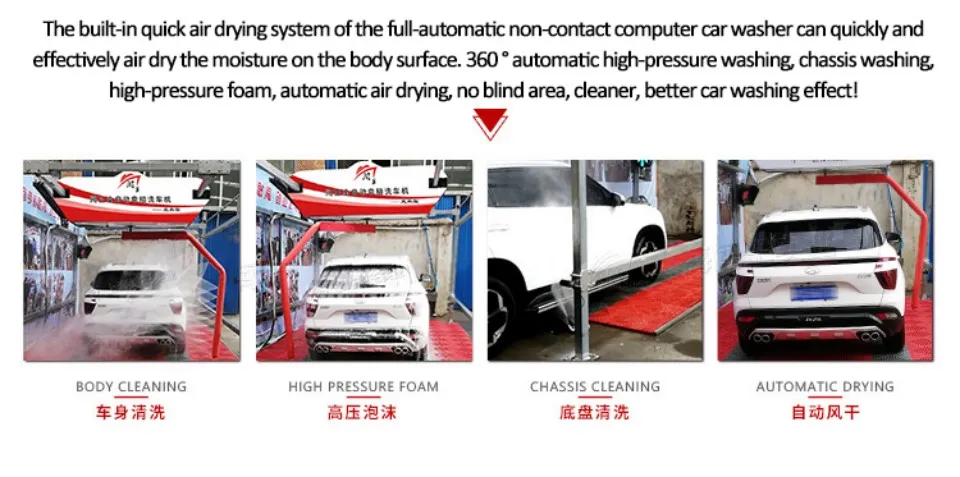

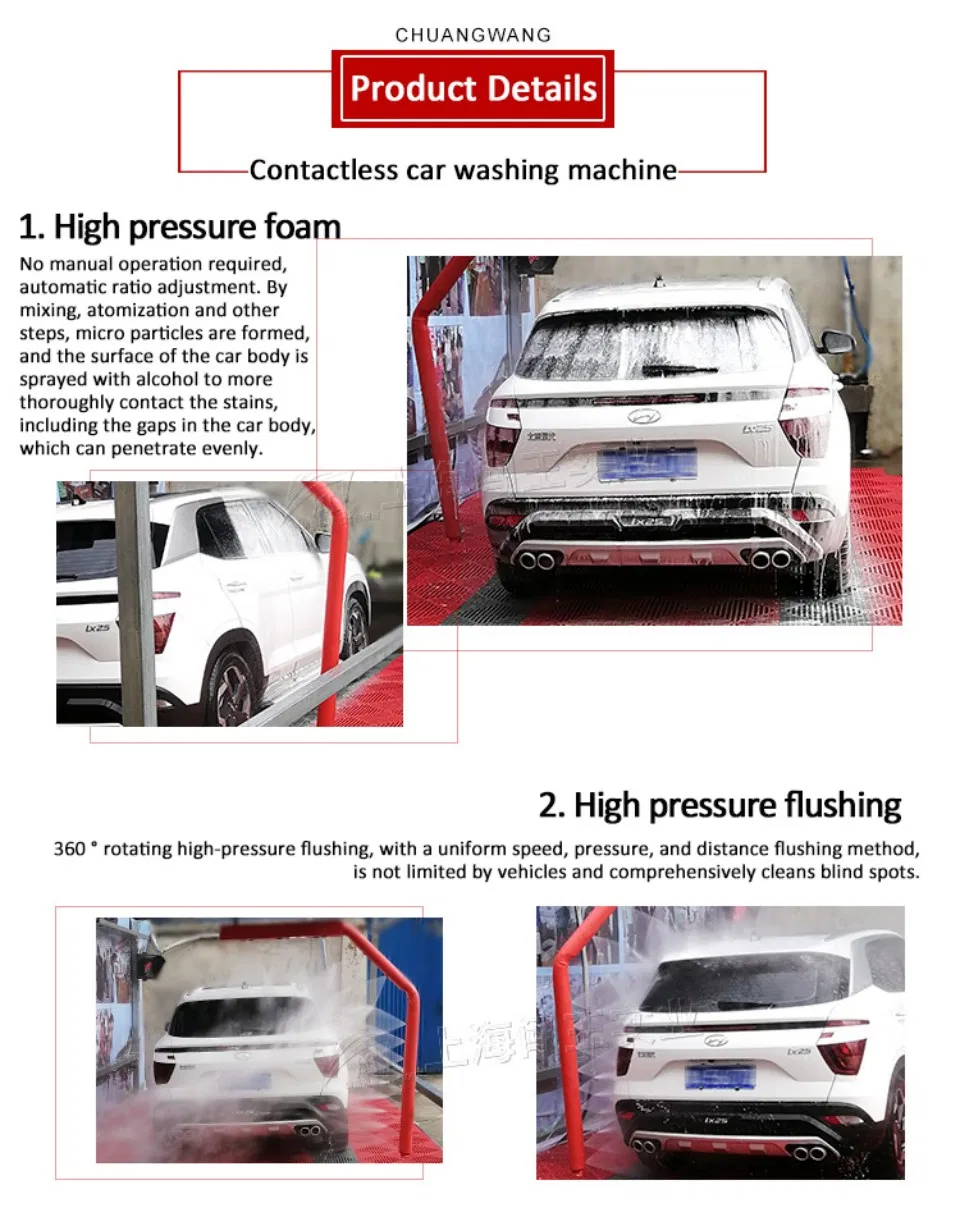

1. Chassis Washing: Automatically cleans the underside of the vehicle with no blind spots.

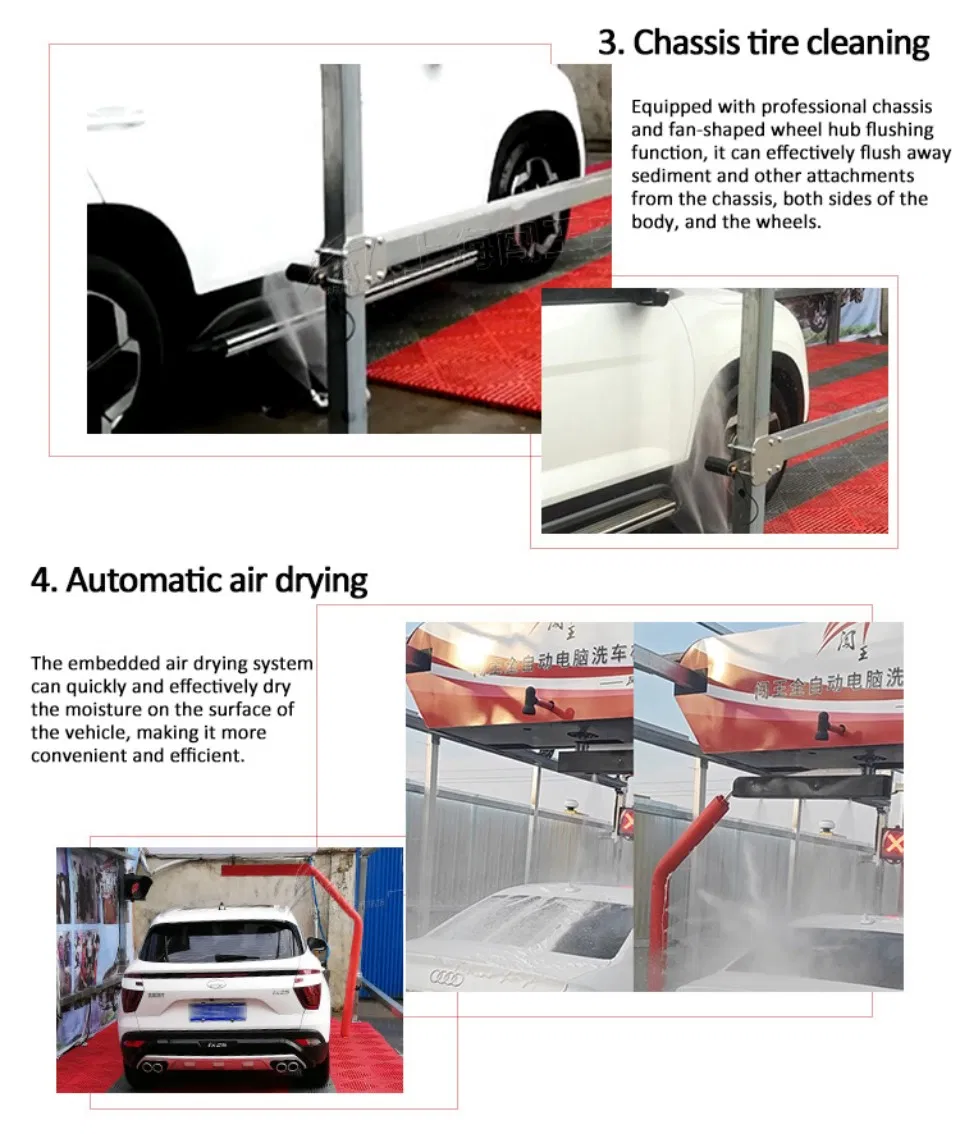

2. Wheel Hub Cleaning: Features a dedicated wheel hub cleaning function.
3. Body Washing: Comprehensive 360° intelligent washing with no blind spots.
4. Drying: The integrated drying system quickly dries the vehicle's surface.
5. Wax Spraying: Automatically sprays water-based wax after washing to protect the vehicle's paint.
Our CW-FS Intelligent Computer Automatic Car Washing Machine is a great project for your entrepreneurship. It can be installed both indoors and outdoors, and is a must-have for gas stations, storefronts, large parking lots, car washes, and auto repair shops. This product does not come into contact with the paint surface during the car washing process and will not cause damage to the car paint. Professional car beauty shops usually choose to use this contactless car washing machine.
Packing Details:
- Main Equipment: Packed in export-grade fumigation-free plywood crates, wrapped with thickened moisture-proof film. Internally, critical components such as robotic arms and motors are secured with high-strength foam and cushioning pads to ensure shockproof, moisture-proof, and rust-proof protection during transportation.
- Accessories: Fragile items such as control boxes and pipelines are packed separately in individual cases with corresponding labels.
- Packing Dimensions: Approx. 300cm(L) × 100cm(W) × 116cm(H)
- Gross Weight: Approx. 800 kg/unit
Delivery Time:
- In-stock: Shipped within 7-15 working days after payment confirmation
- Custom/OEM Orders: 20-30 working days
- Main Machine: 12 months warranty against manufacturing defects
- Core Components: 12 months for PLC control system, motors, and pumps
- 24/7 Online Support: Technical advice via email and video call assistance
- Comprehensive Guides: Free access to English installation videos, operation manuals, and wiring diagrams
- Fast Dispatch: Replacement parts shipped within 48 hours from stock
- Recommended Spare Kit: Suggest ordering a basic spare parts package with the machine for quick maintenance
- Free Online Training: Step-by-step video guidance for installation and operation
- On-Site Service: Available upon request (subject to travel + labor costs)
| Product Name | Fashion Type Contactless Car Washing Machine | Origin | China |
| Suitable Installation Site | Car wash shops, gas stations, parking lots, etc | Car Washing Process | Automation |
| Car Washing Steps | Chassis washing → Car wash fluid → High pressure washing → Water wax → Air drying → Car washing completed | Equipment Weight | About 900 kilograms |
