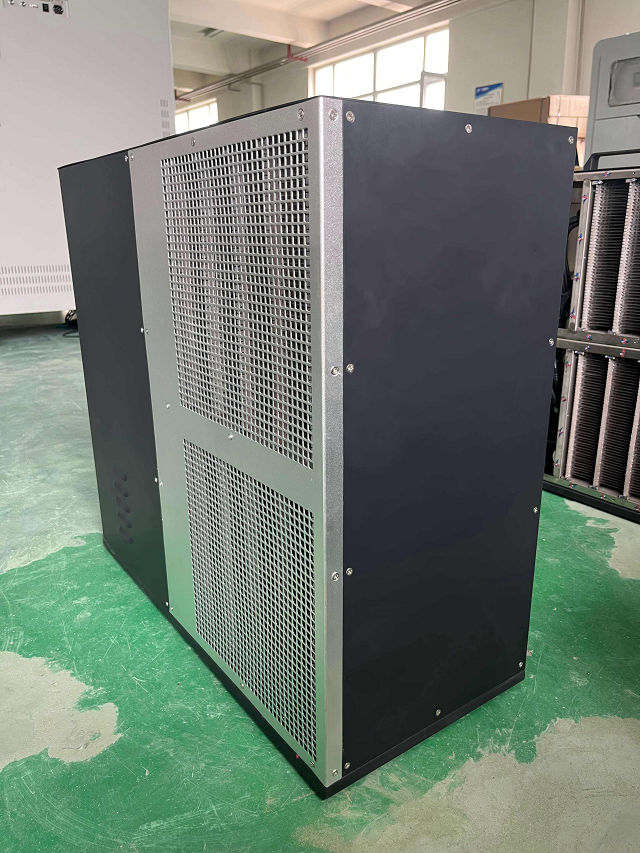

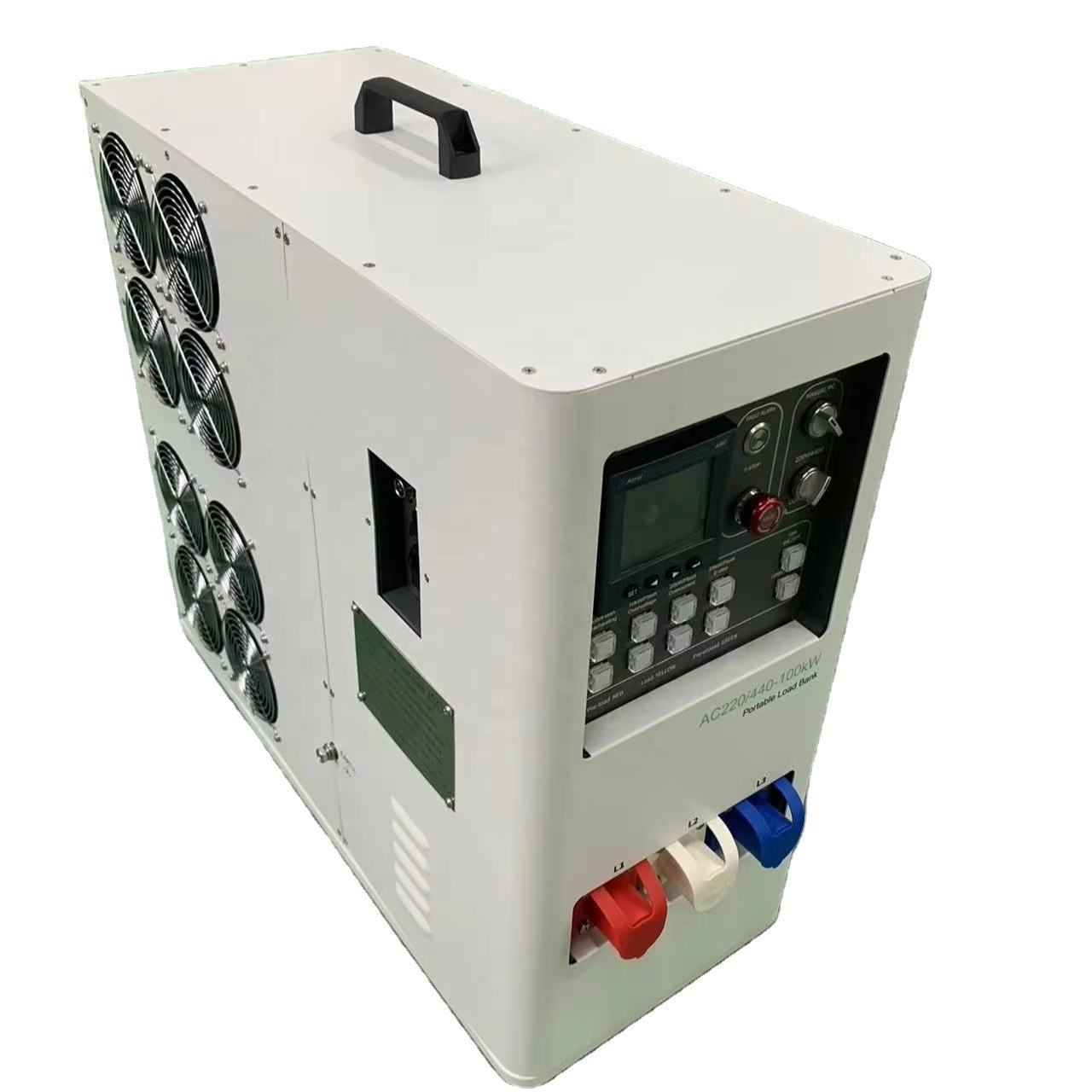

AC 240/480V-100kW Dual Voltage Automatic Portable Load Bank Testing Equipment
AC 240/480V-100kW Dual Voltage Automatic Portable Load Bank Testing Equipment
AC 240/480V-100kW Dual Voltage Automatic Portable Load Bank Testing Equipment
AC 240/480V-100kW Dual Voltage Automatic Portable Load Bank Testing Equipment
AC 240/480V-100kW Dual Voltage Automatic Portable Load Bank Testing Equipment
1 / 5
AC 240/480V-100kW Dual Voltage Automatic Portable Load Bank Testing Equipment
AC 240/480V-100kW Dual Voltage Automatic Portable Load Bank Testing Equipment
AC 240/480V-100kW Dual Voltage Automatic Portable Load Bank Testing Equipment
AC 240/480V-100kW Dual Voltage Automatic Portable Load Bank Testing Equipment
AC 240/480V-100kW Dual Voltage Automatic Portable Load Bank Testing Equipment

AC 240/480V-100kW Dual Voltage Automatic Portable Load Bank Testing Equipment

Send Inquiry

Product Description

Product Description

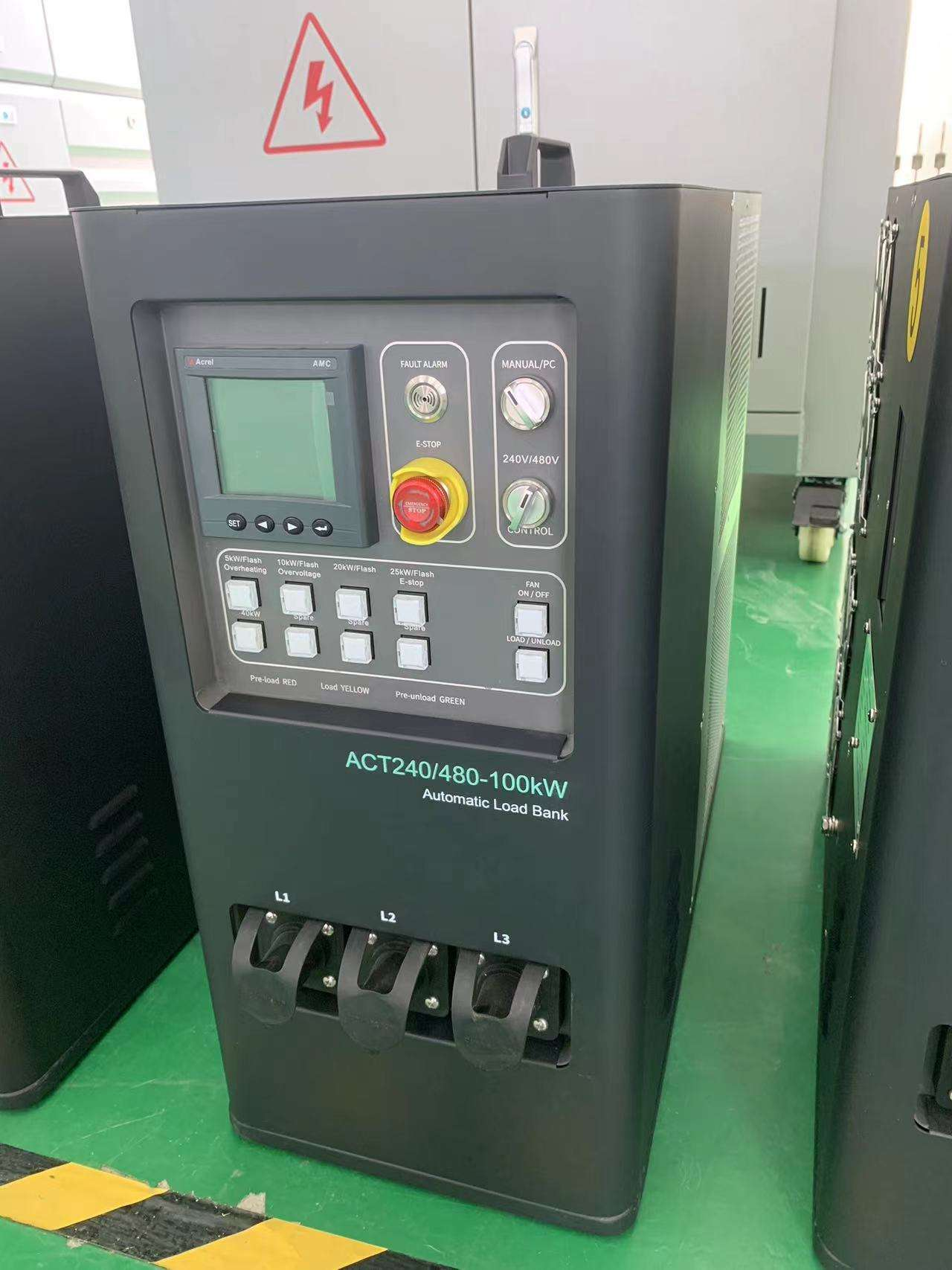

Generator testing load bank interface

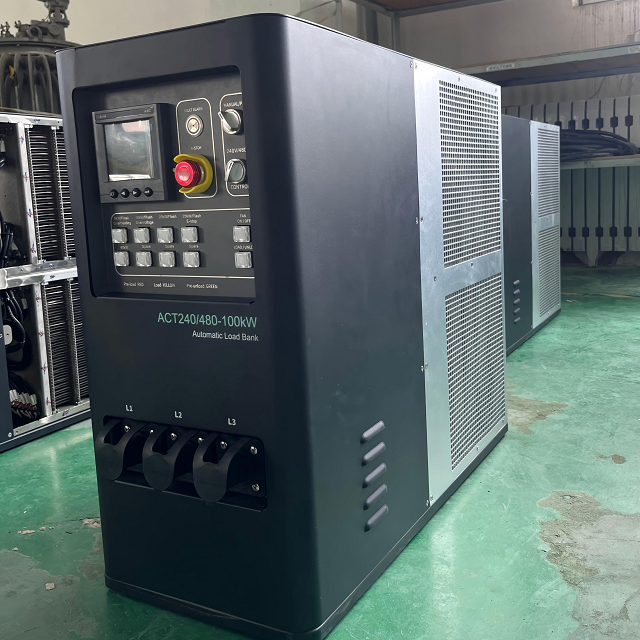

Portable generator testing load bank front view

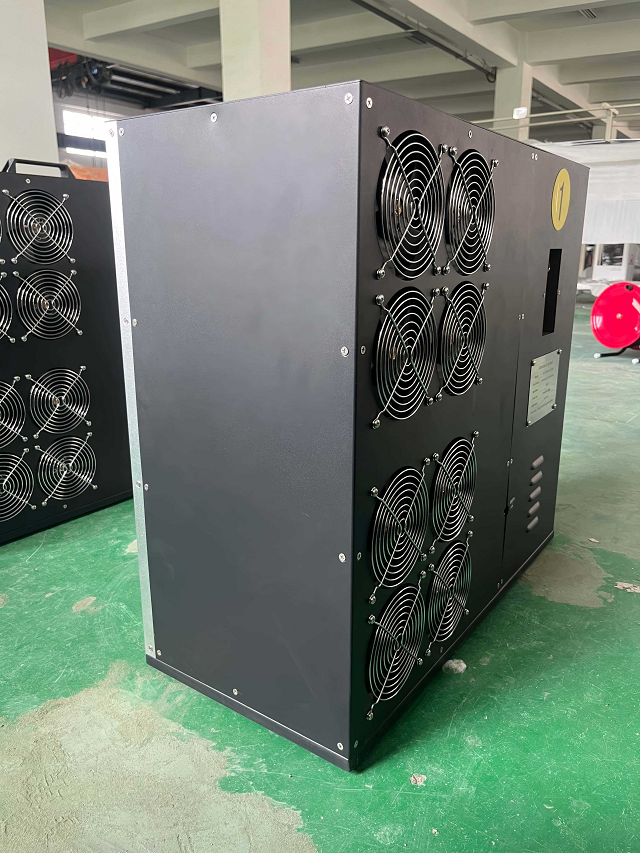

Testing load bank inside components
Load bank control settings

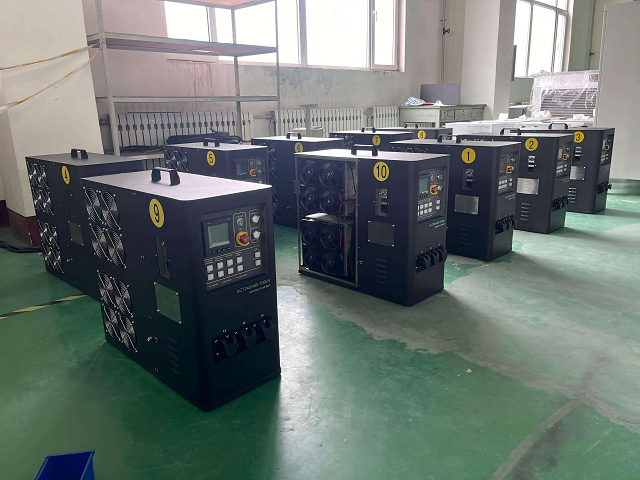

Load bank details panel
Specification
Parameter Details
Item Portable generator testing load banks
Type Testing Machine
Place of Origin China
Province Hebei
Accuracy ±1%
Customized Support OEM, ODM
Power 100kW
Protection Class IP22
Rated Voltage / Frequency AC three-phase three-wire 240/480V/50Hz/60Hz
Brand Name Triumph Load
Application Generator testing
Warranty 1 year
Wire Connection Load bank input -- Fast Plug
Control power input -- Three-core power socket
Transportation There are handles on the top of the case and footpads on the bottom.
Load Tolerance (overall) ±3%
Load Steps Resistive Load: 5kW, 10kW, 20kW, 25kW, 40kW
Dimension 540/292/582 mm (L W H)
Weight 35kg
Cooling Forced air cooling, horizontal inlet and outlet
Operating Environment Parameter
Workplace Indoor
Work Temperature -20ºC ~ +50ºC
Relative Humidity ≤95%
Altitude ≤2500 meters
Atmospheric Pressure 86 ~ 106kPa
Packing & Delivery

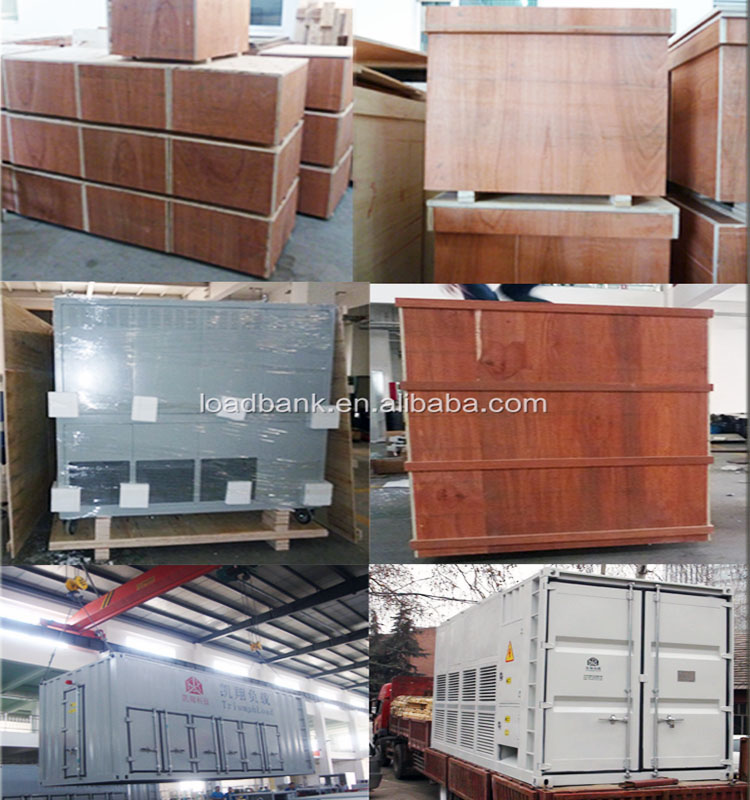

Packaging processes

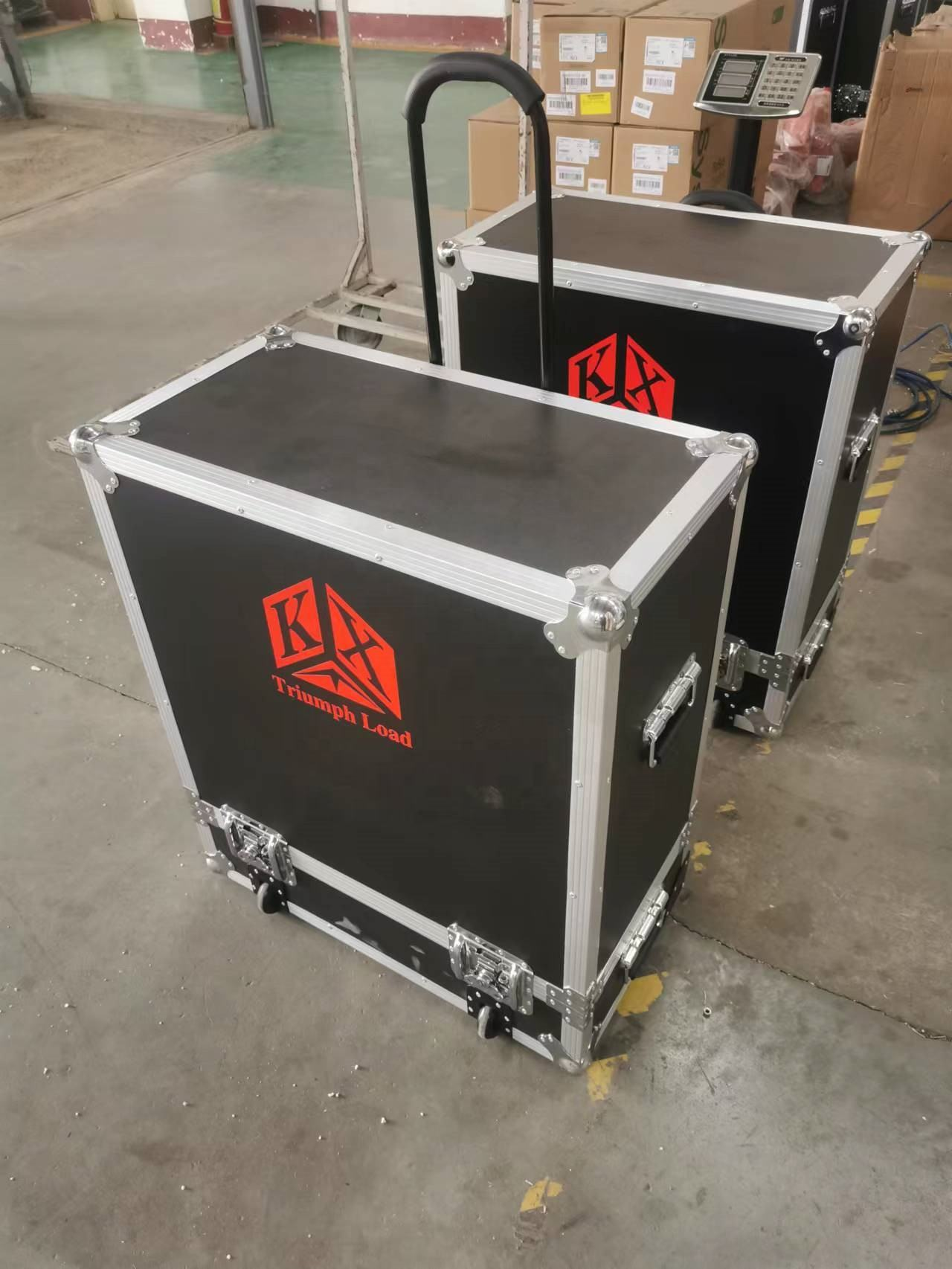

Delivering load bank units
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Load bank generator testing ACT220/440V 100 kW manufacturer
Products Description

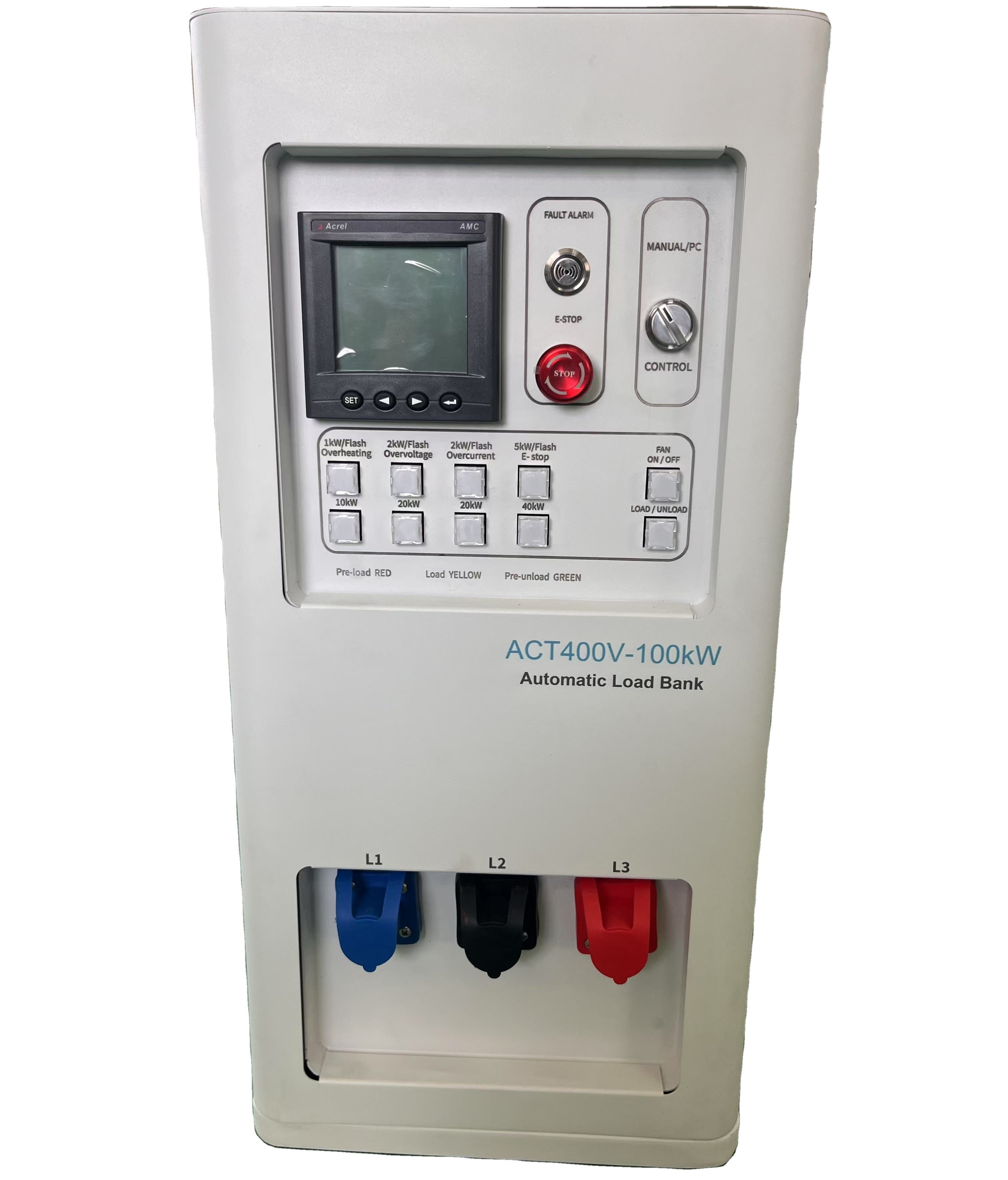

Detailed product view of the load bank

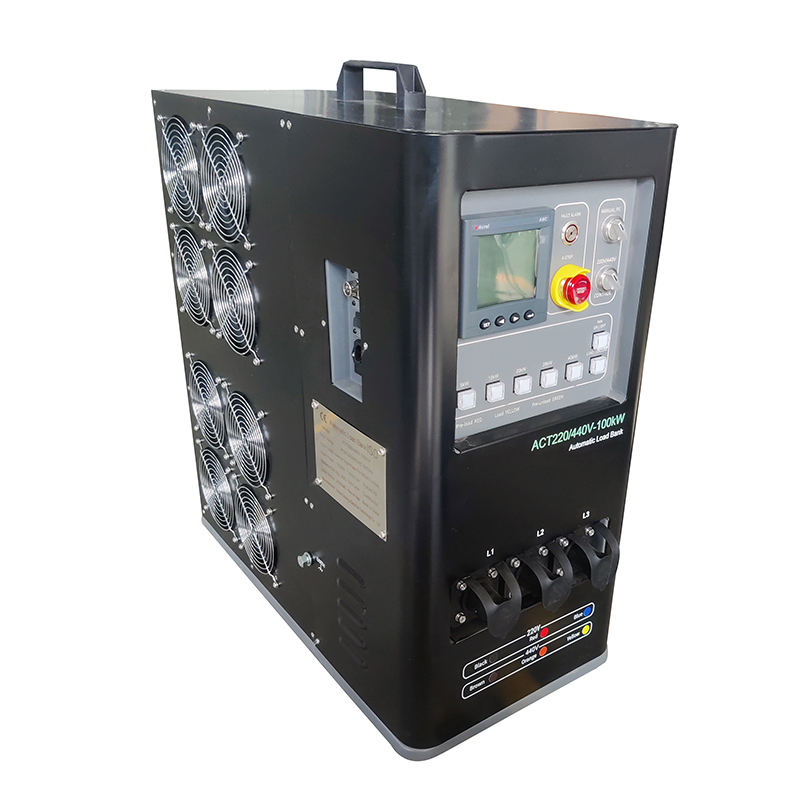

Load bank testing scheme
Benefits of Load Bank Testing
  • Verifies the gensets capabilities opposed to just routinely starting it up.
  • Problems discovered early can be significantly less expensive and prevents future major issues.
  • Helps to avoid wet-stacking and cleans out carbon deposits.
  • Verifies the engine cooling systems will perform while under load.
  • Provides assurance that the genset should work properly when you need it most.
  • Tests that a gen set is capable of operating at peak specified kW output for a specified amount of time.
  • Eases the effects of light loading by burning off the residue that leads to wet stacking.
Main features
1
Control mode: (1) local manual control panel (2) remote manual control box (3) remote console (include manual panel and PC control) (4) laptop control.
2
Protection function: overvoltage, overcurrent, overheat, over low blowing rate, blower overheat, blower phase sequence reverse protection, smoke alarm etc.
3
Cooling: industrial heavy duty blower, horizon air intake, upwards outlet, low noise.
4
Power consumption components: made by special alloy resistance, high temperature resisting, high heat dissipation capability, high heat stability, no naked light, safety and reliability. Running temperature is 1/3 of rating.
5
Weather-proof structure: containerized structure provides ultra protection, protection grade higher than IP55.
6
Material and coating: the body adopt cold-rolled steel plate that processed by galvanizing corrosion protection, powder coated and spray paint.
7
Integrated & modularization design: easy to installation, maintenance and transportation.
Company Profile

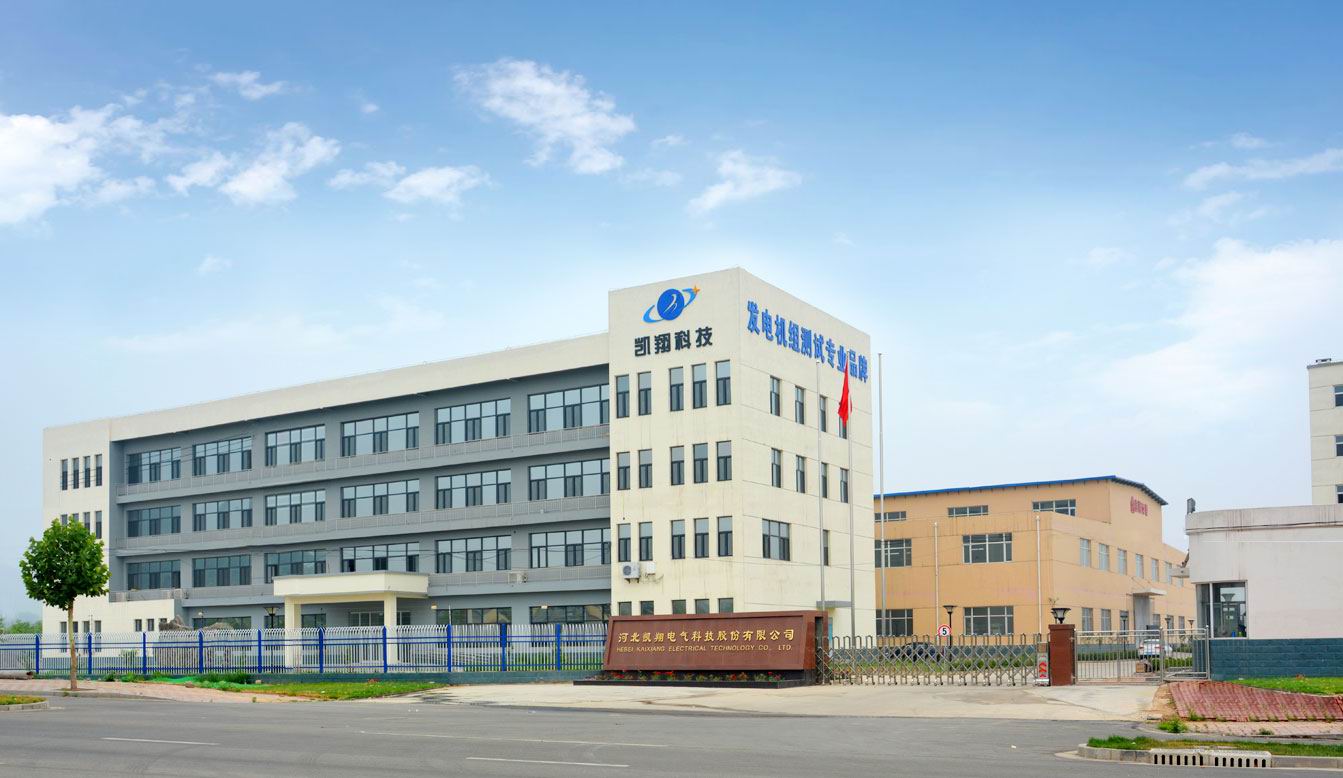

Company facility office building
Company laboratory research center

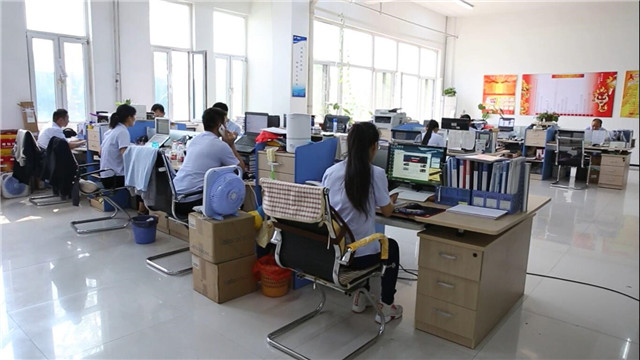

Company meeting room
Workshop

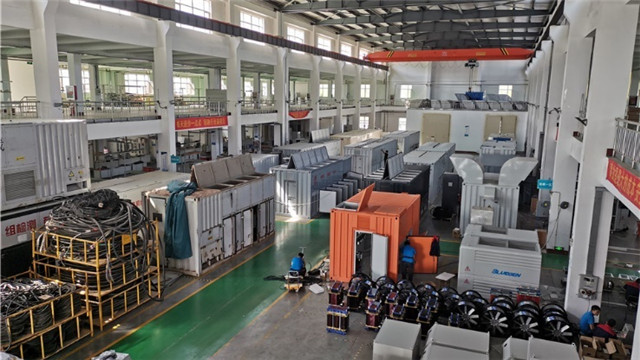

Manufacturing line

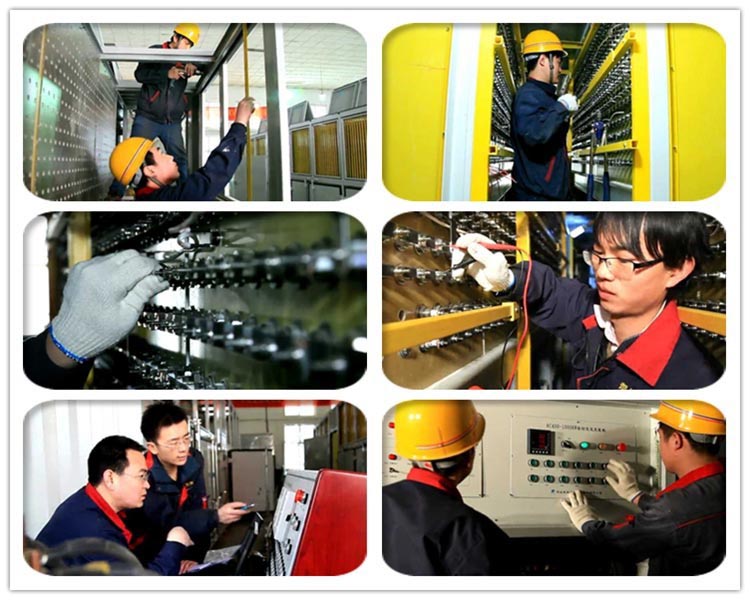

Production facility

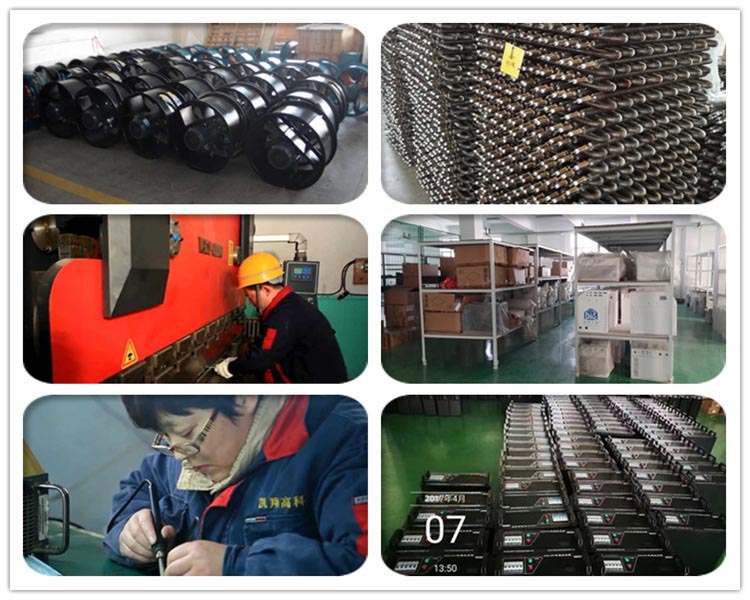

Finished products floor
Package and Transportation

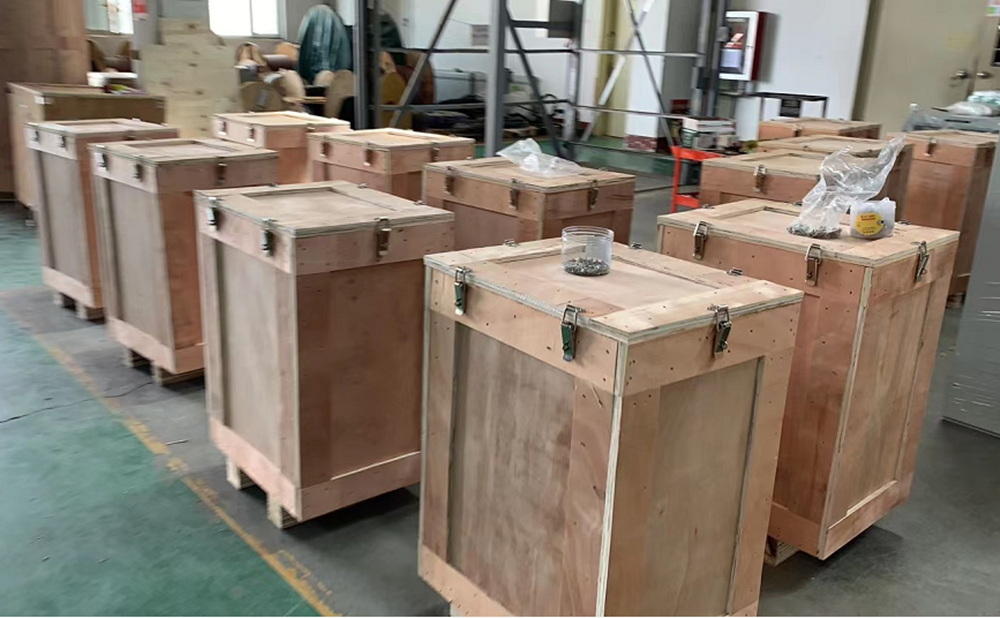

Secure packaging

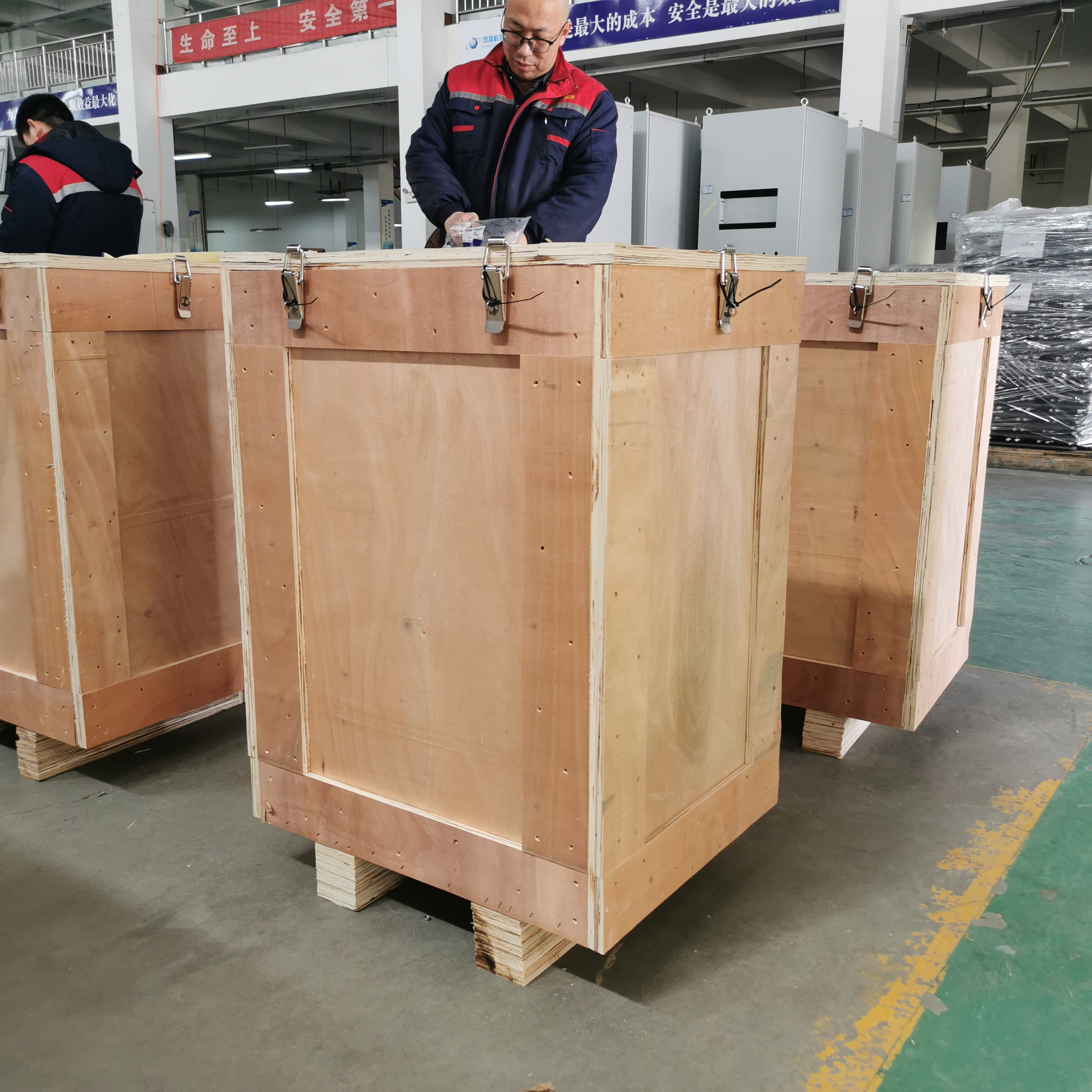

Load bank units ready for shipment
Transportation packing details
Secure load bank boxing

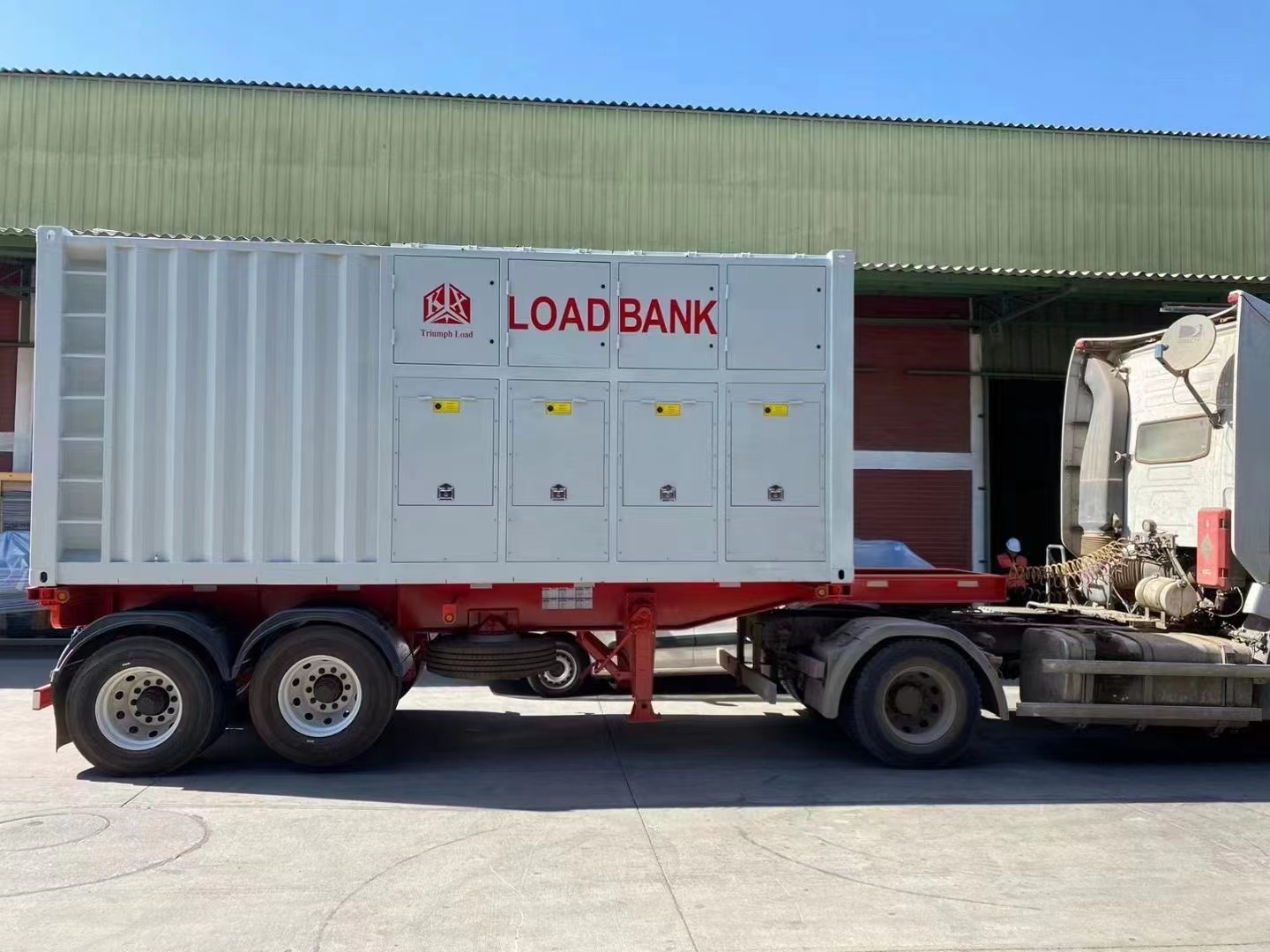

Packed generator test systems

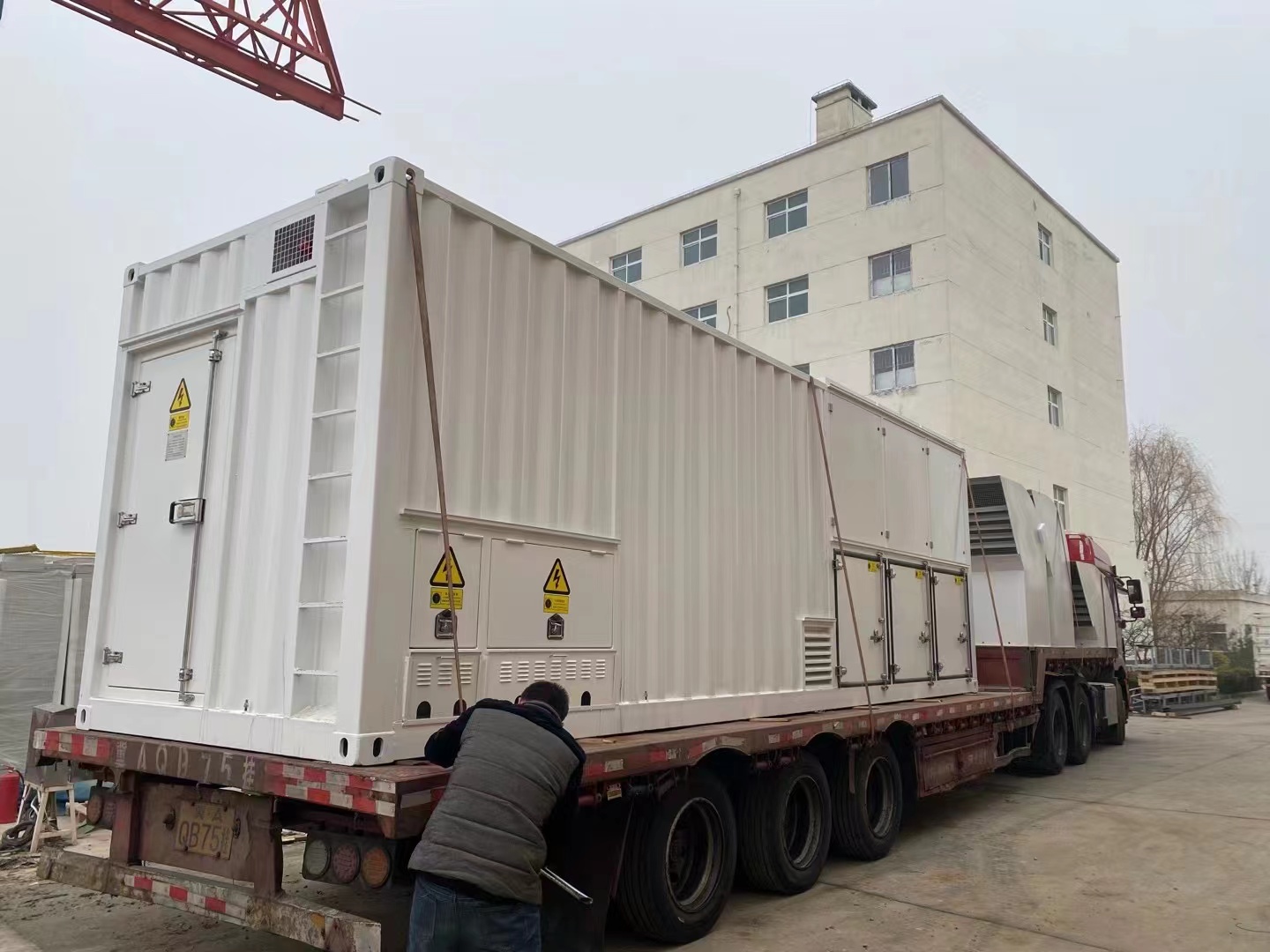

Loading shipment units
Exhibition
International industry exhibitions booth
Certifications
Industry standard certification certificate 1
Industry standard certification certificate 2
Industry standard certification certificate 3
Industry standard certification certificate 4
Why choosing us
  • Professional manufacturer of AC/DC Load Bank, dedicated to this industry for more than 20 years.
  • Lot of patent technology and scientific research awards gainer in China.
  • Advanced detection method and strict inspection procedure build the qualified quality.
  • Customized production meet the individual requirement.
  • Prompt delivery & excellent after sales service.
  • Cooperate with many well-known enterprise, offer OEM and ODM service to world famous brands.
  • Certified with China Classification Society (CCS) and ISO9001:2015 Quality Certificate.
  • Triumph Load is the famous brand in the emergency power supply test & maintenance industry.
Frequently Asked Questions
What are the primary benefits of performing load bank testing on generators?
Load bank testing verifies the actual power capabilities of a generator set rather than just starting it up. It identifies potential problems early to prevent expensive repairs, helps avoid wet-stacking by burning off unburnt fuel residue, cleans out carbon deposits, and checks that the cooling system performs reliably under full load.
What control modes are supported by this portable generator testing load bank?
This testing equipment supports four control modes: local manual control panel, remote manual control box, remote console (which integrates a manual panel and PC control), and laptop control.
What safety and protection features are built into the load bank?
The load bank features comprehensive safety functions including protection against overvoltage, overcurrent, and overheat. It also includes protection for low blowing rates, blower overheating, blower phase sequence reversal, and integrated smoke alarms.
What are the physical dimensions and weight of this 100kW load bank?
This portable load bank has dimensions of 540 mm in length, 292 mm in width, and 582 mm in height (L x W x H) and weighs approximately 35kg. It is equipped with top handles and bottom footpads for easy transportation.
What environmental conditions are suitable for operating this load bank?
It is designed for indoor use within a temperature range of -20ºC to +50ºC, relative humidity ≤95%, altitudes up to 2500 meters, and atmospheric pressures between 86 and 106kPa.
Is the load bank certified for marine or specialized industrial applications?
Yes, our products are certified by the China Classification Society (CCS) and conform strictly to the ISO9001:2015 Quality Certificate standards.
