Commercial Fully Automatic Car Wash Equipment - Powerful Air Drying, Even Foam Spraying

Product Overview

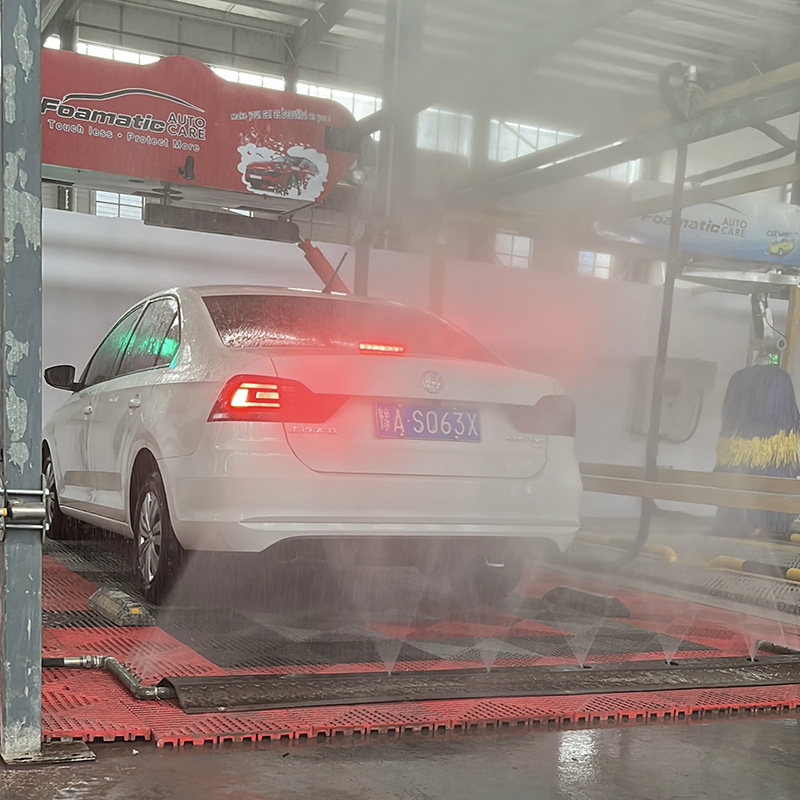

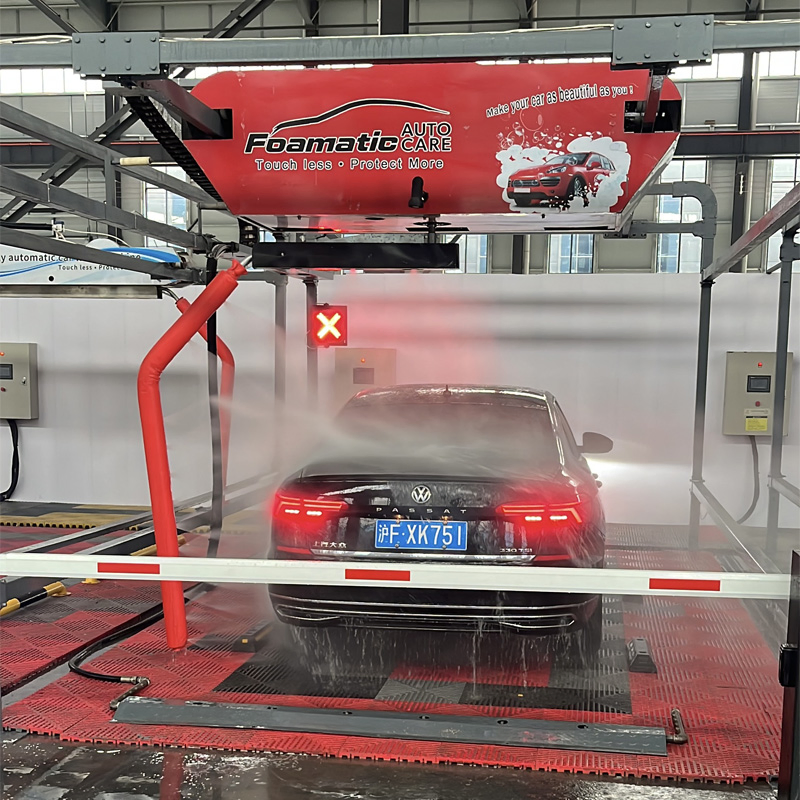

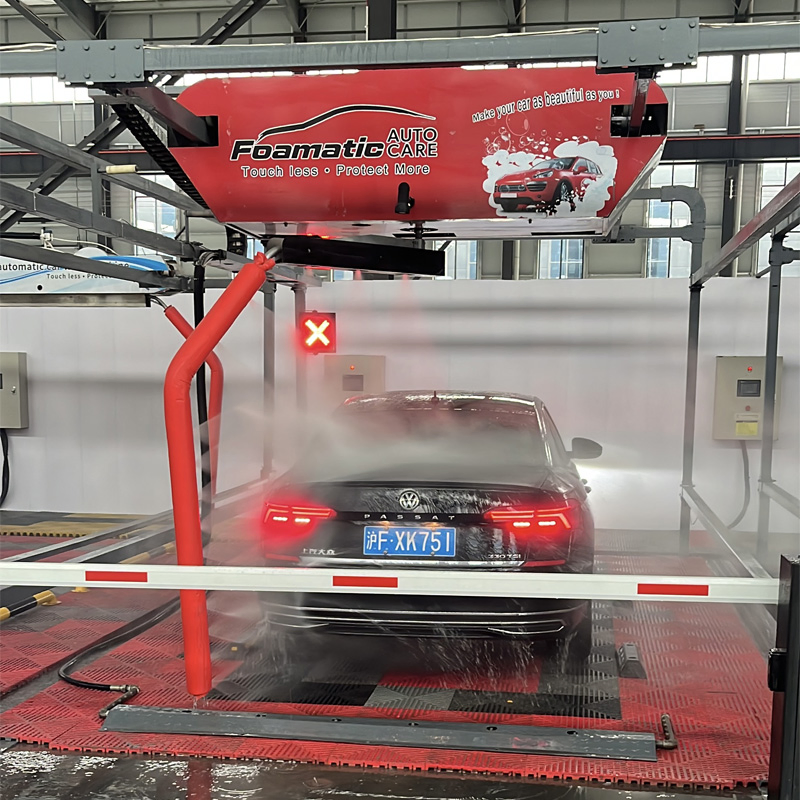

The Fashion style fully automatic contactless computer car washing machine is a best-selling model that integrates many functions, has complete functions and ultra-high cost-effectiveness to meet the ultimate experience of car owners, and is highly welcomed by the market. This model is equipped with an embedded fast air drying system, which can quickly and efficiently air dry the moisture on the body surface. 360° surround automatic high-pressure washing, chassis cleaning, high-pressure foam, automatic wax spraying, automatic air drying, no blind area, cleaner, better car washing effect. Compared with traditional car washing, this machine has fast washing speed, high efficiency, and saves time, effort, and labor! This product is suitable for cleaning various types of vehicles such as small cars, commercial vehicles, off-road vehicles, vans, etc.

Applications

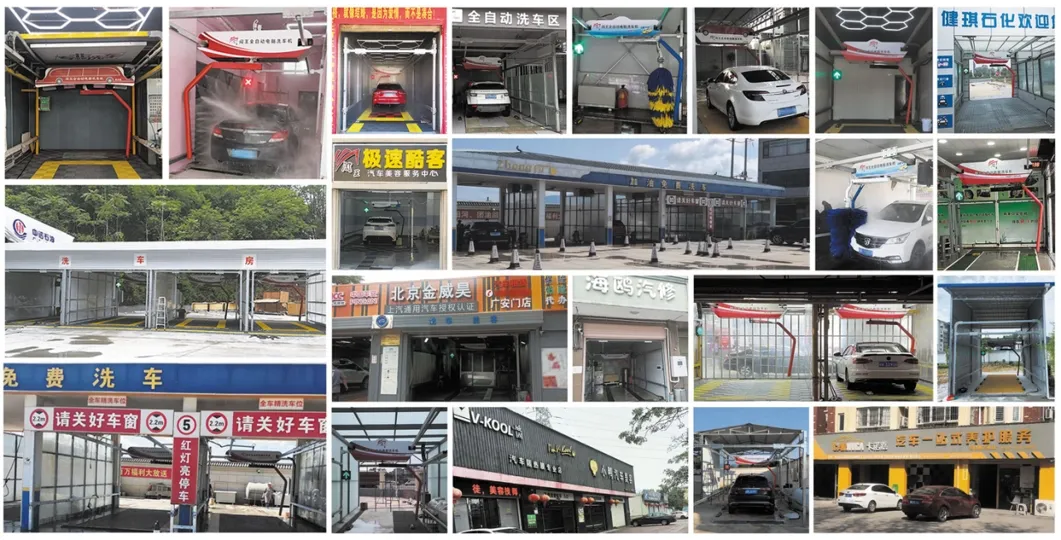

Commercial Car Washing: Suitable for car wash shops, gas stations, large parking lots, and auto repair shops.
Community Car Washing: Ideal for installation in community parking lots with moderate car washing demands.
24-Hour Self-Service Car Washing: Enables 24/7 unattended fee-based operation.

Commercial Fully Automatic Car Wash Equipment - Powerful Air Drying, Even Foam Spraying

Specifications

Model	CW-FS	Pressure	80~100Bar
Materials	StainlessSteel	Pump power	15kw
Water consumption	80~120L	Blower power	4kw x3
Electricity consumption	0.375kw/Vehicles	Voltage	3 phases 380V
Washing carspace	5300x1900x2000mm	Main controler	Chint
Car body induction	Ultrasonic	Induction mode	Ultrasonic/photoelectric
Foamsystem	One	Foam power	370w
Operate method	Touch screen panel	Operation mode	Manual/Automatic
Washing method	Reciprocating cleaning	Washing process	Chassis+Foam+Washing+Built-infan
Washing time	4-6 minutes	Protect system	Overpressure/Overcurrent
Breakdown self check	Automatic alarm	Water supply pipe	≥DN20
Water storage	≥1Ton (prepare in local)	Air pump	≥700w (prepare in local)
Device weight	About 1 Ton	Dimensions	700035003300mm

Product Features

1. Contactless Washing Technology

Utilizes high-pressure water jets to clean the vehicle without direct contact, preventing paint scratches.

2. Intelligent Sensing System

Equipped with an automatic sensing switch that initiates the washing program as soon as the vehicle enters the washing area.

3. 360° Surround Washing

Features a 360° intelligent washing technology that ensures comprehensive cleaning of the vehicle's surface without blind spots.

4. Multi-Liquid Use and Automatic Proportioning

Automatically sprays multiple types of cleaning liquids, evenly covering the vehicle's surface to quickly remove dirt.

5. Active Cleaning Ions

Uses active cleaning ions to more effectively remove dirt and grease from the vehicle's surface, leaving the paint smoother and shinier.

6. Drying Function

An integrated drying system with adjustable drying speed settings to evenly dry water droplets and stains on the vehicle's surface.

7. Automatic Wax Spraying

After washing, the machine can optionally spray water-based wax to protect the vehicle's paint.

8. Payment Function

Can be equipped with card-swiping or QR code payment options to enable 24/7 unattended fee-based operation.

9. Automatic Door Function

The all-in-one wash and care model can be optionally equipped with an automatic door system that opens after payment and closes automatically after washing, enhancing the safety of the equipment.

Our Advantages & Functions

Why Choose Us

High Efficiency: Completes the entire process of washing, drying, and waxing in just 3-4 minutes.
Labor Savings: High degree of automation eliminates the need for manual operation.
Environmental Protection: Equipped with a wastewater recycling system to reduce operating costs.
Easy Operation: Simple and intuitive interface with one-button start.
Safety & Reliability: High-pressure contactless washing avoids paint scratches.
Enhanced Image: High-end equipment configuration upgrades the overall image of your shop.

Key Functions

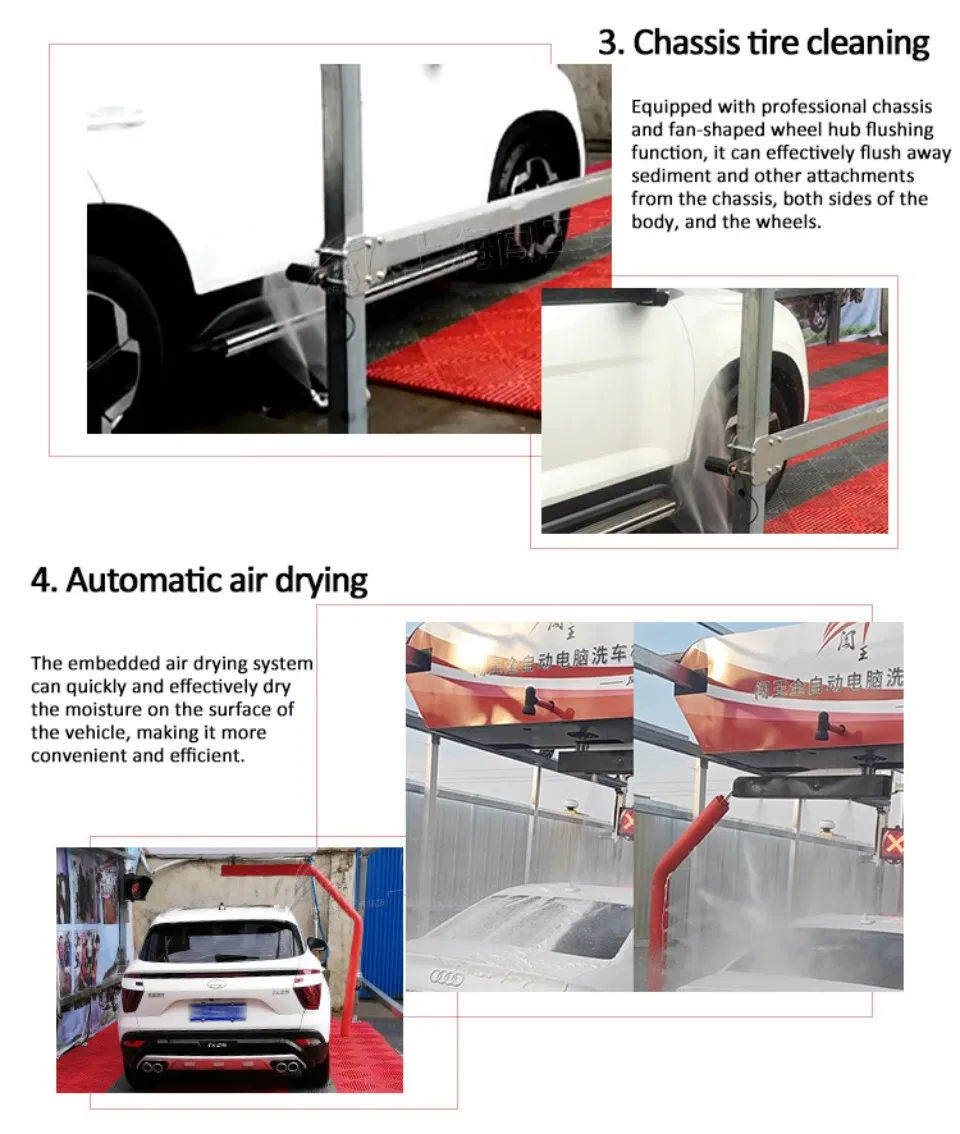

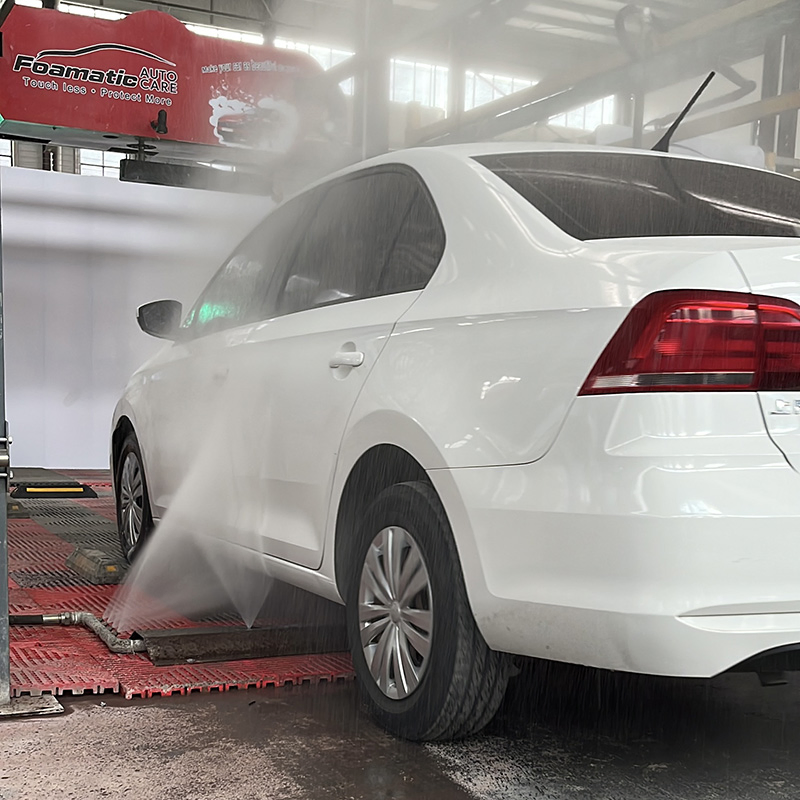

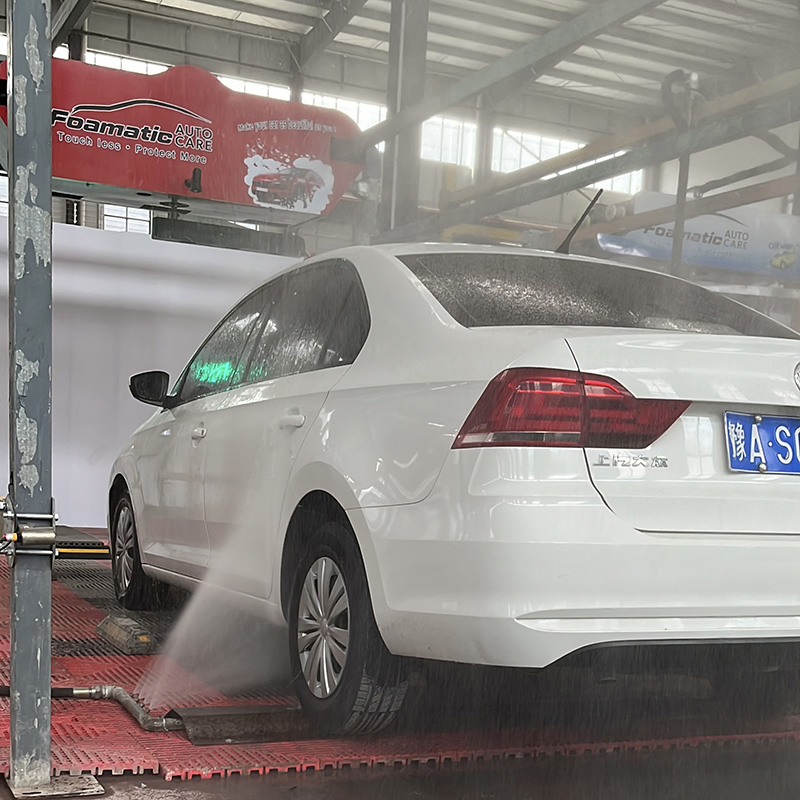

Chassis Washing: Automatically cleans the underside of the vehicle.
Wheel Hub Cleaning: Features a dedicated wheel hub cleaning function.
Body Washing: Comprehensive 360° intelligent washing with no blind spots.
Drying: Integrated drying system quickly dries the vehicle's surface.
Wax Spraying: Automatically sprays water-based wax to protect paint.

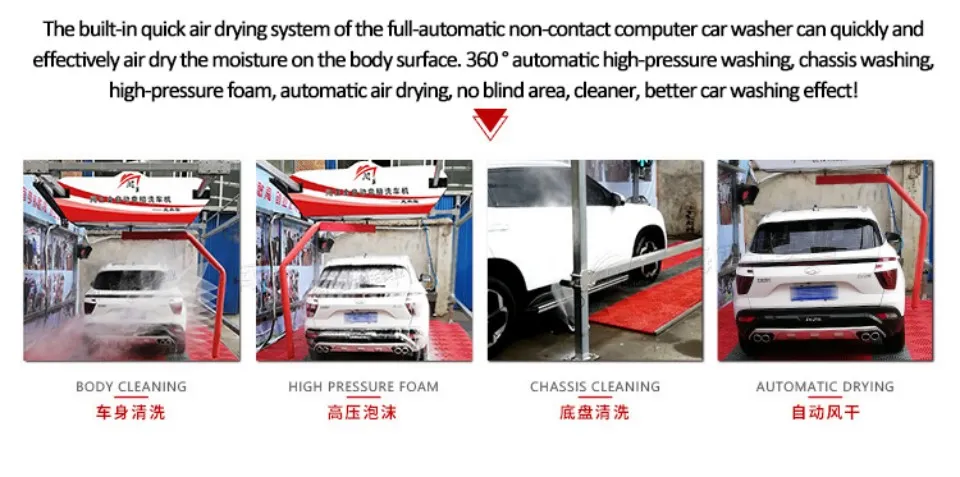

Car Washing Process Flow

Chassis Washing

➜

Car Wash Fluid

➜

High Pressure Washing

➜

Water Wax

➜

Air Drying

➜

Completed

Product Details Showcase

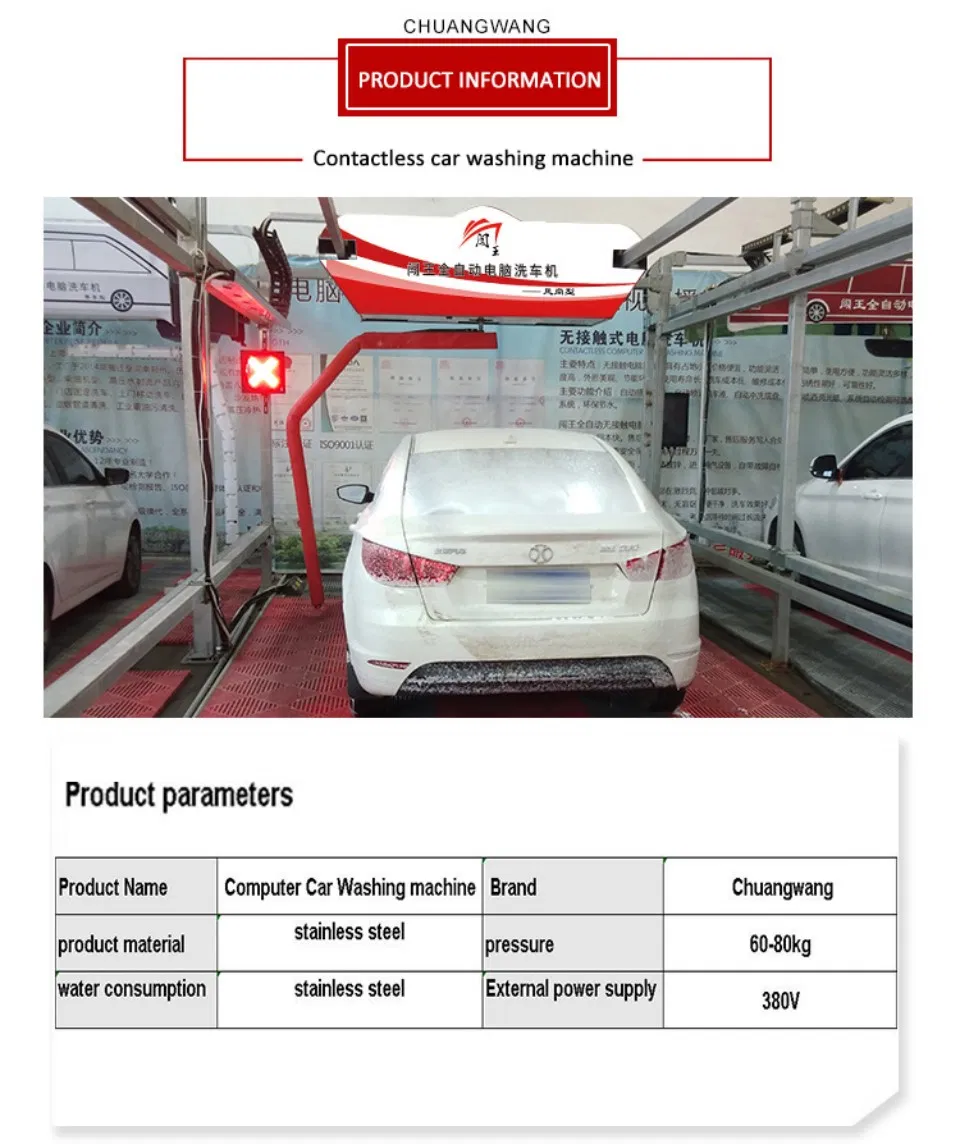

Car wash machine side view and functions

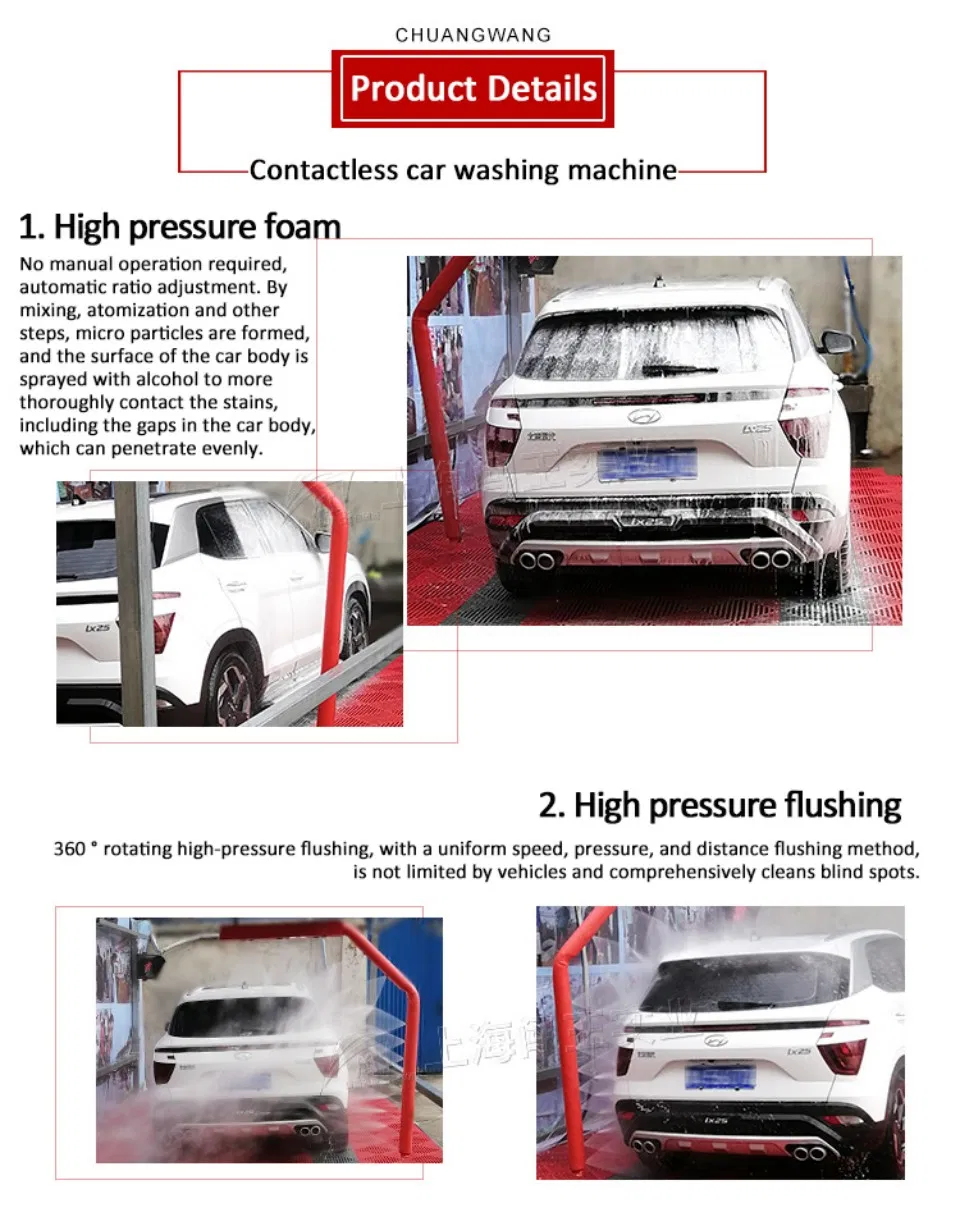

Car wash detailed operations and nozzles

Choosing a Reliable Device

The CW-FS Intelligent Computer Automatic Car Washing Machine is a great project for your entrepreneurship. It can be installed both indoors and outdoors, and is a must-have for gas stations, storefronts, large parking lots, car washes, and auto repair shops. This product does not come into contact with the paint surface during the car washing process and will not cause damage to the car paint. Professional car beauty shops usually choose to use this contactless car washing machine.

Operation Demonstration Video

Packing, Delivery & Support

Packing & Delivery

Packing Details:

Main Equipment: Export-grade fumigation-free plywood crates with thickened moisture-proof film. Robotic arms and motors are secured with foam and cushioning.
Accessories: Fragile control boxes and pipelines are packed separately.
Packing Dimensions: Approx. 300cm(L) × 100cm(W) × 116cm(H).
Gross Weight: Approx. 800 kg/unit.

Delivery Time:

In-stock: Shipped within 7-15 working days.
Custom/OEM Orders: 20-30 working days.

After Sales Service

Warranty Coverage:

Main Machine & Core Components (PLC, motors, pumps): 12 months warranty against manufacturing defects.

Technical Support:

24/7 online support (Email/WhatsApp/Video call).
Free English guides, manuals, and installation videos.
Remote diagnostic capabilities.

Installation & Training:

Free online training. On-site technical service available upon request.

Frequently Asked Questions

Q

What cleaning technology is used in this machine?

A: The machine utilizes a 360° high-pressure water jet system with controlled rotation, pressure, and distance. The contactless design ensures thorough cleaning without causing paint scratches.

Q

What are the site requirements for installation?

A: The equipment can be installed both indoors and outdoors. It requires a 20cm concrete foundation, a 3-phase 380V power supply, and standard water input and drainage connections.

Q

Is staff required to operate the machine daily?

A: No. The machine is fully automatic with a manual override system. It supports 24/7 unmanned operations using RFID card-swiping, QR codes, or mobile payment systems.

Q

How effective is the drying performance?

A: The built-in dual-blower air drying system produces airflow speeds of up to 120 km/h, achieving an 85-90% drying rate on the vehicle surface. An optional spot-free rinse helps prevent water marks.

Q

What security and safety features are integrated?

A: The machine comes with obstacle detection, emergency stop triggers, water pressure sensors, CE-certified electronic components, and full lockout/tagout capabilities for maintenance safety.

Q

What is the estimated lifespan of the equipment?

A: Built using hot-dip galvanized steel with robust stainless panels and featuring an IP55 protection rating, the equipment has a designed commercial service life of over 10 years.
