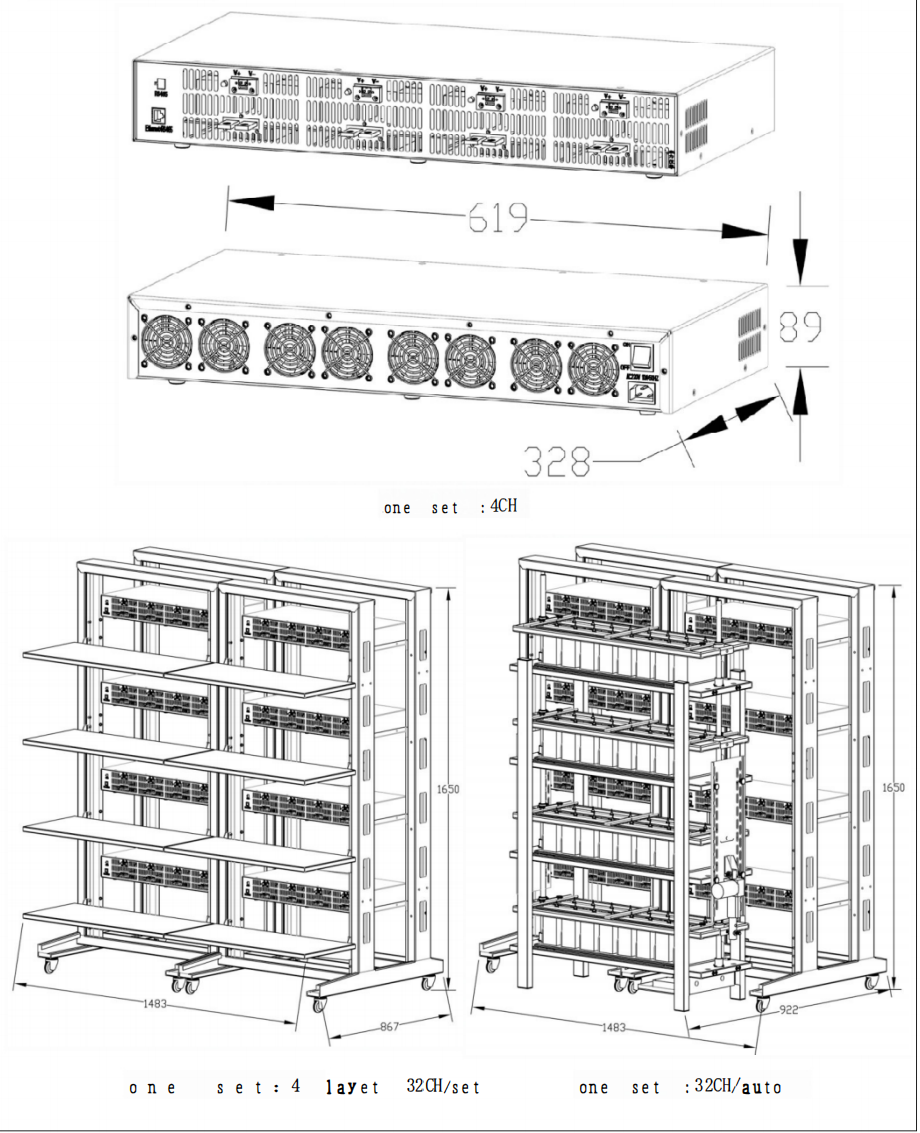

5V100A 4CH / OPTION 32CH Product Features

• Modular design, single point control technology, convenient expansion, high production and maintenance efficiency.
• Channel isolation and parallel technology are convenient for free combination.
• Apply to various occasions.
• Test various charging and discharging protection functions to reduce the incidence of battery production accidents.
• The discharge energy channel supplies other charging energy channels or feeds back to the power grid, and the equipment generates less heat, which greatly reduces the energy consumption cost.
• Four-wire interface, realizing wide range voltage and current regulation, suitable for testing various batteries.
• Equipment accuracy is better than 0.1%, data recording time is 1 second/time, software is powerful, human-machine interface is friendly.
• Charge and discharge power factor is 0.98, charge and discharge efficiency 80% (Max 82%).
• 5 series battery tester system is mainly designed for power cells and can meet various performance test requirements of power cells. The equipment has the characteristics of high efficiency, high precision and high performance, and can perform charge and discharge tests and capacity classification for various specifications of batteries such as 1-4.5V (voltage), 0.3-500Ah, etc.

Product Application & Capacity Test

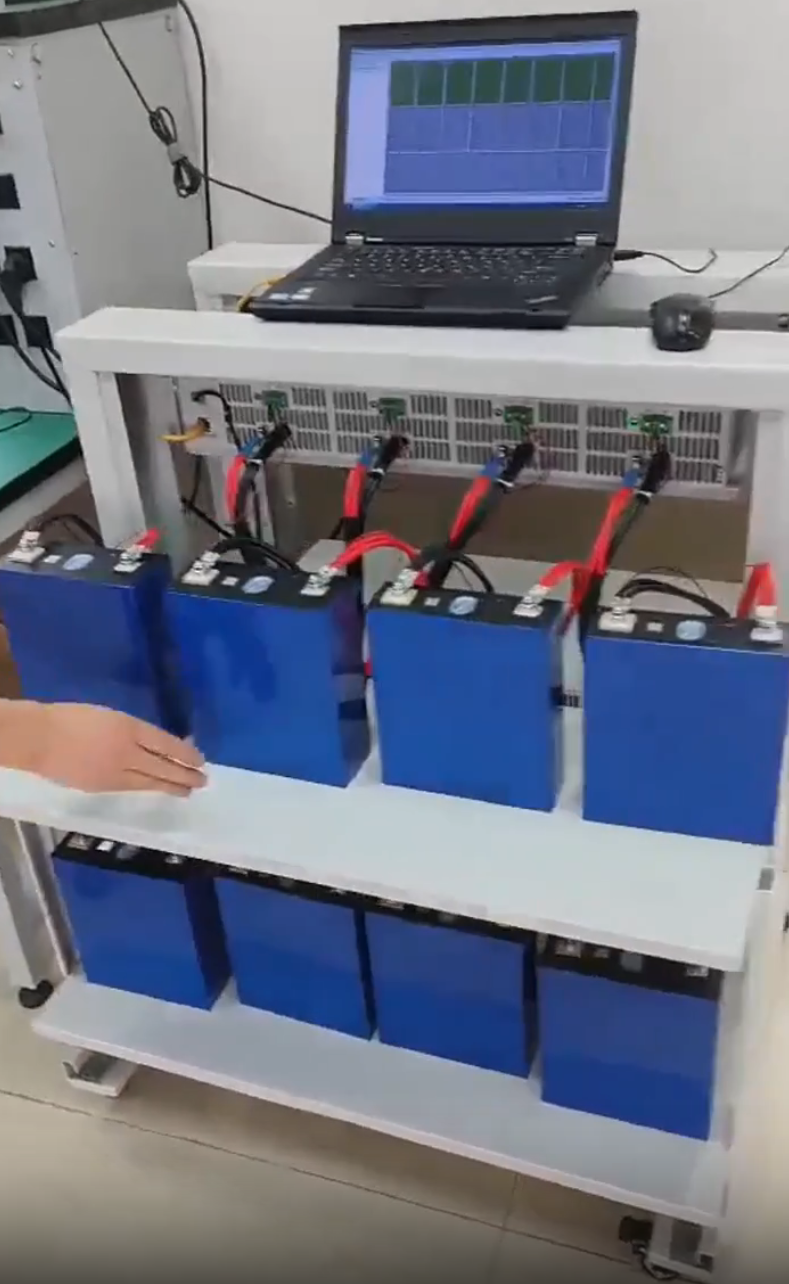

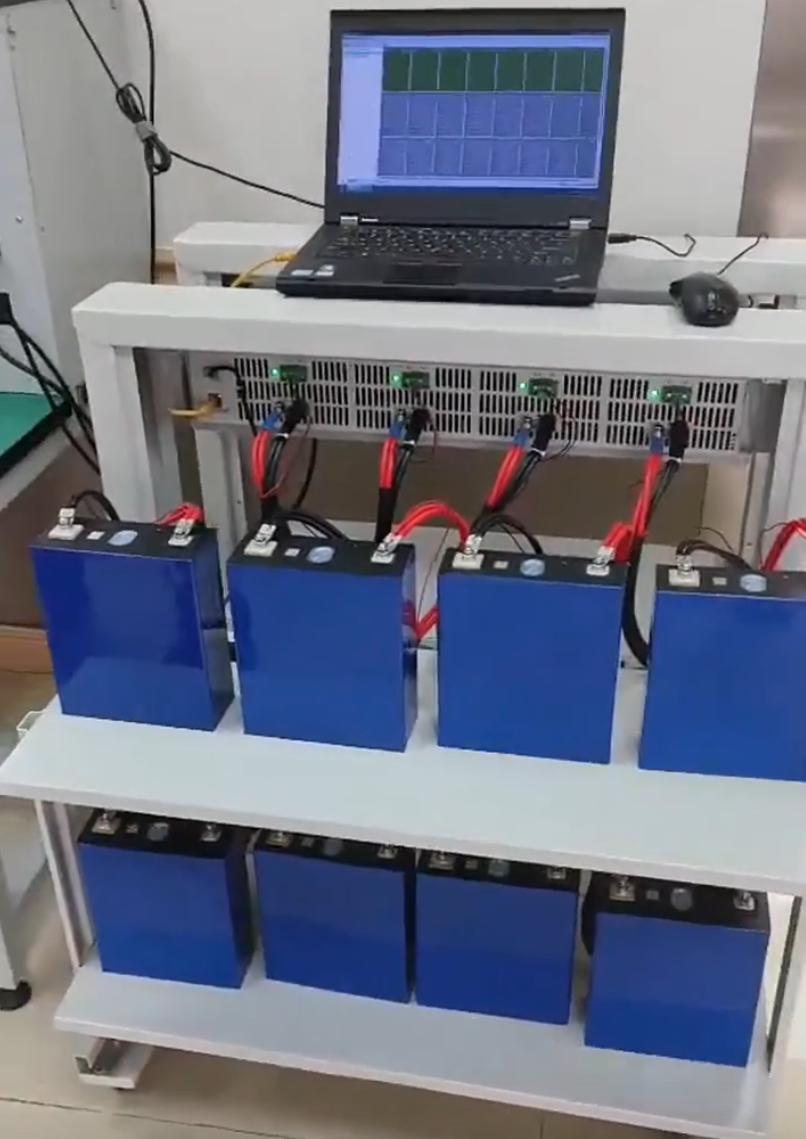

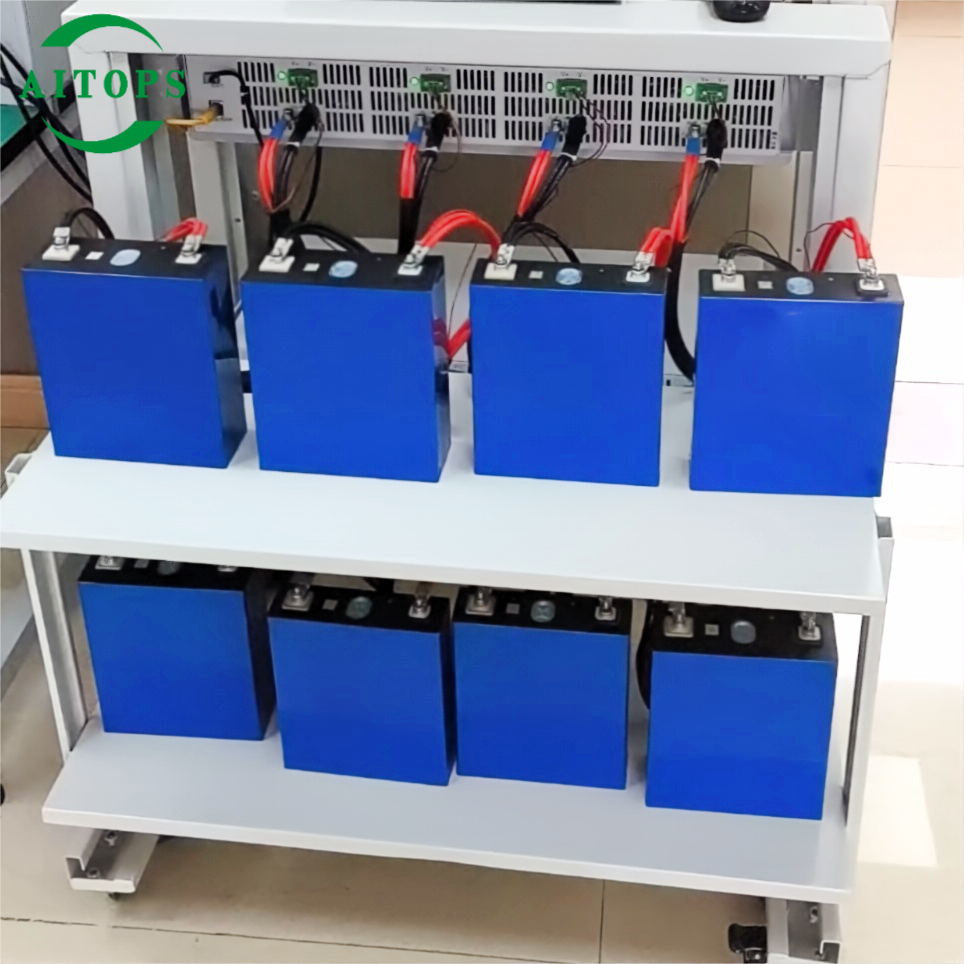

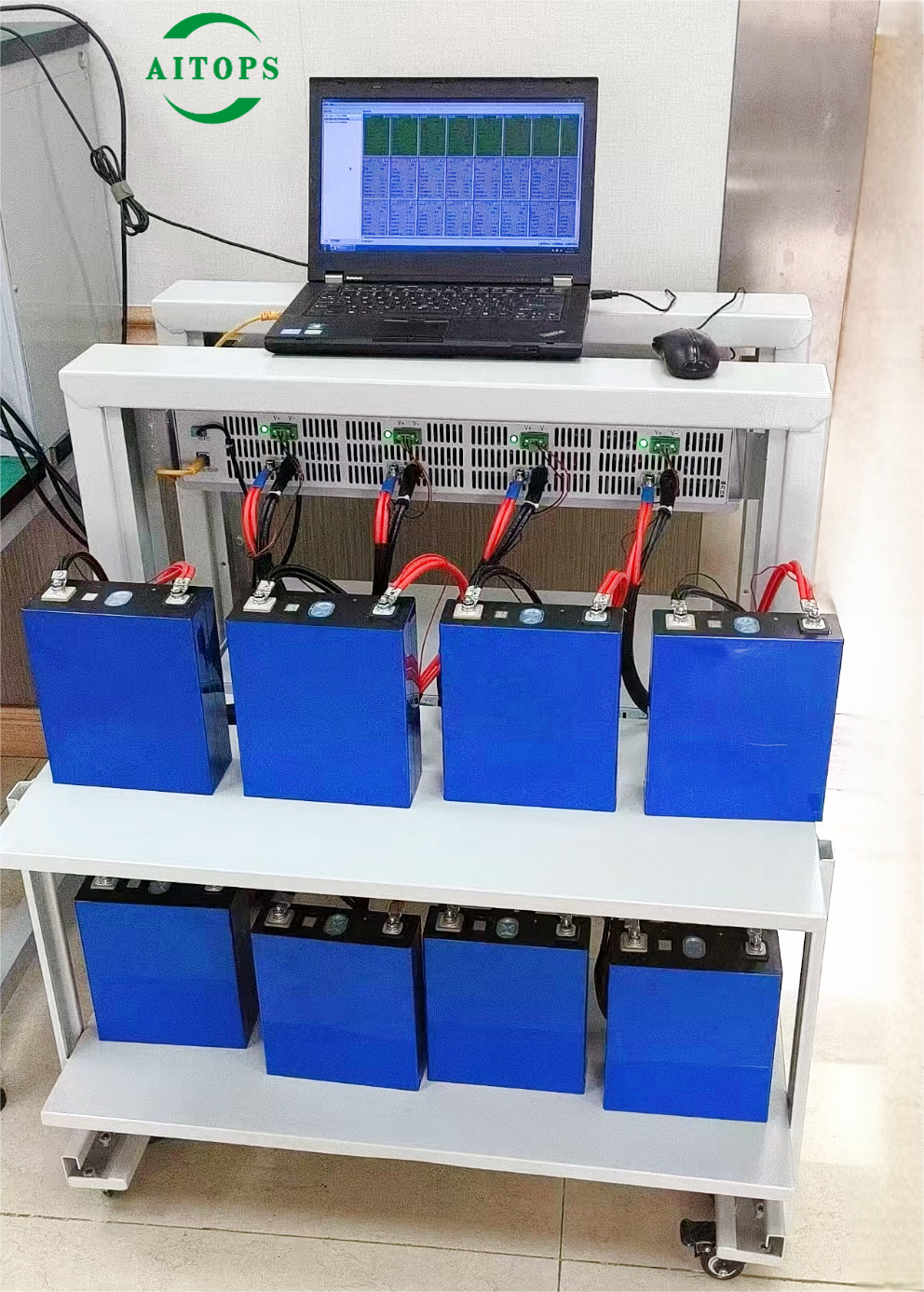

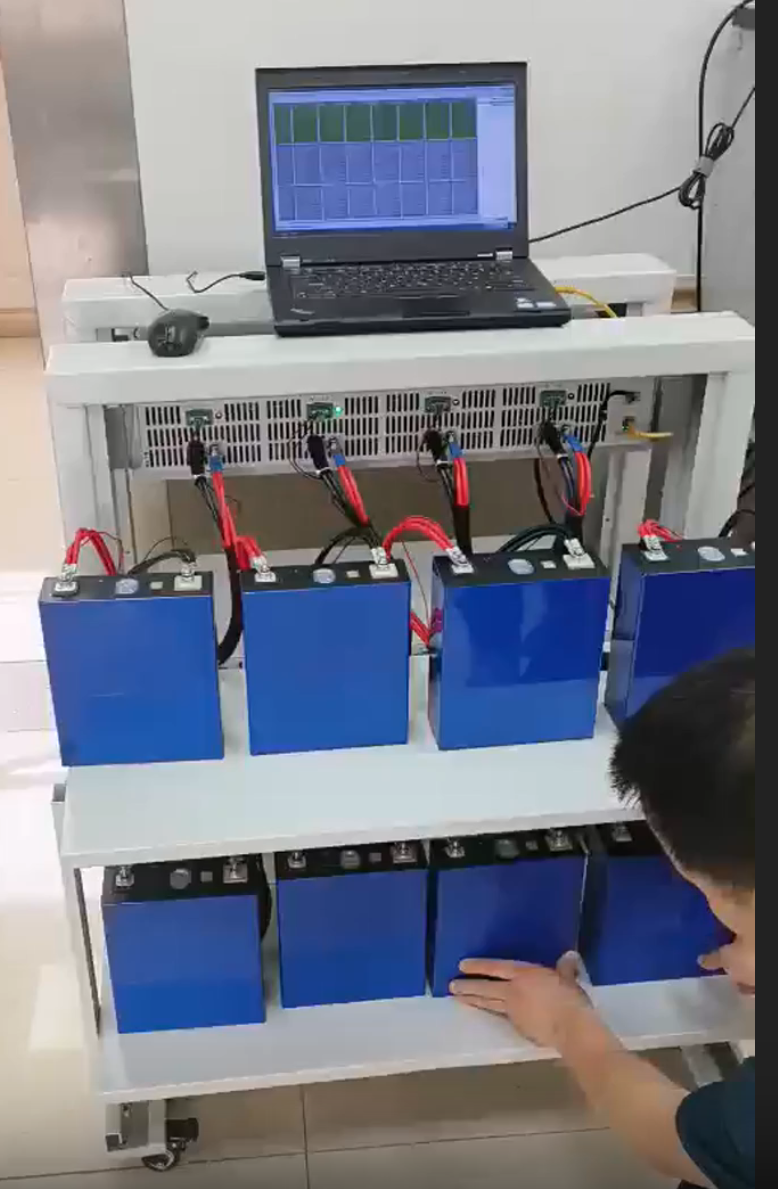

5V100A battery capacity test equipment, (dedicated to single cell battery) suitable for high current square battery, polymer large soft pack battery and other lithium ion battery applications, a total of 8 channels. According to different battery types, we configure the appropriate battery fixture to help quickly load and unload the battery.

• In the network mode, it is automatically online without manual connection.
• Use Mysql database to save the data to ensure that the data will not be lost, and provide the measurement data back-check function.
• A small number of instruments can communicate with PC software through the serial port.
• Many instruments can use network software to communicate with PC, which reduces the computer interface. Only one interface is needed to control all the instruments, ensuring the real-time and integrity of the communication data.
• The instrument provides P + and P- interfaces, as well as CH + and CH- interfaces, which can be used to measure special finished batteries and charge and discharge on the instrument.
