| Model | BK-EA201 | BK-EA301 | BK-EA401 | BK-EA501 |
|---|---|---|---|---|
| Measuring Range | HC: 0~10000×10-6(ppm)vol CO: 0~10×10-2(%)vol |
HC: 0~10000×10-6(ppm)vol CO: 0~10×10-2(%)vol NOx: 0~5000×10-6(ppm)vol |
HC: 0~10000×10-6(ppm)vol CO: 0~10×10-2(%)vol CO2: 0~20×10-2(%)vol O2: 0~25×10-2(%)vol |
HC: 0~10000×10-6(ppm)vol CO: 0~10×10-2(%)vol CO2: 0~20×10-2(%)vol O2: 0~25×10-2(%)vol NOx: 0~5000×10-6(ppm)vol |
| Indicating Error | HC: ±12×10-6(ppm)vol CO: ±0.06×10-2(%)vol |
HC: ±12×10-6(ppm)vol CO: ±0.06×10-2(%)vol NOx: ±25×10-6(ppm)vol |
HC: ±12×10-6(ppm)vol CO: ±0.06×10-2(%)vol CO2: ±0.5×10-2(%)vol O2: ±0.1×10-2(%)vol |
HC: ±12×10-6(ppm)vol CO: ±0.06×10-2(%)vol CO2: ±0.5×10-2(%)vol O2: ±0.1×10-2(%)vol NOx: ±25×10-6(ppm)vol |
| Stability | Moment drift ≤ ±3% | |||
| Repeatability | ≤ ±2% | |||
| Response Time | 95% response is not more than 10 seconds | |||
| Preheating Time | 8min (preheating 3min emergency detection) | |||
| Power Supply | AC 110/220V ±10%, 50/60Hz | |||
| Packing Size | 680 (L) × 385 (W) × 265 (H) mm | |||
| Gross Weight | 12kg | |||
We are the leading manufacturer in lab furniture and lab equipment. OEM & ODM services are offered. And we have our own overseas technician and installation team.
Accepted Delivery Terms: FOB, CIF, EXW
Accepted Payment Currency: USD, EUR, CNY
Accepted Payment Type: T/T, Cash, Alipay, L/C, Alibaba
Language Spoken: English, Chinese, German, Spanish
The models measure HC, CO, CO2, O2, and NOx. The specific measurement capabilities depend on the model choice (e.g., BK-EA201 measures HC and CO, while BK-EA501 measures all five gases).

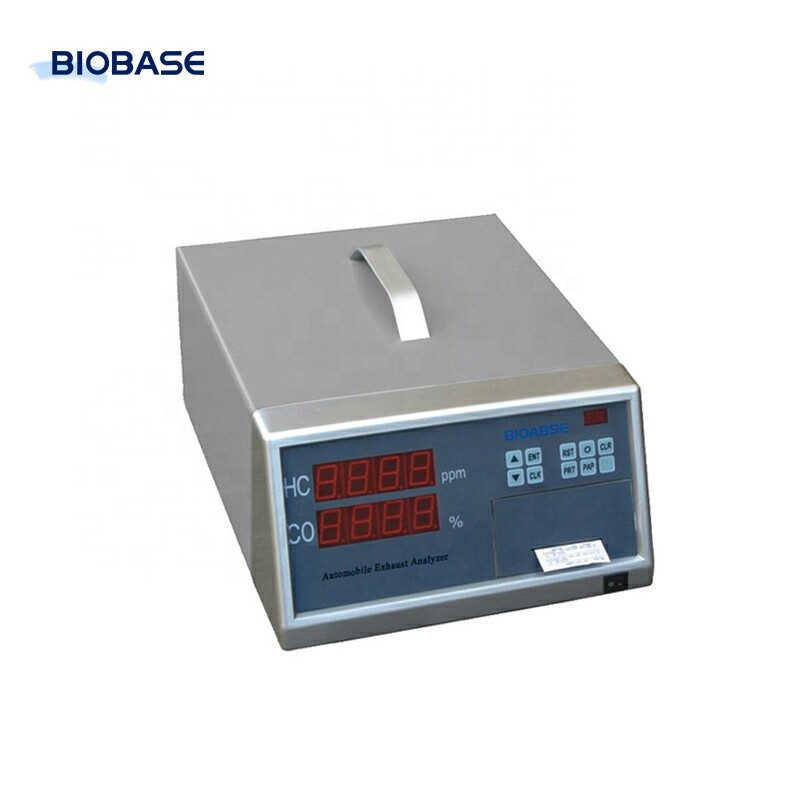

Yes, the gas analyzer comes equipped with a built-in printer for instant data documentation, along with a high-brightness digital display.
The standard preheating time is 8 minutes. For urgent needs, it supports a fast 3-minute emergency detection preheating cycle.
The device is highly responsive, with a 95% response rate achieved in no more than 10 seconds.
The unit is compatible with AC 110V/220V ±10%, operating at standard frequencies of 50Hz or 60Hz.
Yes, the system is designed with an automatic zero calibration, linear data processing, and a built-in alarm that triggers instantly when the gas path is blocked.
