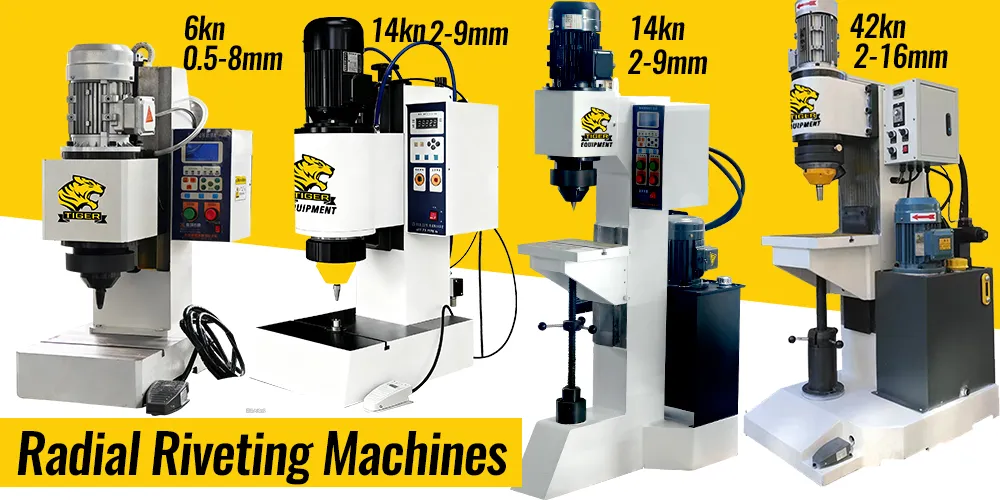

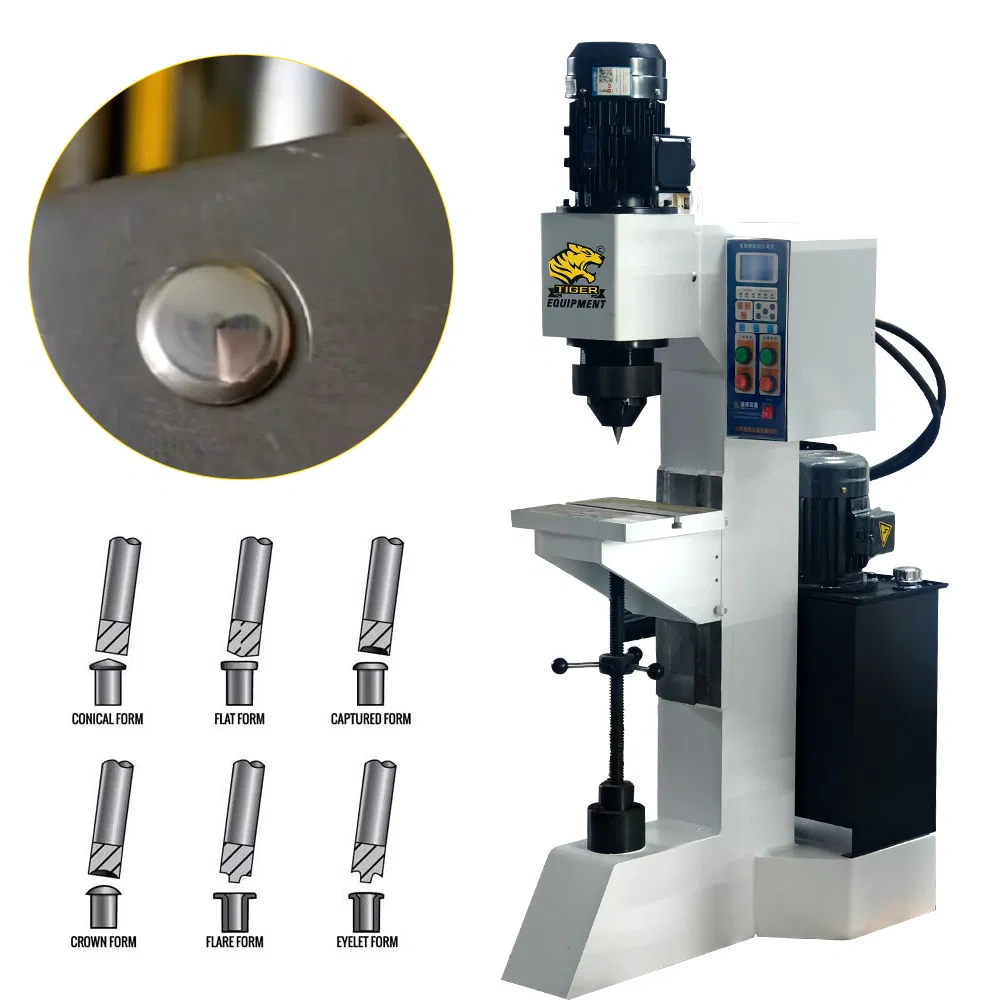

14kN 20kN 34kN Auto Hydraulic Fastener Riveting Machine Orbital Radial Riveting Machine

Advantages of Radial Riveting Machines

High Riveting Precision: Delivers uniform pressure distribution, ensuring consistent rivet forming suitable for precision components.
Low Noise & Vibration: Operates with less noise and mechanical vibration compared to impact riveting.
Versatility: Adapts to various rivet types (solid, semi-tubular, blind) and materials (metal, plastic).
Gentle Processing: Minimizes damage to delicate parts due to gradual force application.
High Efficiency: Enables fast cycle times, suitable for batch production in automated lines.

Uses of Radial Riveting Machines

Automotive Industry: Assembling parts like brake components, door hinges, and instrument panel fasteners.
Electronics & Appliances: Riveting connectors, terminal blocks, and small precision parts.
Aerospace & Precision Machinery: Joining aircraft fittings, sensor housings, and high-precision parts.
Hardware & Tools: Manufacturing hand tools, locks, and hardware accessories.
Medical Equipment: Assembling surgical instruments and diagnostic equipment requiring precise joints.

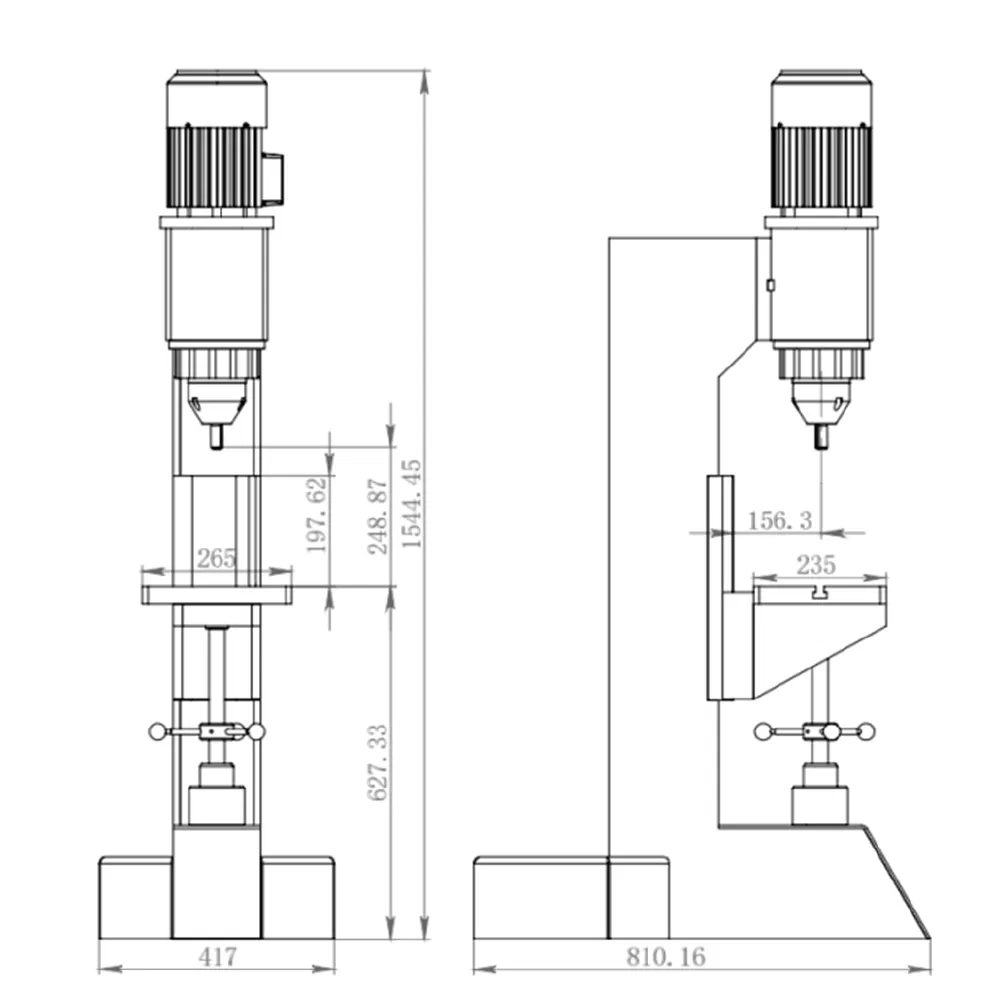

Hydraulic Fastener Riveting Machine Structure

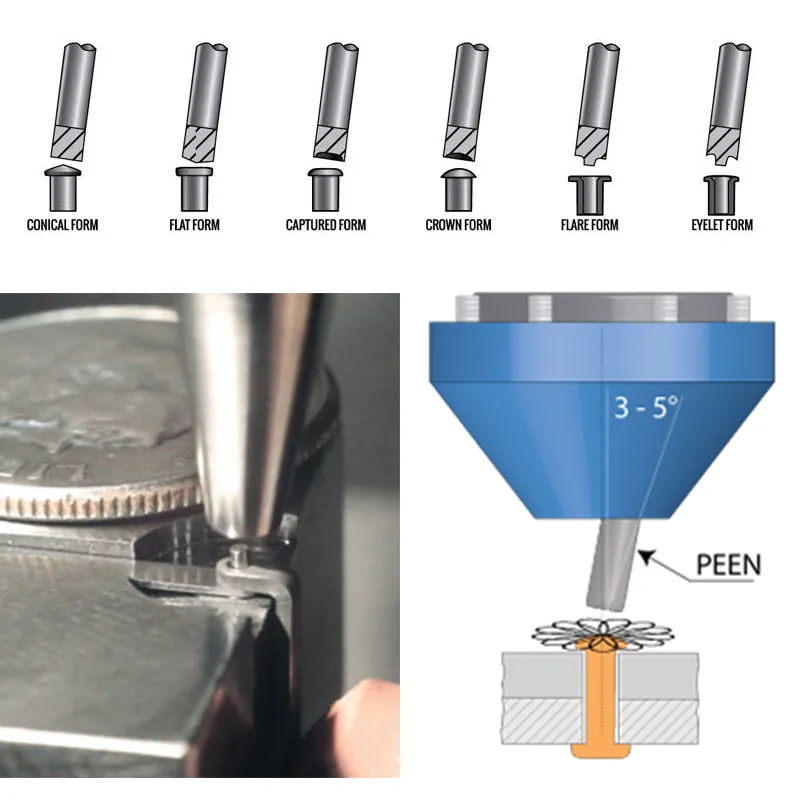

Different rivet shanks can be customized according to requirements.

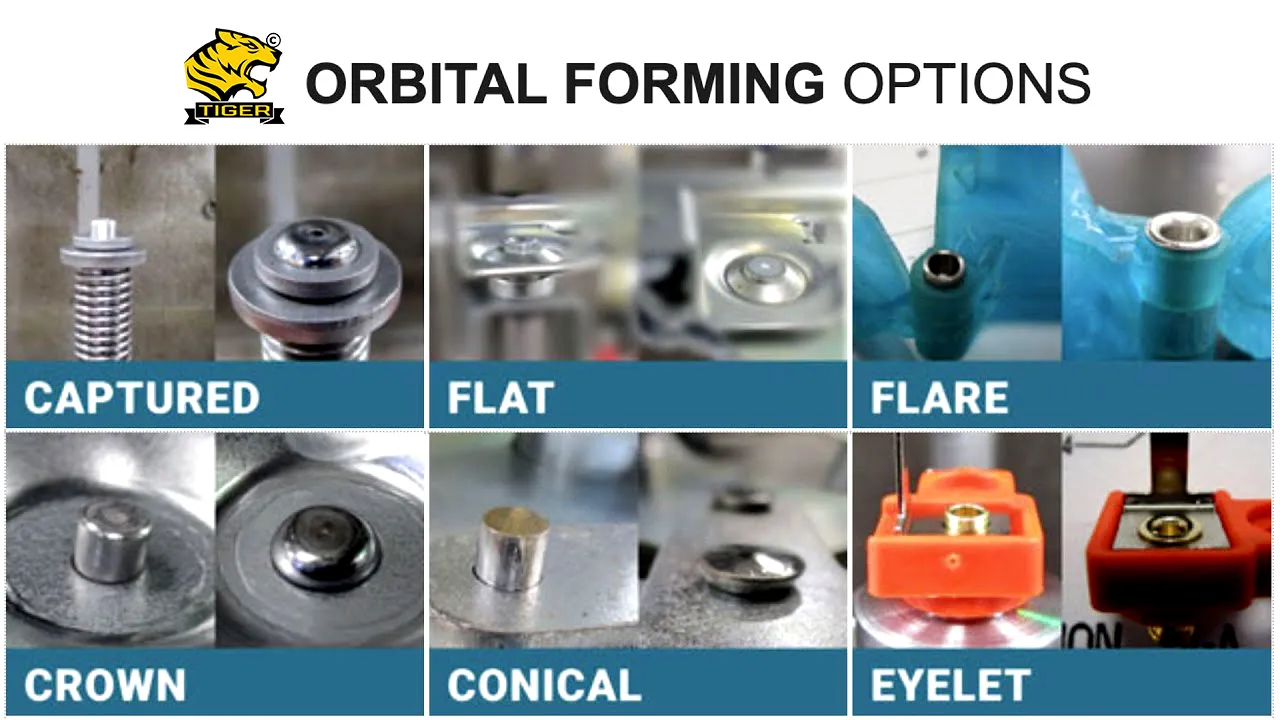

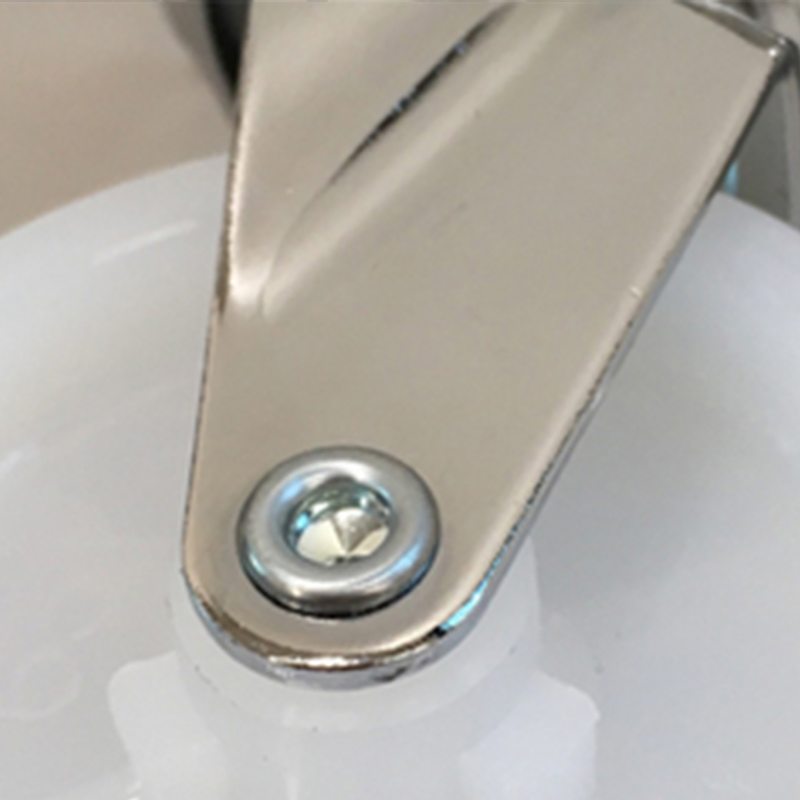

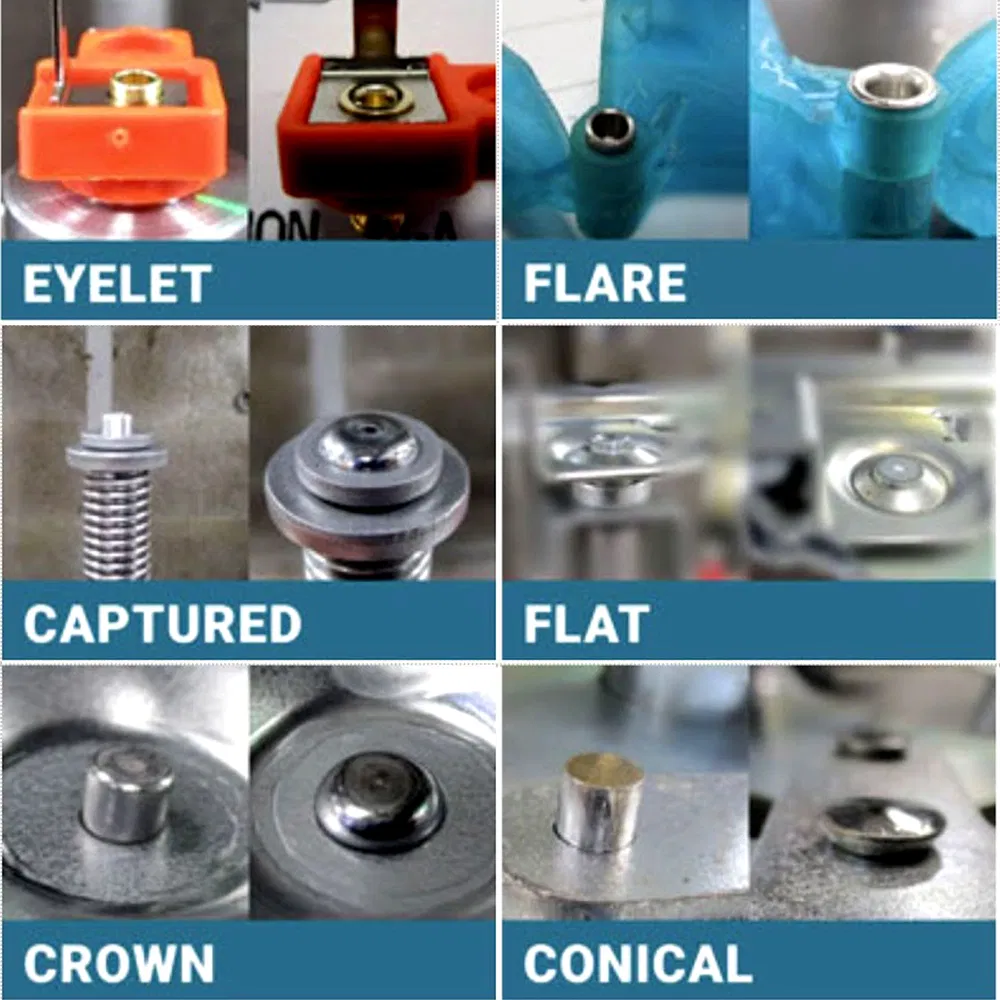

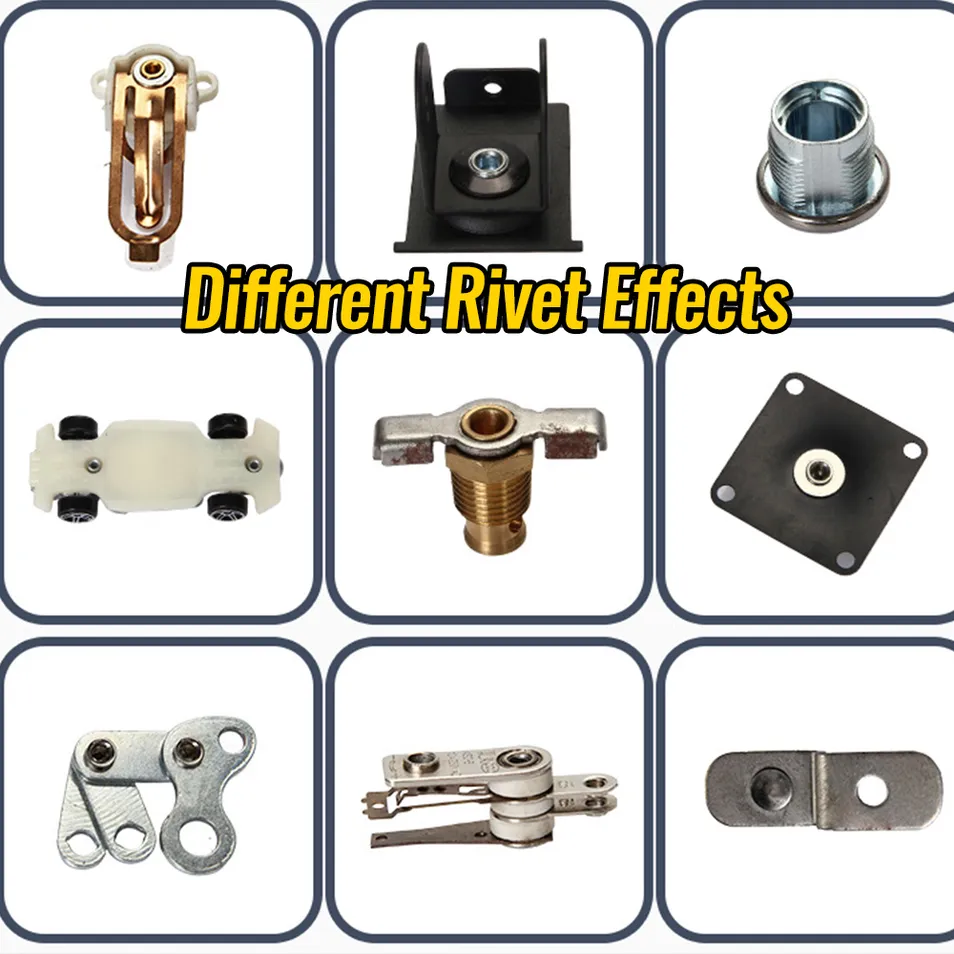

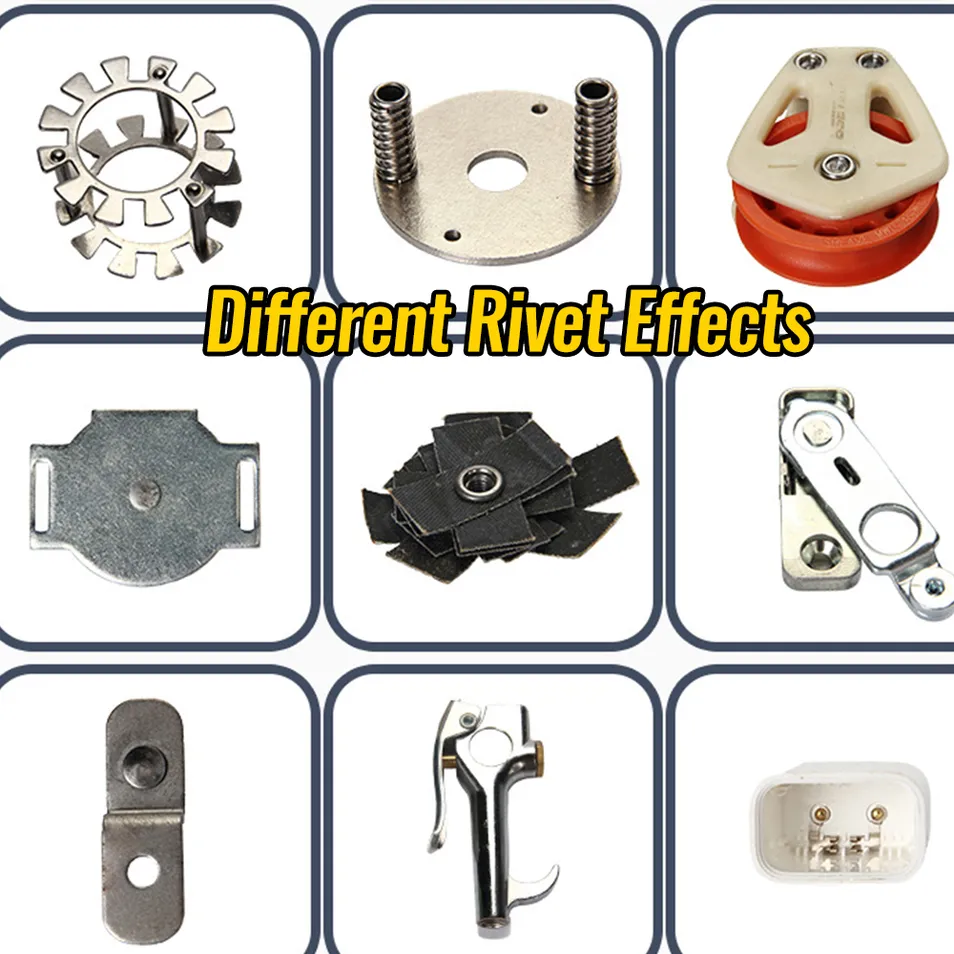

Orbital Riveting Case

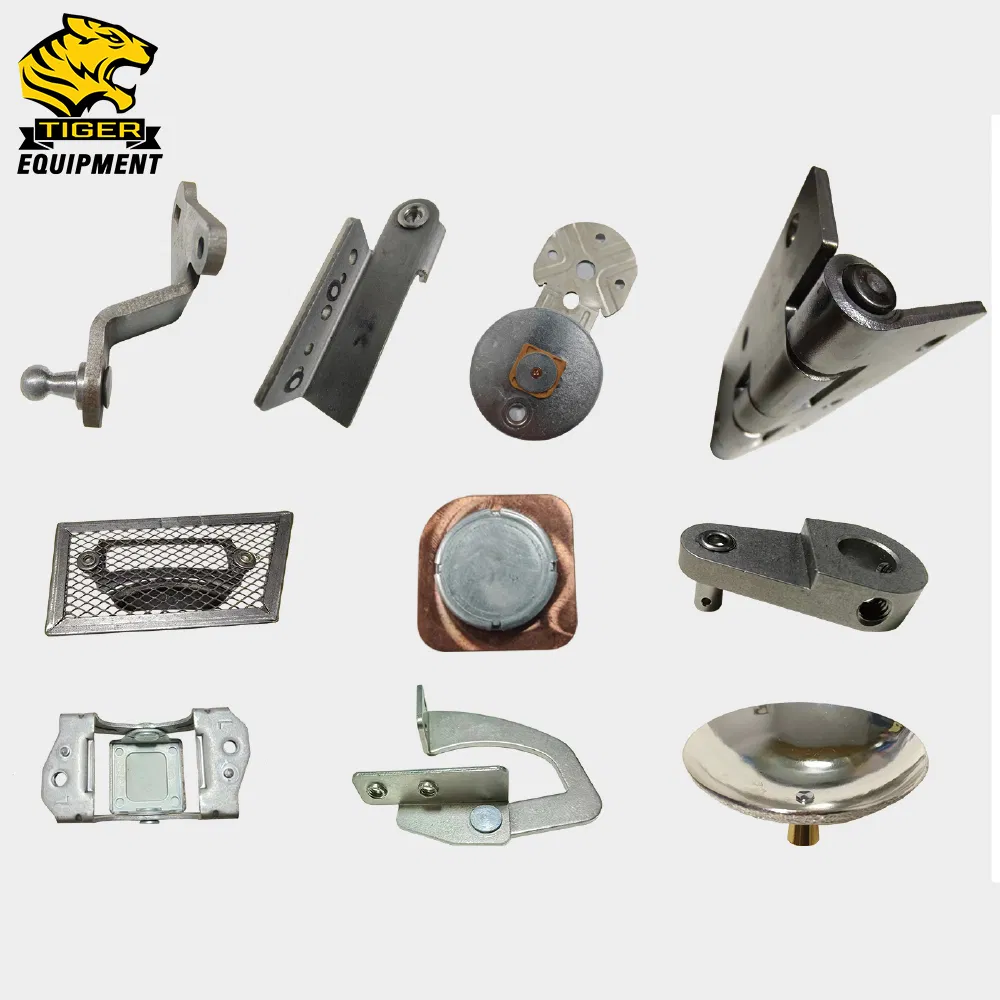

Orbital riveting machines (also known as Rolling Riveting Machines) are used in a wide range of applications including brake linings for commercial vehicles, aircraft, and locomotives, textile and leather goods, metal brackets, window and door furniture, latches, and even mobile phones.

Specification

Model	TIG-JT-6P	TIG-JT-9H	TIG-JV-9H	TIG-JV-12H	TIG-JV-16H
Power	pneumatic	Hydraulic	Hydraulic	Hydraulic	Hydraulic
Force Range	9KN	14KN	14KN	20KN	34KN
Throat Depth	170mm	135mm	144mm	160mm	195mm
Max Riveting Capacity (Diameter)	0.5-6mm	2-9mm	2-9mm	2-12mm	4-16mm
Workbench Size	265×270mm	360×500mm	265×235mm	260×230mm	400×300mm

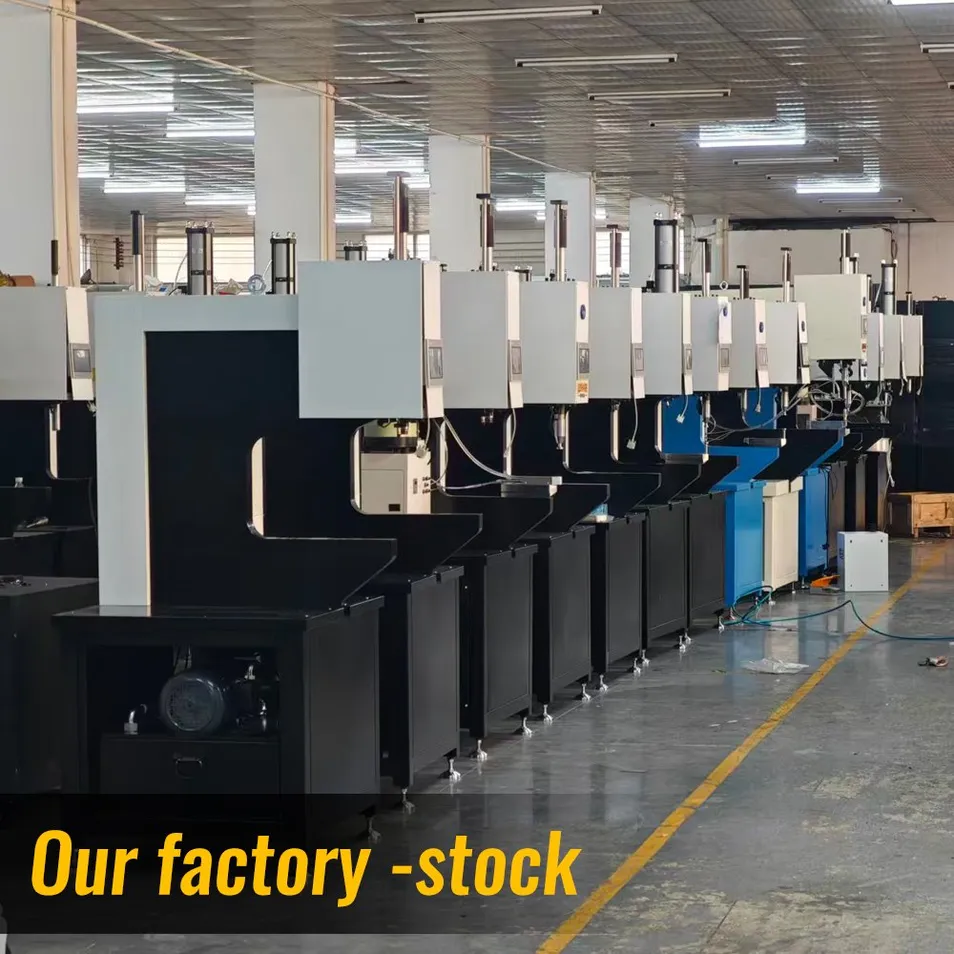

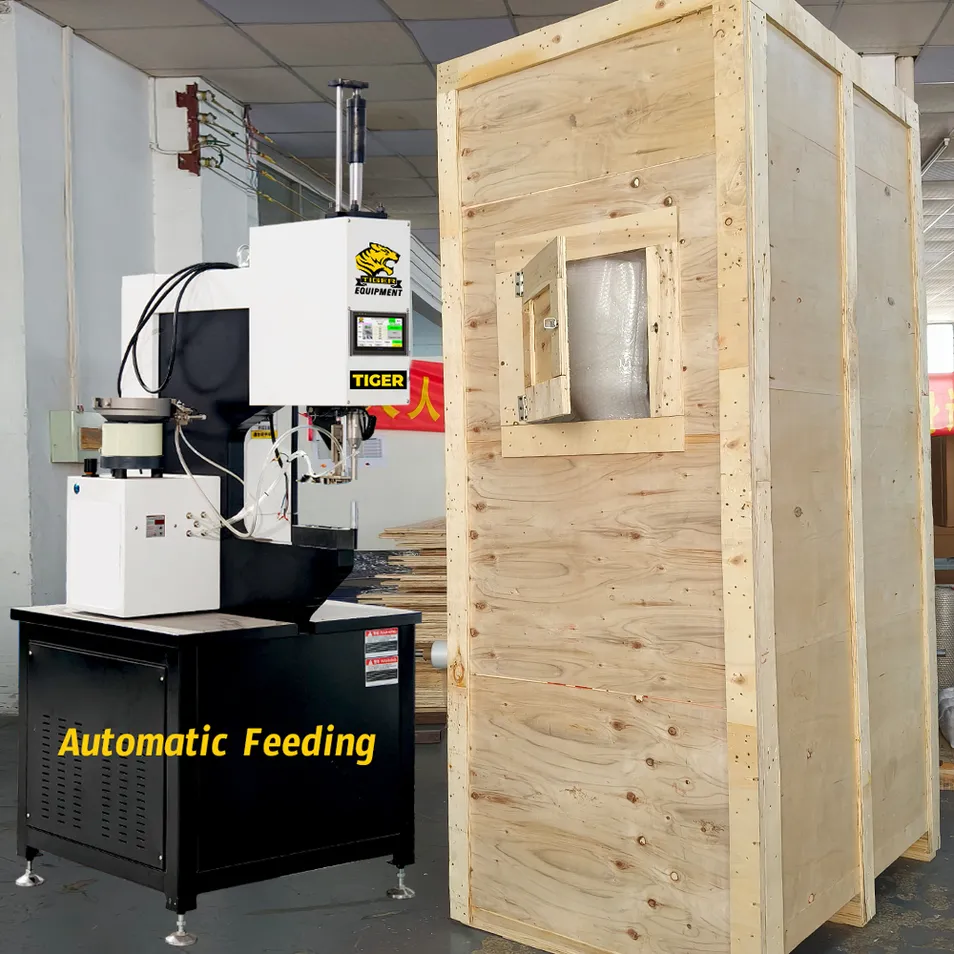

Packing & Delivery

Transparency reduces inquiries. Complete package contents, protective export packaging, clear delivery arrangements, damage protection features, and systematic shipment tracking are provided.

Frequently Asked Questions

Q1: What safety features are included with the riveting machines?

A: The machine features a mandatory safety test system with alarms, protecting operators in both conductive and non-conductive modes. It complies with international safety standards for industrial machinery.

Q2: What optional configurations are available?

A: Popular options include a Modular Autofeed System featuring a top-tier vibratory bowl and smart feeder controller; a Manual Tooling Package offering 31, 33, or 47 tools, a J-frame, and a fixing base; and Automatic Tooling Systems designed for nuts (S-M3~M8), studs (FH-M3~M8), and standoffs (SO/BSO series).

Q3: How do I claim warranty service?

A: To request warranty service, please contact support with your order ID and a description of the issue. The technical support team evaluates all submissions and typically responds within 24 hours.

Q4: Can the rivet shanks be customized for specific industrial uses?

A: Yes, different rivet shanks can be fully customized according to custom manufacturing requirements and specific workpiece configurations.

Q5: In what industries are radial and orbital riveting machines commonly used?

A: They are widely applied in the automotive industry (brakes, doors), electronics (connectors, terminals), aerospace and precision machinery, hardware and tool manufacturing, and medical equipment requiring sterile, precise joints.

Q6: What is the differences between pneumatic and hydraulic riveting power types?

A: Pneumatic models (such as the TIG-JT-6P) utilize air pressure, providing a force range of 9KN and a capacity for 0.5-6mm diameter rivets. Hydraulic models (such as TIG-JT-9H and JV-16H) use high-pressure fluid force to achieve ranges from 14KN up to 34KN, suitable for larger diameters of 2-16mm.
