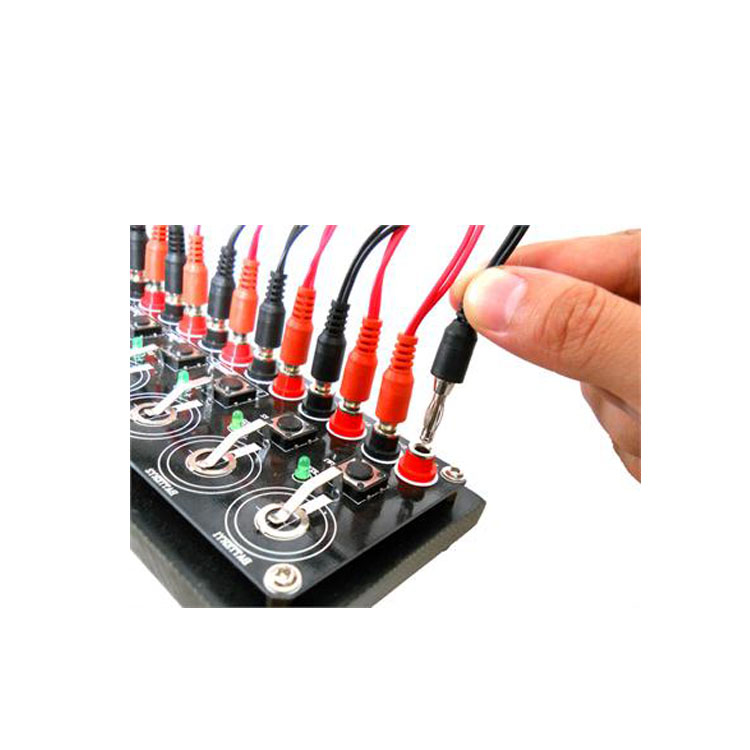

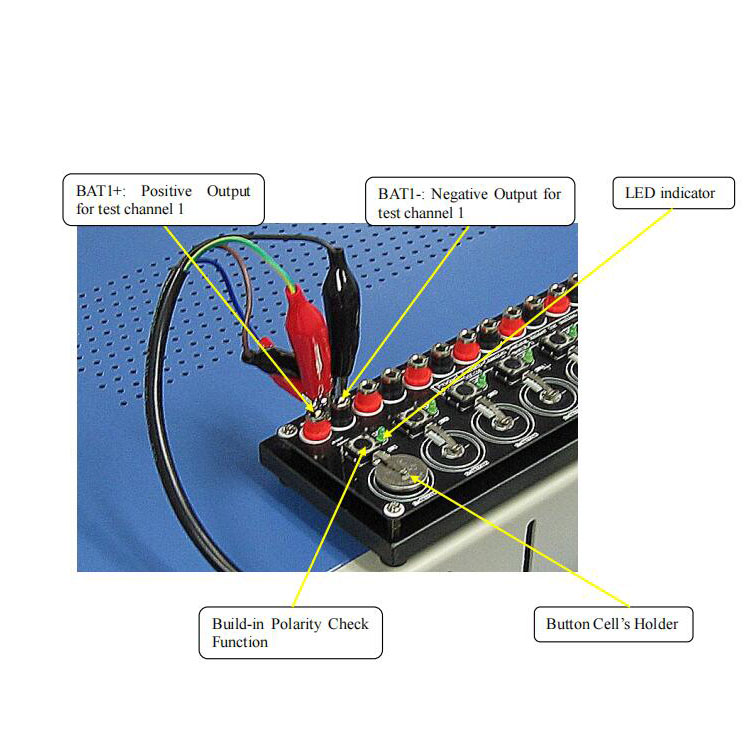

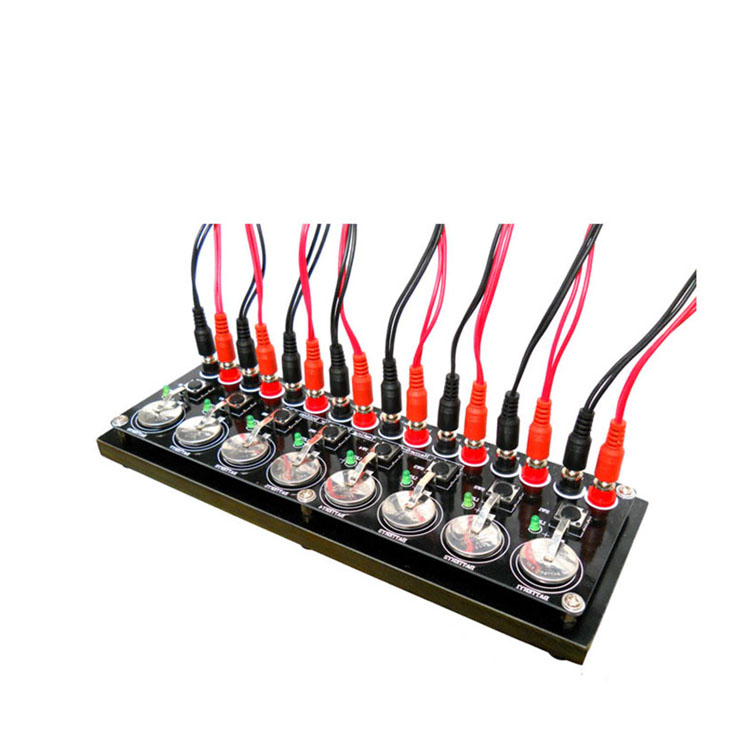

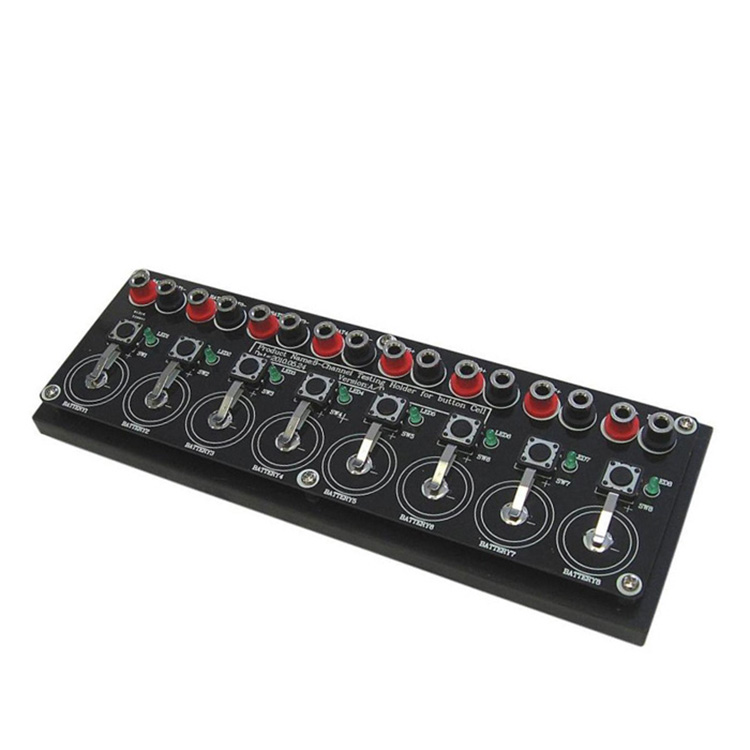

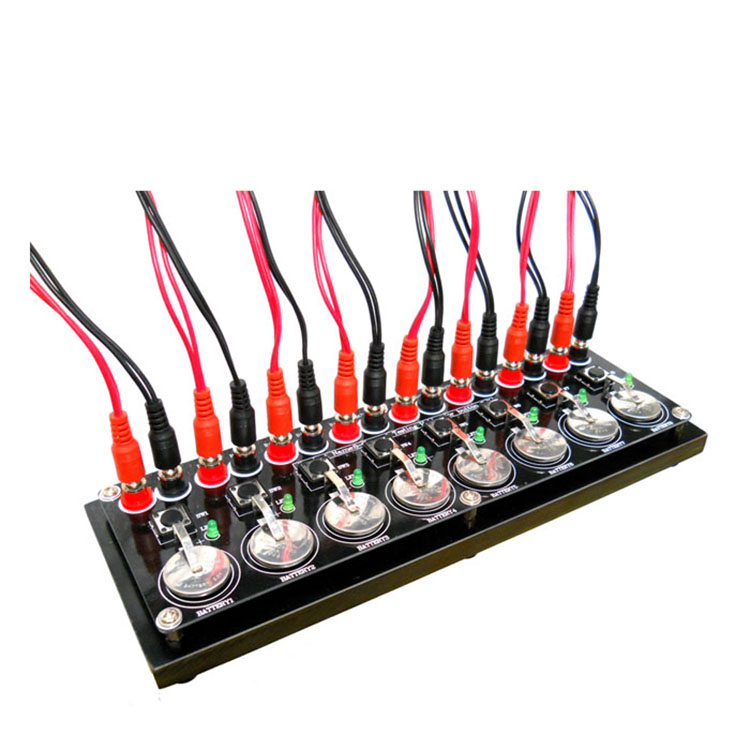

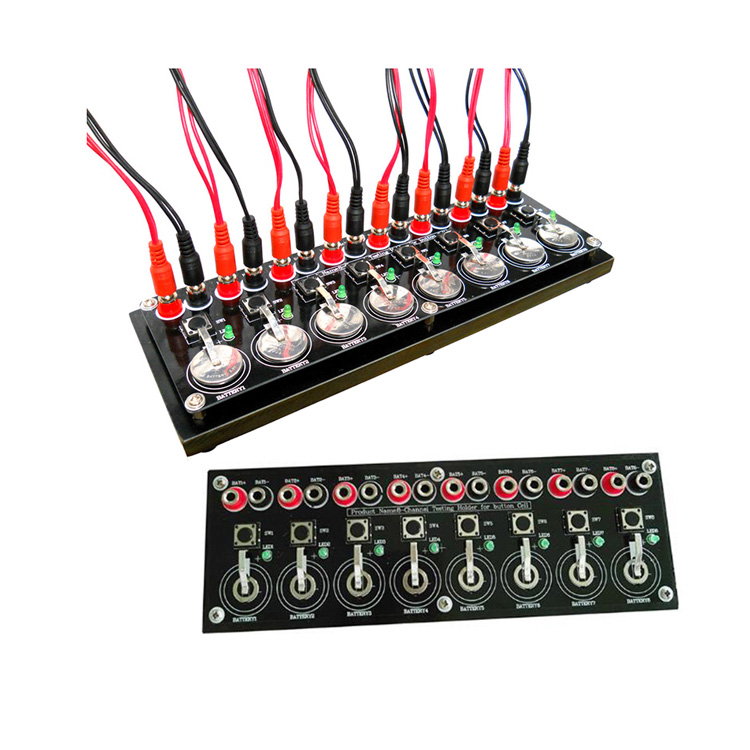

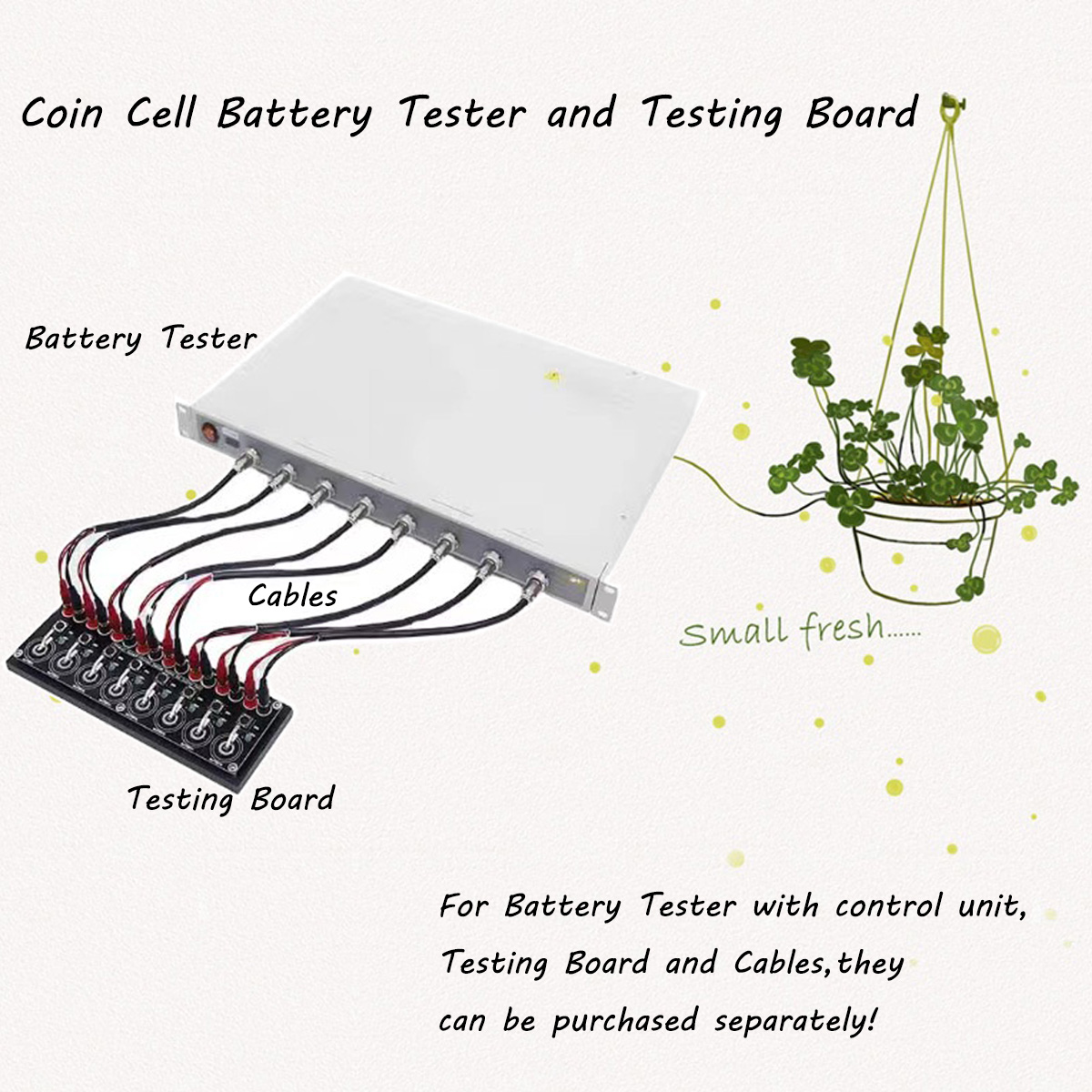

8 cables with optional connectors are included in the standard package for immediate use. The connectors to the board are the banana plug for easy insertion and removal, the diameter of the eight round plugs of the Testing Board are around 4 mm. , the Banana Plug of the cable are 4mm banana plug, Max wire diam.4.2mm. Another end or of connector testing system are optional connectors (choose the right one for you from above "connector type" when order) 4-pin bayonet connectors, 4 alligator clamps (Two small for voltage and two big for current) compatible with other vendor's testing system. Built-in battery polarity check light will be on when right place the coin cell and press down the check button, can test coin cell with diameter up to 25mm and compatible with most of the popular coin cell size, like CR2016, CR2032, CR2325, and CR2450.

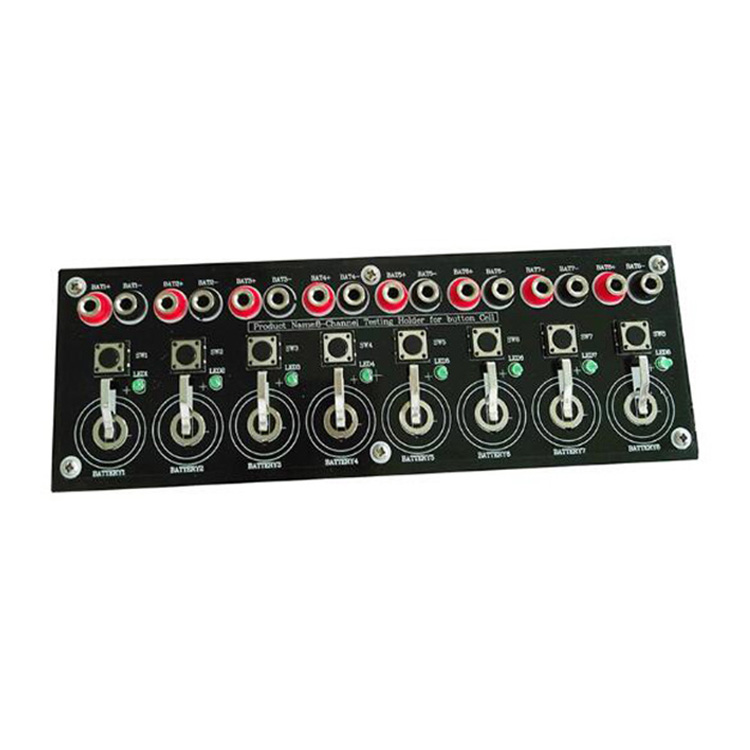

| Product Name | 8 Channels Coin Cell Testing Board for Battery Analyzers |
| Channels | 8 independent channels |
| Color | Black |
| Holder diameters | Max. 25mm |
| Advantages | Easy battery insertion and removal; Built-in polarity check function |
| Holder Material | Polypropylene |
| Dimensions(L*W*H) | 230mm*80mm*32mm |
| Weight | About 1kg |

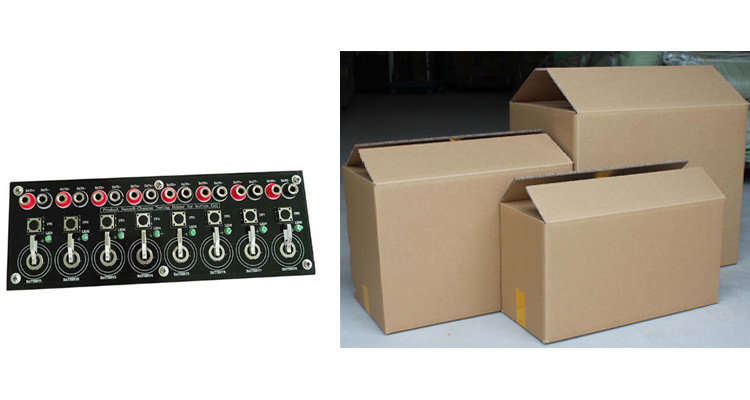

1. Standard exported package: Internal anticollision with foam protection, external export wooden box packaging.
2. Responsible for the damage during the shipping process: Will change the damage part for you for free.

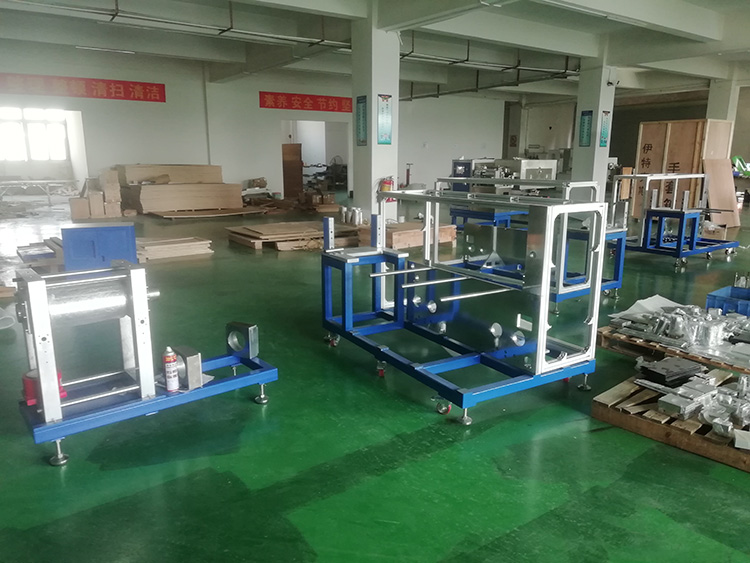

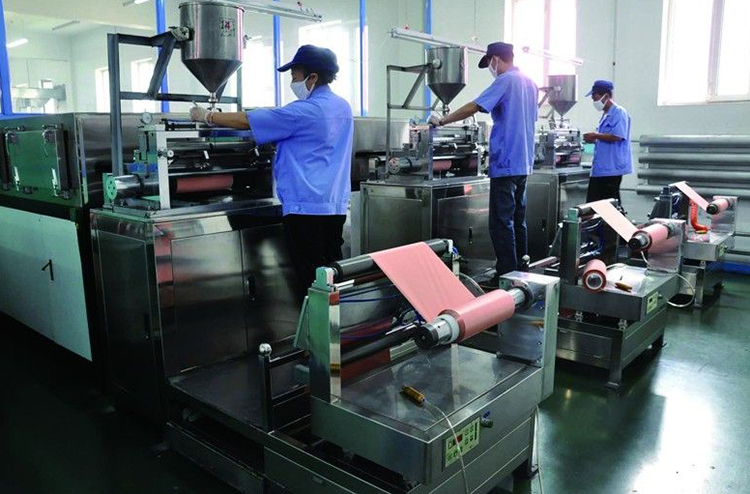

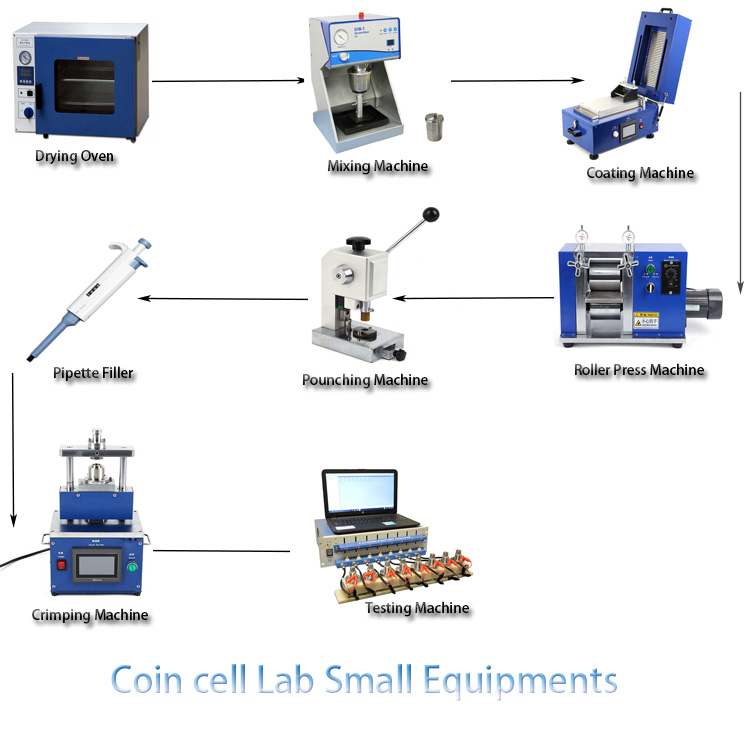

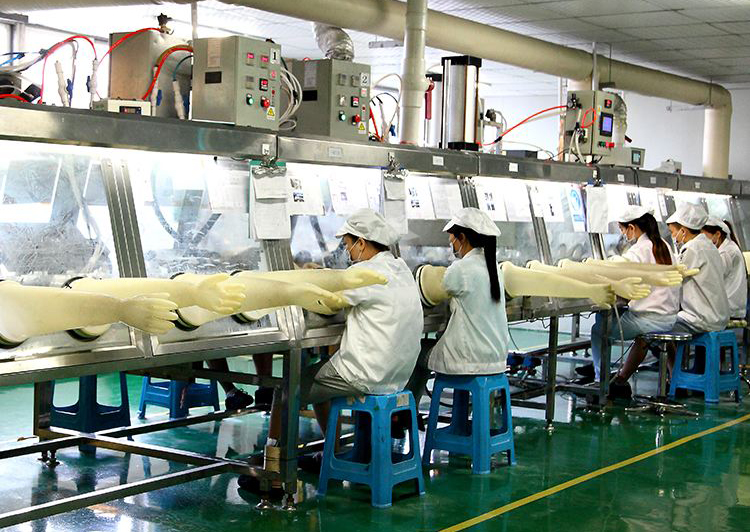

We are a professional lithium battery equipment and laboratory materials supplier. We focus on lithium battery assembly lines and their surroundings, including one-step solutions for coin cells, cylindrical cells, pouch cells, and supercapacitors. We supply many kinds of lithium-ion battery making machines and battery raw materials, such as drying ovens, furnaces, ball mills, mixing machines, rolling press machines, battery coating machines, electrode slitting machines, battery testing equipment, glove boxes, and many others.
