| Item | Parameter |
|---|---|
| Input voltage | Single phase AC220V ± 10%/50HZ ± 0.5 |
| Input power | 2000W |
| Control mode | Single point control, full container control |
| Communication interface | RJ45, RS485 |
| Number of output channel | Single unit/4CH, single cabinet/4 units, multiple cabinets available |
| Parallel connection of channels | Support ≤ 4CH parallel connection |

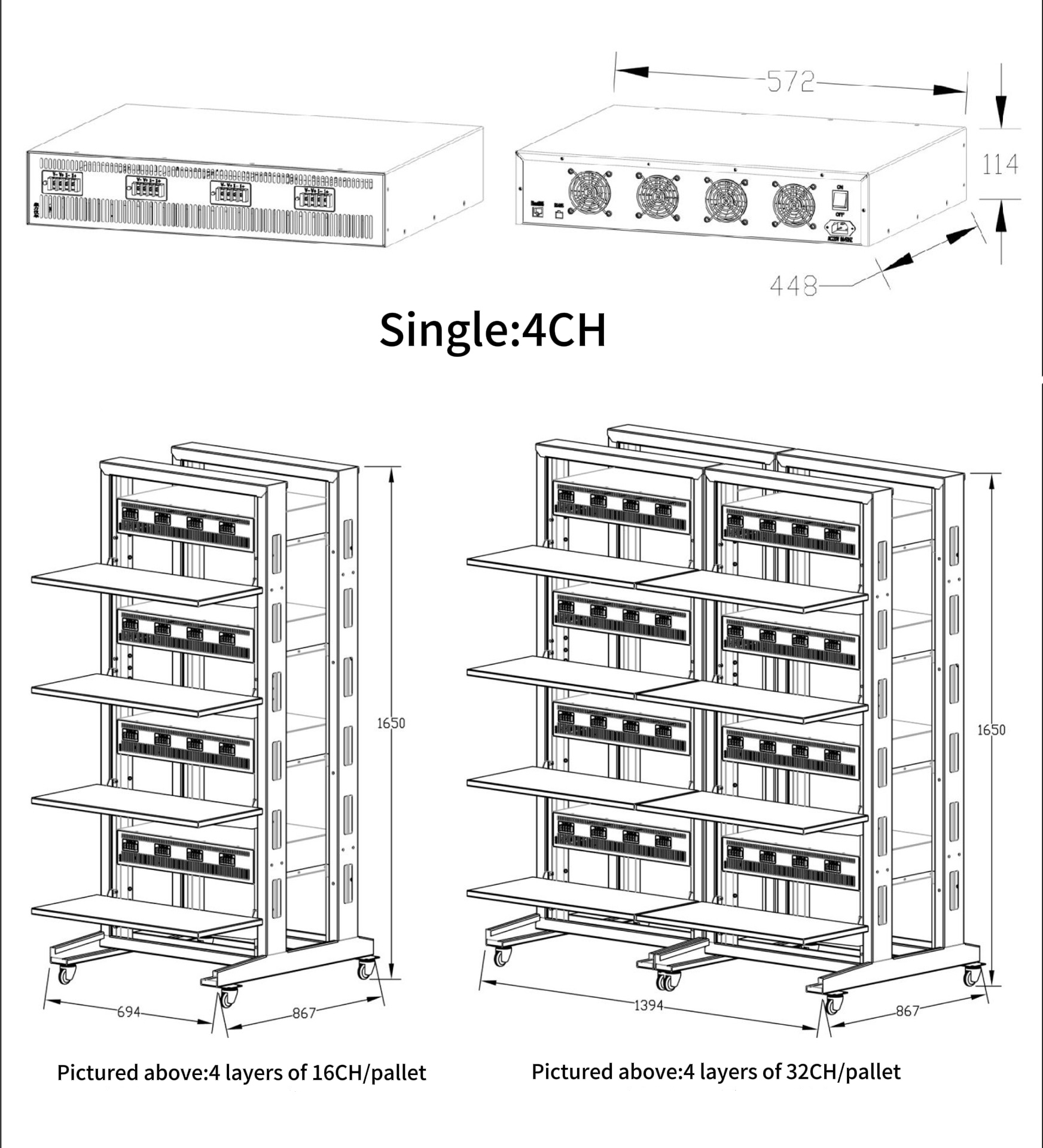

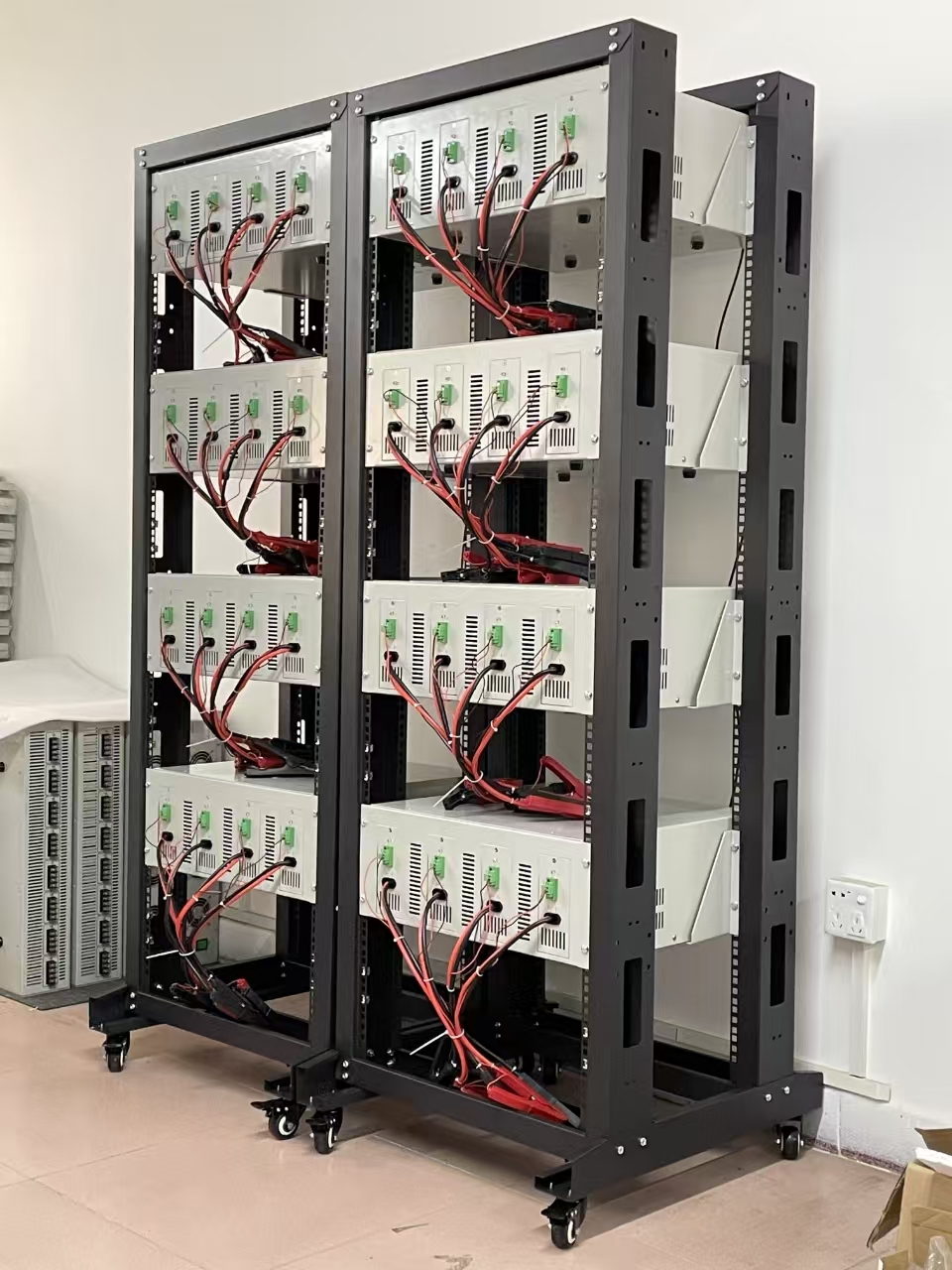

| Installation method | 4CH/single unit, 16CH/single cabinet, can accommodate multiple cabinets |
| Charging voltage | 0-60000mV |
| Charging current | 300mA-10000mA |
| Discharging voltage | 1000mV-60000mV |
| Discharging current | 300mA-10000mA |
| Voltage and current accuracy | ±(0.1%RD + 0.1%FS) |
| Charging energy-saving efficiency | 90% (Max 92%) |
| Discharge feedback efficiency | 90% (Max 95%) |
| Current response time | Hardware response time at 5A current: ≤ 200ms |
| Time setting range | Any setting within 0-9999 minutes, with time units of h, min, S optional, and a resolution of 1S |
| Time accuracy | ≤ ±0.1% |

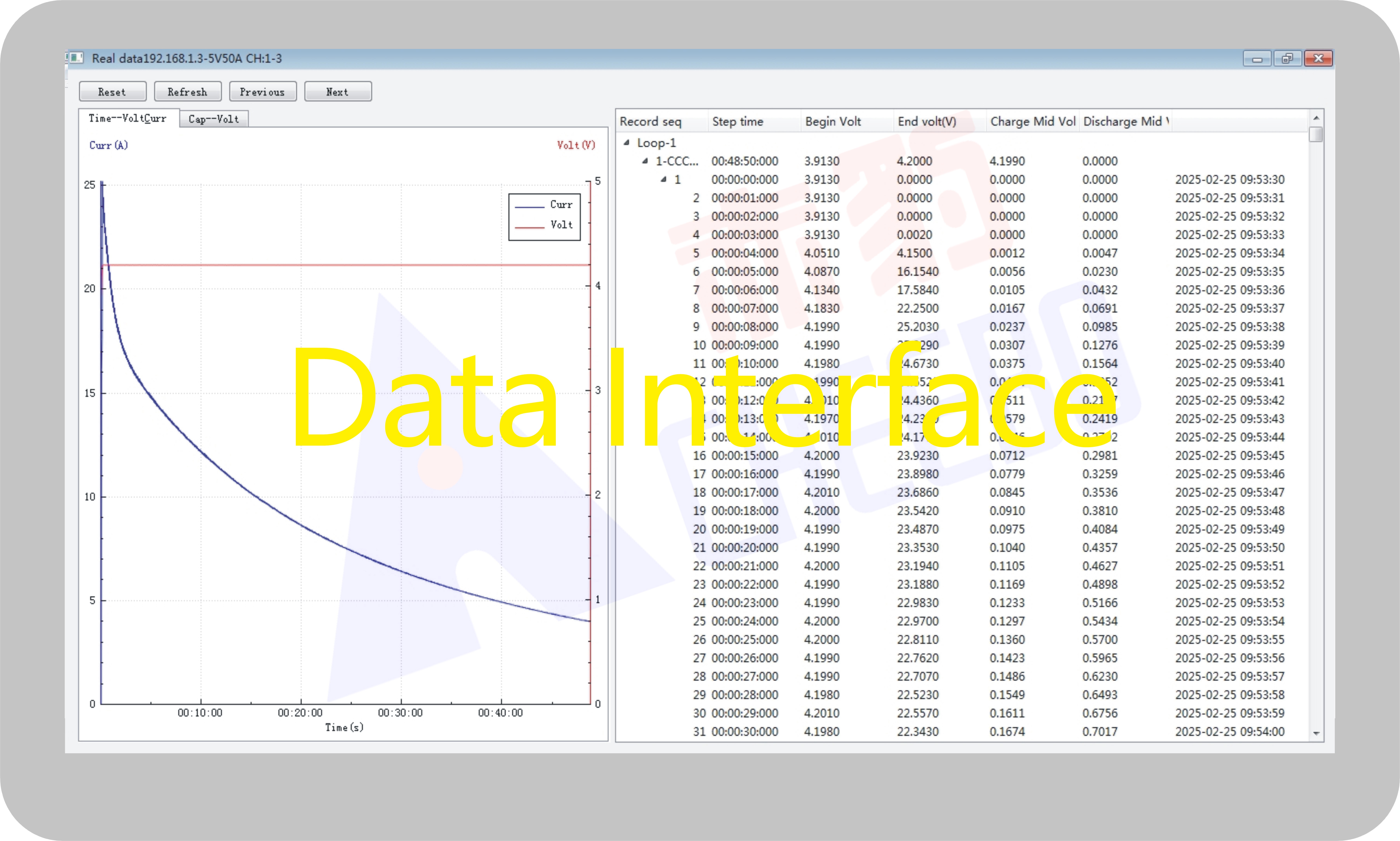

| Recording method | Charging record time, discharging record time, static record time, current change and voltage change record |

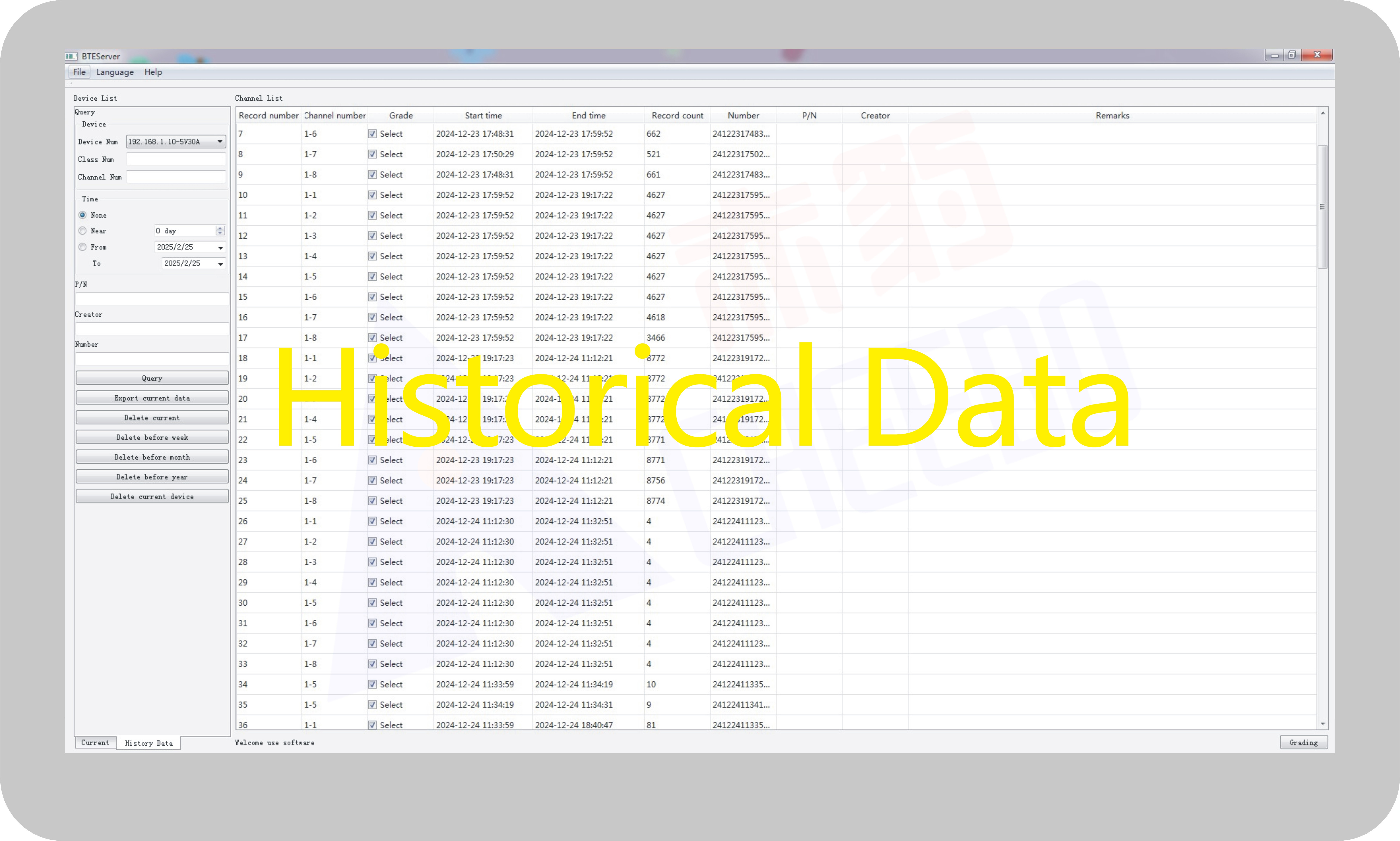

| Recording frequency | Record data at least once per second |
| Charging mode | Constant current charging, constant voltage charging, constant current and constant voltage charging |
| Charging cut-off conditions | Voltage, current, time, capacity |
| Discharge mode | Constant current discharge |
| Discharge cut-off conditions | Voltage, current, time, capacity |
| Protection function | Data storage for power failure, communication abnormalities, power grid abnormalities, temperature, battery reverse connection, over voltage, under voltage, over current, undercurrent, and overcapacity protection. The range of voltage and current protection values can be set, and after protection, prompts and records can be provided. |

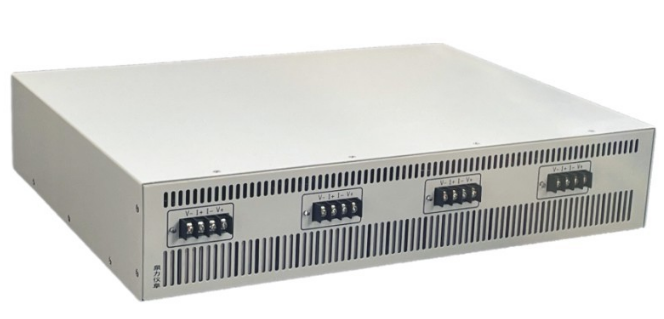

The tester features an energy return type design. The discharge energy from one channel can supply other charging channels or feed back into the power grid, yielding a charging energy-saving efficiency of up to 92% and discharge feedback efficiency up to 95%.

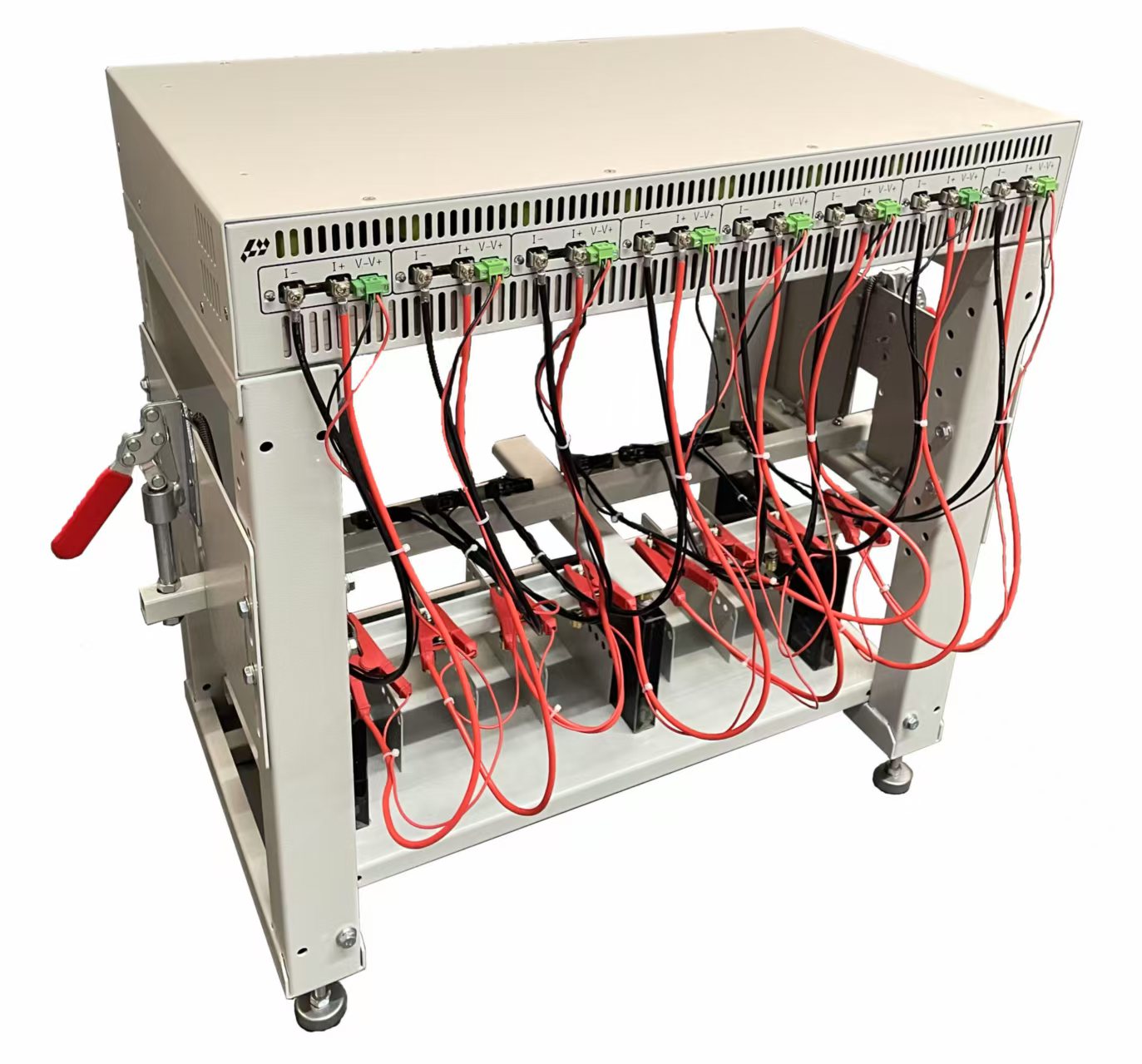

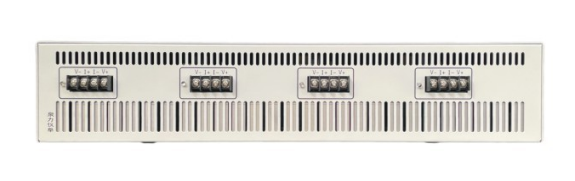

The equipment comes as a single unit with 4 channels. It supports parallel connection of up to 4 channels to accommodate different capacity expansion and testing requirements.
The voltage and current control/measurement accuracy is better than 0.1% (±0.1%RD + 0.1%FS), and data recording frequency goes down to 1 second per record.

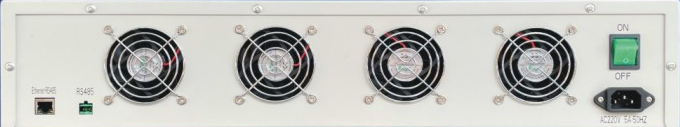

The tester features industry-standard RJ45 and RS485 communication interfaces, making it convenient for integration with external factory network environments and systems.
It features data storage recovery for power failures, as well as comprehensive protections for communication abnormalities, grid abnormalities, temperature limits, battery reverse connections, over/under voltage, over/under current, and overcapacity.
Charging supports constant current (CC), constant voltage (CV), and constant current-constant voltage (CC-CV) modes. Discharging supports constant current (CC) mode, with multiple configurable cut-off conditions including voltage, current, time, and capacity.
