50L High Frequency Large Volume Ultrasonic Cleaning Equipment / Ultrasonic Cleaner / Ultrasonic Cleaning Machine
Ultrasonic cleaning is based on the cavitation effect caused by high-frequency ultrasonic wave vibration signals in fluid. Microscopic bubbles are formed and implode violently, creating an intense scrubbing action on the surface of the item being cleaned. These bubbles are small enough to penetrate microscopic crevices, cleaning them thoroughly and consistently.

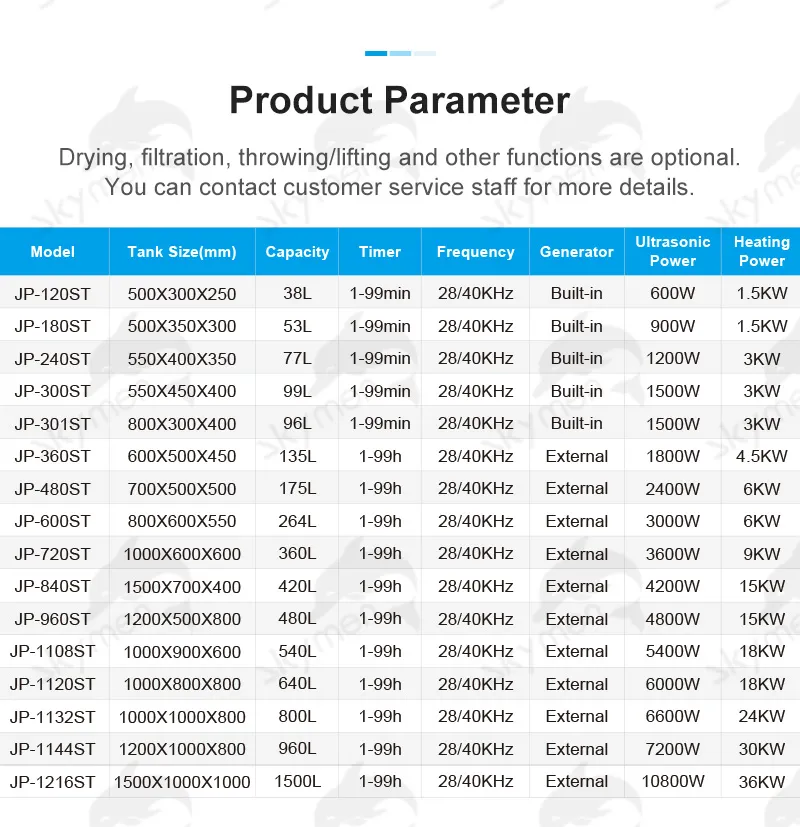

Specifications
| Model NO. |
JP-180ST |
Ultrasonic Frequency |
28/40 kHz |
| Tank Capacity |
55L |
Material |
Stainless Steel SUS304 |
| Ultrasonic Power |
900W |
Heating Power |
1500W |
| Timer |
0-30min / 1-99min Adjustable |
Heater |
20-95°C Adjustable |
| Degas / Semiwave |
Yes / Yes |
Control |
PLC / Semi-automatic |
| Tank Size |
500*350*300mm (L x W x H) |
Unit Size |
680*550*735mm (L x W x H) |
| Package Size |
790*620*890mm |
N.W / G.W |
54kg / 87kg |
| Voltage |
110V/220V (AC 100~120V / AC 220~240V, 50/60Hz) |
Basket & Cover |
Standard Equipped (with Casters) |
| Cleaning Media |
Wet Cleaning / Physical Cleaning |
Solvent Compatibility |
SUS304 for Strong Acid and Alkaline |
| Transducers |
12 |
Certifications |
CE, RoHS, FCC, PSE, ISO9001 |
■ Key Features
- Automatic measuring of load - frequency and power regulation
- Fully digital generator - well-adjusted and energy efficient
- Advanced diagnostics - performance monitoring and service capabilities
- Top level of cleanliness and quick wash process
- Good ergonomics in manual handling of lightweight items
- A cost-effective solution with compact design and small footprint
■ Applications

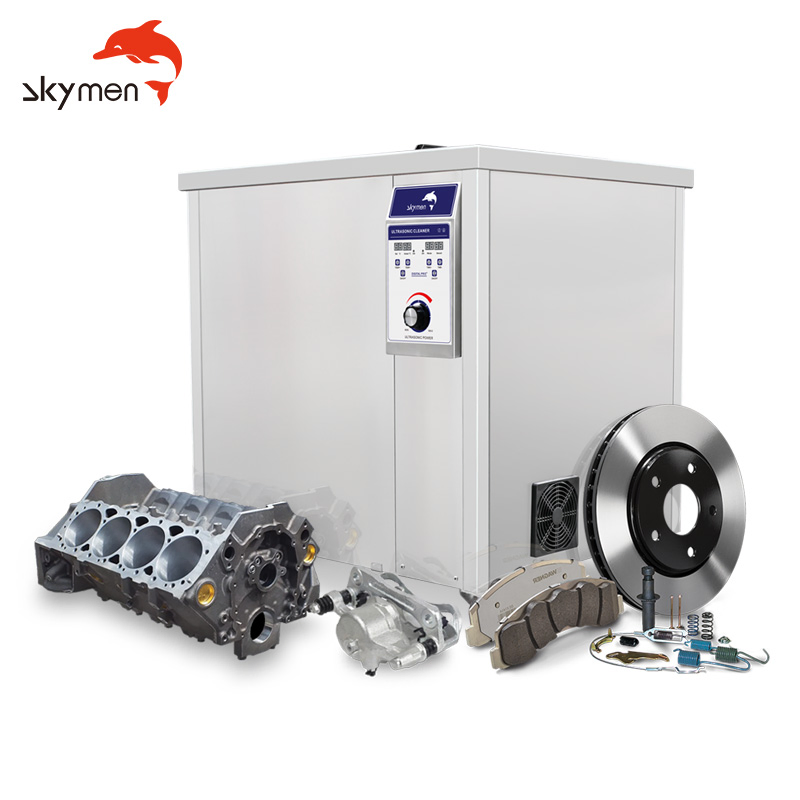

- Garage workshops and commercial vehicle repair workshops
- Fuel test laboratories and marine engine repair
- Electrical engineers and aeronautical industry
- Precision and general engineering, engine rebuilding, and turbocharger repair shops
Product Details & Gallery
Key Benefits of Using Our Advanced Ultrasonic Technology:
Precision Cleaning: Cavitation combined with sweep cleaning technology is a superior cleaning application compared to virtually any other available industrial-level cleaning methods.
Speed: The average ultrasonic cleaning cycle for industrial applications is completed in under 10 minutes, depending on the contaminants and settings.
Extended Parts Life: Safe and thorough cleaning allows parts to work with maximum efficiency under less stress caused by surface damage or leftover residue.
Frequently Asked Questions
1. How about after-sales services?
We offer a 1-year warranty for the ultrasonic cleaner. If any technical problem occurs during the warranty period, replacement parts will be sent free of charge. Ongoing technical support is also available after the warranty expires.
2. What are the advantages of ultrasound over traditional cleaning methods?
Ultrasonic cleaning minimizes manual labor, cleans and degreases without organic solvents, easily accesses hard-to-reach areas of products, removes all types of persistent dirt, and shortens processes like extraction, dispersion, and chemical reactions.
3. What frequency is better for my parts?
Frequency is determined by the target contaminants. A 28kHz frequency is stronger and ideal for heavy-duty objects like car, motor, truck, and vessel parts to remove oil, grease, and pastes. A 40kHz frequency is better for delicate components like PCB boards and electronic parts. Higher precision items require higher frequencies.
4. Can ultrasonic cleaning damage my parts?
Ultrasonic cleaning is considered highly safe for most parts. Even though the effect of thousands of implosions per second is very powerful, the microscopic level of the action keeps the process gentle. However, caution should be observed for highly sensitive materials.
5. What is the capacity and material structure of the tank?
The unit features a 55L capacity tank constructed from 2mm thick Stainless Steel SUS304, making it highly durable and compatible with strong acids and alkaline cleaning agents.
6. Can I adjust the heating temperature and cleaning time?
Yes, the timer is adjustable from 1 to 99 minutes (or 0-30 minutes depending on configuration), and the heater is adjustable from 20°C to 95°C to achieve optimal cleaning results.
