Measurement Items: HC, CO, CO₂, O₂, NO, λ
Advanced NDIR (Non-Dispersive Infrared) analysis technology to measure HC, CO, CO₂, newest electrochemical technology to measure O₂ and NO.
Automatic calculation and display of A/F (air-fuel-ratio) and Lambda air ratio λ.
High-brightness big LCD screen for clear reading and easy operation.
Capable of testing alternative fuel vehicles including CNG, LPG, and ethanol vehicles.
Equipped with a standard inductive RPM measurement adaptor.
Fast start support with 10-minutes standard warm-up and 5-minutes mode for quick measurements.
Convenient built-in storage supporting up to 200 groups of measurement data storage and review.
Comply with international standards of ISO3930 and OIML 99 class I accuracy.
| Item | Parameters |
|---|---|
| Measuring Range |
HC: 0 ~ 9,999 ppm (n-hexane) CO: 0 ~ 10 x 10⁻² (%) CO₂: 0 ~ 20 x 10⁻² (%) O₂: 0 ~ 25 x 10⁻² (%) NO: 0 ~ 5,000 x 10⁻⁶ |
| Measurement Accuracy |
HC: ± 12 x 10⁻⁶ (absolute error) or ±5% (relative error) CO: ± 0.06 x 10⁻² (%) (absolute error) or ±5% (relative error) CO₂: ± 0.50 x 10⁻² (%) (absolute error) or ±5% (relative error) O₂: ± 0.10 x 10⁻² (%) (absolute error) or ±5% (relative error) NO: ± 25 x 10⁻⁶ (absolute error) or ±5% (relative error) |
| Warm-up Time | 10 min (5 min warm-up for fast measurement) |
| Response Time | Less than 10s; NO testing less than 15s |
| Power Supply | AC 220V ± 10% 50Hz ± 1Hz |
Most of the machines are packed in wooden case, but for some heavy machines, they'll be packed on specially-designed steel frame. Some small parts will be loaded into cartons.
Our factory is near Shanghai port, so most of the time, SHANGHAI port will be the loading port.
We are committed to providing customers all over the world with high-quality and stable vehicle testing equipment and providing one-stop services, including equipment selection, testing station layout design, equipment installation guidance, etc.
During the warranty period of the equipment, we will replace any non-human damaged parts free of charge. After the warranty period, customers need to purchase the required accessories, but we will provide permanent free online guidance to help customers solve their problems.

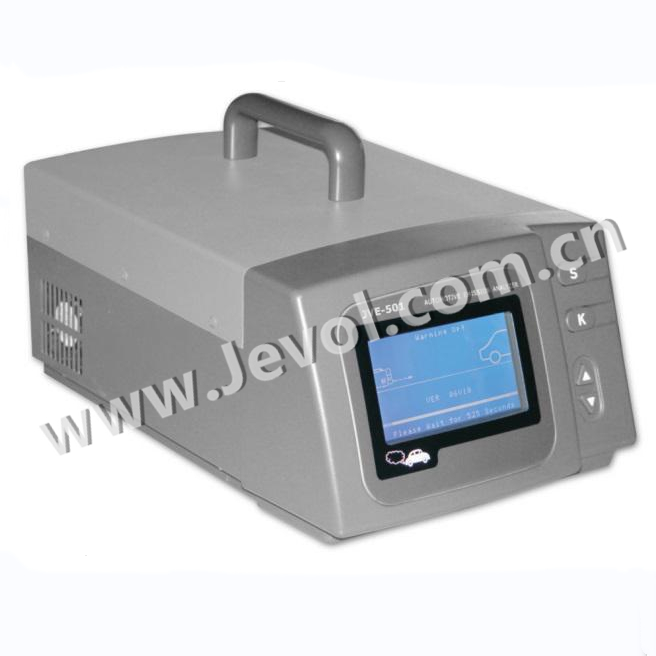

The JVE-501 Gas Analyzer measures HC, CO, and CO₂ using advanced NDIR technology, and O₂ and NO using the latest electrochemical technology.
It features a standard warm-up time of 10 minutes, with a fast warm-up option of only 5 minutes for rapid measurements.
Yes, the JVE-501 is designed to support the testing of vehicles running on CNG, LPG, and ethanol fuels.
The analyzer has an internal capacity to store up to 200 groups of measurement data, allowing for easy query and review.
It strictly complies with ISO3930 and OIML 99 class I accuracy standards, ensuring reliable and precise measurements.
After the warranty period, we provide permanent free online technical guidance to help solve issues, with any required replacement accessories available for purchase.
