Customization: Available
Type: 3D Wheel Alignment
Communication Mode: Bluetooth Wireless Communication
Send Inquiry

Product Description

Basic Info.

Model NO.
ZD-8S
Structure
Mechanical
Standard
Standard
Condition
New

Product Description

General Details
  • ModelSY-ZD-8S
  • Voltage220V/50HZ/1PH
Key Features

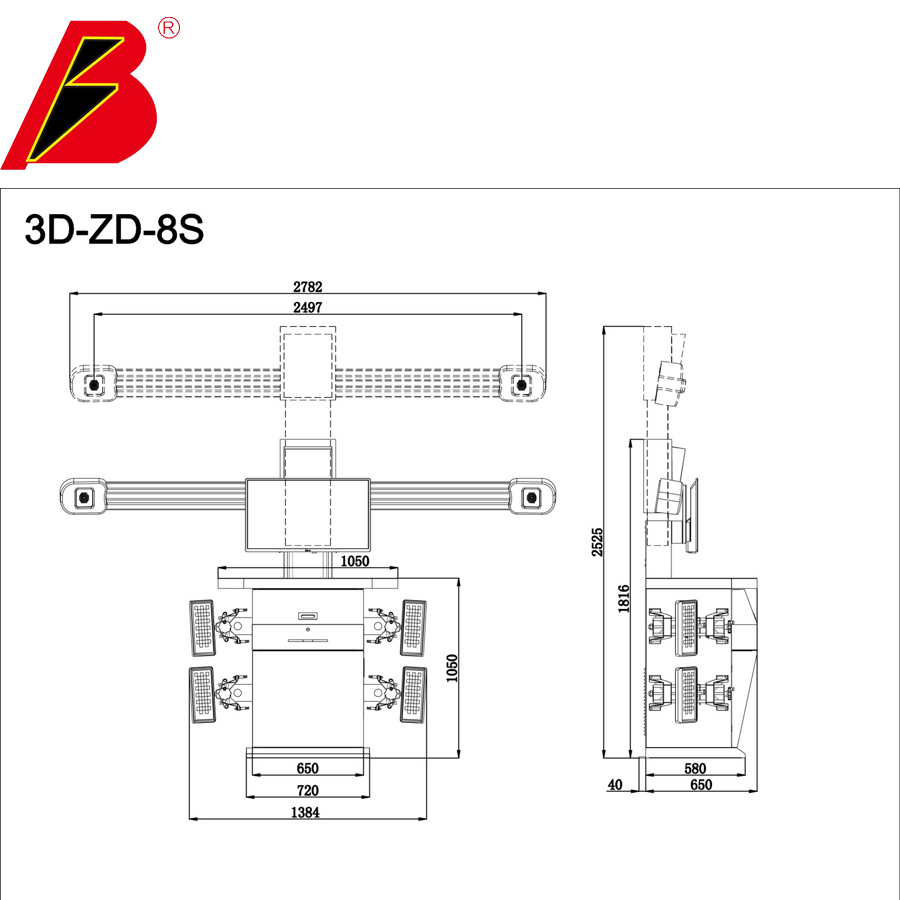

  • Automatic Tracking Target and Electronic remote controller, Camera beam Length: 2782mm
  • 32'' TV show Measuring data & Parking Turntable Function
  • Can align vehicle through push or without push
  • One interface shows all parameters of front wheel and rear wheel (Toe, Camber, Castor, etc.)
  • Equipped with Track width and Wheelbase measuring interface
  • Zero Recalibration Request for the whole machine to save cost and energy
  • Machine continues to function if one or two target plates are accidentally lost
  • Includes 3D Animation training videos for angle adjustments
  • Equipped with Front Alignment Function
SPECIFICATION
Parameters Precision Resolution Measure Range
SAI/KPI ±3′ (±0.05º) 0.6′ (0.01º) ±20º
Castor ±3′ (±0.05º) 0.6′ (0.01º) ±20º
Camber ±2′ (±0.03º) 0.6′ (0.01º) ±10º
Toe ±2′ (±0.03º) 0.6′ (0.01º) ±10º
ThrustAngle ±2′ (±0.03º) 0.6′ (0.01º) ±10º
Track Width ±2mm 0.1mm 1200-2200mm
Wheelbase ±2mm 0.1mm 1600-4200mm
Wheel Offset ±2mm 0.1mm ±200mm
Lateral Deviation ±2mm 0.1mm ±200mm
Castor Offset ±2mm 0.1mm ±200mm
Rim Size 13 ~ 24
Configuration Details
  • Computer1pc / Brand: HP
  • OSWIN 7 English Preinstall (Win 8/10 supported)
  • Camera5 mega pixels / 2 pcs
  • PrinterCannon Ink Cartridge (Black, Model: PG-835XL)
  • Monitor19'' LCD
  • Target PlateDurable / 4 pcs (324.2*175*62.6mm, 1.32kgs/pc, Pin: 22mm)
  • AccessoriesBrake pedal depressor & Steering wheel holder (1 pc each)
  • Clamps4 pcs (13-24 Rim size, Anti-rust Electroplated)
  • Turntable Plate2 pcs (Diameter: 340mm, Thickness: 49mm)
  • Wedge2 pcs

* NOTE: Computer, Printer, and Monitor are not included in the warranty terms.

Warranty Terms
  • Whole Machine: 12 months (except computer, printer and monitor)
  • Camera Unit: 3 years warranty
  • Target Plate: 5 years warranty
  • Database Updates: Freely updated online for lifetime
  • Exclusions: Human-made damages are not covered. All international express costs are excluded.
Package & Logistics Info
  • Camera Beam Size3000 x 370 x 325 mm
  • Cabinet Size2420 x 1105 x 865 mm
  • Package MaterialCarton & Wooden box
  • Packages Quantity2 pcs
  • Container Load Capacity14 sets / 20FCL
Car 3D Wheel Alignment Wheel Aligner Equipment 1
Car 3D Wheel Alignment Wheel Aligner Equipment 2

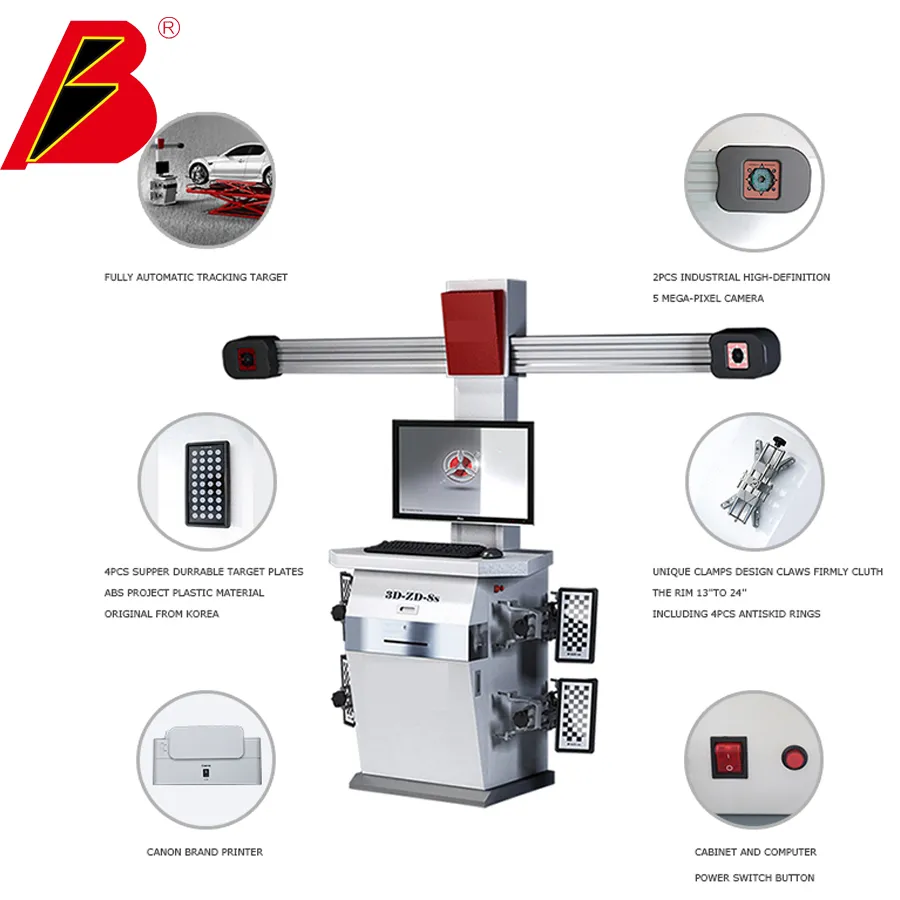

Car 3D Wheel Alignment Wheel Aligner Equipment 3

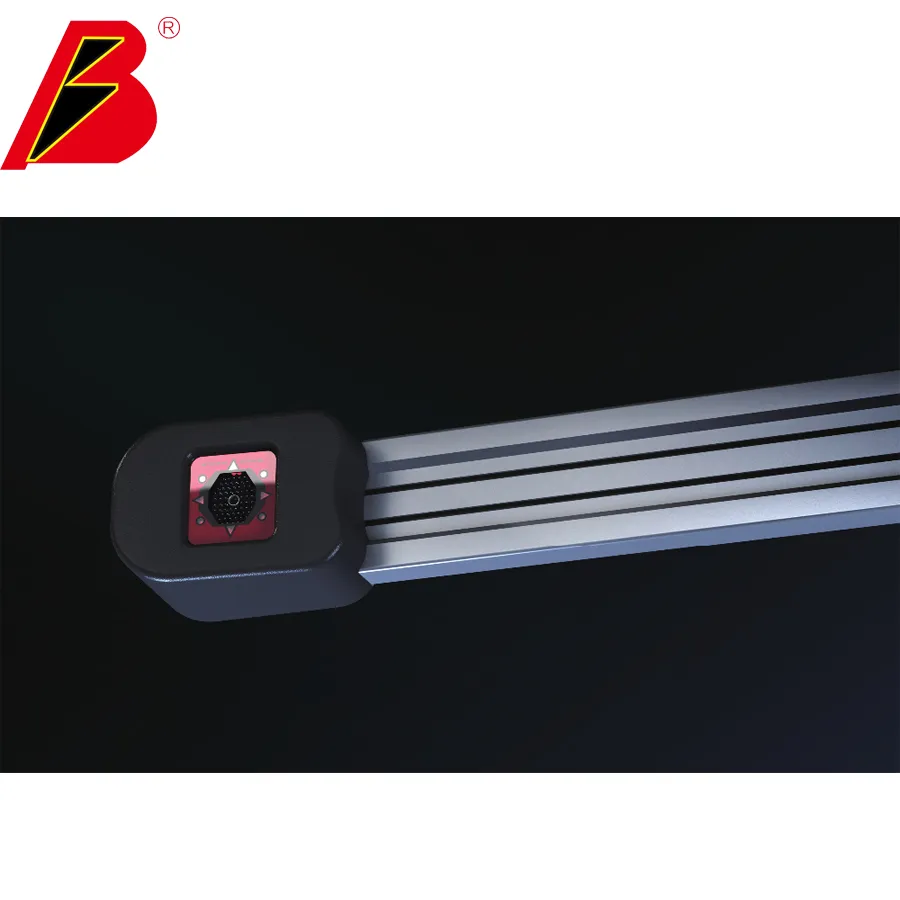

Car 3D Wheel Alignment Wheel Aligner Equipment 4

Frequently Asked Questions

Q: What is the warranty period for this wheel alignment machine?
The system features a multi-tiered warranty program: the camera unit is covered for 3 years, target plates are covered for 5 years, and the main machine structure is covered for 12 months (excluding the computer, printer, and monitor).
Q: Does the wheel aligner require regular recalibration?
No calibration is required. The system never requests recalibration for the entire machine, saving maintenance costs and energy.
Q: What happens if a target plate gets lost?
The machine is designed to continue working reliably even if one or two target plates are temporarily lost due to carelessness.
Q: What kind of computer configuration comes with the machine?
The setup includes a brand-name HP computer preinstalled with a Windows 7 English Operating System. It is also compatible with Windows 8 and Windows 10 systems.
Q: Are database updates free?
Yes, database updates are completely free for the entire lifetime of the machine and can be completed online.
Q: What is the load capacity of a standard shipping container for this model?
A standard 20FCL container can comfortably load and accommodate 14 complete sets of this equipment.
