Basic Info.
Communication Mode
Infrared Wireless Communication
Product Name
Car Wheel Alignment Tyre Shop Equipment
Language
26 kinds, Include English, German, Russian...
Computer System
Windows XP, Windows 7
Power Supply
220V/50-60Hz/1pH
Color
Red, Blue, Grey, Orange, Customised
Vehicle Database
More Than 25000
Computer and Printer
1set
Transport Package
3ctns, 1.8cbm, 250kgs
Specification
tyre shop equipment
Production Capacity
600sets/Month
Product Description

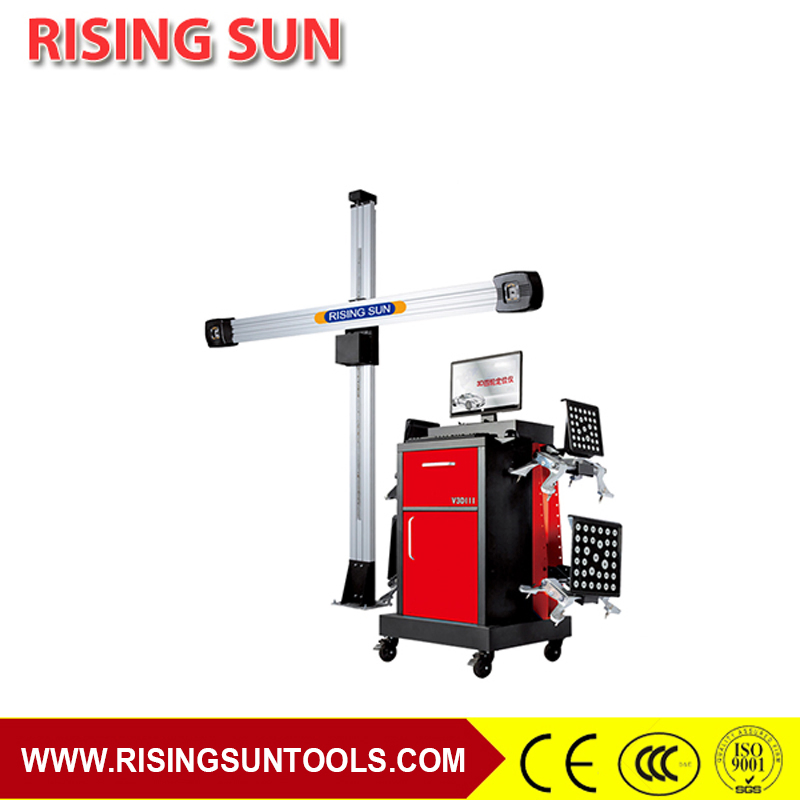

3D Camera Car Wheel Alignment Tyre Shop Equipment
Wheel alignment, sometimes referred to as breaking or tracking, is part of standard automobile maintenance that consists of adjusting the angles of the wheels so that they are set to the car maker's specification. The purpose of these adjustments is to reduce tire wear, and to ensure that vehicle travel is straight and true (without "pulling" to one side). Alignment angles can also be altered beyond the maker's specifications to obtain a specific handling characteristic. Motorsport and off-road applications may call for angles to be adjusted well beyond "normal" for a variety of reasons.
All new vehicles leave the factory with their alignment checked and adjusted. Usually the technician paints the heads of the adjustment hardware to show it has been set, also to show if it has moved later on. It is advisable to do the alignment of the car after the first 5000 km, since all the suspension get set. Failure to do this may result in the camber and toe specifications drifting outside the manufacturer's limit. This may lead to vehicle pulling and tire wear.
Product Features

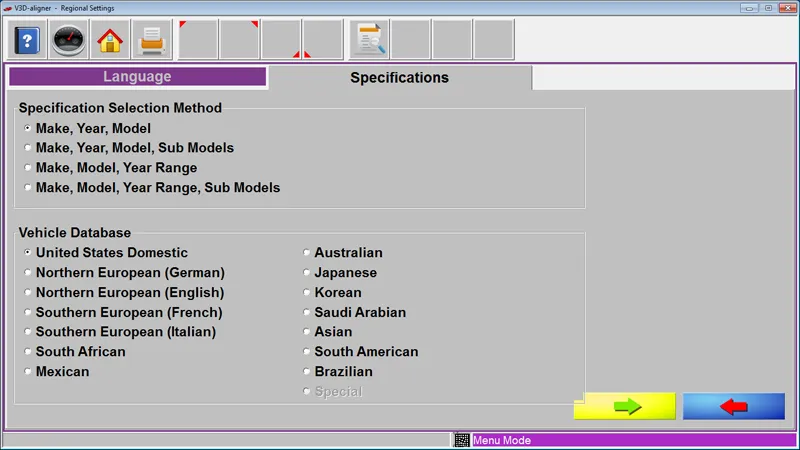

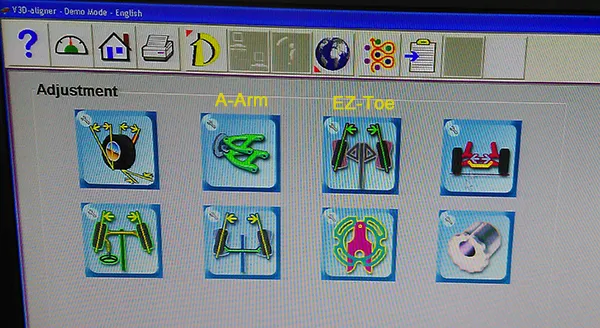

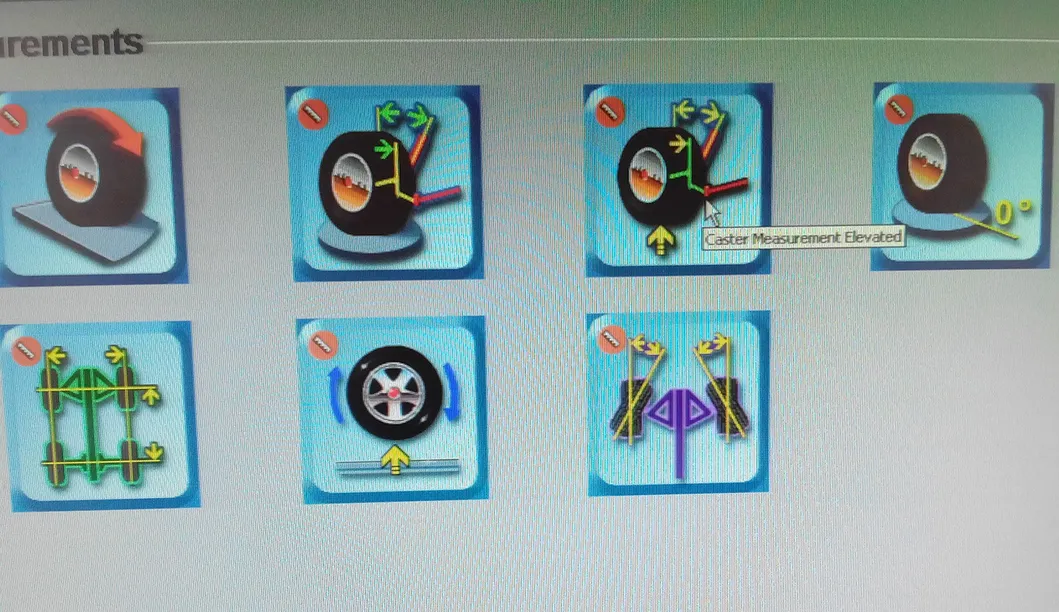

- Windows 7 computer system, 3D wheel alignment software.
- Easy to operate with guiding menu, reads alignment database within 3 minutes.

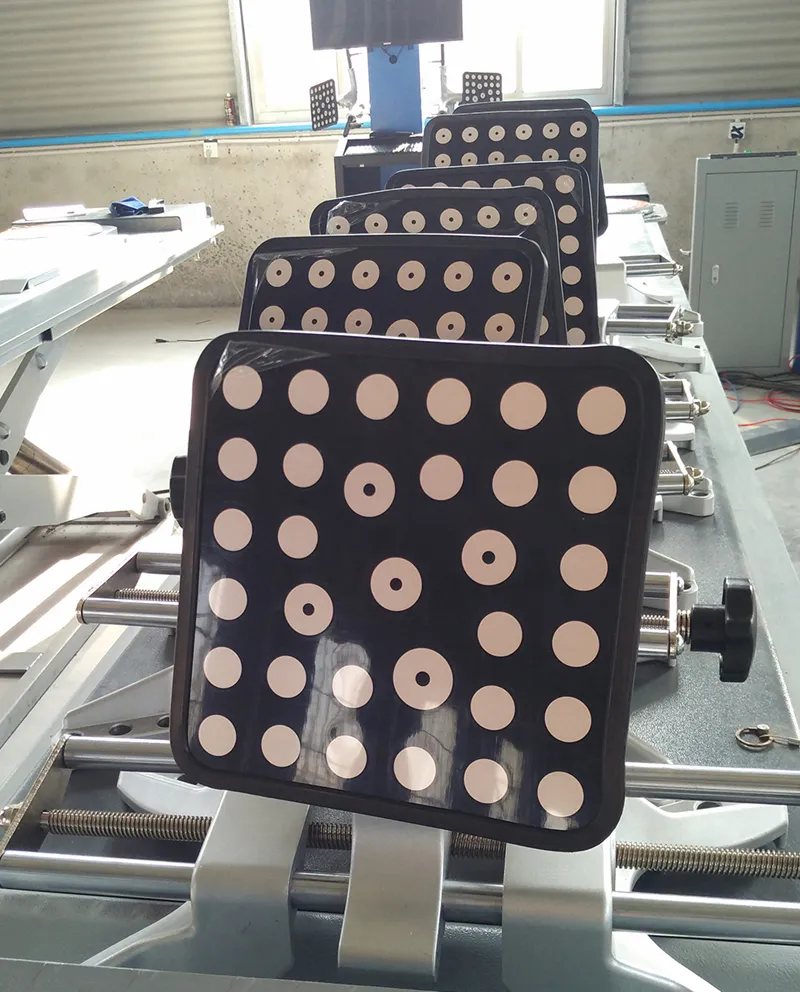

- The fault of the machine is reduced as there are no electronic elements, batteries, transmission cables, bluetooth, or infrared rays on the target plates.
- High-quality HP computer system.
- Calibration completed before delivery, highly convenient to use, and not influenced by the working site.
- Set with Volkswagen dedicated application, capable of measuring toe-arc for A6 and B5.
- Supports 26 kinds of languages for different countries and districts.
- Suitable for the measurement of vehicles with super-low chassis.
- Integrative cabinet design, simple yet robust.
- Over 25,000 vehicle database entries, with online updates.
Technical Data
| Item |
Measurement Accuracy |
Measurement Range |
Total Measurement Range |
| Camber |
±0.01° |
±8° |
±8° |
| Caster |
±0.05° |
±19° |
±19° |
| Front wheel KPI |
±0.02° |
±19° |
±19° |
| Total Toe |
±0.01° |
±2° |
±8° |
| Rear wheel thrust angle |
±0.01° |
±2° |
±4° |
| Toe-out on turn |
±0.08° |
±2° |
±40° |
| Axle offset of Rear wheel |
±0.02° |
±2° |
±4° |
| Wheel tread difference |
±0.03° |
±2° |
±8° |
| Front setback |
±0.02° |
±2° |
±4° |
| Rear setback |
±0.02° |
±2° |
±4° |
| Wheel tread |
±0.64cm(±0.25cm) |
<265cm(<105in) |
<265cm(<105in) |
| Wheelbase |
±0.64cm(±0.25cm) |
<533cm(<210in) |
<533cm(<210in) |

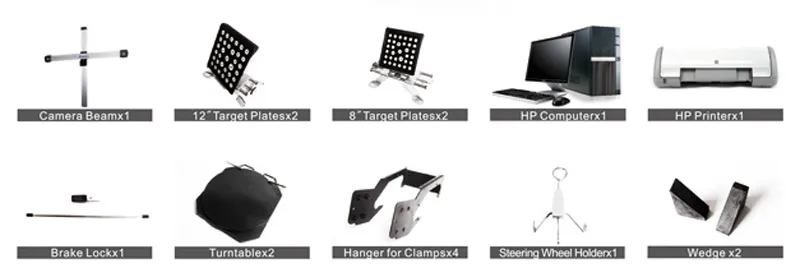

Standard Accessories Included
- Camera beam x 1
- Computer x 1
- Printer x 1
- Turnplate x 2
- Brake lock x 1
- Steel wheel lock x 1
- Target plate x 4
- Wedge x 1
- Hanger for clamp x 4

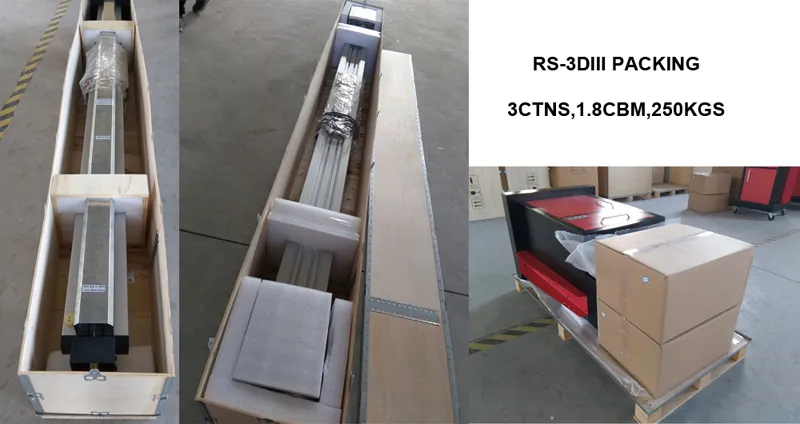

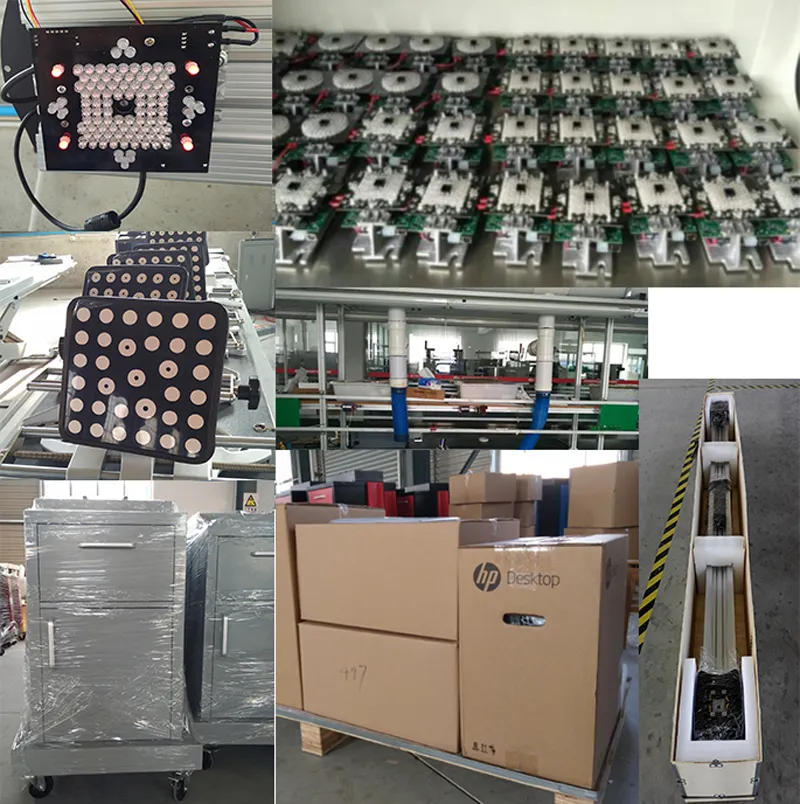

Packing Details
Total: 3 cartons | 250 kgs | 1.8 cbm
1) 1840x765x750mm, 1ctn
2) 2900x370x320mm, 1ctn
3) 2900x370x320mm, 1ctn
Our Service
We highly value your constructive suggestions for our services and equipment to help us continuously improve.
- Warranty: 12 months. Free replacement parts will be sent via courier or post if the machine experiences any faults within this period.
- Delivery Time: 10 days after payment received.
- Sample Order: 1 set sample order is acceptable.
- Payment Methods: T/T, Western Union, PayPal.
- Certificates: ISO, CE.
Our Advantages
- Products meet international quality standards all over the world, ensuring trouble-free reselling.
- 18 years of export experience with a deep understanding of various trade terms.
- Strong shipping support to ensure reasonable costs and timely delivery.
- 7 x 24 online customer service support.
- Acceptance of multiple payment methods.
Frequently Asked Questions (FAQ)
What is the warranty period for the 3D Wheel Alignment machine?
The machine comes with a 12-month warranty. If any components malfunction during this period, replacement parts will be shipped to you free of charge via courier or mail.
How large is the vehicle database and can it be updated?
The database contains parameters for more than 25,000 vehicle models. It supports online updates to keep up with newly released car models.
Does the alignment software support languages other than English?
Yes, the software supports 26 different languages, including English, German, Russian, and others to suit various global regions.
What computer operating systems are compatible with the software?
The 3D wheel alignment software is fully compatible with Windows XP and Windows 7 computer systems. An HP computer is included in the standard package.
What is the shipment packaging configuration?
The total package is distributed across 3 cartons, weighing 250 kgs in total, with a volume of 1.8 CBM. The dimensions are: one carton of 1840x765x750mm and two cartons of 2900x370x320mm.
What are the measurement accuracies for the Camber and Caster?
The measurement accuracy for Camber is ±0.01° (measurement range ±8°) and for Caster is ±0.05° (measurement range ±19°).
