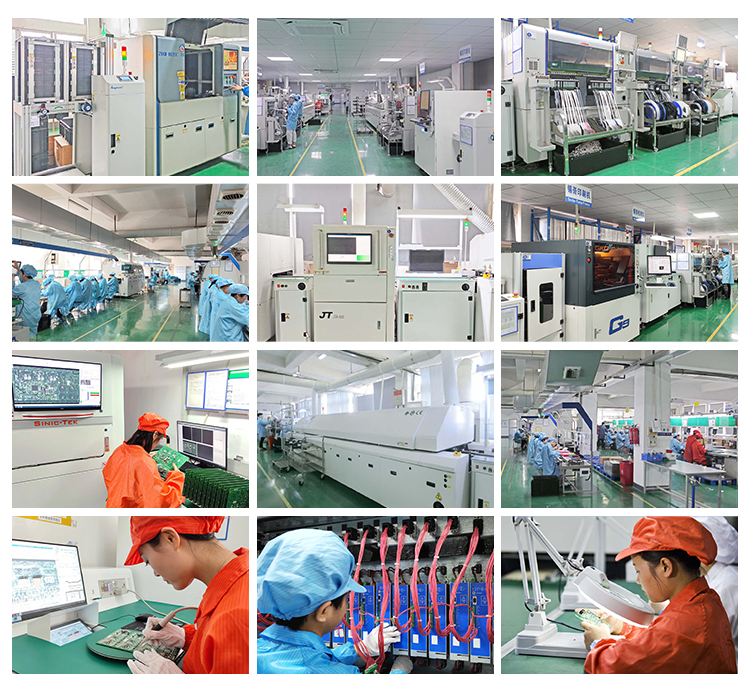

| SMT Assembly Line | 8 Lines |
| Layer | 1-40 + layers |
| Assembly Type | Through-Hole (THT), Surface Mount (SMT), Mixed (THT+SMT) |
| Capacity | 48.2 Million Placements Per Month |
| Component Board | Max: 550*450MM Min: 50MM*50MM |
| Speed | 0.15sec/chip 0.7sec/QFP |
| Wave-Solder | Max. PCB width: 550MM*450MM; Min: 50MM*50MM Component height: Top 120 mm/Bot 15 mm |
| DIP Capacity | 420 square meters per hour |
| Components | Passives Down to 0201 Size BGA and VFBGA Leadless Chip Carrier/CSP Double-Sided SMT Assembly Fine Pitch to 08 Mil BGA Repair and Reball Part Removal and Replacement-Same Day Service |
| Solder Type | Water Soluble Solder Paste, Leaded and Lead-Free |
| Test Equipment | FAI, X-RAY, SPI, ICT, FCT, AOI, 3D AOI, Burn-in, High-temperature Load... |
| Box Build | Box Build Integration and Assembly |
| Quotation Document | Bill of Materials, Gerber Files, Pick-N-Place File(XYRS) |
| Turnaround Time | Prototype: 24 hours to 7 days, Production: 10 days to 30 Days |
| Quantity | No MOQ, Prototype PCB Assembly & Small Batch PCB Assembly & Wholesale PCBAs |
| Certificate | ISO9001:2015/CE/RoHS/ISO 13485/IATF 16949 |
| Environmentally Friendly | We are committed to environmental sustainability and use lead-free, RoHS-compliant materials. |
We provide turnkey solutions including PCB design, software development, PCB assembly, enclosure design, mold-making, plastic injection, finished product assembly, and functional testing.
Our PCB/PCBA services are mainly designed for industries including industrial control, home appliances, automotive electronics, consumer electronics, medical equipment, new energy, banking equipment, and smart home solutions.
We are a professional contract manufacturer with 24 years of experience, providing one-stop turnkey PCB assembly and electronics manufacturing services.
Yes, we are open and transparent about each production step. Customers are welcome to inspect our production lines and review our in-house quality controls.
We are fully prepared to sign non-disclosure agreements (NDAs) that are legally binding under your local laws to ensure your design data is maintained at the highest level of confidentiality.
No, we have no MOQ requirements. We can support your projects starting from prototype development through to high-volume mass production.
