Get the Highlights

• Module testing equipment, using advanced technology controlled by digital circuits, specially designed for module batteries. The equipment comes with a feed network function, with a maximum feedback efficiency of 90% and an input power factor of >99%, THDi ≤5%.
• The maximum charging efficiency is 92%, and the maximum discharging efficiency is 90%.
• Equipped with CAN and 485 communication interfaces, it can customize protocol loading and DBC protocol loading.
• Support signal judgment, display, and data recording.
• Voltage accuracy ± 0.05% FS, current accuracy ± 0.05%. Voltage resolution 1mV, current resolution 1mA.
• The device comes with output overvoltage protection, output overcurrent protection, undervoltage protection, and bus overvoltage protection.
• The number of work steps on the upper computer is 2000, the number of work step cycles is 65535, and the nested loops are 5.
• There are multiple data curve displays available, supporting customers to configure curve displays at will.
• Output ripple ≤ 1%.
• Charging voltage range: 0V~150V, discharging voltage range: 6V~150V, charging and discharging current range: 0A~240A.
• Charge and discharge current 10%~90% FS, response time <10ms, charge and discharge current -90%~90% FS, response time <20ms.
• Support single channel independent control.

Product descriptions from the supplier

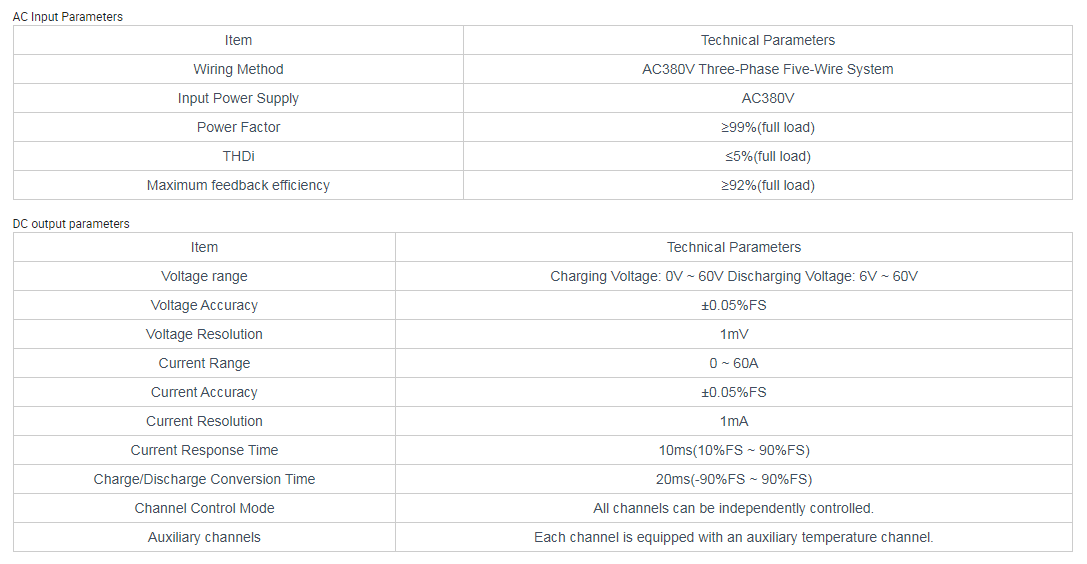

SPECIFICATIONS

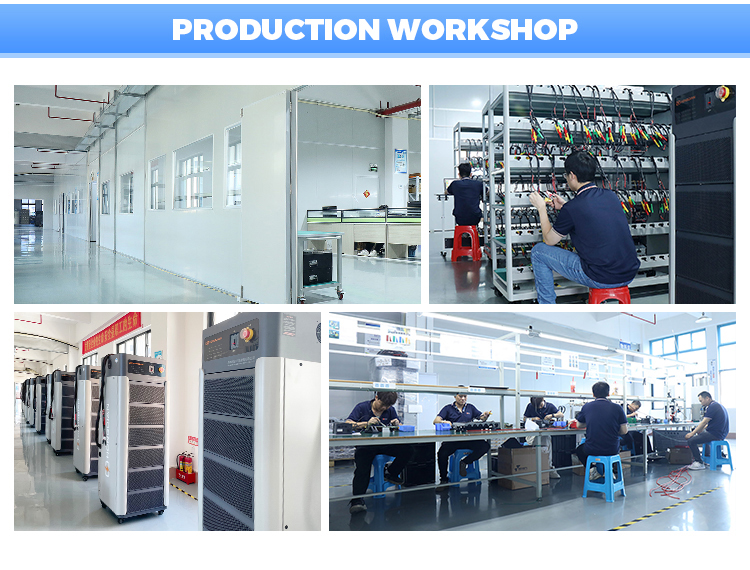

COMPANY INTRODUCTION
