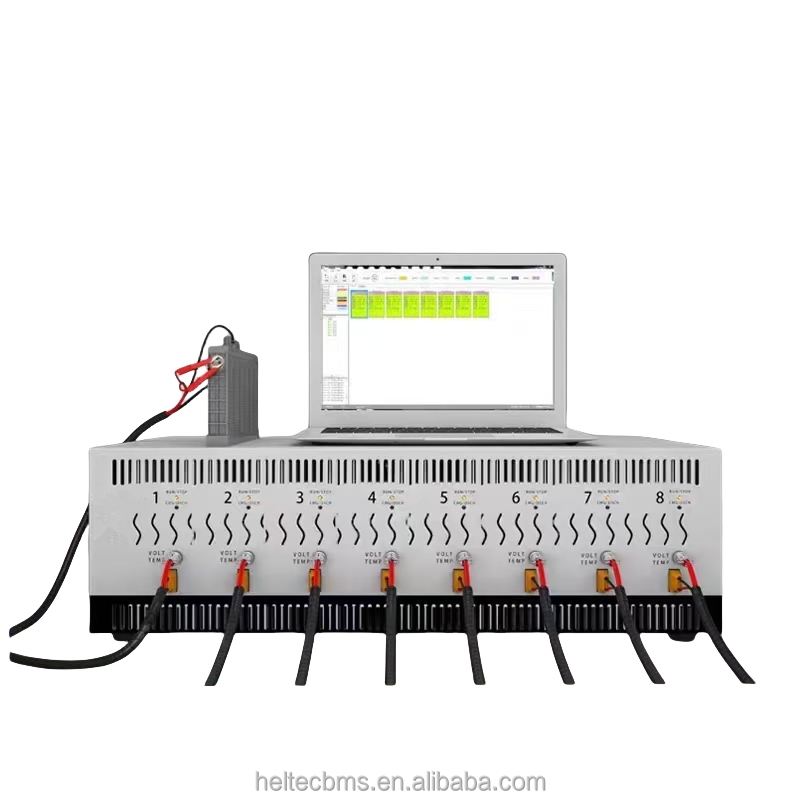

Capacity Tester with Charge/Discharge/Balance. Fully compatible with lithium iron phosphate, lithium ternary, lithium cobaltate, NiMH, NiCd and other types of batteries.
Capacity Tester with Charge/Discharge/Balance. Fully compatible with lithium iron phosphate, ternary lithium, lithium cobalt oxide, nickel metal hydride, nickel cadmium and other types of batteries.
Capacity Tester with Charge/Discharge/Balance. Fully compatible with lithium iron phosphate, ternary lithium, lithium cobalt oxide, nickel metal hydride, nickel cadmium, lead acid and other types of batteries.

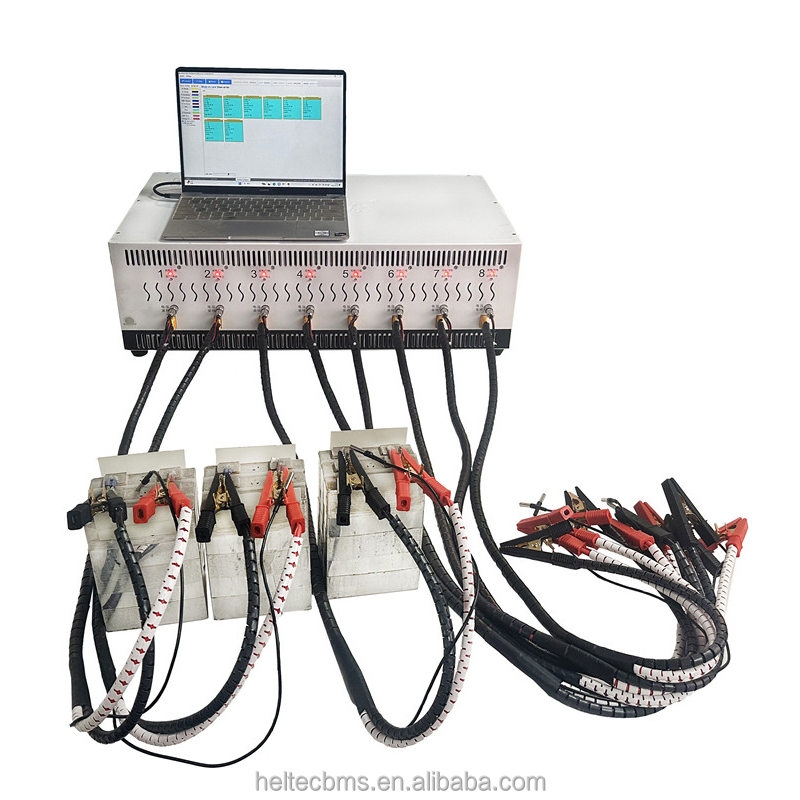

Fully compatible with lithium iron phosphate, ternary lithium, lithium cobalt oxide, nickel metal hydride, nickel cadmium, lead acid and other types of batteries. Used for charging and discharging test and maintenance of electric vehicle batteries, energy storage batteries, solar cells, or any battery of suitable voltage.

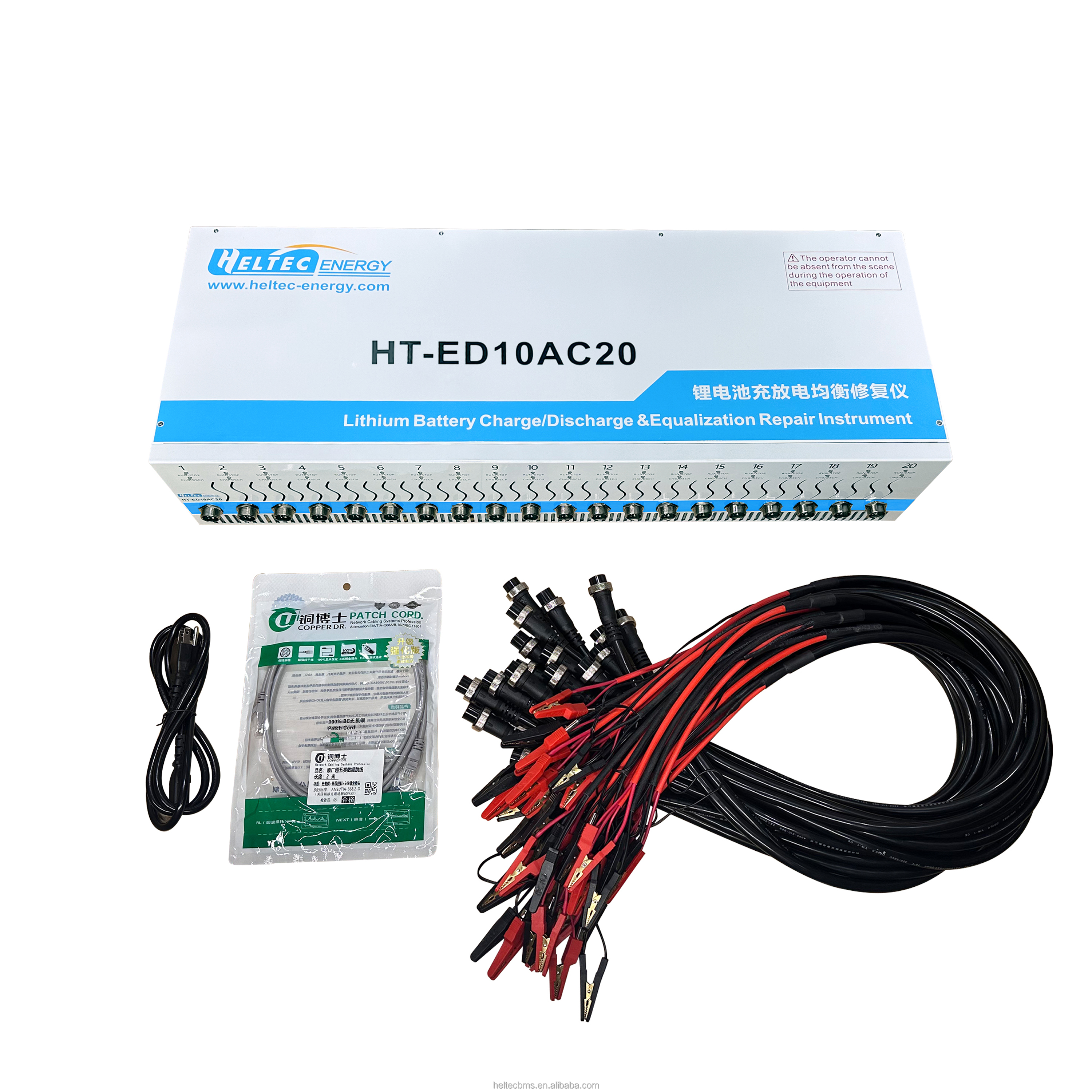

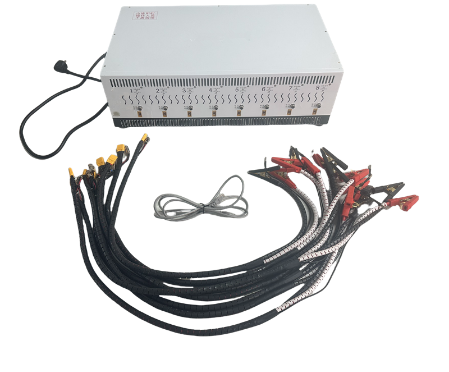

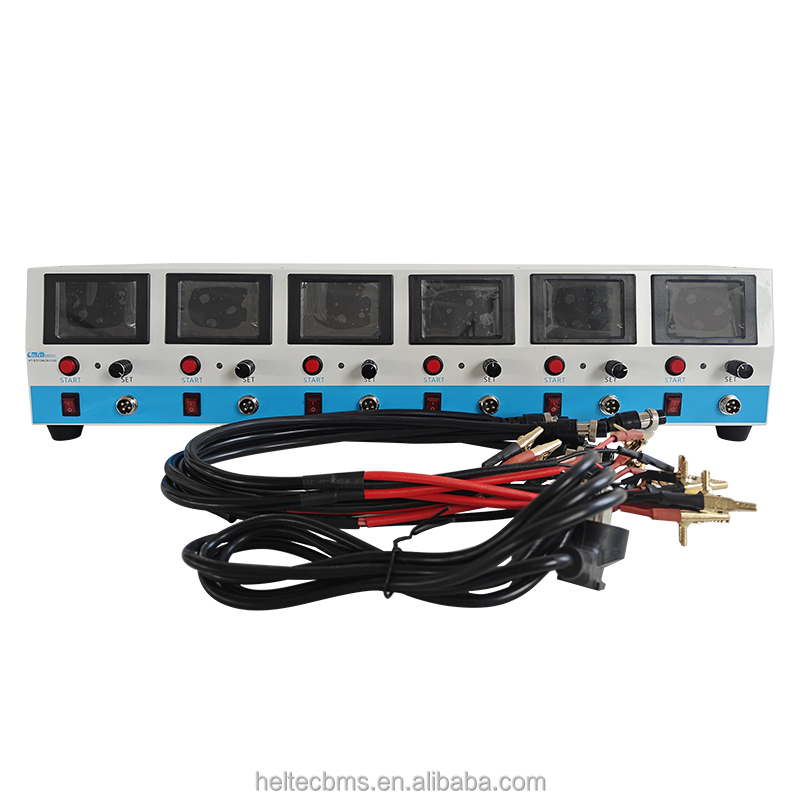

| Models | HT-ED10AC20 | HT-ED50AC8 | HT-ED10AC8V20 | HT-ED10AC6V20D |
|---|---|---|---|---|
| Number of channels | 20 channels | 8 channels | 8 channels | 6 channels |
| Max Charging Current | 10A | 50A | 10A | 6A |
| Max Discharging Current | 10A | 50A | 10A | 10A |
| Balance Function | Yes | Yes | Yes | Yes |
| Input power | AC200V~245V 50HZ/60HZ | |||
| Standby power | 80W | 80W | 80W | 20W |
| Full load power | 1650W | 3200W | 2400W | 900W |
| Allowable temp & humidity | Ambient temperature <35 degrees; humidity <90% | |||
| Voltage range (signal channel) | 1-5V (0.1V adjustable) | 1-5V (0.1V adjustable) | 1-20V (0.1V adjustable) | 7-23V (0.1V adjustable) |

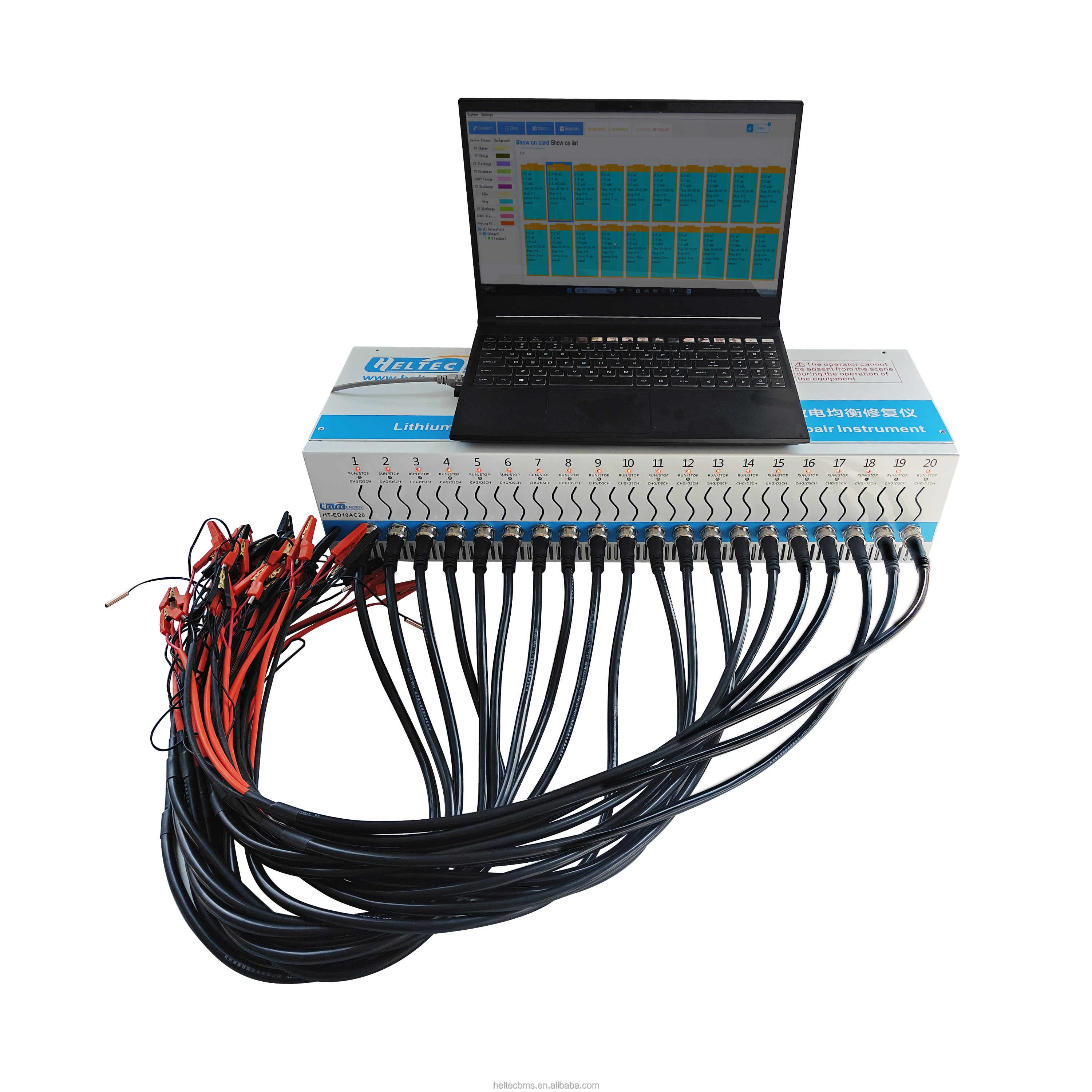

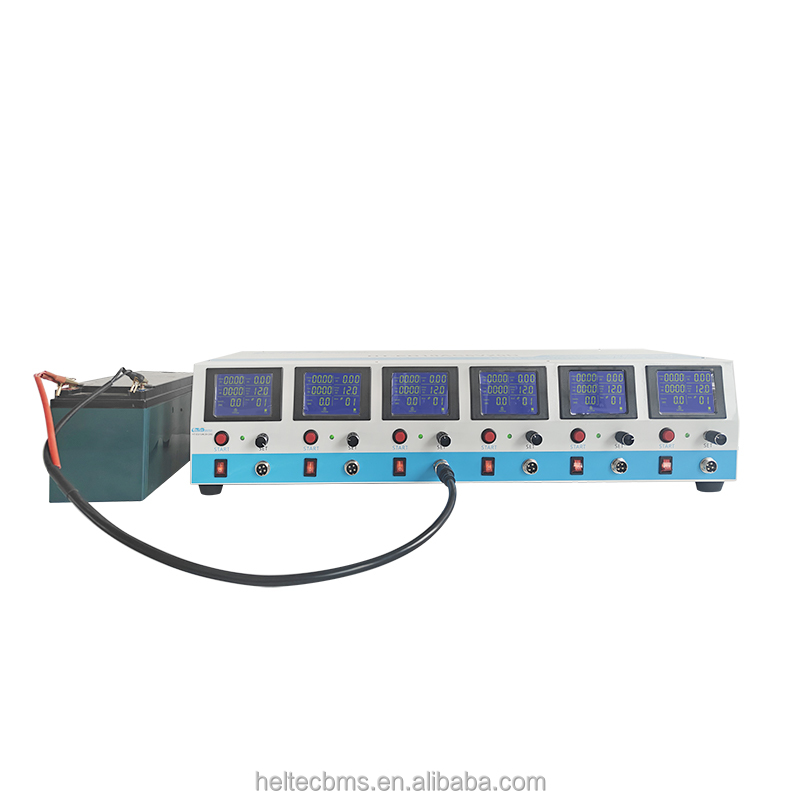

| PC Software | Yes | Yes | Yes | No (with Display) |
| Upper computer configuration | Windows XP or above systems with network port configuration | Direct operation on the machine | ||
| Measurement voltage accuracy | ±0.02V | ±0.02V | ±0.02V | ±0.03V |
| Measuring current accuracy | ±0.02A | ±0.02A | ±0.02A | ±0.03A |
| Inter-channel voltage resistance | AC1000V/2min without abnormality | |||
Our new Lithium Battery Charge/Discharge & Equalization Repair Instrument optimizes this workflow. By combining the first full charged/discharged stage and consistency screening into a single automated process, it dramatically cuts labor and testing steps. Results are judged and displayed automatically for easy classification.
Full channel isolation test, can directly test the whole battery cell.
6A/10A/50A charge, discharge, and balance power configurations.
Wide cell compatibility: 18650, 26650, LiFePO4, Ni-MH, pouch batteries, prismatic batteries, and single large batteries.
Independent air ducts for heat sources, paired with temperature-controlled and speed-controlled fans.
Cell test probe height is adjustable with a scale for easy leveling (min: 22mm, max: 75mm).
LED indications for operation detection status, grouping status, and alarms.

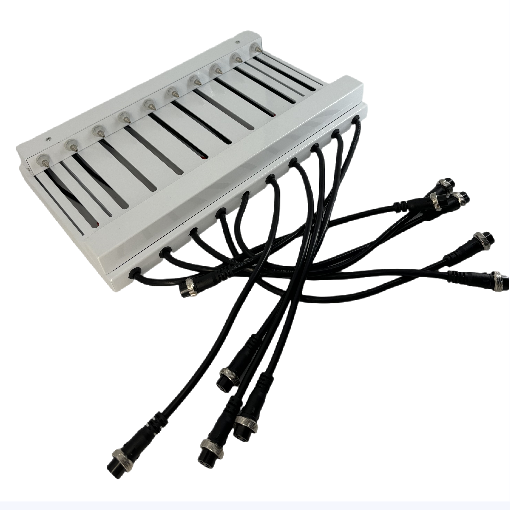

Yes, we have an in-house design department. We provide hardware design, ARM and Mbed system software design, and specialized brackets or configurations to meet customer requirements.
It generally takes about 3-5 days to prepare samples, and 7-30 days for mass production depending on order volume and configurations.
We maintain stable warehouse levels for standard models. For customized configurations, we work closely with professional SMT assembly lines to process your order promptly.
We evaluate package size and weight to recommend the most cost-effective shipping mode (express, air, or sea). Customers are also welcome to arrange their preferred carrier.
Every instrument undergoes testing with professional calibrators. Our QC team conducts manual checks and full-cycle runs before final packaging.
These testers support a wide array of battery chemistries, including Lithium Iron Phosphate (LiFePO4), Ternary Lithium, Lithium Cobalt Oxide, Nickel-Metal Hydride (NiMH), Nickel-Cadmium (NiCd), and Lead-Acid batteries depending on the voltage parameters of the chosen model.
