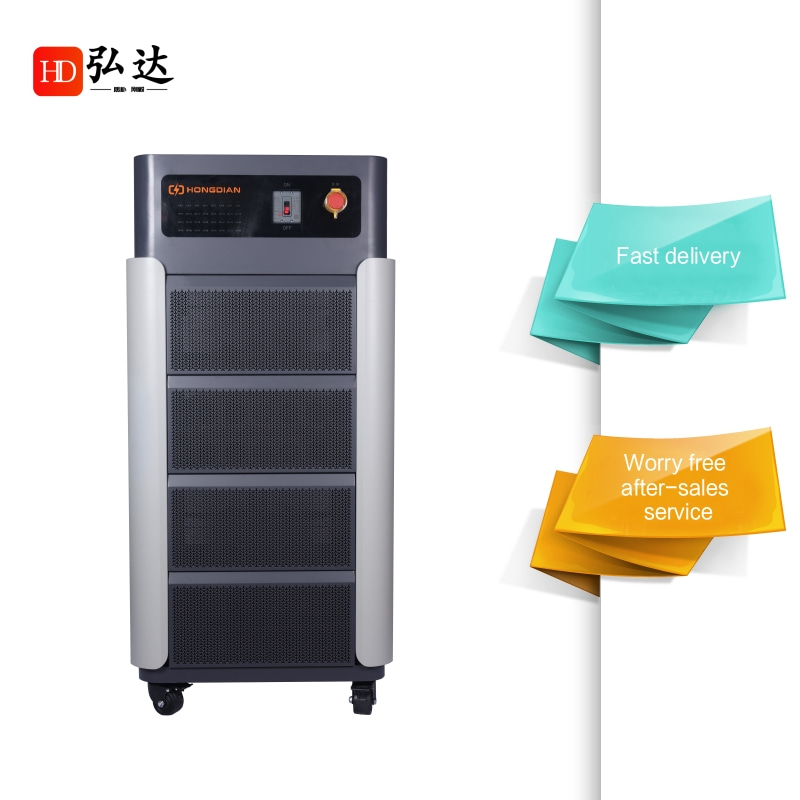

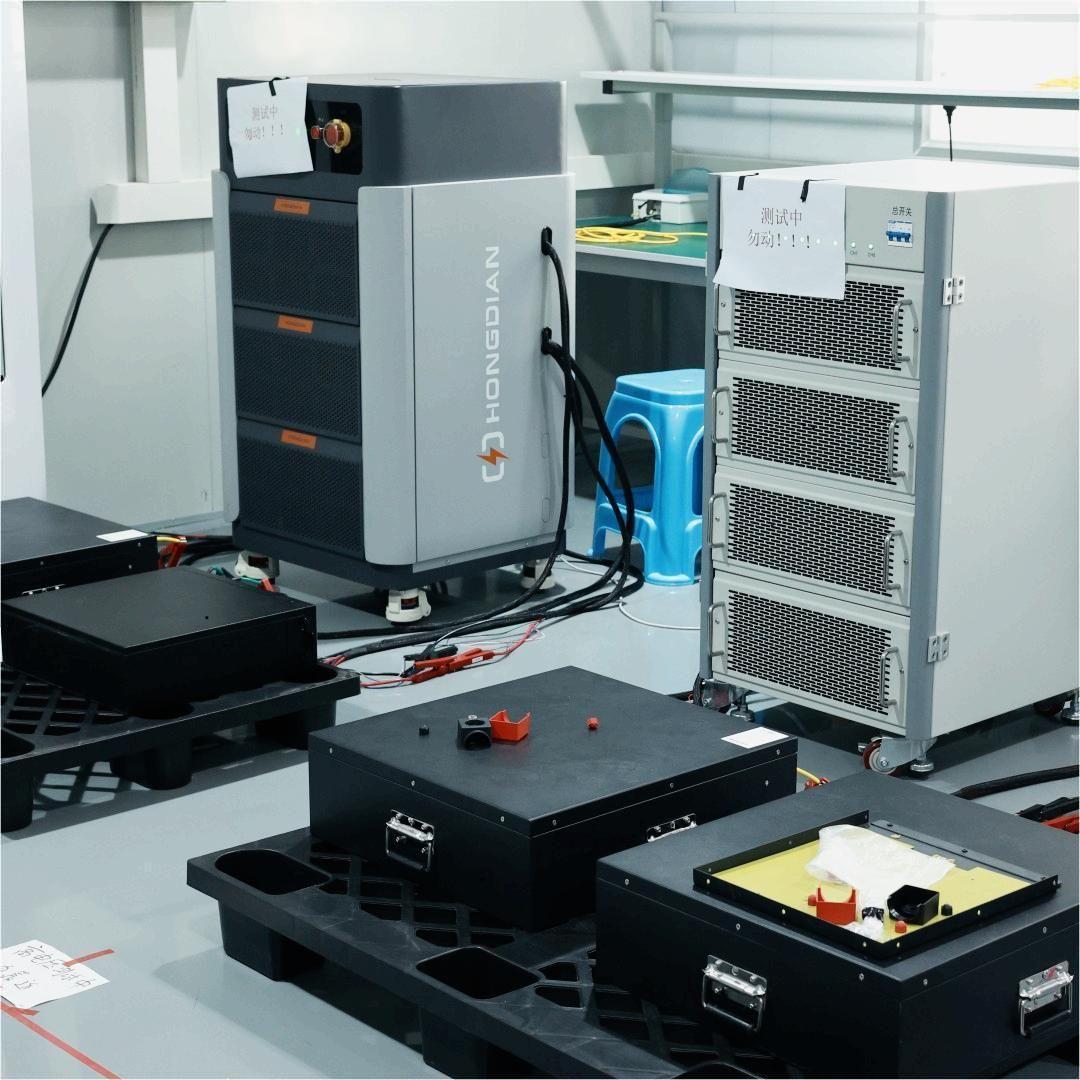

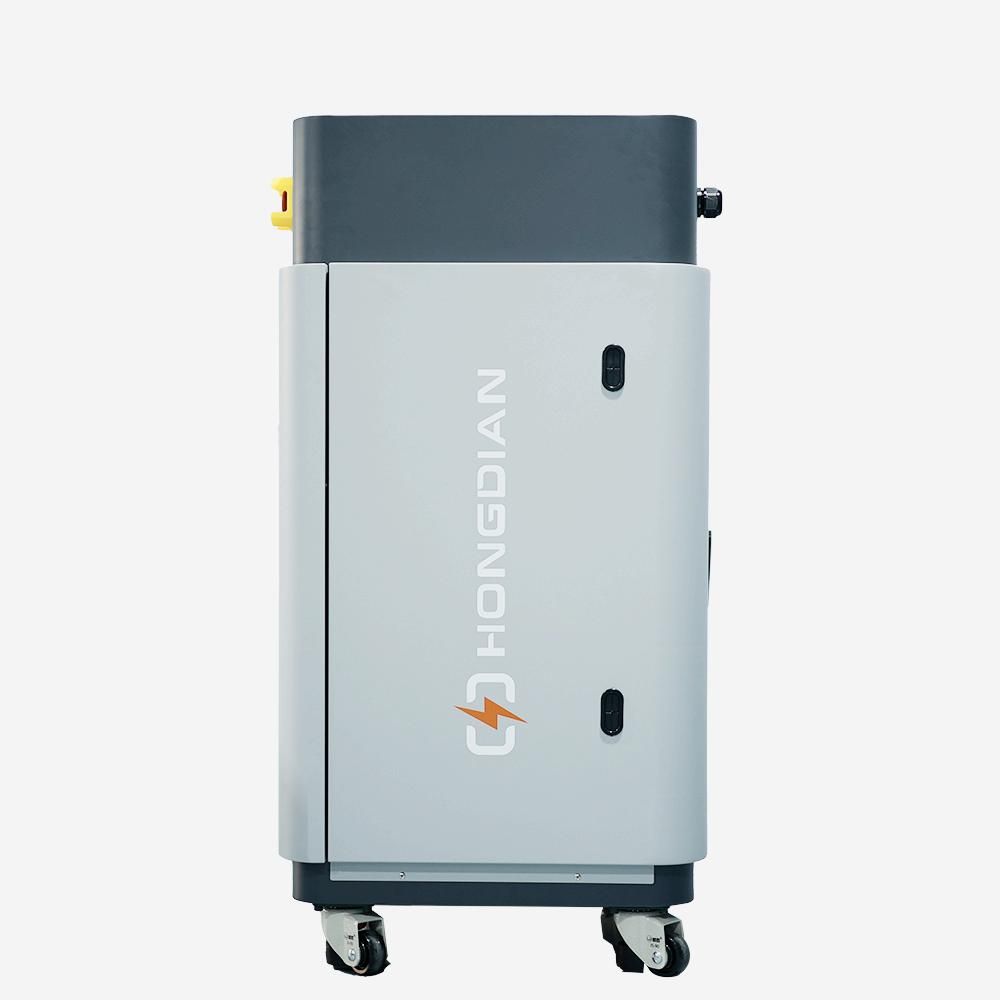

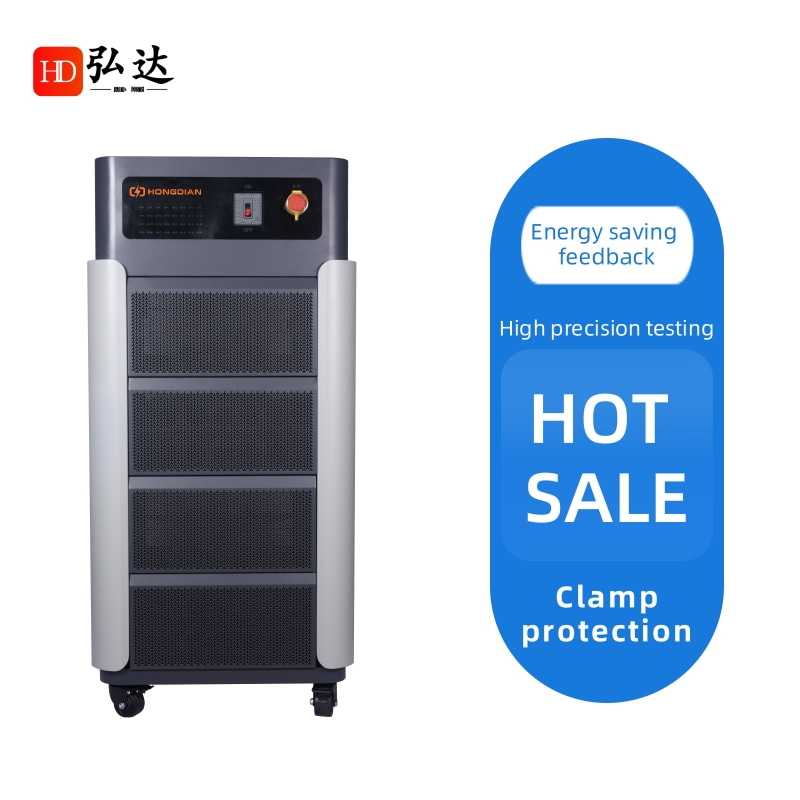

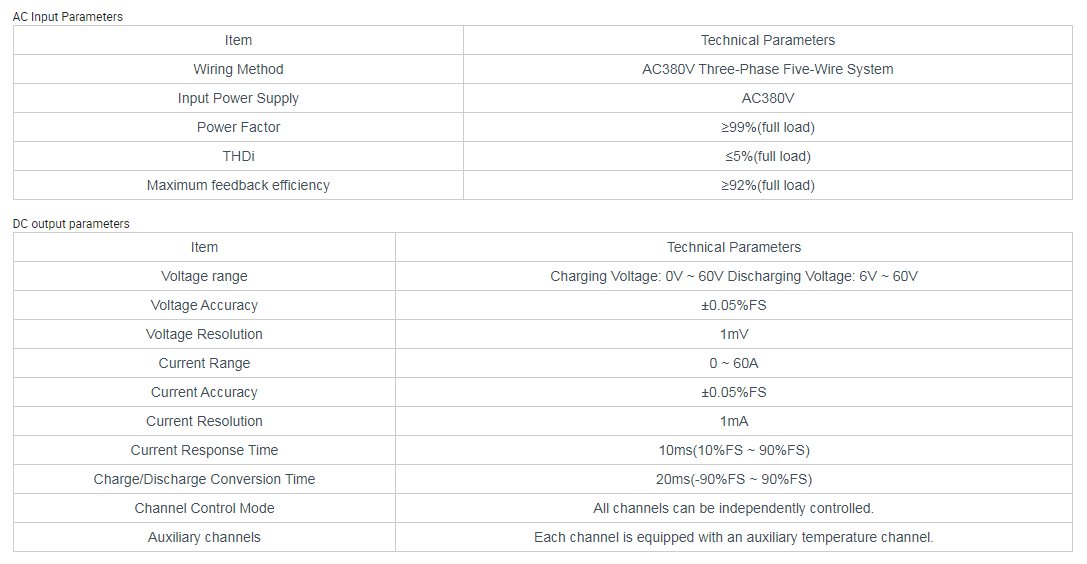

Module testing equipment, using advanced technology controlled by digital circuits, specially designed for module batteries. The equipment comes with a feed network function, with a maximum feedback efficiency of 90% and an input power factor of > 99%, THDi ≤ 5%.
The maximum charging efficiency is 92%, and the maximum discharging efficiency is 90%.
Equipped with CAN and 485 communication interfaces, it can customize protocol loading and DBC protocol loading.
Support signal judgment, display, and data recording.
Voltage accuracy ± 0.05% FS, current accuracy ± 0.05%. Voltage resolution 1mV, current resolution 1mA.

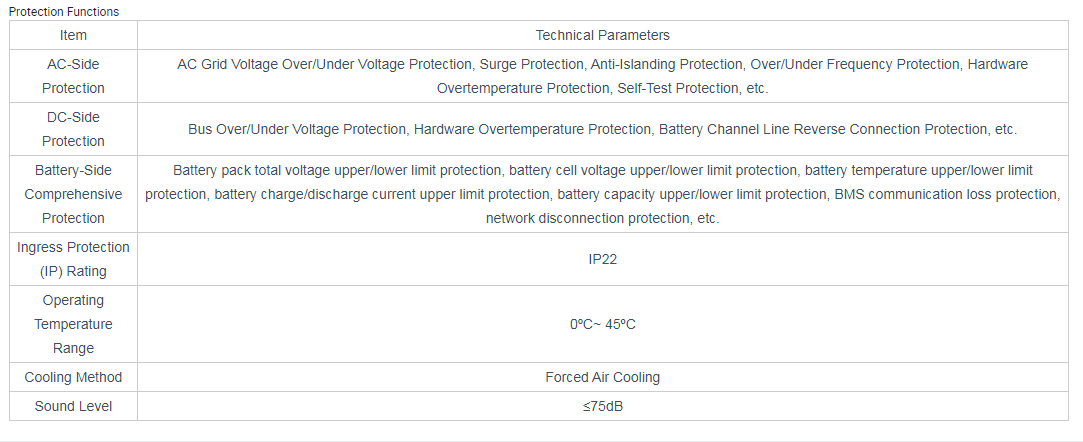

The device comes with output overvoltage protection, output overcurrent protection, undervoltage protection, and bus overvoltage protection.

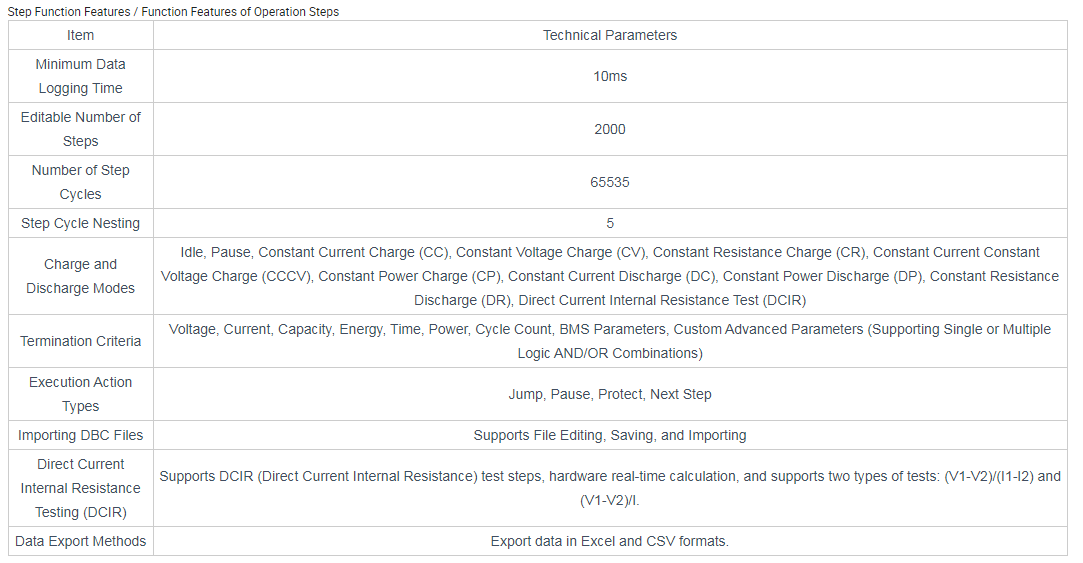

The number of work steps on the upper computer is 2000, the number of work step cycles is 65535, and the nested loops are 5.
There are multiple data curve displays available, supporting customers to configure curve displays at will.
Output ripple ≤ 1%.
Charging voltage range: 0V~150V, discharging voltage range: 6V~150V, charging and discharging current range: 0A~240A.
Charge and discharge current 10%~90% FS, response time < 10ms, charge and discharge current -90%~90% FS, response time < 20ms.
Support single channel independent control.
We typically provide a quotation as soon as possible after receiving your inquiry. If you need pricing urgently, please highlight it in your inquiry so we can prioritize your request.
Our prices are based on comprehensive cost calculations. As a manufacturer, we strive to offer you both high quality and competitive pricing.
Absolutely. We are a manufacturing factory with over 10 years of experience and place great importance on our reputation. High quality is always our top priority, so you can have full confidence in our production.
Once the order is placed, shipping generally takes 7 to 10 days. If the items are in stock, they can be dispatched even faster.
We offer a variety of shipping options including express delivery, air freight, and sea freight—tailored to your requirements. We always strive to find the most suitable and cost-effective solution for you.
