Product Description

[EU/UK Version]

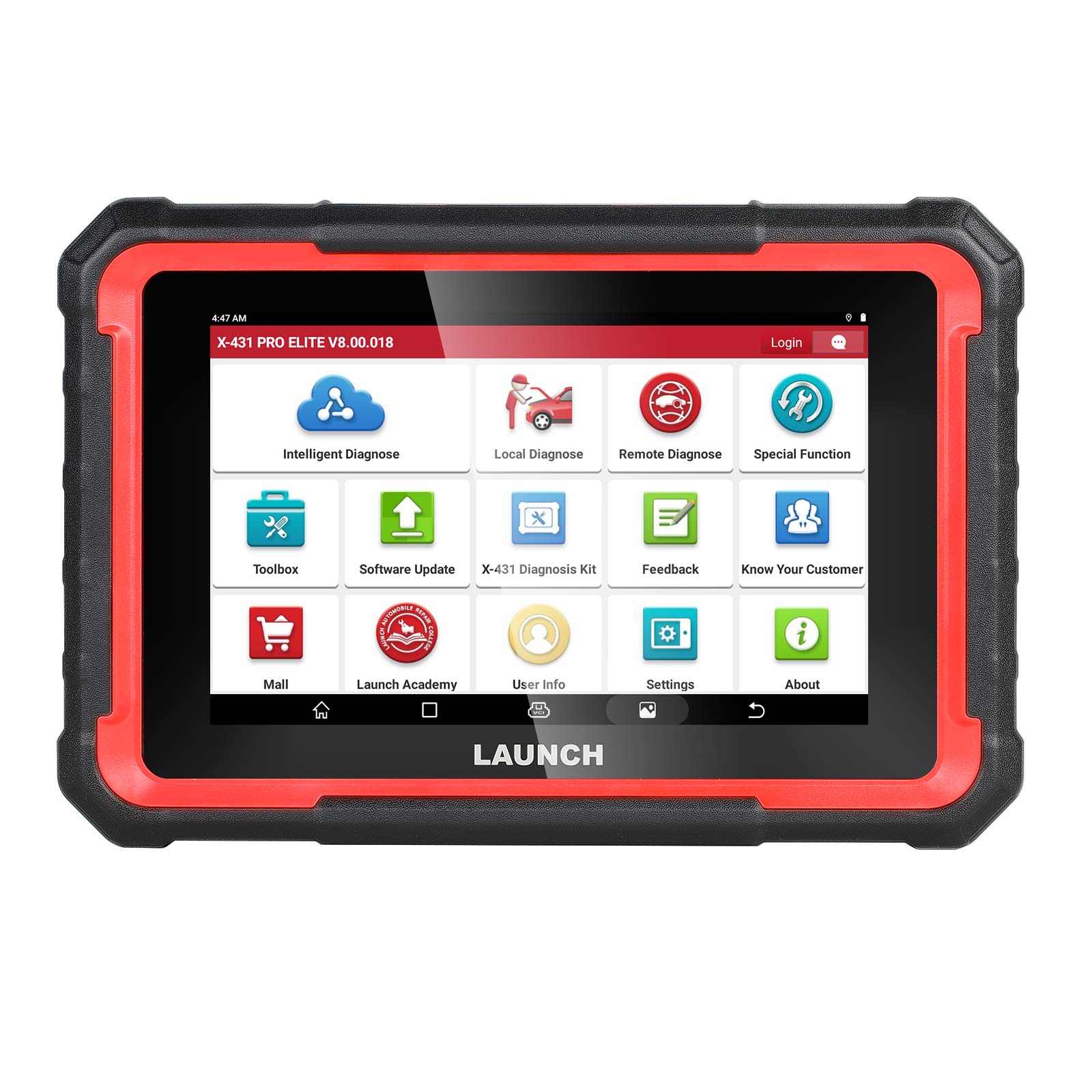

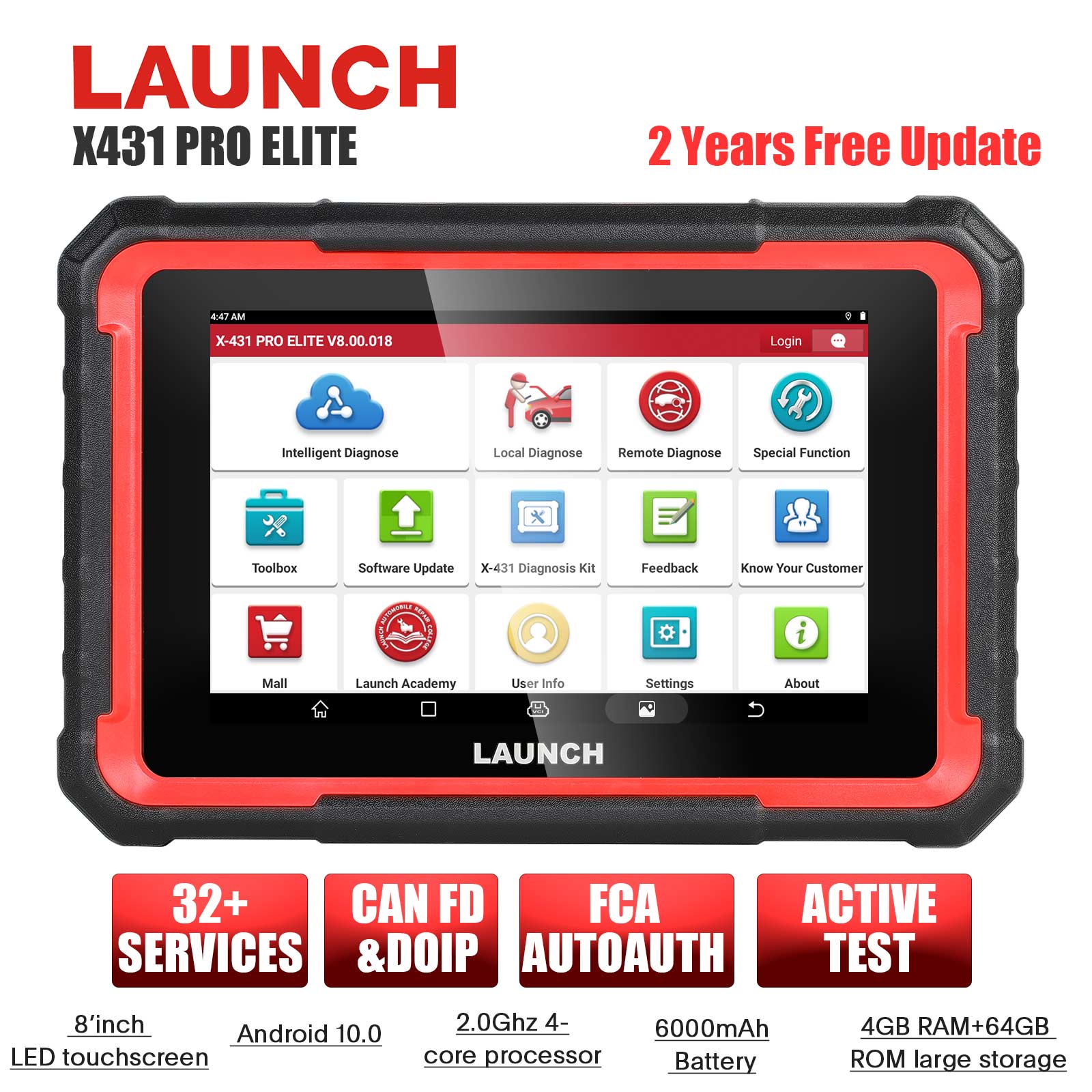

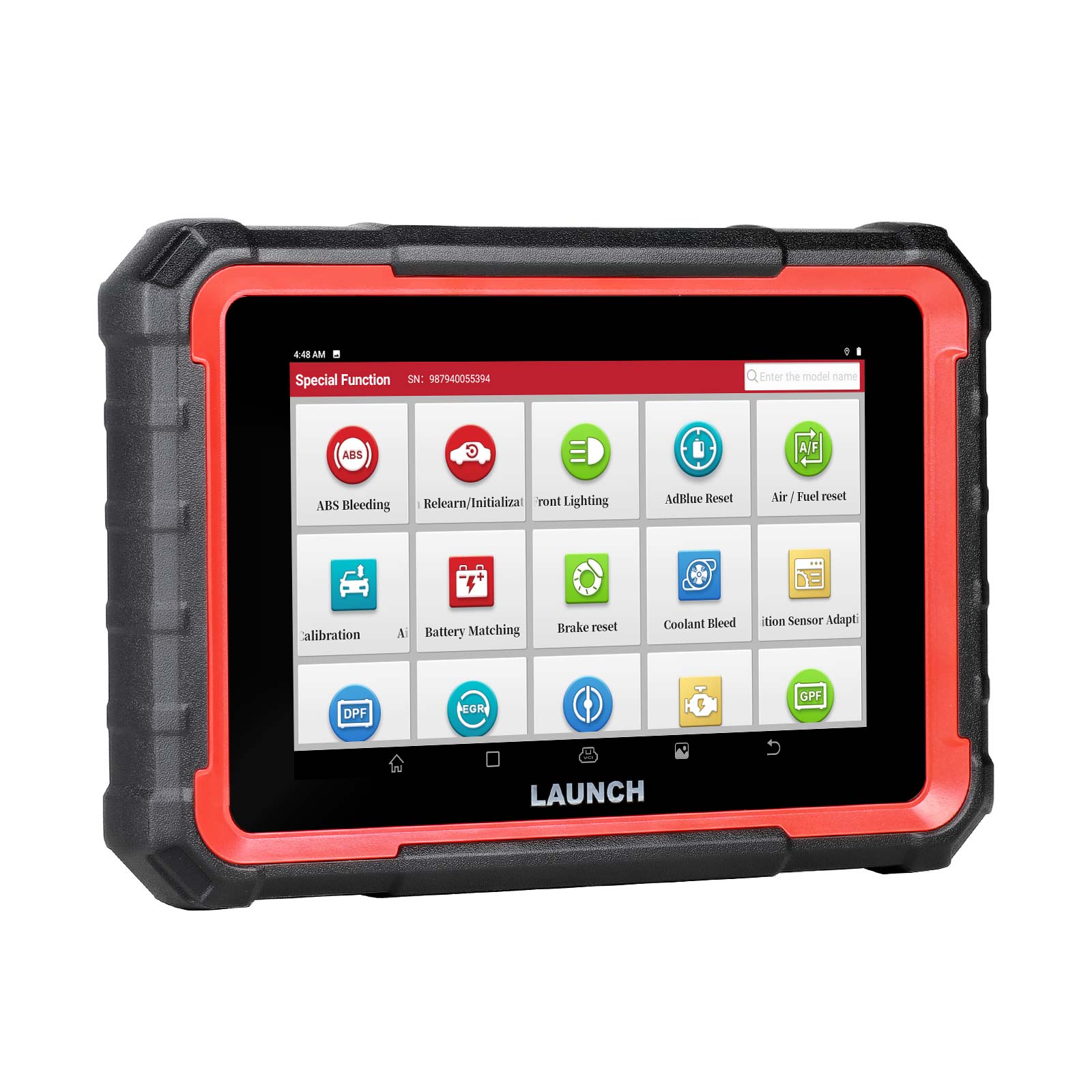

LAUNCH X431 PRO Elite Bidirectional Scan Tool(Same as X431 PROS V +), 32+ Reset for Most Cars, Read ECU, Key IMMO, OEM Full System Diagnostic

LAUNCH X431 PRO Elite Bidirectional Scan Tool Functions:

1. 2 Years Free Update, Same as X431 V, X431 PROS, X431 V+ 4.0.
2. EU/UK version, for EU/UK Customers only.
3. NEW ADVANCED OE-LEVEL FUNCTIONS: Guided Functions + Variant Coding (Offline Programming) + AutoAuth for FCA SGW+ Read ECU + + Component Matching + Flash Hidden Functions + Anti-theft IMMO Service + Setting & Changeover +Modification +Offline Coding + Initialization+Adaptation+ Matching+ +Customization + Personalization
4. More Than 32 Resets FUNCTIONS: Fix 99% of car-related maintenance issues.NEW ADDED MAINTENANCE FUNCTIONS: GPF Regeneration, High Voltage Battery Health Test, RESET Program(Extension).
5. OE-level All Systems Diagnostics: You can easily get the VIN information of the car, and do a full scan for your car & get a diagnostic health report. Launch X431 Pro Elite scan tool is designed to troubleshoot all systems, Retrieve the tested ECU information/Read & erase Diagnostic Trouble Codes, and pinpoint the trouble area. View the Live Data.
6. Active Test (Bi-directional Control): Actuate solenoids and actuators for active testing, send commands to systems/components to test their working status, without using the vehicle controls
7. Easy to operate: Auto VIN Scan + One Click Update + Diagnostic Report + Diagnostic Feedback
8. More Than 150 Brands and 20000+ Cars supported + 25 Languages + 2 Years Update
9. Online Maintenance Resources: Operating skills, DTC Help, Automotive Technology handbook, Repair Case and How-to Videos.
10. AutoAuth: For 2017 and later FCA Vehicles with Secure Gateway Module (SGW) Register with AutoAuth to enable your LAUNCH X431 PRO ELITE tablet to communicate with the FCA SGW Authentication System and bypass the SGM, so as to perform diagnostics and bi-directionals without using a bypass cable. (An extra charge is needed To Access)

1. LAUNCH X431 PRO ELITE is a professional full systems diagnostic scan tool on ECU:

• ECU CODING: LAUNCH X431 PRO ELITE has the advanced ECU Coding & Online Coding function to cover more car models, including the old & new models without extra cost. With the ECU coding function, it can to Match, learn, or code the newly replaced ECU, update the vehicle ECU software, refresh hidden features to disable annoying functions, like disabling seat belt beep, and daylight running light, and Match certain components after repairs or replacements and Reprograms the adaptive data for certain components after repairs or replacements and help professional mechanics/technicians to do vehicle repairs. Customize the cars fast, have greater work efficiency, and meet customer needs.
• ACTIVE TEST (BI-DIRECTIONAL CONTROL): LAUNCH X431 PRO ELITE car scanner diagnostic tool Features Full bi-directional control ability, to send commands to the vehicle’s systems/components, to verify system input/output without using the vehicle's controls, e.g. turn on the radiator fan, modulate the throttle, open/close windows, operate mirrors, Injector Buz Test, turn on interior & exterior lights, sound horn, test door lock actuators and such.
• KEY PROGRAMMING: Add, Delete & Reprogram Keys, Rewrite smart keys, All smart keys lost, Replace smart key ECU, Replace KNOB IGNITION; Reset Key: Relearn a key. (Note: this key programming function is NOT universally compatible .please check compatibility with us if necessary. X431 PRO ELITE supports PINCode reading for most cars before 2008, for vehicles after 2008, you need to have PINCode to do key programming)
• FULL SYSTEMS DIAGNOSES IN ALL VEHICLE SYSTEMS ON THE ECUS: Read/erase codes, view live data, retrieve ECU version information. It performs active testing and service functions on all systems including ECM, TCM, ABS, SRS, BCM, IMMO, BMS, TPMS, SAS, fuel system, lighting system and A/C system. The functions cover up to 200,000 models worldwide.
• 32+ MAINTENANCE INFORMATION: There are some practical operation cases uploaded by LAUNCH to help you better understand how to carry out the next step. There are wiring diagrams of specific brands of vehicles in the maintenance materials for reference.
• BRUSH HIDDEN FUNCTION: You will use this function when replacing modules such as audio, radar, windows, etc. It can refresh the car to achieve the effect of the recognition module. Different cars support different module functions.
• MATCHING: This function matches and synchronizes the components with each module after you replace the module, such as Gearbox Matching / A ir Suspension Matching / Seat Matching / Headlight Fitting / Door and Window Initialization Study / Sunroof Initialization / Injector Calibration / Multimedia Video Reset / Cluster Reset / Immobilizer Service / Tire Change Reset...etc (depends on specific car models, not for all cars)
• ONLINE REPAIR RESOURCES: Provide more than 200000+ vehicle models' service & repair information, handbook, repair case and operation skills.
• MAINTENANCE HELP: Including How-to Videos, operation skills, user manual, Q&A, Quick Start guide, etc. So you won't have to take it to the Dealers.

2. TPMS Programming & Key Programming Functions

All-in-One Tool for Diagnoses and Inspections: Launch X431 PRO ELITE Combined with X431 TSGUN or Launch X431 i-TPMS with Complete TPMS function, TPMS Reprogramming, Relearn and TPMS Retrofit.
The step is Check sensors >> Activate Sensor >> Program Sensor >> TPMS Diagnose >> TPMS Relearn/Reset >> Turn/off TPMS Warning Light.

4 Modes to Program Launch Scanner:

1. Auto Create: The user can generate the sensor ID by clicking auto button
2. Manual Input: X431 tsgun support manually input the original ID or other ID.
3. Copy by OBD: it needs to connect the OBD cable to retrieve the sensor ID from the ECU.
4. Copy by Activation: It requires activating the original sensors first.

3 Ways to Relearn LAUNCH Sensors:

1. Stationary Relearn requires the vehicle to be placed in the learning mode, and the follow the on-screen prompts to complete it.
2. Automatic Relearn, for some vehicles, can be completed by driving. Refer to the on-screen learning steps to do the operation.
3. OBD Relearn directly writes TPMS sensor IDs to the TPMS module via the OBD connector. To perform relearn by OBD, firstly activate all sensors, and then use the diagnostic tool together with the included VCI to complete the learning steps following the on-screen instructions.

Example of Advanced Coding/Programming Functions for Cars:
- VW/AUDI MQB platform engine and gearbox ECU replacement or cloning (Read engine ECU data directly from the key).
- ECU replacement for 4TH Generation Audi (0AW/0B5) gearboxs.-Reading, writing & cloning of the ECU for 4TH Generation VW UDS engines.
- BMW E chassis 8HP gearbox ECU program wiping, etc.

In short, if you are considering getting an all-in-one professional auto scanner with a limited budget, LAUNCH X431 PRO ELITE is the THE BEST CHOICE!

3. OE-Level All System Full Functions Diagnostics With All-Around & In-Dept Diagnoses

As an OE level automotive diagnostic tool, LAUNCH X431 PRO ELITE can access most car ECUs to read, clear codes, retrieve live data, freeze frame, ECU information and perform active tests, matching, adaptation, turn off warning lights, reset monitors. Full range car models and full car system diagnose make it a professional automotive diagnostic tool.

4. More than 32 Reset Functions Solving Tricky Problem (Quantity can exceed 100, depending on car model and year)

The LAUNCH X431 PRO ELITE automotive scanner can perform a wide range of actions as well as a number of special functions that make it an even more astonishing piece of equipment. These special functions include but are not limited to :

• 1) ABS Bleeding: When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity.
• 2) TPMS Reset: When the tire pressure is too low, the tire leaks, the tire pressure monitoring device is replaced or installed, the tire is replaced and the tire pressure sensor is damaged, The tire pressure resetting function must be performed to reset tire pressure and turn off the tire pressure MIL.
• 3) Oil Lamp Reset: Allows you to perform a reset for a new calculation of Engine Oil life system once changed the oil.
• 4) Electronic Throttle Sensor Reset: To utilize the car decoder to initialize the throttle actuator so that the learning value of the ECU returns to the initial state.
• 5) Injector Coding: After the ECU or injector is replaced, injector code of each cylinder must be confirmed or re-coded so that the cylinder can better identify injectors to accurately control fuel injection.

5. LAUNCH X431 PRO Hot Functions:

1. One-Click Auto VIN Detect: Smart AutoVIN technology for fast and precise identifying vehicles in one touch to scan ECUs, acquire vehicle info and run diagnostics on selected systems. Quickly get your car’s information,save your time.
2. 8 IN 1 Live Data Stream Analyse in Graph: LAUNCH X431 PRO ELITE scan tool shows you live sensor data and provides data graphing for intuitive diagnostics and monitoring of your vehicle performance, helping customers to better analyze the abnormal parameters.
3. 2 Years Free Online Update: No subscription fee! This code reader is backed by LAUNCH’s promise of Online updates to keep the software current. Only the official scan tool can get updated.
4. Automatic Diagnostic Report Print & Share: Health Report will scan all vehicle modules and give you a status list for each module's condition. This diagnostic tool can automatically generate a diagnostic report when diagnostic work is successfully finished. The reports are saved to the internal memory for later review. The reports are able to be saved in PDF format, and as the tablet is equipped with WIFI, these can be emailed to the office or directly to the customer.
5. One-to-One Online Feedback- In-Time Problem Solving: LAUNCH Scanner provides you with a Feedback function to share any problems you encounter in the process of diagnosis. We will make every effort to perform no-delay problem solving and makes improvements on product quality according to your problems and suggestions, thus offering you a higher quality user experience.
6. Remote Diagnosis: Configures LAUNCH X431 PRO ELITE as an I/M(Instant Messaging) tool, which enables technicians to exchange repair experience and perform remote assistance more conveniently.
7. Maintenance Help: Including How-to Videos, operation skills, and user manual, Q&A, Quick start guide, etc.
8. What If I meet with Issues during the diagnosis?: For any problems found during the diagnosis, submit the feedback immediately. LAUNCH professional experts will provide perfect solutions for you as soon as possible .
9. 100+ Repair Functions For Specific Vehicles (in-vehicle catalog ): Furthermore, the Launch scan tool also developed 300+ functions for specific models. Compared with other diagnostic scanners that can only do the Reset function, the bi-directional scanner can finish deeper and wider Reset, Regeneration, Initiation, Matching, Calibration, Replacement, etc.

6. Cover 99% Global Car 100000+ Vehicles Supports

American cars:
BUICK, CADILLAC, CHEVROLET, CHRYSLER, DODGE, FIAT(BRAZIL), FORD, FORD(AUSTRALIA) , GM. JEEP, LINCOLN, GM(BRAZIL)

European car:
ABARTH, ALFA ROMEO, AUDI, BENTLEY, BMW, BUGATTI, CITROEN, DACIA, EUROFORD, FERRARI, FIAT, GAZ, OPEL(SOUTHAFRICA), IVECO, JAGUAR, LAMBORGHINI, LANCIA, LANDROVER, MASERATI, MAYBACH, MERCEDES, MINI, OPEL, PEUGEOT, PORSCHE, RENAULT, ROLLSROYCE, ROVER, SAAB, SEAT, SKODA, SMART, SPRINTER, VAUXHALL, VAZ, VOLVO, VW, ASTONMARTIN, UAZ

7. Guide Functions

Teach step-by-step how to use the diagnostic cart
(Compatible with Volkswagen / Audi / Skoda / Seat): for various systems such as engines, gearboxes, brakes, airbags, instruments, air conditioners, and more.

8. Supports CANFD & DOIP protocol now, it supports For GM after 2020 and other New cars

It is the only product in this price range that is compatible with CAN-FD protocol and supports the latest For GM vehicles manufactured after 2020. Adopts advanced CRC algorithms to accommodate more data from 8 to 64 bytes in the CAN frame, which runs faster than other products and reduces the risk of undetected errors to greatly enhance the user experience.

9. 25 Language Supports

English, French, Spanish, German, Russian, Korean, Japanese, Portuguese, Italian, Polish, Dutch, Hungarian, Finnish, Czech, Turkish, Greek, Arabic, Danish, Romanian, Serbian, Swedish, Traditional Chinese, Thai, Persian, Simplified Chinese

Why Choose X431 PRO ELITE

1. The host has a higher version of the system, larger storage, and longer endurance, making diagnosis faster, more stable, and more durable
2. Wide coverage of vehicle models, strong diagnostic functions, supporting full vehicle and system diagnosis
3. Support for reading version information, reading code, clearing code, reading data stream, action testing, code setting, matching, etc
4. Support for Volkswagen Audi guidance function, support for tire pressure activation, programming, learning, and detection with tire pressure gun
5. Support for anti-theft programming and other functions in conjunction with X-PROG 3
6. Multiple expansion module support: endoscope, BST-360, oscilloscope, sensor, wifi printer
7. Support 32 special functions such as maintenance light reset, throttle matching, steering angle reset, brake pad reset, tire pressure reset, etc
8. Support VIN code intelligent recognition function for quick diagnosis
9. Quick and accurate diagnosis

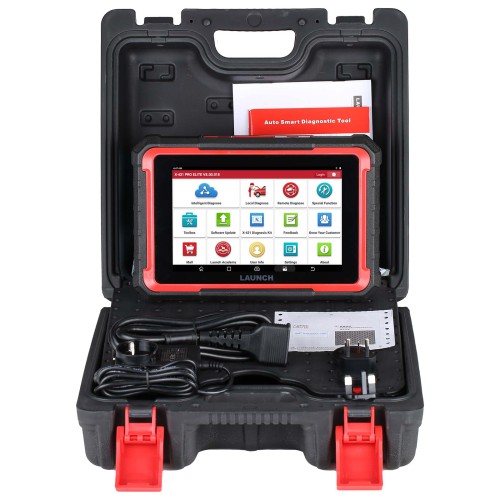

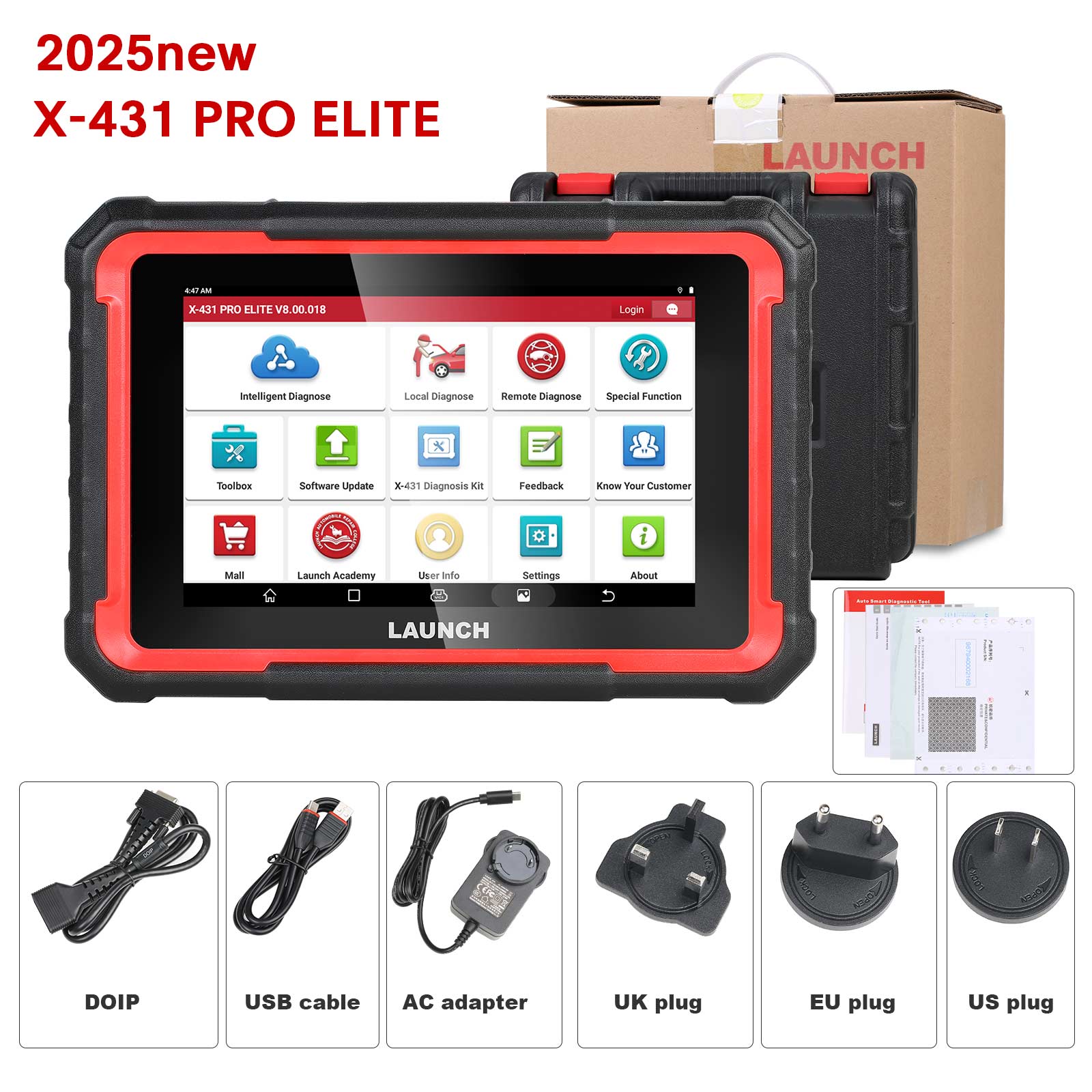

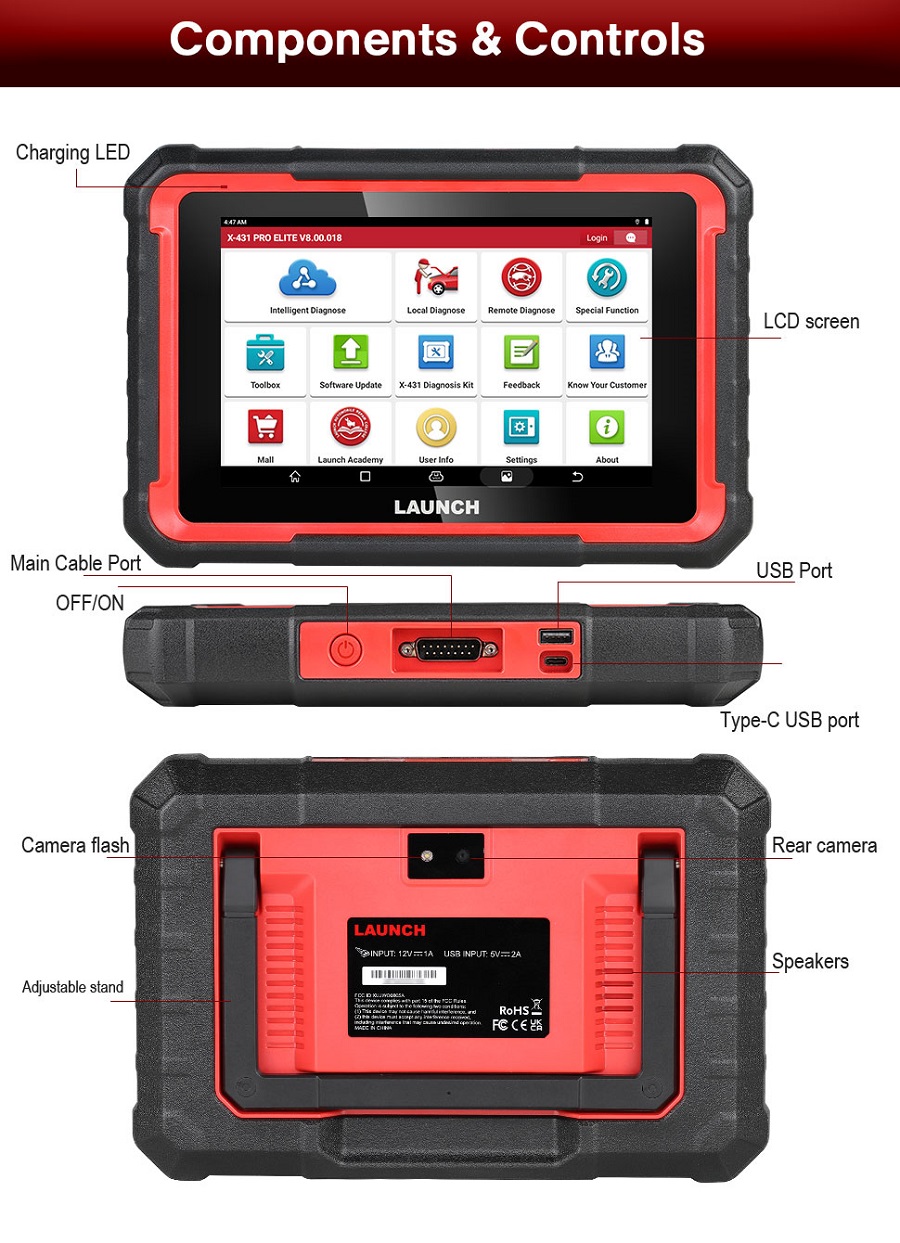

Package List:

• 1pc x tablet
• 1pc x AC adapter
• 1pc x Main cable
• 1pc x USB cable
• 1pc x UK plug
• 1pc x US plug
• 1pc x EU plug
• 1pc x user manual
• 1pc x quick guide
• 1pc x packing list
• 1pc x password bar
