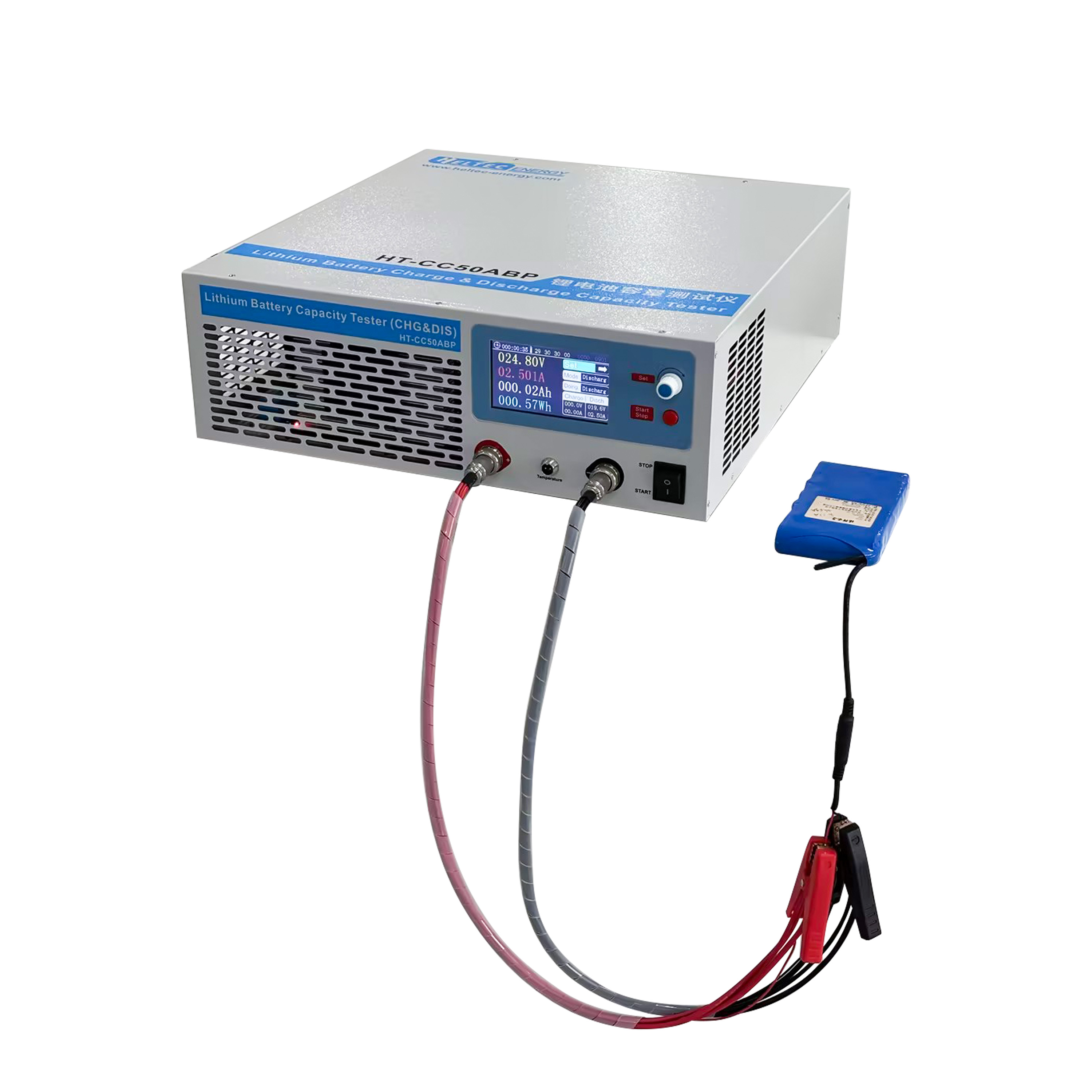

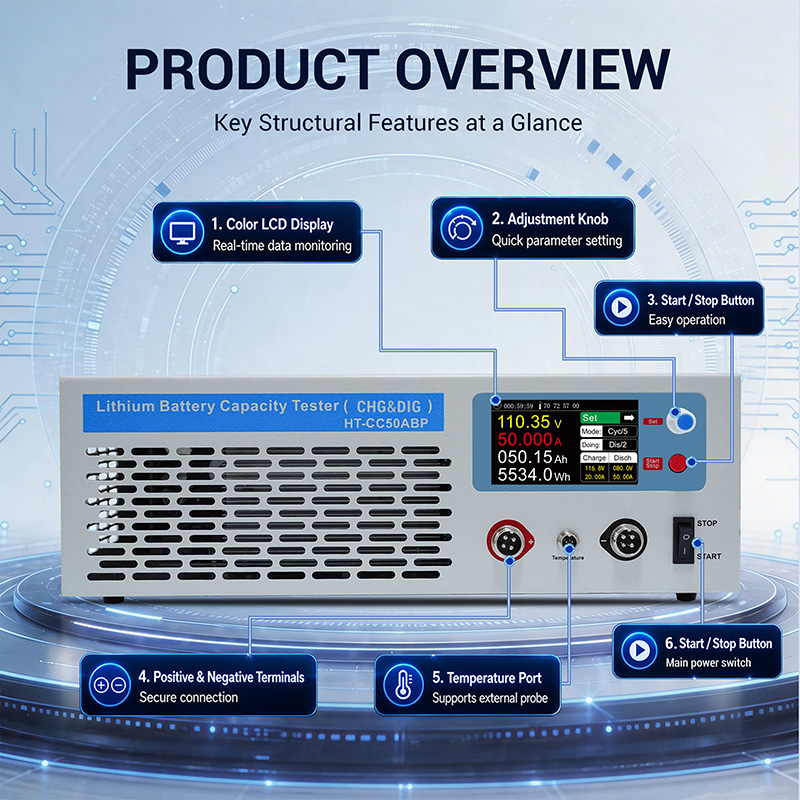

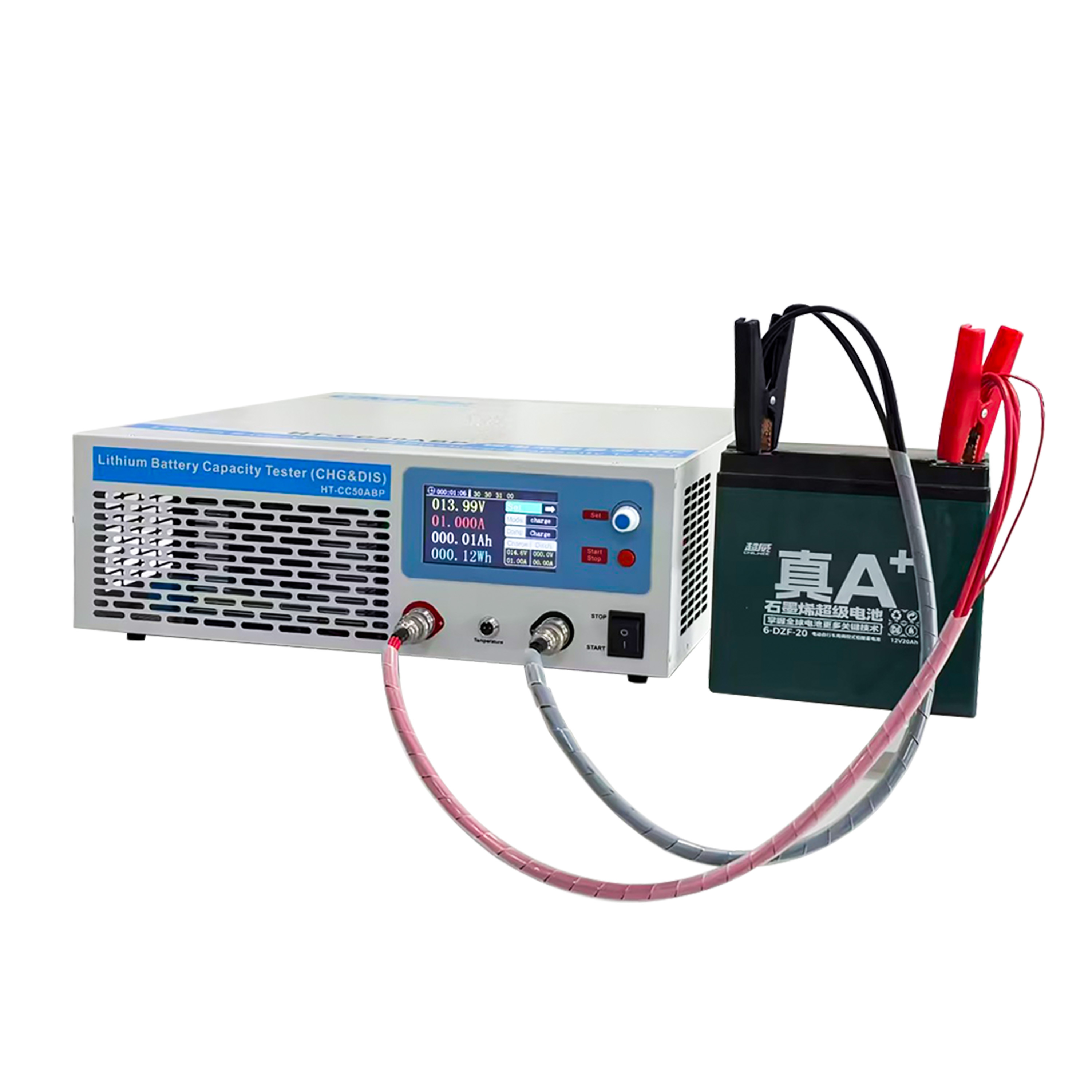

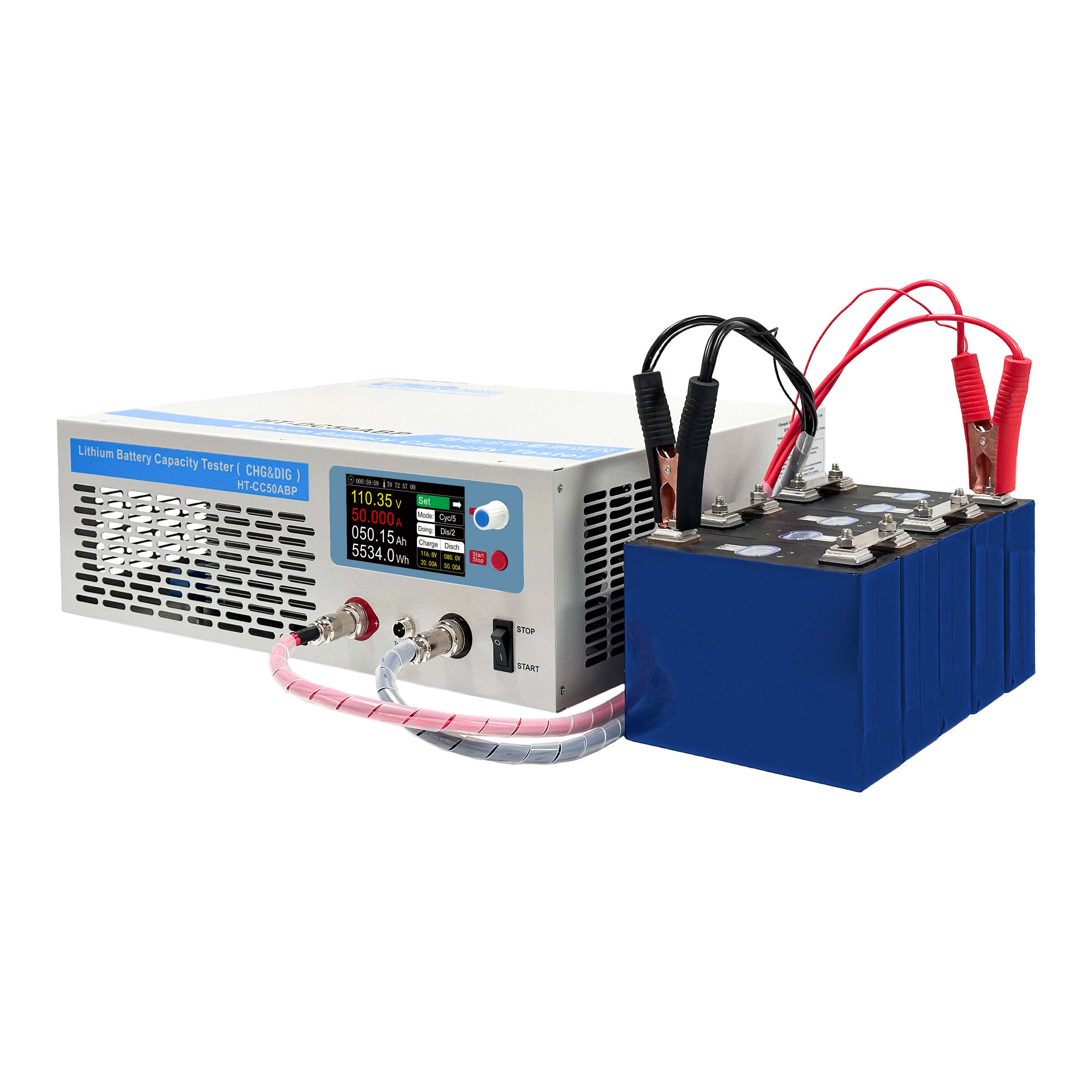

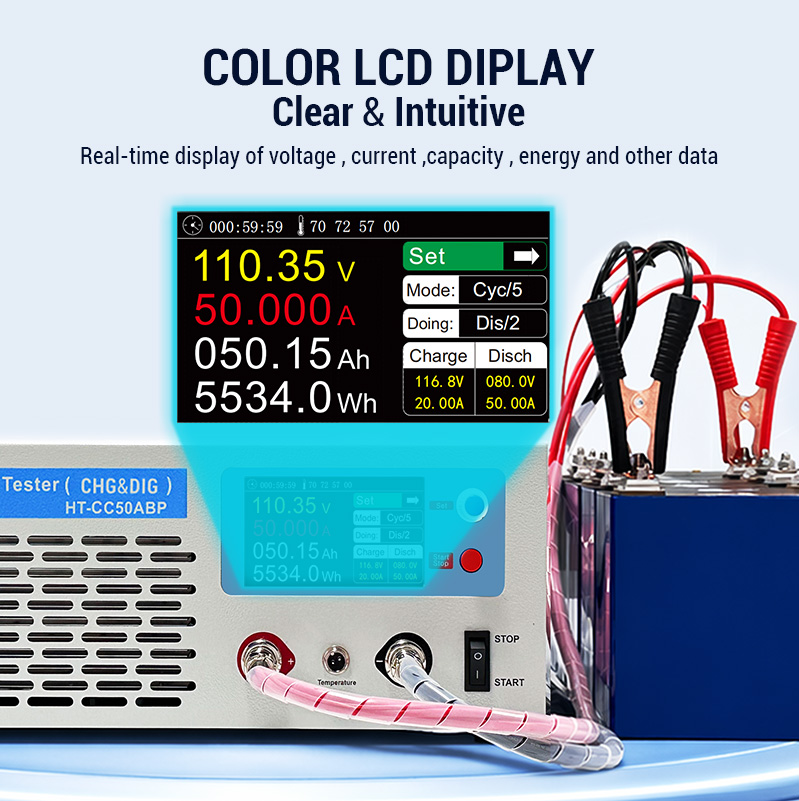

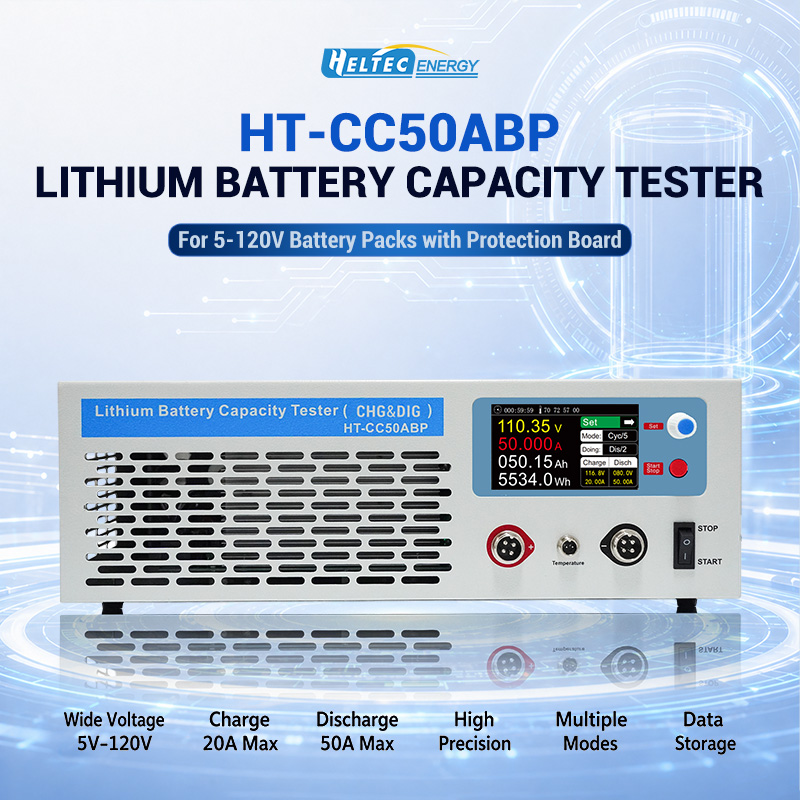

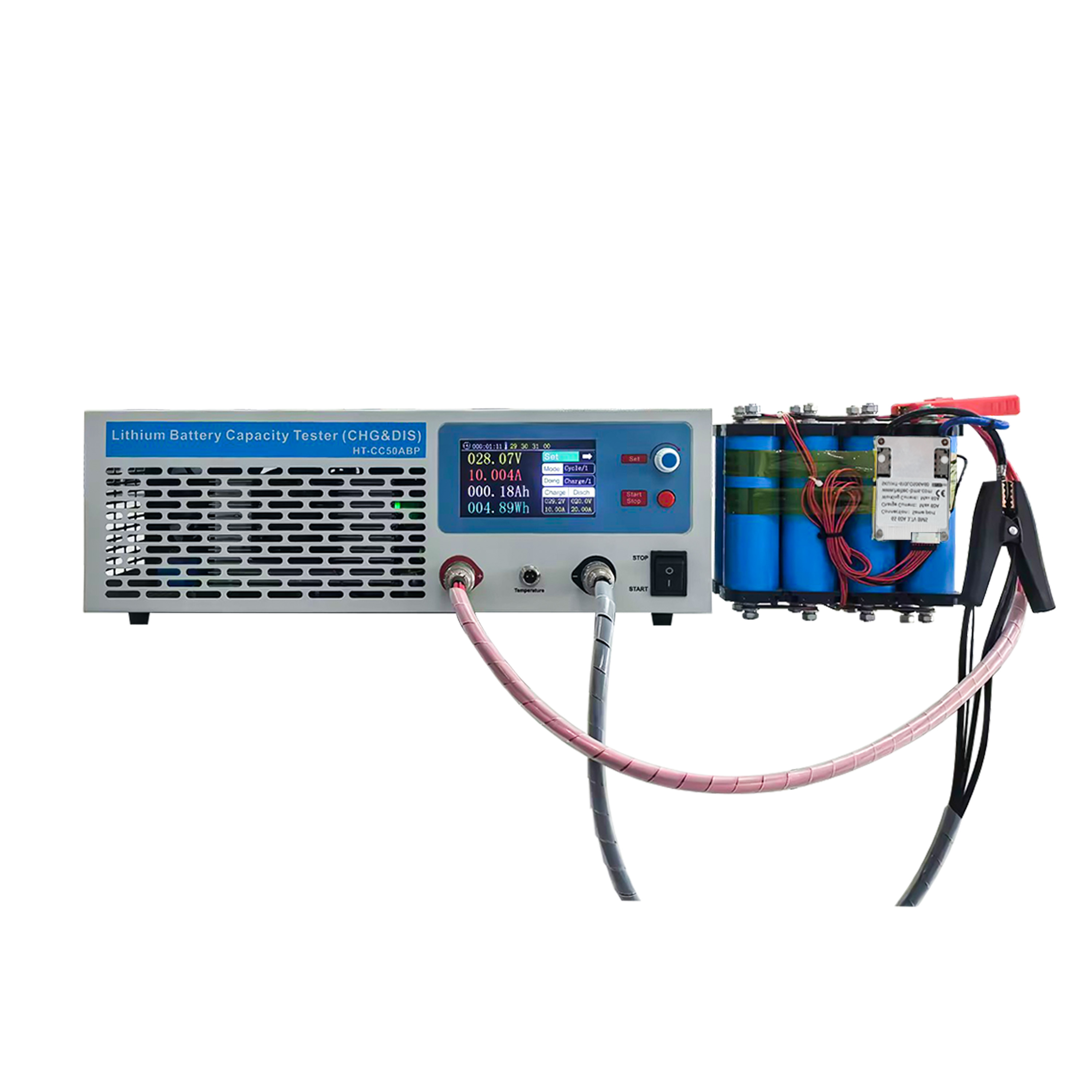

The HT-CC50ABP battery discharge capacity tester is suitable for battery packs with a voltage range of 5 to 120 volts and equipped with a protection board. It is commonly used by electric vehicle dealers and battery manufacturers for testing battery performance and has functions such as charging, discharging, cycling, constant voltage discharge, timed discharge, and fixed capacity discharge. It can accurately collect real-time battery voltage signals and perform data storage and operation processing. This device features high precision, strong timeliness, simple operation, and strong practicality.

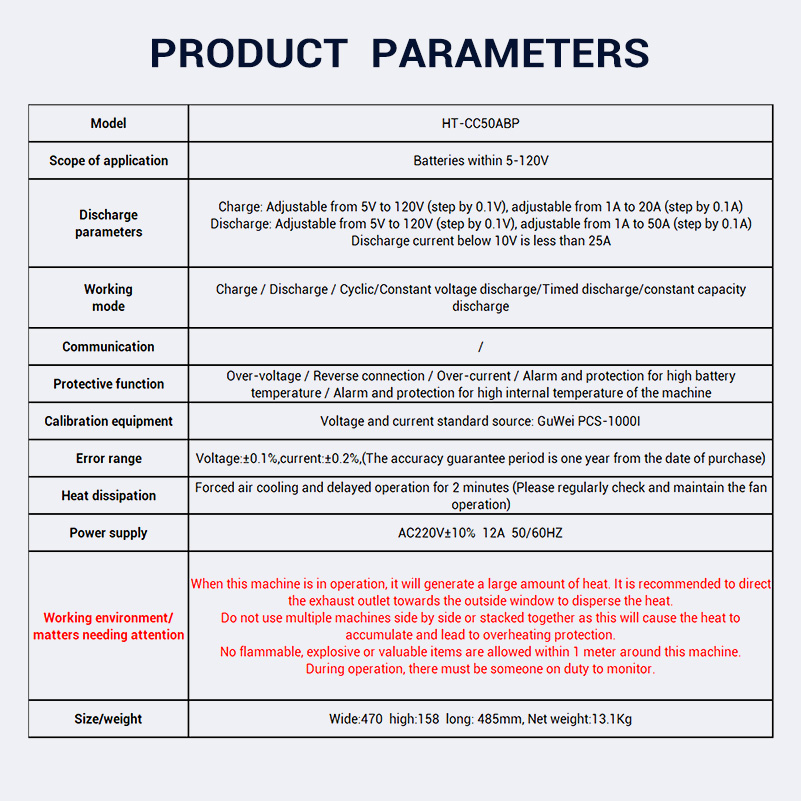

| Model | HT-CC50ABP |
| Scope of application | Batteries within 5-120V |
| Charging range | Adjustable from 5V to 120V (step by 0.1V), adjustable from 1A to 20A (step by 0.1A) |
| Discharge range | Adjustable from 5V to 120V (step by 0.1V), adjustable from 1A to 50A (step by 0.1A) Discharge current below 10V is less than 25A |

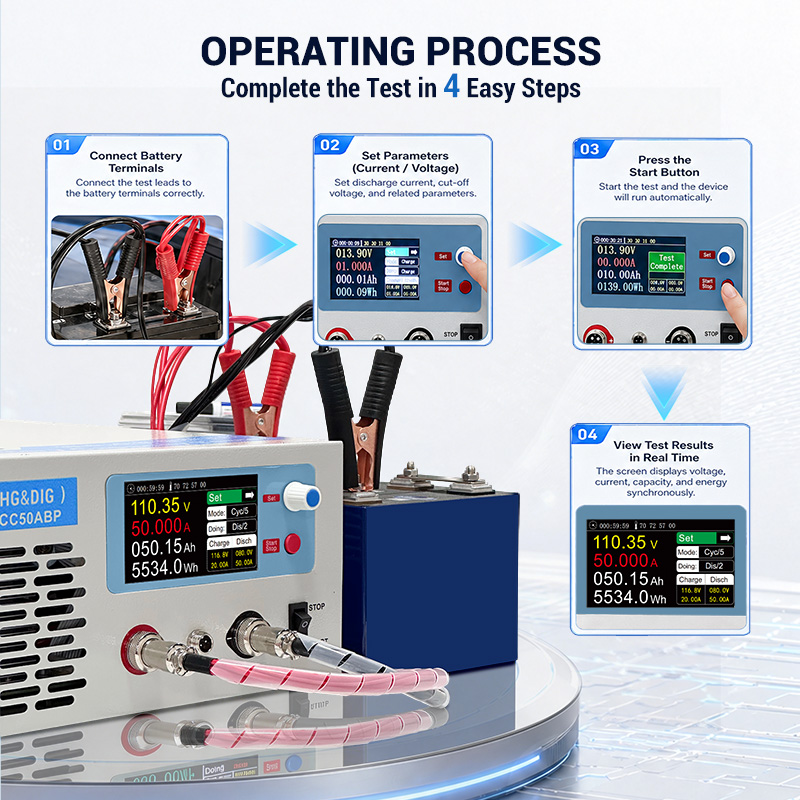

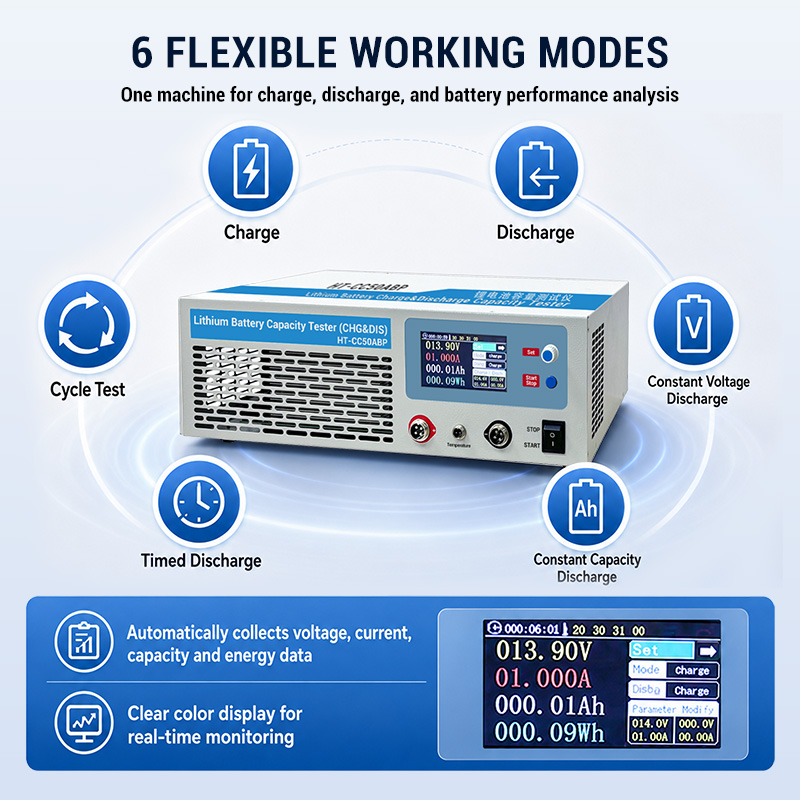

| Working mode | Charge / Discharge / Cyclic/Constant voltage discharge/Timed discharge/constant capacity discharge |
| Protection function | Over-voltage / Reverse connection / Over-current / Alarm and protection for high battery temperature / Alarm and protection for high internal temperature of the machine |
| Error range | Voltage:±0.1%,current:±0.2%,(The accuracy guarantee period is one year from the date of purchase) |
| Heat dissipation | Forced air cooling and delayed operation for 2 minutes (Please regularly check and maintain the fan operation) |
| Equipment power supply | AC220V±10% 12A 50/60HZ |

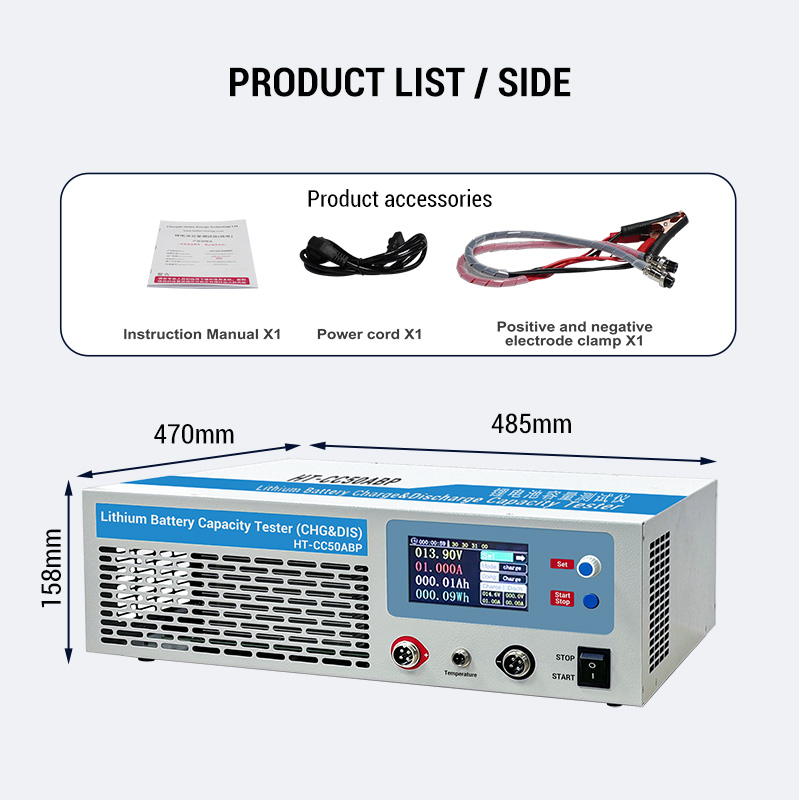

| Size/weight | Wide:470 high:158 long: 485mm, Net weight:13.1Kg |

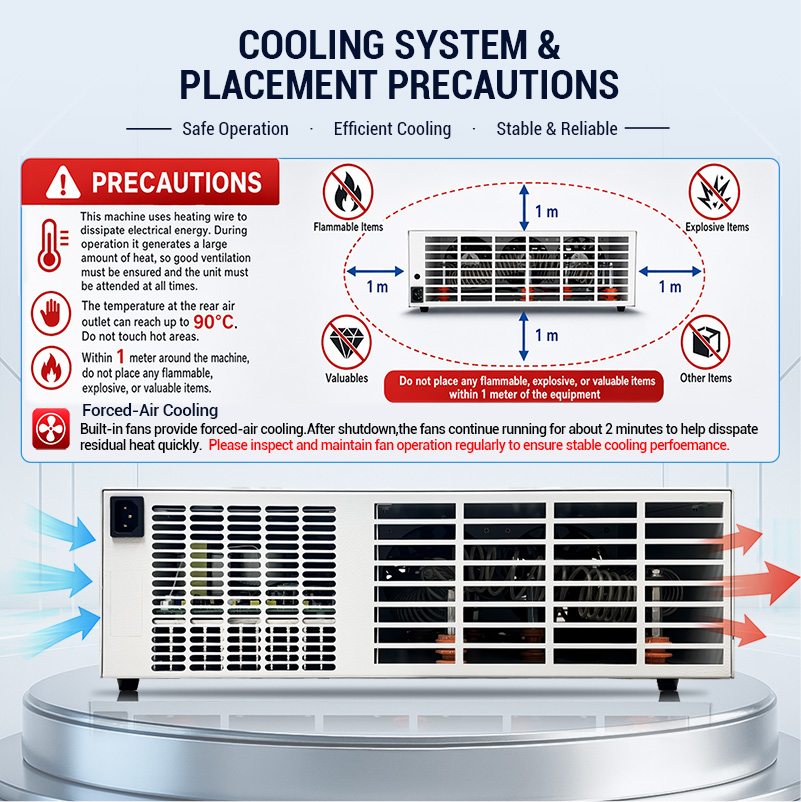

When this machine is in operation, it will generate a large amount of heat. It is recommended to direct the exhaust outlet towards the outside window to disperse the heat. Do not use multiple machines side by side or stacked together as this will cause the heat to accumulate and lead to overheating protection. No flammable, explosive or valuable items are allowed within 1 meter around this machine. During operation, there must be someone on duty to monitor.

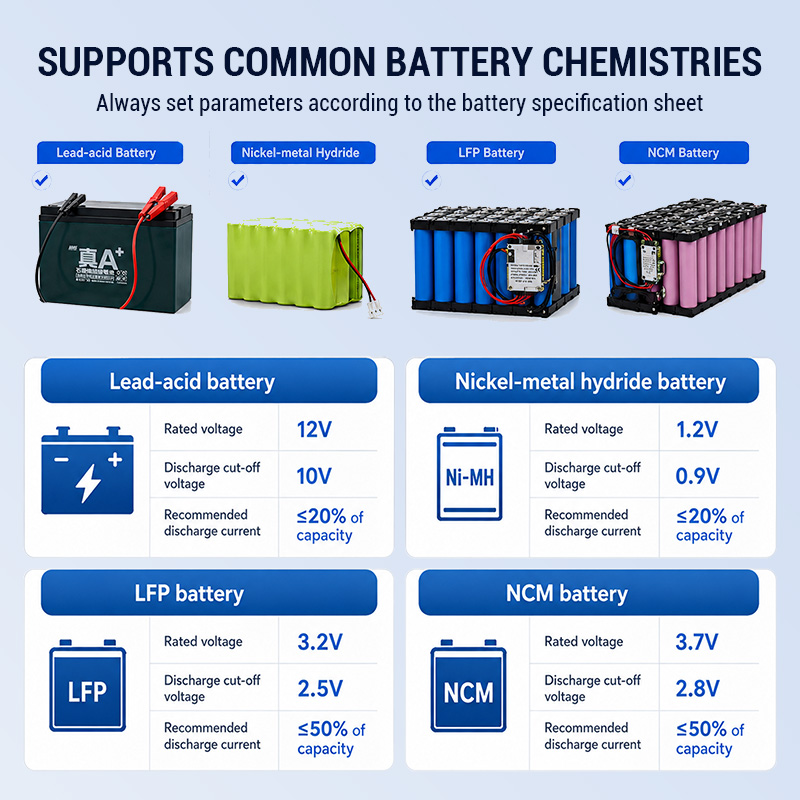

It is applicable to all types of electric vehicle dealers and battery manufacturers. It can be used to test the performance of batteries, such as those for electric vehicles, tricycles, sightseeing vehicles, and other large and medium-sized electronic products with protective plates, or battery packs.
We promise to provide you with a "hassle-free" shopping experience, with clear guarantees at every step from placing the order to after-sales service, so that you can buy with confidence and use with peace of mind.
The packaging of goods is strictly carried out according to the characteristics of the goods, with custom-made inner trays based on the size of the goods to ensure that the goods do not sway inside the box. If any damage occurs during transportation, there is no need for you to negotiate with the courier company. We will directly contact the logistics party to hold them accountable, and at the same time, we will [prioritize replacement] to minimize your waiting time. If there are special instructions for the packaging of some goods (such as oversized items or items for remote areas), they need to be marked in advance.
If any quality issue is found within 7 days after receipt of the goods, free returns and exchanges are supported, with both the return and return shipping costs borne by us. If it exceeds 7 days but is still within the warranty period, free repairs are provided, with the repair shipping costs to be negotiated by both parties.
We are a technology-driven company focused on lithium battery energy solutions. Our core strength lies in advanced cell balancing technology, which is integrated across a wide range of products — from Battery Management Systems (BMS) and active balancers to battery testers.
With over 10 years of expertise, we serve clients in 100+ countries, offering OEM/ODM services for EVs, energy storage, and industrial batteries. Our balancing systems improve pack performance, extend battery life, and ensure safety.
We focus on battery management system for many years. We design, produce, and sell hardware BMS, Smart BMS, Active Balancer, battery welding machine, battery maintenance and test instruments and other accessories. All these products are widely used in lithium battery industry.
We constantly, with reliable quality requirements, to meet the market demand as the goal, development and production of exquisite appearance, excellent performance, energy conservation and environmental protection green products, is committed to be a leader in the market.

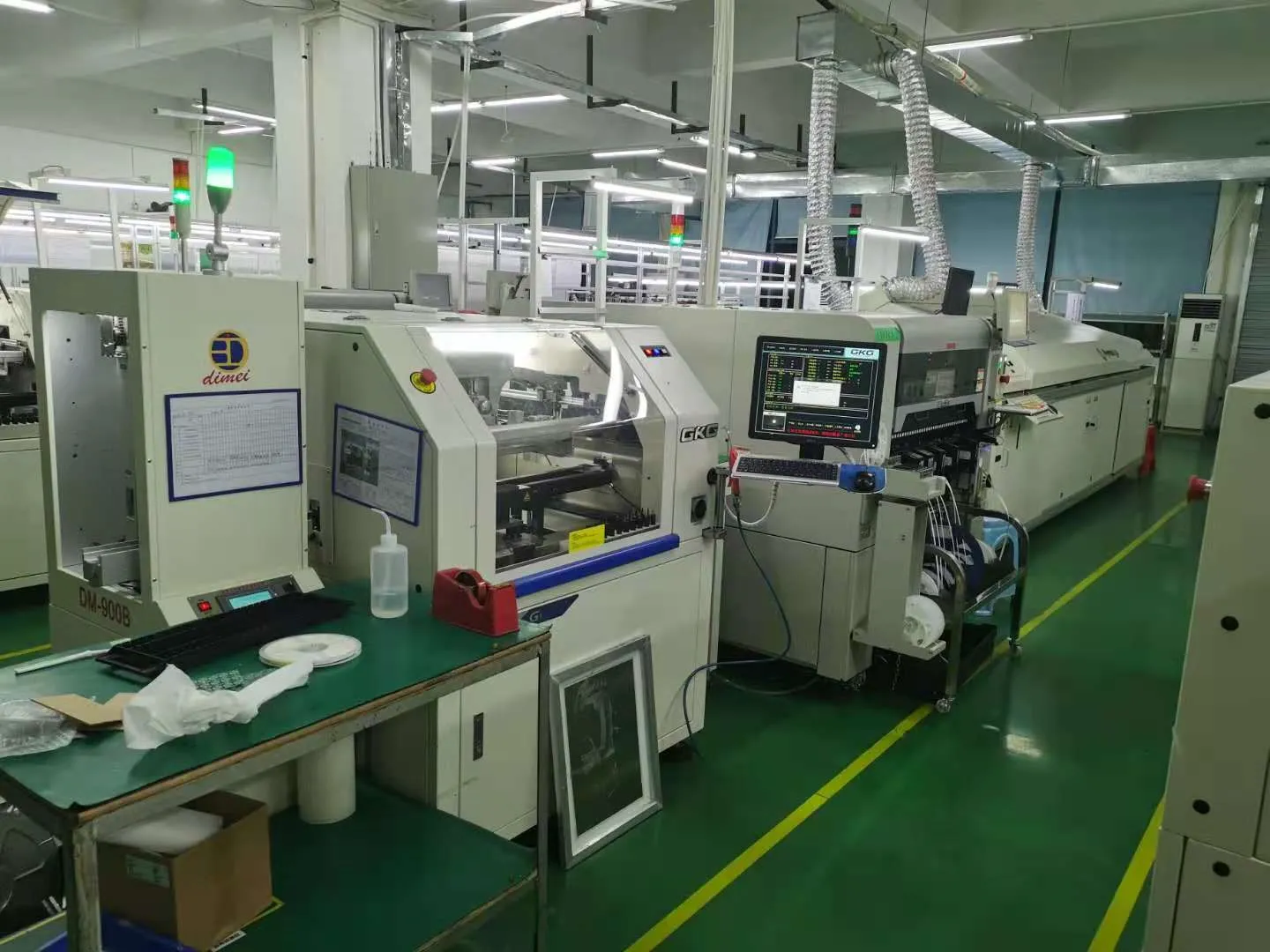

We operate three production lines and maintain global warehouses in the USA, Europe, Russia, and Brazil. All products comply with CE, FCC, and other international standards.
