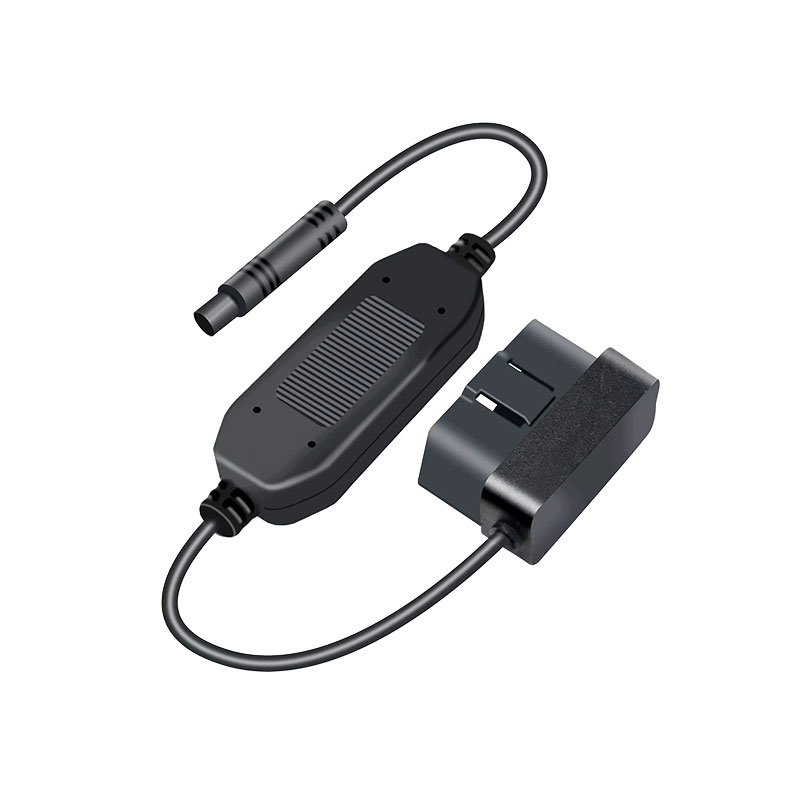

Top Ranking Truck Diagnostic Tool Remote Diagnostics Auto Car Engine Analyzer Vehicle OBD Scanner Diagnostic Tools

1 / 5

Top Ranking Truck Diagnostic Tool Remote Diagnostics Auto Car Engine Analyzer Vehicle OBD Scanner Diagnostic Tools

Send Inquiry

Product Description

ℹ

Please note that this product is not sold separately and needs to be used with our store's MDVR or Dash Cam products. If you need to purchase, please send an inquiry or leave us a message.

Products Description

Product Details

Parameter	Description
Adapted voltage	9-36V
Average operating current	20mA/12V
Sleep current	<2mA/12V
VCC The output voltage	12V/24V/5V/4.2V Optional
VCC output maximum current	5A
ACC output voltage	12V/24V
Communication type	Serial port TTL/232/485 optional
Baud rate	9600/115200 bps
OBD Connector	Compliant with OBDII standard connectors

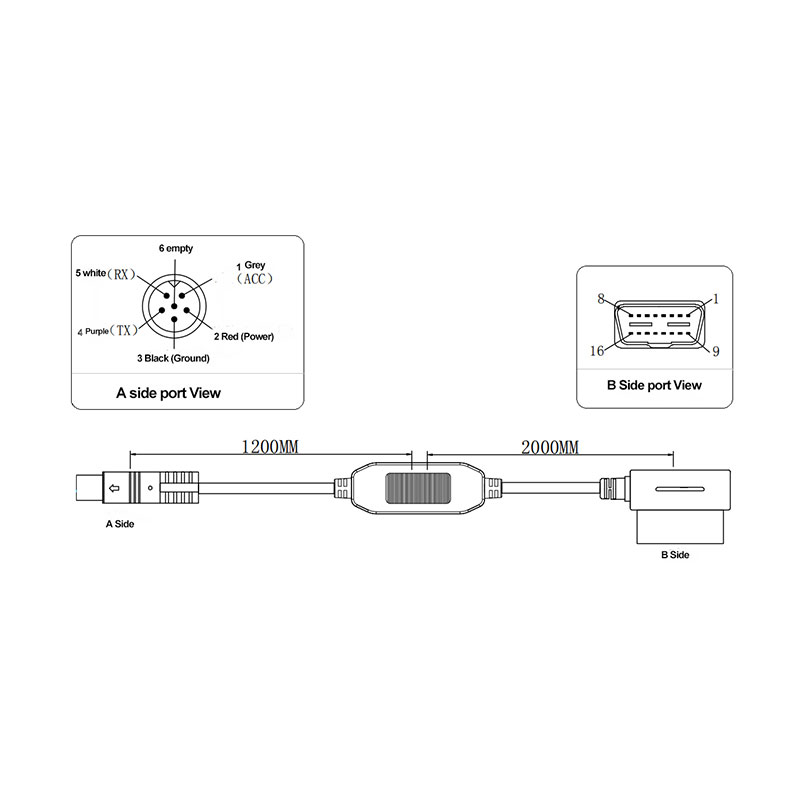

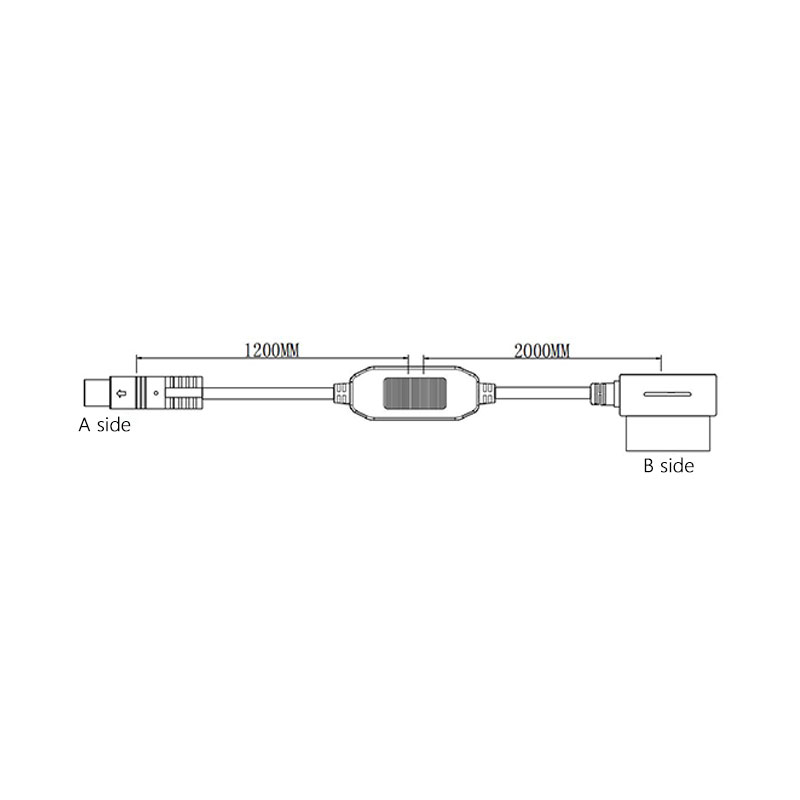

line length	Total length 3 meters (2 meters + 1 meters) (customizable)

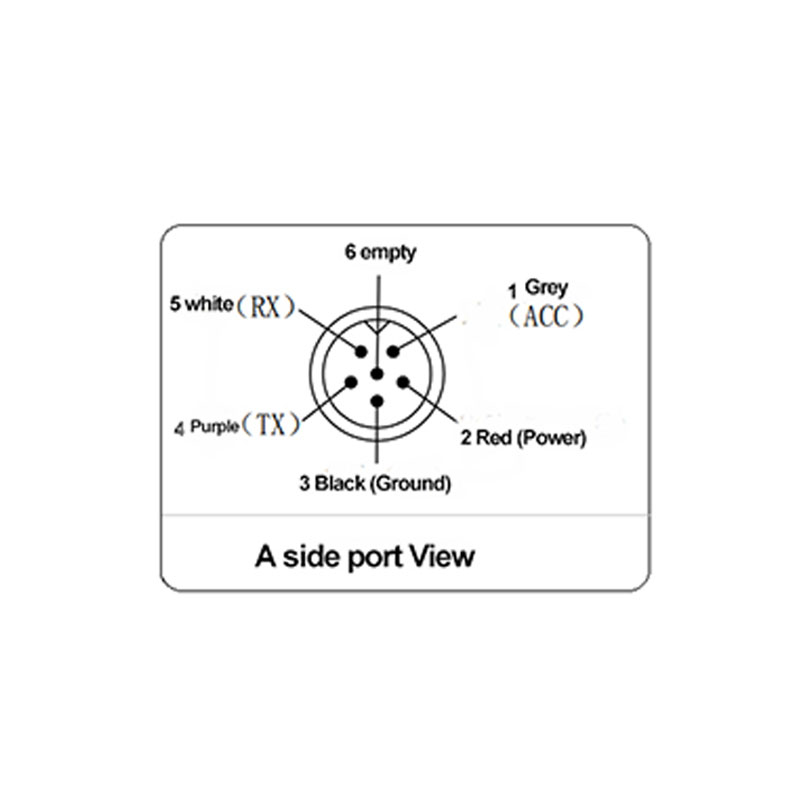

Wire connector	BMW head 6 core (can be customized)
Operating temperature	-30~70℃
Storage temperature	-40~85℃

Why Choose US

Send inquiry to learn more details.

Frequently Asked Questions

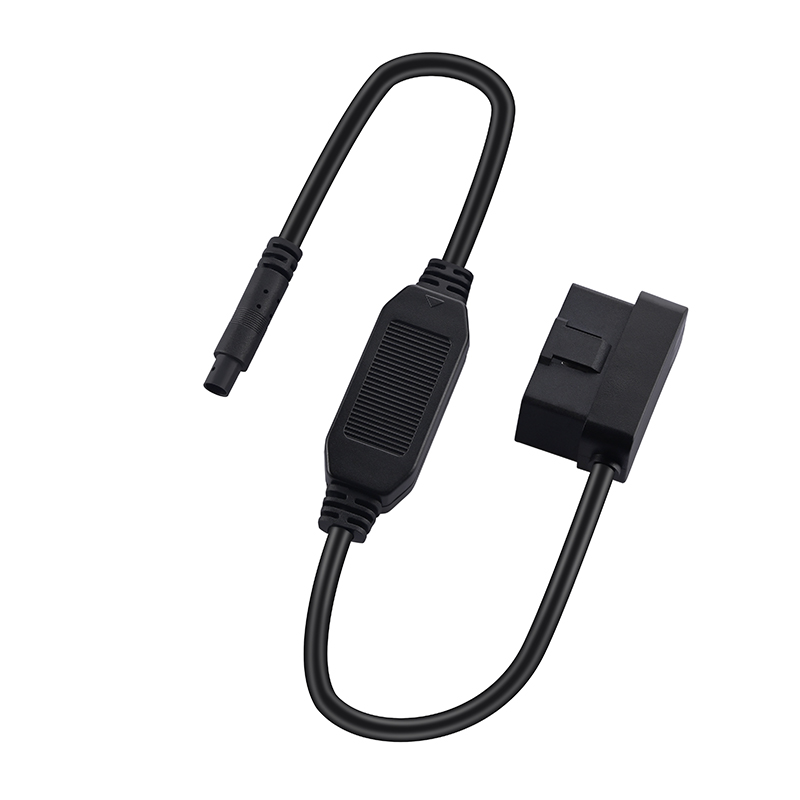

Q: Can this OBD power cable be used as a standalone product?

A: No, this product is designed specifically to work in conjunction with our store's MDVR or Dash Cam products and is not sold separately.

Q: What range of adapted voltage does the device support?

A: The adapted voltage ranges from 9V to 36V, making it highly versatile for various vehicle electrical setups.

Q: What connector standards and custom options are available?

A: The product complies with OBDII standard connectors. It comes with a BMW head 6-core wire connector, and custom connector types can be designed upon request.

Q: What is the default cable length, and can I customize it?

A: The default total length of the cable is 3 meters (structured as 2 meters + 1 meter). Custom length configurations are available to suit your specific installation requirements.

Q: What are the safe operating and storage temperature limits?

A: The operating temperature range is -30°C to 70°C, and the safe storage temperature ranges from -40°C to 85°C, ensuring stability in extreme weather conditions.

Q: What communication types are supported?

A: It supports serial port communication with options for TTL, RS232, or RS485 interfaces, operating at baud rates of 9600 or 115200 bps.
