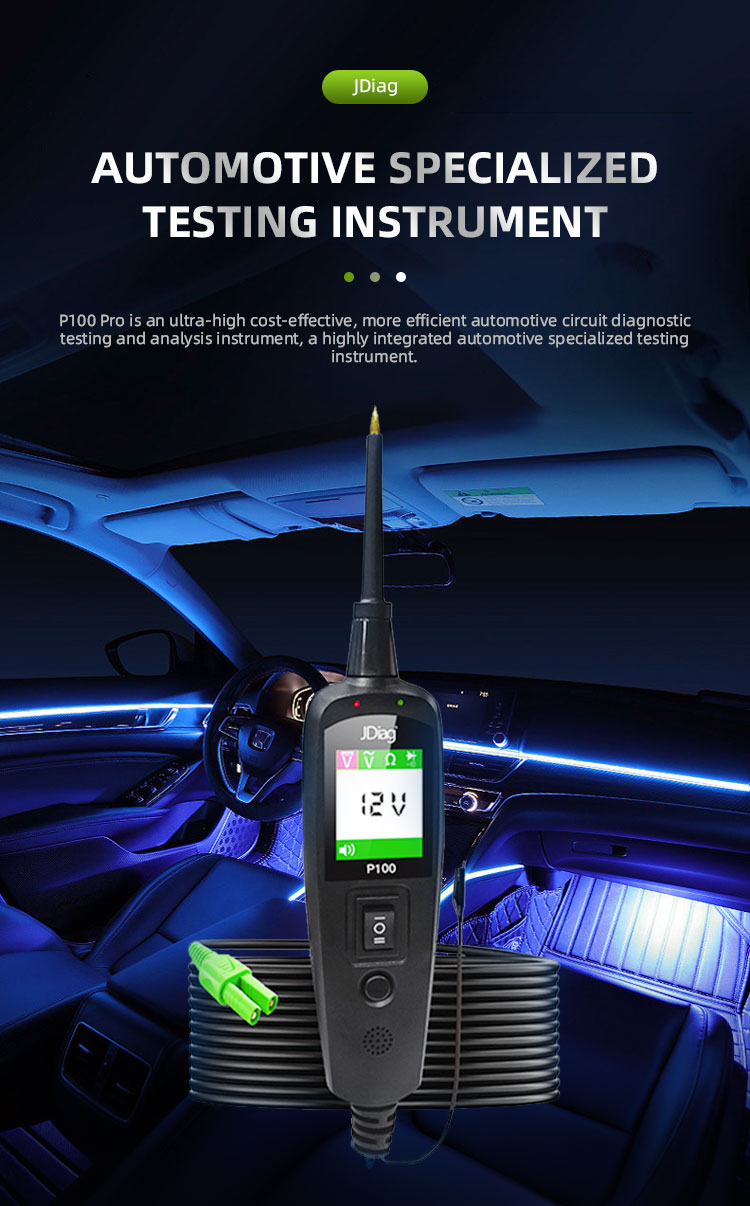

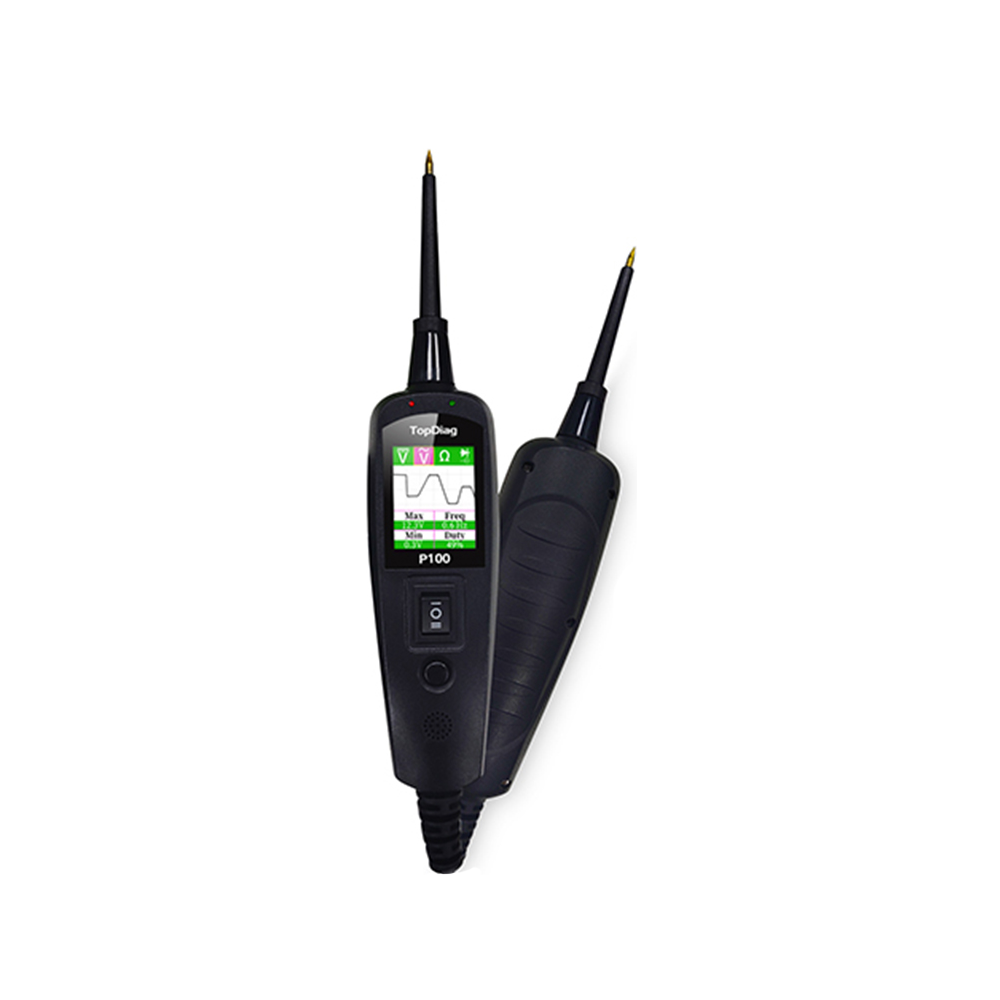

For Official Store Wholesale PowerScan TopDiag P100 OBD2 Scanner Battery Tester Automotive Circuit Tester

TopDiag P100 Automotive Circuit Tester Power Circuit Probe Kit 12V-24V Electrical System Diagnostic Tool PK PS100

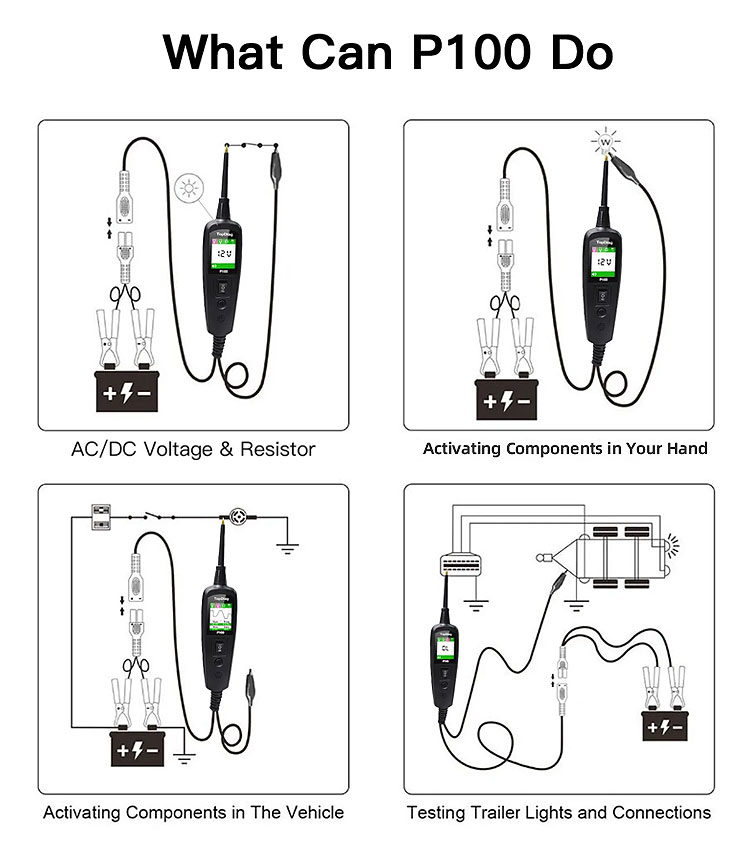

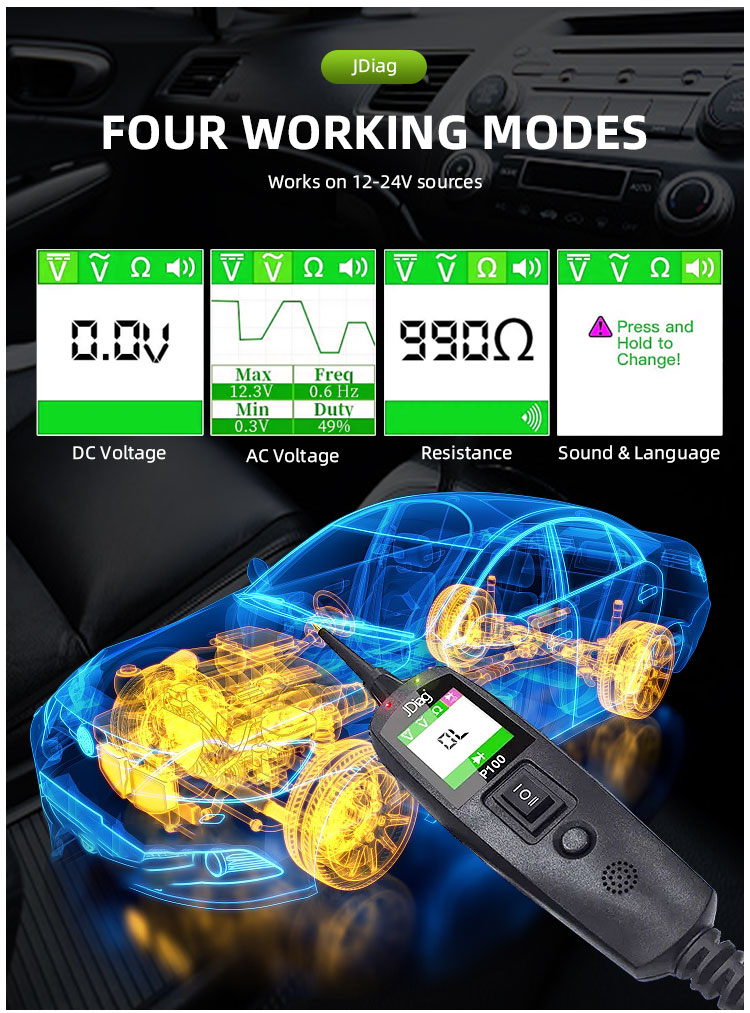

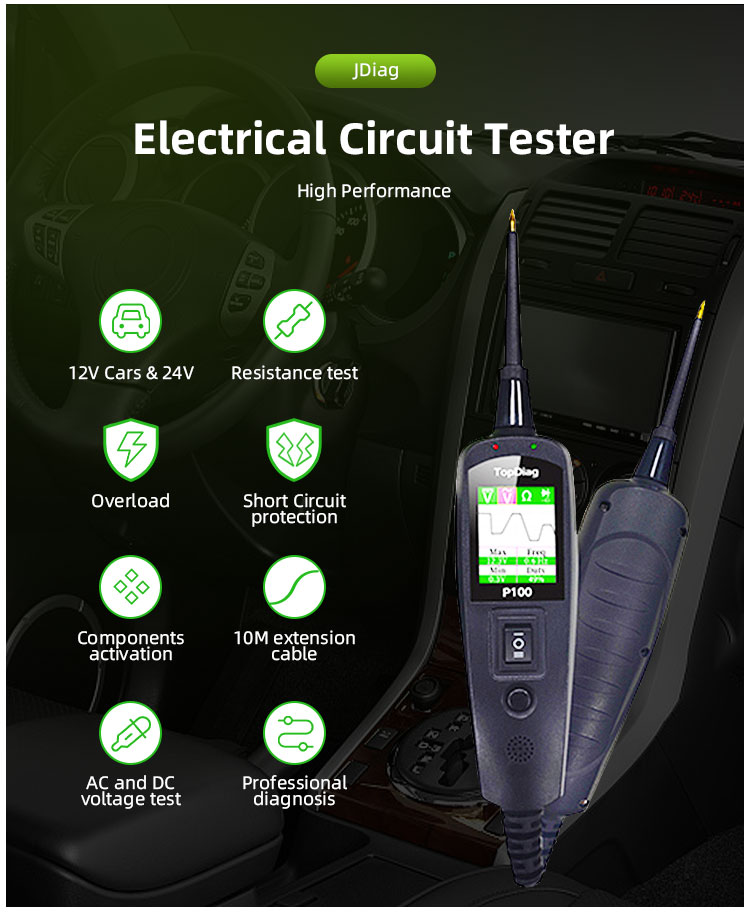

Voltage & Polarity Testing: Determine DC/AC Voltage and Positive/Negative quickly.
Resistance Continuity Testing: LCD Screen displays the value of resistance.
AC Circuit Signal Testing: Fast to troubleshoot the sensors circuit problem.
Components Activation: In your hand, in the vehicle or with Ground.
Testing Trailer Lights and Connections: 10M extension cable allows you to test Cars or Trucks.
Checking Bad Ground Contacts: Locating Short Circuits easily.

Test Tool Specifications

DC Voltage Range: 0-65V +1 digit

Resistance Range: 0-200 K ohm

Frequency Response of Tone Pass Through: 0Hz to 10K hz

Circuit Breaker Rating Current: 1-10 Amp

Testing Standard

100% Current: No trip

150% Current: Trip in one hour

200% Current: Trip in 3-30 seconds

300% Current: Trip in 0.5-4.0 seconds

Product Description

Specification

Display: TFT color display (160 x 128 dpi)
Operating Temperature: 0 to 60°C (32 to 140 F°)
Storage Temperature: -40 to 70°C (-40 to 185 F°)

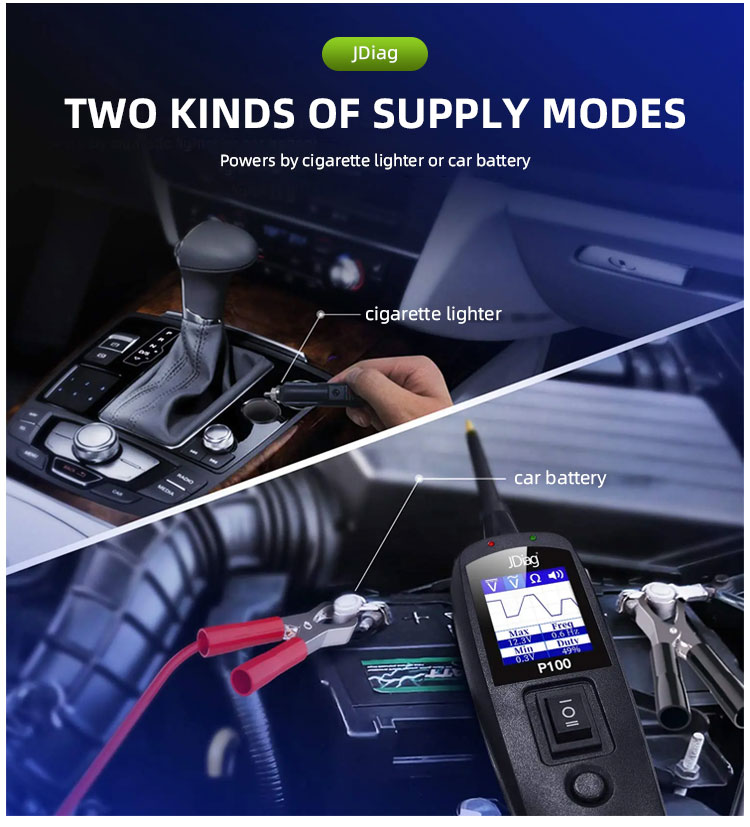

External Power: 12.0 or 24.0 V power provided via vehicle battery
Dimensions: Length 165 mm * Width 40 mm * Height 27 mm

Item	Value
Type	Engine Analyzer
Voltage	DC0-65v
Power	w
Applicable Models	Universal Cars
Combination	Circuit testing
Place of Origin	China, Guangdong
Brand Name	TopDiag
Model Number	P100
Warranty	12 Months
Display	TFT color display (160 x 128 dpi)
Operating Temperature	0 to 60°C (32 to 140 F°)
Storage Temperature	-40 to 70°C (-40 to 185 F°)
External Power	12.0 or 24.0 V power provided via vehicle battery
Certification	CE/ROHS/FCC

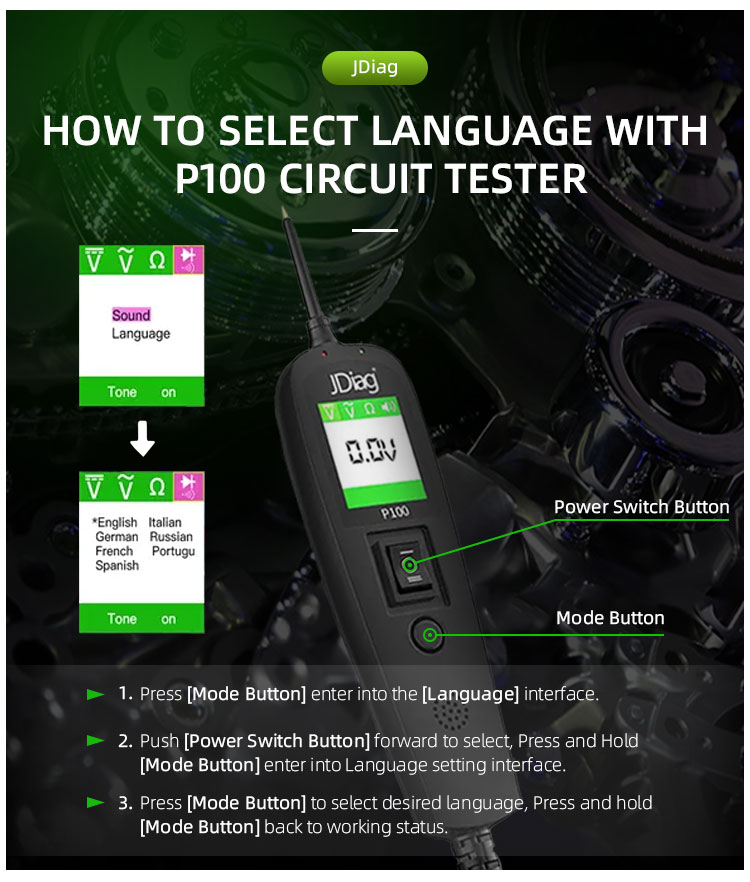

Language	Multilingual
Size	165 mm * 40 mm * 27 mm
Weight	1.2 KG

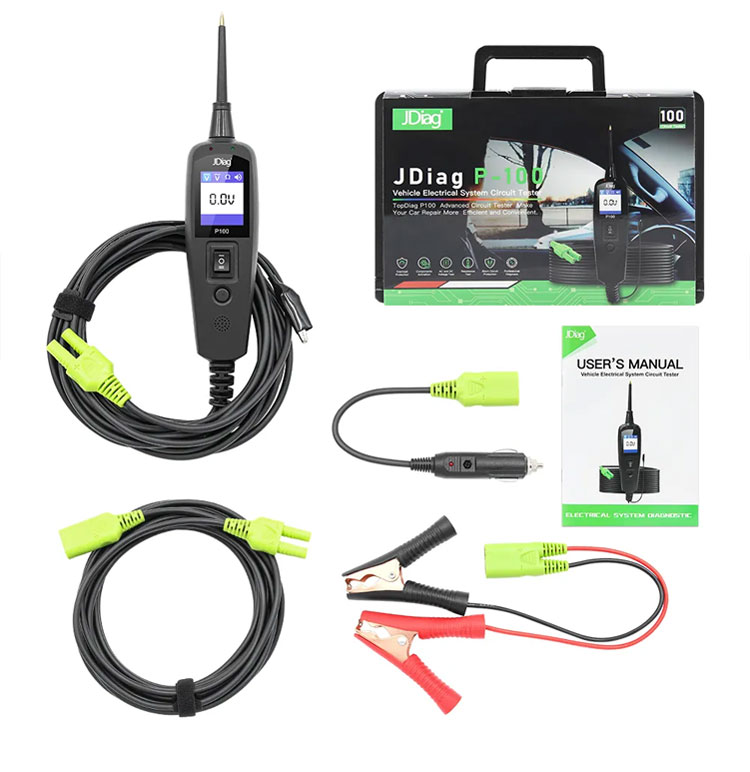

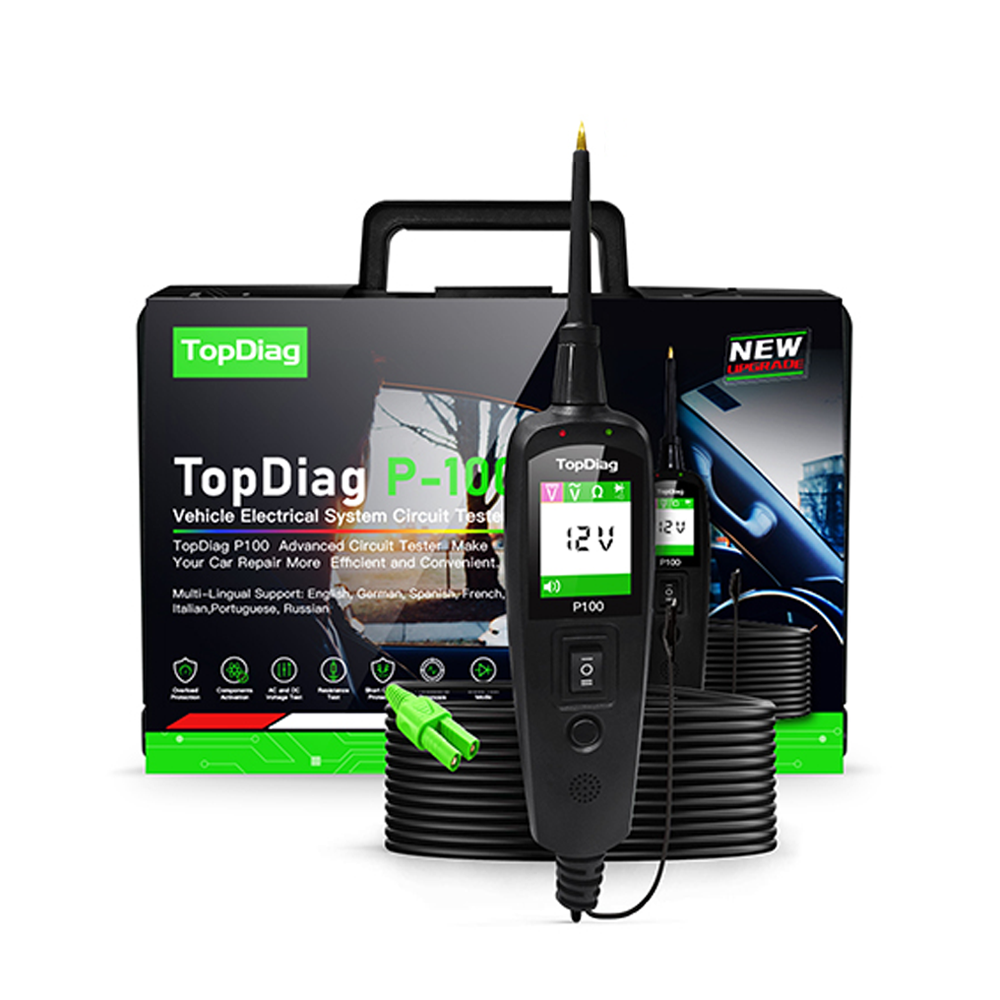

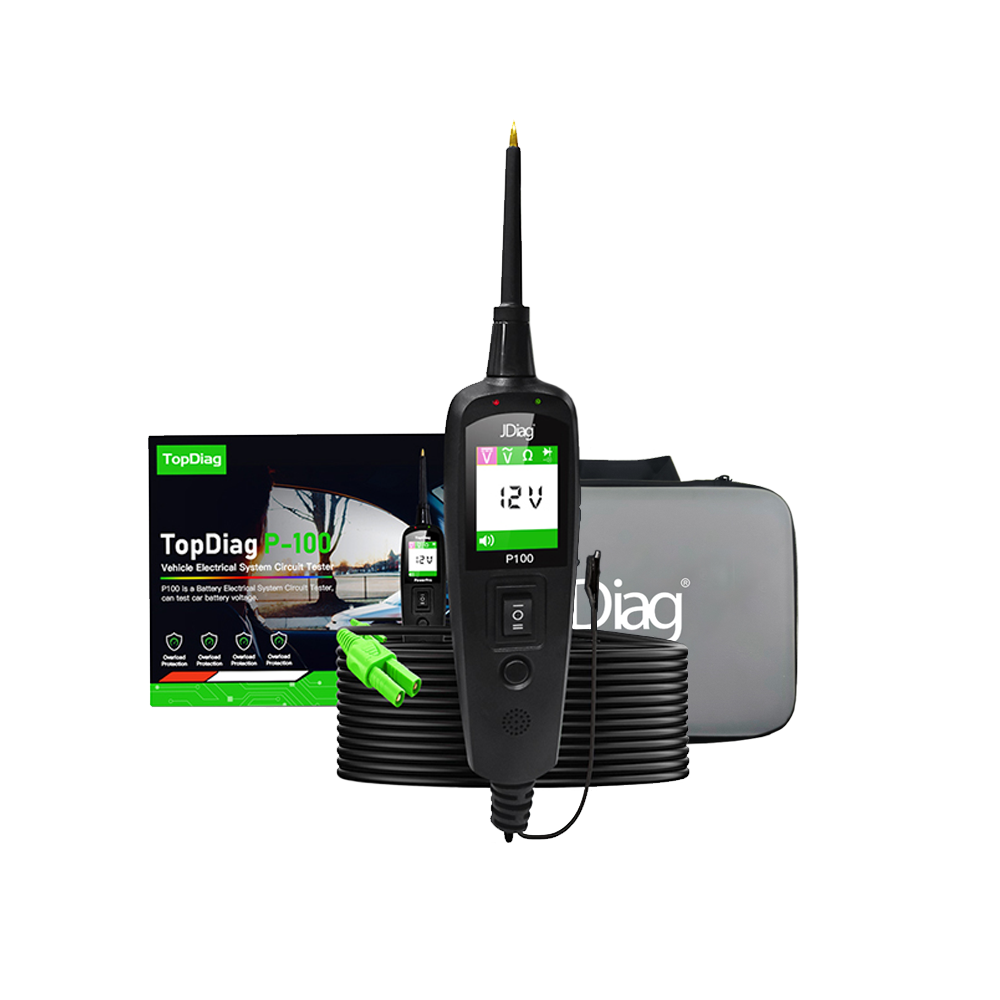

Packing & Delivery

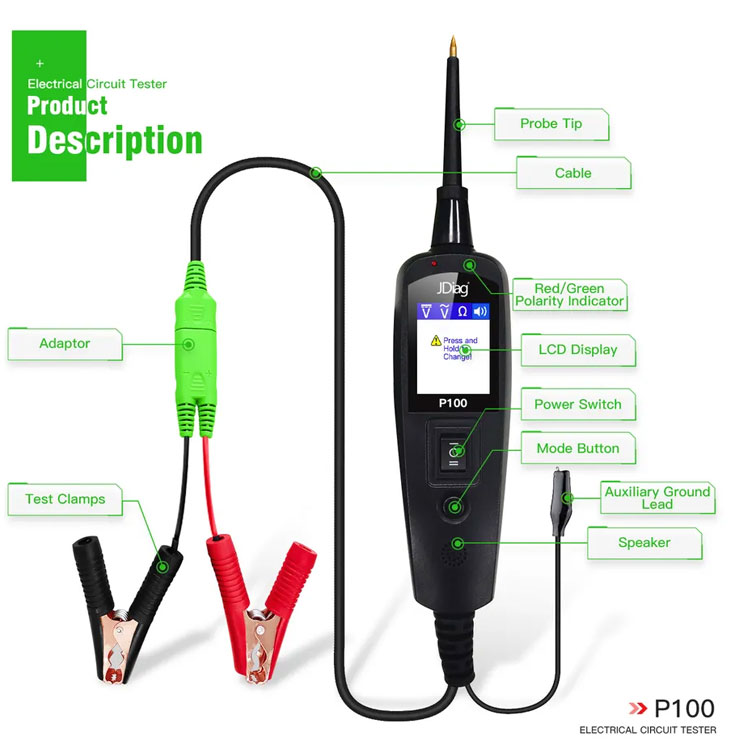

1) P100 Tester
2) User's Manual
3) Cigarette Lighter adapter
4) Battery hookup clips
5) Probe tip
6) 10m extension cable

Shipping & Payment

Certifications

Frequently Asked Questions

Can I get some samples?

Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.

Do you receive customized orders?

Yes, ODM & OEM are welcomed.

What's the lead time?

According to the order quantity, small orders usually need 3-5 days, while large orders require negotiation.

What are your warranty terms?

We supply a 12-month warranty time.

What are your payment terms?

We receive Escrow, T/T, West Union, Cash, and others.

What is the voltage testing range of the P100?

The test tool supports a DC voltage range of 0-65V and works with 12.0 V or 24.0 V power provided via the vehicle battery.
