Product Description
| Product Name |
MST 9000+ |
| Material |
Plastic & Metal |
| MOQ |
1Pcs Or 1 set |
| Package |
By Standard Packing |
| Shipping |
By DHL/By Fedex/ by TNT by Post Etc. |
| Delivery time |
About 3-4 days |
Product Performance
The Automobile Sensor Signal Simulation Tool is a very useful tool for professional technicians during car ECU repairing.
This Automobile Sensor Signal Simulation Tool is an indispensable car ECU repair tool, with newly updated and more stable functions. After many years of R&D and multiple upgrades, our sensor signal simulation expert has become the primary equipment with advanced technology for many workshops and automobile training schools.
Product Usage

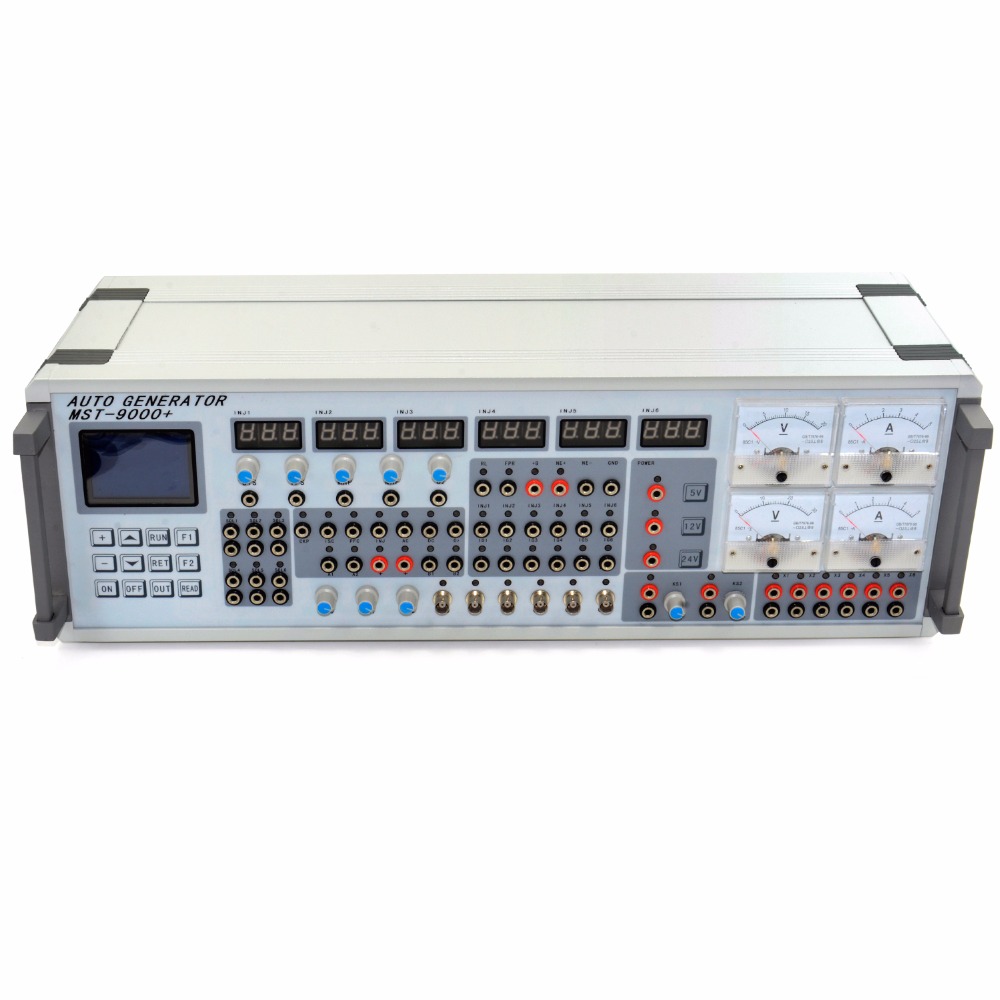

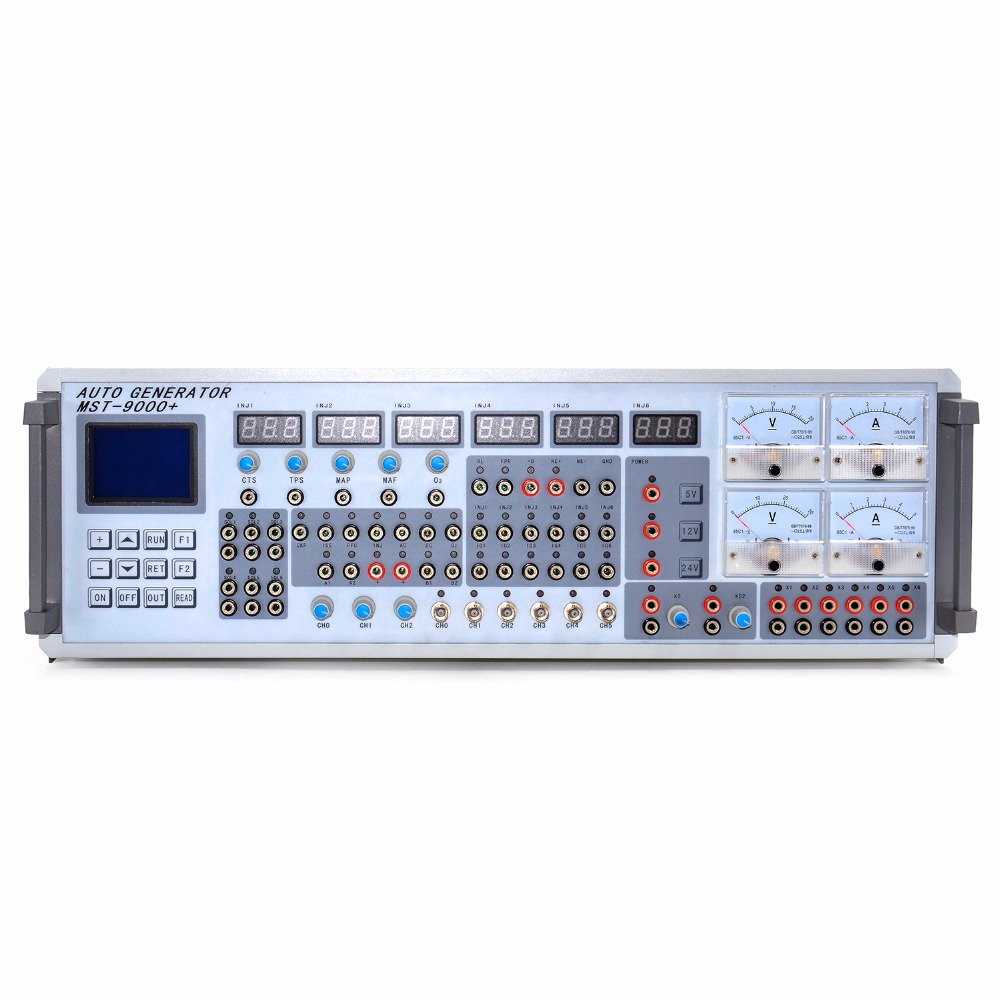

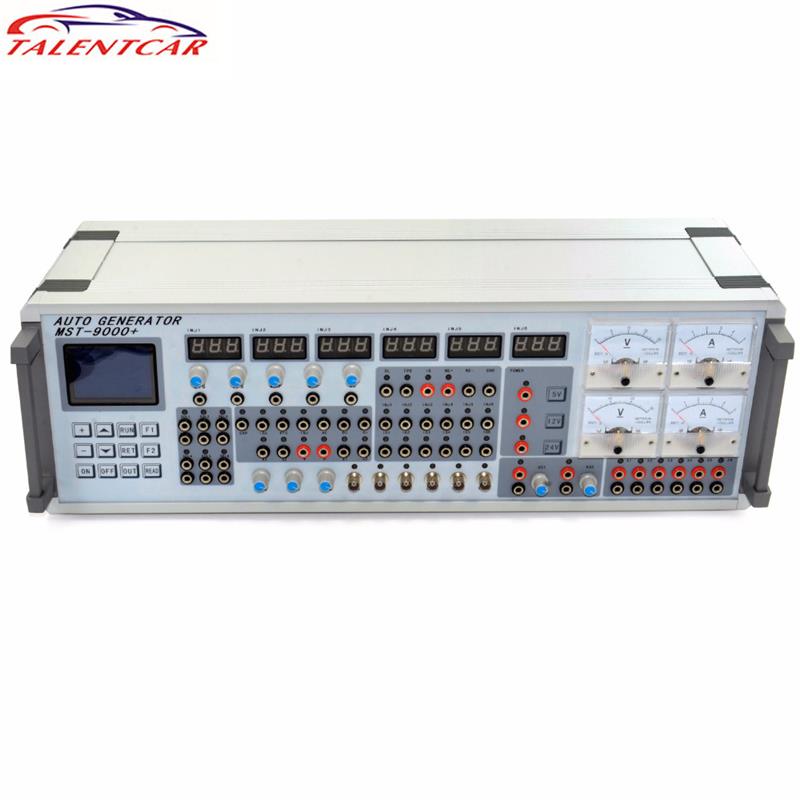

MST-9000+ Automobile Sensor Signal Simulation Tool Overview
Highlights:
- Language: English
- Software version: 2019 MST-9000+
- Update: Supported
- Warranty: 1 year
- Increase Simulate Knock Sensor Function, Output Ports are KS2, KS2
- Increase Reserved Port X1-X6 Stand-By, Customers Can Set Simulation Signals As Needed
Detailed Application Range:
- Automobile sensor dynamic diagnosis: engine, transmission, ABS, air-conditioning, Immo etc. for ECU repairing, auto teaching aid model driver, automobiles R&D.
- This Sensor Signal Simulation Tool fits multi-brand cars made in Asia, Europe, and the USA.
MST-9000+ Major Functions:
- Users can set the engine control system, independent of different types of crank signal output
- Automatic transmission input and output shaft signal simulation
- Set the waveform data to be written directly
- Engine speed signal output
- Speed signal output (Hall signal, magnetic signal)
- Three, four-channel ABS wheel speed signal output
- PC board working current test
- EGR solenoid valve drive
- Carbon can clear the solenoid valve drive
- Tachometer drive
- Blower Control Module Driver
- Idle valve driver
- Stepper motor drive (4, 6 lines)
- Injector Driver
- Ignition coil driver
- Ignition module drive
- Parking sensor (ultrasound) probe drive
- Automatic Shift Valve Drive
- Shift quality valve drive
- Hydraulic valve drive
- Water temperature, intake air temp, outdoor temp, evaporation temp sensor signal simulation box
- Oxygen sensor signal simulation (manual)
- Oxygen sensor signal simulation (auto signal)
- Throttle signal simulation
- Carbon can clear the solenoid valve simulation
- EGR solenoid valve simulation
- Air flow sensor, intake air pressure sensor (analog, digital) signal simulation
- Ignition coil simulation
- Injector simulation
- Idle stepper motor simulation (four-lane, six-lane)
- A \ C relay simulation
- Pump relay simulation
- Radiator fan relay simulation
- Audio signal outputs, power amplifier driver
- Automatic Shift Valve, shift quality valves, hydraulic control valve simulation
- Fuel injection pulse width measurement
- Central lock server simulation
- Burglar resistance simulation
- User Extension
MST-9000 Special Features:

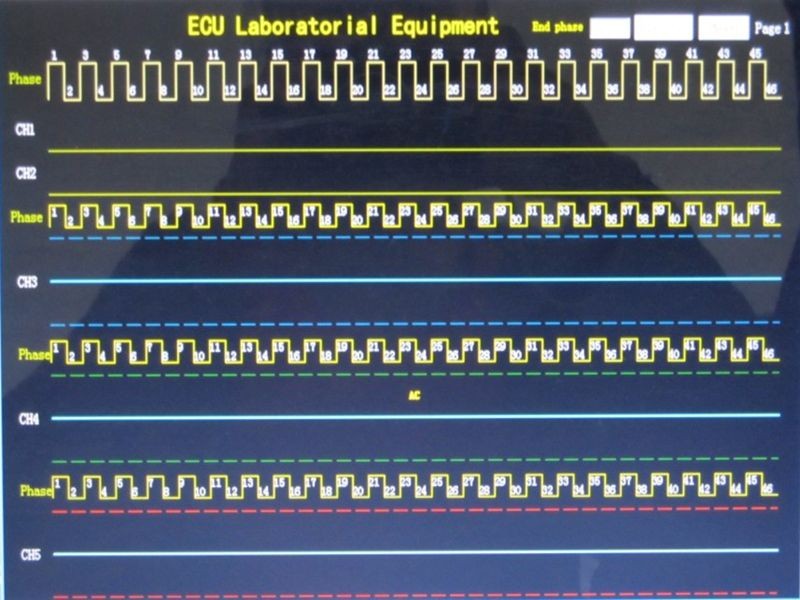

- All cars crank signal simulation experts: It can be set to arbitrary waveform output, producing all models of today's engine crankshaft, camshaft signals (Hall, magnetic, optical signals). Waveform data memory card ensures long-term preservation, with free online updates.
- All cars sensor signal simulation experts: Speed signal, ABS wheel speed signal, oxygen sensor signal, throttle signal, air flow, inlet pressure sensor (analog, digital) and other signal simulations.
- All cars Actuator experts: Tachometer, odometer, blower control module, injector, ignition coil, ignition module, frequency and pulse width control solenoid valve, stepper motor drive (four-lane, six-lane), car audio amplifiers, etc.
Output Signal Specifications:
- Magnetic signals, Hall signals, optical signals
- Actuator: Drive current 3A, 1% ~ 99% duty cycle continuously adjustable, frequency continuous adjustment
- Sensor Signal Simulation: resistance 100Ω ~ 10000Ω, voltage of 0V ~ 5V × 2, 0V ~ 1.5V, 0V ~ 12V
- Implementation of simulated driving: 69-channel simultaneous output
- Stepper motor drive: current 1A, applicable to all vehicles with four, six stepping motor drivers
- Ammeter maximum test current: 5A

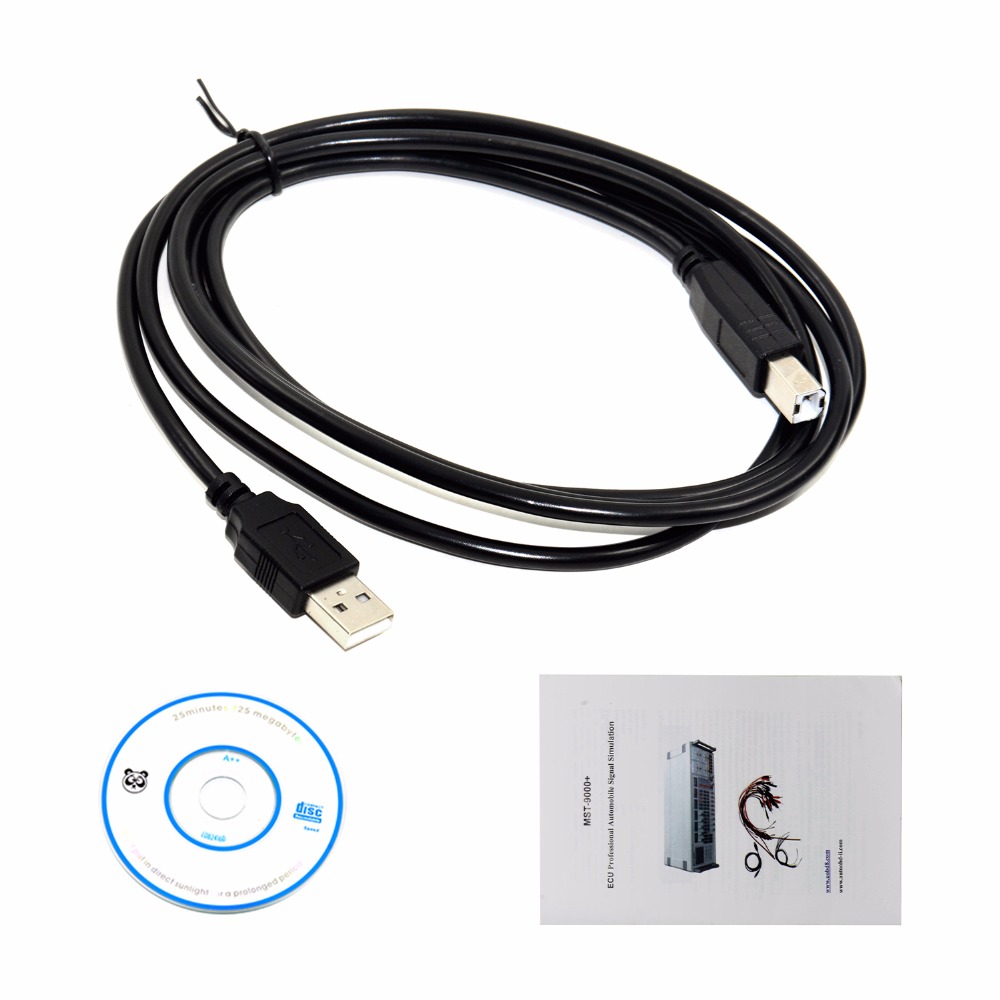

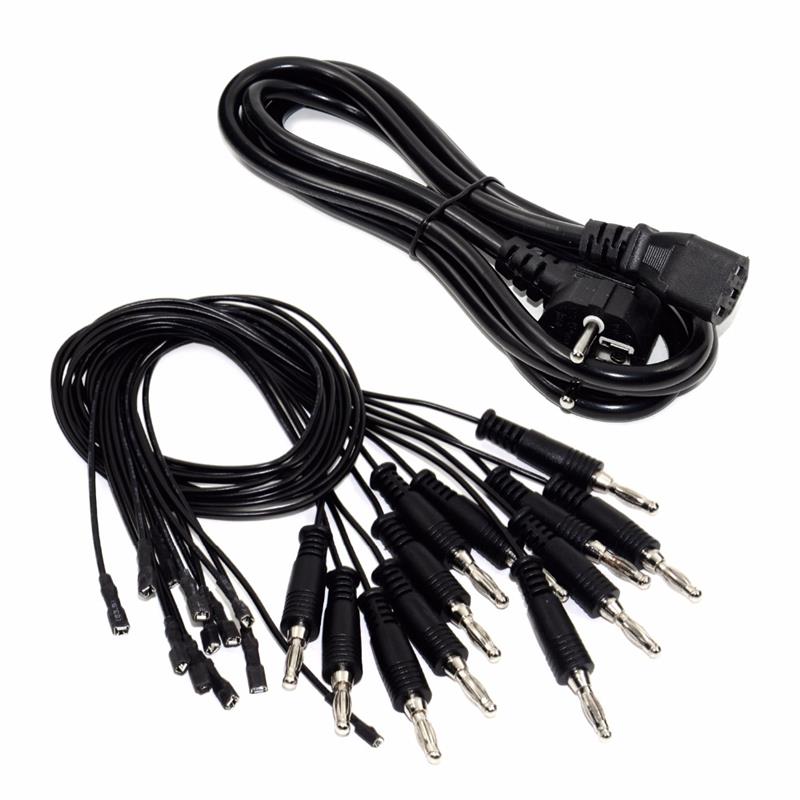

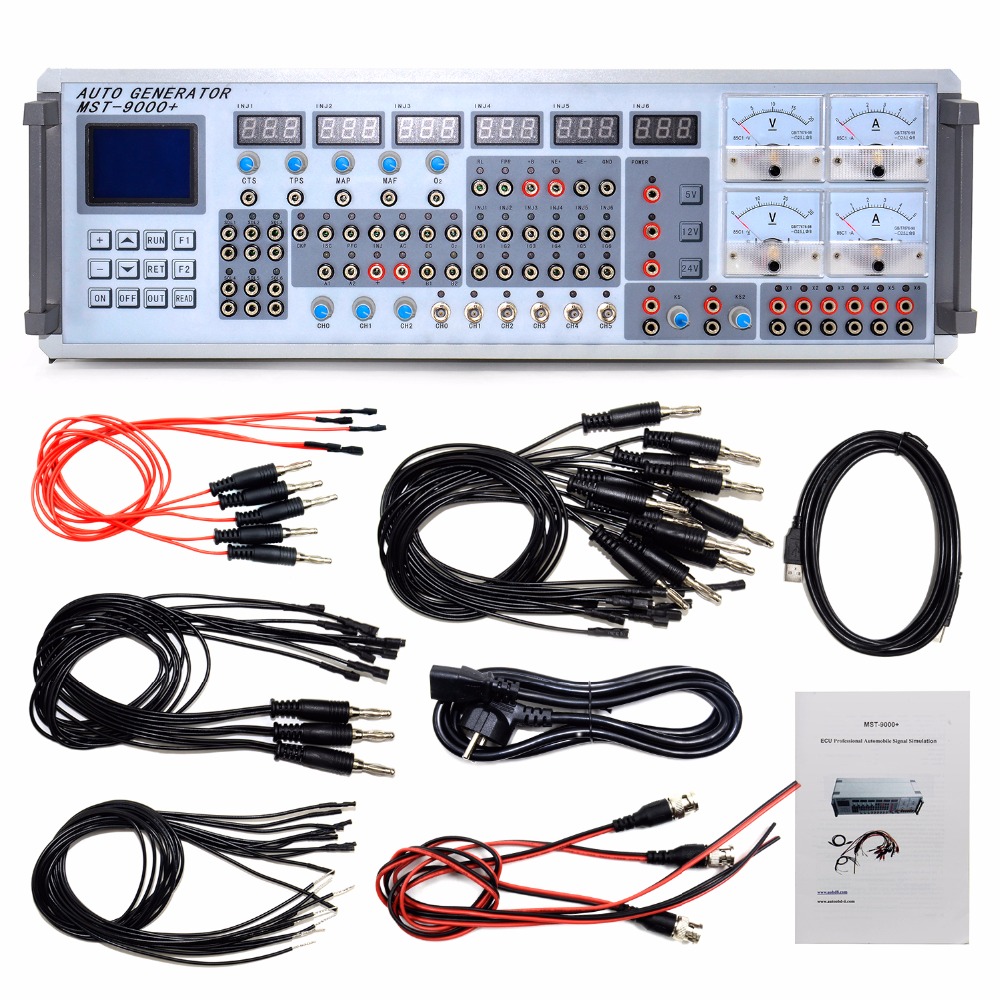

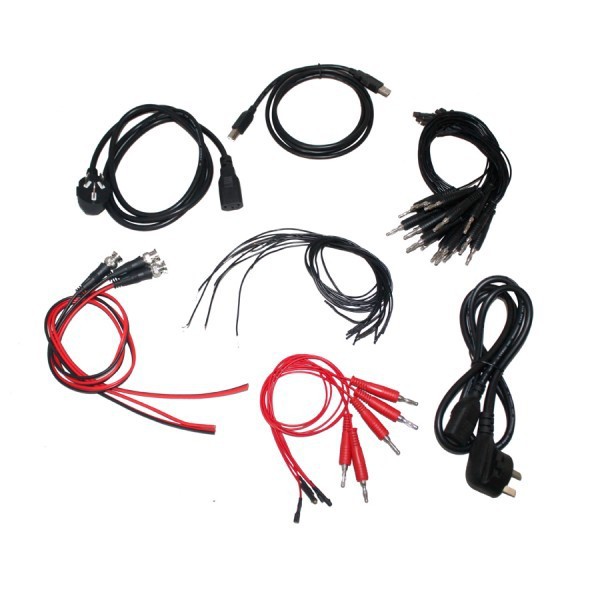

Packing List:
- Sensor signal simulation expert Gold Edition x 1 set

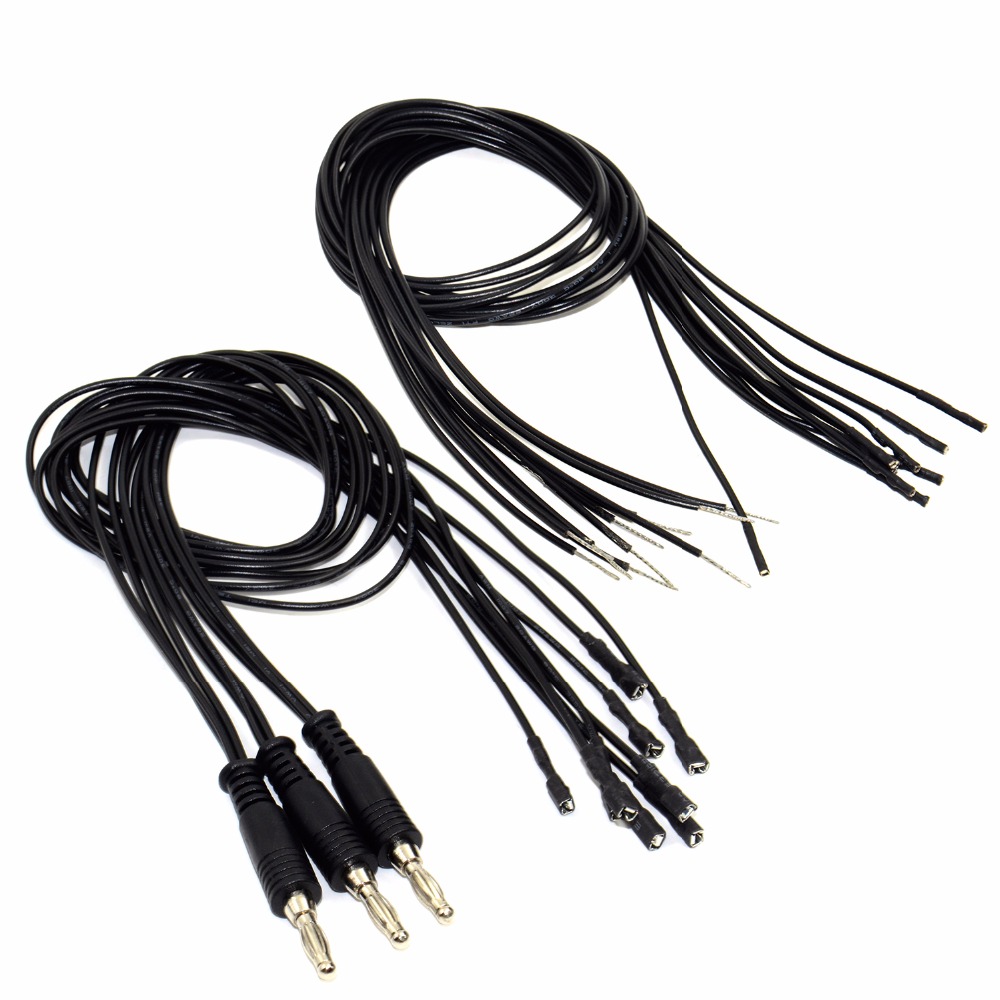

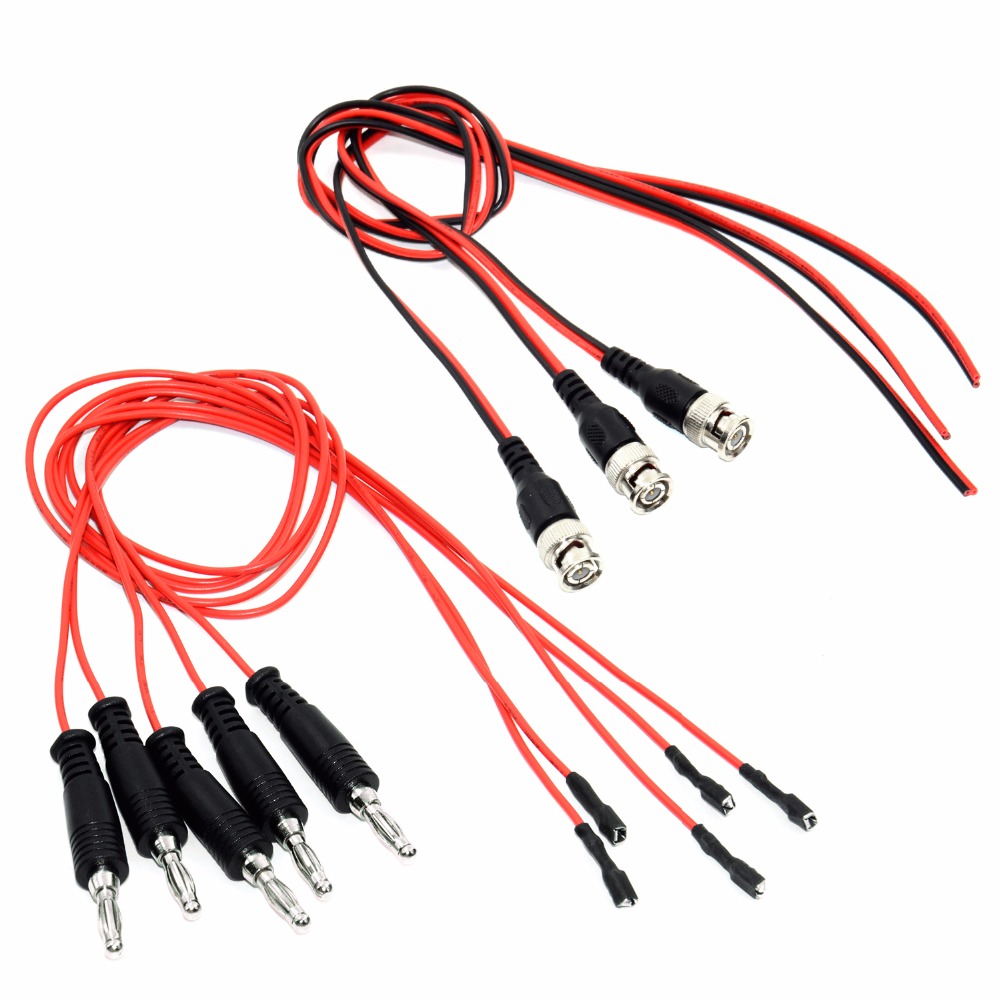

- Data line x 2
- Power line x 1
- CD x 1
- USB cable x 1

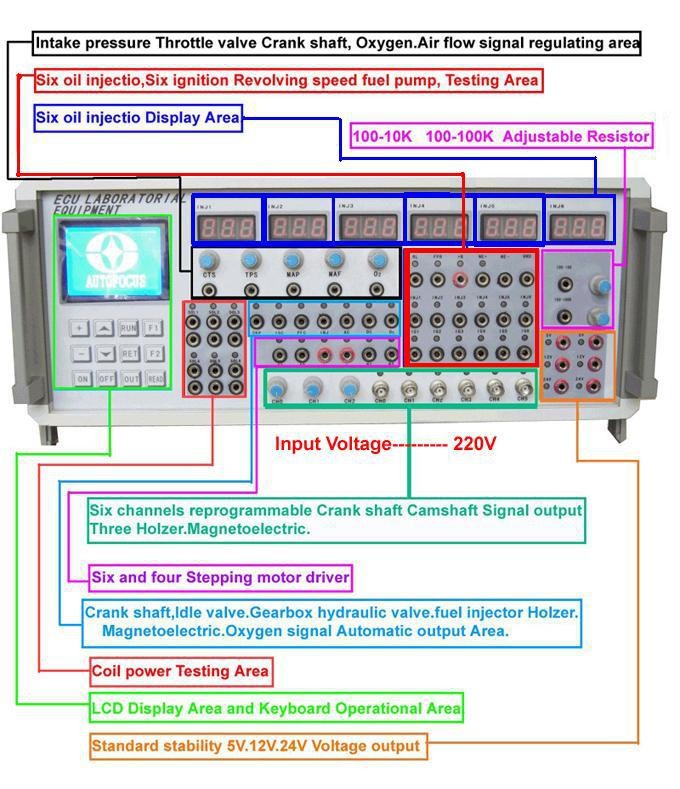

Panel Instructions:
Details Images
Frequently Asked Questions (FAQ)
What is the primary function of the MST-9000+?
The MST-9000+ is an Automobile Sensor Signal Simulation Tool designed as an indispensable aid for professional ECU repairing, dynamic sensor diagnosis, automotive teaching, and automobile R&D.
What components and signals can this tool simulate?
It can simulate crankshaft/camshaft signals, ABS wheel speed, oxygen sensors, throttle, air flow, inlet pressure, actuators, ignition coils, injectors, stepper motors, and various temperature sensors.
Is the device compatible with international vehicle brands?
Yes, the MST-9000+ signal simulation tool is designed to work with multi-brand cars manufactured in Asia, Europe, and the USA.
What languages does the software support?
The software language supported by this tool is English, making it widely accessible for international technicians.
What is included in the standard Gold Edition package?
The package contains 1 set of the Sensor Signal Simulation Expert Gold Edition, 2 data lines, 1 power line, 1 CD, and 1 USB cable.
What is the warranty period for the MST-9000+?
The MST-9000+ sensor simulation tool comes with a 1-year product warranty.
