Manata Scanner
1 / 5
| Parameter | Description |
|---|---|
| Adapted voltage | 9-36V |
| Average operating current | 20mA/12V |
| Sleep current | <2mA/12V |
| VCC The output voltage | 12V/24V/5V/4.2V Optional |
| VCC output maximum current | 5A |
| ACC output voltage | 12V/24V |
| Communication type | Serial port TTL/232/485 optional |
| Baud rate | 9600/115200 bps |
| OBD Connector | Compliant with OBDII standard connectors |

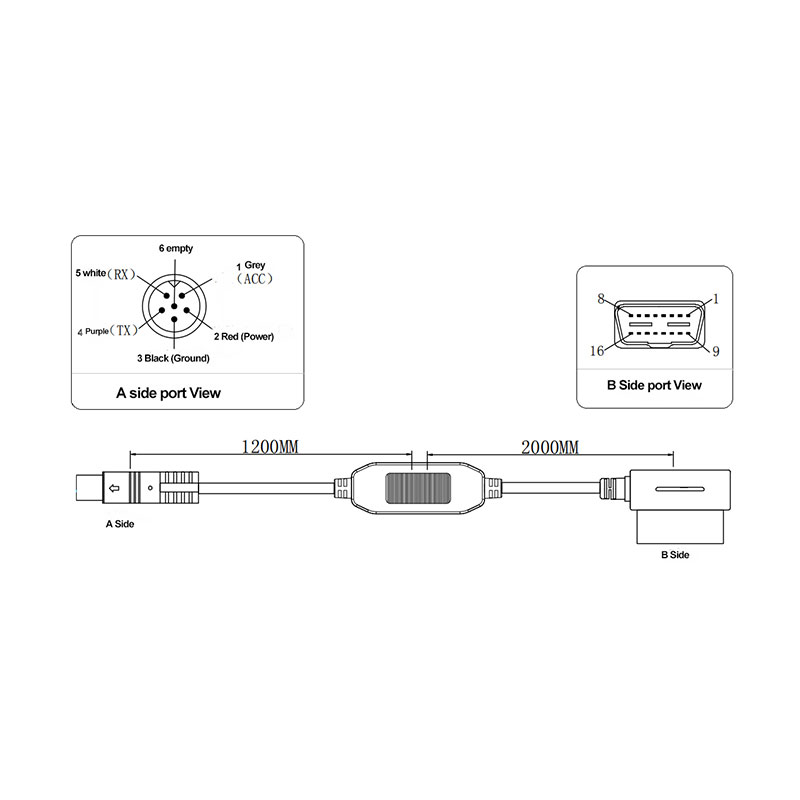

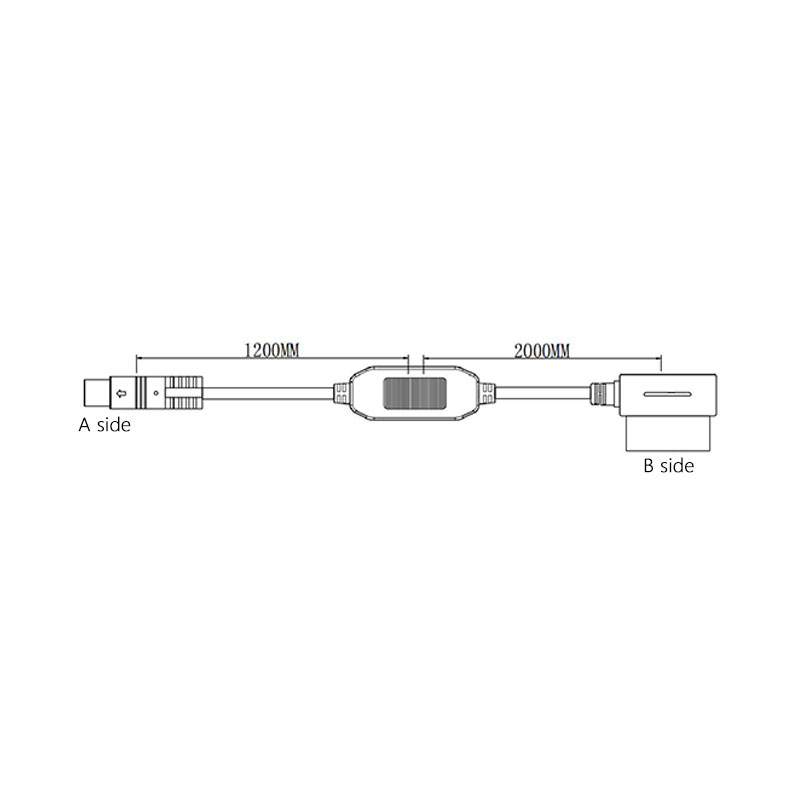

| line length | Total length 3 meters (2 meters + 1 meters) (customizable) |

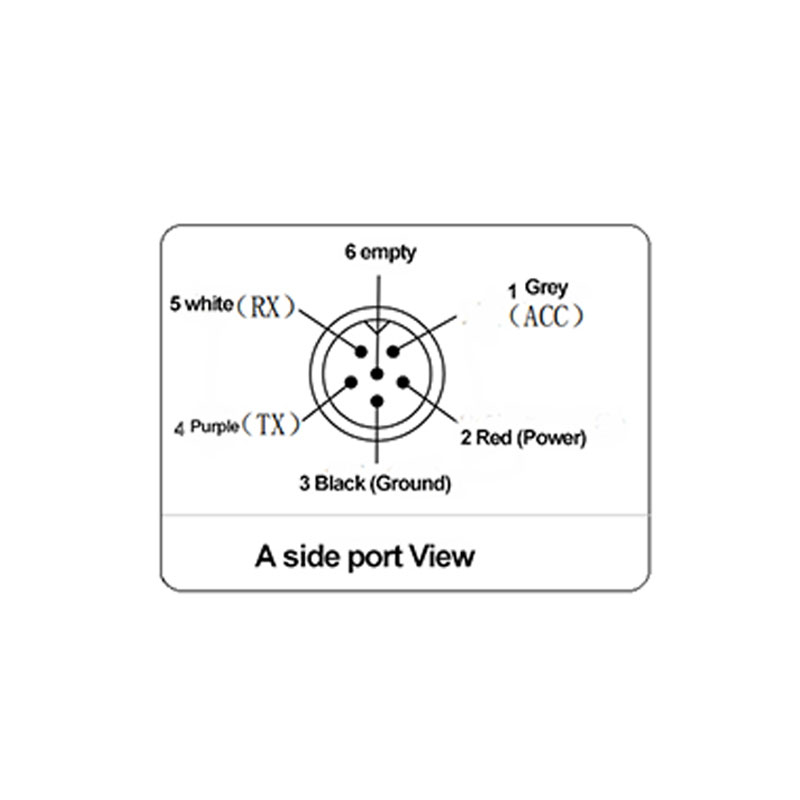

| Wire connector | BMW head 6 core (can be customized) |
| Operating temperature | -30~70℃ |
| Storage temperature | -40~85℃ |
No, this product is not sold separately and is specially designed to work in conjunction with our store's compatible MDVR or Dash Cam systems to ensure optimal performance and power management.
The cable supports a wide input voltage range of 9V to 36V, making it highly compatible with both standard 12V cars and 24V commercial vehicles/trucks.
Yes, it features a smart sleep mode with an ultra-low operating current of less than 2mA at 12V, which effectively prevents the car battery from draining when the engine is off.
Yes, the standard version is 3 meters in total length with a 6-core BMW connector, but both the wire length and connector interfaces can be customized to match your specific requirements.
It supports serial ports with options for TTL, RS232, and RS485 communication protocols, and it supports baud rates of either 9600 bps or 115200 bps.
