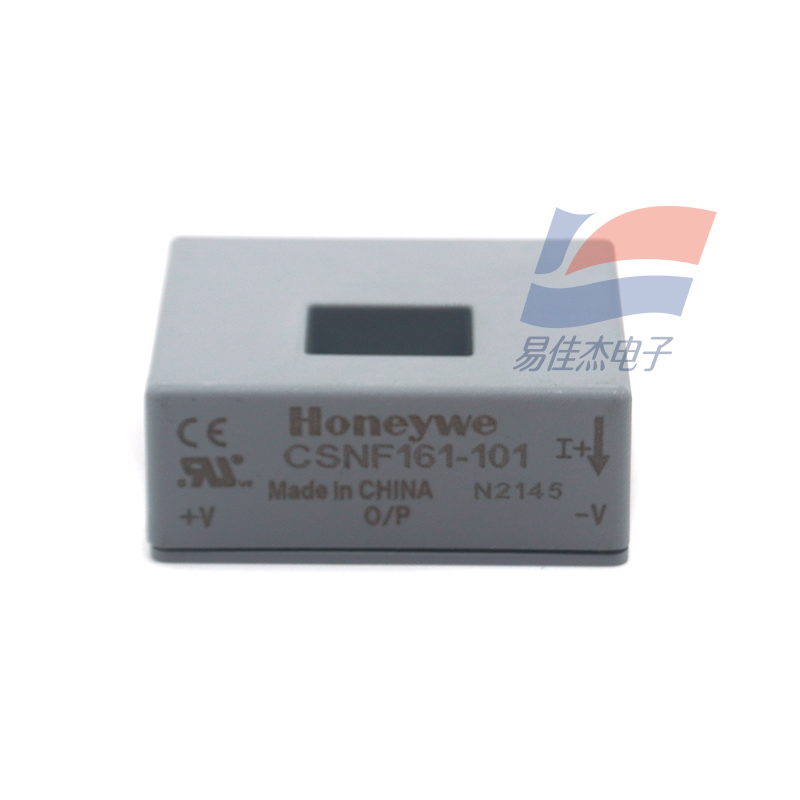

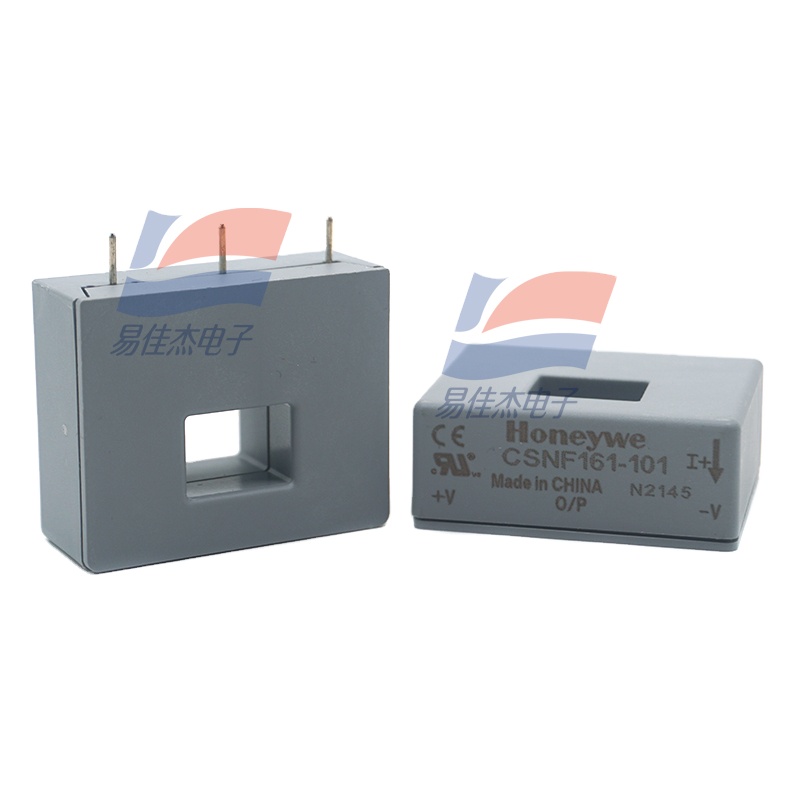

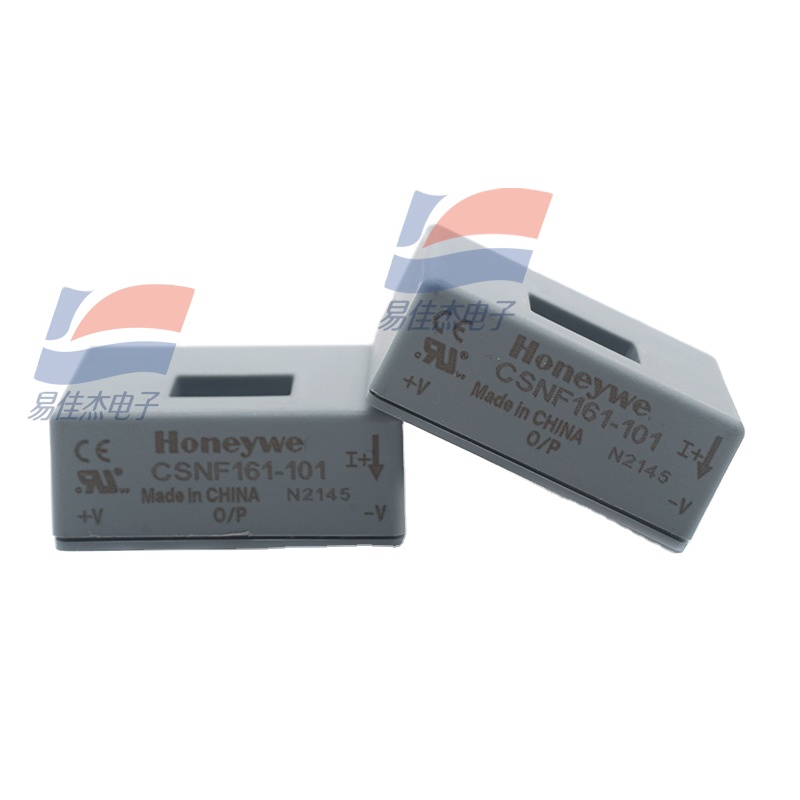

CSNF161 CSNF161-101 Closed-loop Current Sensor for Feedback Control Systems Automotive & EV Power Electronics
| Category | Parameter | Specification Details |
|---|---|---|
| Basic Information | Product Model | CSNF161 - 101 |
| Sensor Type | Closed-loop current sensor based on Hall effect and zero-flux balance method (feedback system) | |
| Measurement Range | Rated Current | 100A |
| Measurable Current Range | ±150A (supports DC, AC, and pulse current measurement) | |
| Product Characteristics | Accuracy | ±0.5% |
| Response Time | <0.5μs | |
| Electrical Isolation | High-degree electrical isolation between primary and secondary circuits; isolation voltage: 3kVRMS/50kHz/1min | |
| Overload Capability | Strong overload-resistant | |
| Operating Temperature | -40°C to +85°C | |
| Operating Conditions | Power Supply Voltage | ±12V to ±15V DC (±5%) |
| Coil Resistance | 30Ω | |
| Physical Characteristics | Package Type | Module, single-pass through |
| Dimensions | Width: 36.5mm, External length/height: 29.8mm, External depth: 14.5mm | |
| Mounting Type | PCB mount, through-hole | |
| Electrical Characteristics | Current Consumption | 10mA (nominal), 14mA (max) |
| Output Type | Current | |
| Output Current | 100mA | |
| Linearity | ±0.1% | |
| Frequency Range | 0Hz - 150kHz | |
| Other Information | RoHS Compliance | Compliant |
| Reach SVHC | No SVHC |
