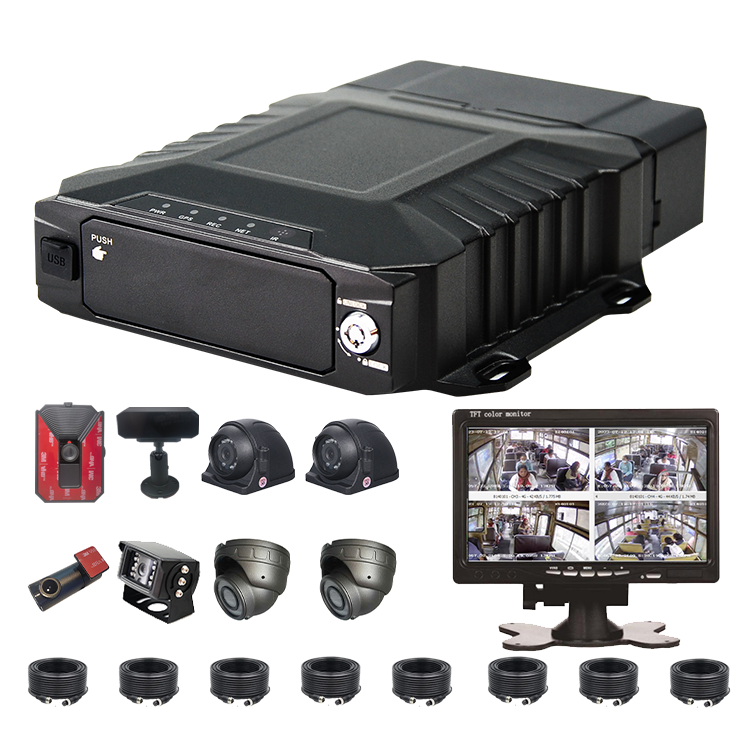

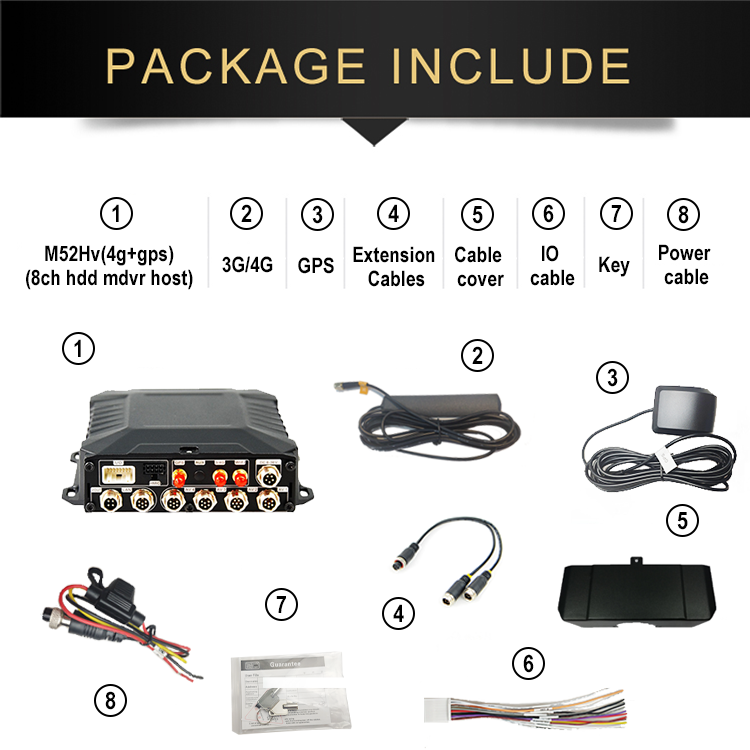

A 8ch mdvr with 4g + gps, order only contains the mdvr host;

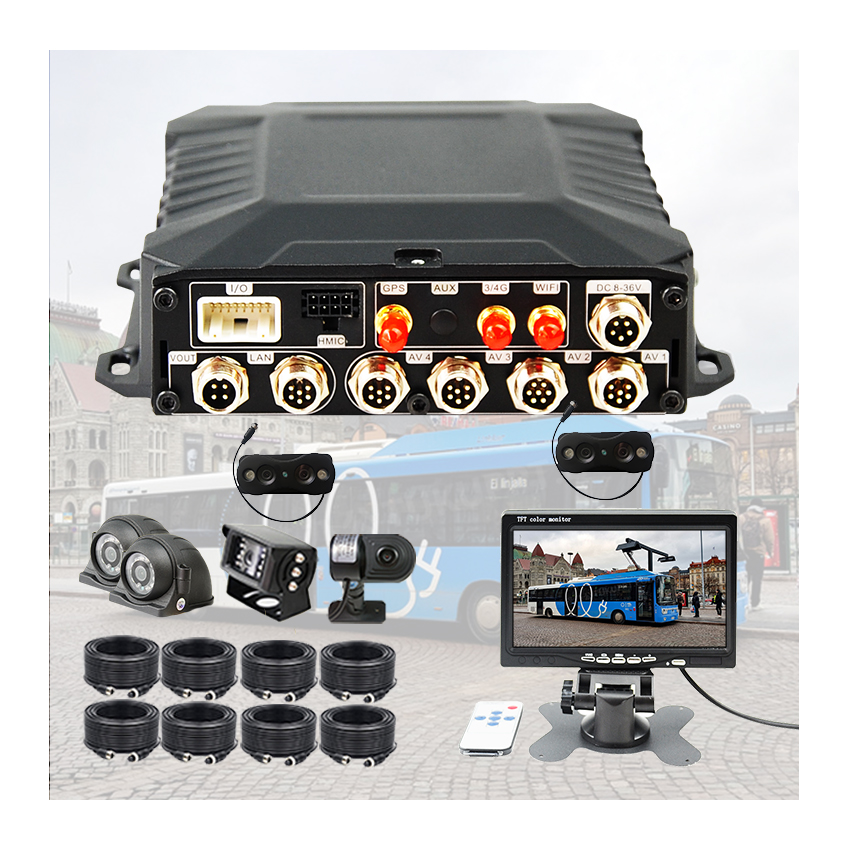

The camera and display and other accessories need to be purchased separately, please contact customer service for details!

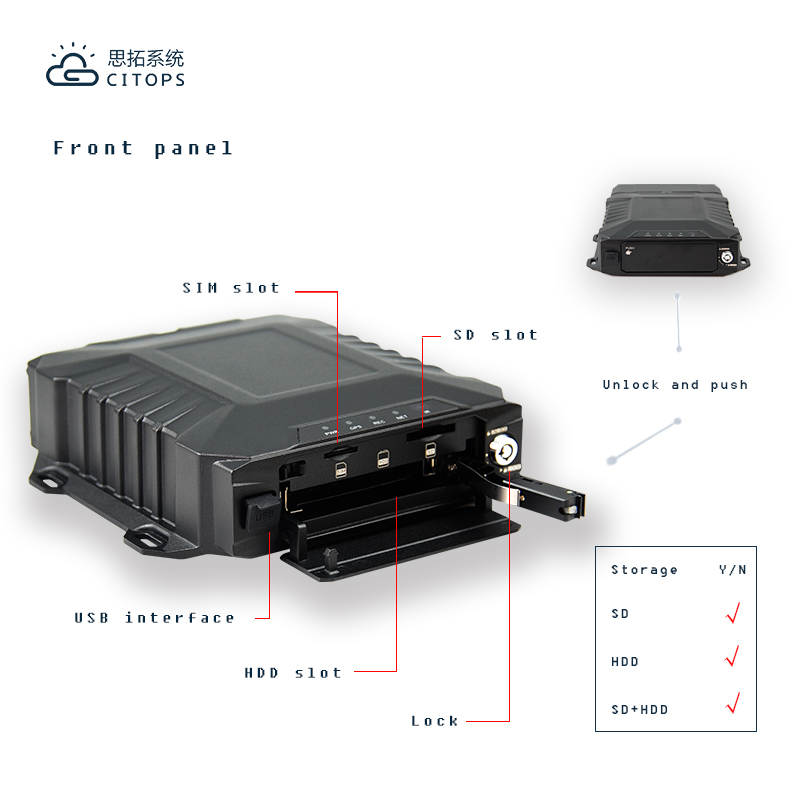

It adopts a self-pop-up structure design of hard disk, high-speed processor NT98323 and embedded operating system, and integrates IT cutting-edge field H.264/H.265 video compression/decompression, 4G network, GPS/BD positioning and other technologies.
| Item | Parameters | |
|---|---|---|
| Audio and Video Inputs | video input | 8ch AHD audio input |
| audio input | 4ch audio input | |
| Audio and Video outputs | video output | Default 1-way CVBS output (VGA output optional) |
| speech output | 1ch audio output | |
| Audio & Video parameter coding | video coding | H.264 Main Profile/H.265 |
| Resolution | 1080P/720P/D1 optional | |
| audio coding | Default G.726, G.711A optional | |
| storage space | HDD | 1 2.5-inch optional: SSD/HDD hard disk |
| SD | Support 1 SD card | |
| wireless network | 4G | Supports 1 SIM card, optional: all major communication modules in the world |
| WIFI | 2.4/5.8G optional | |
| locate mode | BD/GPS | Support for mixed positioning, speed detection, time synchronization |

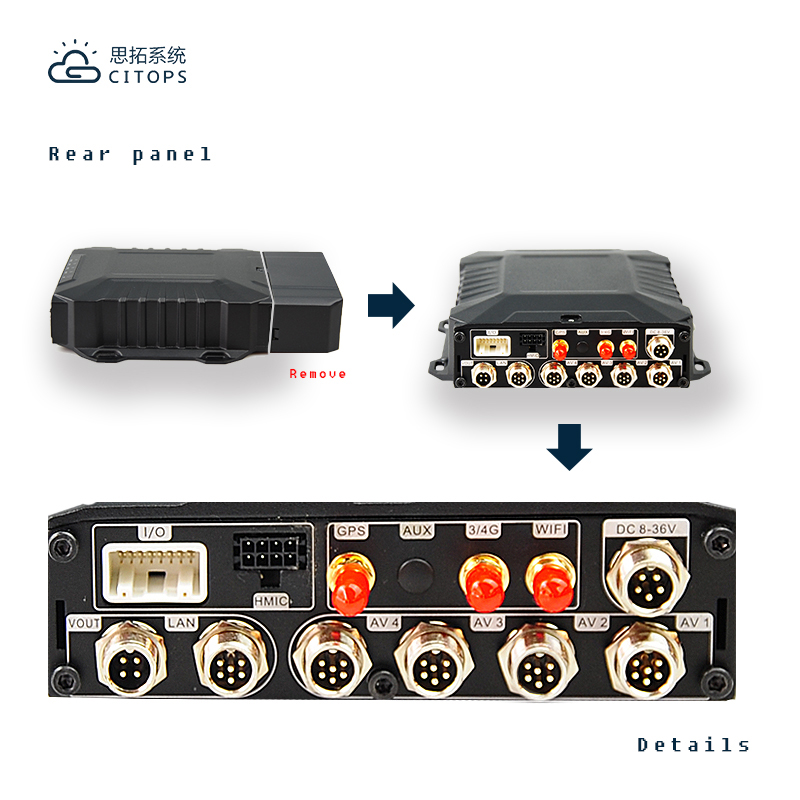

| interface | USB | USB2.0 interface, support export data, external engineering treasure |
| serial port | Support 2 RS232, 1 RS485, can be connected with external sensor | |
| I/O | 4 level inputs, 2 analog inputs, 2 alarm outputs | |
| network interface | Support external IPC, support hybrid NVR function | |
| Intercom | 1 special intercom handheld mark interface | |
| Physical Specifications | size | 176.9mm (L) * 186.8mm (W) * 54mm (H) |
| weight | NW: 1.4kg / GW: 2kg (M52Hv-DGNE1-L as a standard) | |
| work environment | operating temperature | -20℃ to +70℃ |
| operating humidity | 8% to 90% (No condensation) | |
| Other | operator schema | remote control, APP, WEB |
| Gravity sensor | Built-in G-Sensor | |
