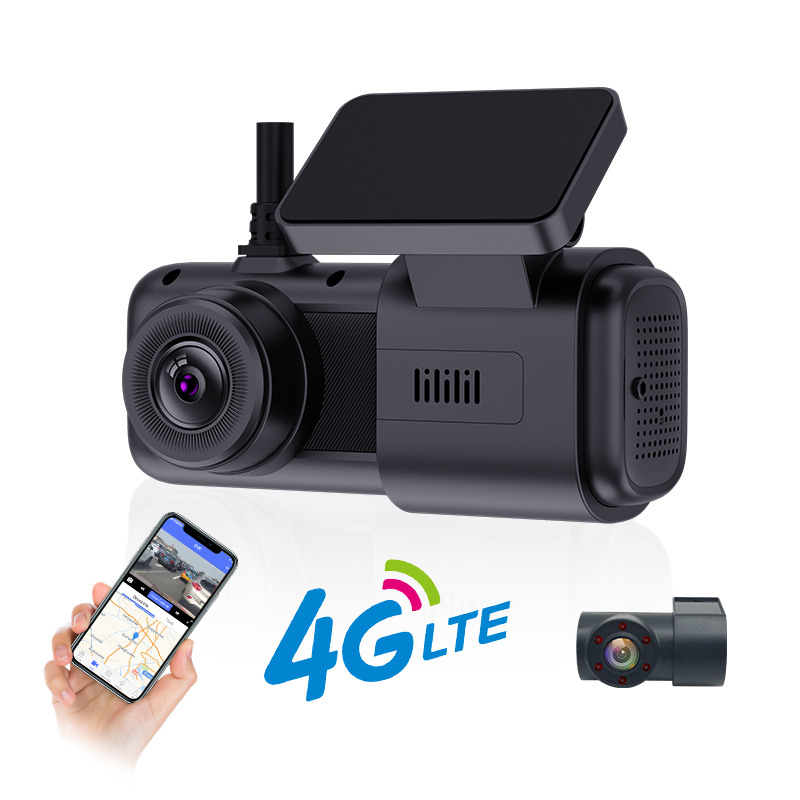

2K Truck System 4g Dashcam for the Vehicle Fleet Management on Cmsv6 Fit 9-36V and 512G Card 4g Car Camera

Product Description

Product Specifications

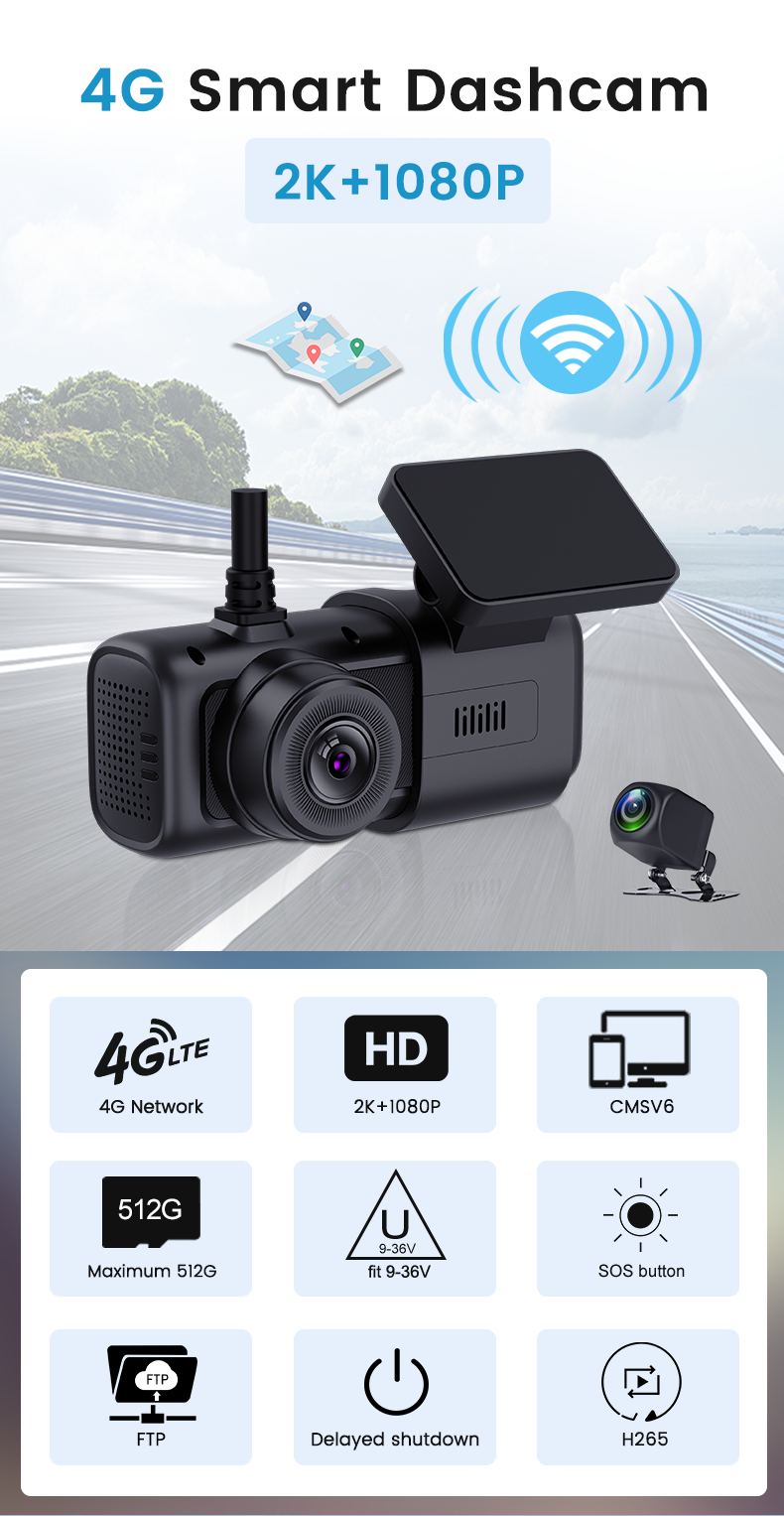

Product specifications layout
CHIP EEASYTECH SA223
Memory Embedded 2 Gb DDR3L / SPI NOR / SPI NAND / eMMC / SD2.0
4G Module QUECTEL EC200A series (custom-made option supported)
Screen No screen
4G Network Bands FDD LTE: B1/2/3/4/5/7/8/28/66
TDD LTE: B40
Video Quality Front: 2560*1440@30fps (2K)
Rear: 1920*1080P@30fps (1080P)
Supports D1, HD1, CIF video quality
View Angle Front: 135 degree | Rear: 125 degree
Image Sensor Front: GC4653 with 6G lens
Rear: GC2053 with 6G lens
Video/Photo Format Video: H.264/H.265 (MP4) | Photo: JPEG
GPS Position External GPS antenna + Beidou positioning
WIFI Hotspot Dual band 2.4G / 5.8G
Audio & Sensor Built-in loudspeaker & microphone | Built-in 6-axis sensor
Storage Support Max 512GB TF Card (Class 10 or above)
Power System 9-36V power input | Built-in super capacitor for delay shut down
Environment Temp: -20℃ to +70℃ | Humidity: ≤90%
Key Features

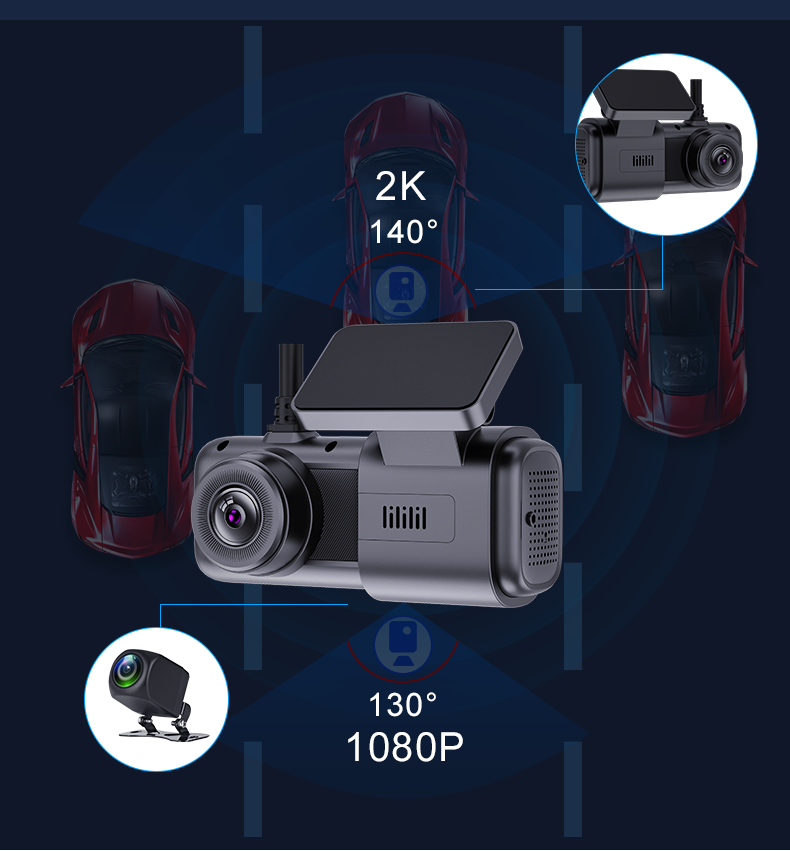

2k video quality
2K Video Quality

Supports simultaneous recording from both front and back cameras. The front camera records in crystal clear 2K, and the back camera captures in full 1080P resolution.

4g gps function
4G GPS Function

Supports 4G LTE bands (FDD LTE B1/2/3/4/7/8/20/28/66 and TDD LTE B34/38/39/40/41). Together with external Beidou/GPS antennas, vehicle positions can be tracked anytime and anywhere.

9-36V wide power input
9-36V Wide Power Input

Perfectly suitable for multiple vehicle types, including taxis, small passenger vehicles, mini buses, and commercial trucks, owing to its flexible 9-36V power compatibility.

gps tracking system
Precise GPS Tracking

Ensures strong signal acquisition and precise mapping tracking using an optimized dedicated external GPS antenna accessory.

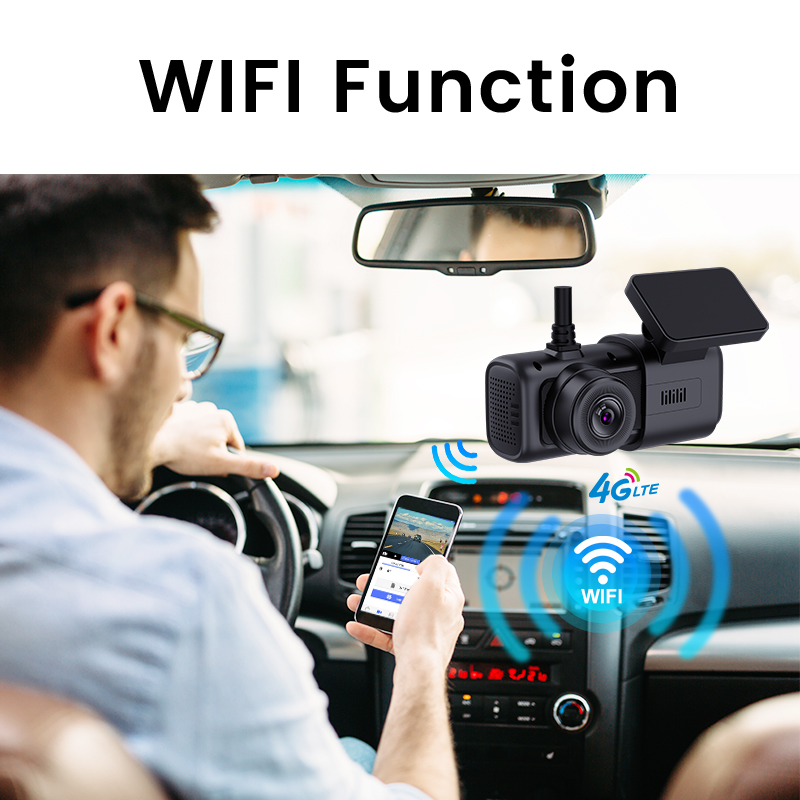

wifi hot spot function
Wi-Fi Hotspot Support

When connected to the 4G mobile network, the device can function as a wireless router hotspot, providing internet connection to other mobile devices in the car.

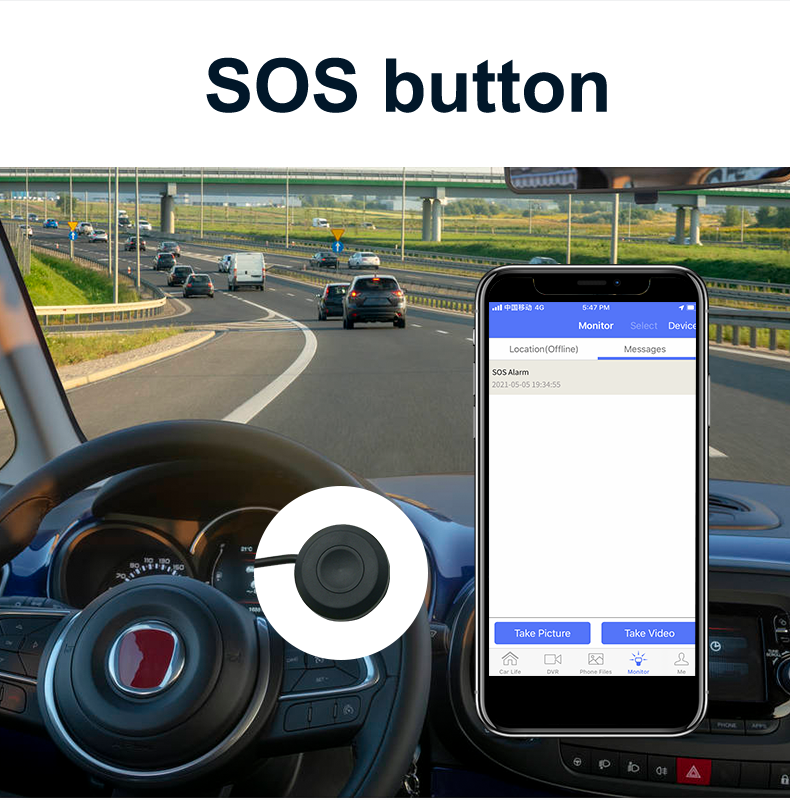

sos panic button
SOS Panic Button

Designed for emergencies, the product package includes a dedicated external SOS emergency alarm button for rapid trigger alerts.

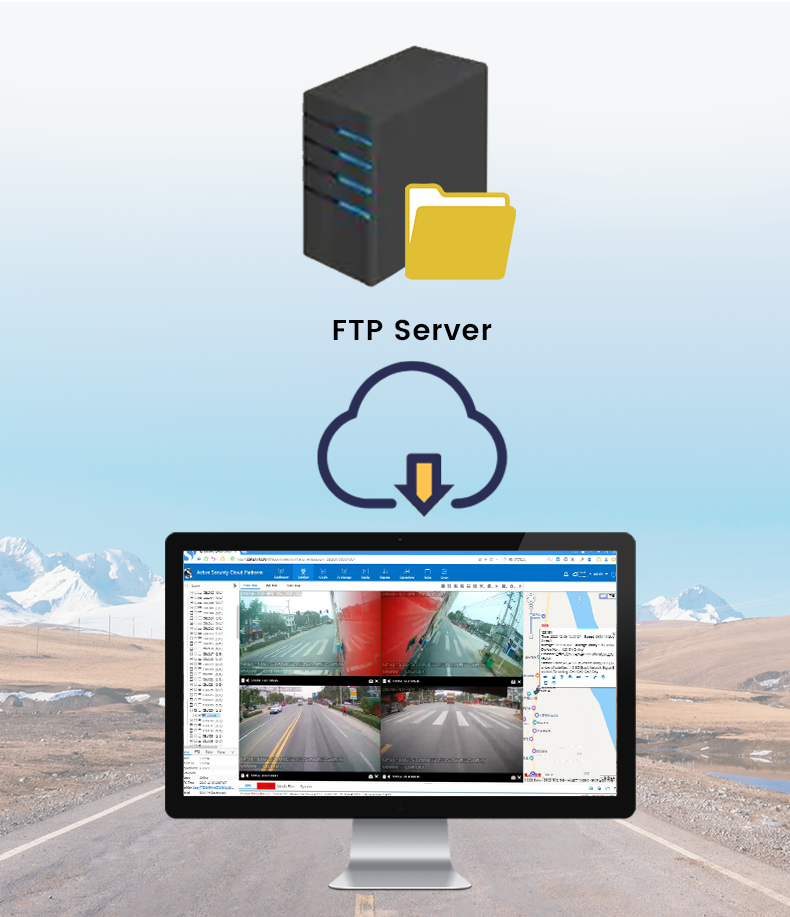

FTP upload video
FTP Auto Cloud Upload

Enables automatic data and recording uploads to your specific remote server utilizing the FTP communication protocol, functioning similarly to robust MDVR systems.

delay shut down

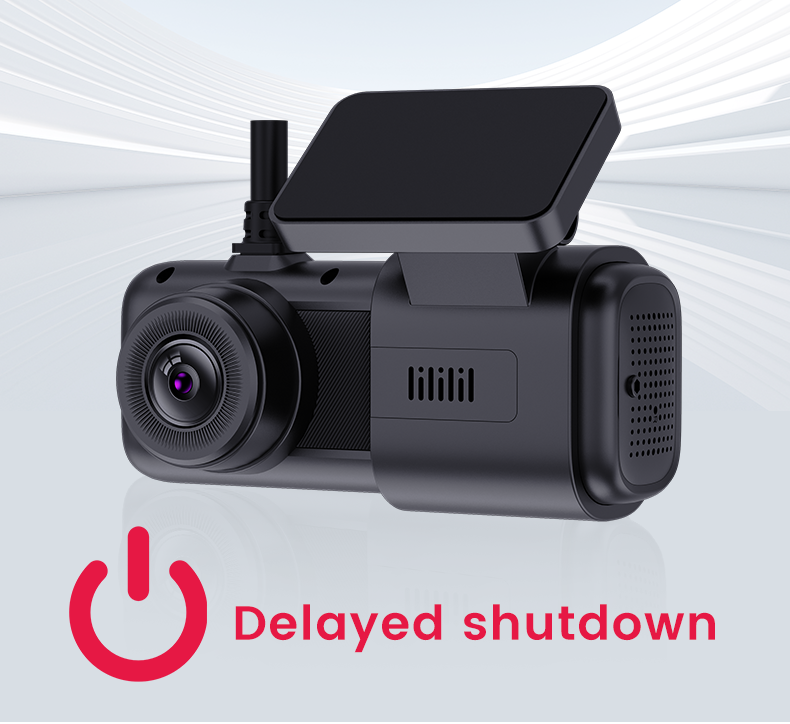

Supercapacitor Delay Shut Down

Equipped with two heavy-duty onboard supercapacitors, ensuring sudden power losses won't interrupt ongoing files. Supports configurable delay shut down after parking.

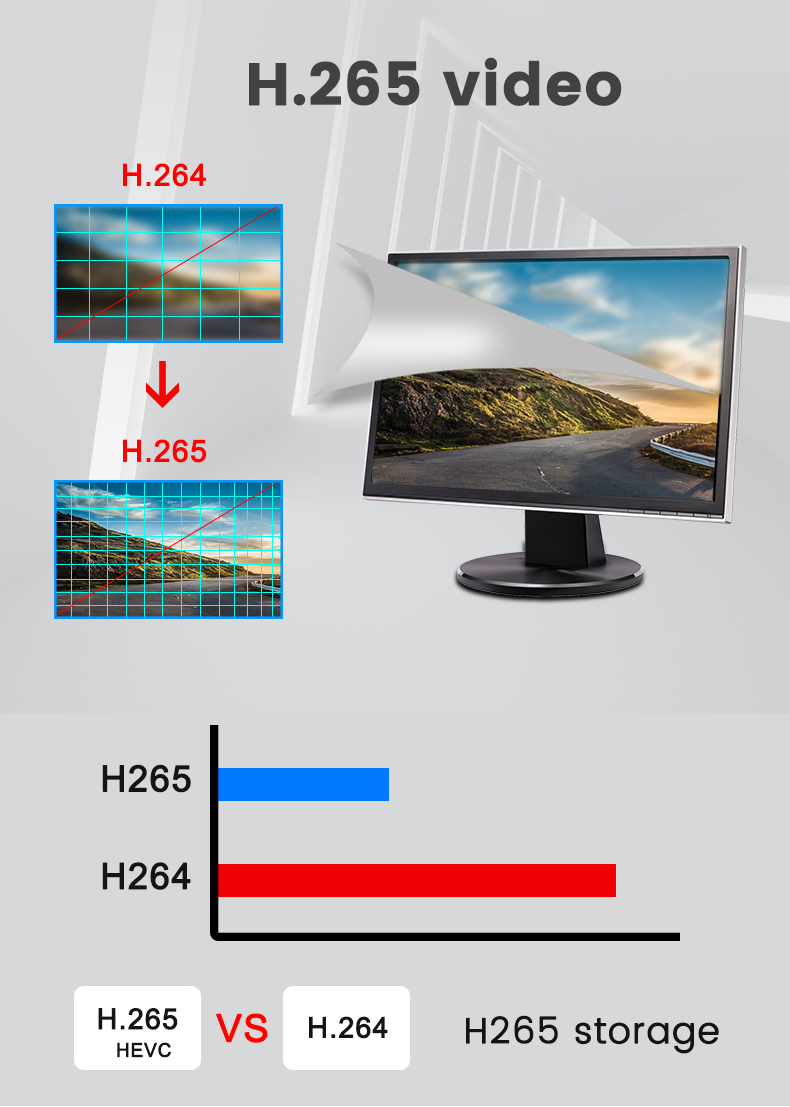

H.265 compression format
Efficient H.265 Video Codec

By utilizing advanced H.265 coding algorithm efficiency, the camera saves up to 50% storage space, meaning your local TF card records for significantly longer.

max 512g card support
Supports Up To 512GB TF Card

Supports massive storage expansions up to 512GB. Recording under front and back 720P settings allows the storage drive to run up to 30 days of continuous recording.

built in G-sensor
6-Axis G-Sensor

Integrates a precise 6-axis acceleration sensor. Instantly locks critical footage from overwrites when detecting sudden crashes, impacts, or sharp turns.

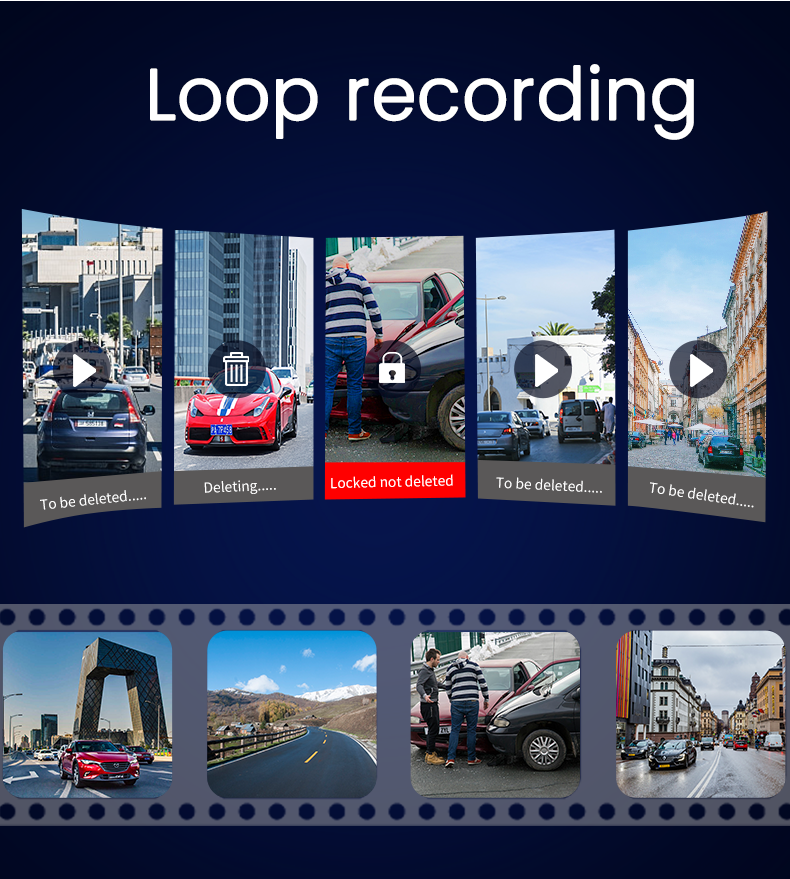

loop recording
Smart Loop Recording

Automatic circle system replaces old unprotected videos with fresh ones once the memory limit capacity threshold is fully reached.

Product Diagram & Installation Layout

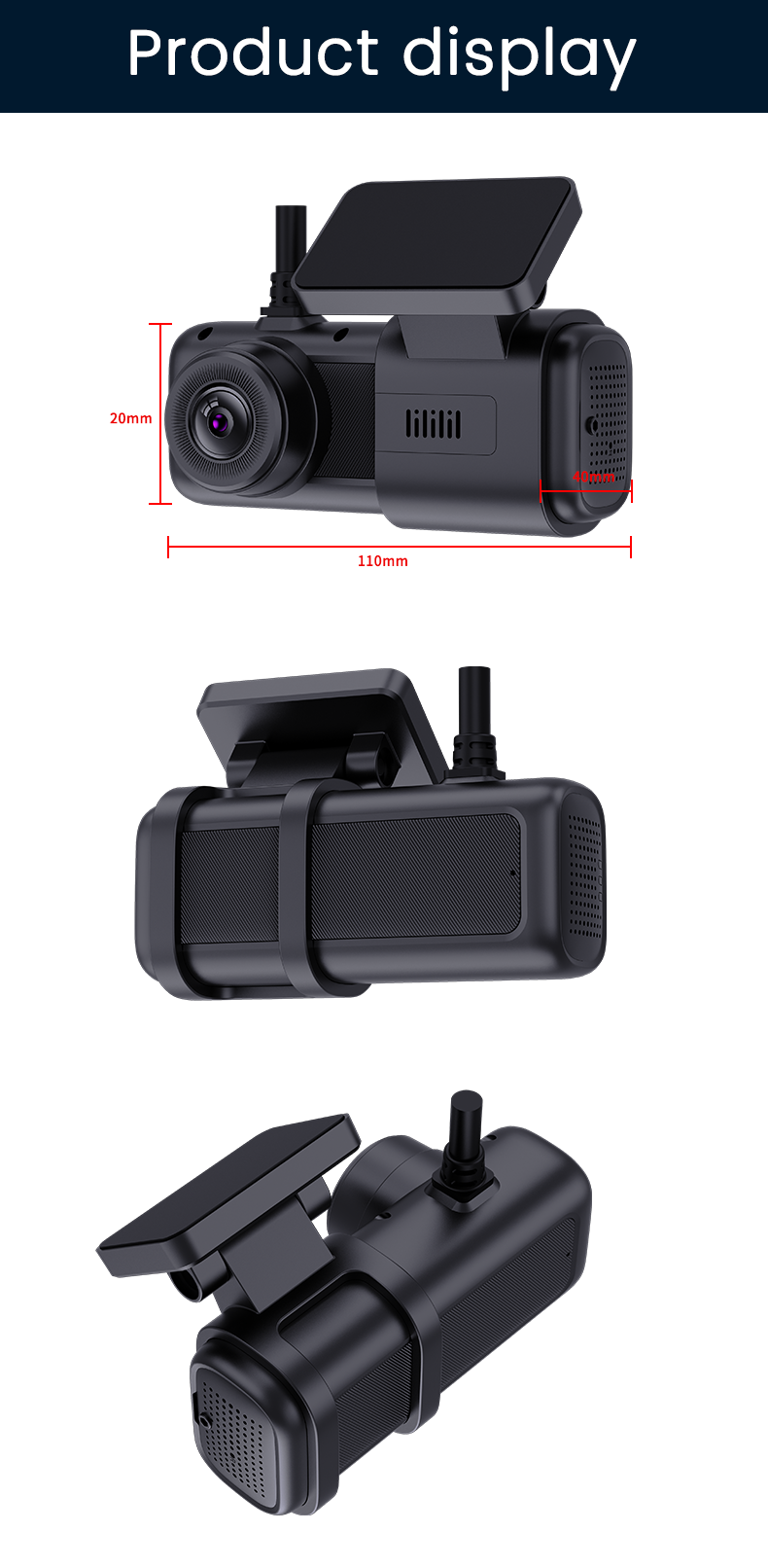

Device connections and dimensions scheme
Package Content
  • 1x G2 Dashcam
  • 1x GPS Antenna
  • 1x Power Cable
  • 1x Rear Camera
  • 1x Rear Camera Extension Cable (5 meters)
  • 1x 3M Adhesive Pad (for installation)
  • 1x SOS Emergency Button
  • 1x User Manual
Accessories included in box package
Frequently Asked Questions (FAQ)
What is the resolution quality of the G2 dashcam?
The G2 dashcam supports dual-channel recording. The front camera records in high-definition 2K (2560*1440@30fps), while the rear camera records in 1080P (1920*1080P@30fps). It also supports D1, HD1, and CIF video qualities.
Does this vehicle camera support real-time GPS tracking?
Yes. The system utilizes an external GPS and Beidou positioning antenna to track the vehicle's position, speed, and timing metrics in real-time.
Can the G2 dashcam be installed in large trucks or buses?
Absolutely. The G2 supports a wide power input voltage range from 9V to 36V, making it fully compatible with taxis, passenger cars, delivery vans, mini-buses, and large freight trucks.
How long can a 512GB storage card record?
This system supports up to a 512GB Class 10 TF card. Utilizing H.265 compression format, the memory card can record up to 30 days of footage when configured to 720P front and rear video quality.
What happens to the video files if the car's power is cut off suddenly?
The G2 features built-in dual supercapacitors. If the power supply is cut abruptly (e.g. in an accident or parking shut down), the stored energy guarantees that the current recording finishes writing safely, avoiding data corruption.
Can this camera upload footage to a remote network server?
Yes, similar to commercial MDVR systems, the G2 supports FTP upload protocol to automatically upload video files to a designated cloud or remote network server via the 4G mobile signal connection.
