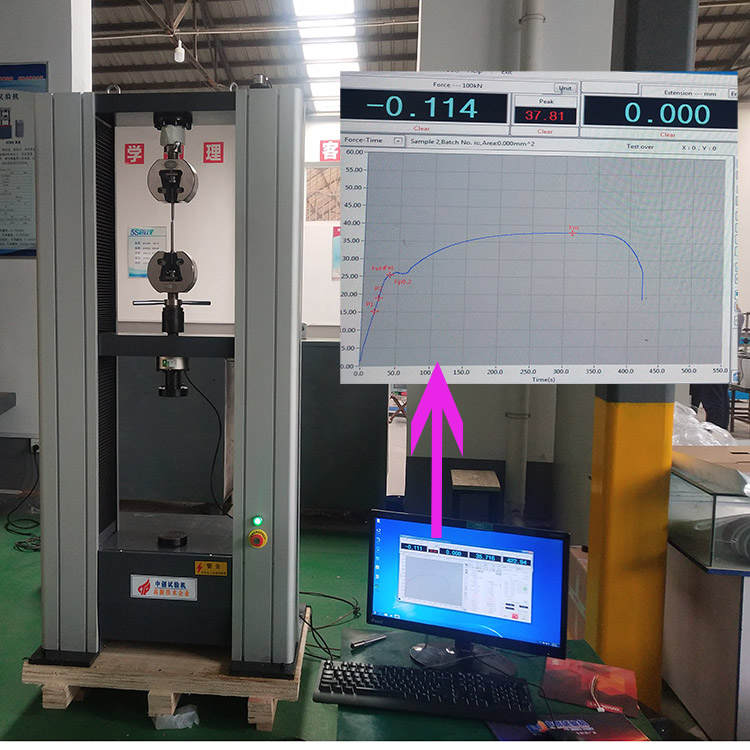

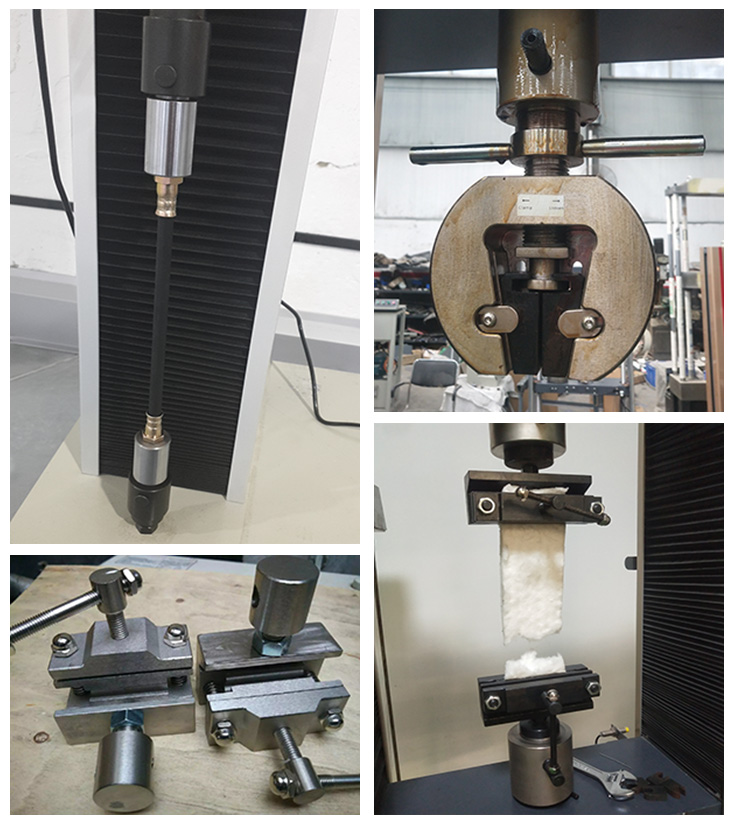

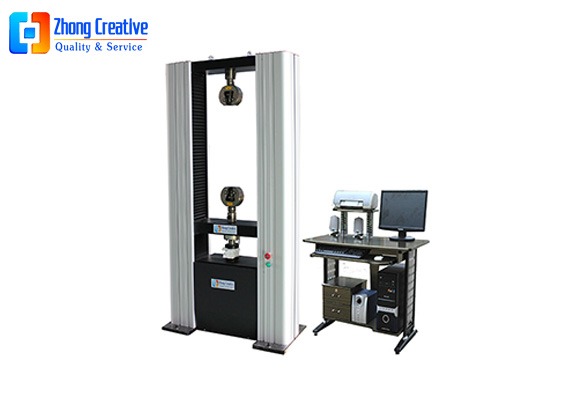

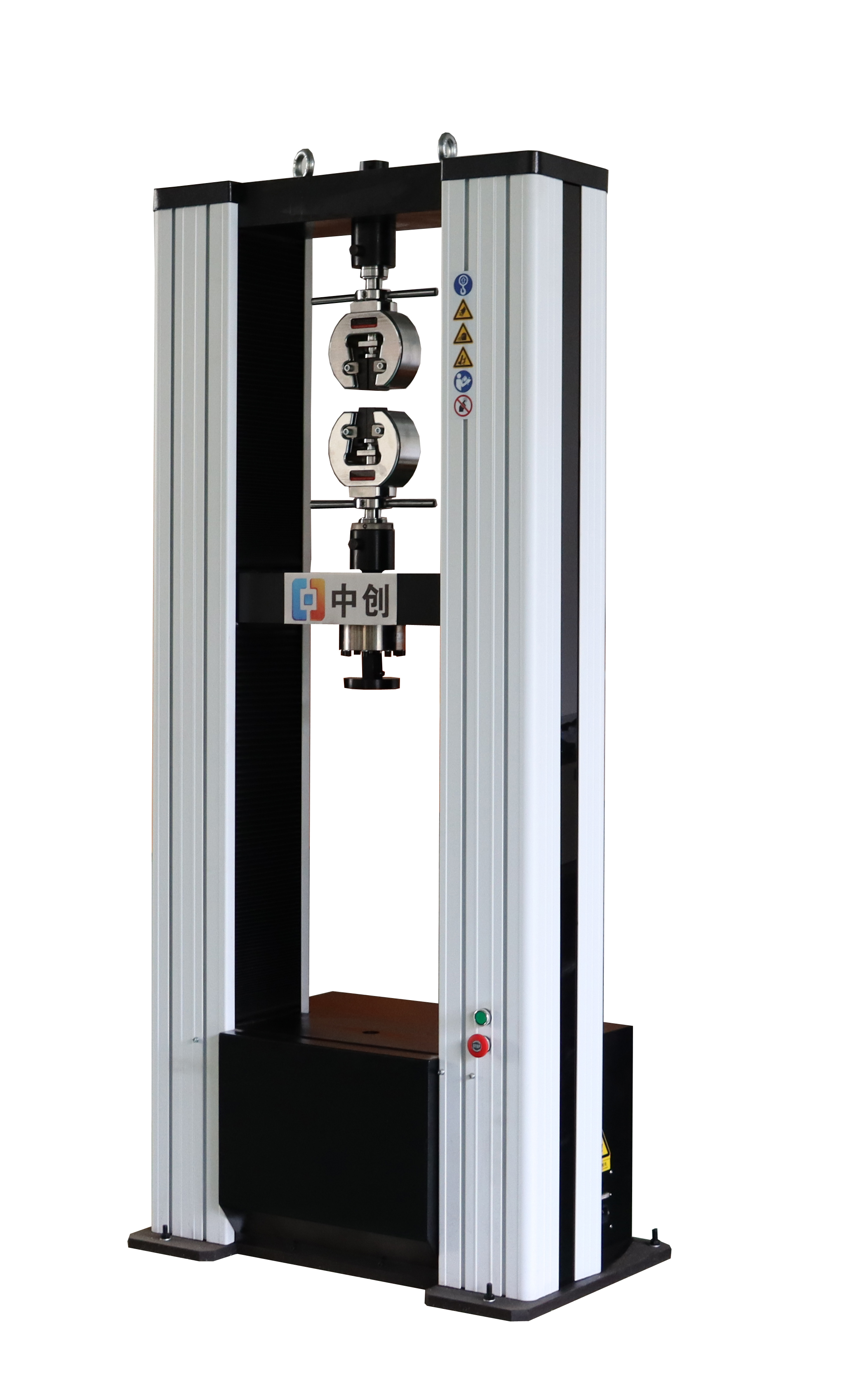

This machine is mainly suitable for the testing of mechanical properties such as tension, compression, bending, shearing, tearing, peeling, compressive and bending of metal, nonmetal and composite materials. Different test fixtures can be used for different tests, and the test fixtures are optional.

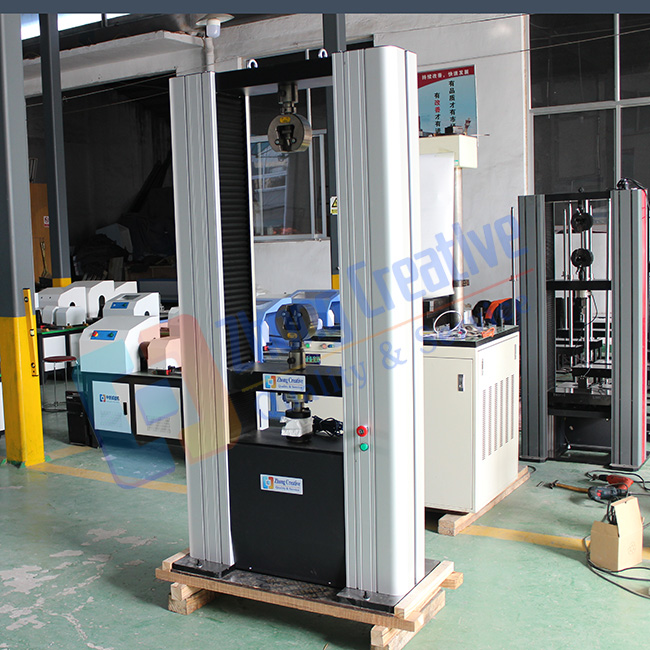

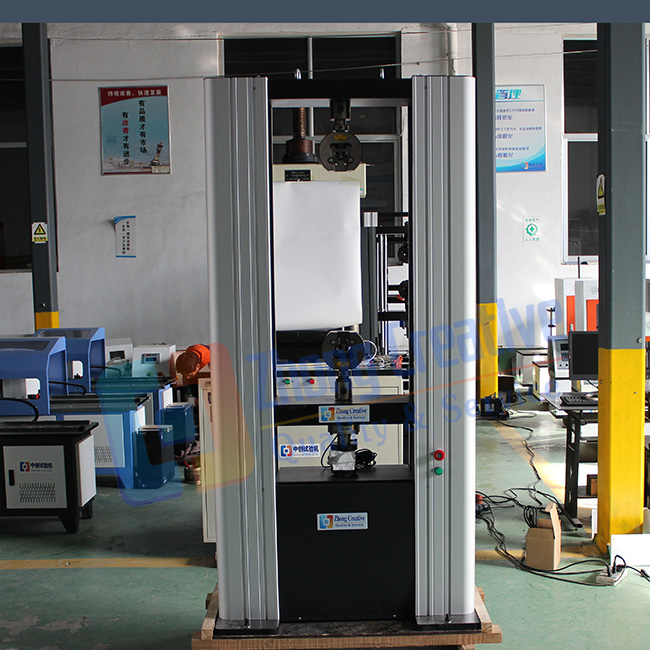

The machine adopts a double-space door structure, the upper space is stretched, and the lower space is compressed and bent. The beam is stepless lifting. The transmission part adopts circular arc synchronous toothed belt, screw pair transmission, stable transmission and low noise. The specially designed synchronous toothed belt deceleration system and precision ball screw pair drive the moving beam of the testing machine to realize a backlash-free transmission.
| Model | WDW-100KN |
| Testing machine type | Computer control and dual-column type |
| Capacity | 100kN (10T) |
| Measuring range | 2%—100%FS |
| Resolution of displacement | 0.1 mm |
| Range of displacement speed control | 0.1-500mm/min |
| Test space width | ≥380mm (Can be customized) |
| Distance between beam and workbench | 650mm (Can be customized) |
| Dimensions | 760*420*1850 mm |
| Power supply | 220V, 50Hz (Can be customized) |
| Total weight | About 450 kg |
Wooden packaging for export
Such a careful packaging eliminates all possible problems caused by shipping.
