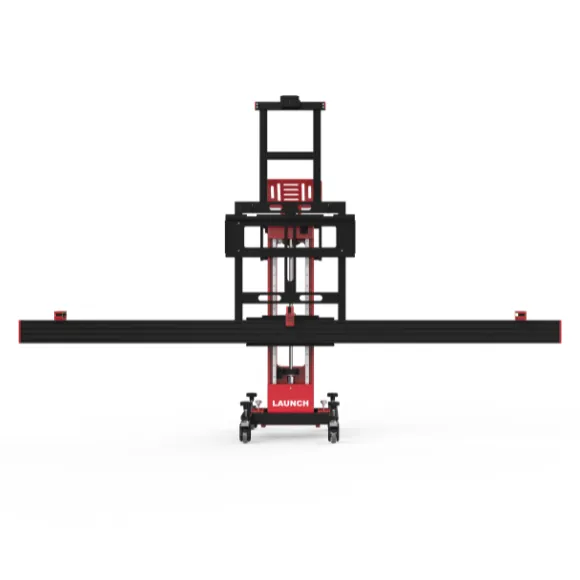

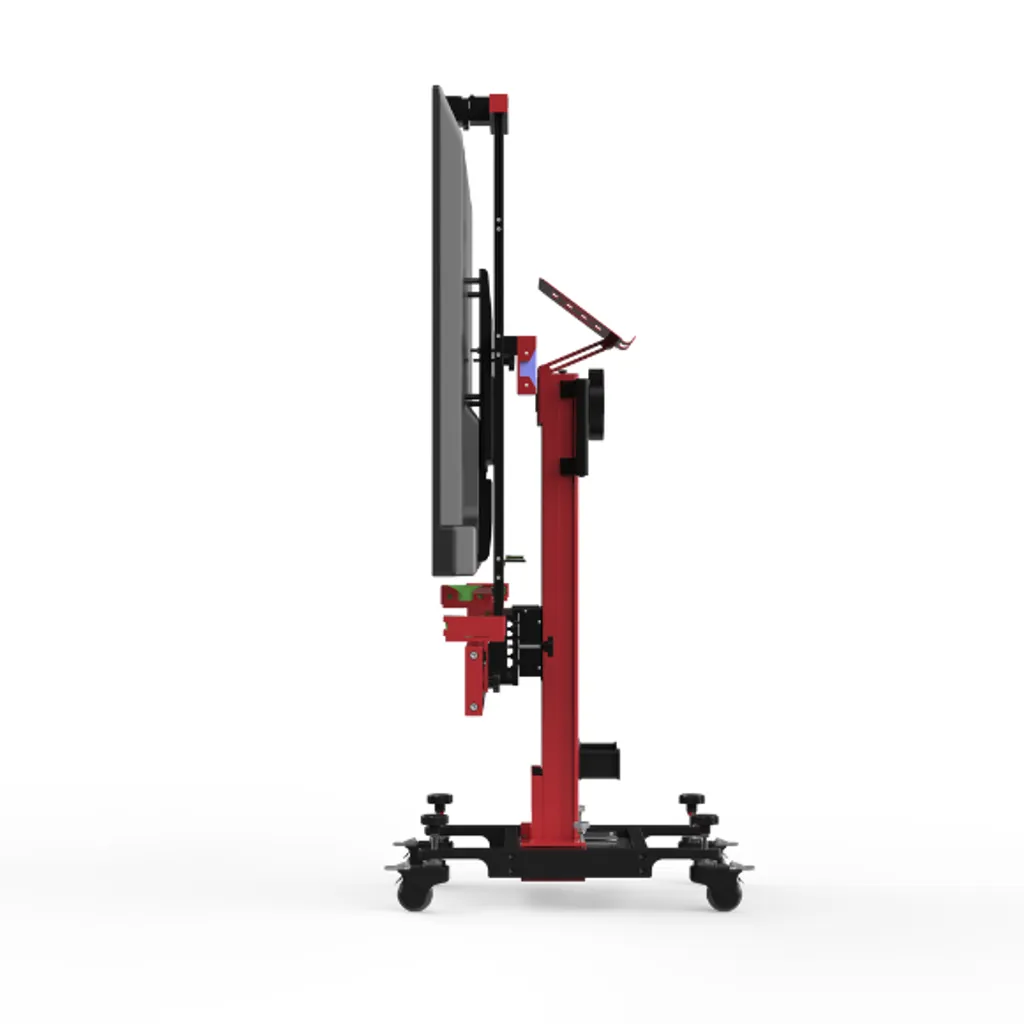

LAUNCH X-431 ADAS PRO+ V2 Ultra-high Precision ADAS Calibration Tool With Monitor
The X-431 ADAS PRO+ V2 is a high-precision ADAS calibration tool, specifically designed to meet the demands of modern automotive workshops and auto glass service providers.
It stands out with its robust construction, intuitive handling, and a wide range of technical features that enable fast and precise calibration of Advanced Driver Assistance Systems (ADAS).
The package includes a sturdy base frame, high-quality wheel clamps, a laser distance meter, and a customisable calibration target. The multi-directional fine adjustment – horizontal, forward/backward, and lateral – ensures millimetre-accurate alignment and adaptation to a wide variety of vehicle types.

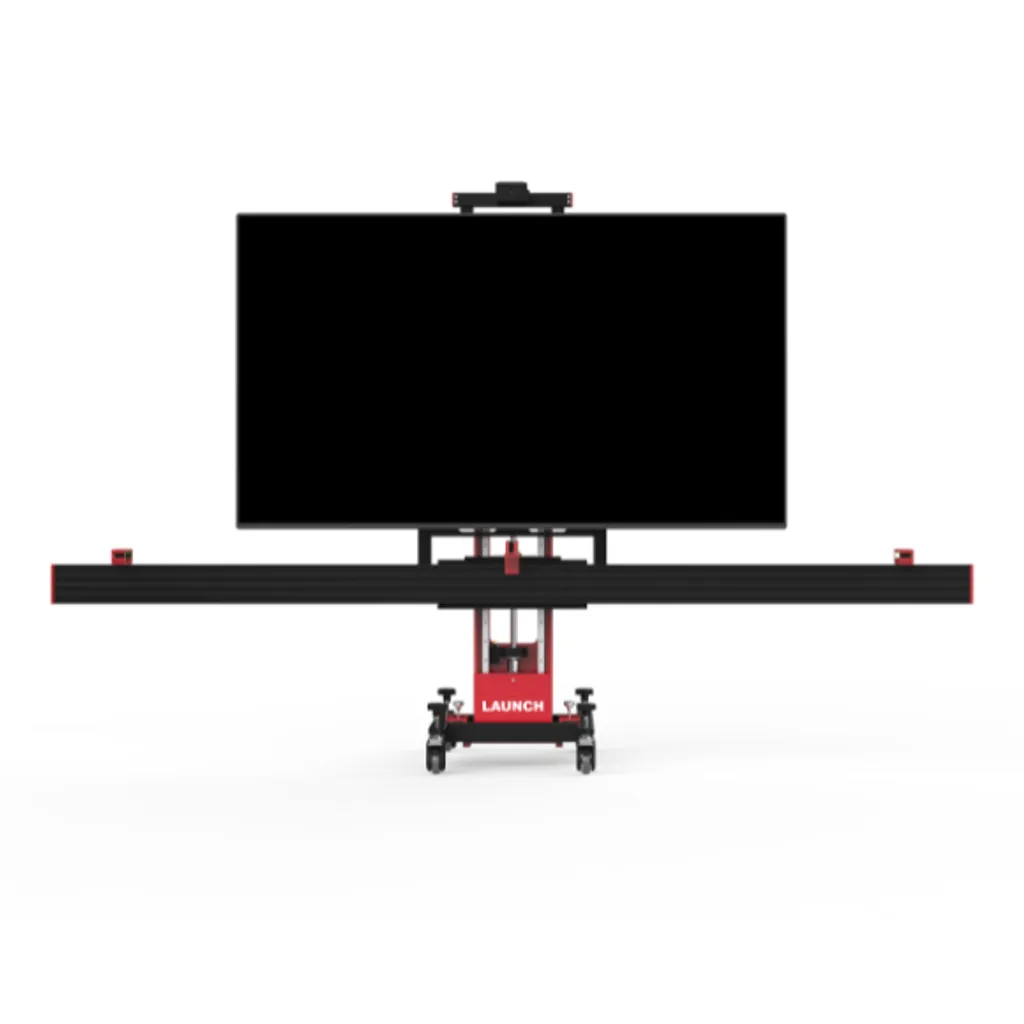

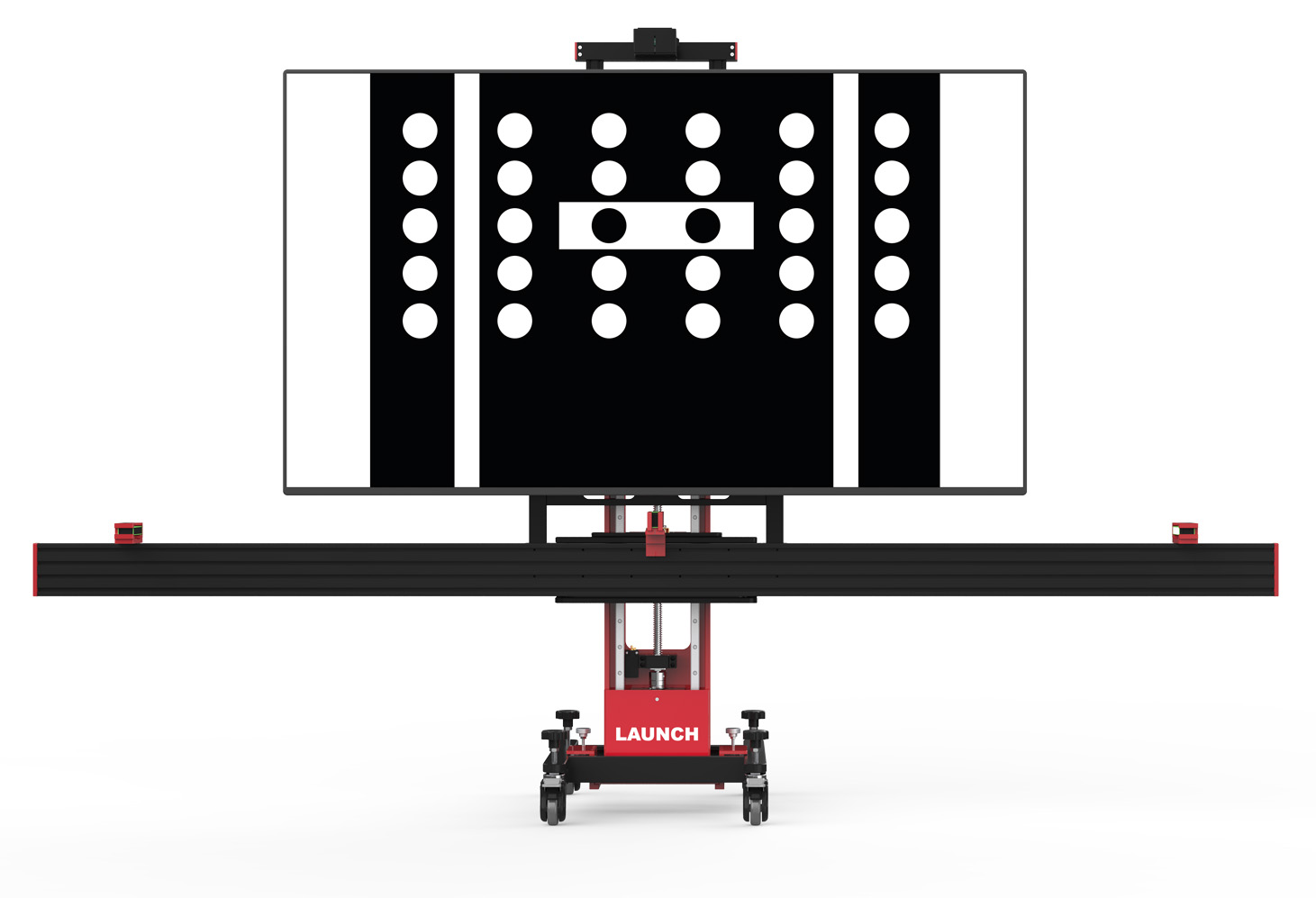

DIGITAL for Front Camera Targets Only. Featuring a 75-inch 4K LCD, the X-431 ADAS PRO PLUS digitizes most front camera targets, eliminating the need for physical setup. This boosts ADAS calibration efficiency, saves storage space, and reduces maintenance and transport costs. To be compatible with more ADAS systems, the LCD screen can be removed and replaced with physical targets, enabling it to function as a complete X-431 ADAS PRO PLUS calibration tool.
Key Features
- IT'S DIGITAL - FOR FRONT CAMERA TARGETS ONLY.

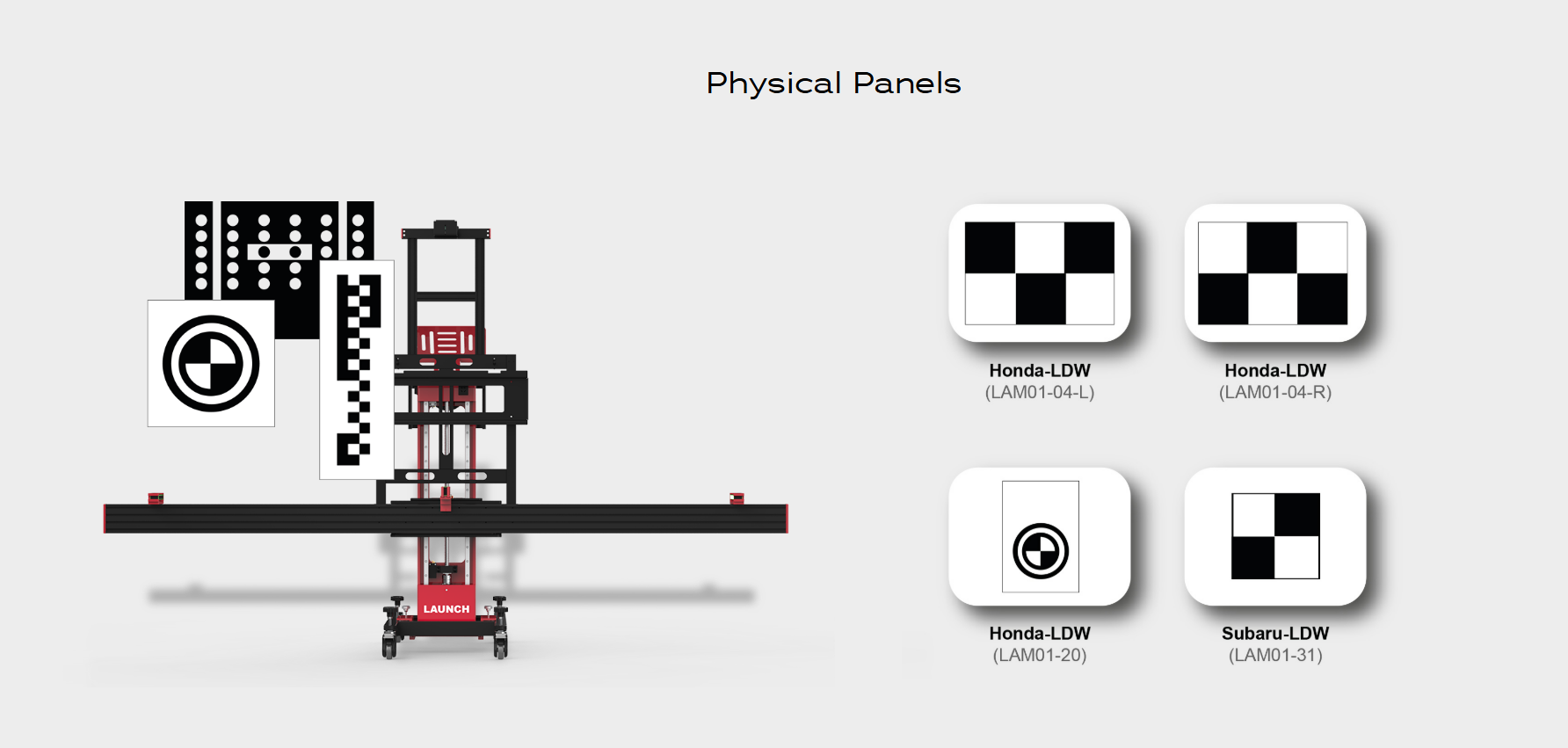

- DIGITAL + PHYSICAL TARGETS - WORKS AS X-431 ADAS PRO PLUS.

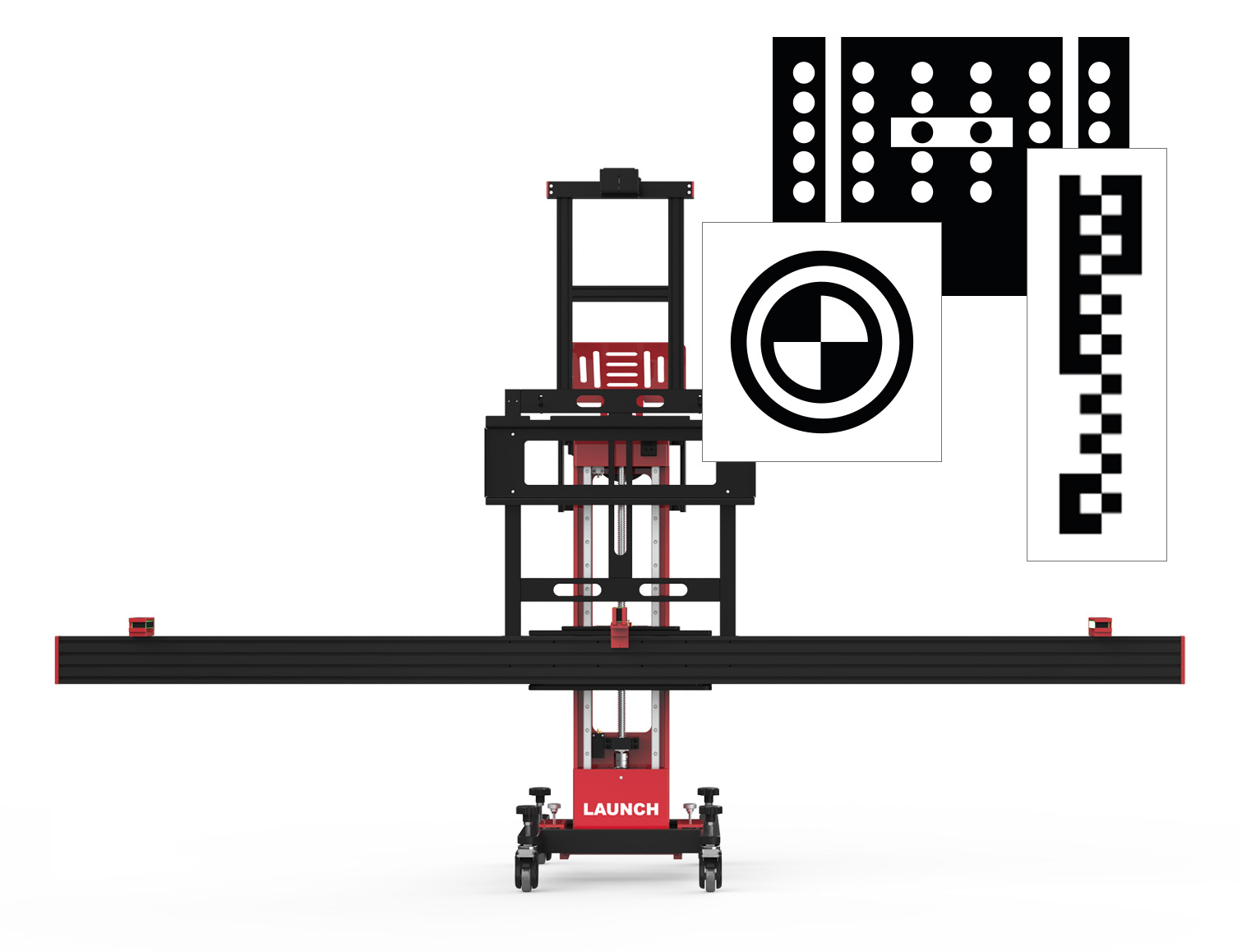

- Supports all the physical targets compatible with the X-431 ADAS PRO PLUS.
- Remove the digital target screen and install physical targets to transform it into a complete X-431 ADAS PRO PLUS calibration tool, covering over 95% of vehicles equipped with ADAS systems.
- Multi-directional Fine-tuning
- Beam Lifting and Lowering
- Parallelization and Centralization
- Level Adjustment
Compatible Calibration Systems
The X-431 ADAS PRO+ V2 is suitable for the calibration of numerous safety-relevant systems, including:
- Lane Departure Warning System
- Adaptive Cruise Control (ACC)

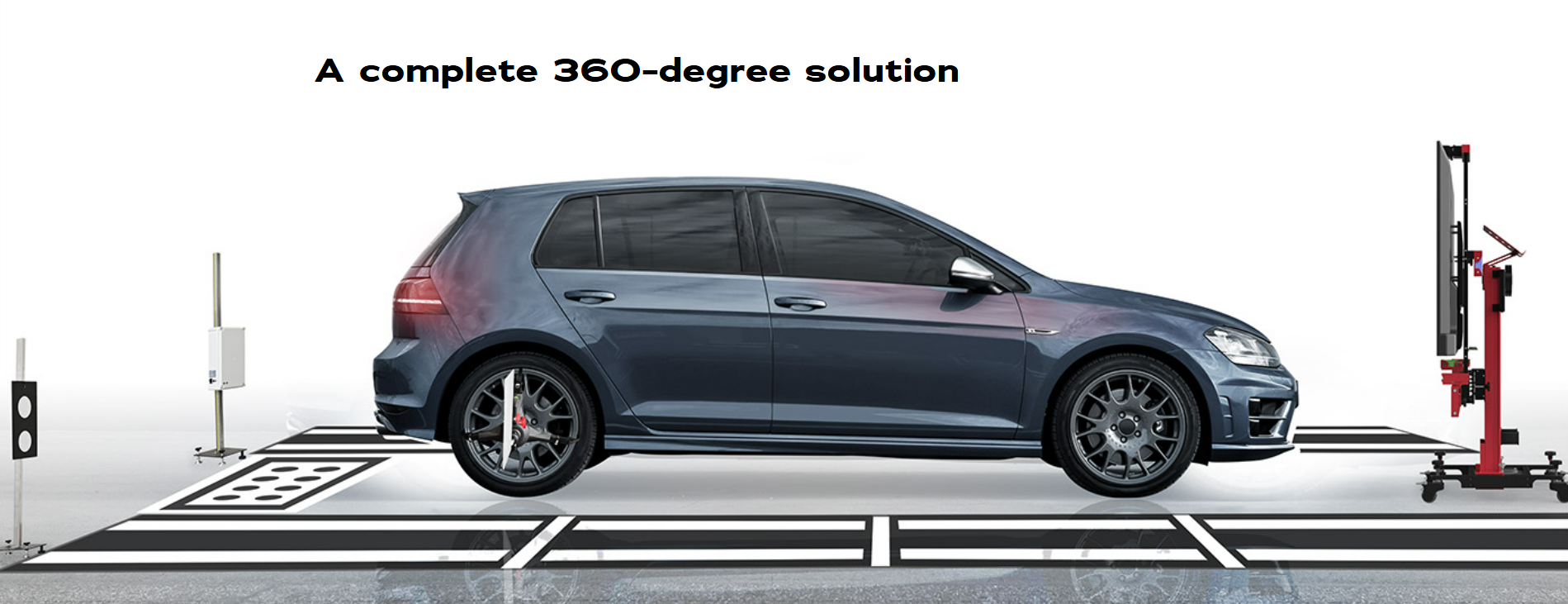

- 360° Camera Systems and Rear-View Camera
- Blind Spot Detection
- Night Vision Systems
- ...and many other ADAS components.
This professional system is the ideal solution for workshops seeking a future-proof, flexible, and highly precise calibration technology.

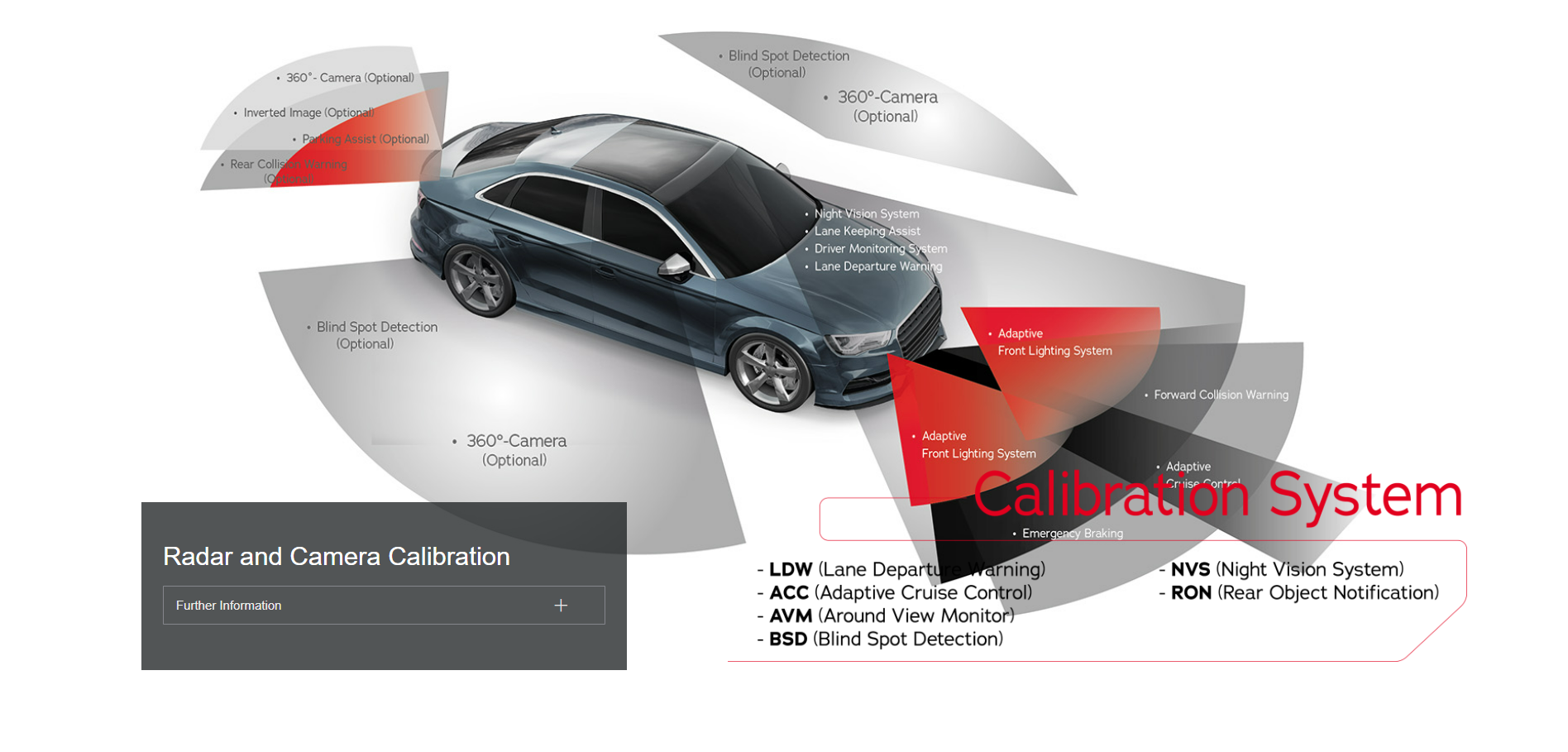

Radar and Camera Calibration
With the rapid advancements in the automotive industry and the introduction of Advanced Driver Assistance Systems (ADAS), it has become increasingly important to ensure that these systems function optimally. Thanks to the state-of-the-art calibration technology of the LAUNCH ADAS PRO+ V2 system, all ADAS components installed in the vehicle can be tested and precisely calibrated. This guarantees both safety and the reliable performance of radar- and camera-based ADAS systems at all times.

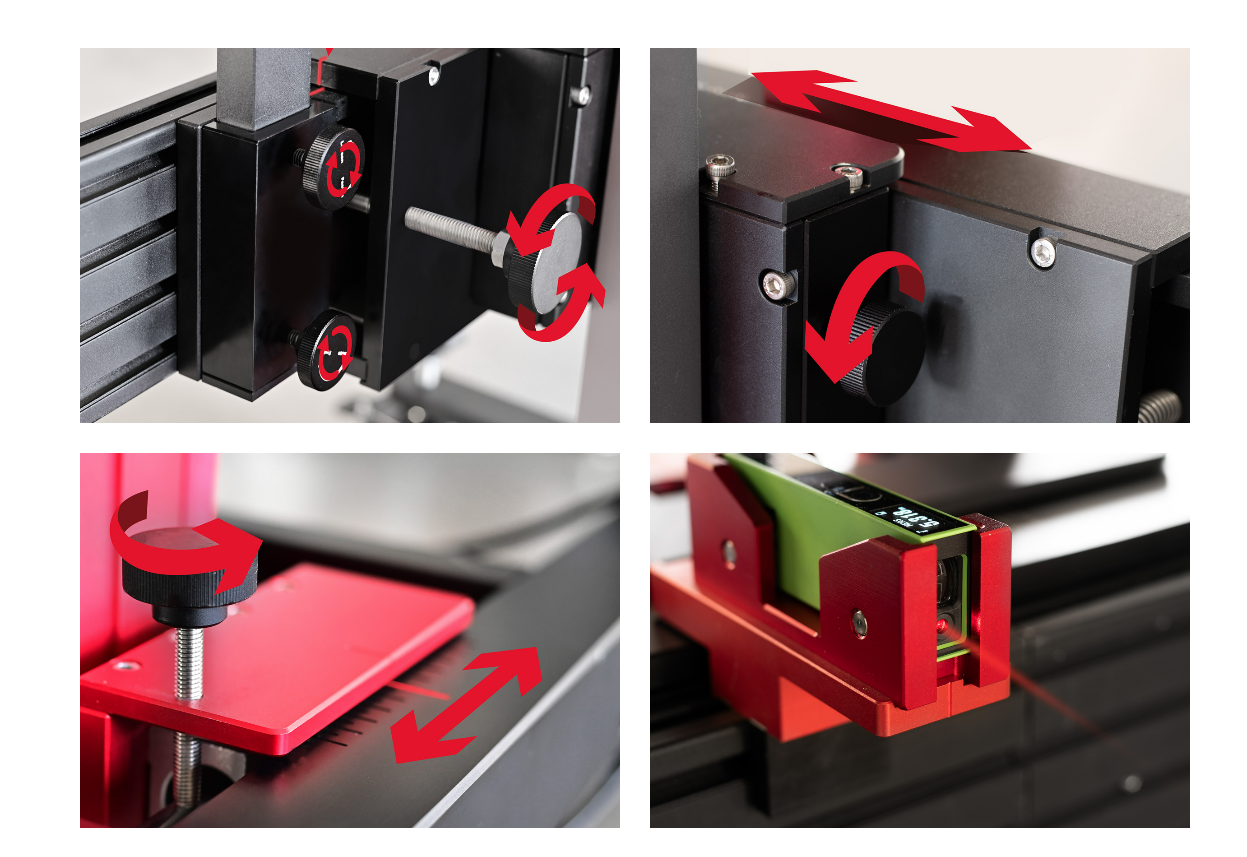

Positioning and Fine Adjustment - Accurate, Simple, and Quick
Fine Adjustment for Parallel Alignment

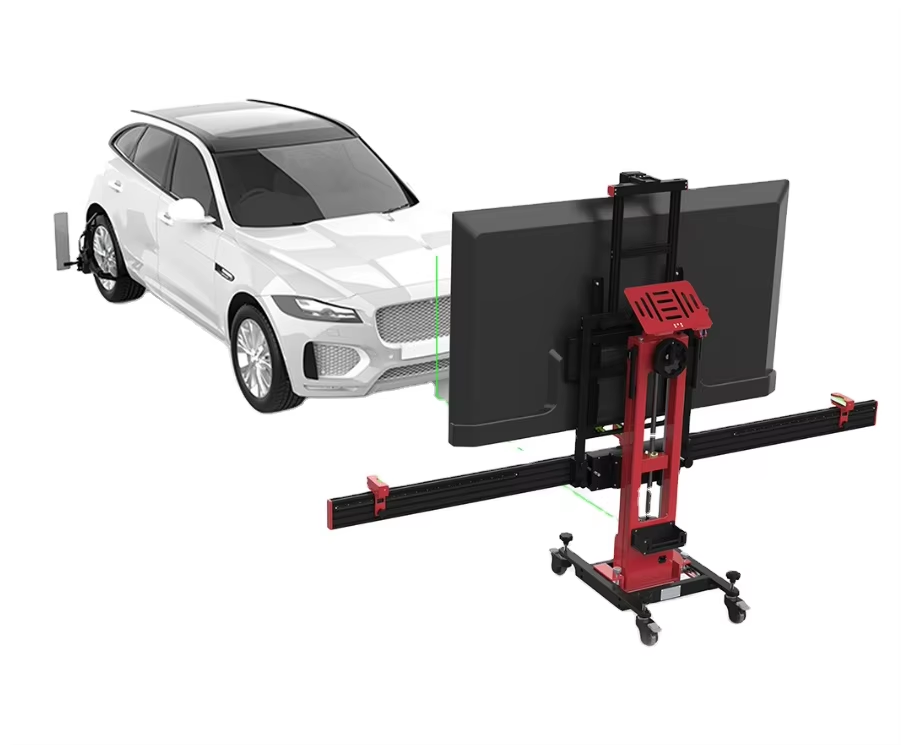

Once the X-431 ADAS PRO+ V2 is positioned in front of the vehicle, it can be precisely aligned using the convenient parallel fine adjustment feature. This ensures accurate calibration tailored to the vehicle’s specific orientation.
Fine Adjustment to the Left and Right
After the initial positioning of the X-431 ADAS PRO+ V2 in front of the vehicle, you can easily fine-tune the alignment to the left and right for precise calibration tailored to the vehicle’s exact position.
Longitudinal Fine Adjustment
After the initial positioning of the X-431 ADAS PRO+ V2 in front of the vehicle, you can easily fine-tune the system forward and backward to achieve precise alignment with the vehicle.
Laser Distance Measurement
After the basic positioning of the X-431 ADAS PRO+ V2 in front of the vehicle, the system can be precisely aligned using fine adjustment – ensuring fast, accurate, and reliable laser distance measurement.
Hardware Alignment Components
Rangefinder
The rangefinder helps position the X-431 ADAS PRO+ V2 precisely in the centre in front of the vehicle. This is especially important for calibrating the front radar or a new front camera.

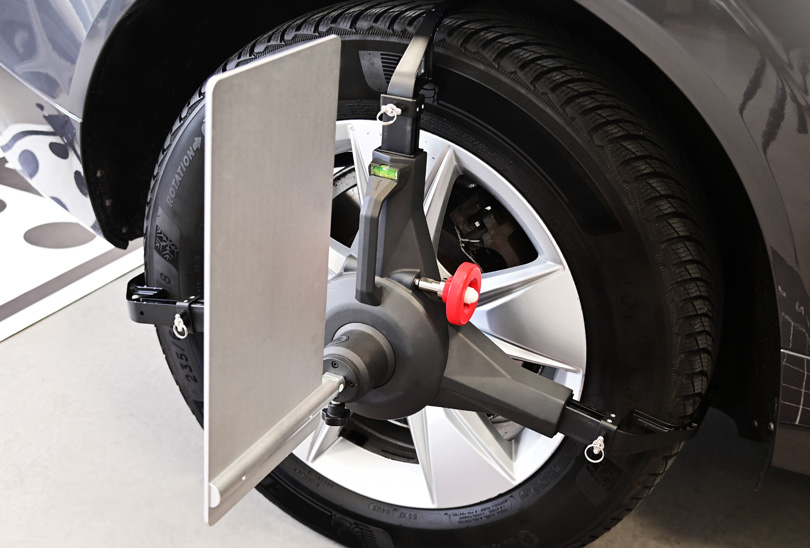

Wheel Clamps

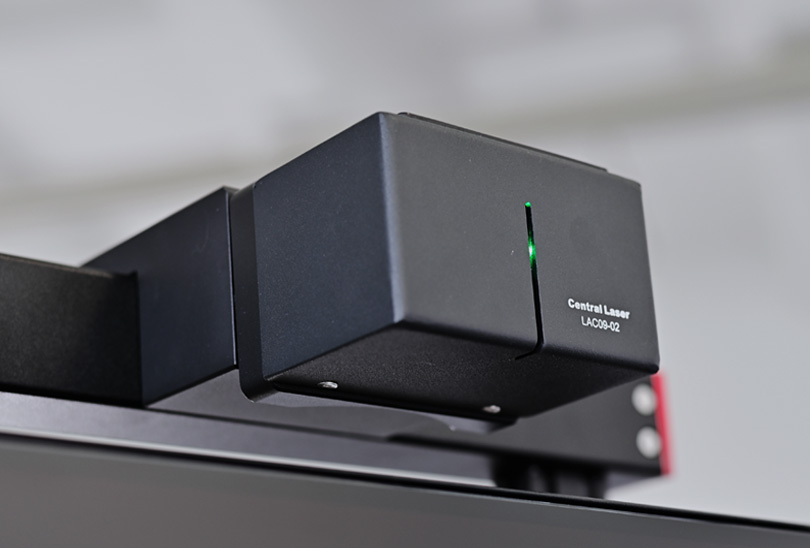

The three-point wheel clamp with target board ensures stable and centred mounting of the calibration system directly on the front wheels. Using the cross laser, the board is aligned precisely at the centre – essential for accurate calibration of front radar and front camera systems.

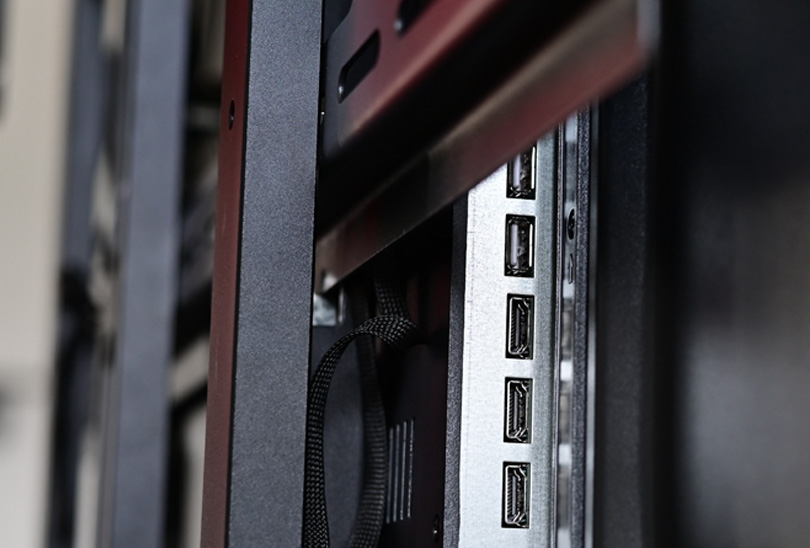

Monitor Connections
The monitor of the X-431 ADAS PRO+ V2 offers multiple HDMI and USB ports, providing maximum connectivity and flexibility in the workshop. External devices such as laptops, diagnostic tools, or storage media can be easily connected – ideal for efficient calibration and data management.

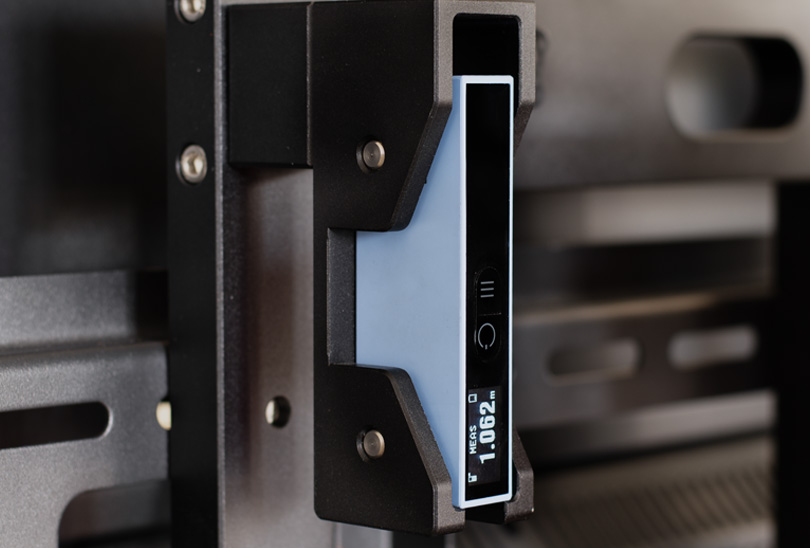

Distance Laser
Using the included laser distance meter, the ADAS PRO+ V2 is optimally positioned in front of the vehicle. This precise alignment is the essential foundation for successful and accurate calibration.
Compatible with X-431 Diagnostic Device
To perform ADAS calibration, the LAUNCH ADAS PRO+ V2 must be used in combination with a LAUNCH diagnostic device from the X-431 series. From the main menu, users can access the Toolbox with a single click, where the ADAS calibration function is available as a software feature. Thanks to the intelligent step-by-step instructions, the system guides users seamlessly through both the positioning of the ADAS equipment and the entire calibration process.
Calibrate in 6 Steps - Step-by-step to precise ADAS calibration

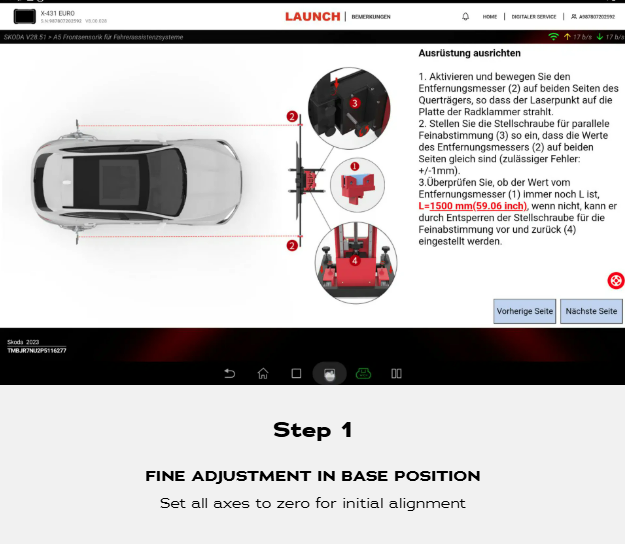

Step 1
Fine Adjustment in Base Position
Set all axes to zero for initial alignment

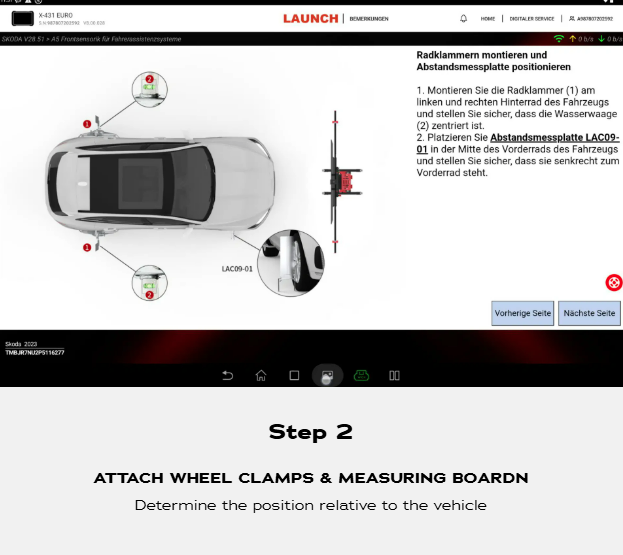

Step 2
Attach Wheel Clamps & Measuring Board
Determine the position relative to the vehicle

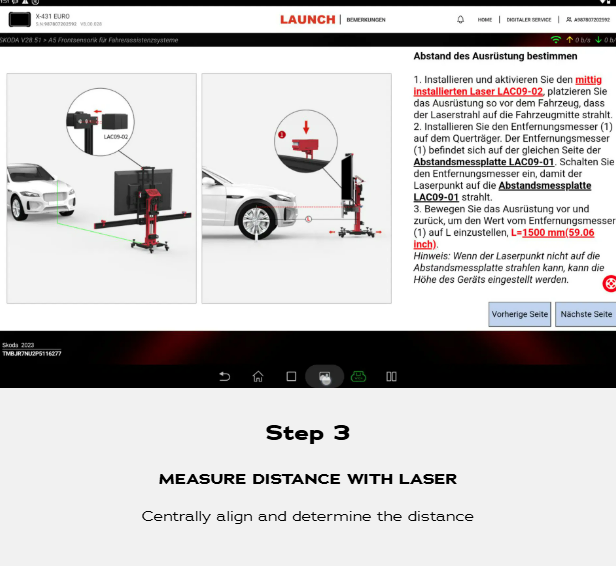

Step 3
Measure Distance With Laser
Centrally align and determine the distance

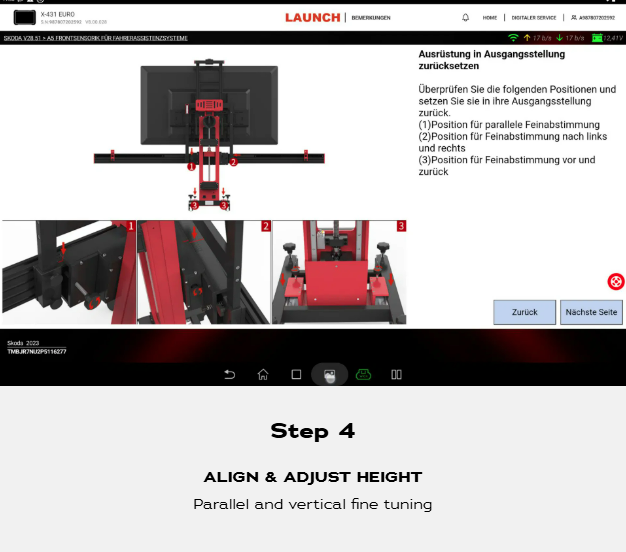

Step 4
Align & Adjust Height
Parallel and vertical fine tuning

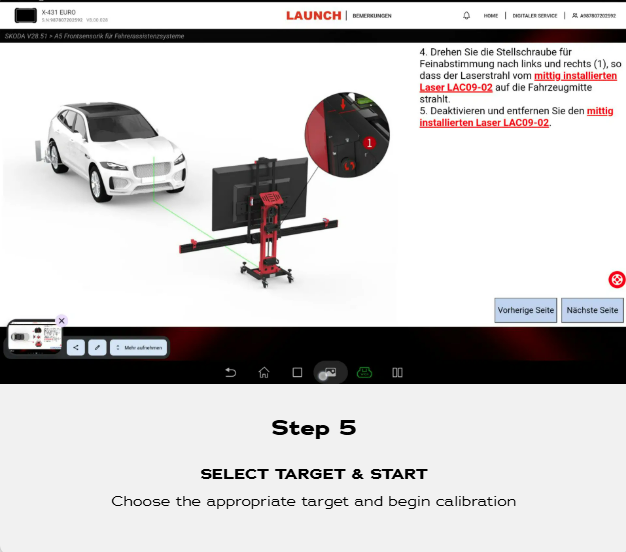

Step 5
Select Target & Start
Choose the appropriate target and begin Calibration

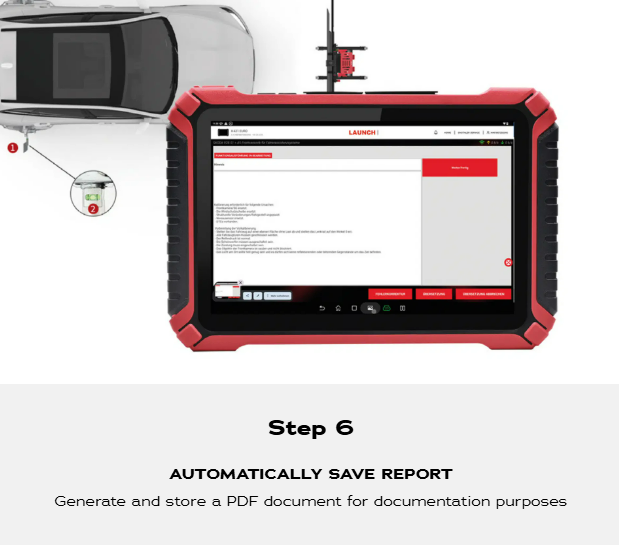

Step 6
Automatically Save Report
Generate and store a PDF document for documentation purposes
LAUNCH X-431 ADAS PRO+ V2 has two versions for a First-Class solution
The X-431 ADAS PRO+ V2 introduces a state-of-the-art calibration system for Advanced Driver Assistance Systems (ADAS), setting new standards in performance, precision, and flexibility. Available in two versions:

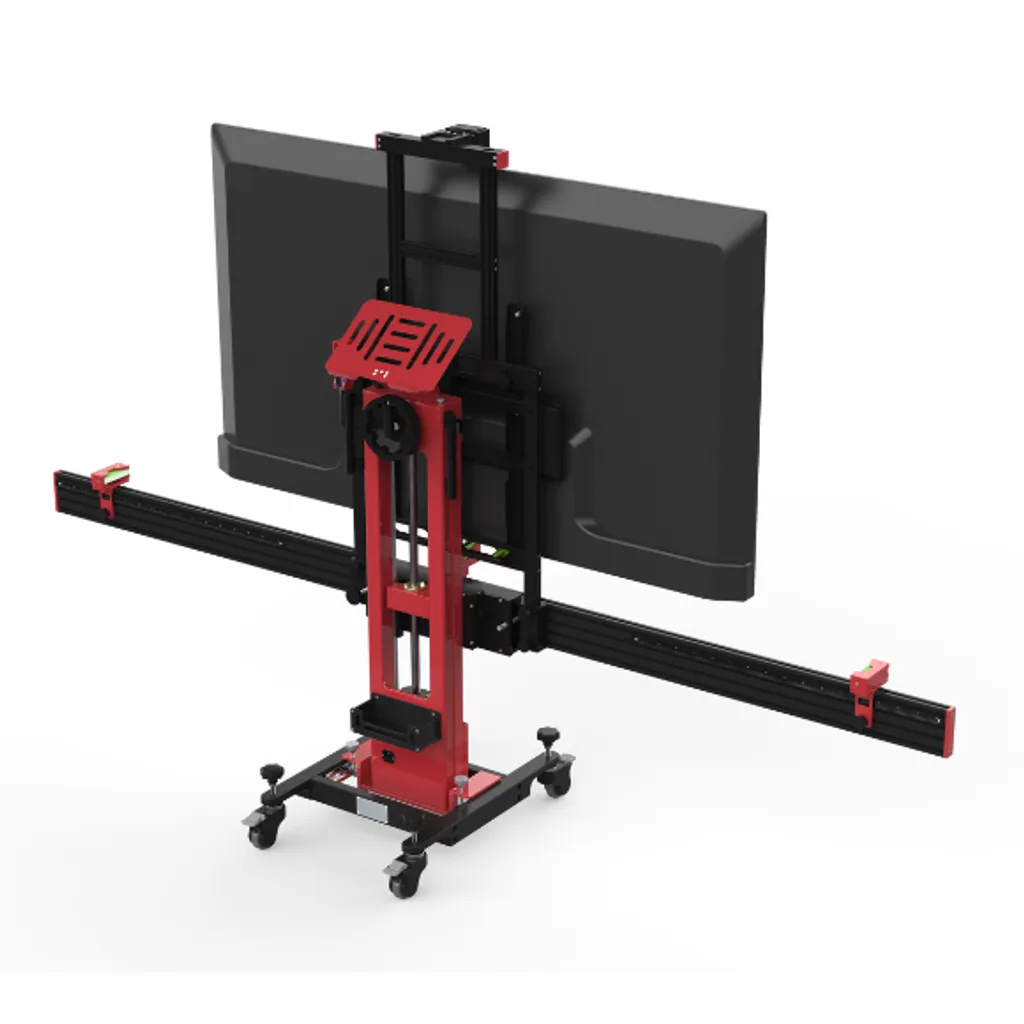

X-431 ADAS PRO+ V2 with Monitor
The flagship model with monitor stands out with its digital display of calibration panels, enabling particularly fast, precise, and user-friendly calibration — ideal for workshops that demand maximum efficiency and digitalisation.
X-431 ADAS PRO+ V2 with Traditional Calibration Boards
The version with traditional calibration boards is designed for users who prefer tried-and-tested physical board systems, while still benefiting from the modern technology and intelligent control of the ADAS PRO+ V2. Both versions offer outstanding components, high-quality craftsmanship, and cutting-edge technology — perfectly tailored to meet the demands of modern vehicles with complex ADAS features.

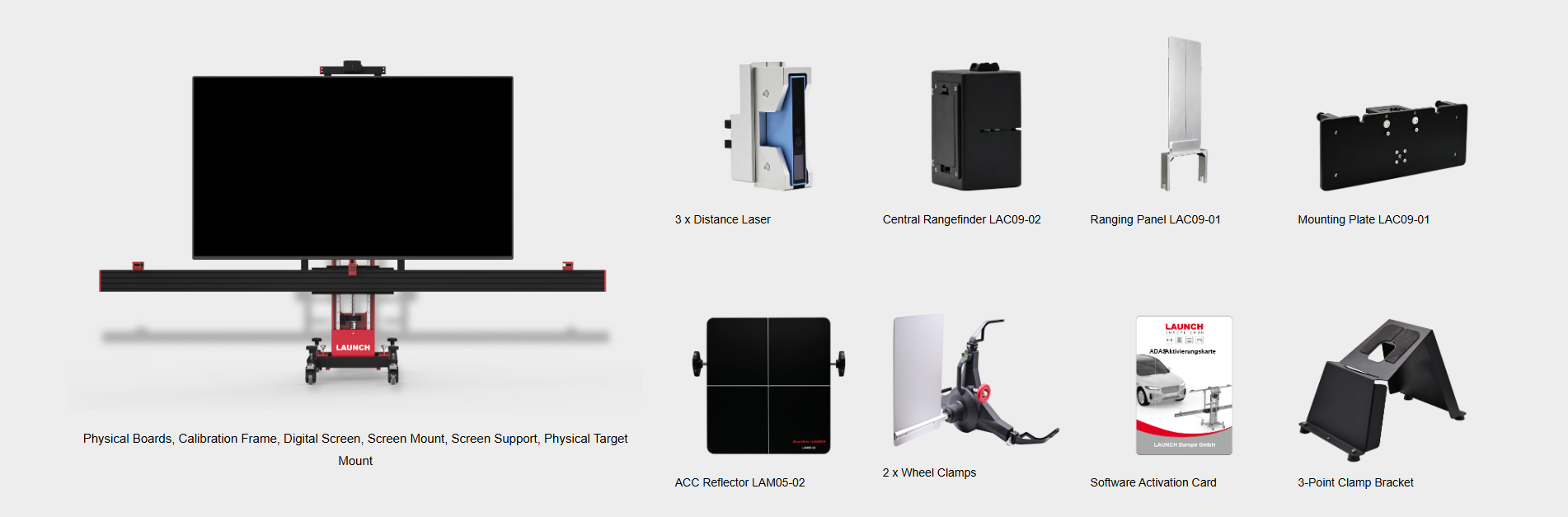

Item Included:
Optional:
Frequently Asked Questions
What are the primary target options for the X-431 ADAS PRO+ V2?
The X-431 ADAS PRO+ V2 is available in two versions: a digital version featuring a 75-inch 4K LCD screen designed specifically for digitizing front camera targets, and a traditional version compatible with physical target boards. The monitor screen can be detached to install physical targets if needed.
What ADAS systems can this tool calibrate?
The system supports calibrations for a wide range of safety-relevant systems, including Lane Departure Warning (LDW), Adaptive Cruise Control (ACC), 360° Camera Systems, Rear-View Cameras, Blind Spot Detection, and Night Vision Systems.
Does the calibration tool require an external diagnostic device?
Yes, to perform ADAS calibrations, the system must be paired with a compatible LAUNCH X-431 series diagnostic device. The ADAS calibration functions are accessed through the Toolbox submenu on the diagnostic tablet.
How does the system ensure precise alignment with the vehicle?
The X-431 ADAS PRO+ V2 features multi-directional fine adjustments, including parallel, lateral, and longitudinal tuning, combined with laser distance measurement tools and three-point wheel clamps to achieve millimeter-accurate alignment.
Can I export and save the calibration results?
Yes, the system automatically saves calibration data and generates a PDF report at the end of the 6-step calibration process, which can be stored and printed for documentation purposes.
