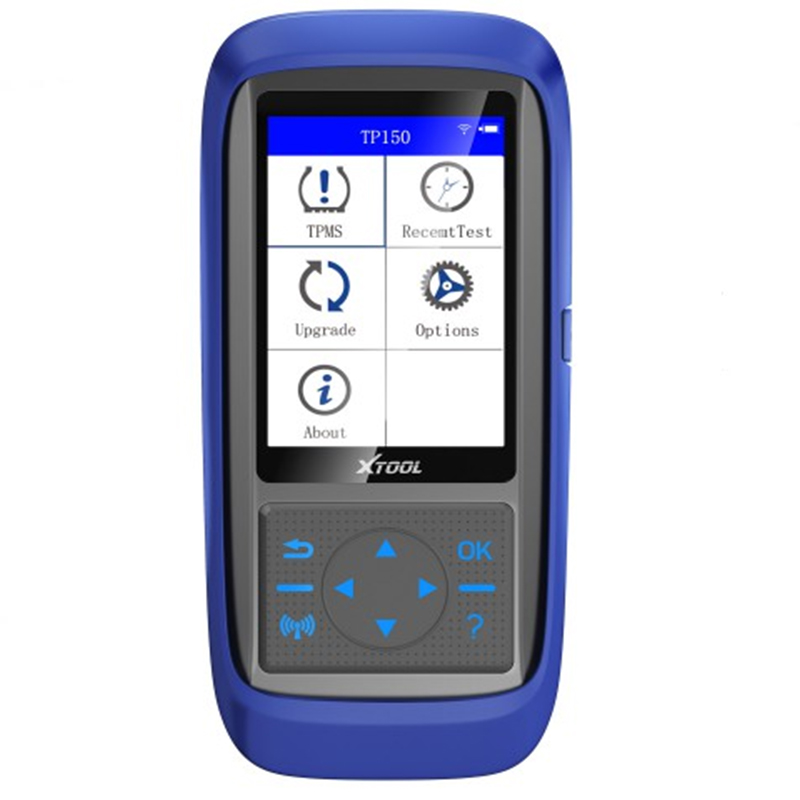

TP150 is a special inspection device launched for the automotive tire pressure diagnosis market, which integrates tire pressure programming, tire pressure diagnosis, and tire pressure matching. It supports activation of 315MHz and 433MHz tire pressure sensors, can perform tire pressure diagnosis on thousands of models, and can wirelessly program 1-8 TS100 universal programmable tire pressure sensors, which makes it suitable for different models.

• Support trigger all of the tire pressure sensors which frequency band is 315MHz and 433MHz.
• Support reading, writing in sensor’s ID values.
• Support tire pressure sensor programming, and program eight tire pressure sensors in real time.
• Support tire pressure faulty diagnosis, including read code, clear code etc.
• Support read tire pressure data in real time, including tire pressure temperature, pressure, battery voltage, and display them in diagram.

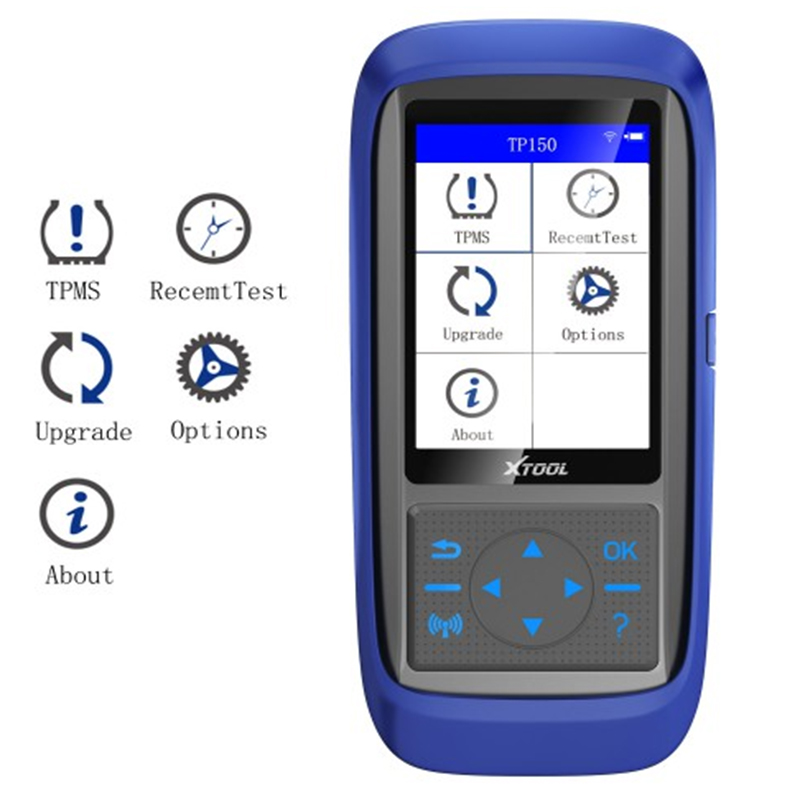

TP150 is a special inspection device launched for the automotive tire pressure diagnosis market, which integrates tire pressure programming, tire pressure diagnosis, and tire pressure matching. It supports activation of 315MHz and 433MHz tire pressure sensors, can perform tire pressure diagnosis on thousands of models, and can wirelessly program 1-8 TS100 universal programmable tire pressure sensors, which makes it suitable for different models. TP150 is a TPMS diagnostic and repair tool that can activate TPMS sensors, read sensors data, do key fob testing, read tire pressure in real-time, view the training steps, and supports multiple languages.

Activates ALL magnetic, frequency and tire deflation triggered sensors using continuous or modulated wave signals.

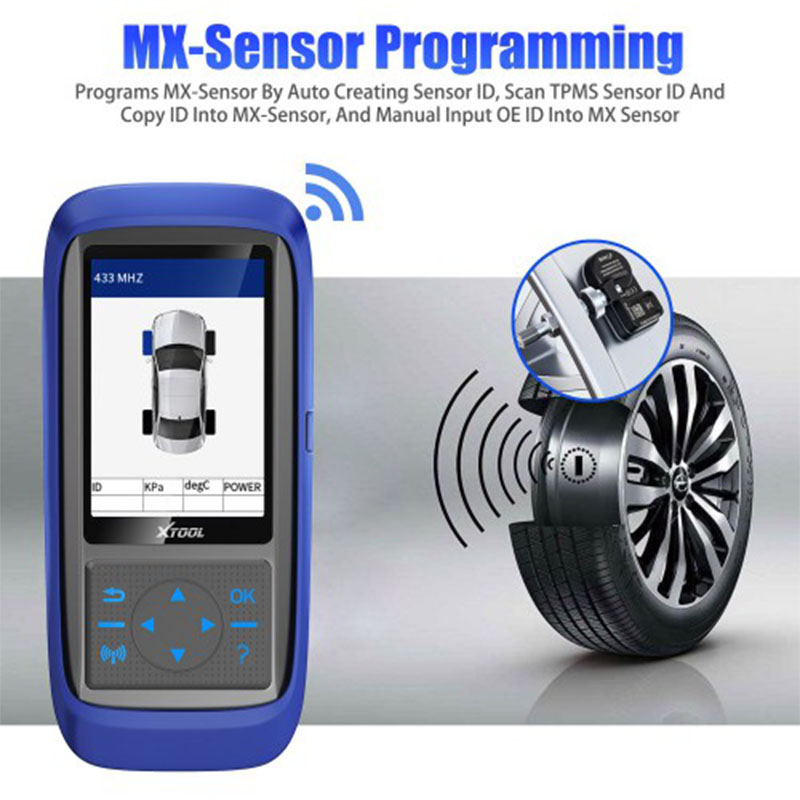

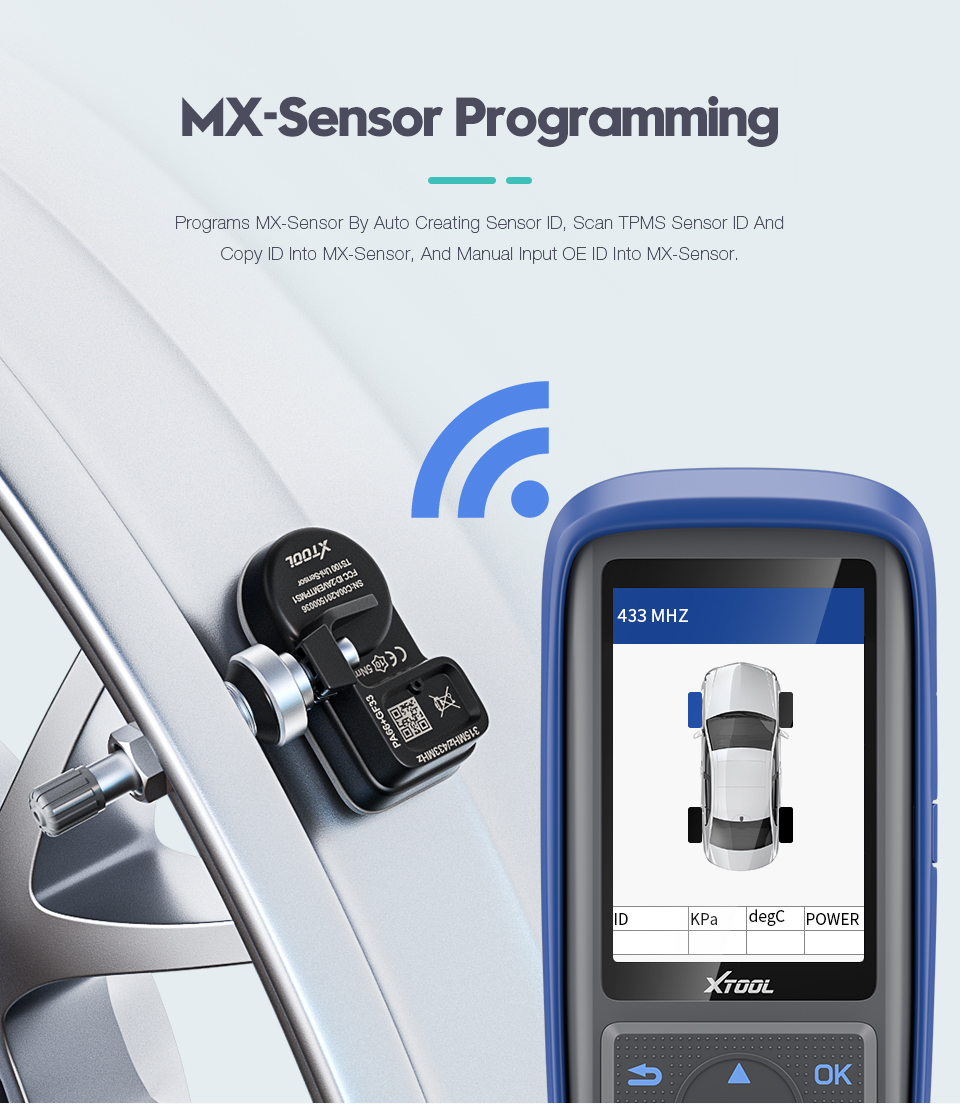

1. Scan the TPMS sensor ID and copy the ID to the sensor
2. Manually enter OE ID into the sensor
3. Program the sensor by automatically creating a sensor ID
4. Read sensor ID via OBD and copy ID to the sensor

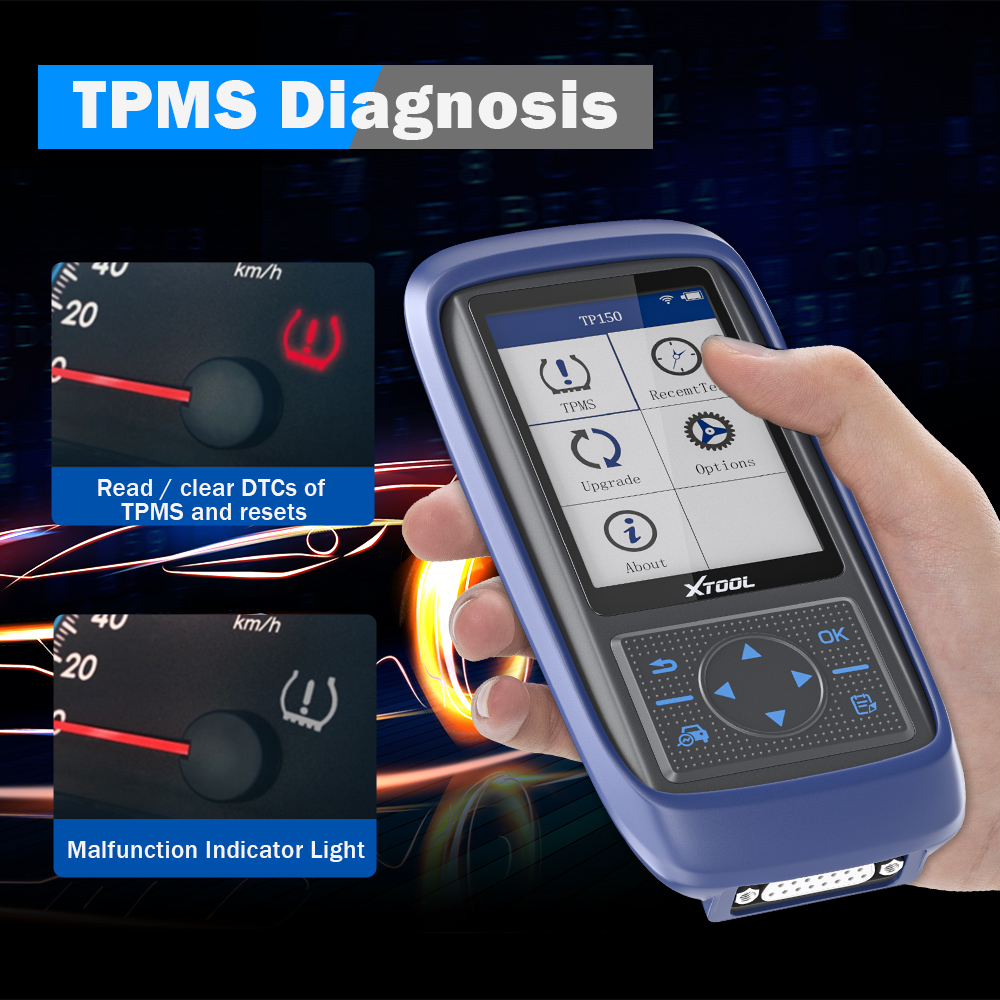

Read / clear DTCs of TPMS and resets Malfunction Indicator Light.

ID Value reading, writing, and can read real-time data of tire pressure.

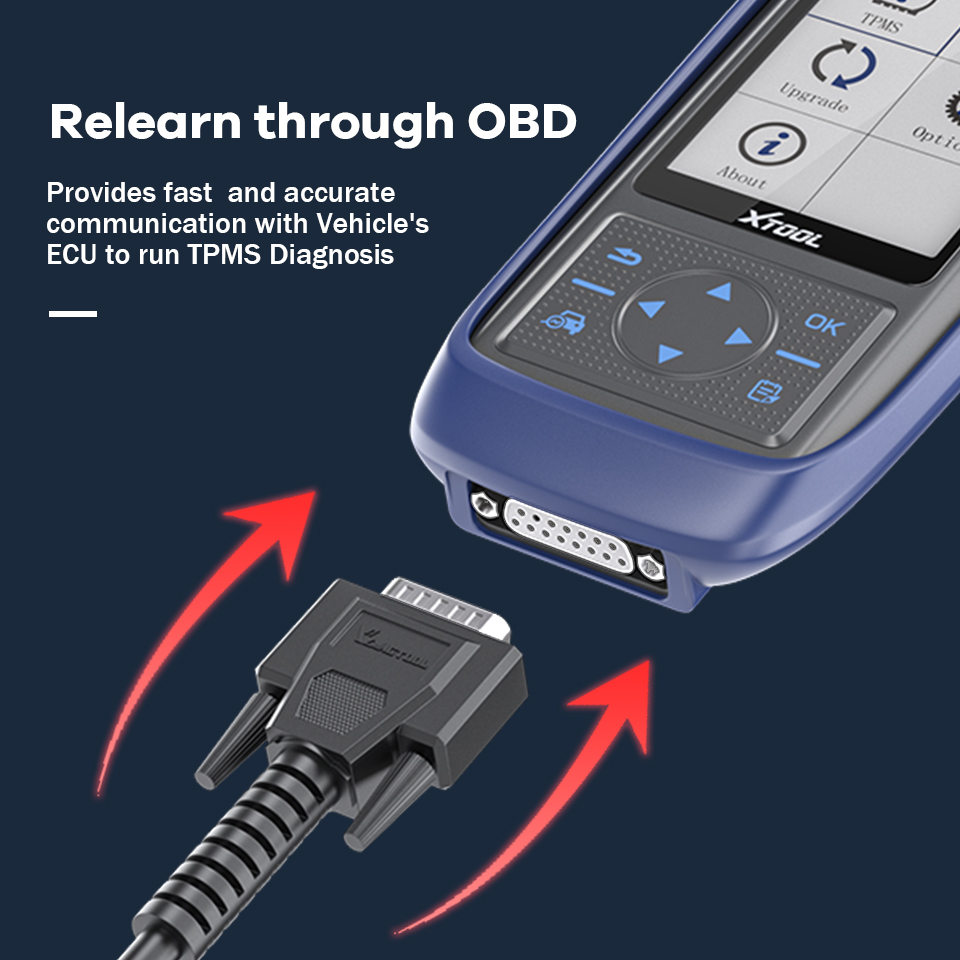

Provides fast and accurate communication with Vehicle's ECU to run TPMS Diagnosis.

If you’re tired of going to a dealership to test the signal strength of the key fob, with the TP150, the key fob testing will become easy and convenient. When your key fob starts to perform abnormally or stops working, this TPMS tool can check your key fob to make sure it’s in top condition.

1. The Function of TPMS Scanner (Tire Pressure Monitoring System) is to automatically monitor the tire pressure within the process of auto-running and to alarm the tire leakage and low atmospheric pressure to make sure safe driving. It has functions like activation, relearn, and reading sensor data.
2. The Activation function is to permit the sensor to send a signal in order that the car receiver can get the sensor information, like tire pressure, temperature, and battery status, which may be used to detect if the sensor is normal.
3. The Relearn function can read sensor ID and match the ID stored within the TPMS ECU to properly display the tire pressure and temperature parameters of every wheel. This allows you to directly read feedback from all 4 sensors, clearly view the status of all TPMS sensors, and compare sensor and ECU data to instantly pinpoint glitches.

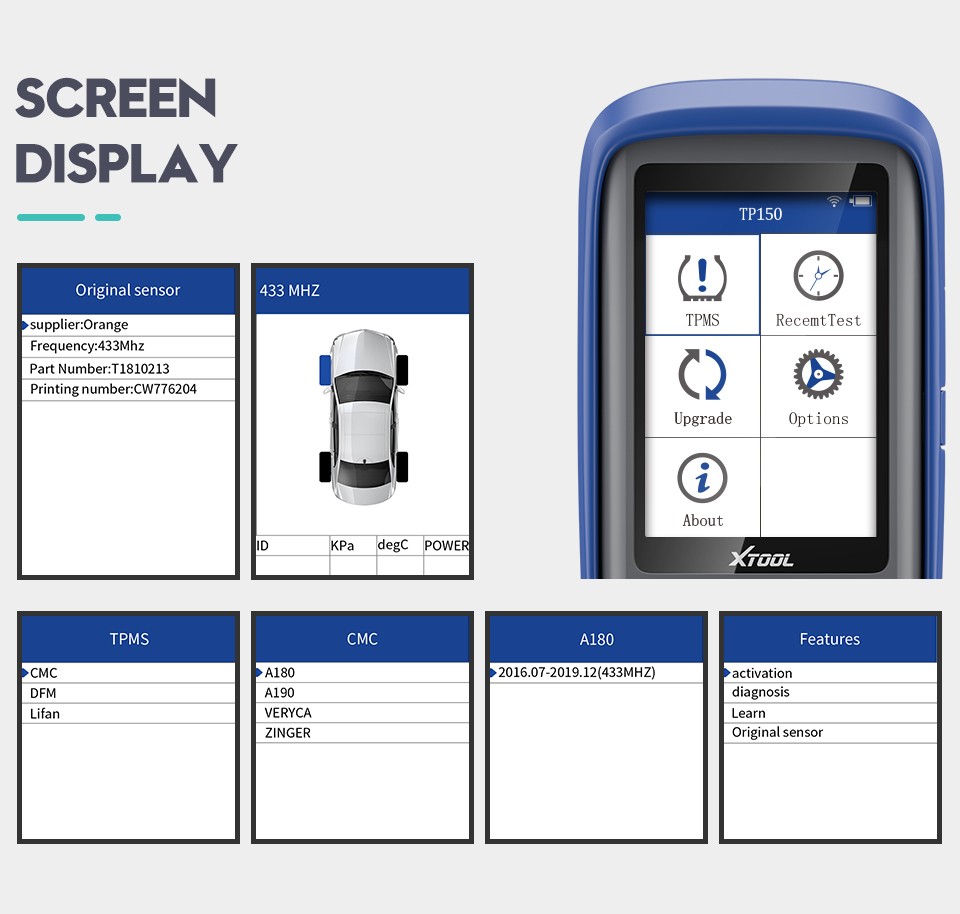

4. Read sensor data including sensor ID, tire pressure, temperature, battery condition, OEM part number, OEM sensor maker, and OEM frequency.
5. When your key fob stops working or starts to perform sporadically, it can check the key fob signal to easily pinpoint the issue.

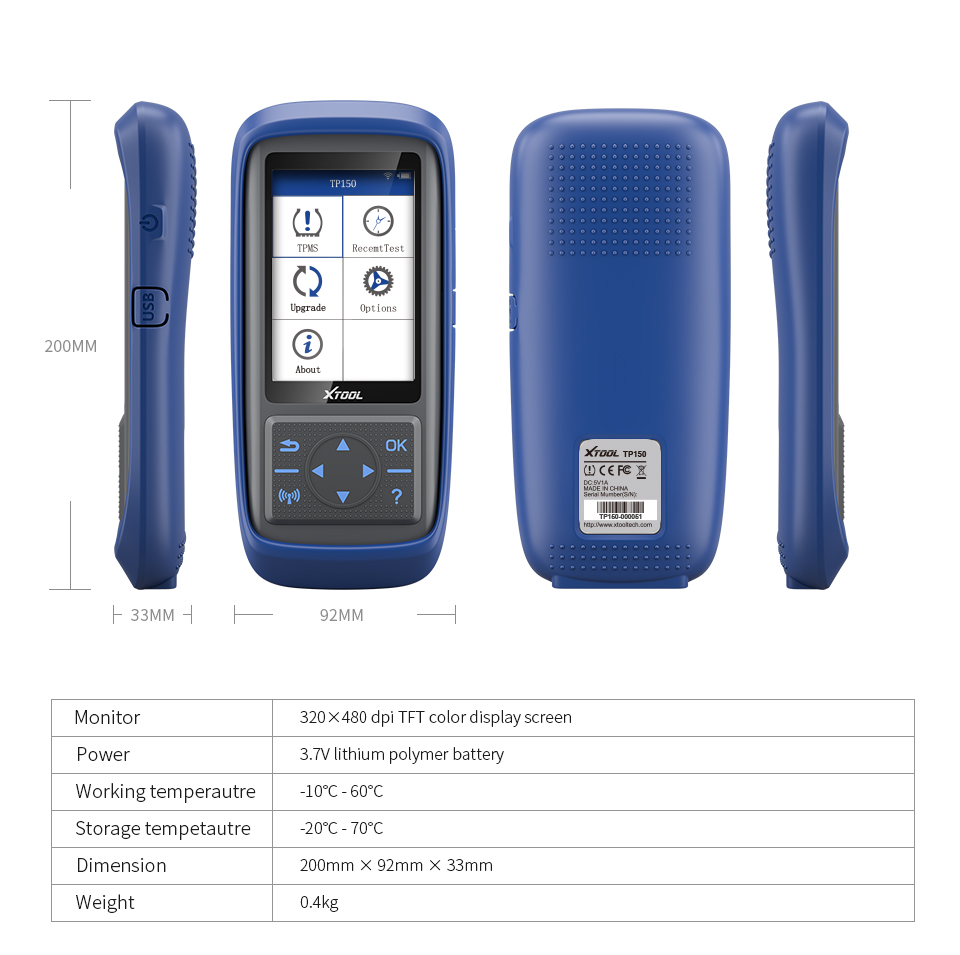

• Display Screen: 320x480 dpi TFT colorful screen
• Battery Capacity: 3000mAh 3.7V lithium polymer battery
• Communication Method: Wired
• Interface: USB Type-C, DB15
• Working Temperature: -10℃ ~ 60℃
• Storage Temperature: -20℃ ~ 70℃
• Weight: 0.4KG

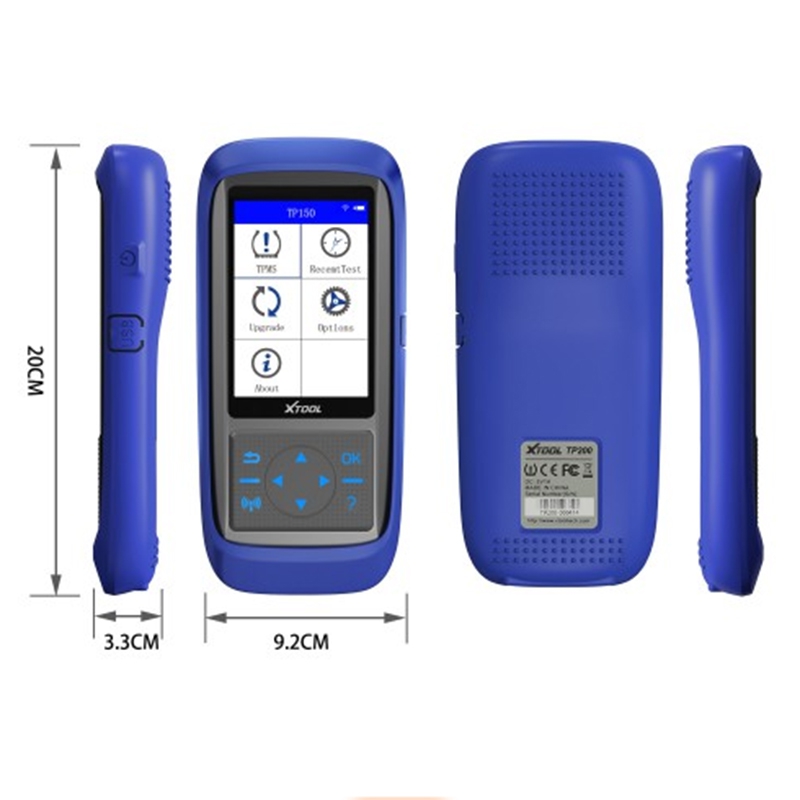

• Size: 200 × 92 × 33 mm
