Product Description
| Product name |
TPMS80 TPMS Sensor Programmer |
| Display |
2.8” TFT color display |
| Power Supply |
3.7V Li-polymer battery (built in) |
| Dimension |
201*107*42 MM |

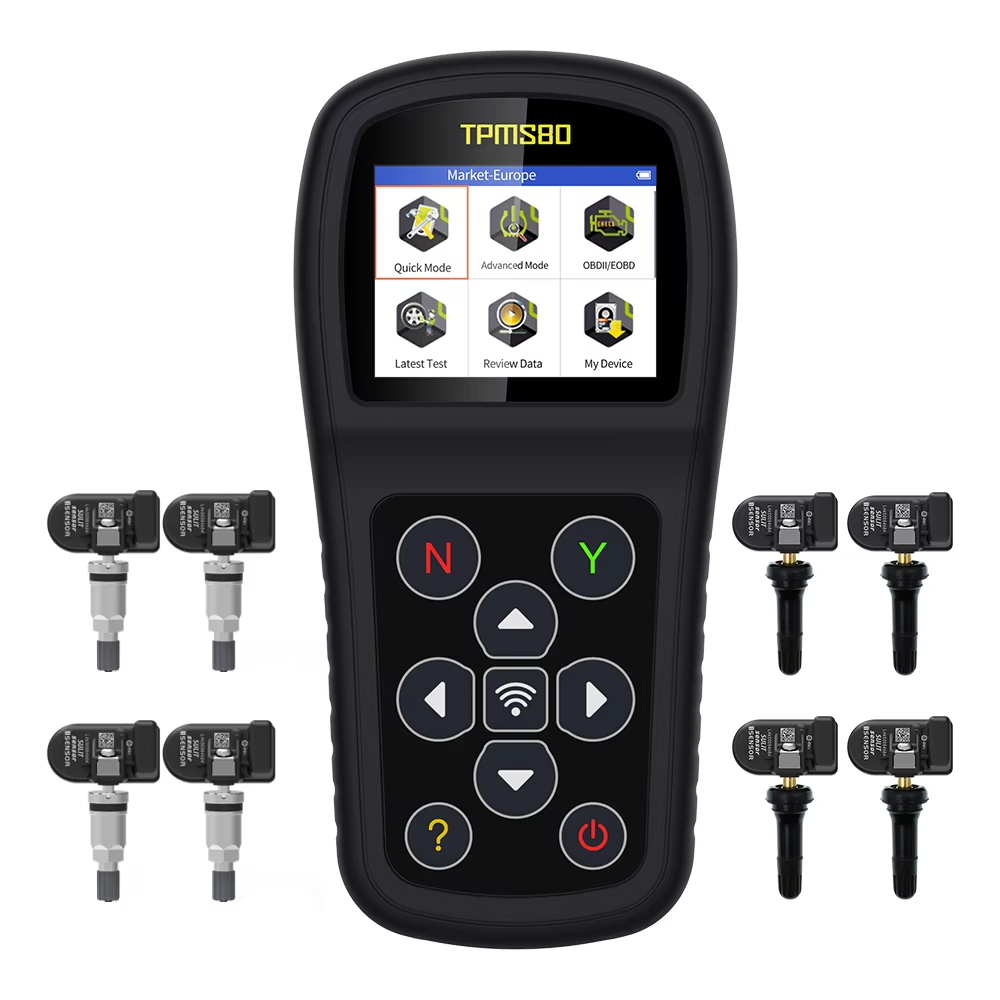

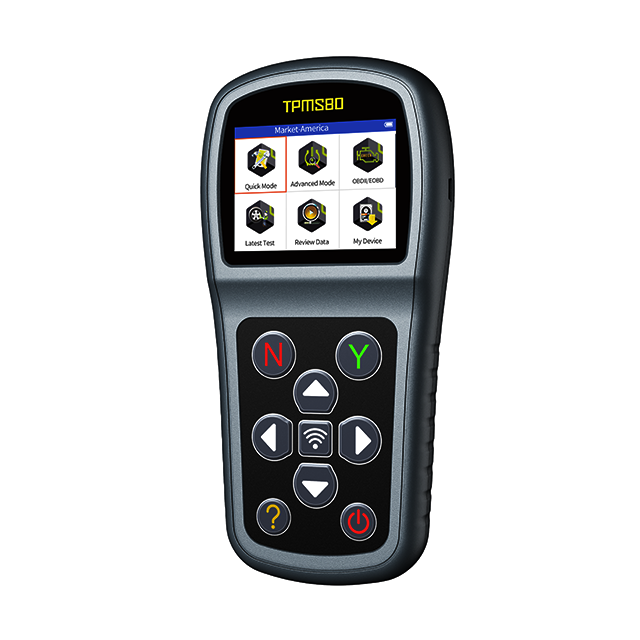

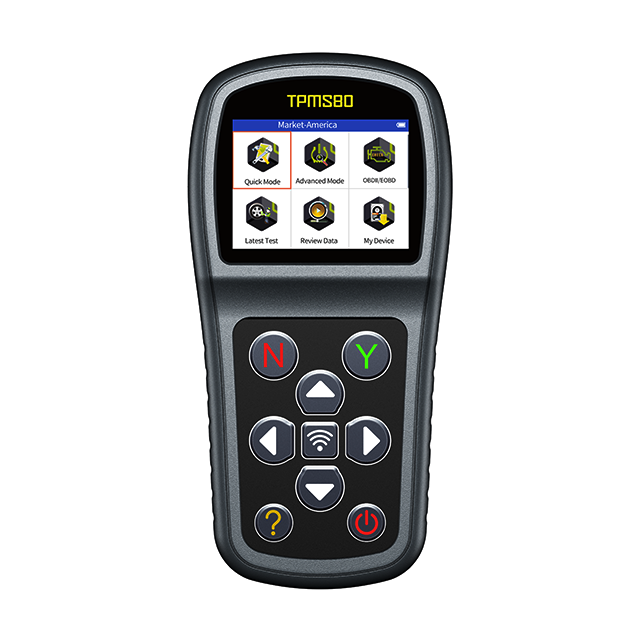

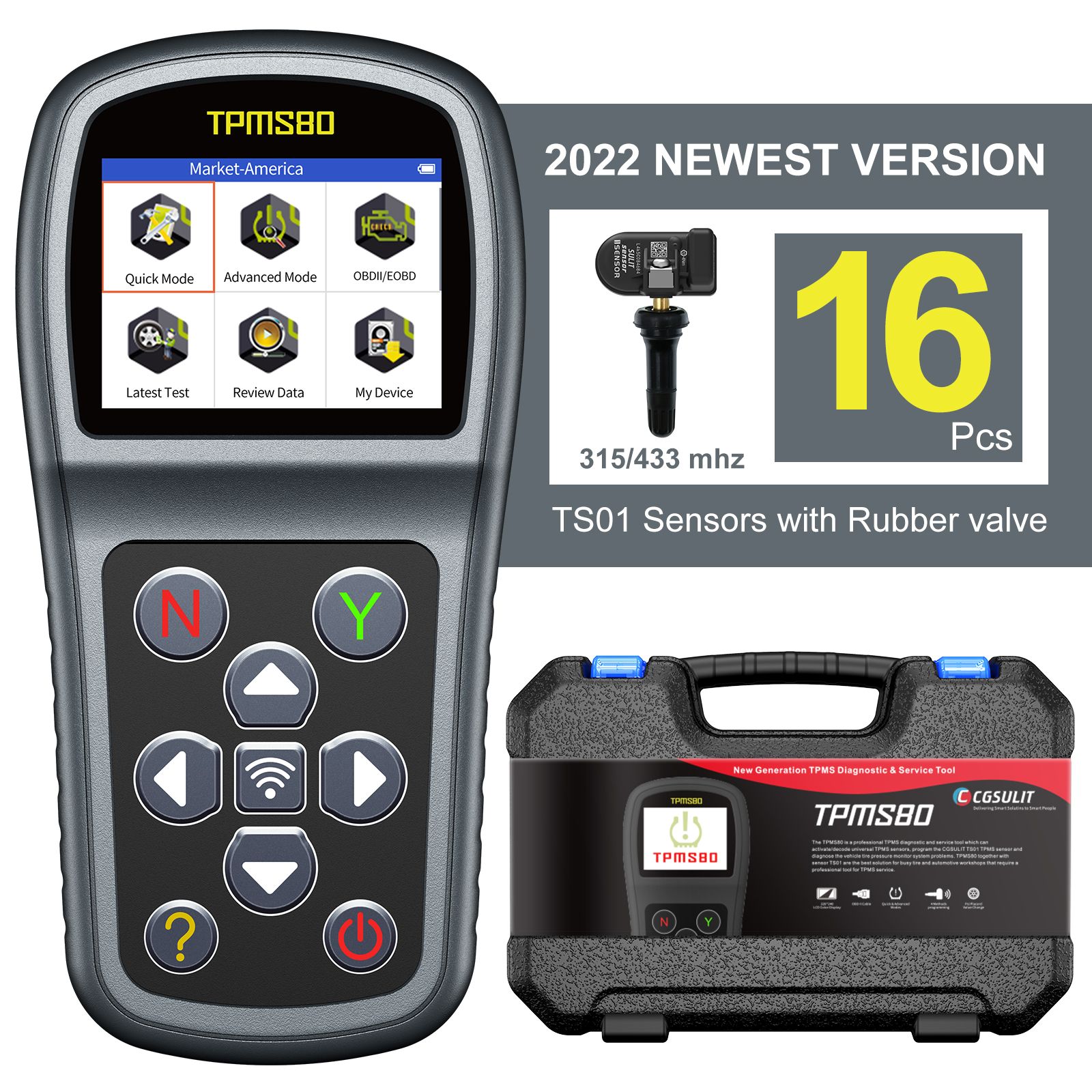

TPMS80 TPMS Sensor Programmer is a professional TPMS diagnosis and service tool which can activate or decode universal TPMS sensors, program the TS01 TPMS sensor and diagnose the vehicle tire pressure monitor system problems. TPMS80 together with sensor TS01 are the best solution for car owners and automotive workshops, for it's easy to use and affordable.
Tire pressure system needs to be checked regularly
Some studies have shown that a considerable number of people rarely check the tire pressure. Up to one-third of the cars on the road have at least one tire that is seriously underinflated. Some might say, it's no big deal, but the truth is underinflated tires can lead to premature wear, adversely affect handling and traction, and are prone to road accidents. Soft tires also increase rolling resistance, which in turn improves fuel economy performance.
Therefore, periodic tire pressure monitoring can help drivers properly maintain vehicle tires, improve vehicle safety and fuel efficiency.
Once the tire pressure is too high, too low, or leaking, the TPMS MIL (Malfunction Indicator Lamp) will alarm. Effective when you go to a professional auto repair shop to check and repair, but often costs more than your budget. However, for a fraction of the cost, professional TPMS relearn tool TPMS80 can perform the same functions to ensure your safe driving.

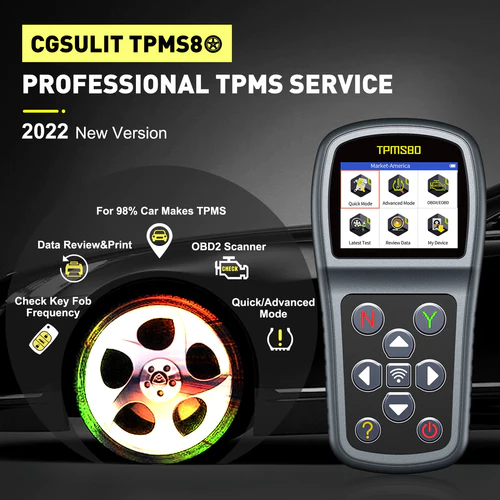

Newest All-in-One TPMS Service Tool
To turn off the TPMS warning light after replacement, you need to relearn the sensors to the vehicle! new generation TPMS80 helps you to replace the faulty sensor with low battery life or one that is not functioning well.
3 Ways of TPMS Sensors Relearn
TPMS80 can relearn all known sensors (both OEM and aftermarket) on TPMS enabled vehicles (American, European and Asian) to the ECU. It performs 3 ways of TPMS sensors relearning:
-
Stationary Relearn: Requires the vehicle be placed in the "Learn Mode".
-
Automatic Relearn: For some vehicles, can be completed by driving.
-
OBD Relearn: Directly writes TPMS sensor IDs to the TPMS module via the OBD connector.

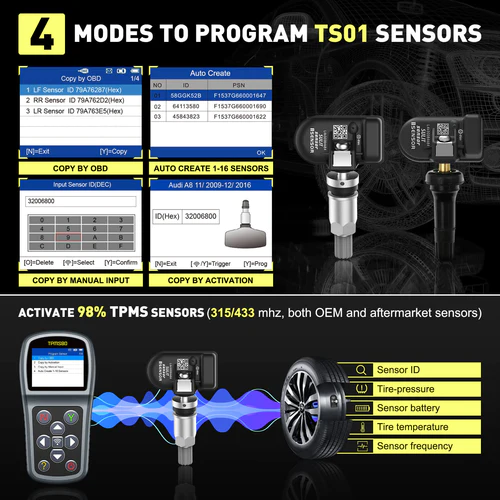

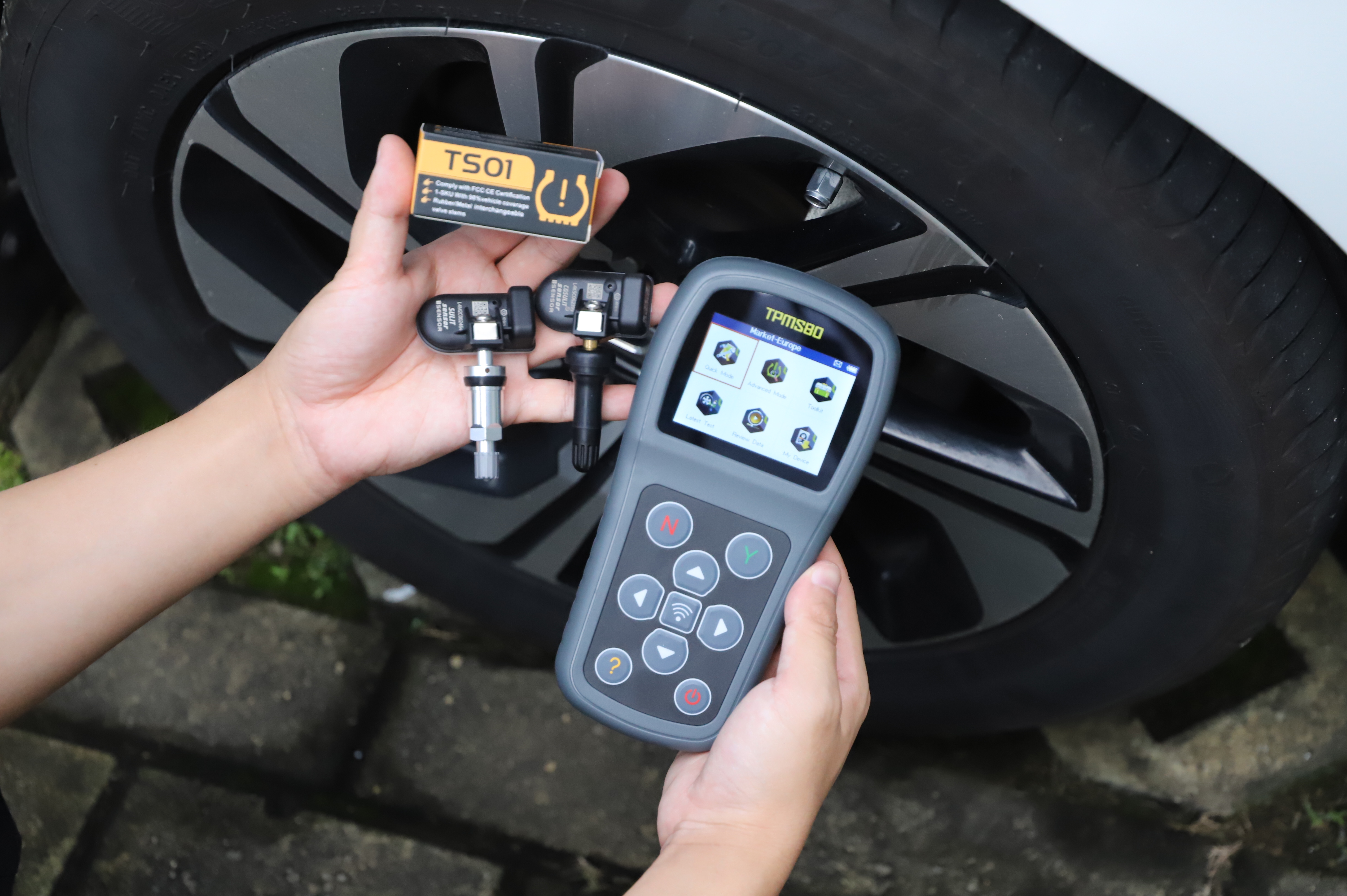

4 Modes to Program TS01 Sensors
TPMS80 Programming Tool enables all car owners/enthusiasts to program sensor data to TS01(315/433MHz) and replace the broken sensors with ease, saving you the money and trip to a dealership. TPMS80 comes with 4 modes to program TS01 sensors:
-
1. Copy by OBD needs to connect OBD cable to retrieve the sensor ID from the ECU.
-
2. Copy by Activation requires activate the original sensors first.
-
3. Copy by Manual Input can manually input the original ID.
-
4. Auto Create 1-16 Sensors makes it possible to program up to 16 sensors simultaneously.

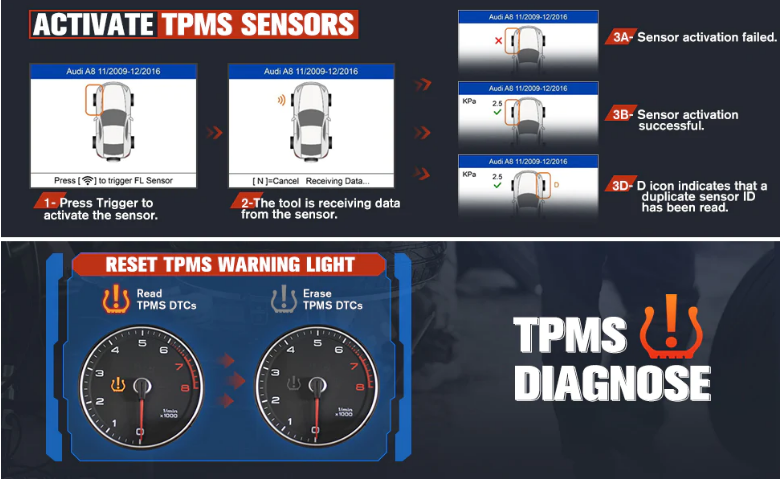

Activate/Reset All Known 315mhz or 433mhz TPMS Sensors
TPMS80 activation tool can activate 98% TPMS sensors (both OEM and aftermarket sensors) in all wheel mode and in single wheel mode to view sensor data like sensor ID, tire pressure, tire temperature, battery power level condition, sensor position and etc.
TPMS Diagnose - Unique TPMS System Status Screen
With unique TPMS Status Screen feature, TPMS80 Reset Tool can diagnose the TPMS system to read and clear TPMS DTCs, view DTCs detail description, read ECU sensor ID, and check sensor ID and ECU ID matching conditions, to check all TPMS sensors status. Quickly and easily to locate the faulty sensors and get it fixed.
NOTE: Activate all TPMS sensors before TPMS Diagnose.
Quick Mode/Advance Mode
Based on the service type needed, TPMS80 tool offers Quick Mode/Advanced Mode for faster & smarter TPMS repairs.
-
TPMS Quick Mode: basic TPMS functions to check TPMS sensors and program TS01 sensors quickly.
-
TPMS Advanced Mode: complete TPMS functions to perform sensor check, TPMS diagnose, TS01 sensor program and sensor position relearn.
Check Key Fob Frequency
When your key fob starts to act up or stops working, you would be happy to have TPMS80 universal tool in your tool arsenal to test the signal strength of the key fob instead of visiting a dealership.
Professional OBD2 Scanner with TPMS Reset - Support all 10 OBD test modes
- 1. Reading Codes: show the detailed description of the diagnostic trouble code, and support DTC lookup.
- 2. Clear Codes: turns off the Check Engine Light, including clear DTCs, ECU information, freeze frame.
- 3. Live Data: view and record real time PID data from a selected vehicle electronic control module.
- 4. I/M Readiness: view a snapshot of the operations for the emission system on OBDII/EOBD vehicles.
- 5. O2 Monitor Test: retrieve completed O2 sensors monitor test results.
- 6. On-Board Monitor Test: displays test results for Emission-Related power train components and systems that are and are not.
- 7. Component Test: allows the code reader to control operation of vehicle components, tests or systems.
- 8. Request Vehicle Information: to request the vehicle's VIN number, calibration ID(s), calibration verification numbers (CVN(s)) ect.
- 9. Modules Present: identifies module IDs and communication protocols for OBD2 modules in the vehicle.
- 10. DTC Lookup: to request DTC definitions stored in the code reader.
Data review & data printing functions allows you to review the data recorded, saved TPMS DTCs, tire type, pressure information and print it out via PC for further analysis and accurate repairs.
Lifetime Free Updates & 1 Year Warranty
TPMS80 comes with lifetime free updates to get frequently released updates to support newest car models, enable you always get the latest bug fixes. With 1 year warranty, 30-Day money back policy & lifetime services, your purchase is risk-free! Buy now to get your TPMS work done!

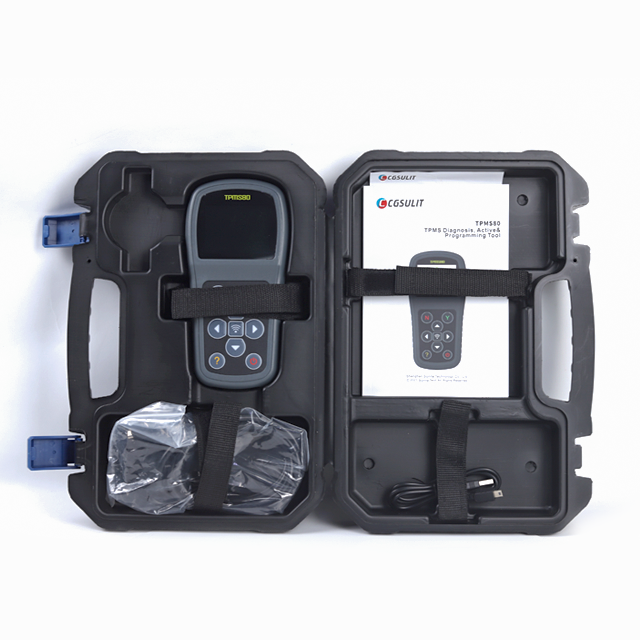

Package List:
- TPMS80 tool
- Diagnostic Cable
- User Manual
- Warranty Card

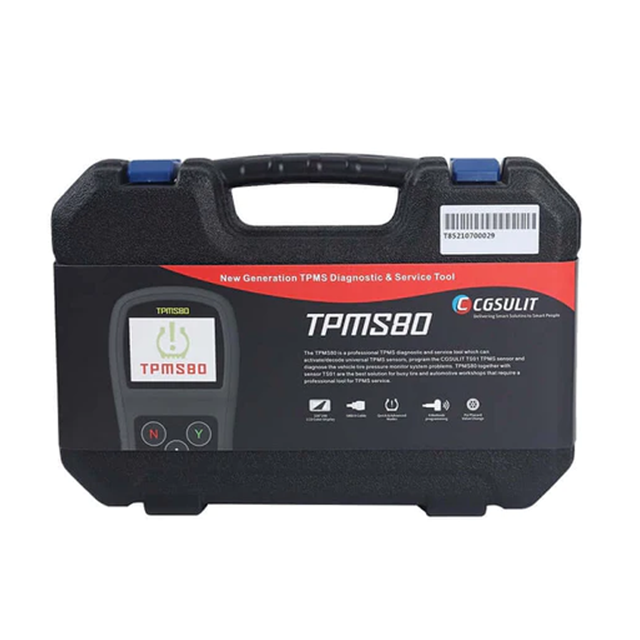

- Blow Molding Case
FAQ
What is the MOQ?
Sample order is available.
What is the Delivery time?
About 3-7 days.
Can you customize it?
Welcome, you can send your own design of automotive product and logo, we can open new model and print or emboss any logo for yours.
How to pay?
We support multiple payment methods.
What's the price? Is the price fixed?
The price is negotiable. It can be changed according to your quantity or package. When you are making an inquiry please let us know the quantity you want.
Will you provide a warranty?
Yes, We provide a three-year warranty.
