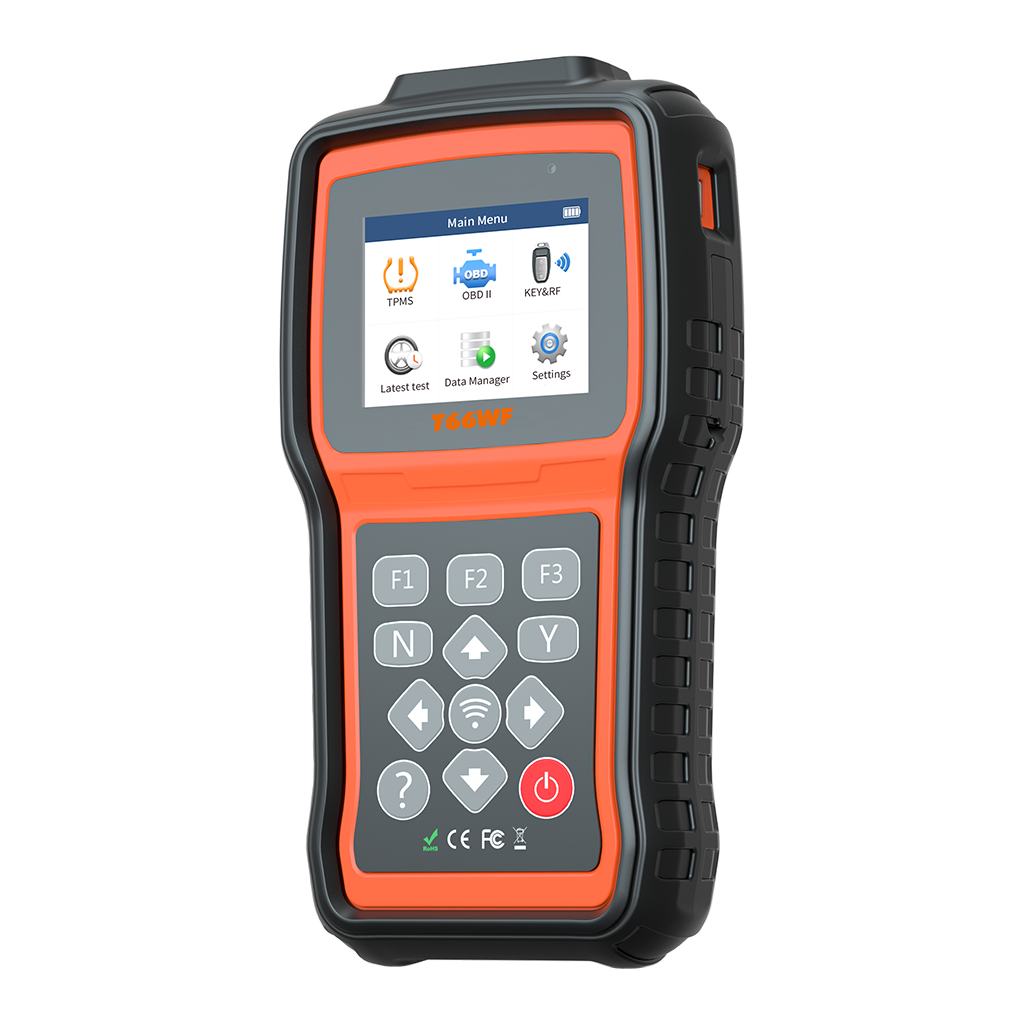

This device is a professional tire pressure maintenance programming hand tool, integrating the programming, activation, diagnosis, and system learning functions of tire pressure sensors, making it your choice for TPMS (Tire Pressure Monitoring System) maintenance. As a smart device, its core features include:
Rapid device updates and optimizations via wireless networks, compatible with 98%+ mainstream vehicle models.
Can synchronize multiple tire pressure sensors wirelessly to significantly improve work efficiency.
Built-in professional diagnostics (such as read/clear fault codes, OE number lookup) to meet diverse maintenance needs.
Full compatibility with dual-frequency sensors for expanded application scenarios.

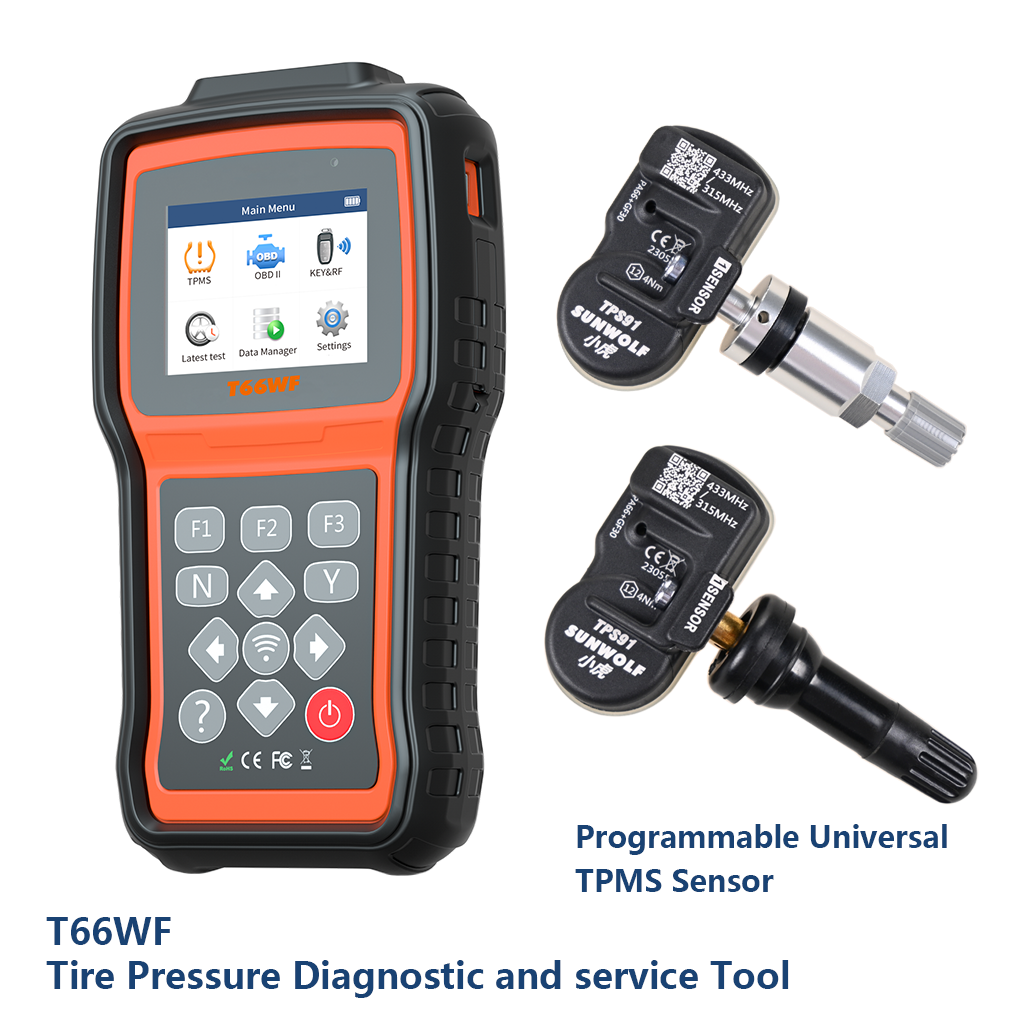

This device is specially designed for compatible tire pressure sensors. The programmed sensor can be used to replace the original sensor. If you need to purchase equipment accessories or replacement parts, please order through official channels or authorized dealers.
Reads sensor ID/fault codes and supports clear fault code, matching, and system relearning.
Wireless remote updates (no USB connection needed) for simplified, rapid operation.
Quick OE number queries via network databases for compatible vehicle models.
Real-time data display including sensor ID, pressure levels, temperature status, and battery levels.

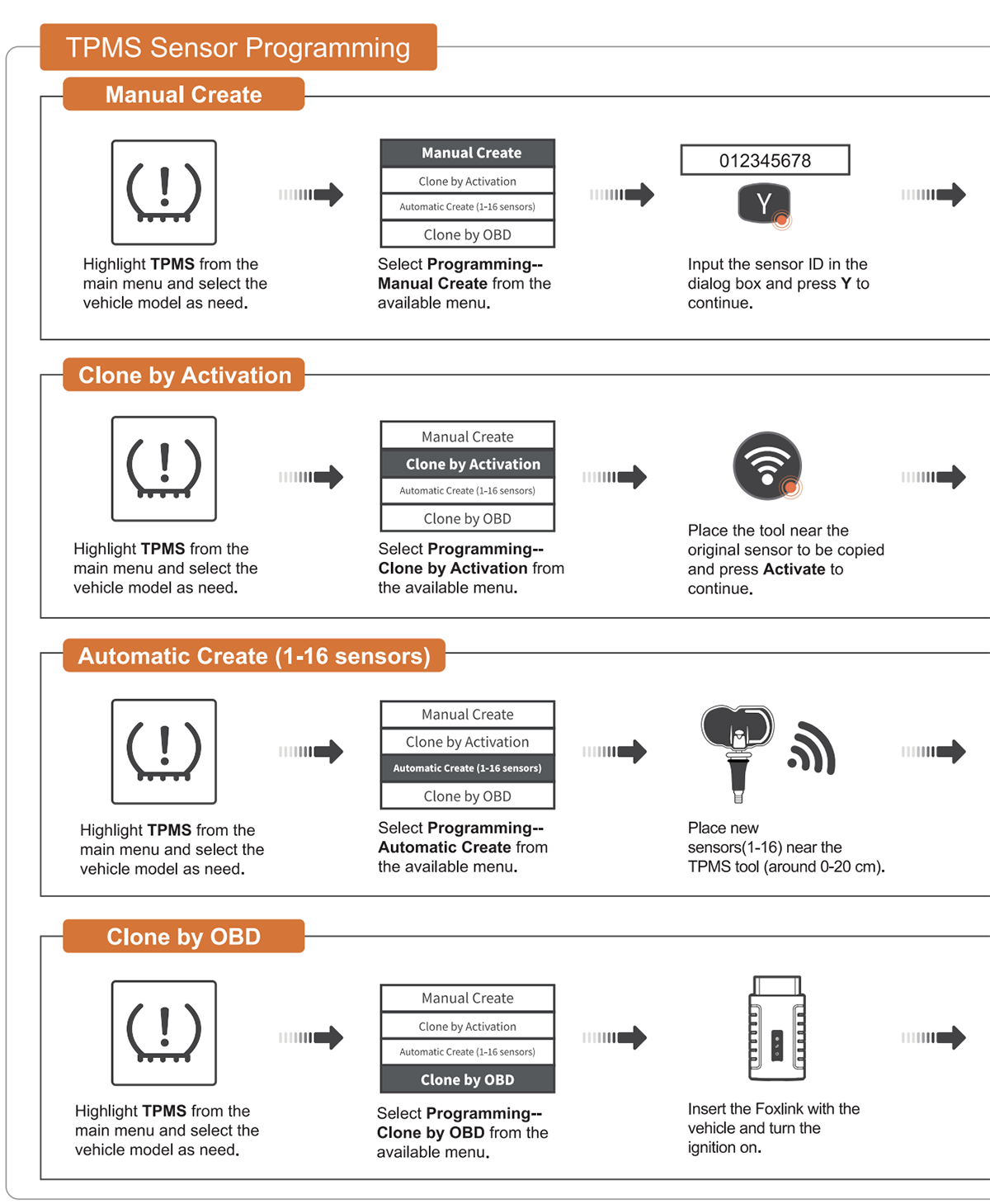

Supports manual input, OBD copy, auto-creation, and copy activation methods.
Identifies vehicle remote controller frequencies accurately (315MHz / 433MHz).
| Display size | 2.8-inch TFT color LCD screen (320*240 DPI) |
| Charging Voltage/Current | DC 5V 1.5A |
| Battery Capacity | 3.7V 3000mAh lithium polymer battery |
| Receiving Frequency | 315MHz/433MHz |
| Upgrade Method | 2.4G WIFI wireless / USB upgrade |
| Working Temperature | -20°C ~ 60°C (-4°F ~ 140°F) |
| Storage Temperature | -20°C ~ 60°C (-4°F ~ 140°F) |
| Size | 207.1 * 112.2 * 38.4 mm |
| Weight | 0.40 kilograms (net weight) |
| Working Temperature | -20°C ~ 60°C (-4°F ~ 140°F) |
| Storage Temperature | -20°C ~ 60°C (-4°F ~ 140°F) |

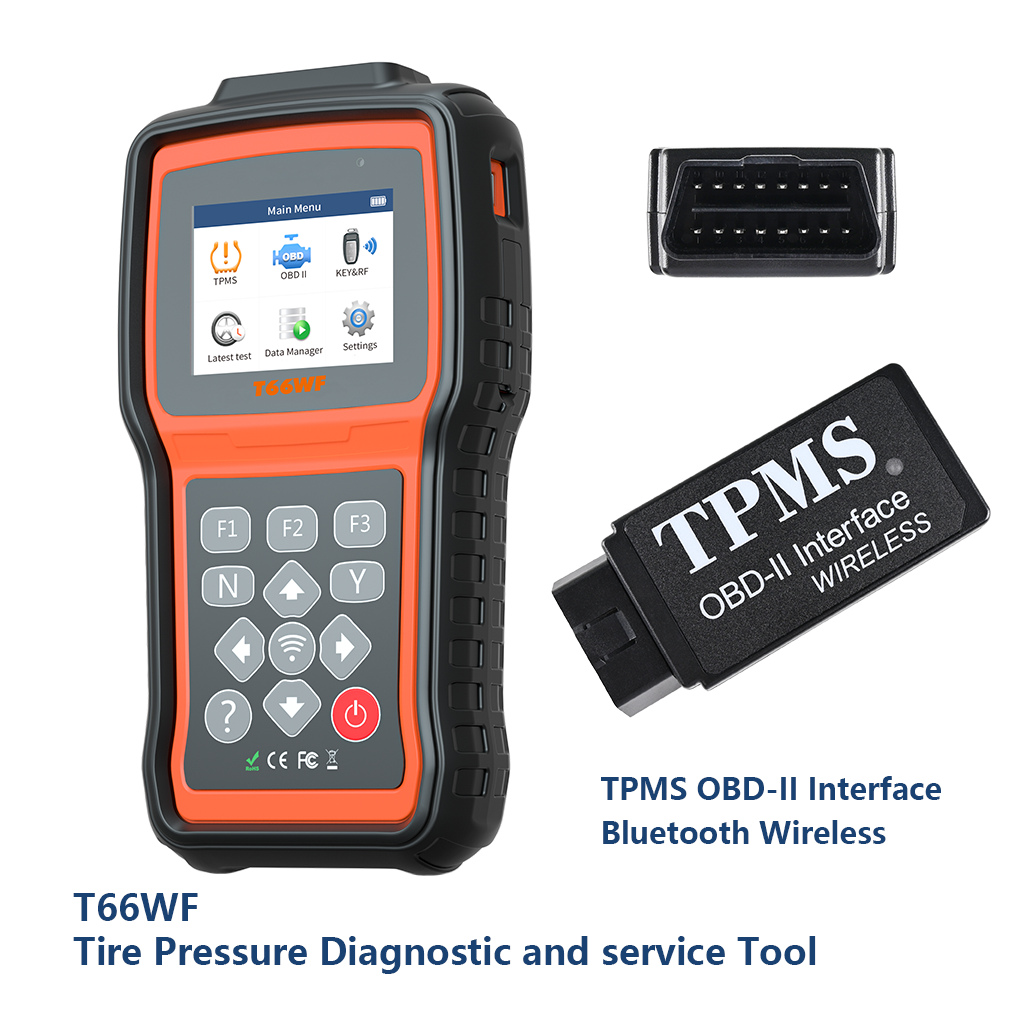

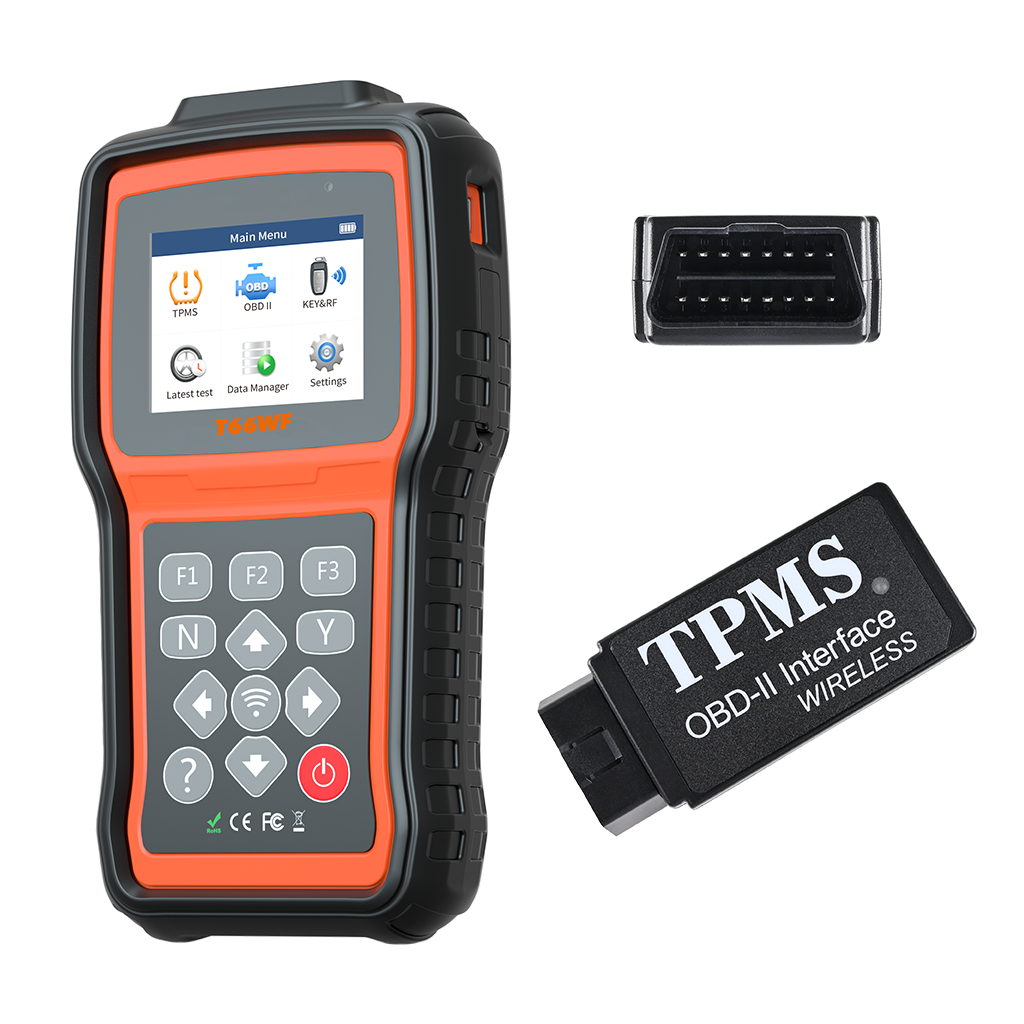

| Communication Mode | BLE5.2 Bluetooth |
| Diagnostic Protocol | ISO9141-2, ISO14230-2, ISO15765, K/L-Line, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (high speed, medium speed, low speed, single wire CAN) |
| Interface Voltage | 9 ~ 16V |
| Interface Type | OBD-II standard interface |
| Size | 106 * 48 * 26 mm |
| Weight | 0.09 kilograms (net weight) |
The device features dual-frequency detection and programming, making it fully compatible with both 315MHz and 433MHz tire pressure sensors.

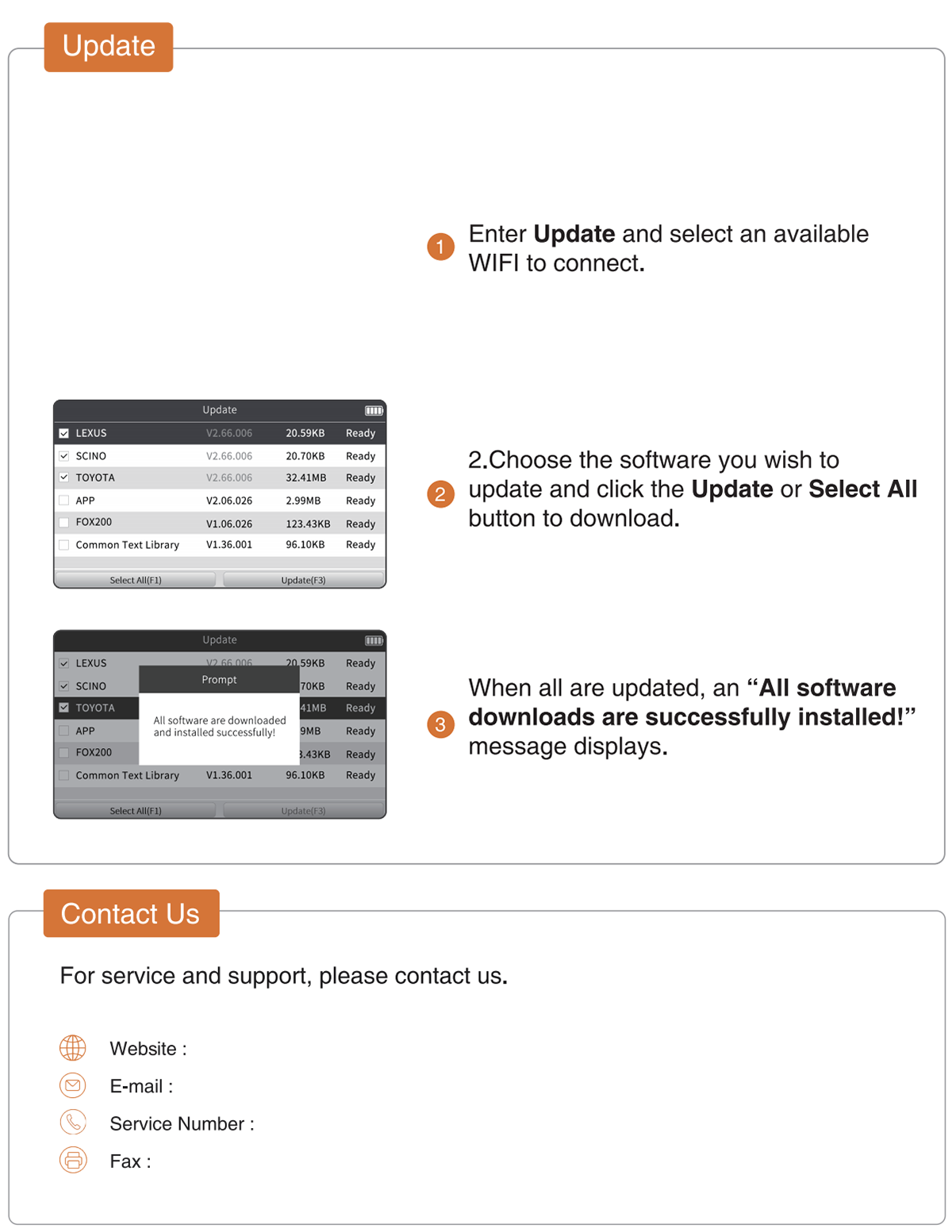

The device supports built-in 2.4G Wi-Fi for remote wireless upgrades, allowing for quick optimizations without the need for a USB connection. A standard USB upgrade path is also supported.

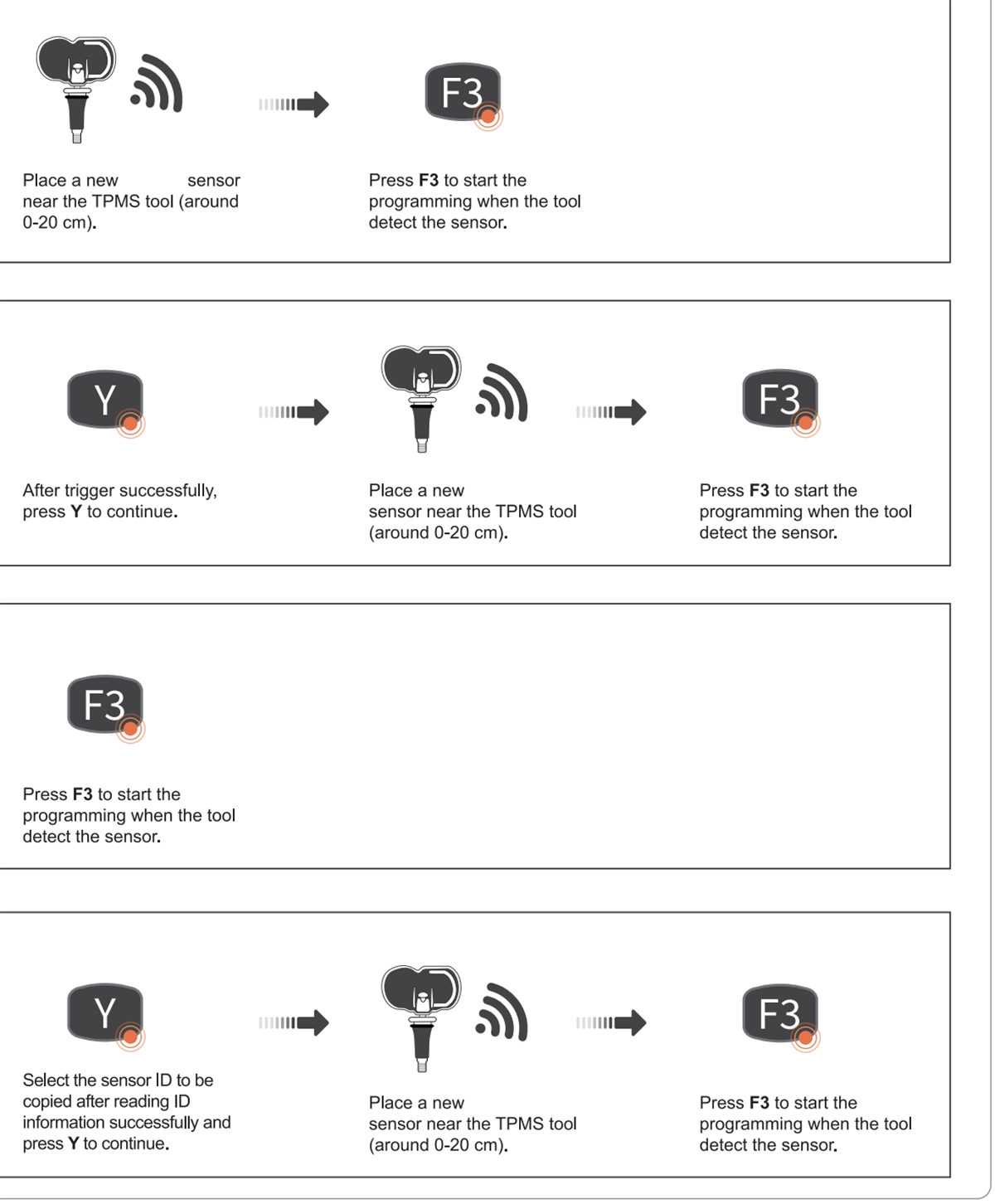

Yes, it features Multi-Sensor Synchronous Programming, which allows you to program multiple compatible tire pressure sensors wirelessly at the same time to increase efficiency.
The optional OBD module supports major protocols including ISO9141-2, ISO14230-2, ISO15765, K/L-Line, SAE-J1850 VPW/PWM, and ISO11898 (covering high, medium, low-speed, and single-wire CAN).
The tool can read and display real-time sensor information including the sensor ID, tire pressure, temperature, and sensor battery level status.
The host is equipped with a high-capacity 3.7V 3000mAh lithium polymer battery and supports a DC 5V 1.5A charging input.
