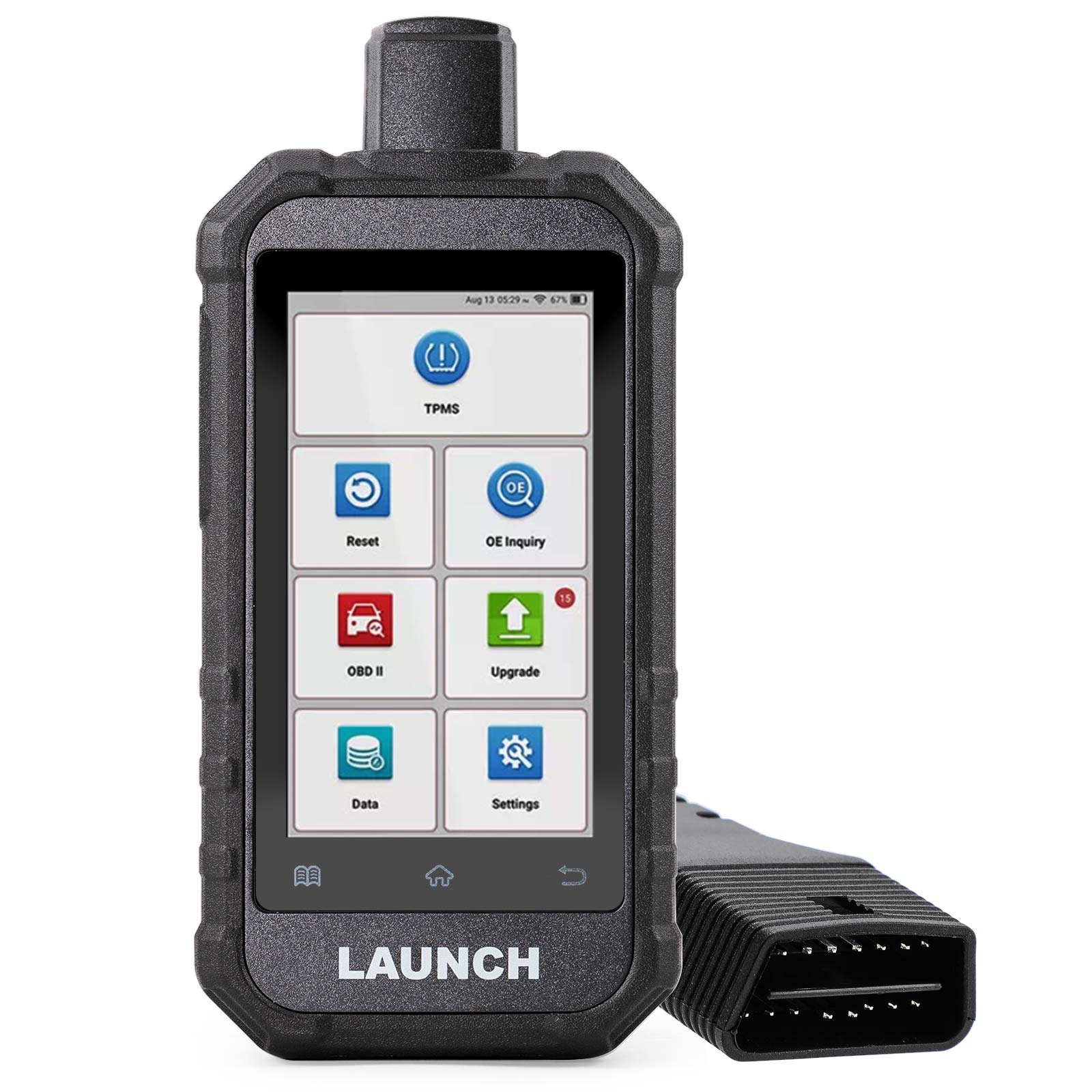

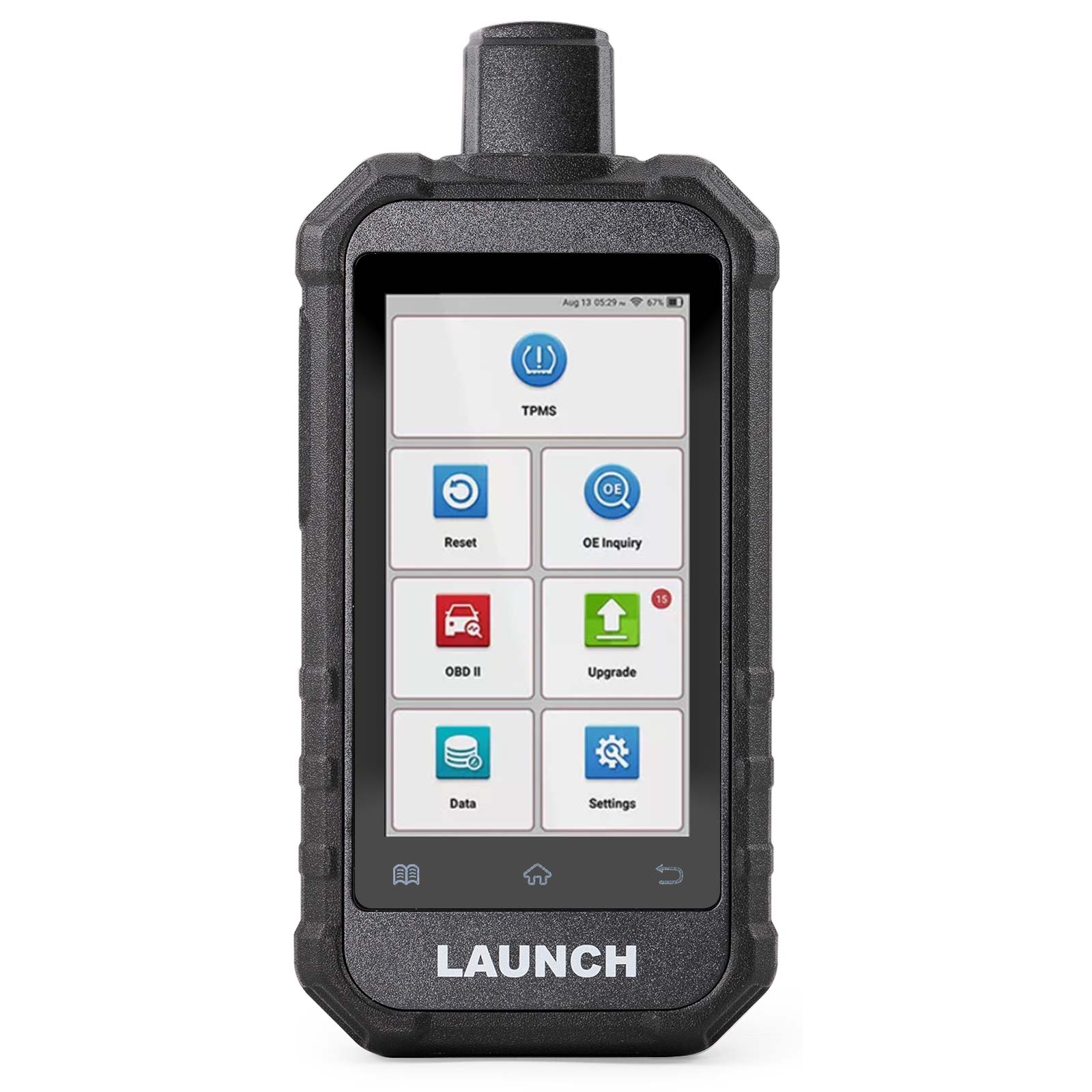

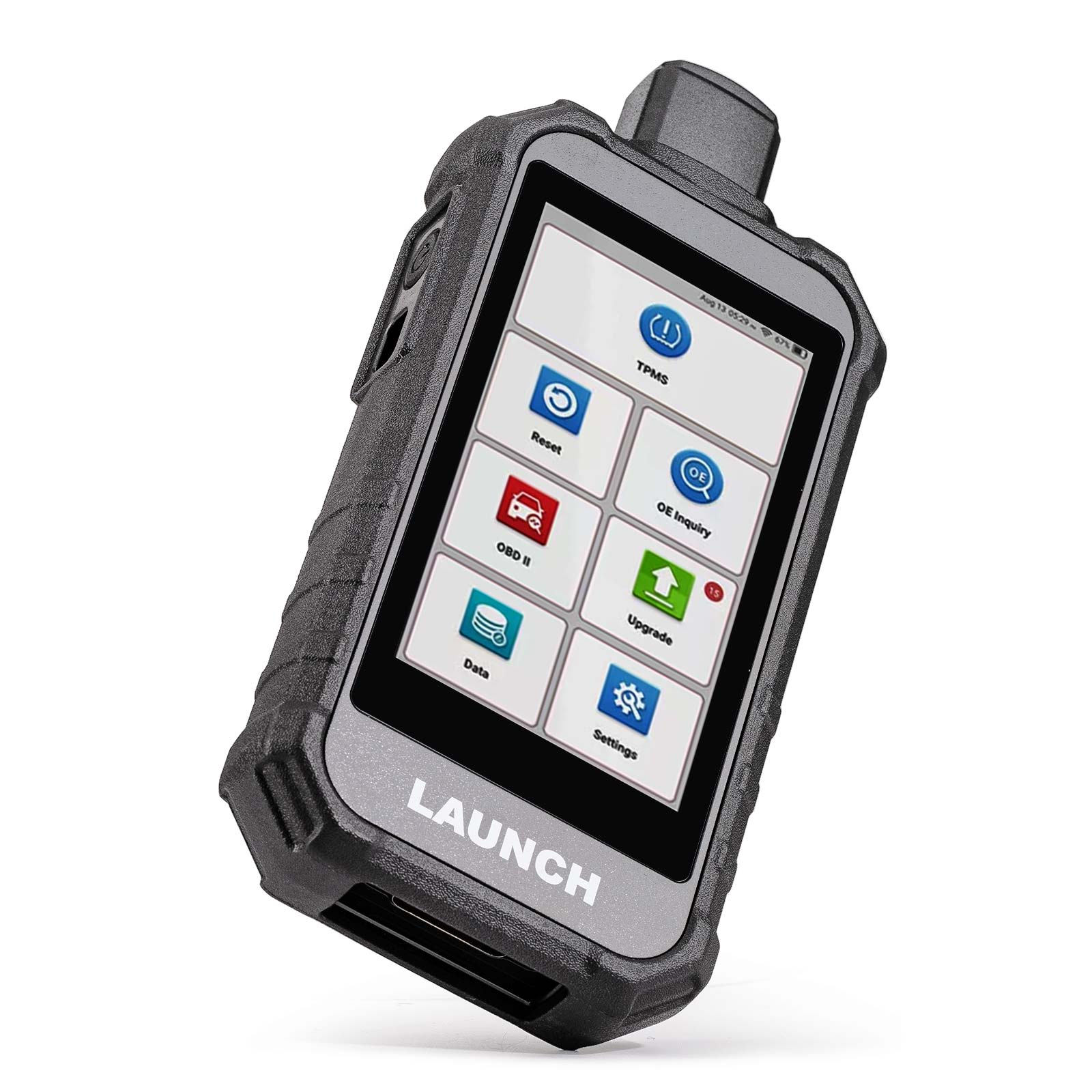

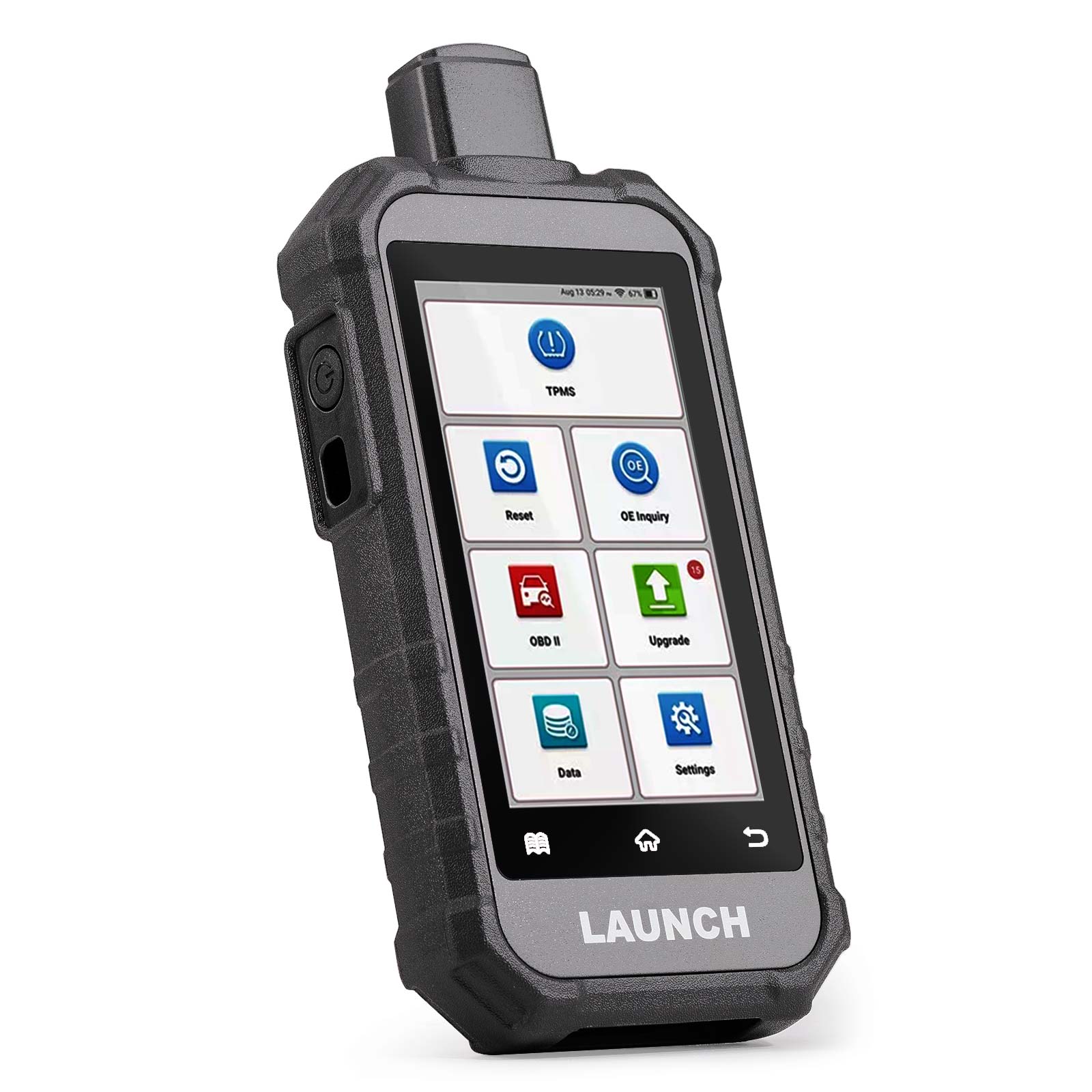

Creader TPMS 5011 V2 is an intelligent tire pressure system detection terminal based on Android operating system, suitable for tire pressure systems of multiple models of vehicles. It has the functions of TPMS sensor activation, reading, diagnosis, learning and programming. Moreover, it can connect to Wi-Fi for one-click upgrade.
This device is for professional technicians or maintenance personnel. Its application scenarios are mainly various types of automobile repair companies and 4S stores. It also has 12 special functions: ABS exhaust, battery matching, brake pad replacement, DPF regeneration, throttle learning, injector coding, maintenance light reset, steering angle learning, seat calibration, sunroof initialization, door and window calibration.
| Parameter | Specification Details |
|---|---|
| Screen | 5-inch 720P, touch screen |
| Interface | 1. Standard OBDII interface 2. TYPE-C interface |
| Android Version | Android 8.1 |
| Storage | 2+32GB |
| Battery | 6000mAh |
| CPU | 1.3G |
| Communications/Upgrades | WIFI 2.4Ghz (b/g/n) |
| Weight | <880g |
| Storage Temperature | -20 ~ 70 ℃ |
| Operating Temperature | -10 ~ 50 ℃ |
|
LAUNCH Creader TPMS 5011 V2 provides users with complete OBDII diagnostic functions, it can quickly access and diagnose the engine system of OBDII-compliant vehicles.
Show the detailed description of the Diagnostic Trouble Codes (DTCs).
Turns off Check Engine Lights (MILs), clears codes and resets monitors.
Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.
Shows whether the various emissions-related systems on the vehicle are operating properly.
Show the information of continuous data stream from a vehicle in live graphic display.
Check the certain vehicle conditions which are recorded by the on-board computer.
Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests.
Retrieves and displays test results for emission-related powertrain components and systems.
Display information such as VIN (Vehicle Identification Number), CID, and CVN.
Certain vehicle components can be actuated by commands sent from the scanner to test their operability.
| Model | Creader TPMS 5011 V2 | CRT5011E/CRT5011X |
|---|---|---|
| Screen | 5-inch | 3.5-inch |
| Resolution | 720*1280 | 320*480 |
| Battery | 6000mAh | 3100mAh |
| Storage | 2+32GB | - |
| WIFI+Bluetooth | 2.4G | - |
| OBDII Interface Input Voltage | 9~18V | 9~18V |
| Operating Temperature | 0℃~45℃ | 0℃~45℃ |
| Storage Temperature | -20℃~+70℃ | -20℃~+70℃ |
| Size | 211.5*99*34.5mm | 112.5*198*35mm |
| Input Voltage | 9~18VDC input via vehicle diagnostic socket / 5V via USB cable | 9~18VDC input via vehicle diagnostic socket / 5V via USB cable |
| Languages | German, English, Spanish, French, Korean, Italian, Japanese, Traditional Chinese, Portuguese, Russian, Arabic | German, English, Spanish, French, Korean, Italian, Japanese, Traditional Chinese, Portuguese, Russian, Polish |
| Certification Type | CE/FCC/ROHS/IC | CE/FCC/ROHS |
| Brand | LAUNCH |
| Feature 1 | Tire pressure matching learning |
| Feature 2 | Sensor ID values can be read |
| Feature 3 | Sensor ID values can be copied |
| Feature 4 | Sensor ID values can be written |
| Feature 5 | Real-time tire pressure data |
| Feature 6 | WIFI one-click upgrade |
| Feature 7 | OE number query |
| Feature 8 | Support the generation |
| Feature 9 | Support data feedback |
A1: Yes, the device fully supports reading, copying, and writing sensor ID values. Unlimited repeated programming is supported for compatible tire pressure sensors.
A2: It supports 12 special functions, including ABS exhaust, battery matching, brake pad replacement, DPF regeneration, throttle learning, injector coding, maintenance light reset, steering angle learning, seat calibration, sunroof initialization, and door/window calibration.
A3: The device features built-in Wi-Fi, allowing you to perform one-click upgrades directly over the air. You do not need to plug the memory card into a computer to update.
A4: The LAUNCH Creader TPMS 5011 V2 activates all 315/433MHz and 2.4GHz tire pressure sensors. The activation function specifically for Tesla Bluetooth sensors is scheduled to be added soon via a software update.
A5: It supports 11 languages: German, English, Spanish, French, Korean, Italian, Japanese, Traditional Chinese, Portuguese, Russian, and Arabic.
A6: It provides complete OBD-II diagnostic functions, such as reading and erasing diagnostic trouble codes (DTCs), retrieving freeze frame data, displaying live graphic data streams, conducting O2 sensor tests, checking I/M readiness status, and running component tests.
