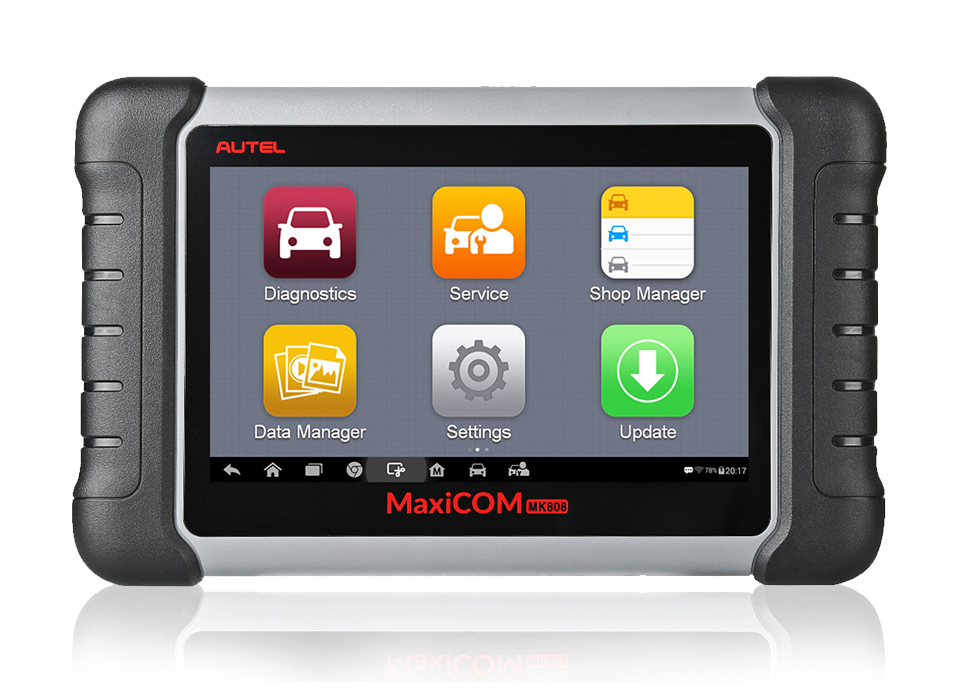

Autel MaxiCOM MK808 Automotive Diagnostic Scanner with IMMO/EPB/SAS/BMS/TPMS/DPF Service Code Reader Seven-inch Touchscreen Android Tablet With Online Update
The MaxiCOM MK808 is a powerful Android tablet with intuitive seven-inch touch screen capable of scanning all available modules for faulty codes and aiding in performing an extensive list of the most popular maintenance services including oil and service light resets and steering angle sensor calibration. The tool’s quad-core processor and 32GB operating memory combined with its drill-down touch interface enables deft analysis of domestic, Asian and European vehicles, 1996 and newer.
Read and erase codes for all available systems using the supported protocols. The tablet type MaxiCOM diagnostic tool is the best way to display live data in text, graph & analog for easy data review.
Detect the engine ignition, fuel injection, air and fuel ratio, and exhaust emission conditions in Engine system to enhance vehicle performance, save energy and reduce exhaust emission.
Figure out problems when your car is slipping or difficult to shift by reading codes in the Transmission system, or check the health status via live data viewing.
Retrieve ABS codes to pinpoint issues following visual inspections of all brake components, ensuring safe driving operations.
Detect electronic parameters within the Safety Restraint System (impact sensors, control module, and airbags) to verify its health status.
Supports a wide range of special functions, including IMMO (immobilizer), Oil Reset, EPB, SAS, BMS, DPF, TPMS, and many more:
Allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.
Important in the maintenance of electronic braking system’s safety and efficiency.
Evaluates battery charge state, monitors close-circuit current, registers replacement, and activates vehicle rest state.
Works for Diesel Particulate Filter system with DPF regeneration, component replacement teach-in, and ECU replacement teach-in.
Helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.
Displays ECU sensor IDs, inputs replacement IDs, and disables lost keys while programming new key fobs.
Global Vehicle Coverage: Covers Asian and European vehicles after 1996. Utilizes new Auto VIN ID Tech to automatically identify the vehicle’s make, model and year without the need for user assistance.
In addition to the standard features and special functions, there are also a host of enhanced features specifically designed for common repair shop work:
MK808 is suitable for most OBD2 vehicles and support many car brands like Ford, Honda, Chevrolet, Jeep, Toyota, Dodge, GM, Volkswagen, Audi, BMW, Benz, etc.
When it comes to the Non-OBD2 vehicles, you can connect the device with vehicles via adapters (not included) to complete car diagnoses. This diagnostic tool support different kinds of adapter connection.
The MaxiCOM MK808 is a powerful and intuitive seven-inch touchscreen Android tablet capable of scanning all available system for faults and aiding in performing an extensive list of the most popular maintenance services including oil and service light resets and steering angle sensor calibration. The tool’s quad-core processor and 32 gigabyte operating memory combined with its drill-down touch interface enables deft analysis of domestic, Asian and European vehicles, 1996 and newer.
| Recommended Use | Indoor |
| Operating System | AndroidTM 4.4.4 |
| Processor | Cortex-A9 processor (1.5 GHz) |
| Memory | 32GB |
| Display | 7-inch LCD capacitive touchscreen with 1024x600 resolution |
| Connectivity | Mini USB 2.0, USB 2.0, Wi-Fi, Micro SD card (supports up to 32GB) |
| Sensors | Ambient light sensor for brightness auto adjust |
| Audio Input/Output | Input: N/A, Output: Beep |
| Power and Battery | 3.7 V/3200 mAh lithium-polymer battery, Charges via 5 VDC power supply |
| Tested Battery Life | Around 4.5 hours of continuous use |
| Battery Charging Input | 5 V/1.5 A |
| Power Consumption | 500 mA (LCD on with default brightness, Wi-Fi on) |
| Operating Temp. | 0 to 55°C (14 to 131°F) |
| Storage Temp. | -20 to 60°C (-4 to 140°F) |
| Operating Humidity | 5% - 95% non-condensing |

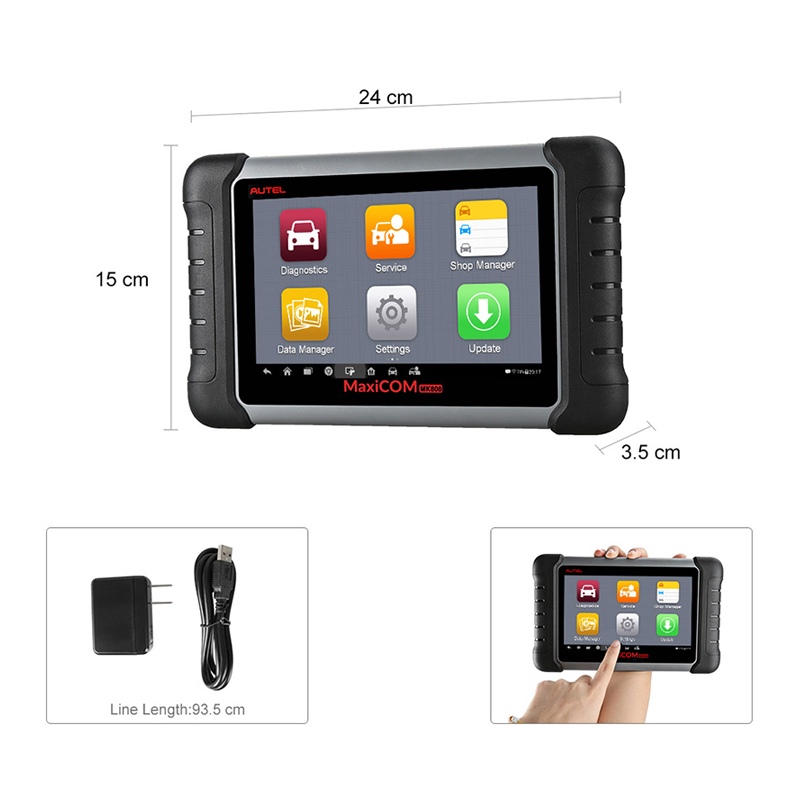

| Dimensions (W x H x D) | 237.8 mm (9.4”) x 148.6 mm (5.9”) x 35.5 mm (1.4”) |
| Net Weight | 788 g (2.42 lb.) |
| Supported Automotive Protocols | ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6 |
The diagnostic scanner can read and erase codes for all available modules in domestic, Asian, and European vehicles. This includes critical systems such as the Engine, Transmission, ABS (Anti-lock Braking System), and SRS (Safety Restraint System).
Yes, it supports a wide variety of special services including Oil Reset, Electronic Parking Brake (EPB) service, Battery Management System (BMS) registration, Diesel Particulate Filter (DPF) regeneration, Steering Angle Sensor (SAS) calibration, Tire Pressure Monitor System (TPMS) relearns, and basic IMMO functions.
The integrated Auto VIN ID Technology automatically detects and retrieves the vehicle’s make, model, and year information instantly, removing the need for manual inputs and speeding up the diagnostic process.
The tablet is fully compatible with OBD2 vehicles manufactured after 1996. For older or non-OBD2 vehicles, you can use specialized adapters (not included in the basic package) to establish a stable diagnostic connection.
The device features online update capabilities via Wi-Fi. Updates regularly improve the application's capabilities, add new vehicle coverage, and enhance overall system functionality.
